Need help please

[Pepakuraprep]

I just found out that my nephew is having a friend at school,make him a metal Captain America shield. So i thought i would make him the foam Helmet to go with it.Can anyone here tell me what parts need to be cut at 45• angles so i can save me some time on this project.I want to have it ready by christmas.

Thanks in advance for any help people's


Pepakura Prep



[Fly4v]

Do you have JFcustom's foam helmet file?
He nicely posted a PDF file in my Captain America build.

Just added in *.pdf.
Mac friendly
captain_america_foam_helmet.pdf

_

Edit: Sorry the file didn't stay in the quote. :confused



[docholiday78]

jf customs file should show which ones are angled



[JFcustom]

Both *.pdo and *.pdf files can be DL here : http://www.therpf.com/f24/captain-americas-helmet-speed-peping-foam-file-152770/

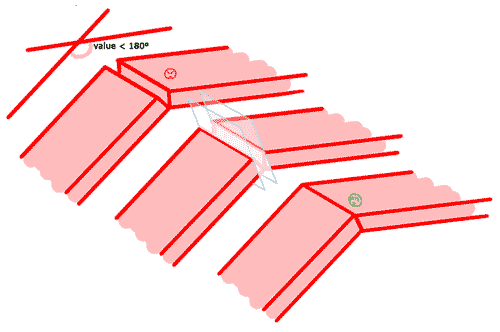

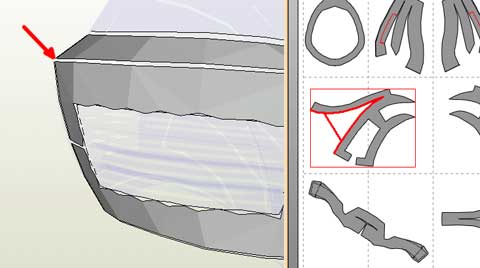

It's simple as possible : each time the surface of the helmet makes an angular outward inflection (not a simple curve, but an real palpable angle), you must make the angled cuts. Always refer to the 3D view of pepakura viewer.
And no rush for christmas, you can build and paint it in half a day



[Pepakuraprep]

Thanks guys


Pepakura Prep
