My Vader ANH Saber (Heiland Conversion)

Discussion in 'Star Wars Costumes and Props' started by SpeedRacerx, Sep 15, 2015.

Tags:
  1. SpeedRacerx

    SpeedRacerx Active Member

    Trophy Points:
    361

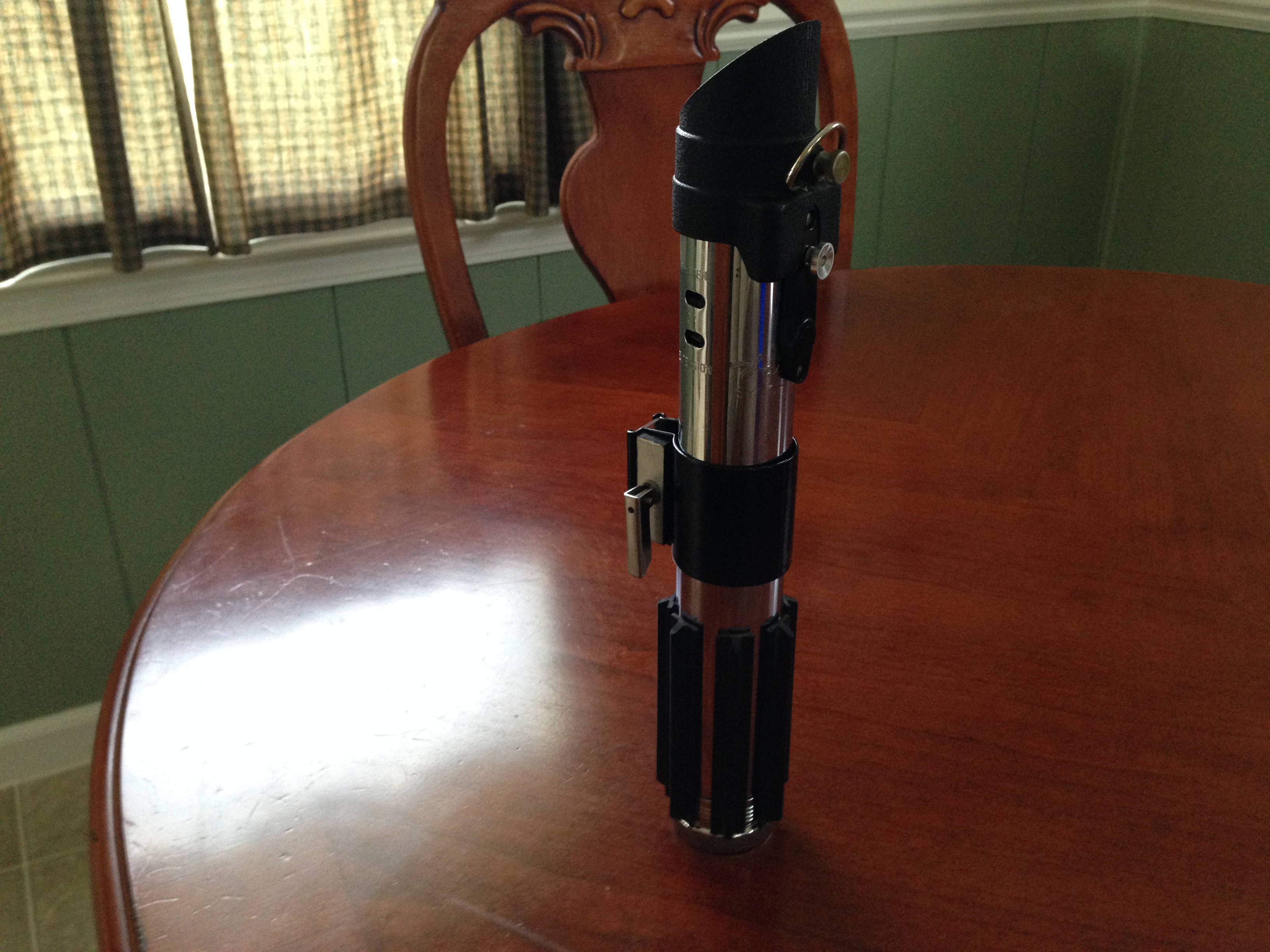

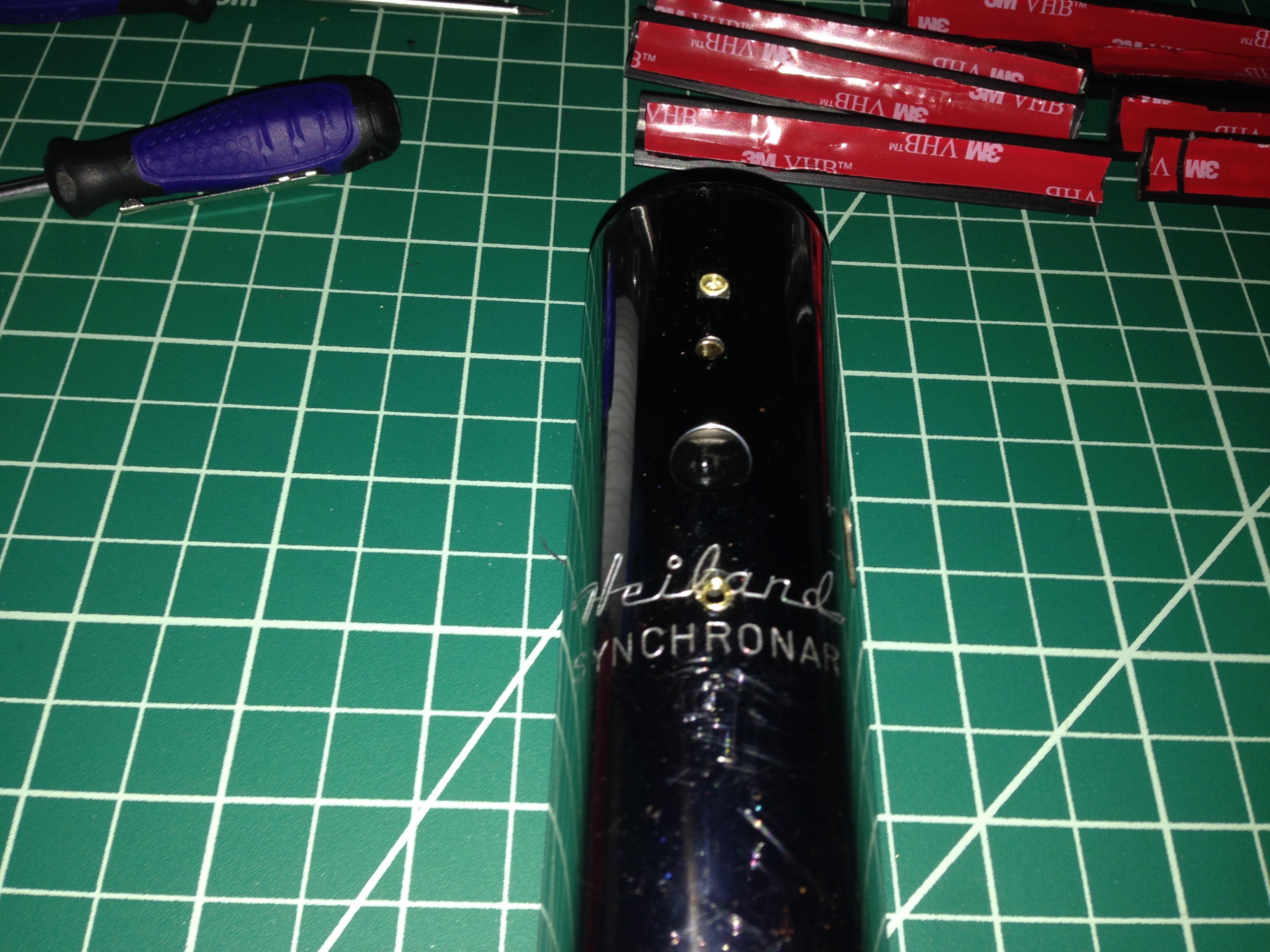

    After almost a year of research and part procurements, I present my A New Hope Vader Saber. I started with a "correct" Heiland flash unit, then purchased another Heiland flash to acquire the most accurate Heiland end cap to an MPP. The clamp assembly and bulb release were one of the last from John at YodasHouse. The T-Track is from Roy at WannaWanga. The D-Ring is from a friend here on the RPF. And finally the shroud I kept as the original Heiland "incorrect" two-step. Take a look through the pictures to see my solution for moving the bulb release to the correct MPP side of these Heiland versions. I bored out the threaded hole on that side of the flash and used that hole to be where the bulb release button would fit into. I then marked and drilled the two holes for the two screws that mount the bulb release assembly to the flash. Making it a tight fit and threading these two holes some, the bulb release screws, and the button are now what holds the "guts" of the flash into the body. Mounting the bulb release assembly this way makes it slightly higher than I believe it should be, but I felt the need to utilize that existing screw hole, and it's not an actual MPP flash after all. I tried the film canister solution to the clamp sleeve, but either the clamp shape or flash body isn't exactly the same as other flash versions, and it was too much for the clamp to be able to close correctly. So I currently have no sleeves, and as seen in the last picture the clamp is quite low. It moves around rather easily without a sleeve.

    This was my first dive into saber making and I have to thank Master Chaim Sym-Cha and Roy Gilsing roygilsing the most for inspiring and helping me along the way. Go support Roy at www.wannawanga.com!

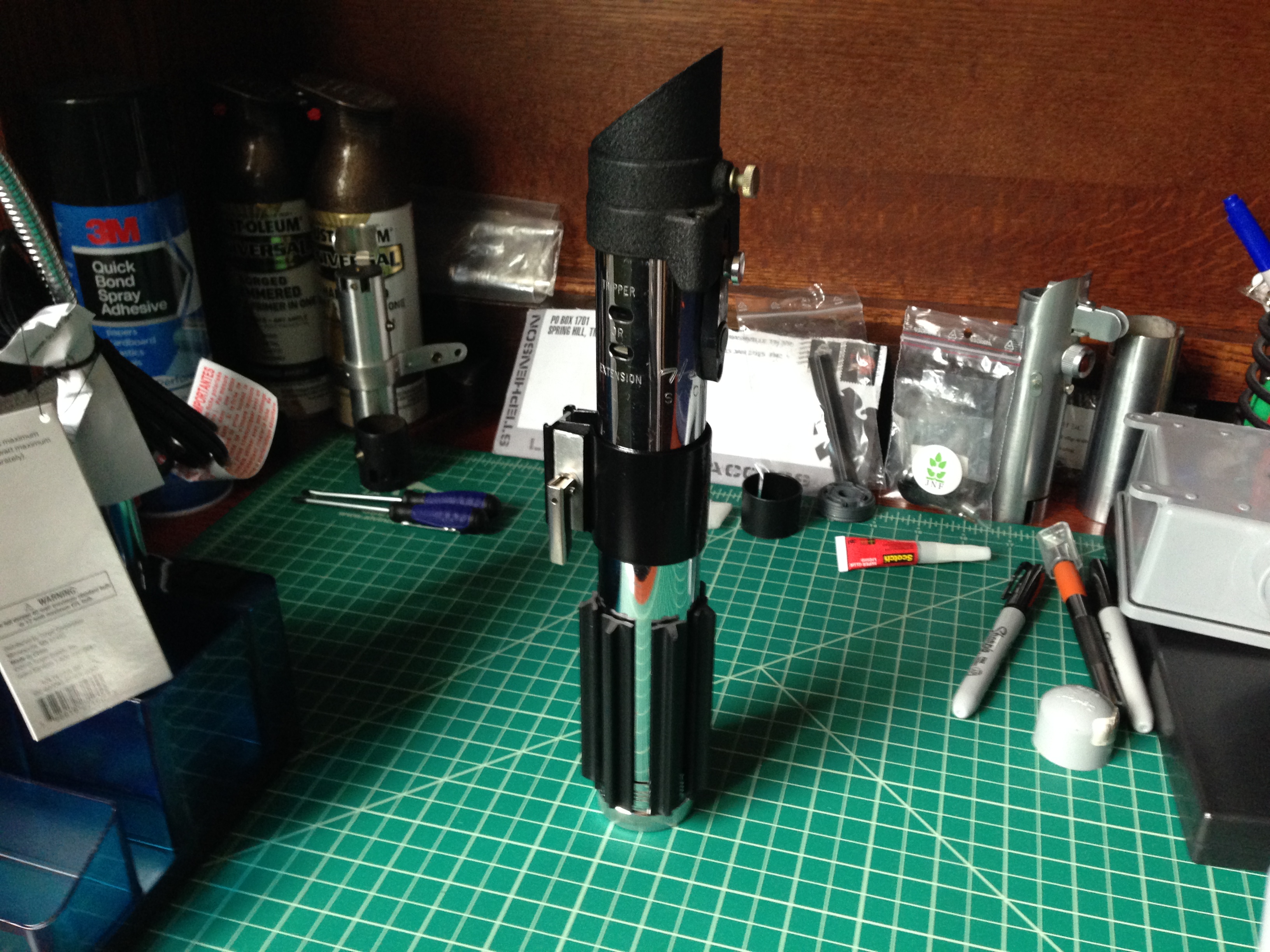

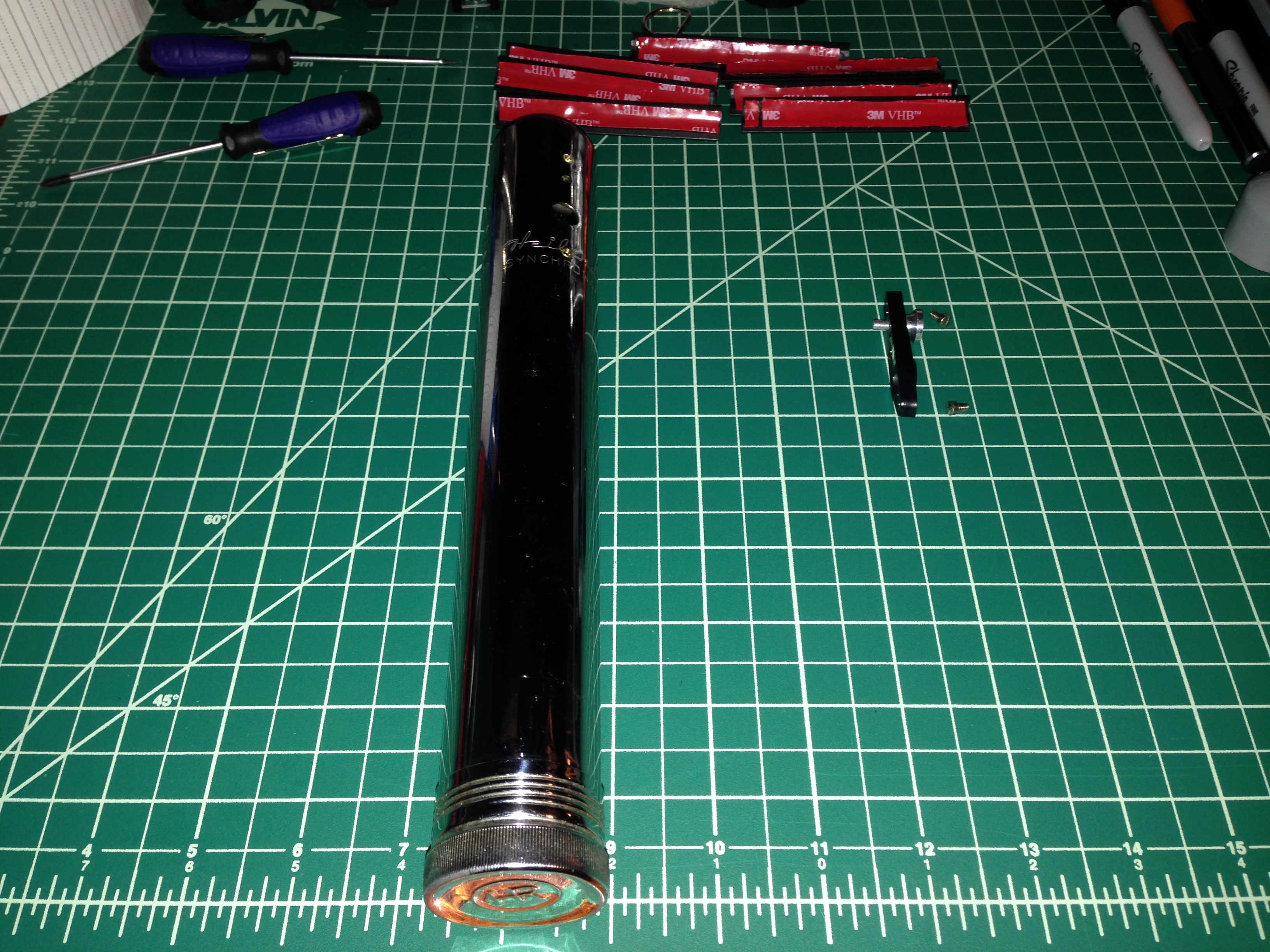

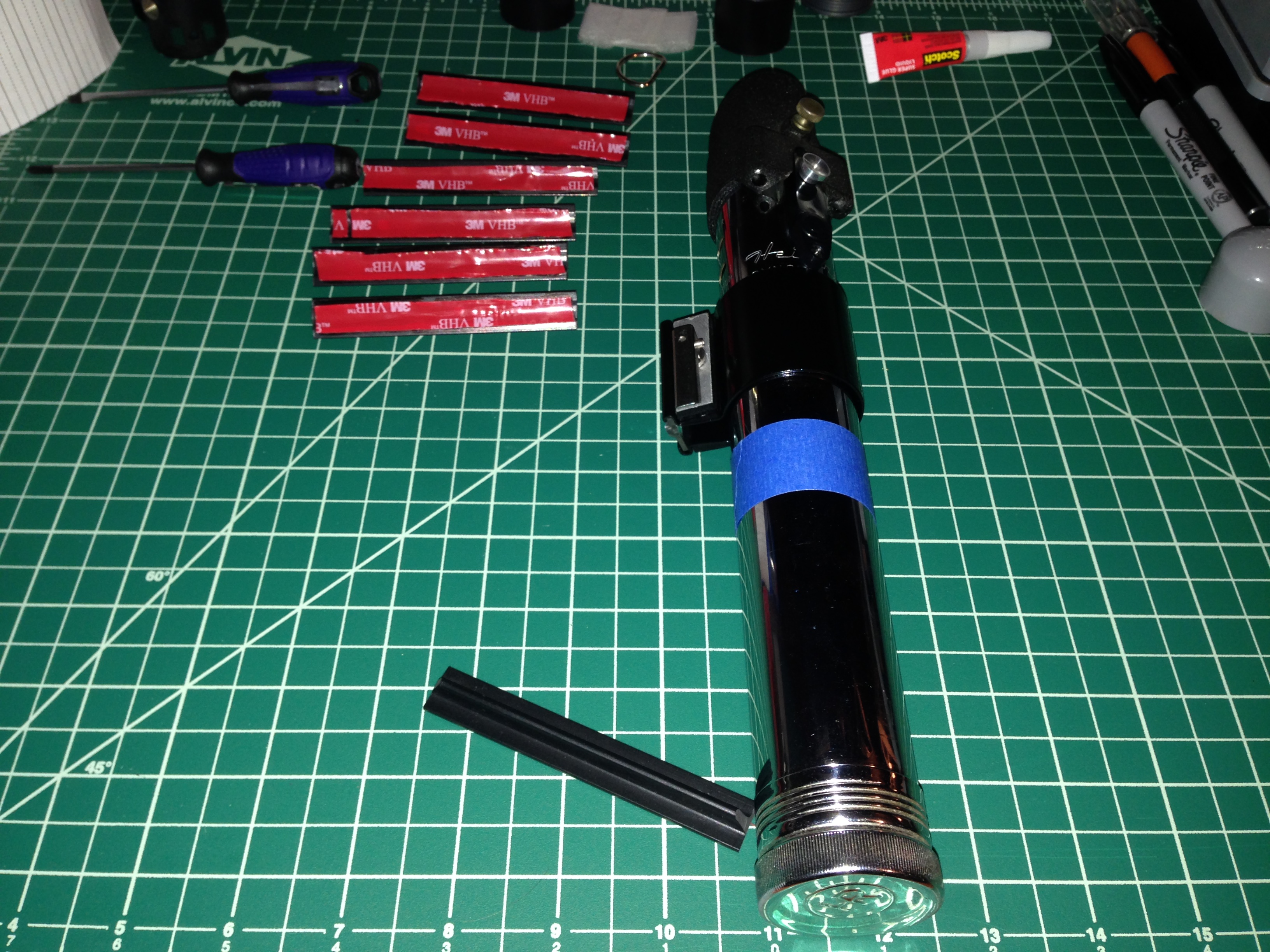

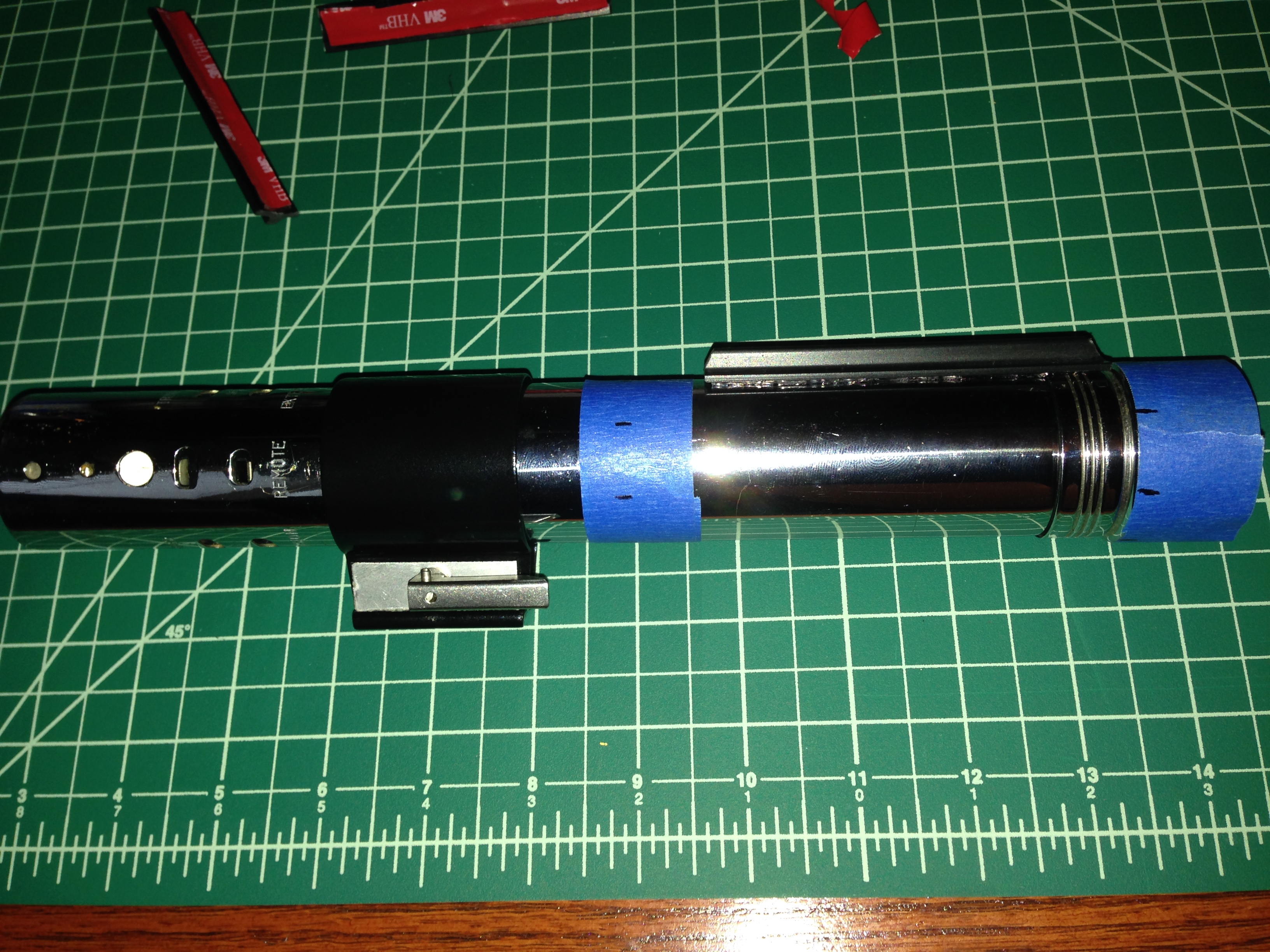

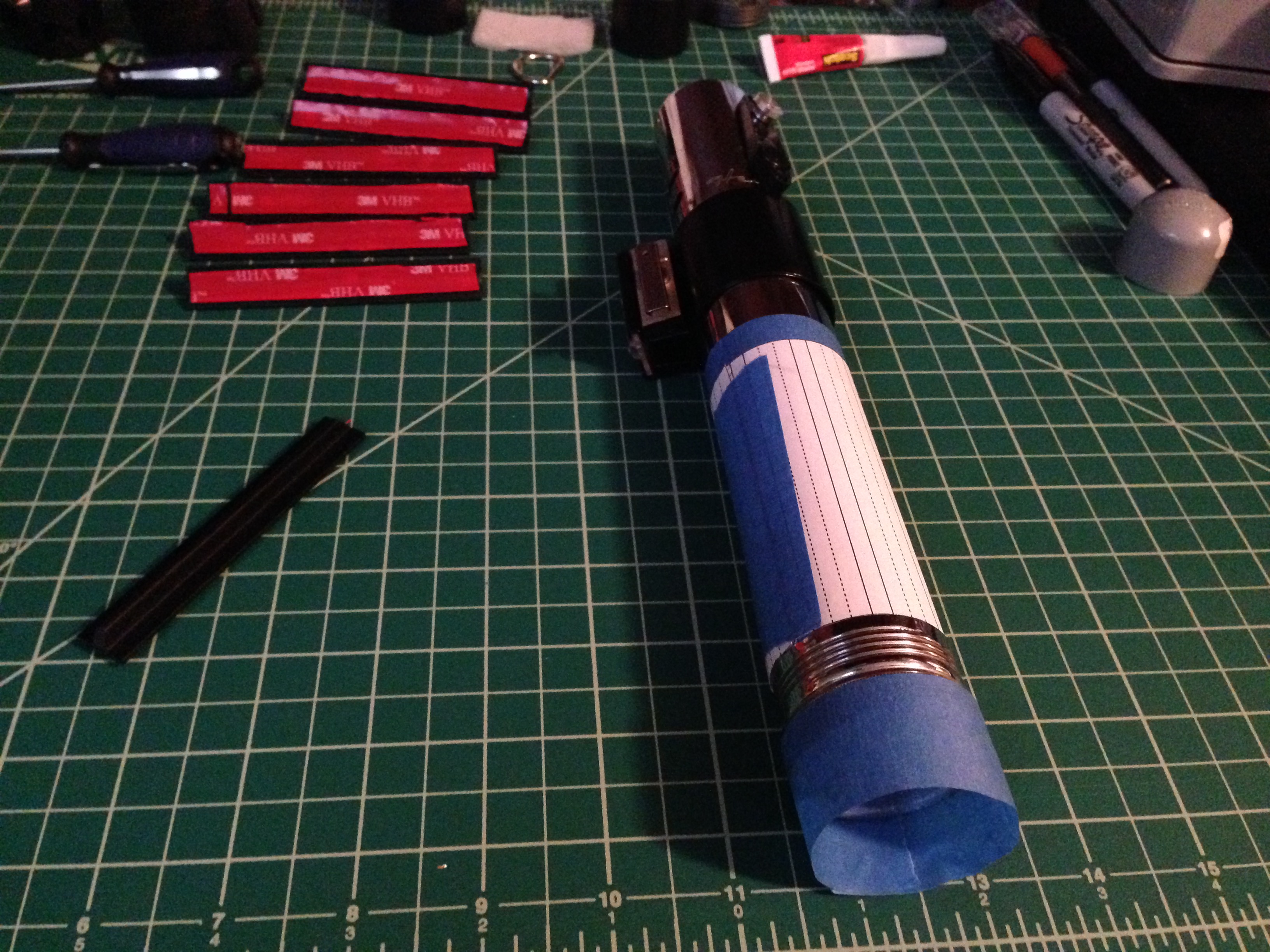

    Here's a semi step by step during construction:








    Justin aka Speed Racer

    Last edited by a moderator: Nov 8, 2018
    roygilsing, phunkymunky, Dart and 4 others like this.
  2. Sym-Cha

    Sym-Cha Master Member

    Trophy Points:
    3,305
    Looks superb Justin ... what's next a 1:1 Anovos Vader with a leather belt + clip to hang this lightsaber on? :)

    Chaim

    SpeedRacerx likes this.
  3. James Kenobi 1138

    James Kenobi 1138 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Oh man, reminds me of the good old days on the RPF. Most excellent lightsaber you've got there, great job.

    SpeedRacerx likes this.
  4. russellsch

    russellsch Sr Member

    Trophy Points:
    1,891
    Awesome build sir. I've got my 2 Heilands (parts swapped), & an Exactra. Now I'm just waiting for some more parts to get here. & I love the work you've done! Very inspiring! I haven't found the right bulb release, as of yet. Is it originally from an MPP? Or was that a "found part" the prop builders just stuck on? I'm also curious about the numbers of bubbles to use. Is it 7? Or 6?
    In any event, your saber looks great. & I can't wait to really get into my build.

    Last edited: Sep 16, 2015
    SpeedRacerx likes this.
  5. Sym-Cha

    Sym-Cha Master Member

    Trophy Points:
    3,305
    Roy is working on a replica bulb release button ... which is a part of the MPP ... as for the bubbles ... usually Vader has 6 bubbles ... however the ANH V2 (black sidebars) might have had 6.75 bubbles, say almost 7 in full :wacko

    Chaim

    russellsch and SpeedRacerx like this.
  6. SpeedRacerx

    SpeedRacerx Active Member

    Trophy Points:
    361
    Thanks for the love everyone!

    And Sym-Cha, I don't think I'm ready for that quite yet LOL. But I do have an Anovos Stormtrooper suit coming...

    Now I will start to finish my Luke ESB saber. Roy's parts arrived the other day.

    Last edited by a moderator: Nov 8, 2018
  7. russellsch

    russellsch Sr Member

    Trophy Points:
    1,891
    Thank you Sym-Cha. You are truly a treasure sir :cheers.
    That would sweet if Roy did a bulb release. Please Roy, do a bulb release! :)
    I don't know which Vader saber I'm going to build first. I'm leaning twords ESB/ROTJ because my MR ESB was damaged (cat), & the shroud is bald in two spots. I've got two sets of T-tracks coming from Roy, one set for ANH & one set for ESB/ROTJ. Plus, my MR ANH is perfect & I got the MPP replica from CSS.
    Good luck with your ESB Luke saber, SpeedRacerx. If you already have your GRAFLEX... I'm jealous. I know it'll look great, cause your Vader looks awesome.

    Sym-Cha and SpeedRacerx like this.
  8. roygilsing

    roygilsing Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,091
    The bulb release will be available in about 3 weeks :)
    I arranged production TODAY!

  9. russellsch

    russellsch Sr Member

    Trophy Points:
    1,891
    You sir, are my hero! :cheers :thumbsup
    I will most definitely be ordering from you! Thank you!
