my Tron legacy Sam costume

Discussion in 'Replica Costumes' started by Genesis, Jun 15, 2015.

  1. Genesis

    Genesis New Member

    Trophy Points:
    3
    Hi guys :)
    I was working on a Tron legacy Sam suit for an event like explained in my tron Identity disc post.
    here are some pictures (not all because I've taken 168 xD
    I've found a suit on the internet and use it as a basis for the costume
    here is the picture when I've got it:

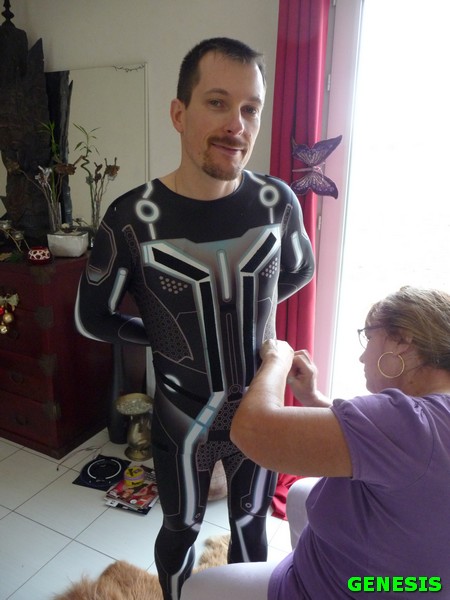

    after sewing some velcro bands

    I've worked on the EL panels


    and the wiring

    the ID disc is held in place by two strong magnets

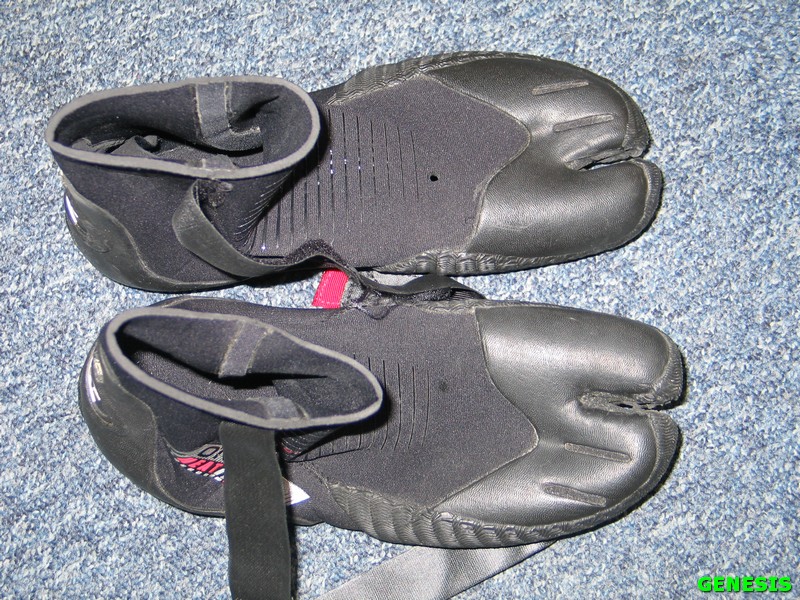

    the shoes cames from surf second hand




    the system is powered by my own electronic.
    I've disassembled an EL inverter

    and rebuilt it in smaller size to fit in my box.


    I'm using my own Lithium ion battery to power my system like for my ID disc

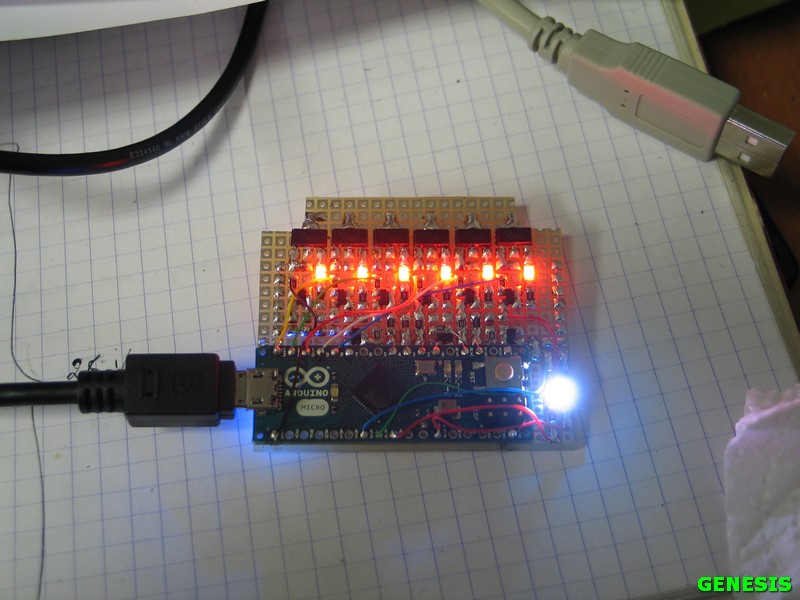

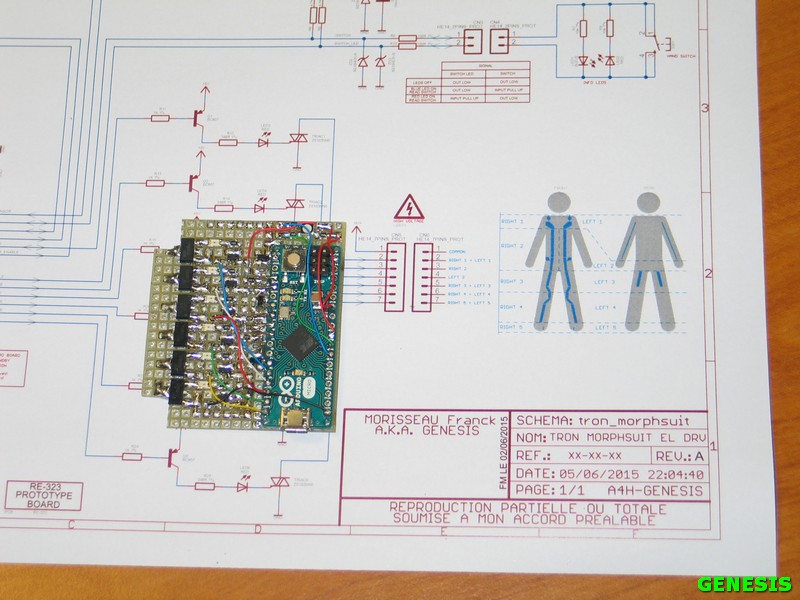

    the EL sequencer is made based on an arduino



    connectors have been used to connect the power unit to the suit
    the test of all the EL sheets on table

    Last edited: Jun 15, 2015
  2. Genesis

    Genesis New Member

    Trophy Points:
    3
    the suit is controlled by a swith in my left hand and a reed sensor to detect if the disc is mounted or not.
    I have two leds near the switch to give me the battery gauge and if the disc is in right position. a trick is used to only have two wires for the switch and two leds.

    here is the power unit finished

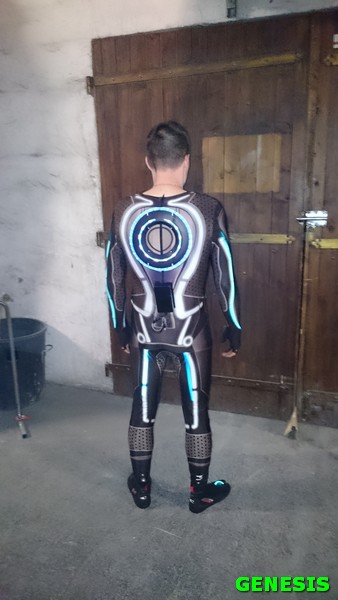

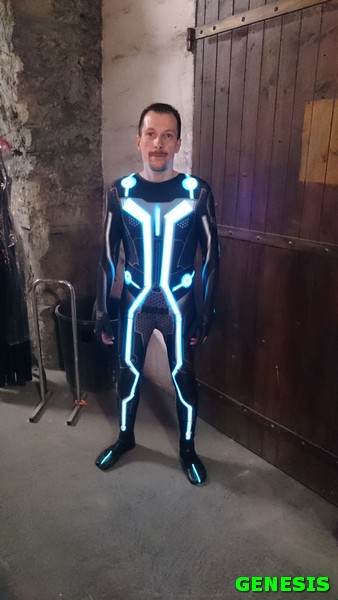

    and the suit finished





    here is the backstage test of the suit:
    the suit is turned off when I put the disc on my back because the disc play the Sirens message and the suit is turned on in sync with it. so it takes 24 seconds to turn it back on.
    the suit is turned off when the disc is removed except if I remove it when I hold the button. this is what I do in the video (I've programmed this option to be able to play with the disc with the suit turned on :) )
    I'm looking in my hand when I put back the disc because the led tell me if the disc in in the right position (blue) or out of the magnets (red)



    unfortunately no sound on this one due to a recording problem (I have no luck with photographs the SD card died just before to take pictures):




    the battery life is good. like for my ID disc.
    I've used the suit + disc for more the 4h without charging it and with near continuous use. the disc is now at 40% charge from the smart battery gauge.
    A complete charge is done in 2h so the ratio is 1:2 (one hour charge for two hours use like for the disc)

    Last edited by a moderator: Nov 8, 2018
    Raphaella and MattgomeryBurns like this.
  3. Vox

    Vox Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    SO FRICKIN' COOL! I want one. haha.

  4. Genesis

    Genesis New Member

    Trophy Points:
    3
    I hope to get more pictures of the event.
    here is a bigger picture from the last set
    thequark.free.fr/forums/tron_suit/167_hr.jpg
    A complete picture sets are available (disc + suit) but on my facebook account. approx 270 pictures

    Last edited: Jun 16, 2015
  5. mugatu

    mugatu Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,782
    This is the best Tron suit I've seen anyone put together. Great job!

  6. Rinzler

    Rinzler Well-Known Member

    Trophy Points:
    566
    All you need is the Disc Wars helmet and you're set!

  7. Genesis

    Genesis New Member

    Trophy Points:
    3
    Thanks :)
    perhaps I will work on a disc wars helmet if I have some free time. But it seems to be complex (polycarbonate)

    Last edited: Jun 17, 2015
  8. Rinzler

    Rinzler Well-Known Member

    Trophy Points:
    566
    I'm thinking of doing disc wars helmet after my Loki is done, I've got one model but it's...not great I think I'll have to use it as a base and modify to suit. If you do one please remember to post some progress pics for inspiration.

  9. Genesis

    Genesis New Member

    Trophy Points:
    3
    No problem.
    I think the best way will be vacuum molding to build it but I need free time to work on it. and I have lot of things/projects to do before.

  10. Genesis

    Genesis New Member

    Trophy Points:
    3
    Some pics from the comic con paris :)
    It takes me one hour to put the costume.


    Daft Punk-Daftworld_1.jpg

    Yann Shespankh_2.jpg


    that was really fun xD

    and my new shoes :D


    Last edited by a moderator: Nov 8, 2018
    Crimson490 likes this.
