My Shining Overlook Table-Top Maze Build - WIP

Discussion in 'Studio Scale Models' started by deck5, Jun 21, 2015.

  1. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    Having watched Adam Savage's recent maze build, I've set out to make my own. There are a number of choices I've made differently, including certain measurements, the overall scale, and the choice of materials.

    I first researched the dimensions, did the photogrammetry, built the maze graphic, and did a little 3D work to be sure I was on the right track.

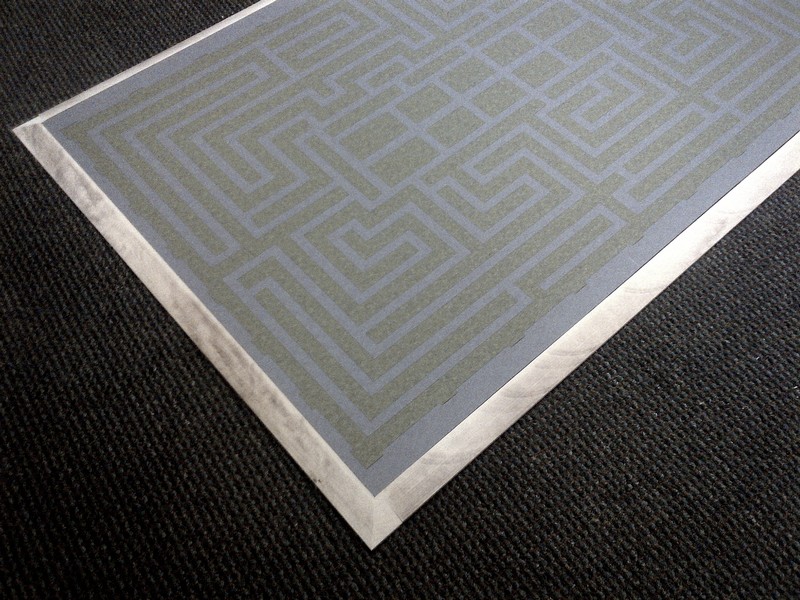

    The base for the model is plywood with a beveled basswood frame, with the maze map printed to scale and glued on top -- roughly 3 feet x 4 feet in size. The map graphics include a grass verge around the base of each hedge, and gravel everywhere else.

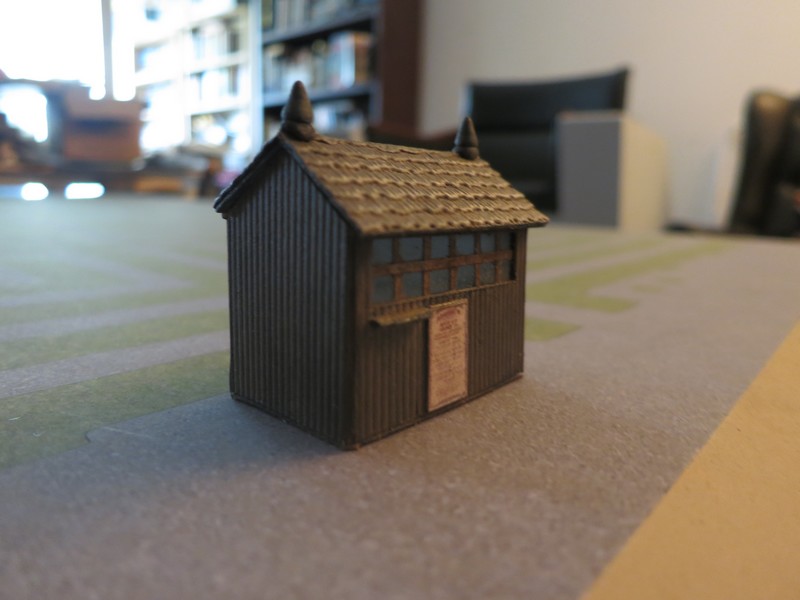

    I have almost no experience with either building scale miniatures or working with pink foam, but I figured the miniatures to be the hardest part, so that's where I started. I built the gift-shop first:

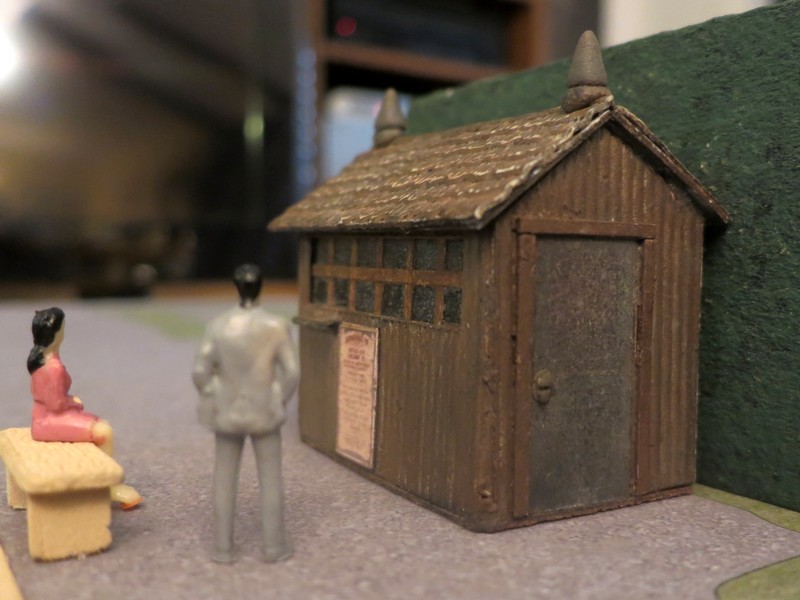

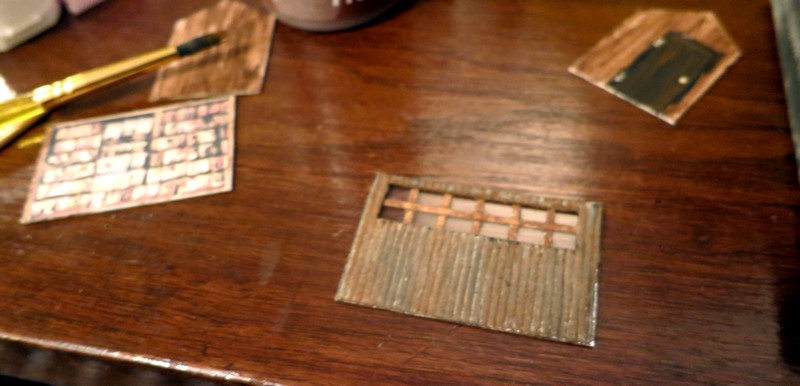

    giftshopbuild.jpg giftshop.jpg giftshopbuild1.jpg

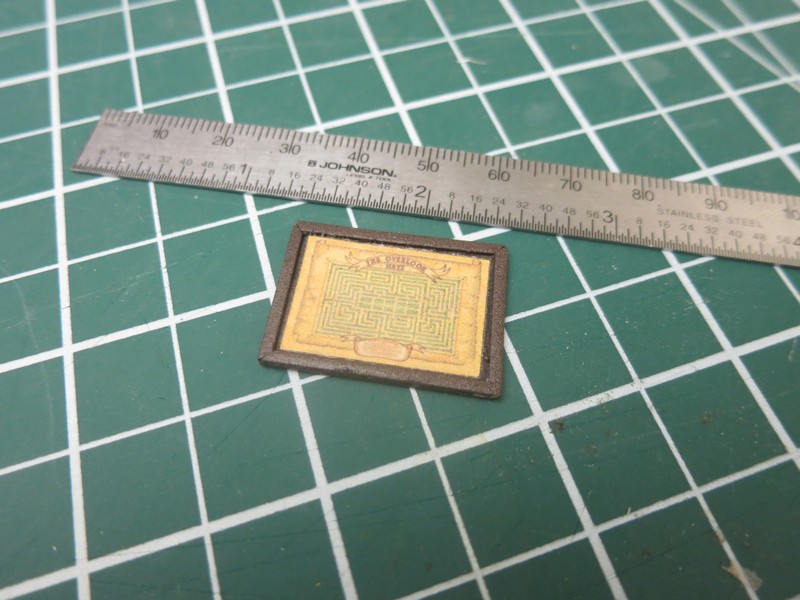

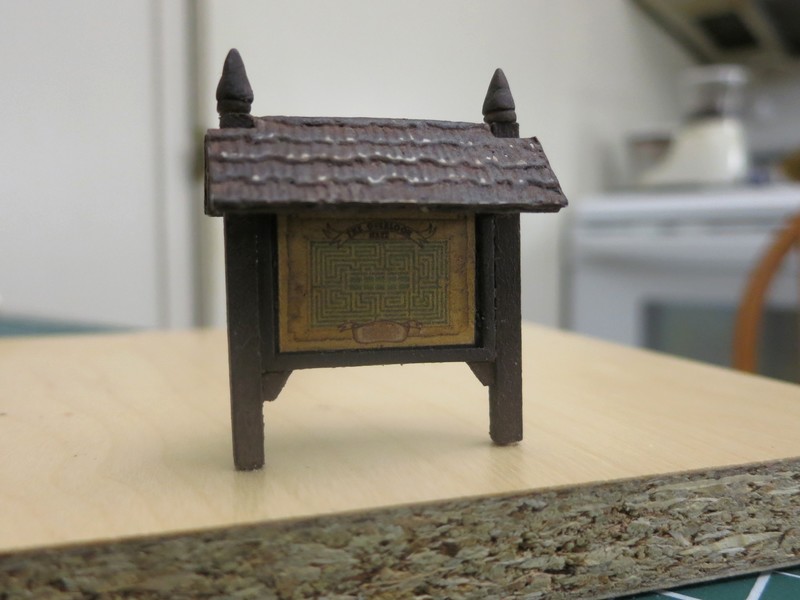

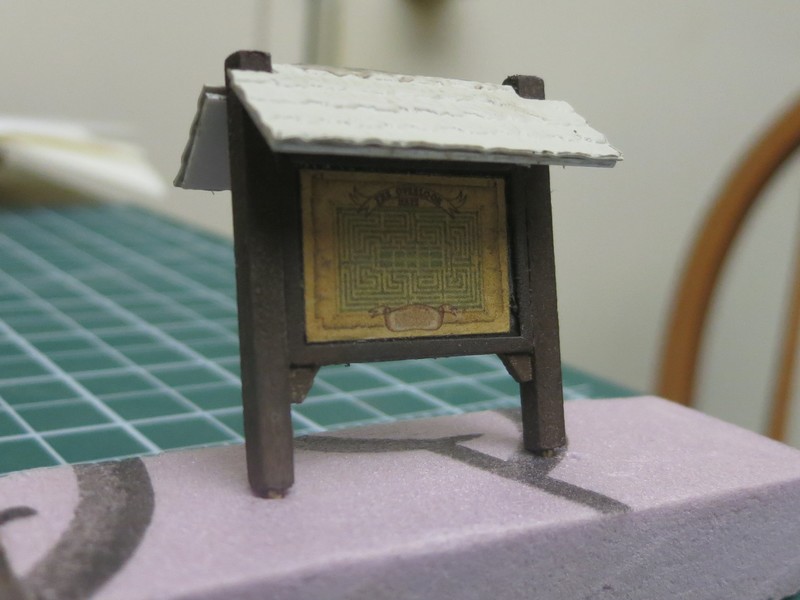

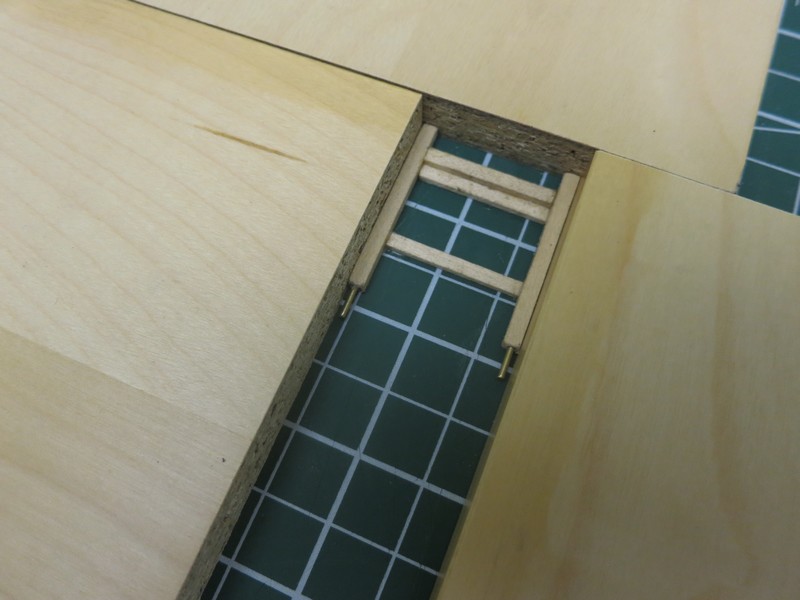

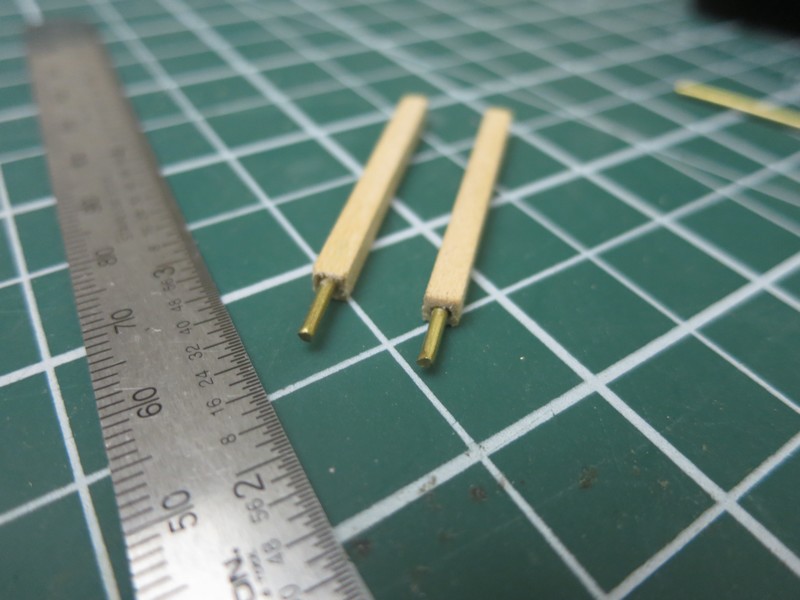

    And then the map kiosk. Seemed like a good idea at the time to mitre the map frame; probably not worth the effort at that scale! I drilled out the basswood uprights with a hand-held pin vise and a very small bit. They're about the size of matchsticks.

    kioskmap.jpg kiosklegs.jpg kioskbuild1.jpg kioskbuild2.jpg kioskfinal.jpg

    The maze is built from 1/2" pink foam board.

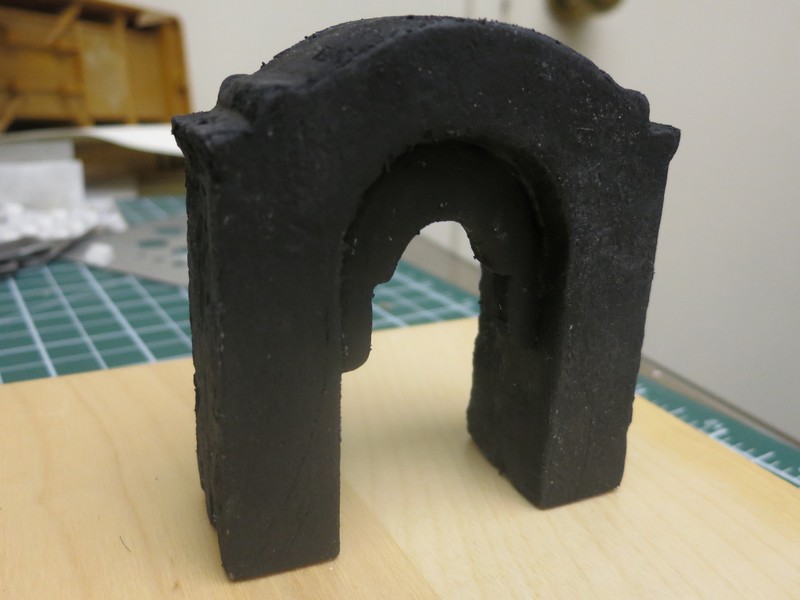

    The entrance is built up out of layers of foam glued together:

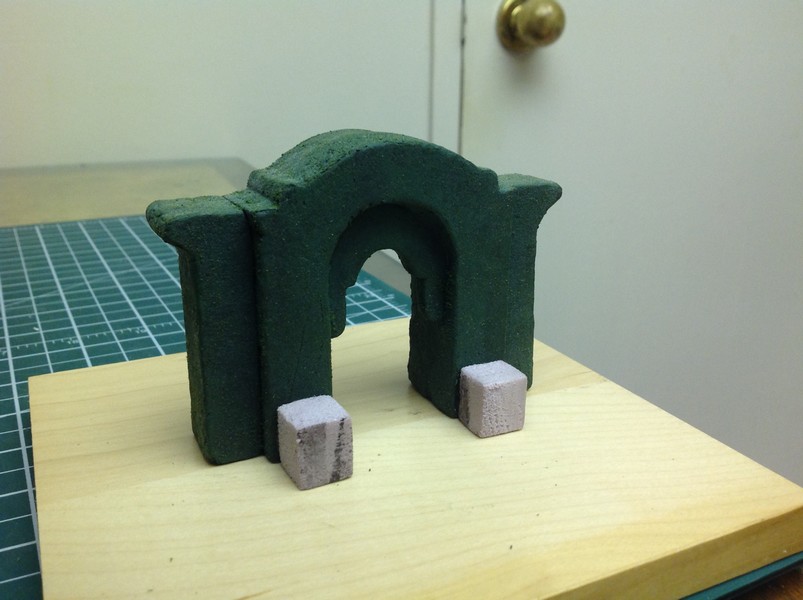

    entrybuild1.jpg entrybuild2.jpg

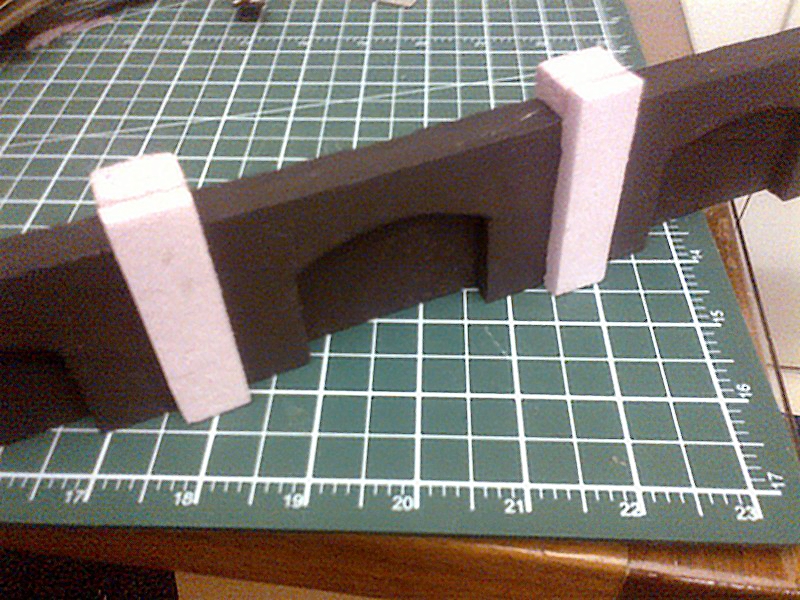

    And the front wall is likewise a layered construction. The blind arches came out a little deeper than I wanted, so I've brought the level up with 1/8" white foam inserts. The pilasters are a two-part construction, with the top as a small cube, and the front as a thin strip covering the entire vertical distance.

    The paint is all dollar-store acrylics, with train grass brushed on over spray glue.

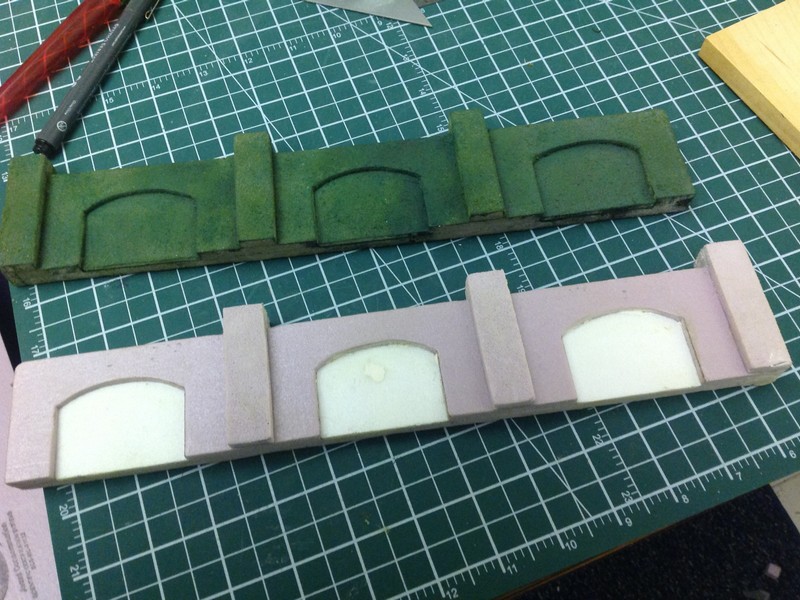

    wallbuild1.jpg wallbuild2.jpg wallbuild3.jpg

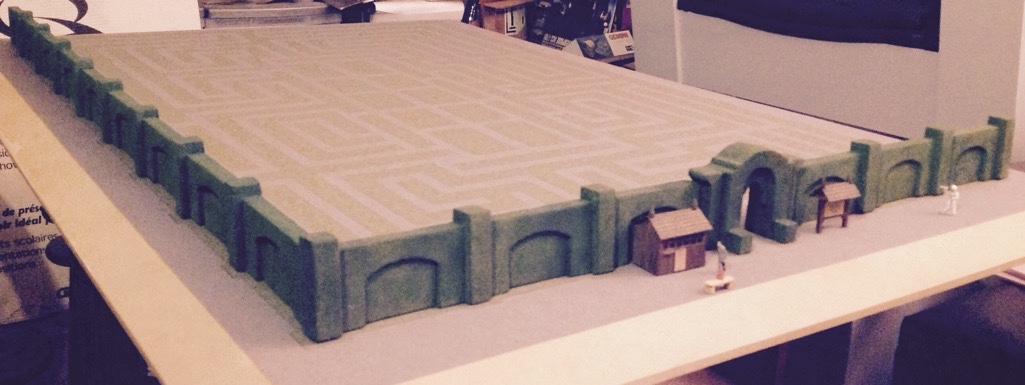

    Here's the result thus far. The little bench is made from plastic and balsa wood.


    "How do you like it?"

    Last edited: Jun 21, 2015
  2. Moviefreak

    Moviefreak Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,175
    Pretty awesome. I just don't understand how everyone has so much room to make and display things like this :lol

  3. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    The trick is not worrying about the space until after the build is complete. :)

  4. winchester883

    winchester883 New Member

    Trophy Points:
    3

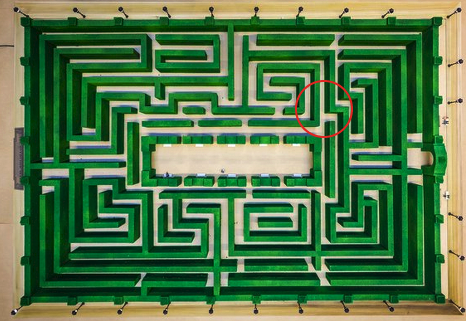

    Sweet I love this maze! I mapped out the maze a bit ago for a project and spotted a difference in Savage's model either done on purpose or by accident I couldn't tell you. I used the map from the map kiosk as my reference for my project and came across the difference. the first image is Savages and the 2nd is the map from the kiosk. Good luck on yours. looks like you got a great start.
    Screen Shot 2015-06-22 at 3.46.08 PM.png 1_0.png

  5. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    I see. The table-top model doesn't have that difference, either. Perhaps it was part of the adjustments he had to make to get everything to line up.

    Thanks! :)

  6. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    Last edited: Jun 29, 2015
  7. winchester883

    winchester883 New Member

    Trophy Points:
    3
    Ahh Nice. Great detective work on tracking that down. After looking at this map and all the differences over and over I definitely get that feeling from the movie when they zoomed out of the maze :) Cant wait to see how it goes.

  8. deck5

    deck5 Sr Member

    Trophy Points:
    1,046

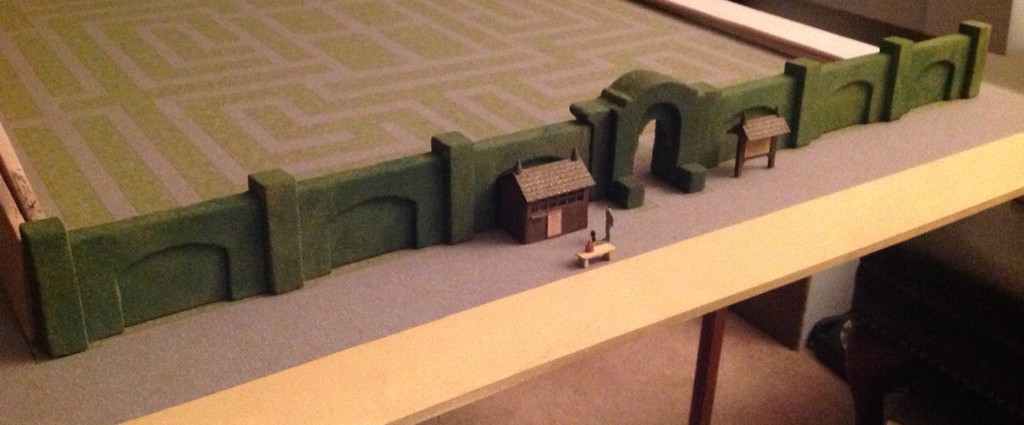

    One long side done.



    Sent from my iPad using Tapatalk

  9. deck5

    deck5 Sr Member

    Trophy Points:
    1,046

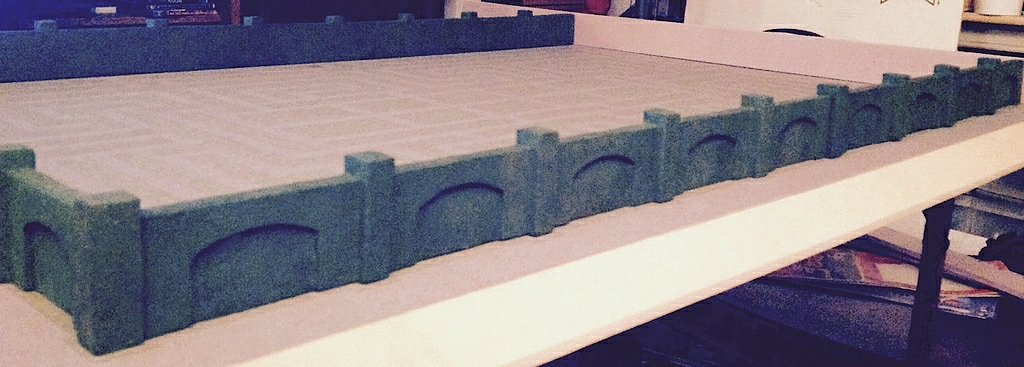

    The third wall.


    Attached Files:

  10. deck5

    deck5 Sr Member

    Trophy Points:
    1,046

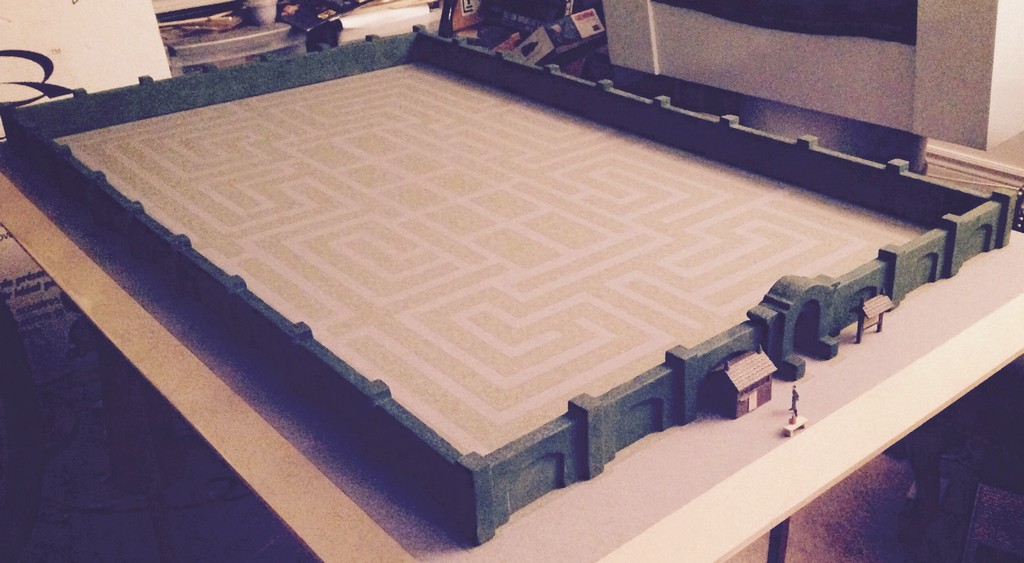

    The fourth wall complete!


    Attached Files:

  11. deck5

    deck5 Sr Member

    Trophy Points:
    1,046

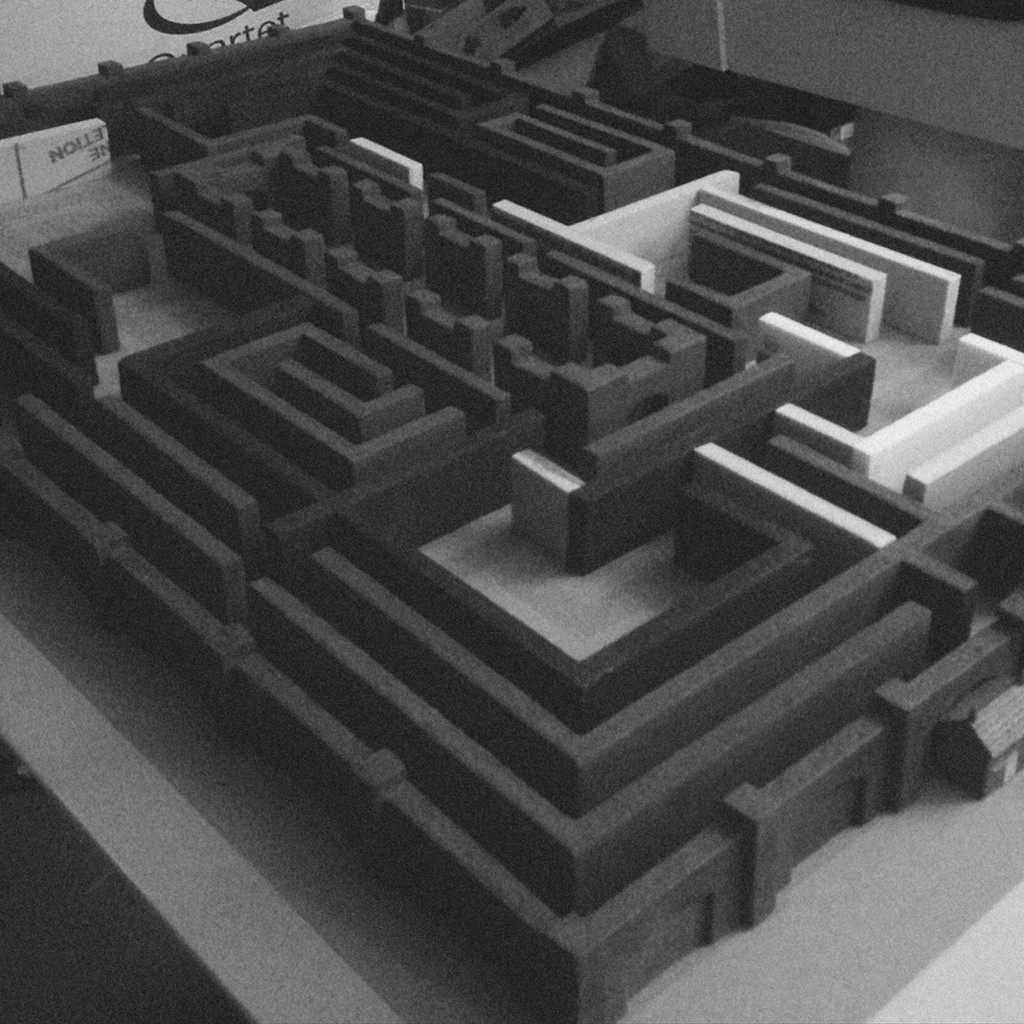

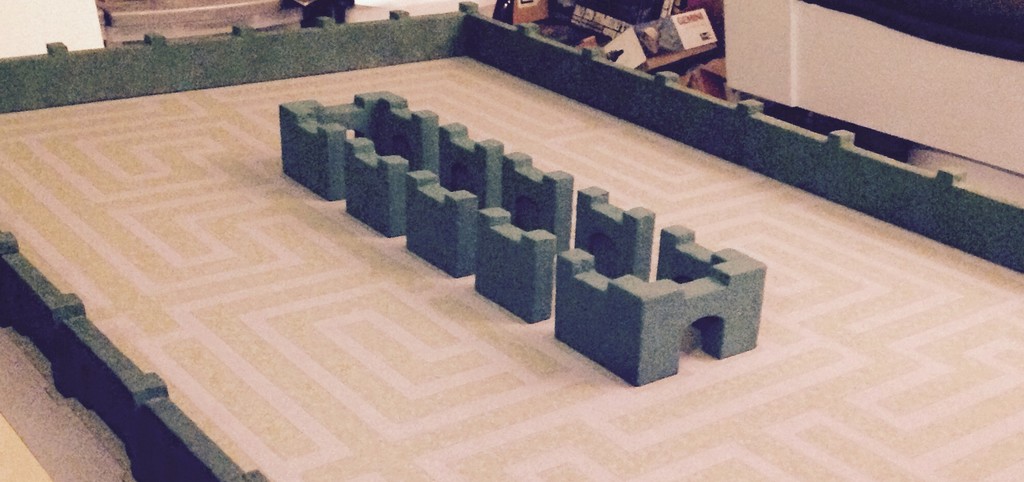

    The castellated walls enclosing the central gallery, painted but not yet flocked. These are the last of the complex parts.


    Randy13 likes this.
  12. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Looking very good so far:) I like your attitude concerning the room for your model " worry after the model is built":D

  13. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    Thanks for the feedback! It's in the middle stretch now, lots of wall building.

    Here's the latest bits, in various stages of completion.


    Attached Files:

    LukaFilm likes this.
  14. KrokoHunter

    KrokoHunter Sr Member

    Trophy Points:
    1,046
    I'm a bit late to the fun .. but I think I have some pics of the model on display at the Kubrick exhibition when it was in Amsterdam .. pretty sure it wasn't the original model though.

  15. KrokoHunter

    KrokoHunter Sr Member

    Trophy Points:
    1,046
    Nope .. definately not the original .... perhaps an early studymodeel ... or just something quickly thrown together for the exhibition.

    [​IMG]IMG_1916 by KrokoHunter, on Flickr

    - - - Updated - - -

    Can't remember if there is anything good in the Kubrick Archive book ..... could check

  16. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    Definitely not a studio model -- I believe that was built for the exhibit. It's an interpretation of the enlarged maze that appears when Jack looks down into the tabletop model -- different layout entirely. The original desktop model would have been lost in the studio fire.

    I have the Archive book. There are a couple of good reference shots.

  17. joberg

    joberg Master Member

    Trophy Points:
    2,900
    It's looking good. Keep up the good work!

  18. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    Thanks! Here's the latest. Slow but steady.


    Attached Files:

    LukaFilm likes this.
  19. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    It's just a matter of settling into the habit of building every day.


    Attached Files:

    Randy13 likes this.
  20. joberg

    joberg Master Member

    Trophy Points:
    2,900
    'gonna be beautiful when done and it'll be a conversation piece also:cool

  21. deck5

    deck5 Sr Member

    Trophy Points:
    1,046

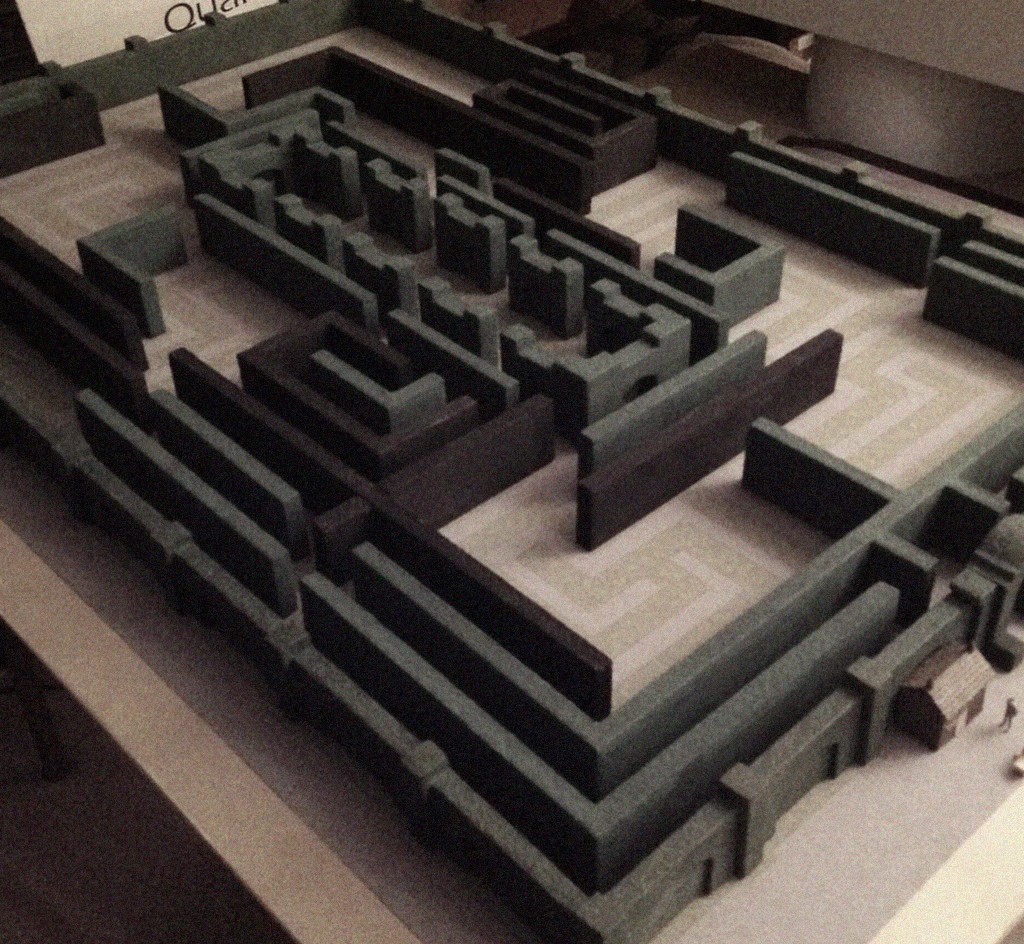

    Hope so. Here's the latest:


    dirtydave likes this.
  22. dirtydave

    dirtydave Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,146
    Looking great.One of my favorite movies.

    Dave

  23. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    Thanks! Here's a milestone achieved: ImageUploadedByTapatalk1436461833.761406.jpg
    every hedge cut!

    Lee S likes this.
  24. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    The greening continues.


  25. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    Next milestone reached: all pink banished!


    Axlotl likes this.
  26. deck5

    deck5 Sr Member

    Trophy Points:
    1,046

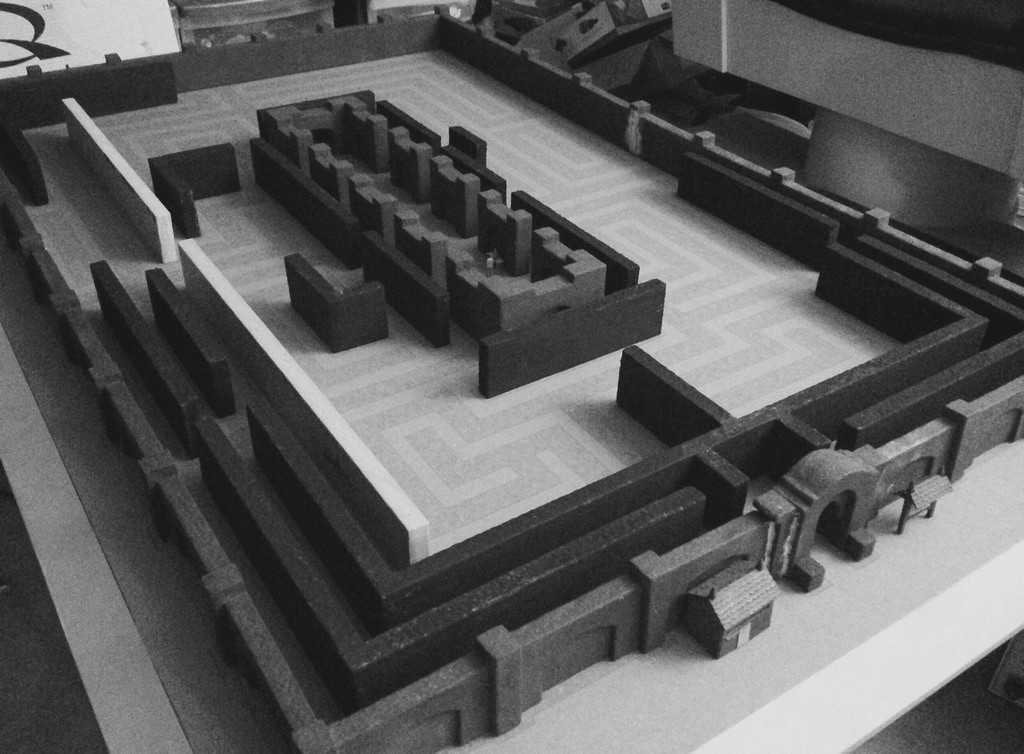

    And, at last -- all green. This may look nearly finished, but at this point absolutely none of the maze is fastened to the base, there aren't any pyramidal finials yet, none of the hedges are flocked, and the lamps and benches aren't in yet. So there's a distance to go!


    Attached Files:

    Axlotl and Randy13 like this.
  27. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    A time-lapse animation:

    [​IMG]

    Axlotl and Randy13 like this.
  28. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Love the time-lapse animation and, as you said, a few details before calling it "done":) Keep it up, it's looking mighty good!

  29. asemblyrequired

    asemblyrequired Well-Known Member

    Trophy Points:
    866
    I can almost see this being Wall hung really instead of table mounted . Just to see into it etc. Love the build and would love to build one myself oneday

    -James

  30. deck5

    deck5 Sr Member

    Trophy Points:
    1,046
    No pics this time, just a quick update -- the hedges are slowly being flocked!

  31. ixtore

    ixtore Active Member

    Trophy Points:
    361
    Beautiful work. Adam said he would like to see the results of anyone else's attempt at the hedge maze. He certainly should see this one! I await further flocking developments ....
