    Hi RPF guys and girls, im new to the RPF and have only started modelling again, not done it since i was 12 and im 28 now. Iv collected a couple of Bandai kits and have started a AMT/ERTL/MPC falcon which is the cut-away version.

    I planned on making it more detailed and closer to the ESB version, although i might go for the force awakens version yet, i have not decided.

    I love all the threads here on the rpf about the MPC kit but havnt seen any updated threads. so thought it may be of interest to show my progress.

    Here are some pics of the build so far:
    Some Shapeways parts and all rear engine detail removed and being replaced.

    Landing gear boxes,the rear has been extended and the access bay at the front extended over

    Here is my first (pic on the right) and second attempt at the engine grills using 0.5mm styrene

    Some more shapeways parts from 308bits to go on

    WIN_20150907_15_44_51_Pro.jpg WIN_20150907_15_29_38_Pro.jpg WIN_20150907_15_47_28_Pro.jpg


    WIN_20150907_15_35_38_Pro.jpg WIN_20150907_15_38_42_Pro.jpg
    The two other Bandai kits i built


    Sorry for the low quality pictures, all i have is a 720p webcam

    Last edited: Sep 21, 2015
    AFFoD likes this.
  2. Roboted

    Roboted Well-Known Member

    Trophy Points:
    587
    some updates coming soon. i need to get some progress going before i start my bandai 1/144 falcon when it arrives late october.

  3. Roboted

    Roboted Well-Known Member

    Trophy Points:
    587
    My recent progress.....

    WIN_20150921_19_30_37_Pro.jpg WIN_20150921_19_36_43_Pro.jpg
    Some more detail work and the new inserts for the engine ports, scratch built by me :)

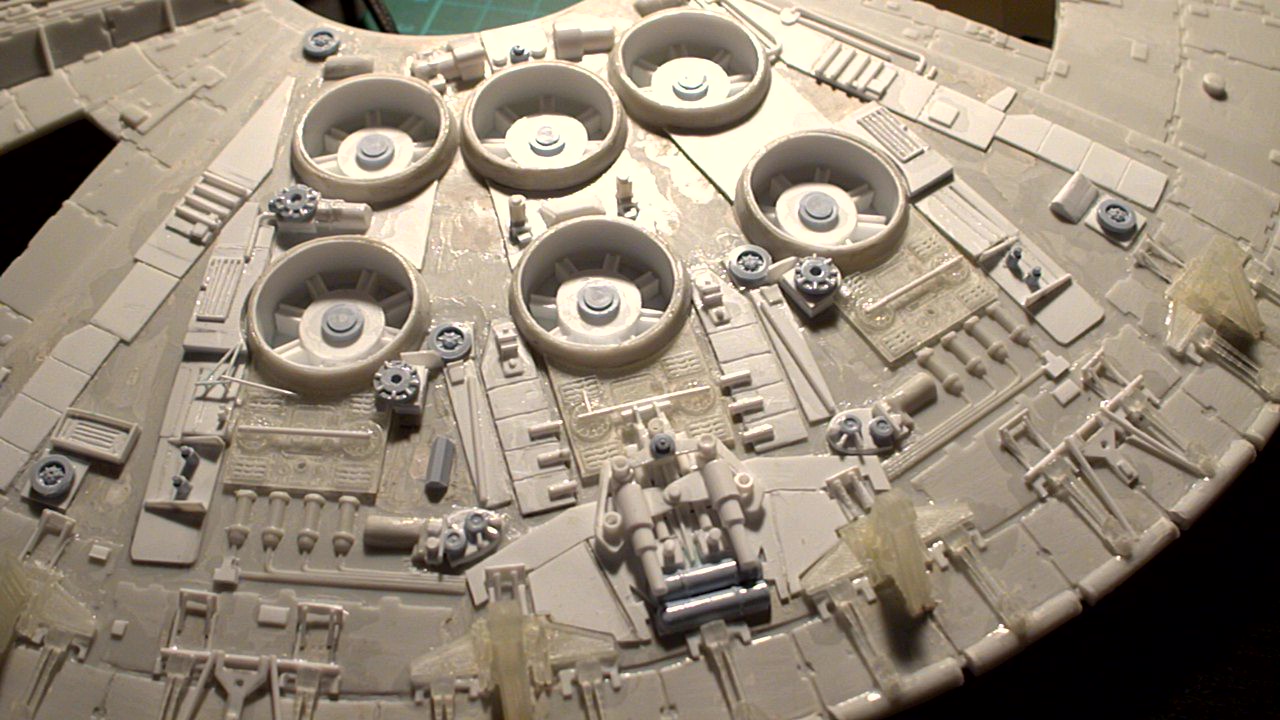

    Engine Grilles made from 0.5mm styrene rod.

    WIN_20150921_19_32_25_Pro.jpg WIN_20150921_19_32_44_Pro.jpg
    I decided it would be better to go more accurate and rebuild the front mandibles,first by removing the old ones. Im going to reduce the centre section next.

    WIN_20150921_19_33_18_Pro.jpg WIN_20150921_19_33_43_Pro.jpg WIN_20150921_19_34_10_Pro.jpg
    I scratch built some new ones which seemed easier than modifying the originals.

    WIN_20150921_19_35_25_Pro.jpg WIN_20150921_19_34_47_Pro.jpg
    I also started work on the new cockpit tube. made from ABS plumbing pipe for 32mm tube.


    My new friend soon to be joined by R2 :)


    More updates to follow, Thanks for taking the time to look :)

    Last edited: Sep 21, 2015
  4. Galactican

    Galactican Well-Known Member

    Trophy Points:
    986
    Very nice progress! I still have the same kit in my stash. I'm following closely. :)

    Roboted likes this.
  5. Roboted

    Roboted Well-Known Member

    Trophy Points:
    587
    Thanks dude, always a boost when any praise is given :)

    What ideas have you got instore for your falcon?

    I forgot to mention that im going off the 5 foot falcon for reference. im not much of a fan of the 32" one.

  6. Roboted

    Roboted Well-Known Member

    Trophy Points:
    587
    Im looking forward to this for the build...

    View attachment 531516
    Its going to get the kit to a good standard i think :)

  7. bwize

    bwize Well-Known Member

    Trophy Points:
    815
    Looking awesome. Love to see the ole MPC getting an overhaul, lol. Those mandibles look great as does the rear engine deck!!

    Roboted likes this.
  8. Galactican

    Galactican Well-Known Member

    Trophy Points:
    986
    I'm planning to light it, add some greeblies and correct some issues such as the missing seats. I like the impossible-to-re-create interior and don't wanna skip it, so there will be some creative license involved when I'm tackling my model. :)

    Roboted likes this.
  9. Roboted

    Roboted Well-Known Member

    Trophy Points:
    587
    Sounds like a cool project. im going to light mine as well. Iv got the pre wired with resistor LEDs from ebay. and iv got all the electronic components for the flasher circuits inc a few 555 timer ICs, breadboard, Diodes and such what. it so much cheaper making them yourself.

    Im not going to recreate the inside of the model besides the cockpit. i dont think id remove the panal all that much anyway. Hats off to you for going the mile tho, Iv referenced many a picture of the real 5 footer and also iv been following the studio scale falcon thread where they have been accuratly planning the dimensions of the 5 foot model.

    If you havnt already seen the thread,it is here: http://www.therpf.com/showthread.php?t=199048&page=4

  10. Unes

    Unes Active Member

    Trophy Points:
    211
    WOW....really good work :thumbsup

    Roboted likes this.
  11. Roboted

    Roboted Well-Known Member

    Trophy Points:
    587
    Finally some updates :)

    I have started to clad the centre sections with plate and greeblies plus some more on the engine deck area, also the tank recess area thingy and the oposite side tube mess.

    WIN_20151107_20_19_32_Pro.jpg WIN_20151107_20_19_45_Pro.jpg WIN_20151107_20_19_54_Pro.jpg WIN_20151107_20_20_10_Pro.jpg
    WIN_20151107_20_20_32_Pro.jpg WIN_20151107_20_21_04_Pro.jpg

    The landing gear boxes have been modified to be slightly more screen accurate as they were to straight before.

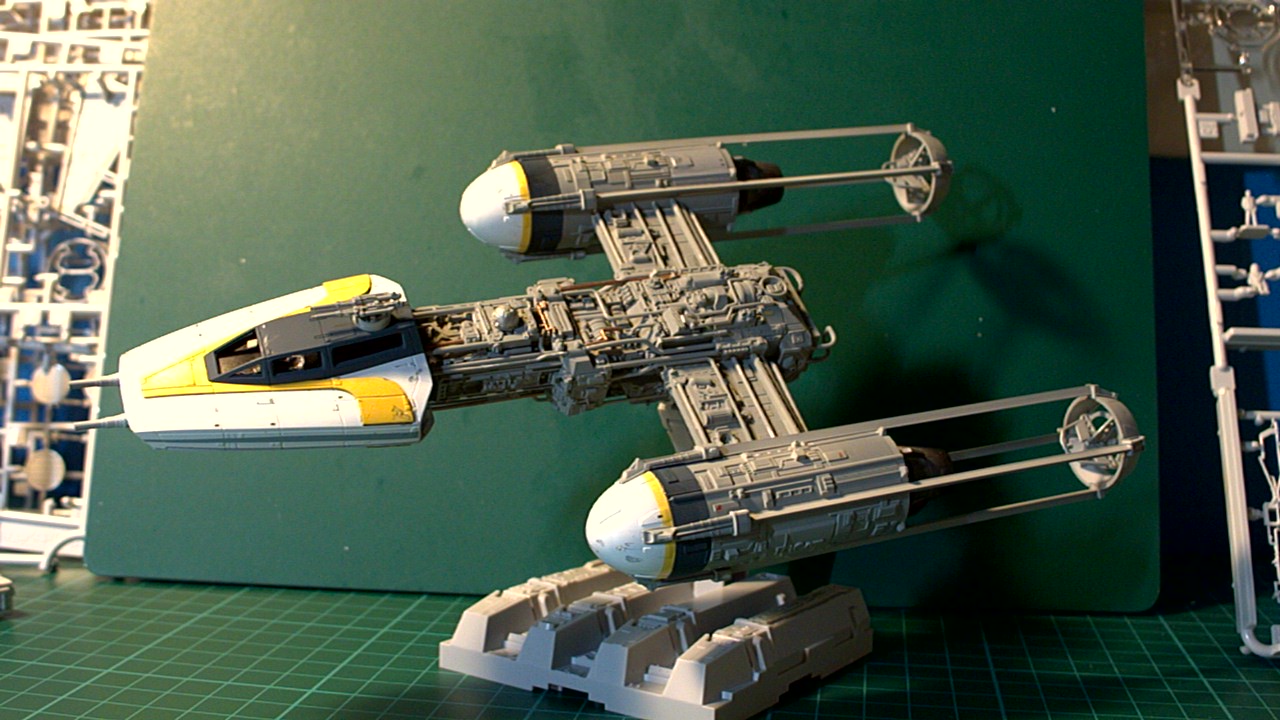

    The Model cabinet is starting to fill up with some other projects under my belt :)
