My First Lightsaber build! Looking for expert eyes to help!

Grokgreg

New Member
Hi everyone! I'm new to this board, and am looking for some help double checking that I'm gonna do this right! This is my first build, and I've little to no experience with this sort of thing! I've spent a lot of time researching and getting the parts, and I'm really excited to get everything working! I have a few questions but mainly I would love if I could get someone to double check my wiring diagram! I think I've set it all up correctly, and attached it here. Also, when wiring the power and and Neo Pixel connectors, can I just solder the different cables together at the intersections I have on my diagram?

Here's a list of the components being used:

KR Sabers Brass Flagship - customized by Vaults of Valhalla
SABERTEC GOLDEN HARVEST V3.0 PHASE 4 FX LIGHTSABER SOUNDBOARD
SHTOKCUSTOMWORX ECO NPXL V2 HILT SIDE PCB CONNECTOR – LONG PINS
12MM 'PIXELSWITCH' MOMENTARY TACTILE SWITCH - SINGLE
28mm 4ohm 3W Bass Speaker

Thanks everyone! I'm a little nervous cause I've never done this before!


Attachments

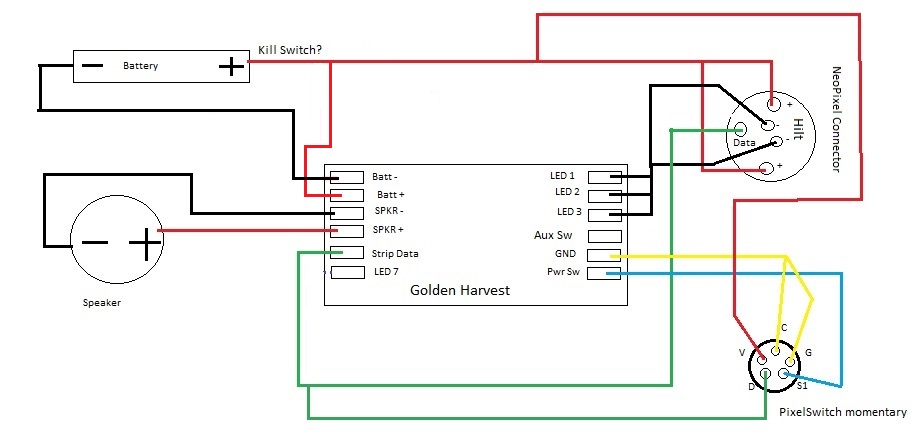

  • Diagram.jpg
    66.7 KB · Views: 24
Last edited:

shadowfoil

Active Member
RPF PREMIUM MEMBER
I’m like a month late and maybe you’ve already figured it out but most of this looks good. If you’re switch is a neopixel illuminated one (I haven’t seen these but if you’ve got em send me a link) then you may want the negative for the led on that to run to a FET controlled pad on the GHv3 (LED1-3). Im not sure if it would work correctly wired to ground like you have it.
