My builds/finds: aluminium razor crest lever

[woodywaverider]

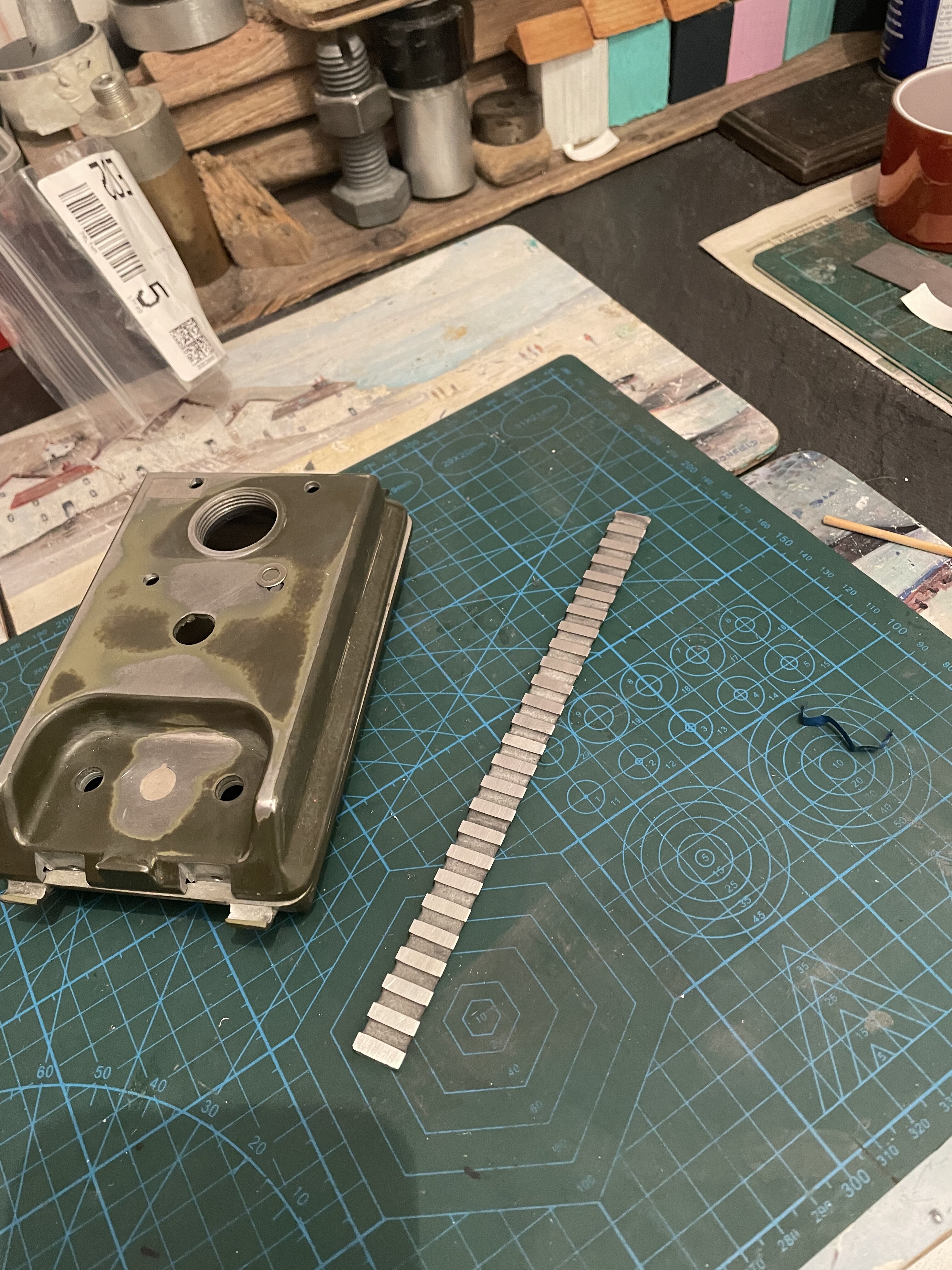

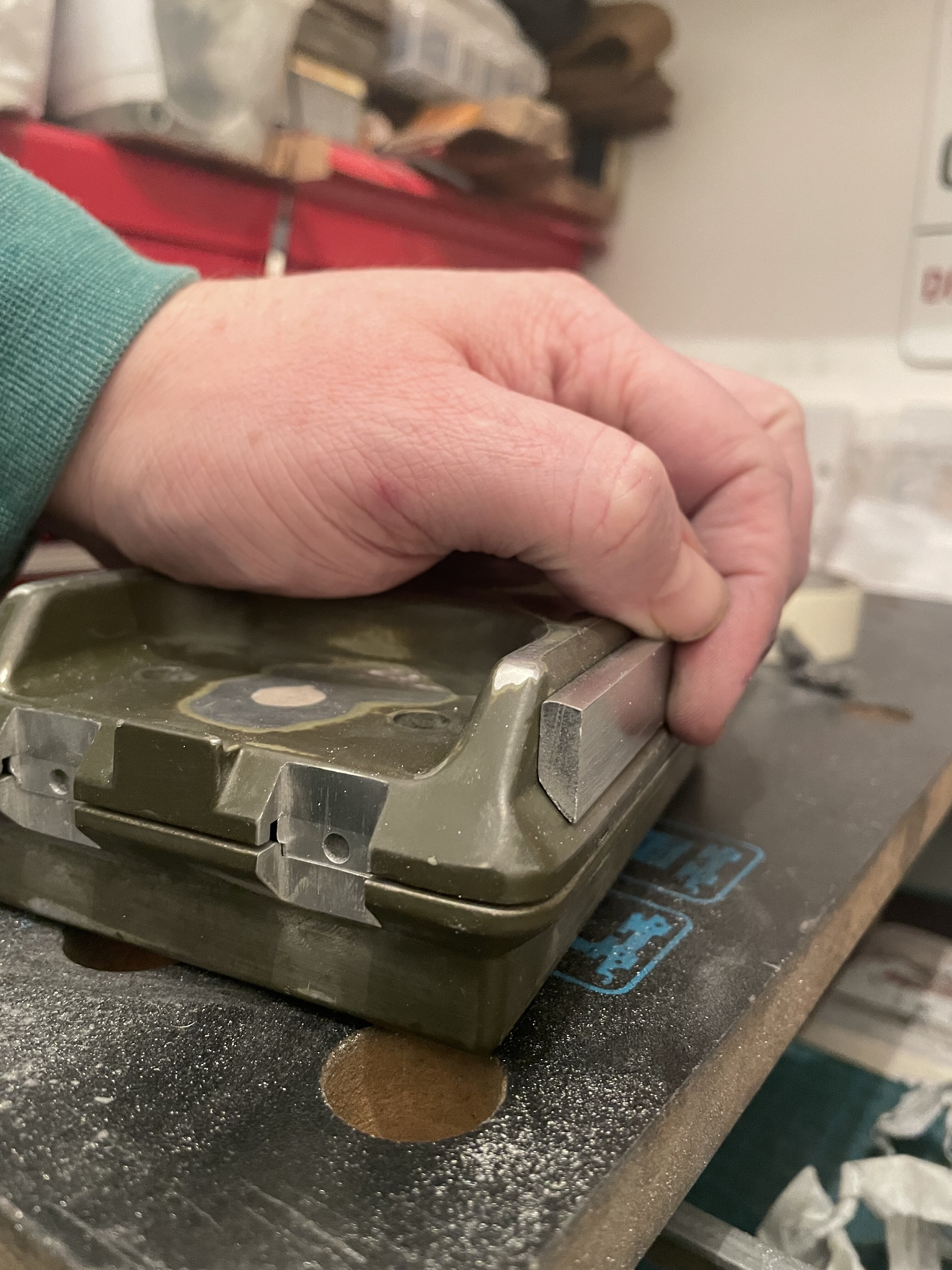

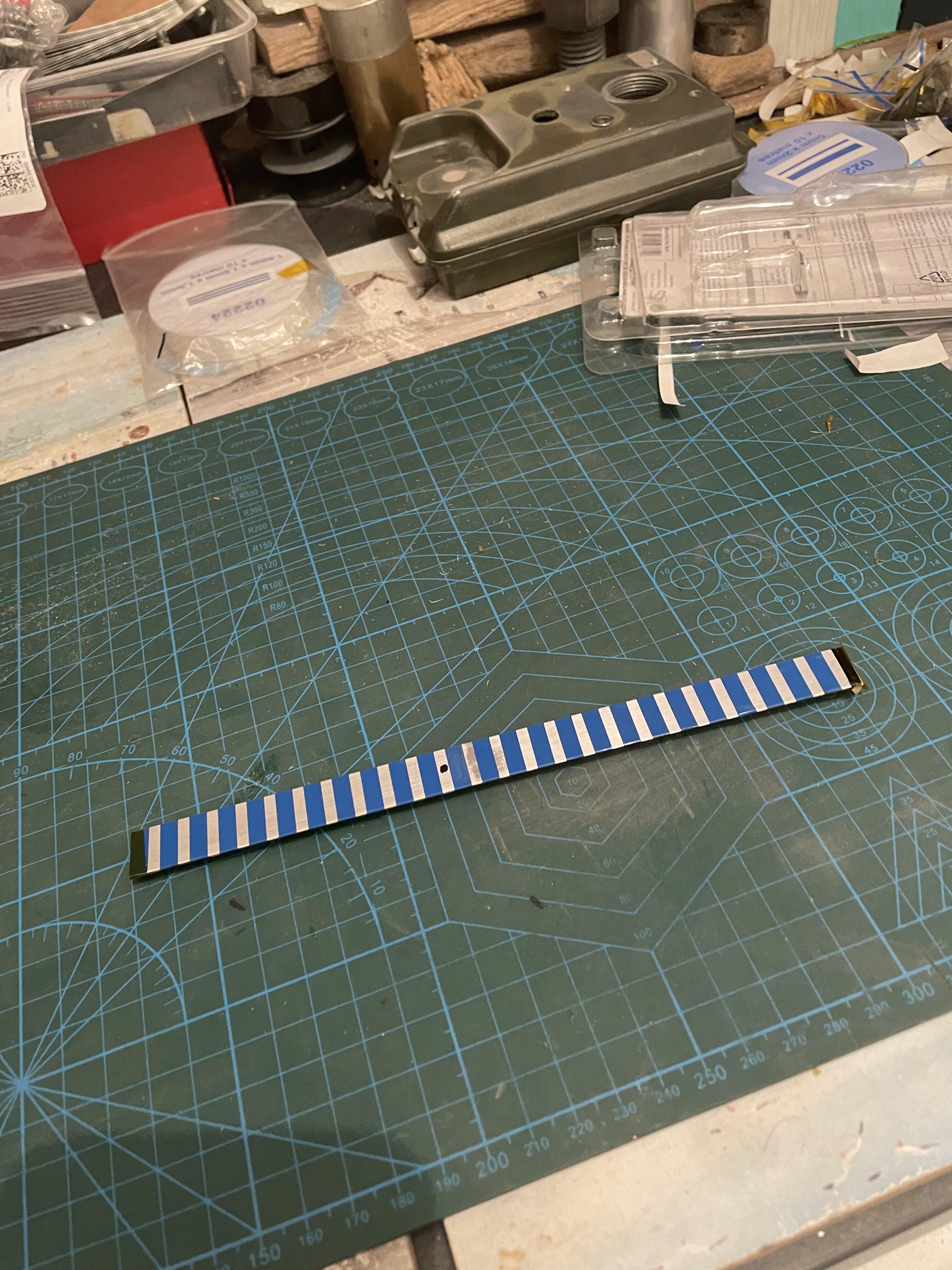

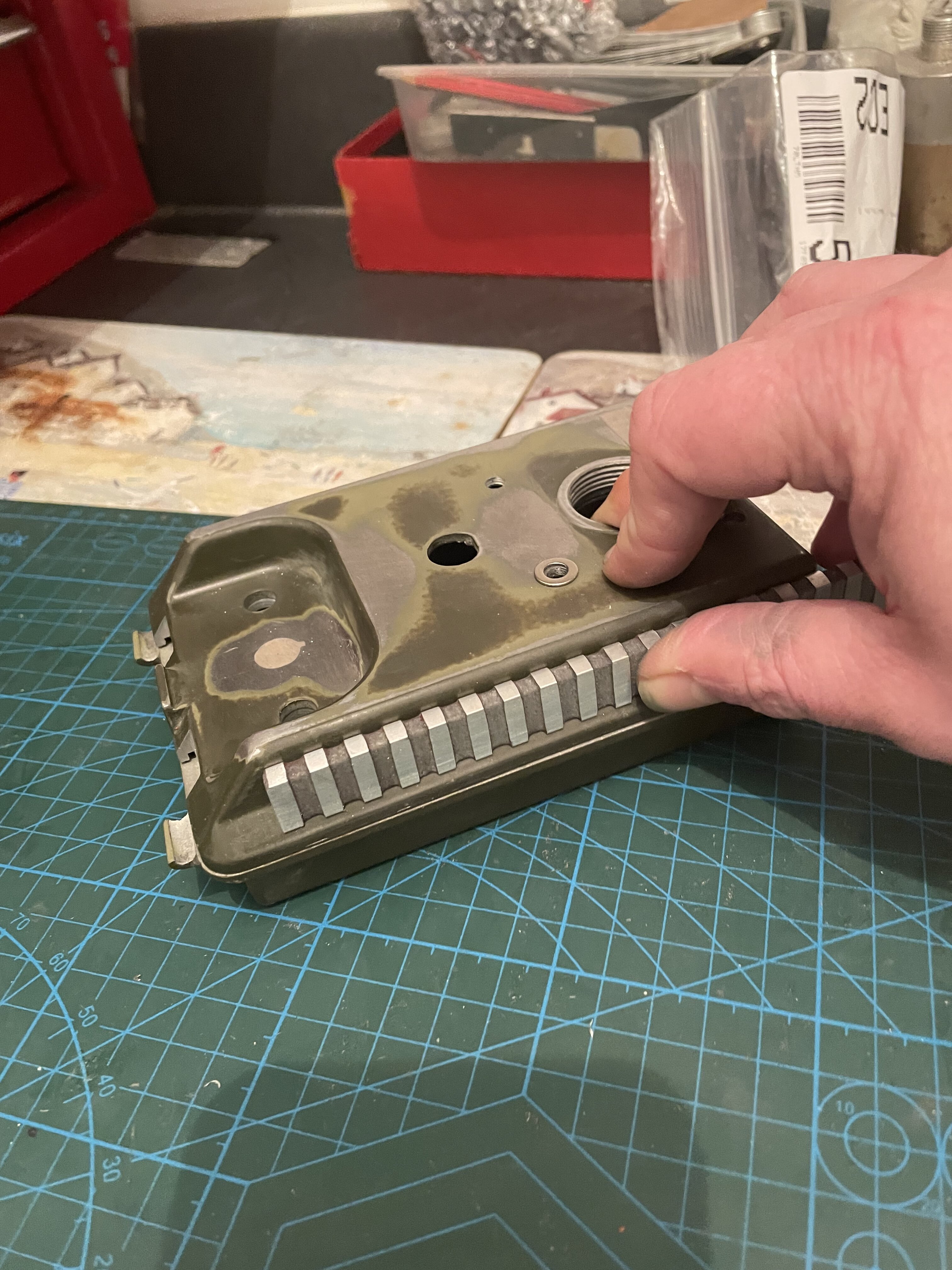

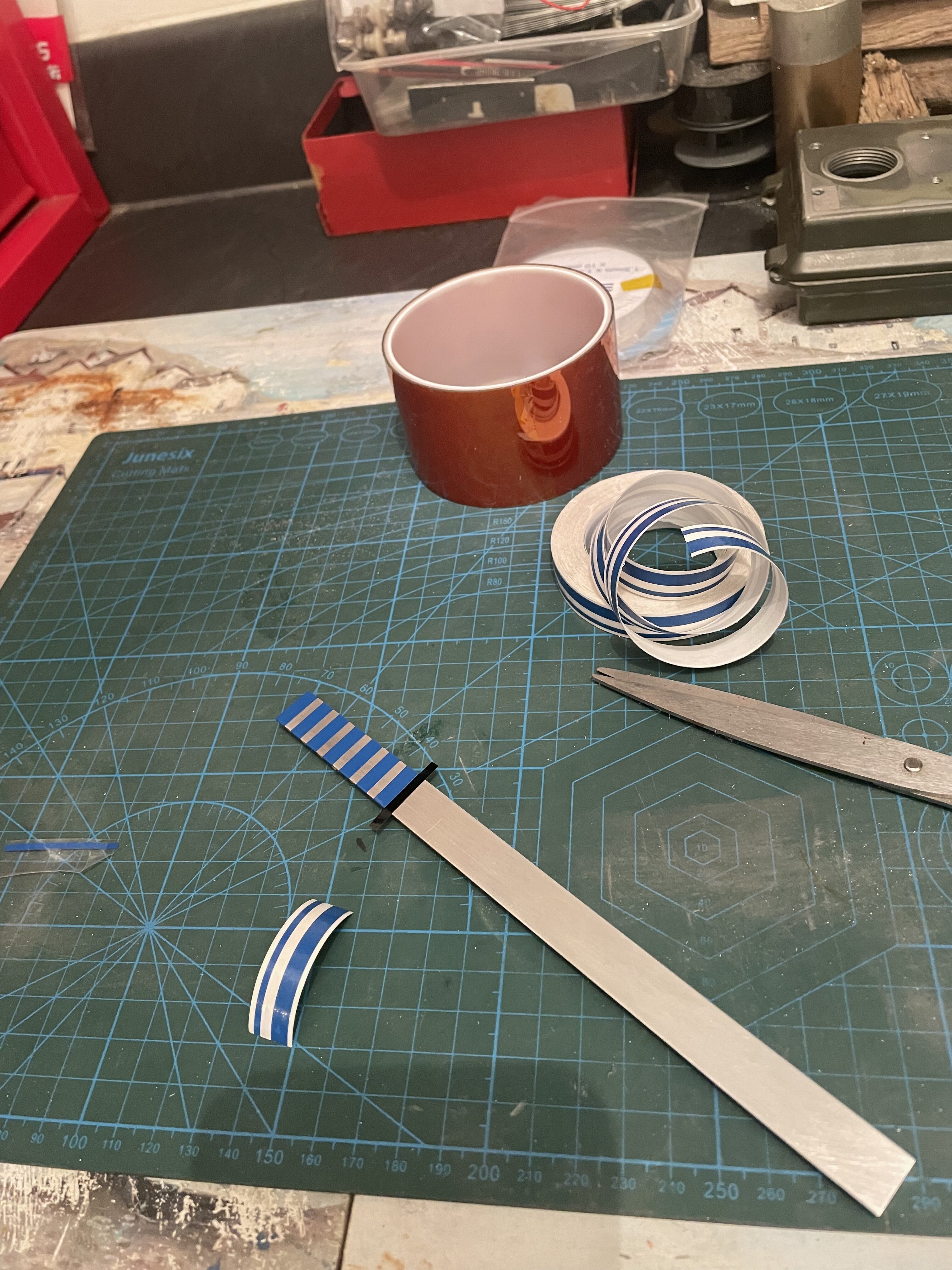

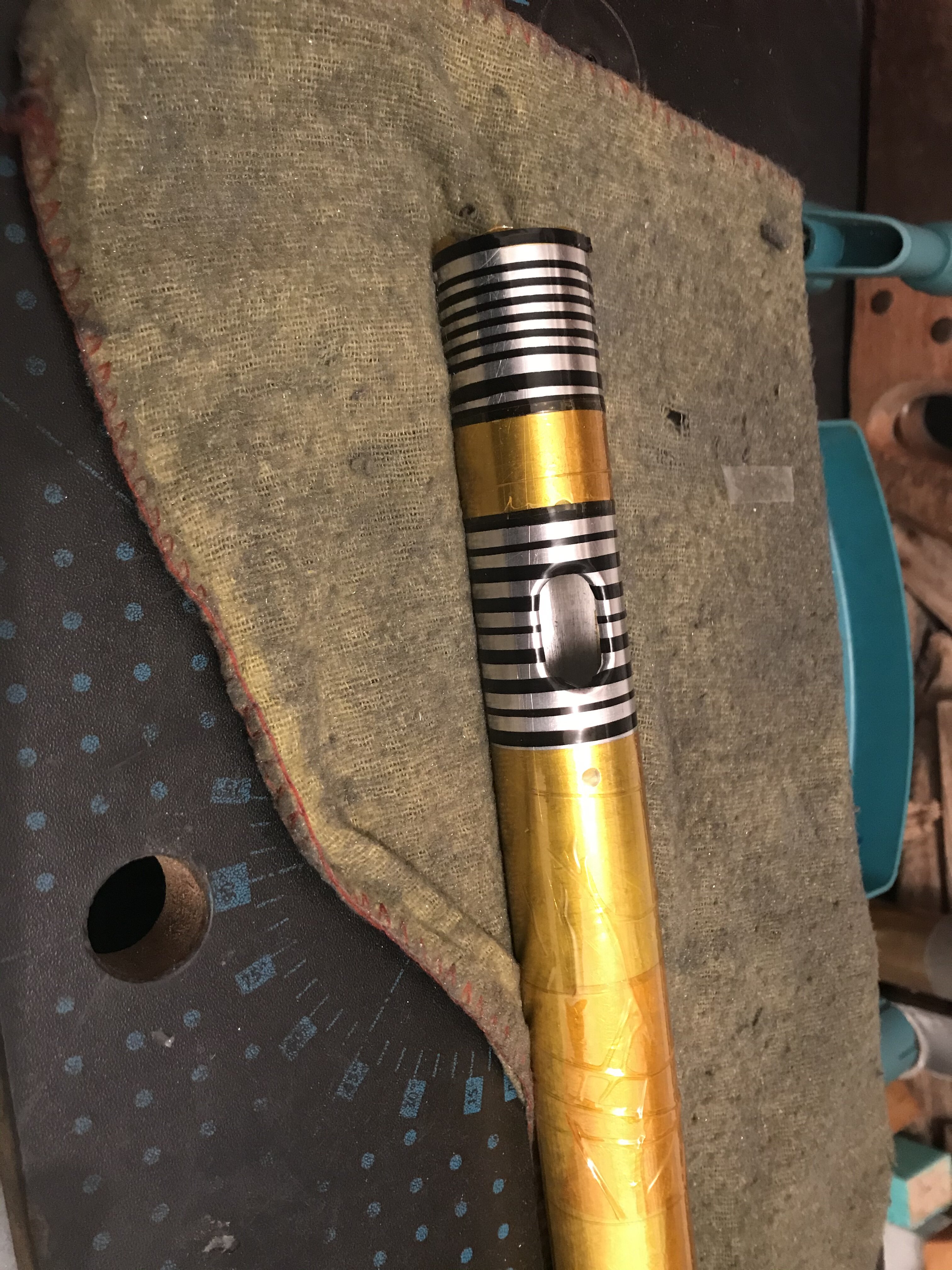

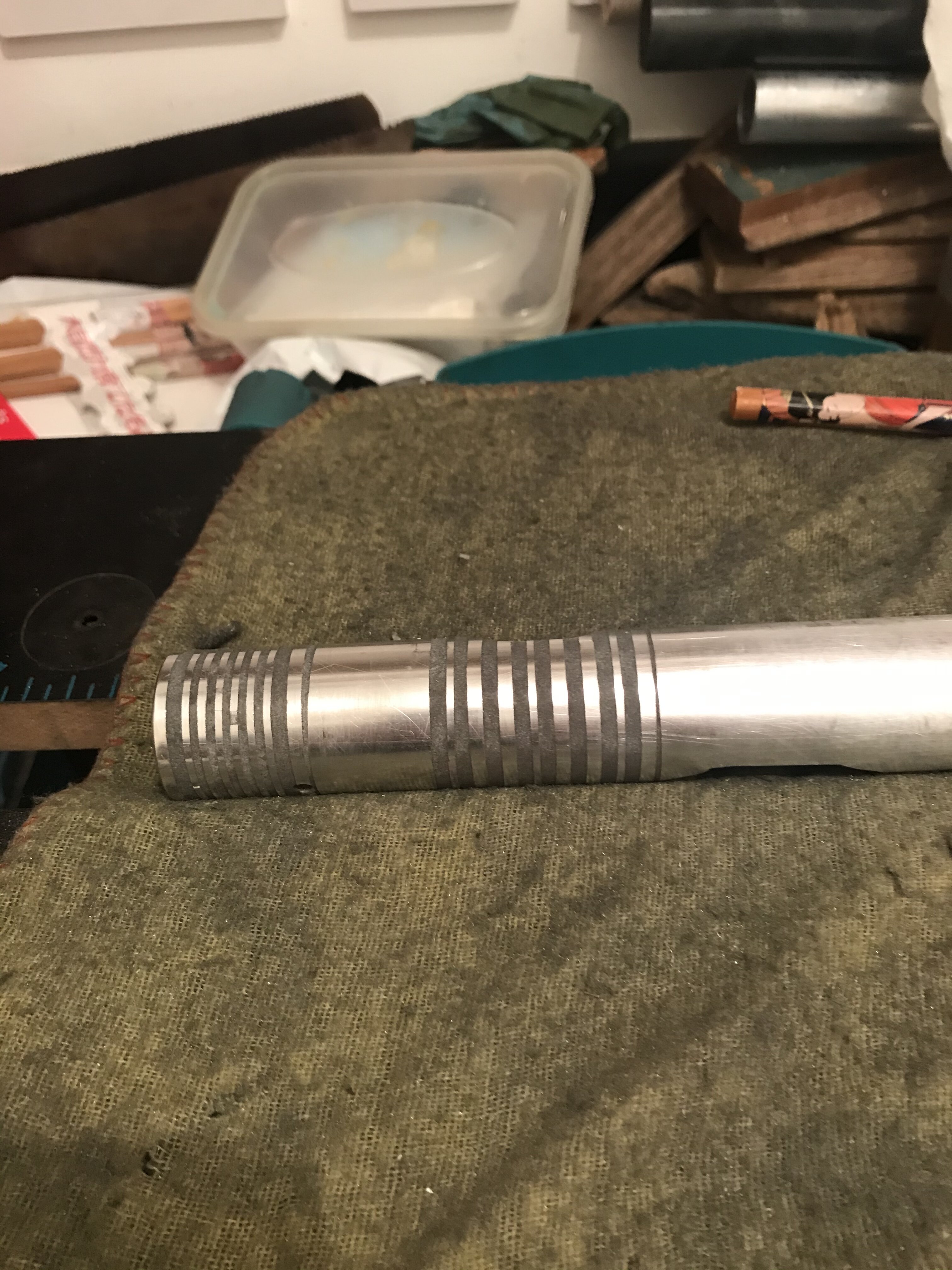

Got the rails done more or less. Filed the angle. Tapped it up for etching. Here it is

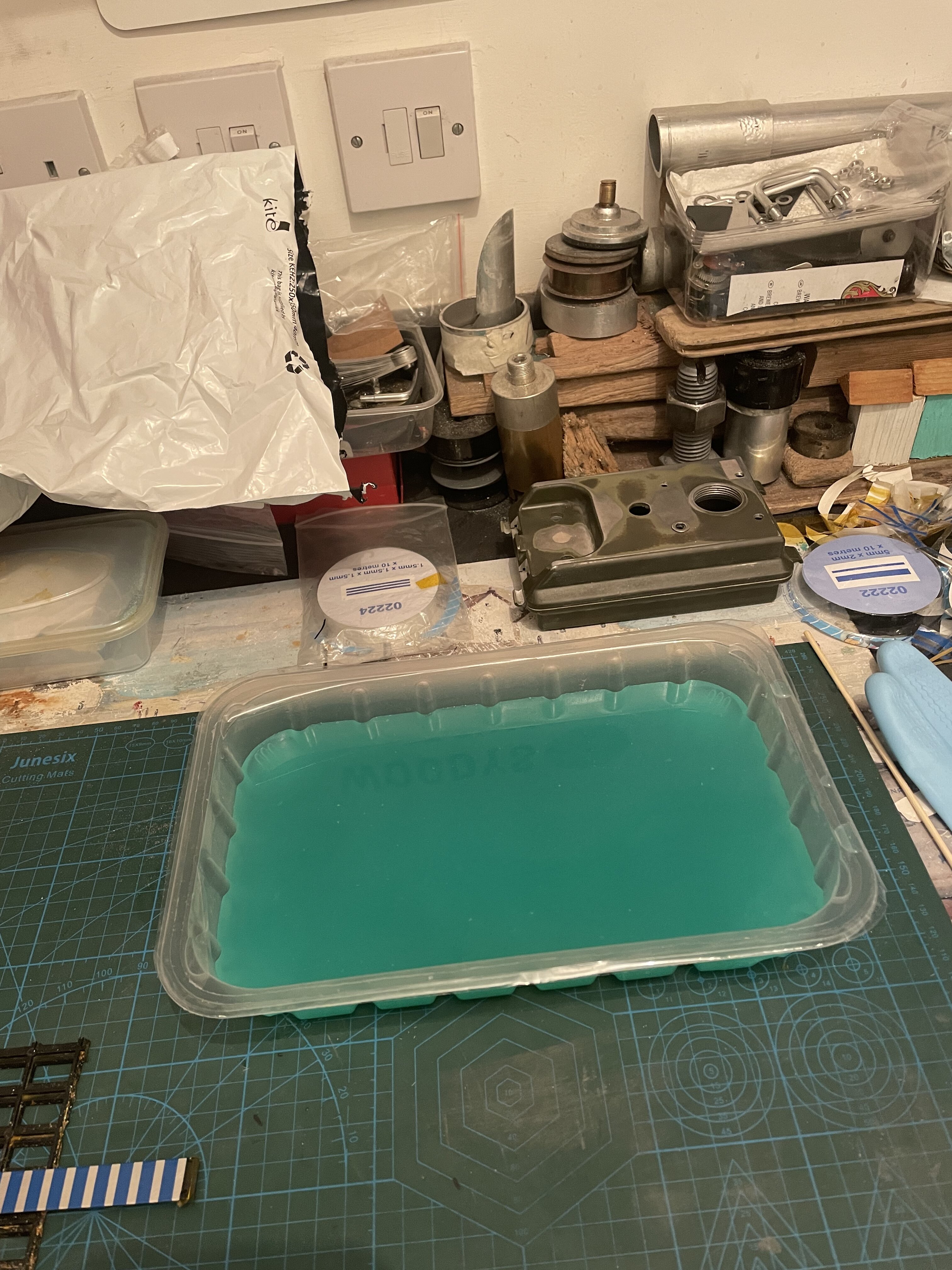

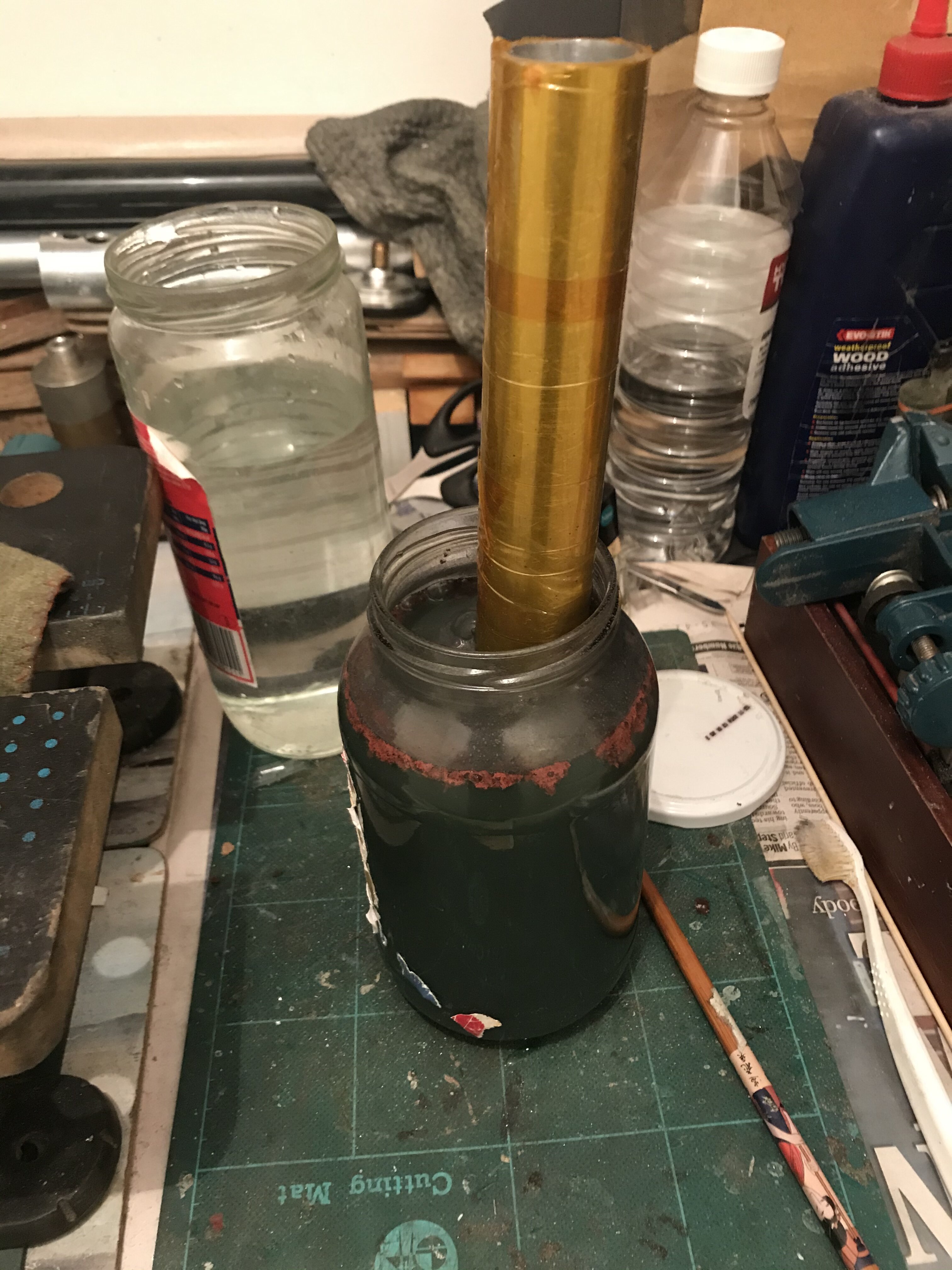

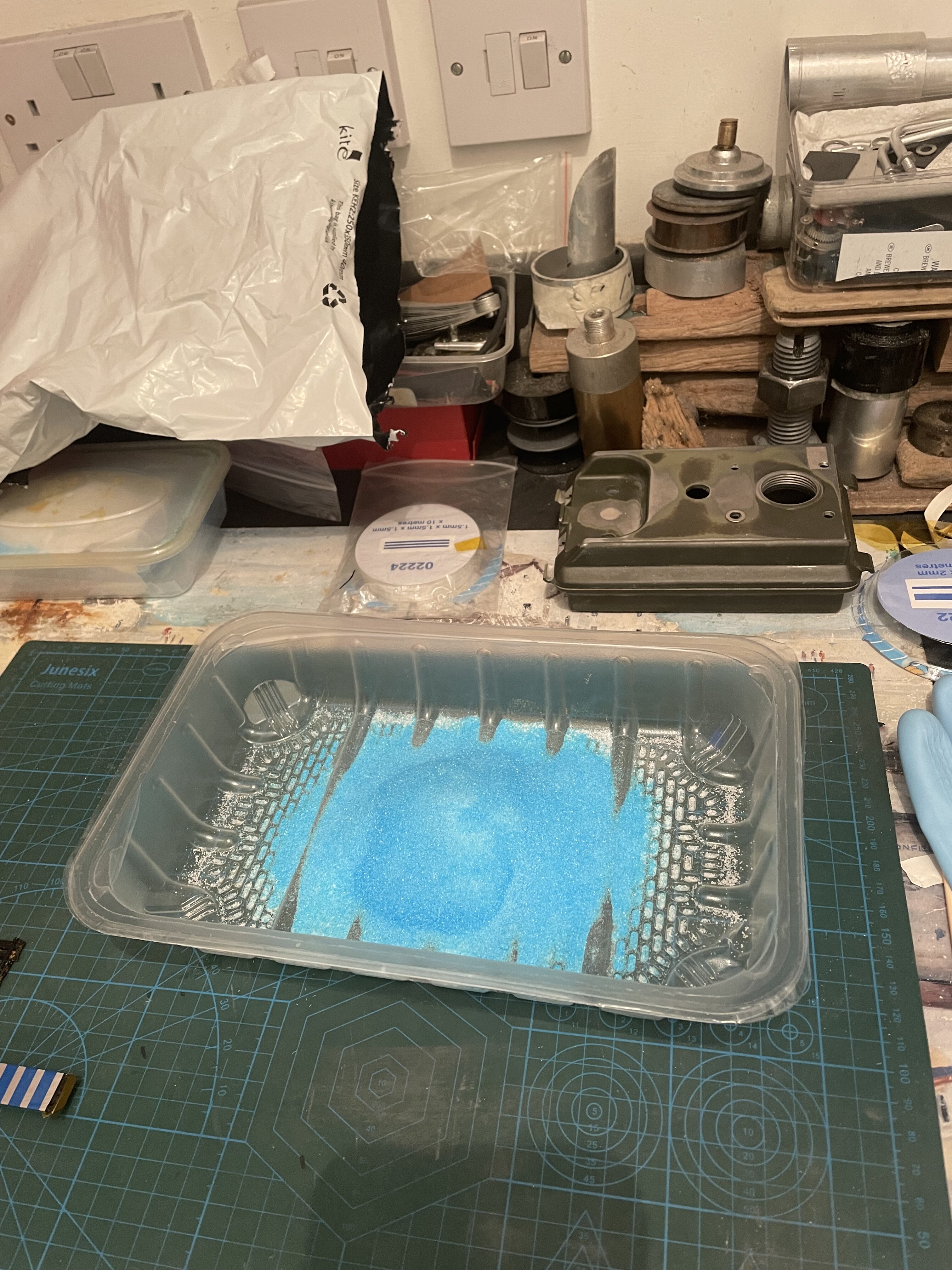

Copper sulphate looks like spotchka, but don’t drink it



[zapwizard]

Nice deep etching. Was that copper sulfate and water, or something else? (Edit, never mind, I missed the line of text)



[Halliwax]

Wicked progress



[woodywaverider]

Nice deep etching. Was that copper sulfate and water, or something else? (Edit, never mind, I missed the line of text)

Thanks, I used equal parts copper sulphate and table salt with warm water. Used 75g of each and 750ml warm water, left it in the mix for about an 1 hour.

Good tape is key. I use the gold/yellow heat resistant tape and vinyl car pin line tape.



[Halliwax]

Got the rails done more or less. Filed the angle. Tapped it up for etching. Here it is

View attachment 1543632
View attachment 1543633
View attachment 1543634
View attachment 1543635
View attachment 1543636
Copper sulphate looks like spotchka, but don’t drink it

View attachment 1543639

View attachment 1543641​

Thanks, I used equal parts copper sulphate and table salt with warm water. Used 75g of each and 750ml warm water, left it in the mix for about an 1 hour.

Good tape is key. I use the gold/yellow heat resistant tape and vinyl car pin line tape.

This info is gold! Thanks for sharing



[woodywaverider]

This info is gold! Thanks for sharing

Thanks no worries, anytime.

I’m still learning. With only a small space to work in and no access to a 3d printer or machine shop tools I’ve got to get creative.

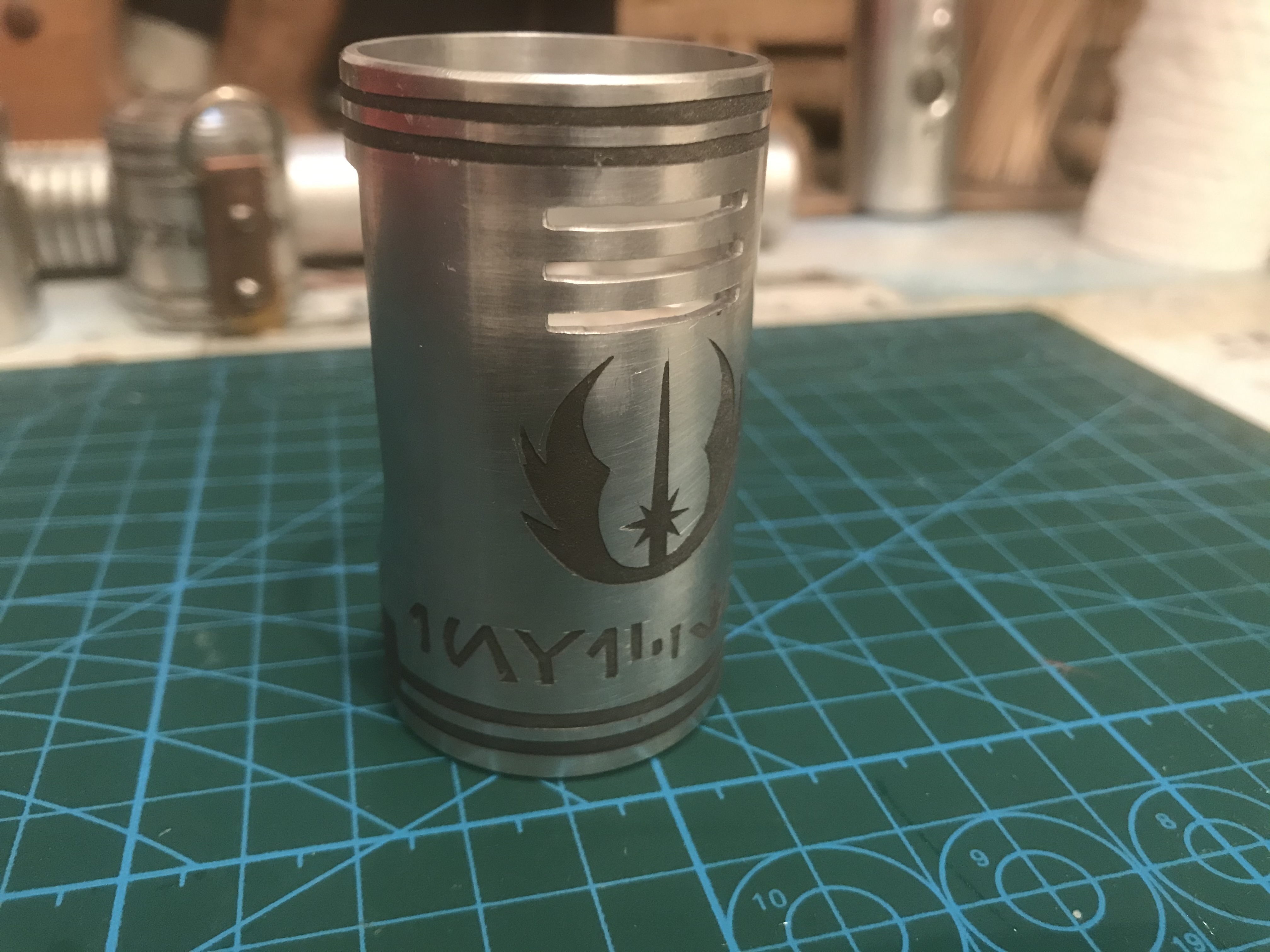

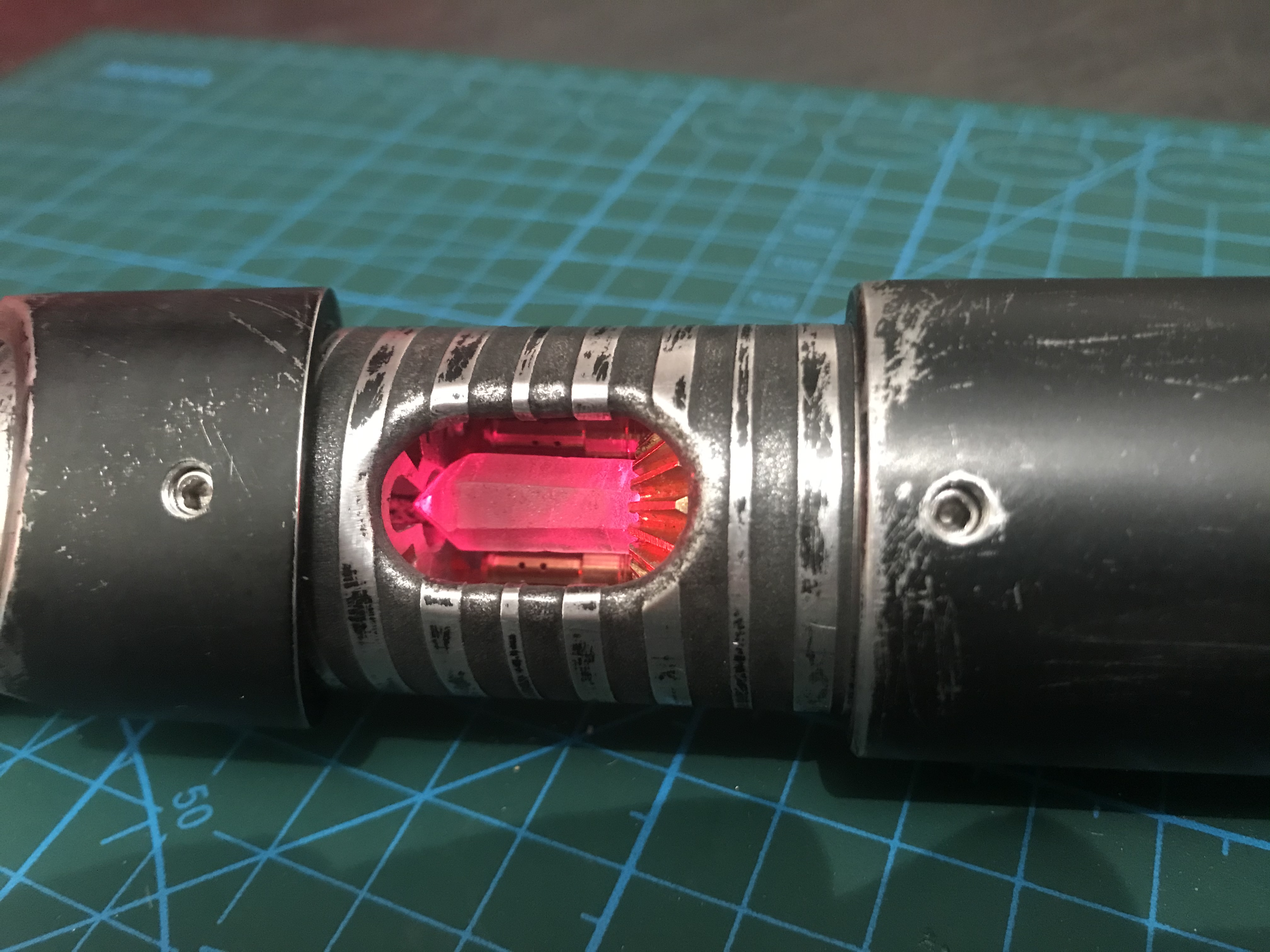

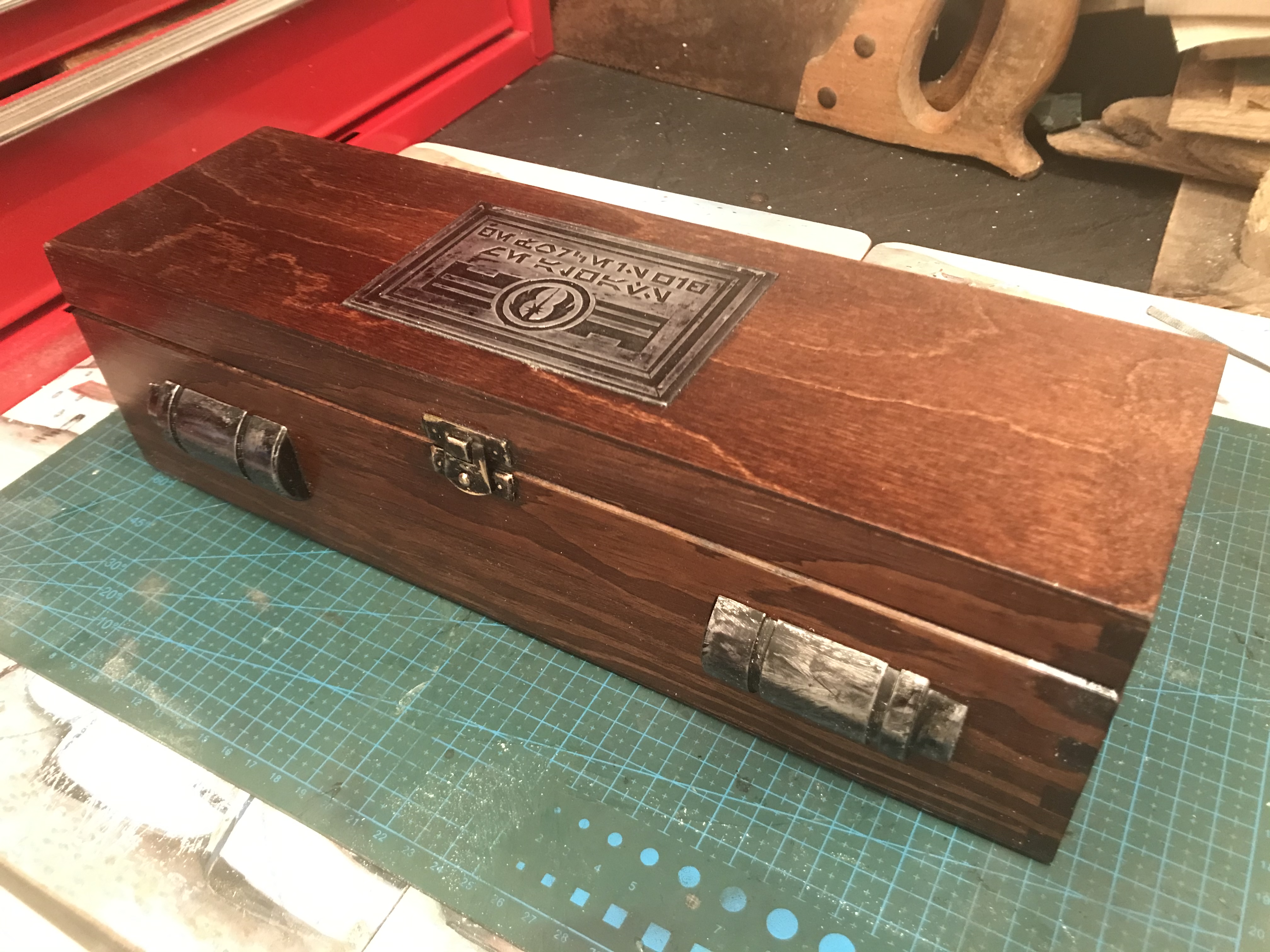

Here are a couple more bits and pieces I did using tape.



[Halliwax]

I want to try this so bad, is there a certain brand of vinyl you would recommend?



[woodywaverider]

I want to try this so bad, is there a certain brand of vinyl you would recommend?

It’s pin line tape used for cars, I get mine from a seller on eBay called loidu_2 but I’ve not really paid attention to a specific brand, just the widths/spacing of the tape.



[woodywaverider]

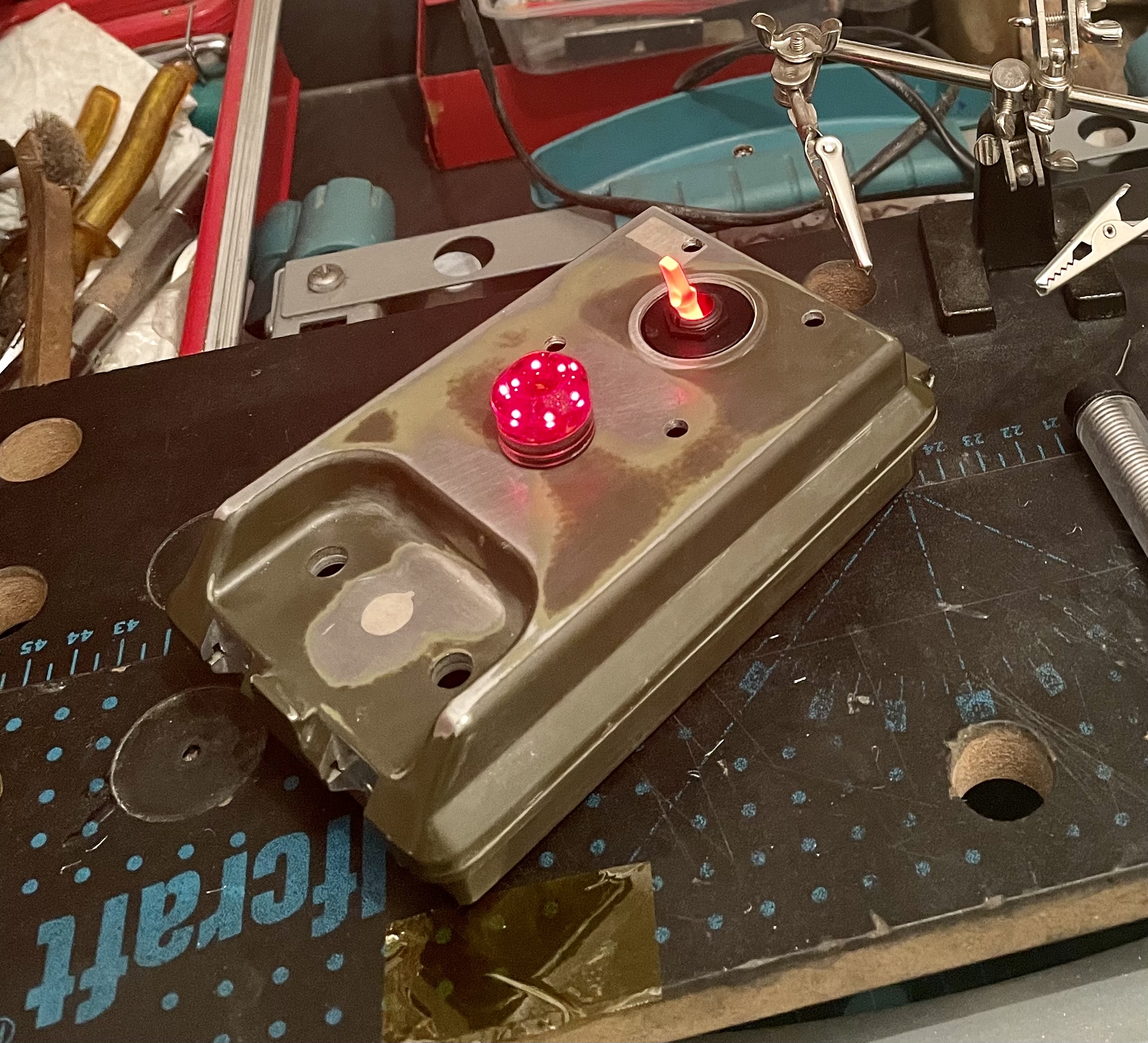

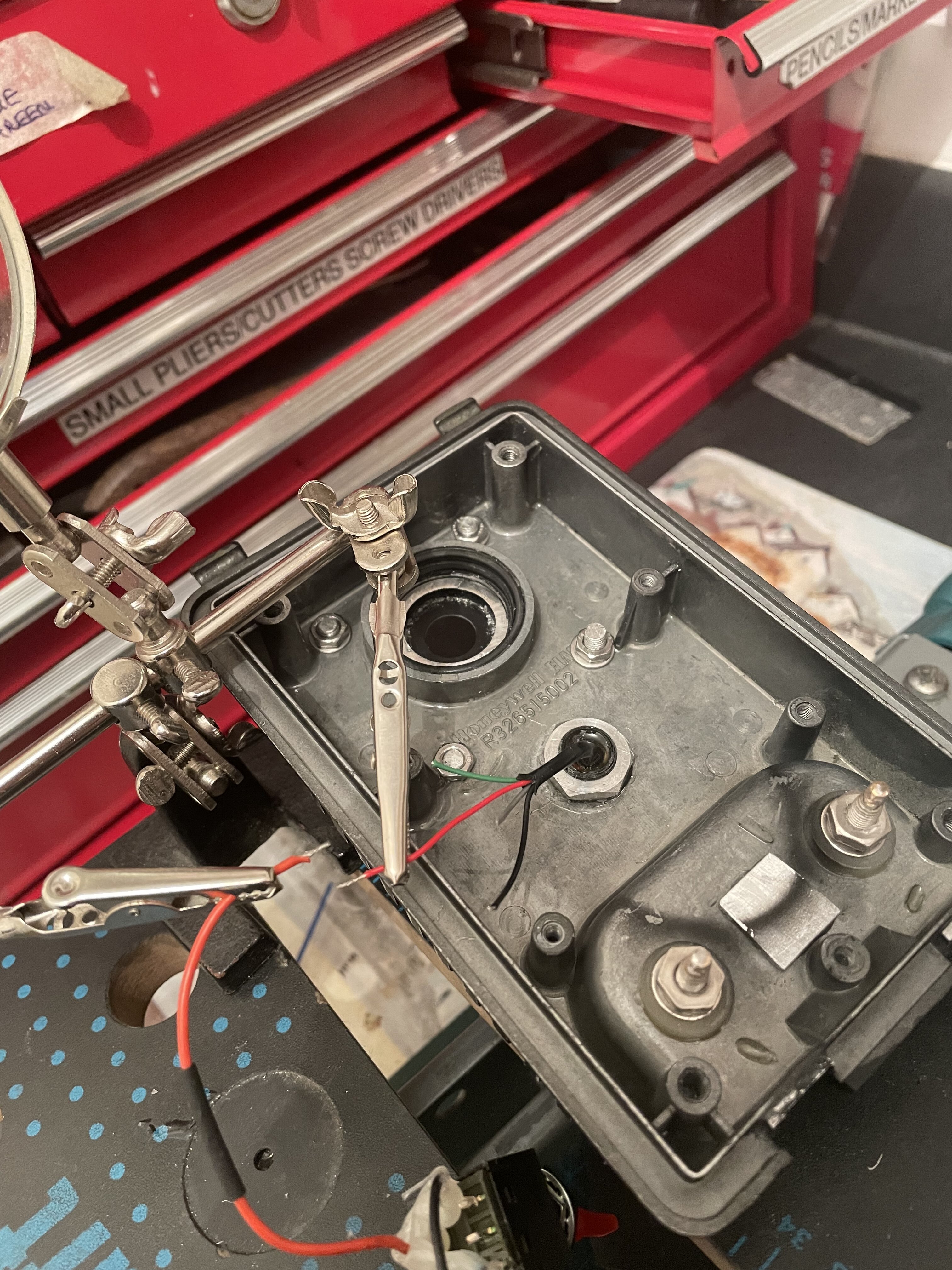

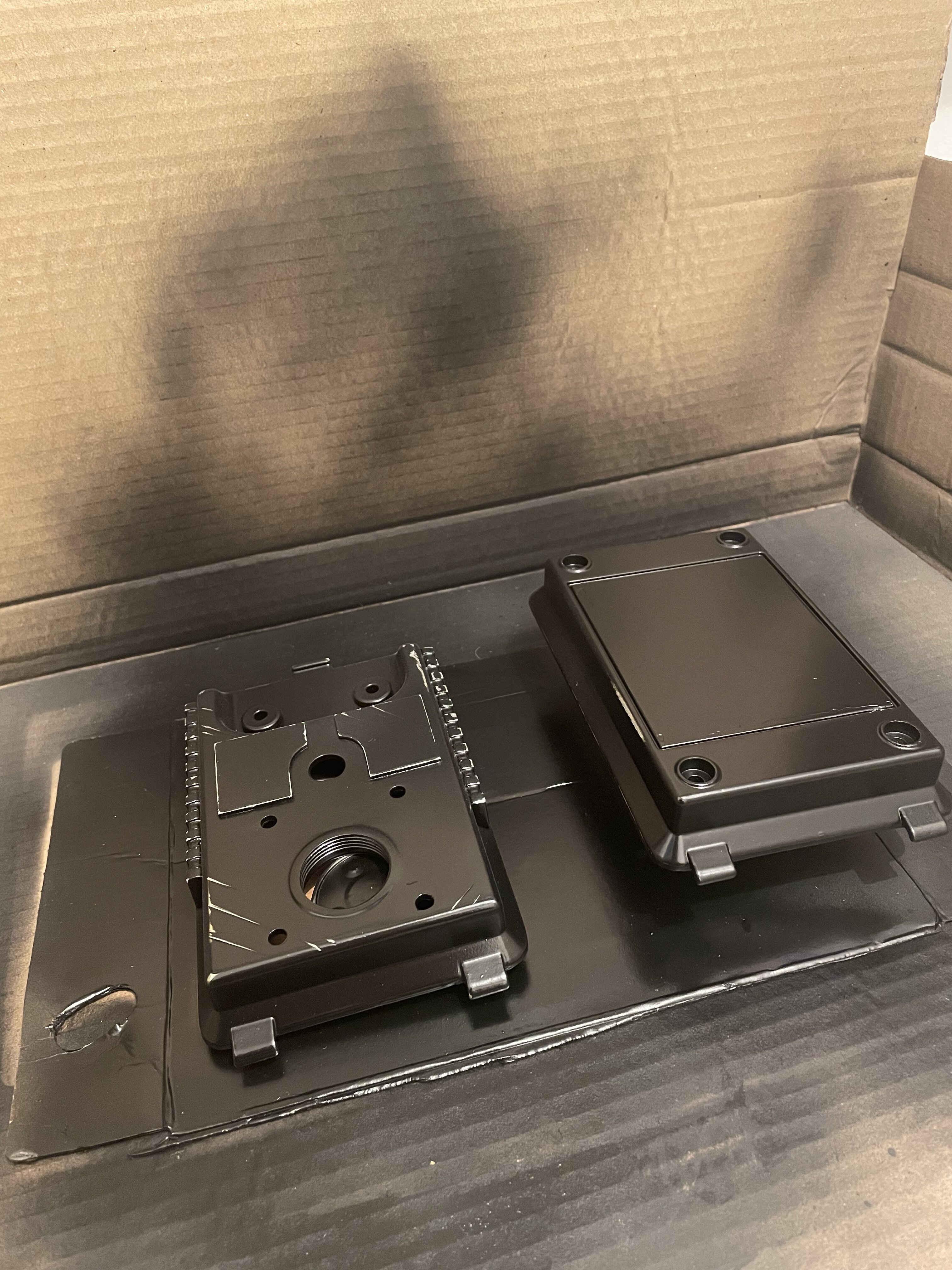

Too dark and wet to paint, so I thought I’d do the electronics first instead. Here’s the test fit.



[woodywaverider]

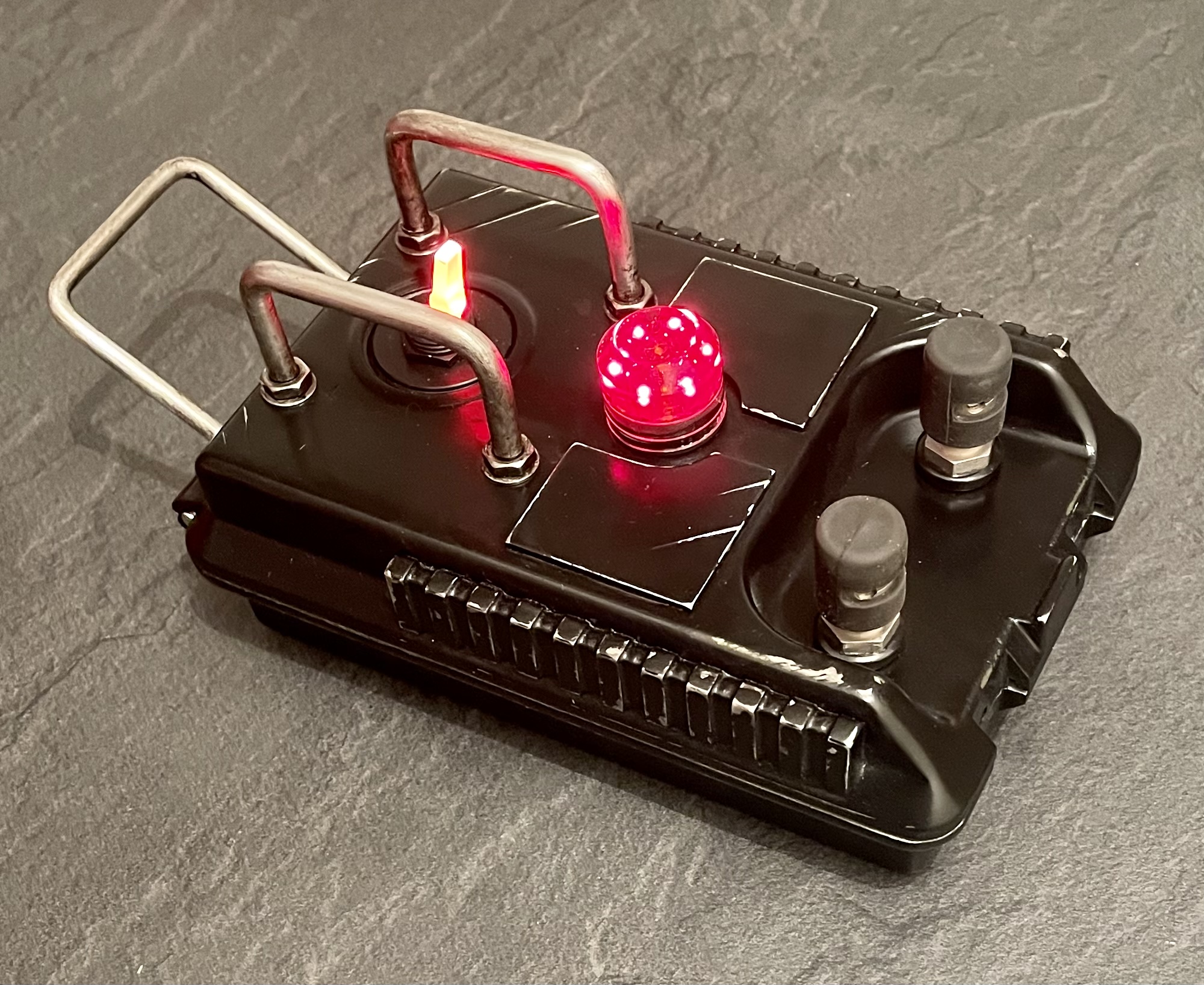

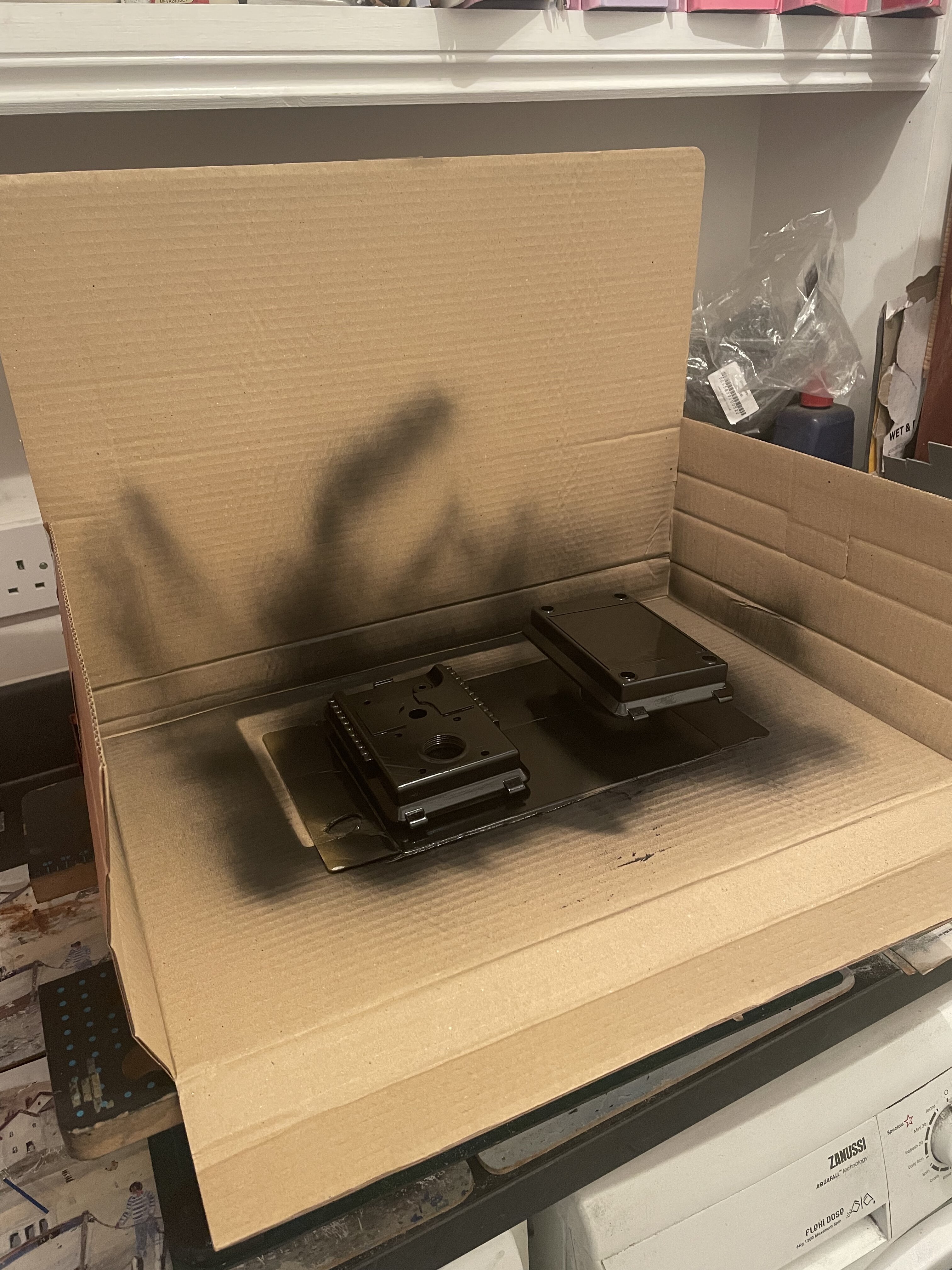

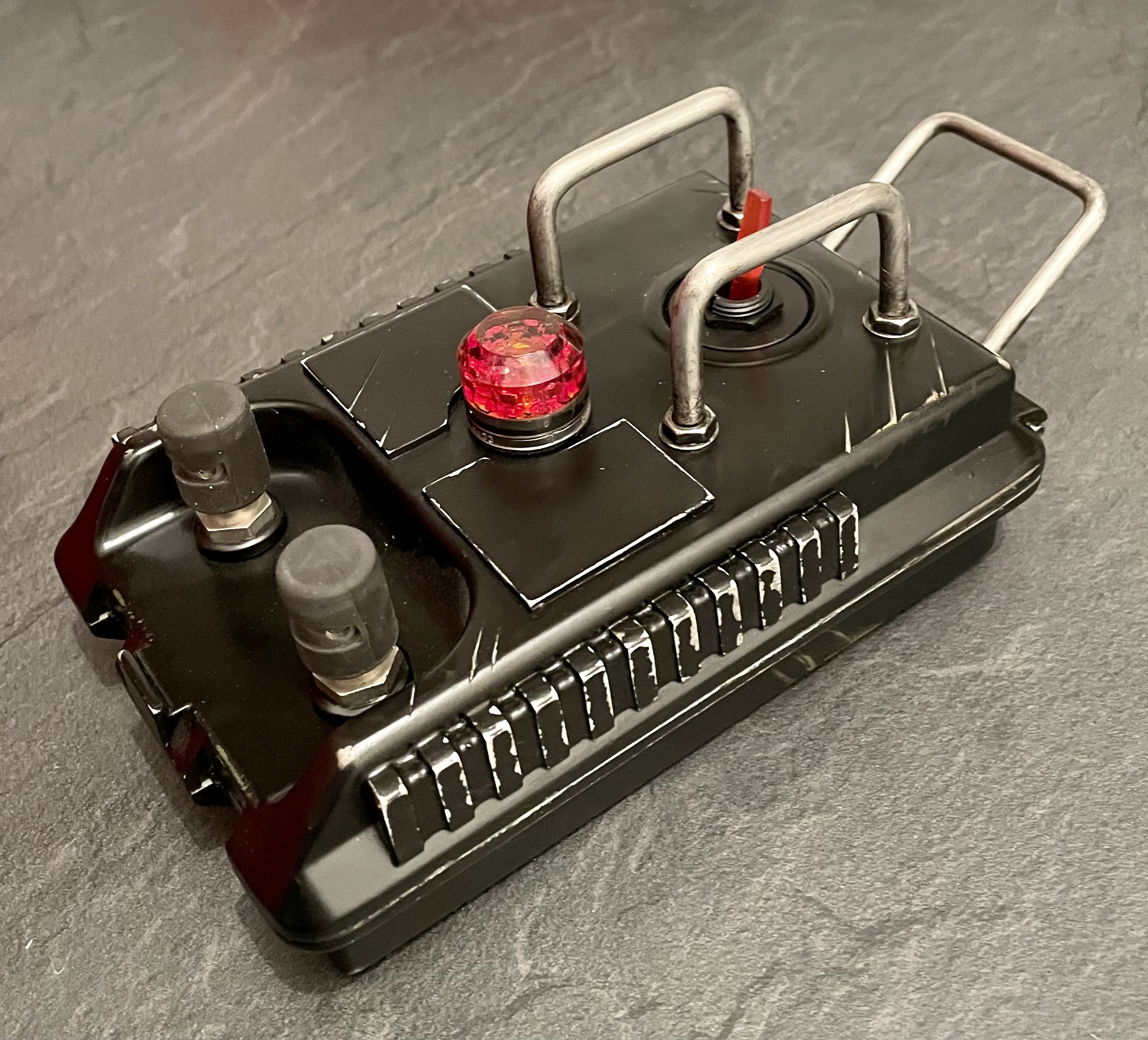

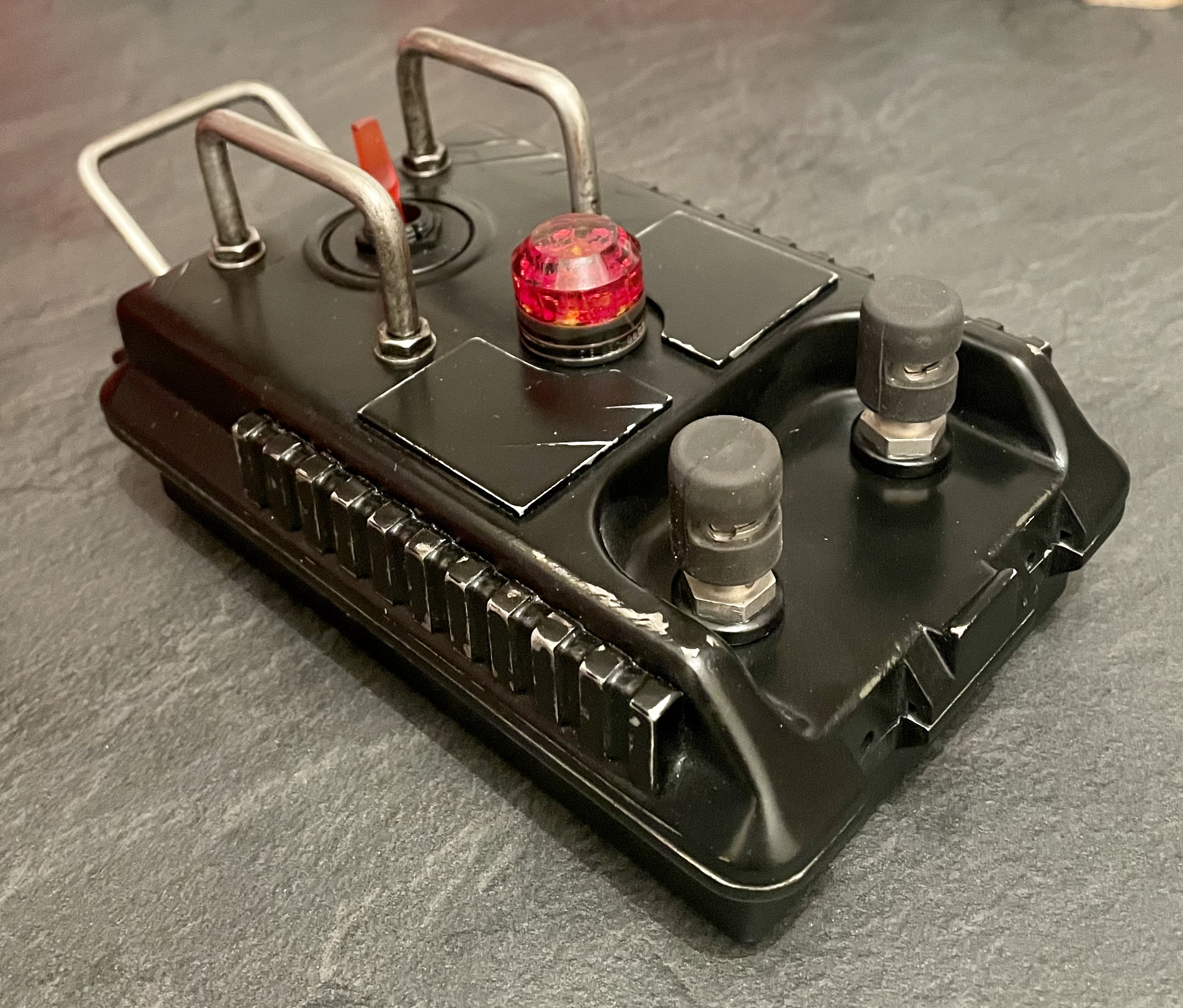

It’s finished. Did a fair bit since the last post, cut the rails down, glued everything on, painted and installed the electronics. I really enjoyed making this and was excited to get it put back together.



[woodywaverider]

Time to start something new. When I saw Din’s little parcel for Grogu and how it was folded to look like his ears i thought it would make an interesting prop, then seeming the tiny armour shirt I thought I needed to have a crack at making it. These are the references.



[woodywaverider]

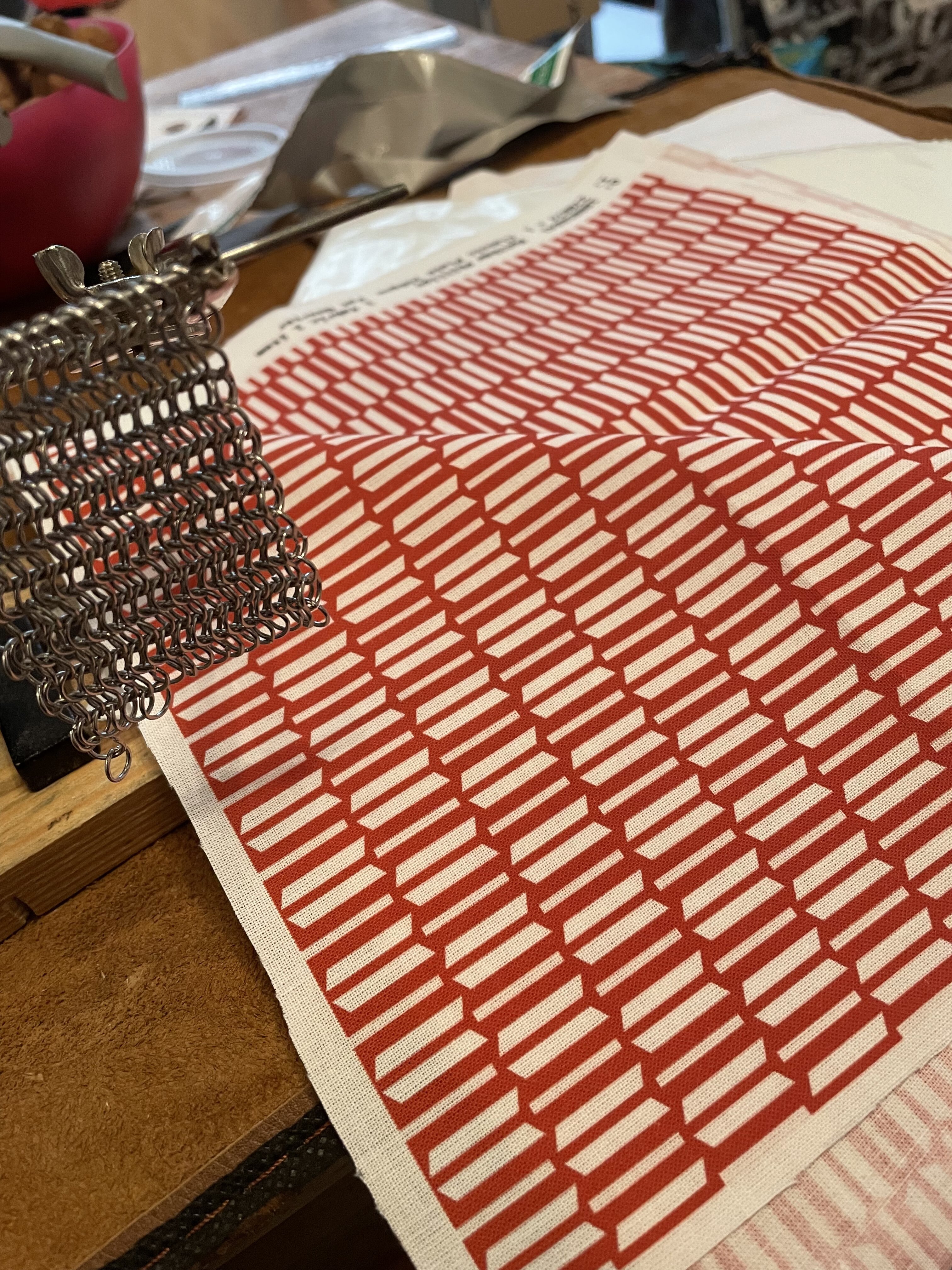

I wasn’t able to find the exact fabric, so I recreated the pattern and had some printed

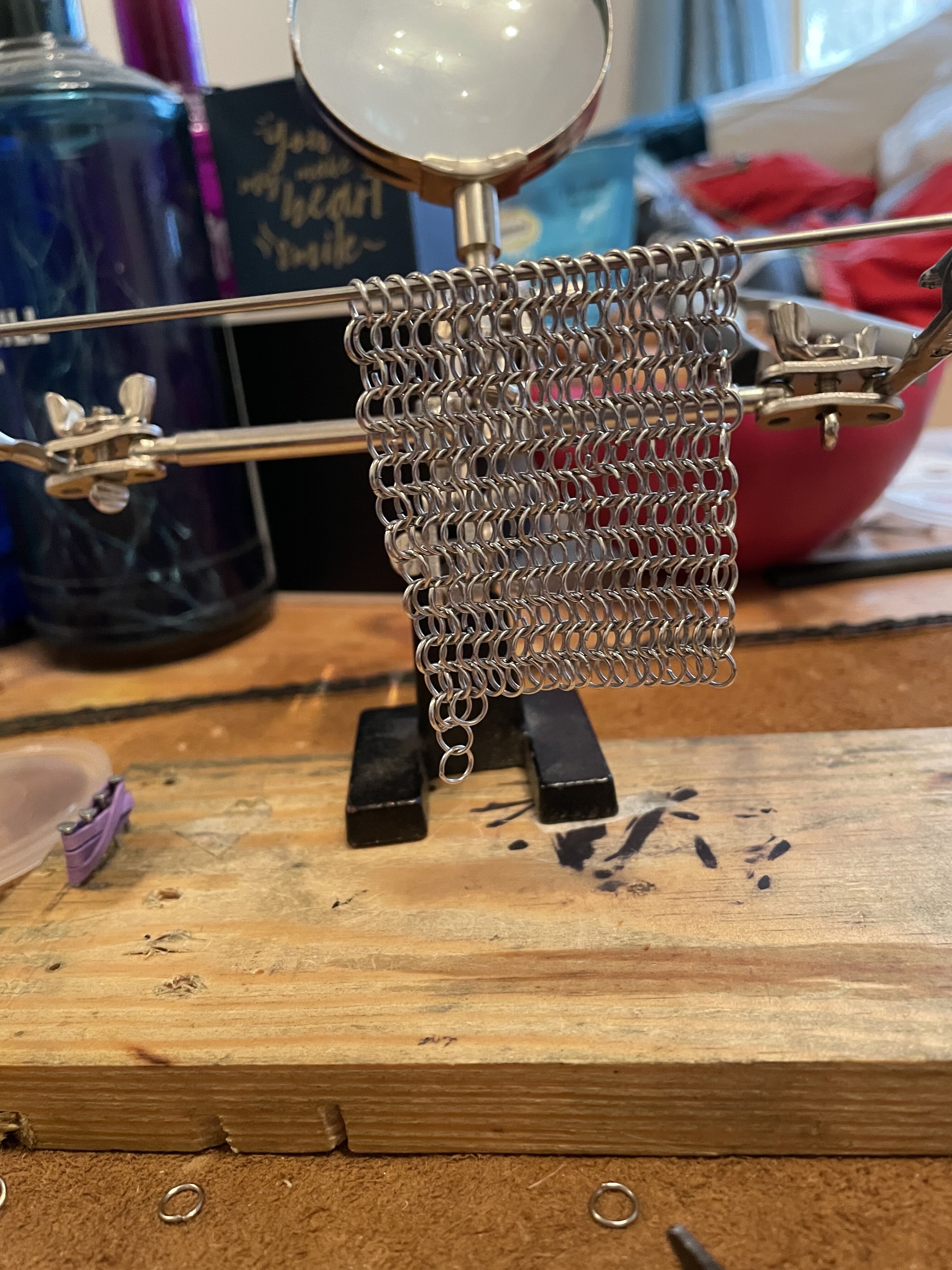

I bought 3000 6mm steel jump rings and started to work on the chainmail. Frustrating at first, but I’m staring to get the hang of it. This is the fastest method I’ve found of weaving the mail. It’s going to take a while and the patience of a Jedi to complete. Hopefully I can see it through.



[Halliwax]

I am trying to learn how to do chain mail now.. I want to make one for the side show child

Any advice on where you learned? I’m still up in the air on the size of the rings..



[woodywaverider]

I am trying to learn how to do chain mail now.. I want to make one for the side show child

Any advice on where you learned? I’m still up in the air on the size of the rings..

I’ve never done it before, I found a few tutorials online and am working it out as 1 go, these are the ones that made the most sense.

Making Chain Mail (Maille) for Jewelry or Armor: A How-To

A simple way to make classic chain mail for jewelry or armor. Well-illustrated in 3D. (Note: chain mail is often misspelled maile, maille, chainmaille, chainmail, European chain mail, and so on.)

discover.hubpages.com

What I’ve learnt as I go is that it help to check your work after every row, check it as a whole for rings that have ether 3 or 5 rings through then instead of 4 or are flipped in the wrong direction and address them. I’ve spent at leat half my time putting right early mistakes that I’d made.

It definitely helps having it hanging down off of a support as a posed to trying to work on a surface.

I think I’ve now got a handle on it now, and am just extending the piece I’m working at the moment now.

I’m planing on making 2 pannels for the front and back. Joining those a with 2 thin extension and filling those in for the neck hole. Then adding the sleeves to the sides

So far I’ve done just under 1k rings and have the first panel as wide as I want it and about 1/2 the depth/drop. Think I may need more rings.

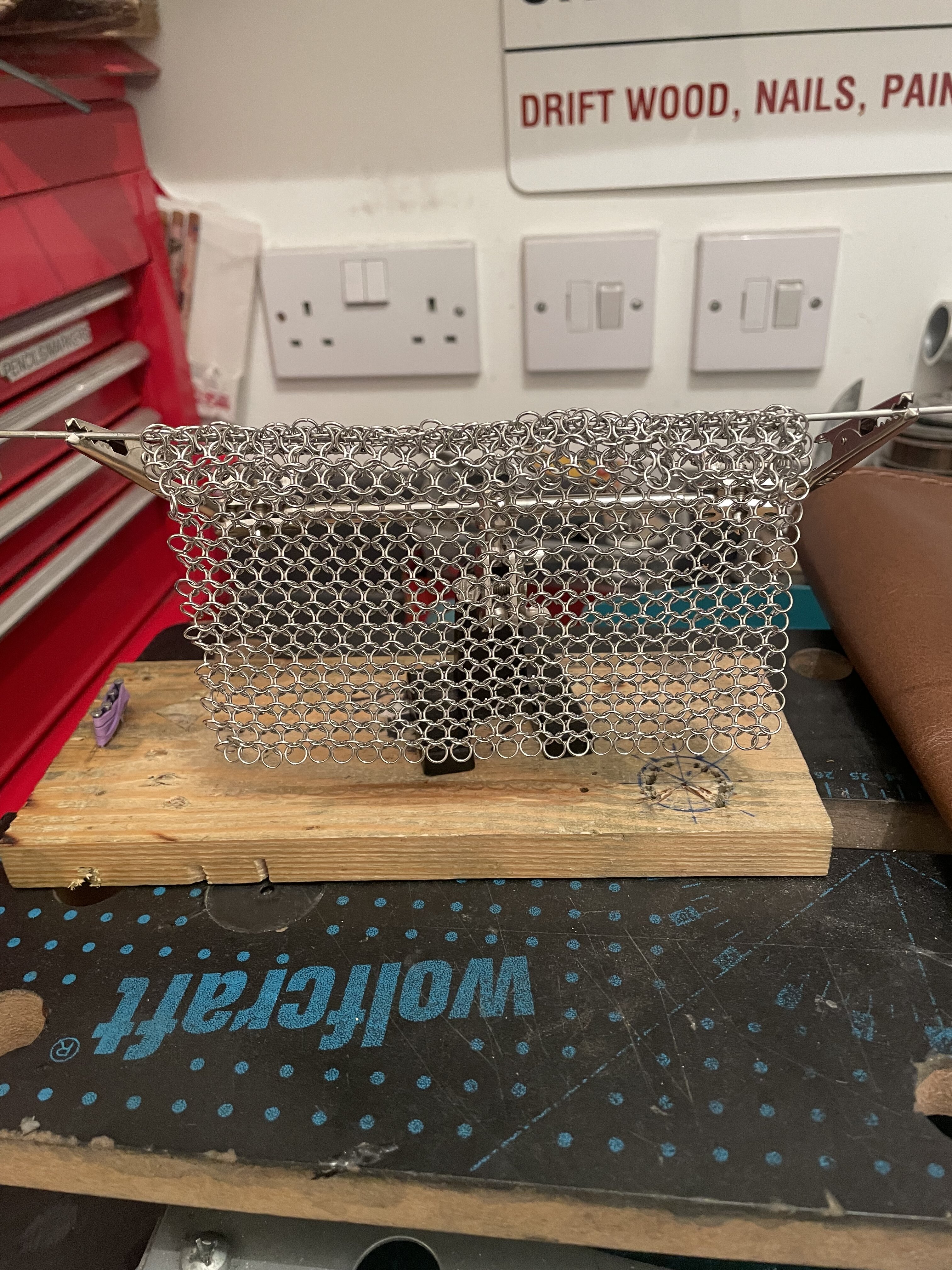

Here is where I’m at, at the moment.



[Halliwax]

1k of rings.. holy heck..



[Halliwax]

This is gonna be a nightmare… do you have a link to where you purchased the jump rings? I wonder if they have them in stainless?



[Eruonen]

View attachment 1547576This is gonna be a nightmare… do you have a link to where you purchased the jump rings? I wonder if they have them in stainless?

I be done chain mail in the past, and steel is very hard to work with when it’s that small. It’s a lot harder to bend the rings. I ended up using aluminum wire and making my own rings. Cheaper too.

Re: ring size, someone in the thread where we were originally discussing the fabric gave the exact size of the production used rings because they new the person who made it.



[Halliwax]

I found some stainless on Etsy.. I want to attempt to make a shirt for the side show child

Problem is attaching it to the child.. maybe have a magnet opening back? Idk yet.. curious to see what woody comes up with



[woodywaverider]

1k of rings.. holy heck..

Bought 3k for about £10, think it will be closer to 4-5k total, you’d need less if you go with a larger ring size and it would also be easier. You can also buy pre opened rings, I got these ones as they were a fair bit cheaper. Ring size for full size mail is 8-10mm so I figured a smaller size would suit Grogu, I wouldn’t go any smaller though, it would make it too difficult.



[woodywaverider]

View attachment 1547576This is gonna be a nightmare… do you have a link to where you purchased the jump rings? I wonder if they have them in stainless?

These are the ones I got:

304 Stainless Steel Jump Rings. Silver Colour. 4mm, 5mm, 6mm. Pack of 500. | eBay

Find many great new & used options and get the best deals for 304 Stainless Steel Jump Rings. Silver Colour. 4mm, 5mm, 6mm. Pack of 500. at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk

The are stainless, they are easy to open & close with 2 curved pliers. But they only go up to 6mm, there are plenty of other options if you search though.

Funnily they are cheapest to buy in lots of 4.
