My BTTF Flux Capacitor Build

[madmacs]

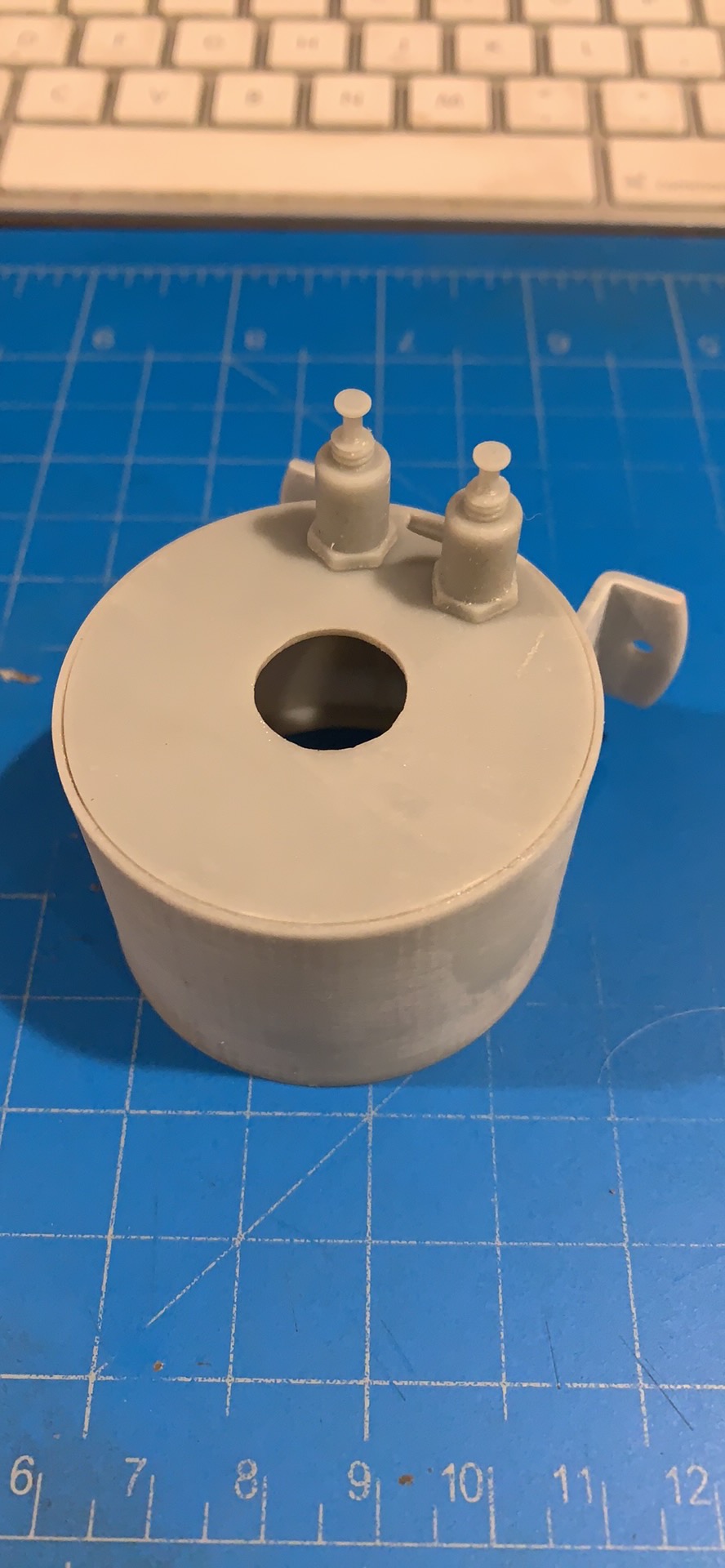

I have started building a Flux Capacitor replica for a Halloween decoration. So far I have modeled the Main body of the Torr Relays, and will place the order for the acrylic tubing parts this week. I posted the files for the Torr relay main body on Thingiverse if anyone would like to have a go at it. I will take anyone's input into design under advisement.

Other design files will follow over the course of the build.

Torr Vacuum Relay (Flux Capacitor) by myyellowminicooper

The original props used for the Flux capacitor were a set of 3 Torr high voltage Vacuum relays.I did not have the luxury of holding an original in my hand, so this design is derived from measurements other people have taken and published. I will model the glass parts of the relay in the future...

www.thingiverse.com



[MattgomeryBurns]

Great to see all these BTTF projects popping up. It was pretty dry for awhile.



[wdtenney]

Just printed out a set of your files. Thanks for posting them!
-Dave-



[Marsupial]

Those looks spot on.

I do not own a 3d printer. Is there any way to get these files printed?
