turboedbug

New Member
So I am looking to start sculpting on the smaller scale of figurines. I was wondering if any of you might know a really good informative post or a how to on molding the Intricate parts of a sculpt. I am guessing most of the figurines are broke down into multiple pieces then the molds are made. How do u go about breaking the sculpt down? I see alot of the sculpts are done on wire forms and they don't look like pieces would just detatch. Any insight on this is much appreciated.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

turboedbug

New Member
Here's the beginning of my sculpt lol



LunaticNic

Sr Member

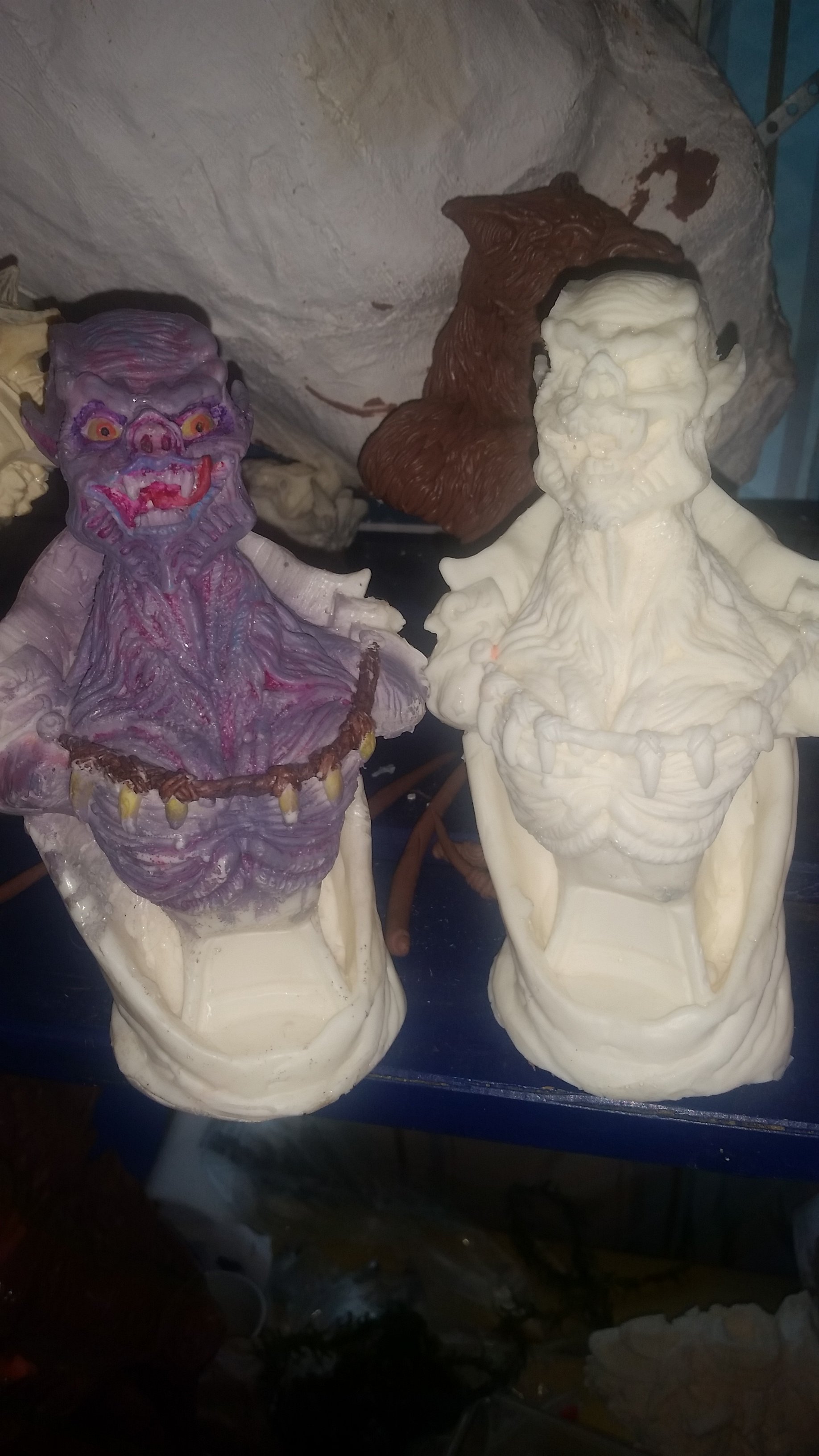

I just started with small scale sculpts a few months ago. As far as the armature wire, I personally use aluminum foil that I crumple into the shapes and then sculpt around those. Depending on what you are doing, I'd say a good rule of thumb would be separating all extremities from the torso and molding them separately. Also check and avoid things that would create a really concave area in a mold that would easily trap air bubbles. Got a few picture examples of 2 busts I made. The Pred is 4 pieces (head, torso/base, plasma caster, and dread molds)though in retrospect I should have made it 5 and molding the medpack separately, due to it creating that concave surface I talked about, plus while demolding it ripped the mold into pieces.
On the other hand I was able to do my vampire lord in one piece due to the general lack of concave surfaces (although the chin does catch air bubbles).

Hope that helps a bit.

Ps. Depending on how small the pieces are you are trying to cast you may want to plan and cut in small channels in the mold that will let air escape more easily when casting it (super important when molding and casting dreads and Plasma casters).
