Moebius Jupiter 2 1/35 customized build

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

COlson

Active Member

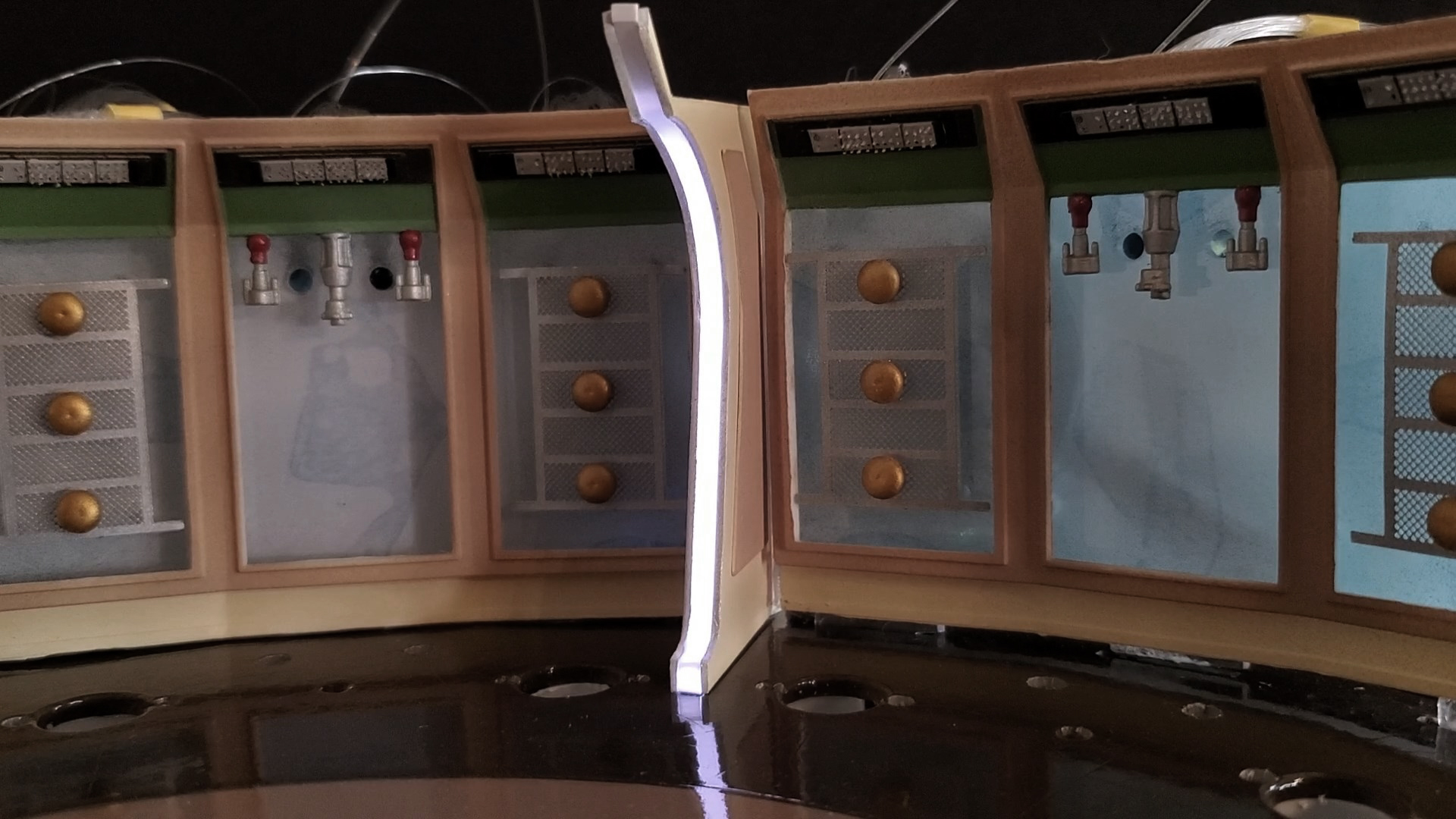

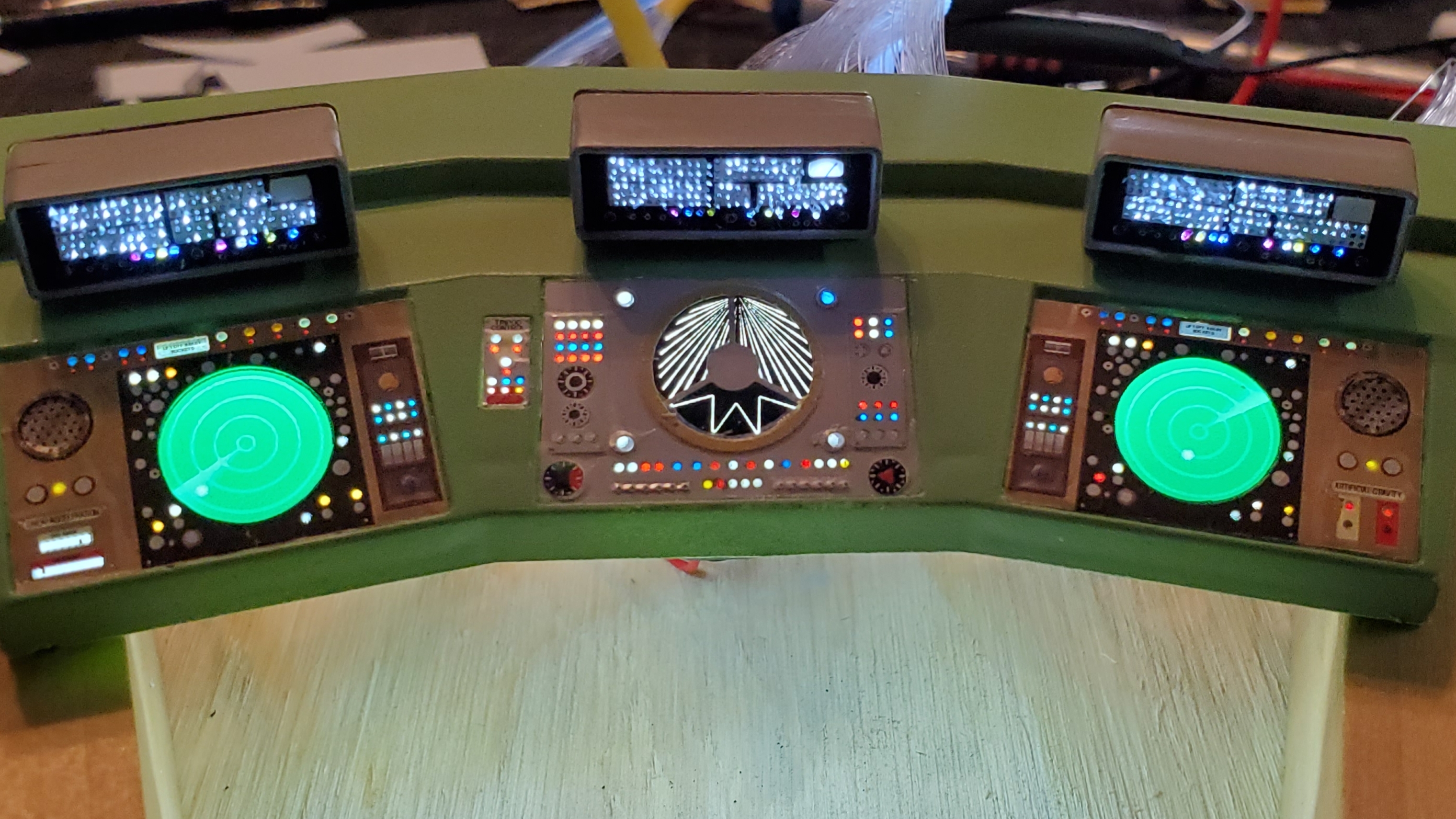

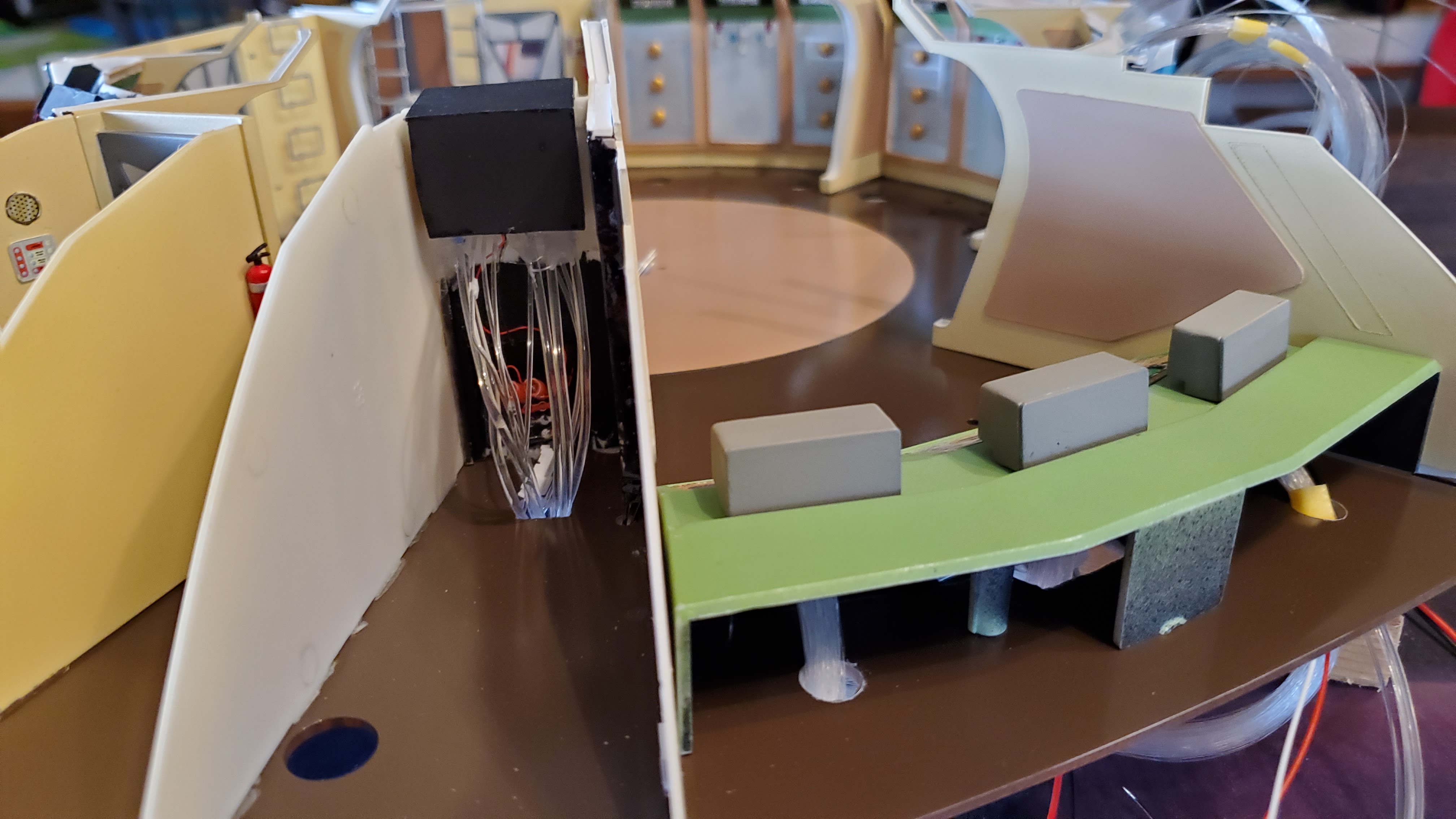

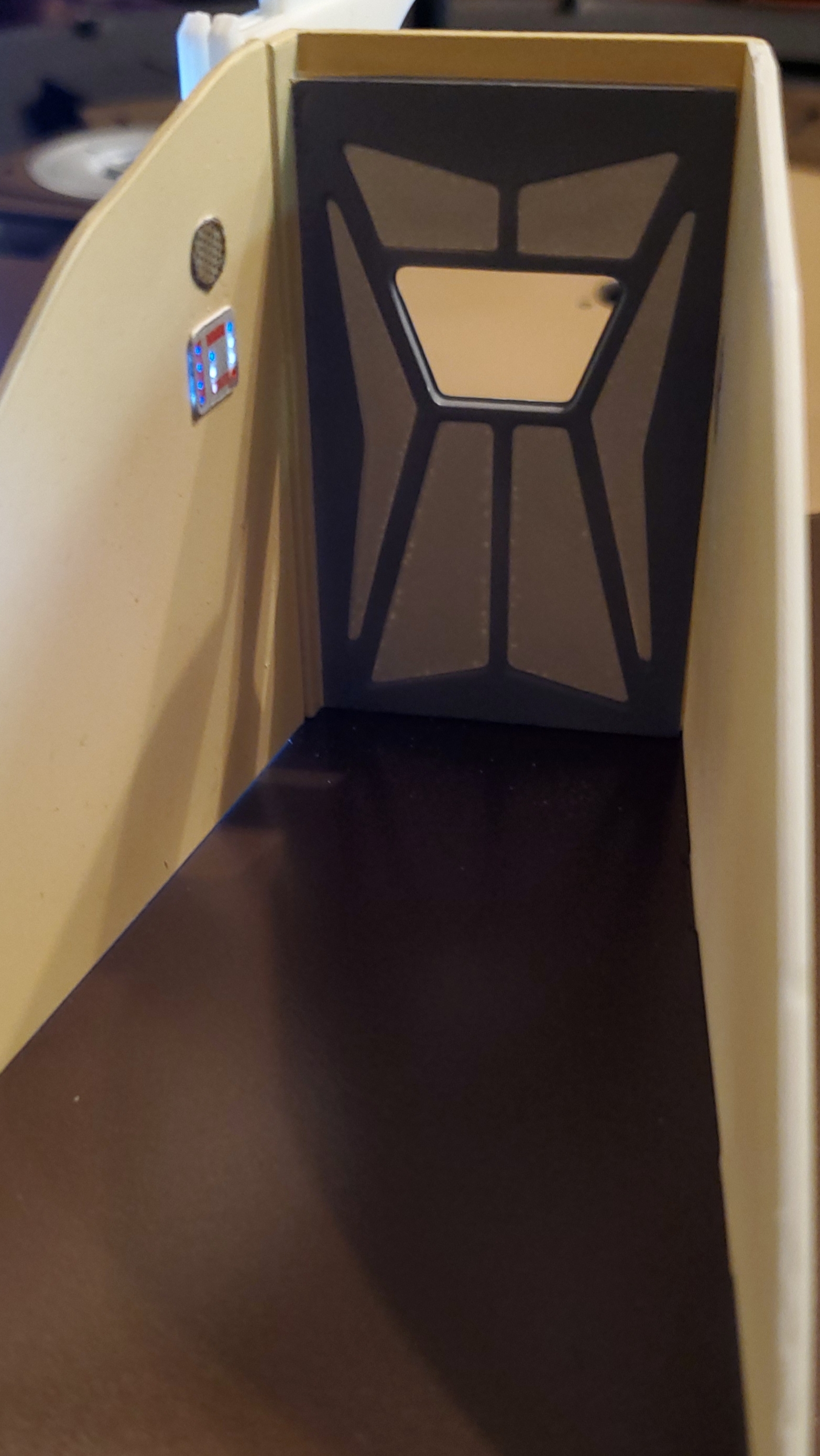

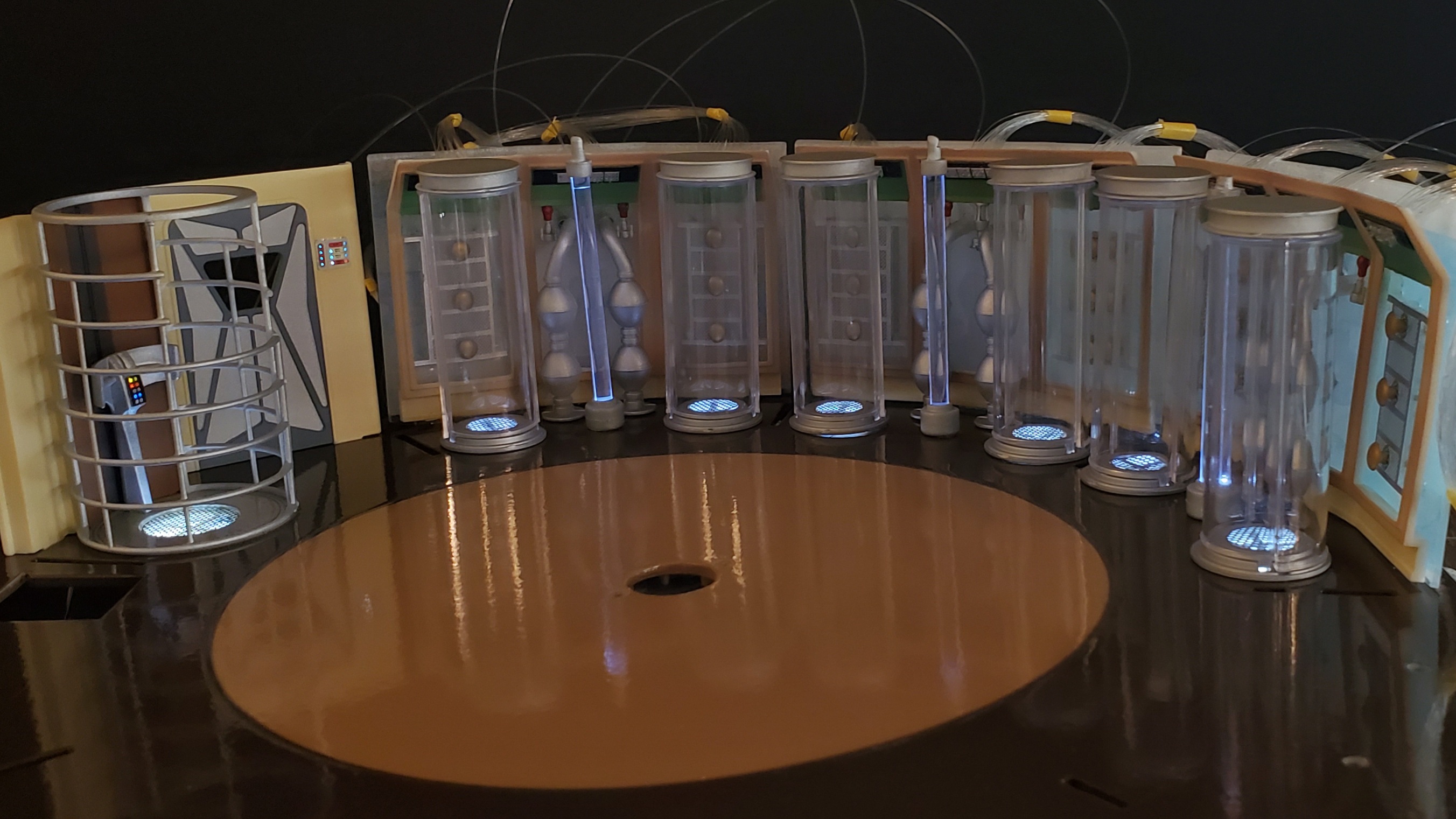

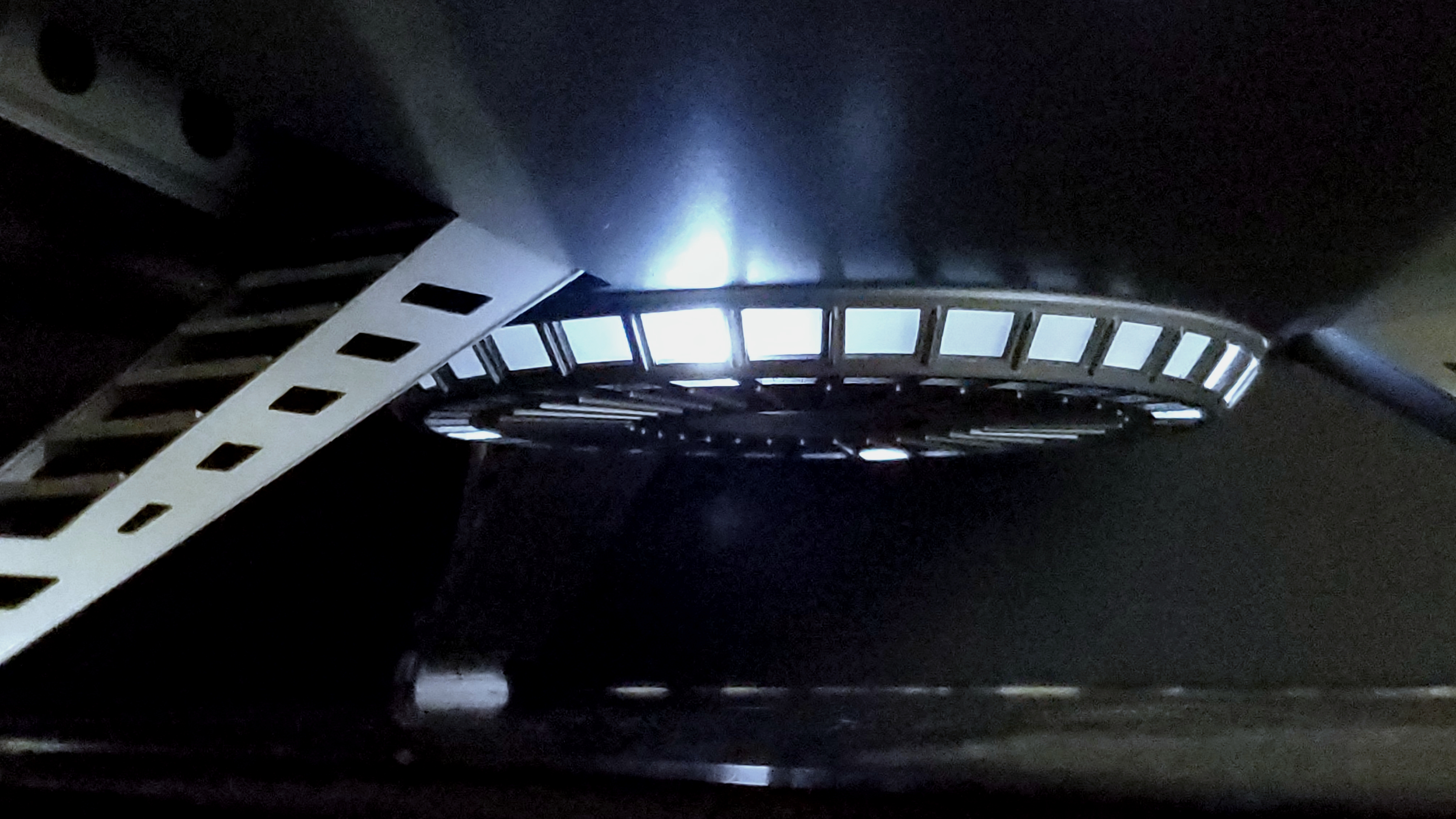

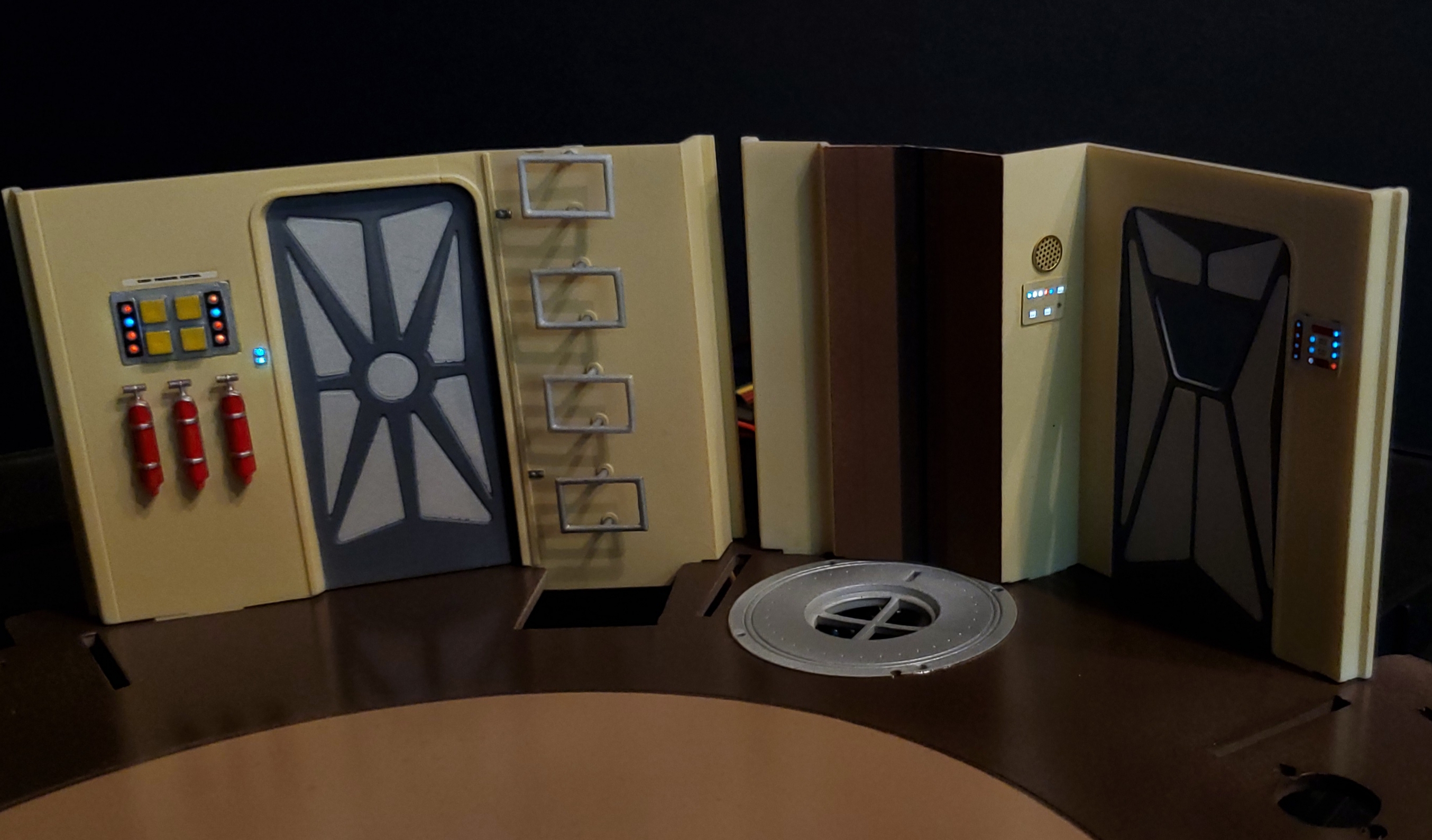

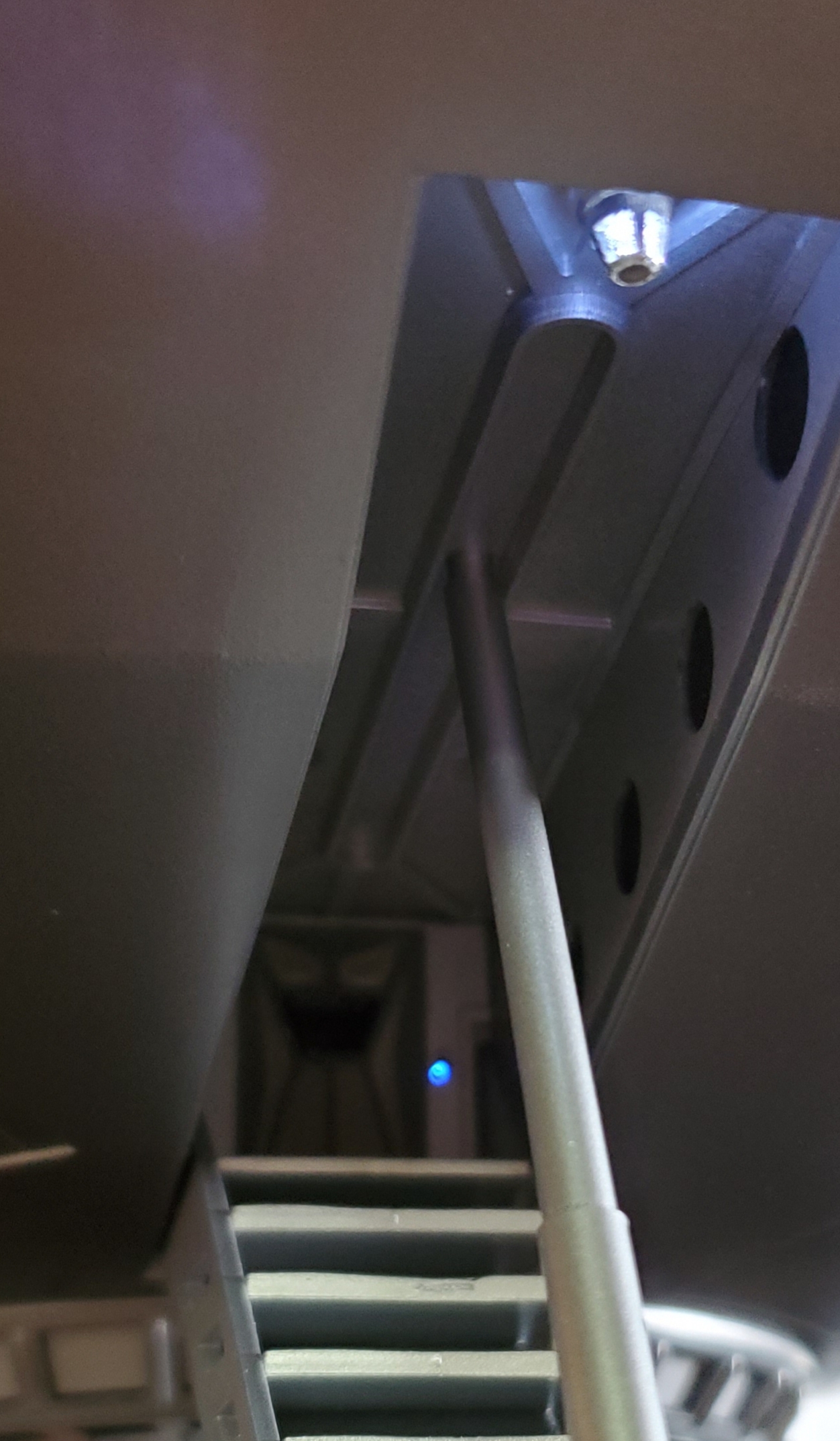

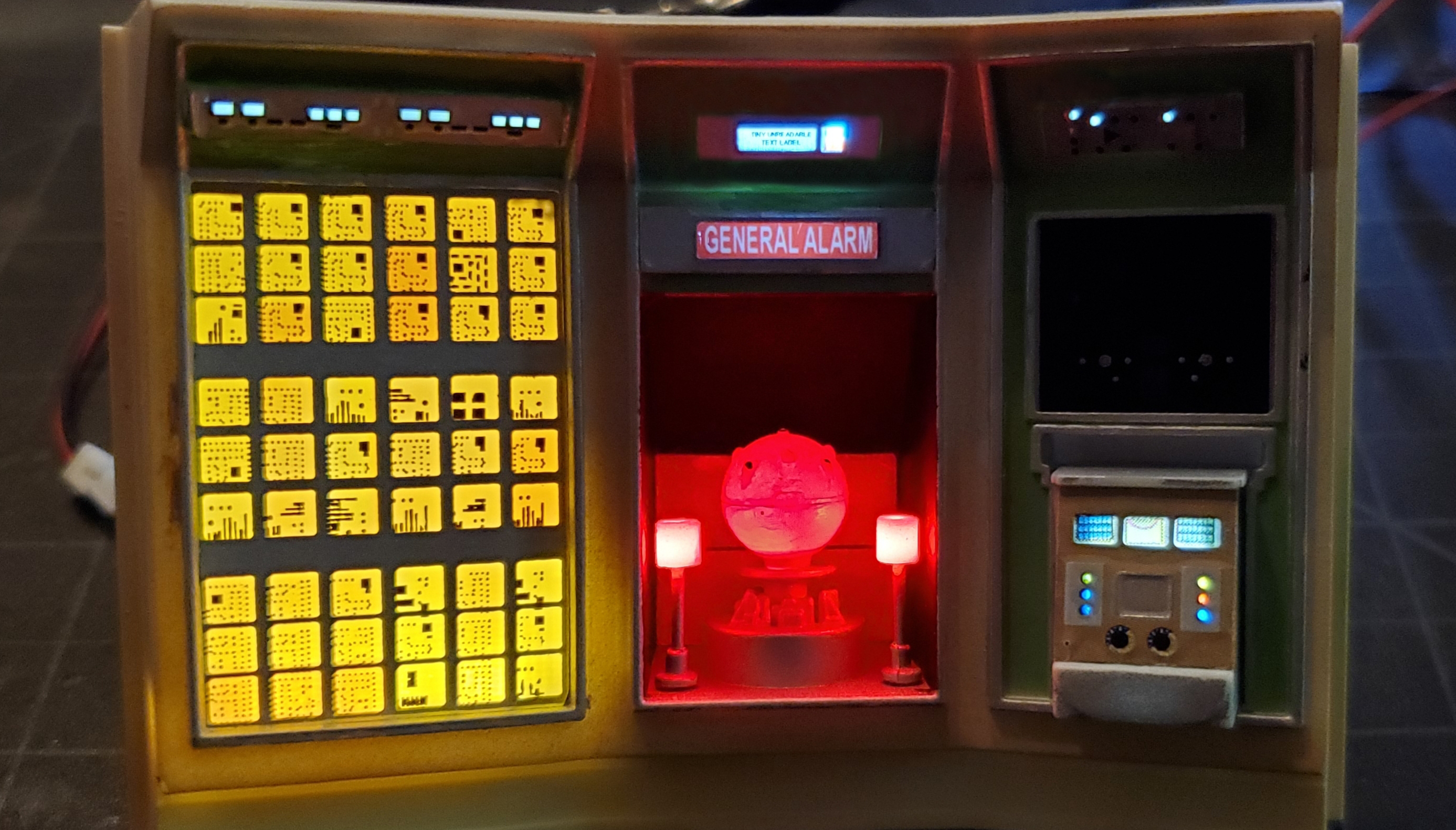

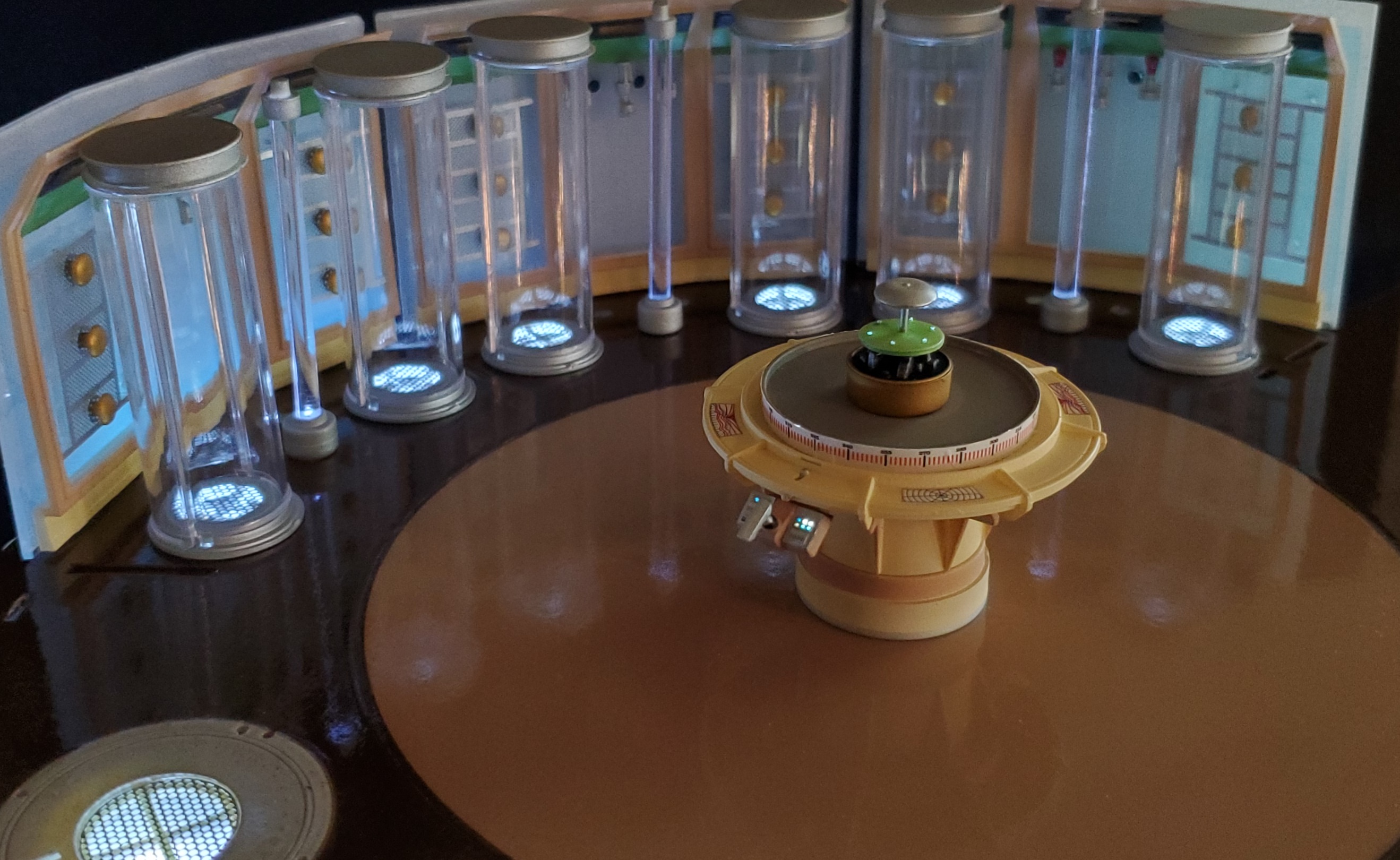

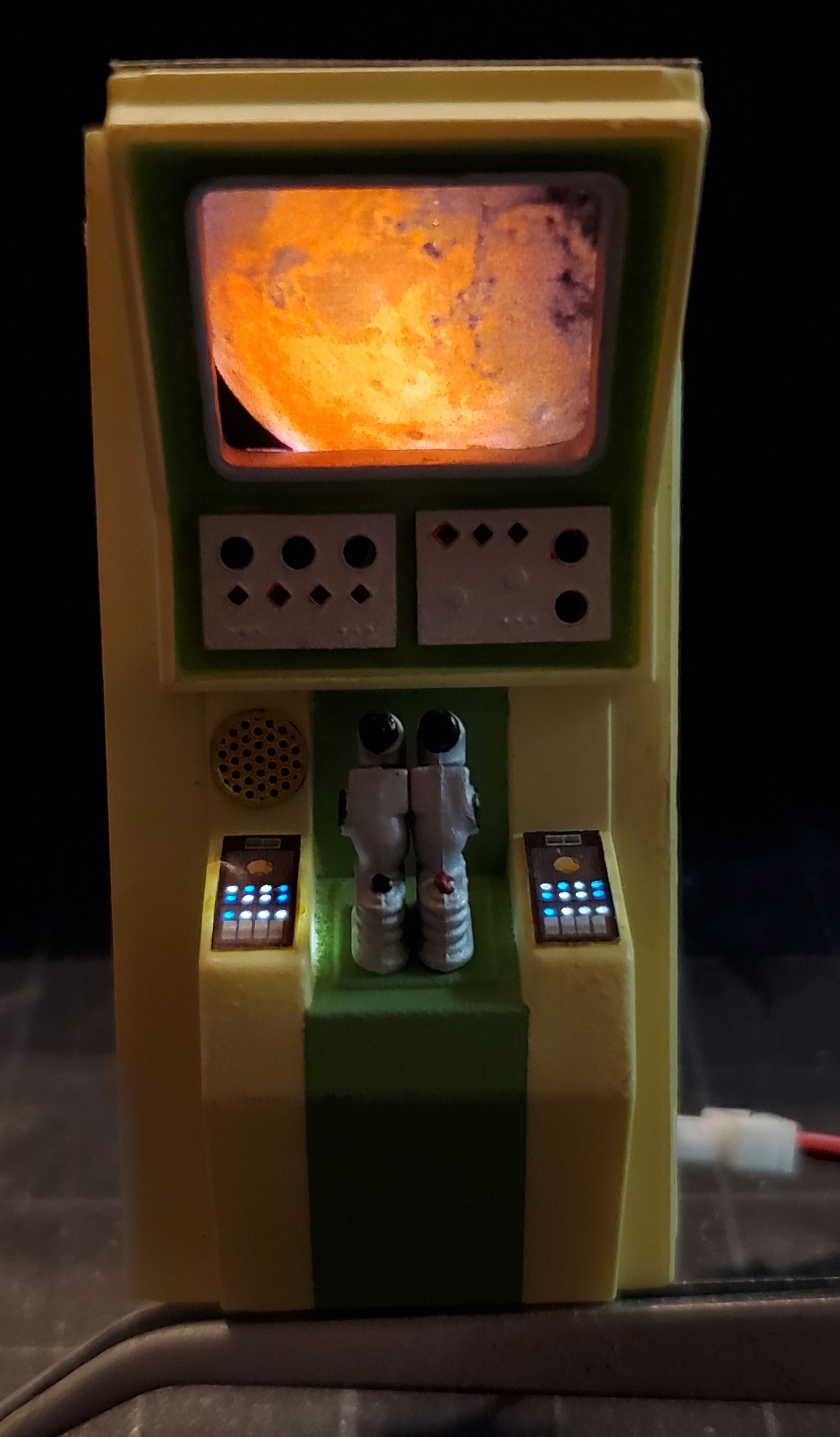

So I've been working on a Moebius build for a client the last few months. Here are some work in progress photos. Full lighting effects and some motor effects as well.


























































































Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

PULLED PORKINS

Active Member
RPF PREMIUM MEMBER
Are you kidding me? This has got to be the most realistic interior on a model I've ever seen! I've got a new one of these sealed in the box and maybe it will stay that way after seeing these pictures. I could never come within a million light years of this mastery. Absolutely fantastic job!


COlson

Active Member
Are you kidding me? This has got to be the most realistic interior on a model I've ever seen! I've got a new one of these sealed in the box and maybe it will stay that way after seeing these pictures. I could never come within a million light years of this mastery. Absolutely fantastic job!
Thank you. You can follow my build on my YouTube channel.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Constantine

Well-Known Member
Incredible work! For a model that is so simple on the outside, the inside is a very daunting task with all that detail, not an easy undertaking at all. Looks great!


Analyzer

Sr Member
Did I miss where someone said it was 1/72?
The Polar Lights one is 1/72. The Moebius one is 1/35

I admit, I was a little confused as well since the thread title says Moebius Jupiter 2 1/72 customized build

Regardless of which kit or scale though, it is a fantastic build so far


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

COlson

Active Member
The Polar Lights one is 1/72. The Moebius one is 1/35

I admit, I was a little confused as well since the thread title says Moebius Jupiter 2 1/72 customized build

Regardless of which kit or scale though, it is a fantastic build so far
That's funny. I didn't even realize I put 1/72 on the title. Cause I know it's 1/35. Says that on my YouTube channel.


COlson

Active Member

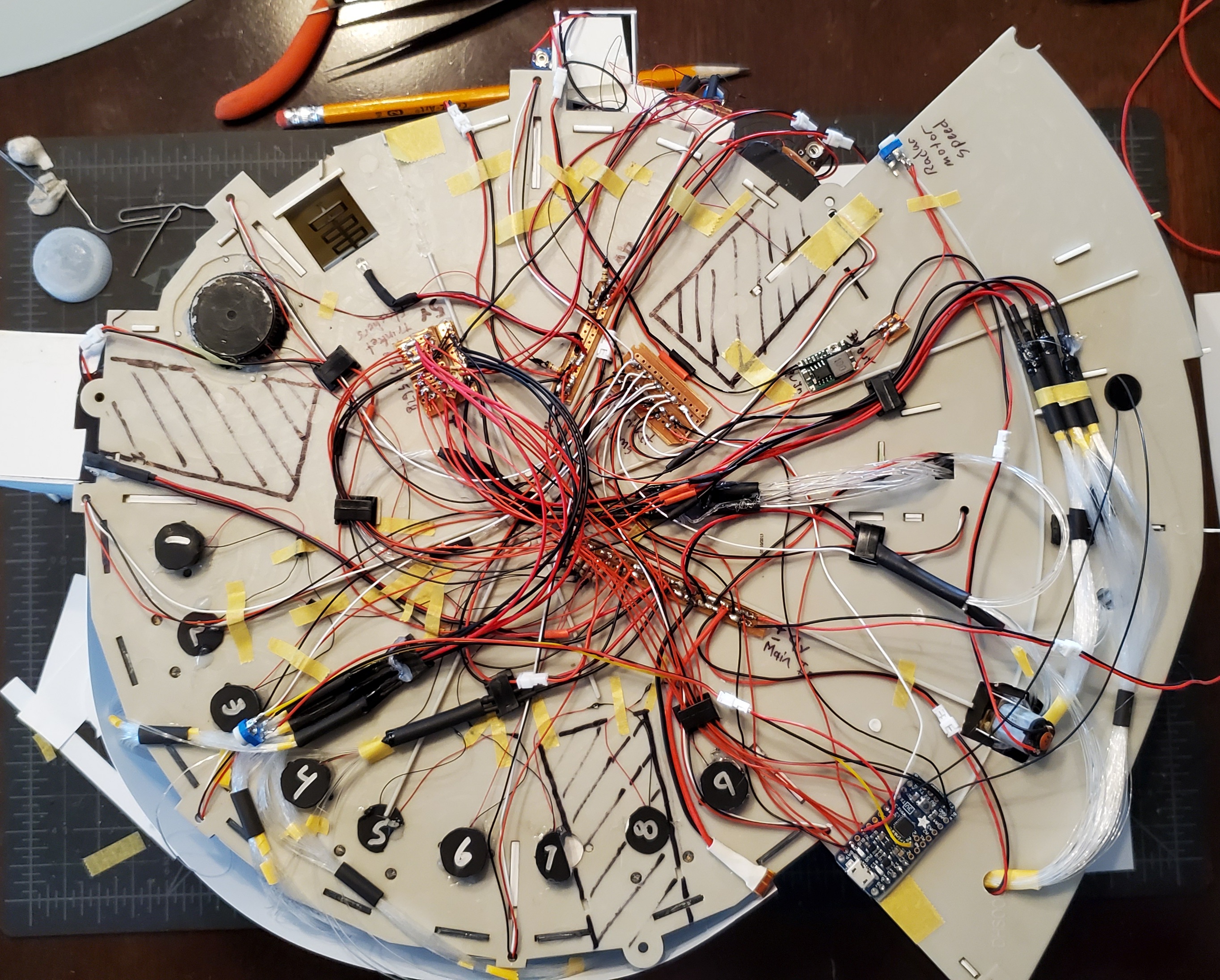

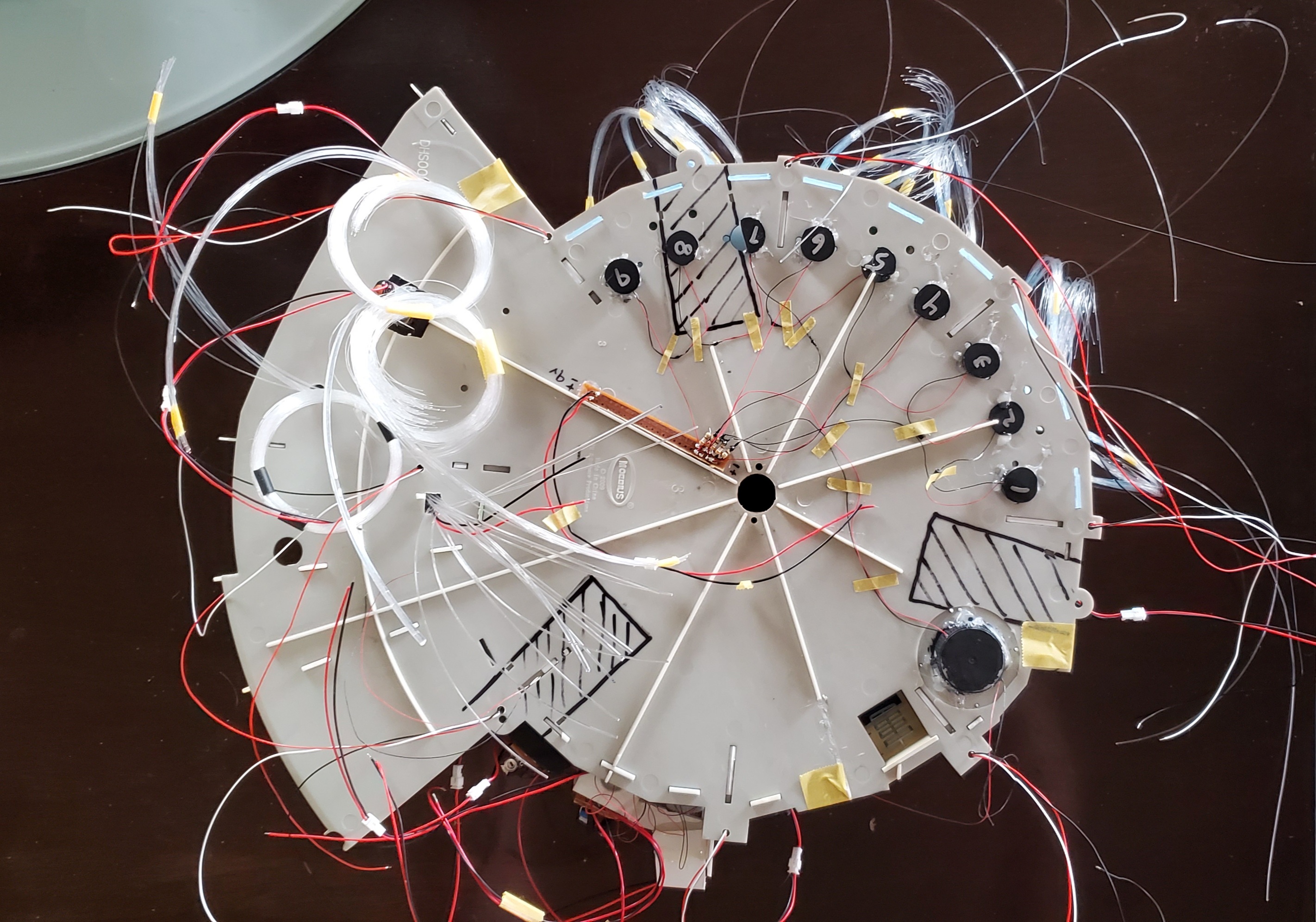

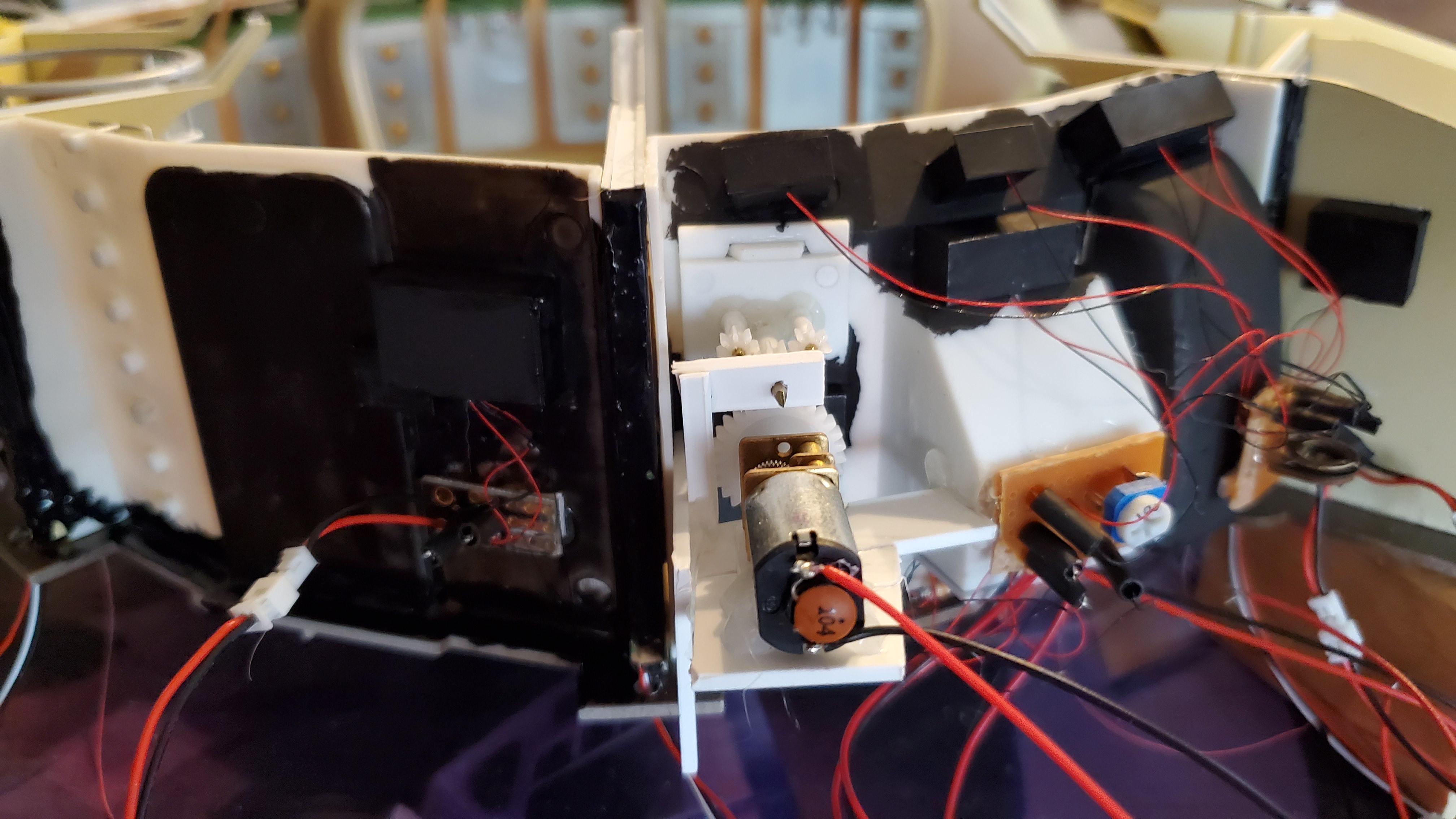

So I've now finished wiring all of the electronics up on the underside of the floor and attached my Trinket board with the coding for running certain lights and buttons. Almost there.

Adafruit Trinket for light coding
203 LEDs
1000 Ft of fiber
2x 3v motors


Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

COlson

Active Member

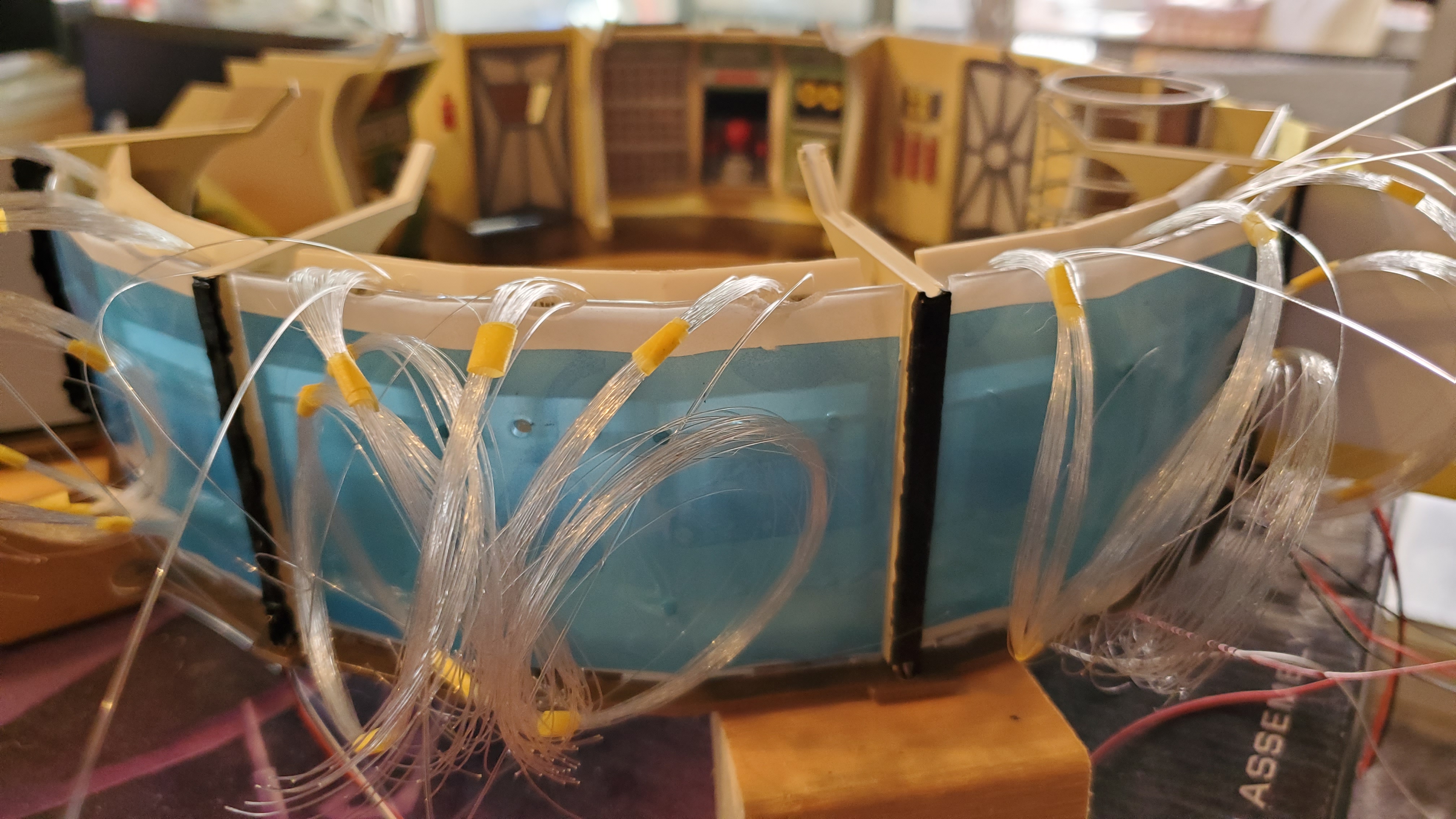

Just uploaded my latest build video of the Jupiter 2, covering all of wiring up of the LEDs, electronics and fiber.
