Mission Impossible II - Oakley Delivery Rocket

Discussion in 'Replica Props' started by PHArchivist, Aug 2, 2015.

  1. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    Going to Moab this month (and to the actual spot Cruise climbs out of the canyon), so I figured I'd build this...






  2. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500

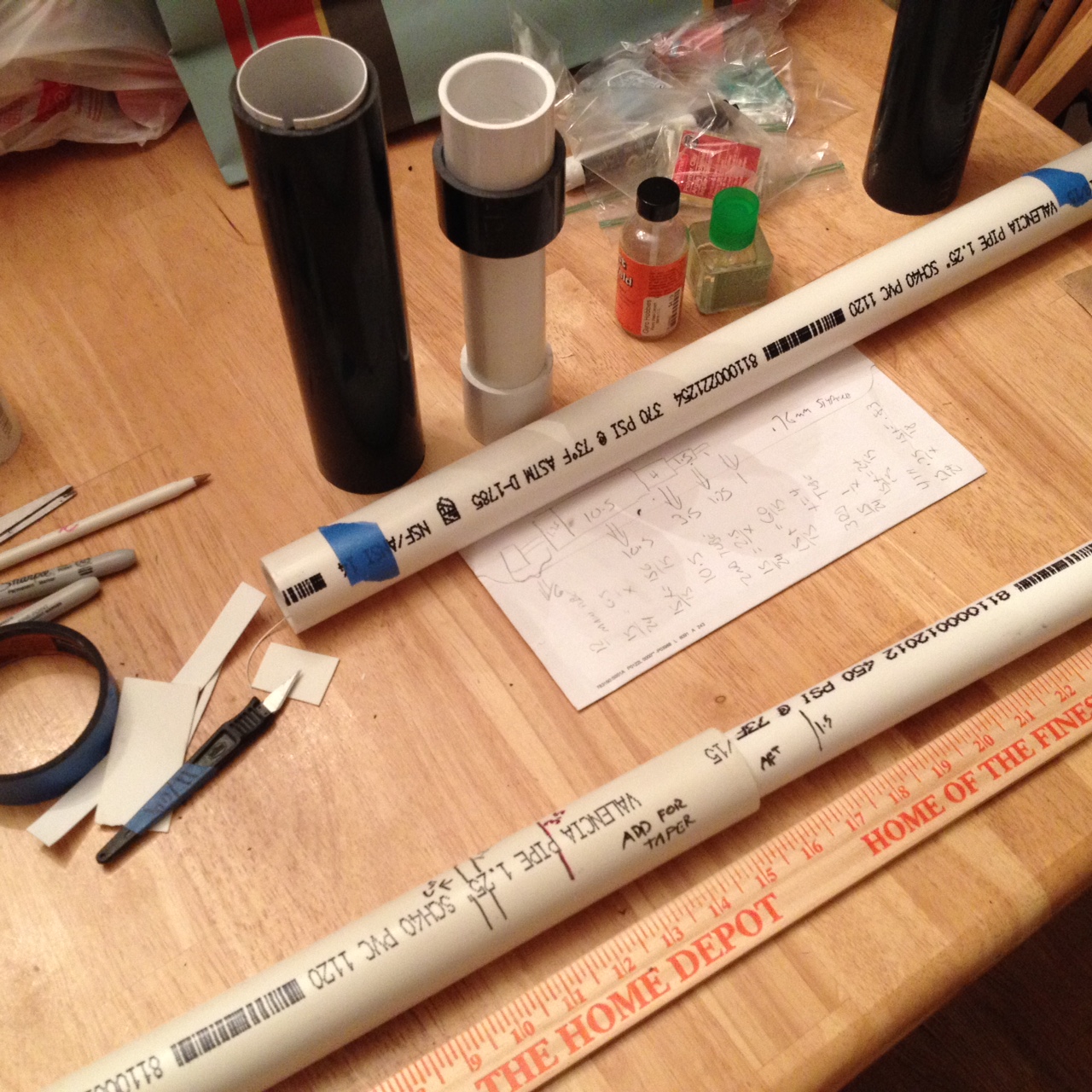

    Progress so far...

    With any luck, I should be able to make if "functional". That is, with the rear tail fin portion removable and the center tube capable of carrying a pair of $400 Oakleys.

    Doing this all on screen caps and best-guess estimates. Have never come across the original (not sure if PropStore or Profiles ever sold it), and have no actual dimensions. But most proportions are probably within 75% - 90% correct, and I'm good with that. Didn't bother looking for any metal inserts, so what appears to be metal will be silver-painted plastic.

    Need some ideas for the spike on the nose (check the first screen cap). Could just use a very large nail, but I think the actual spike was bigger in diameter than even the biggest nails, and appears to be polished steel.

    MI II 001.JPG

  3. Grey

    Grey Sr Member

    Trophy Points:
    1,685
  4. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
  5. DrewSmith007

    DrewSmith007 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    967
    I have this laying around from a previous project. Cover shipping and it's yours.

    It's 3/4" in diameter and about 5 inches long. I knew saving it would come in handy...

    [​IMG]

  6. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    Cool - is that hollow or solid?

  7. DrewSmith007

    DrewSmith007 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    967
    Solid aluminum. I can turn the diameter down a bit if you need it, and can drill and tap for a bolt too.

  8. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    3/4 is a bit fat, I think... Probabaly 3/8 is ideal per the proportions of the overall prop.

    If you coud do that, that would be great! Need a bit more $$ for time...?

    Can email at PHarchivist@aol.com

  9. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500

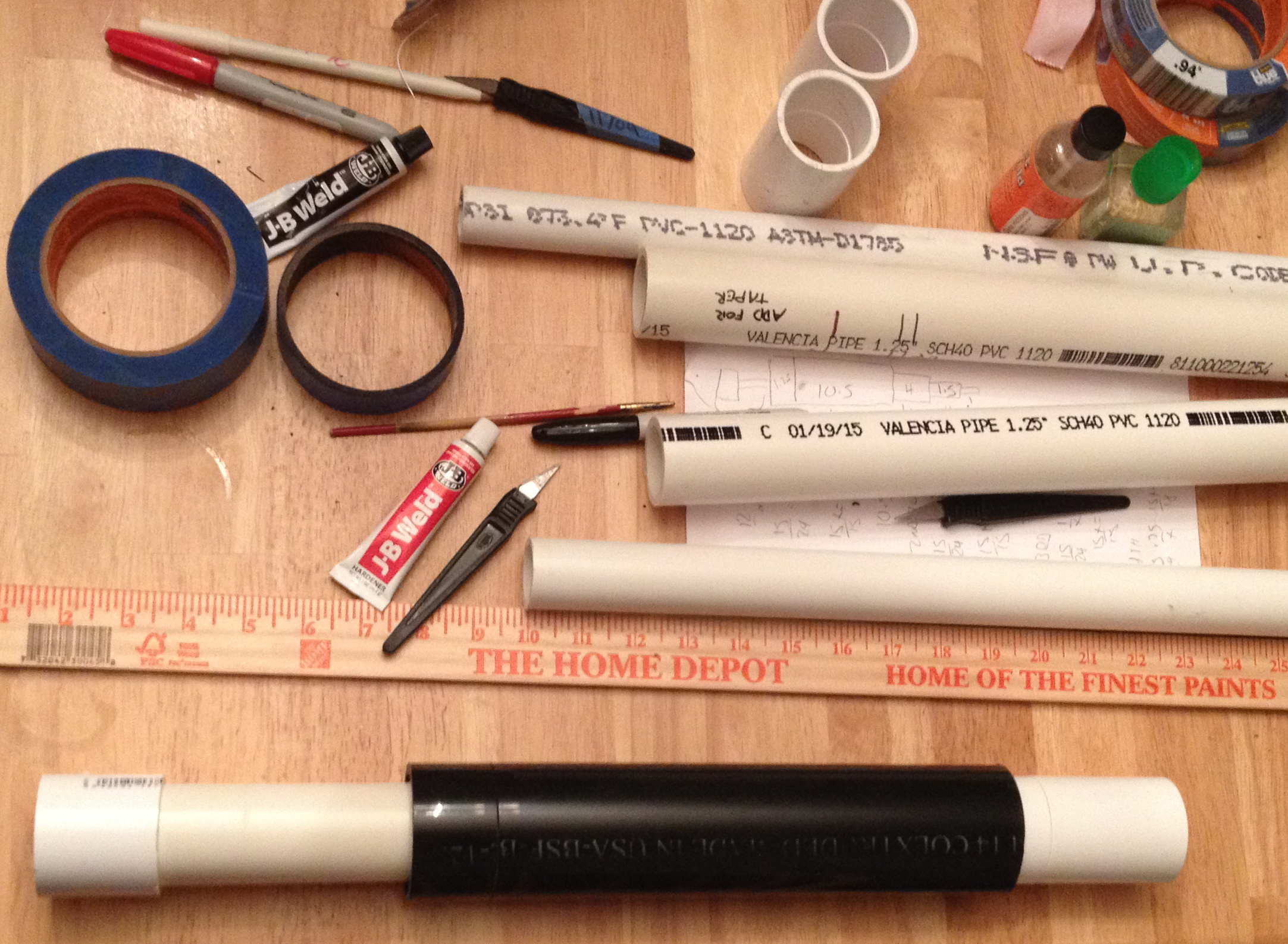

    A bit more progress...

    The main tube seems a little narrow, but a pair of glasses fits in just about the same as on the actual prop.

    A few things to consider:
    --I think the actual prop may have been slightly fatter in diameter but not a lot, and not nearly as much as the next sized tube
    --Many shots of the prop are 3/4 shots, shortening (and fattening) the tube
    --Adding the fins and completing the rocket will "fatten it up"
    --I've anticipated and accepted that not all proportions will be dead-on accurate

    MI II 002.JPG

    MI II 003.JPG

    Last edited: Aug 3, 2015
  10. Kevin Gossett

    Kevin Gossett Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,980
    Just be careful traveling with that! :lol

  11. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    Not looking forward to doing the fins, especially the larger tail fins...

    My techniques are pretty simple; Exacto along steel straight edge. My estimate is that the fins are about 1/8" thick, which is a fair amount of styrene to get through with an Exacto. Not sure I even have styrene that thick, so an alternative to cutting through a difficult thickness is to do two or three layers, laminated together. But then I'm cutting 8 or 12 fins...

    I do like the idea of styrene though. Two-part epoxies can be sloppy in application, and for the fine line required for the tail fins, I don't see it happening. There are properties of CA glue that lead me away from that as well. But instinct and experience tells me that if I lightly sand the PVC, then using a solvent styrene glue, I should be able to get a rock solid plastic weld.

    Plus it should set up fairly quick - say a minute or two, maybe three max - which is important as one of the challenging aspects of rocket fins is ensuring the fins stand straight up off the body. Achieving this without driving yourself insane seems to me to require a glue that sets up in just the right amount of time - not too quick, and certainly not too slow. I think styrene solvent cement is the answer.

    I also have thought about slotting the PVC pipe, and creating the four-fin set-up out of two pieces of plastic (two fins per piece, connected across the diameter of the rocket). The two pieces could slot together, then the whole rig could slip into slots in the PVC. But that is more compliceted than I want to be, and I'm not confident I can cut the existing PVC part properly, accurately, and without cracking or shattering it.

  12. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    Scratch all that...

    After re-calculating and further examining pics, I've shortened the main tube by an inch (about 10%), shortened the tail fin pipe half an inch and replaced the tail fin pipe with a more narrow diameter pipe.

    This all helps "fatten" it up a bit...

  13. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500

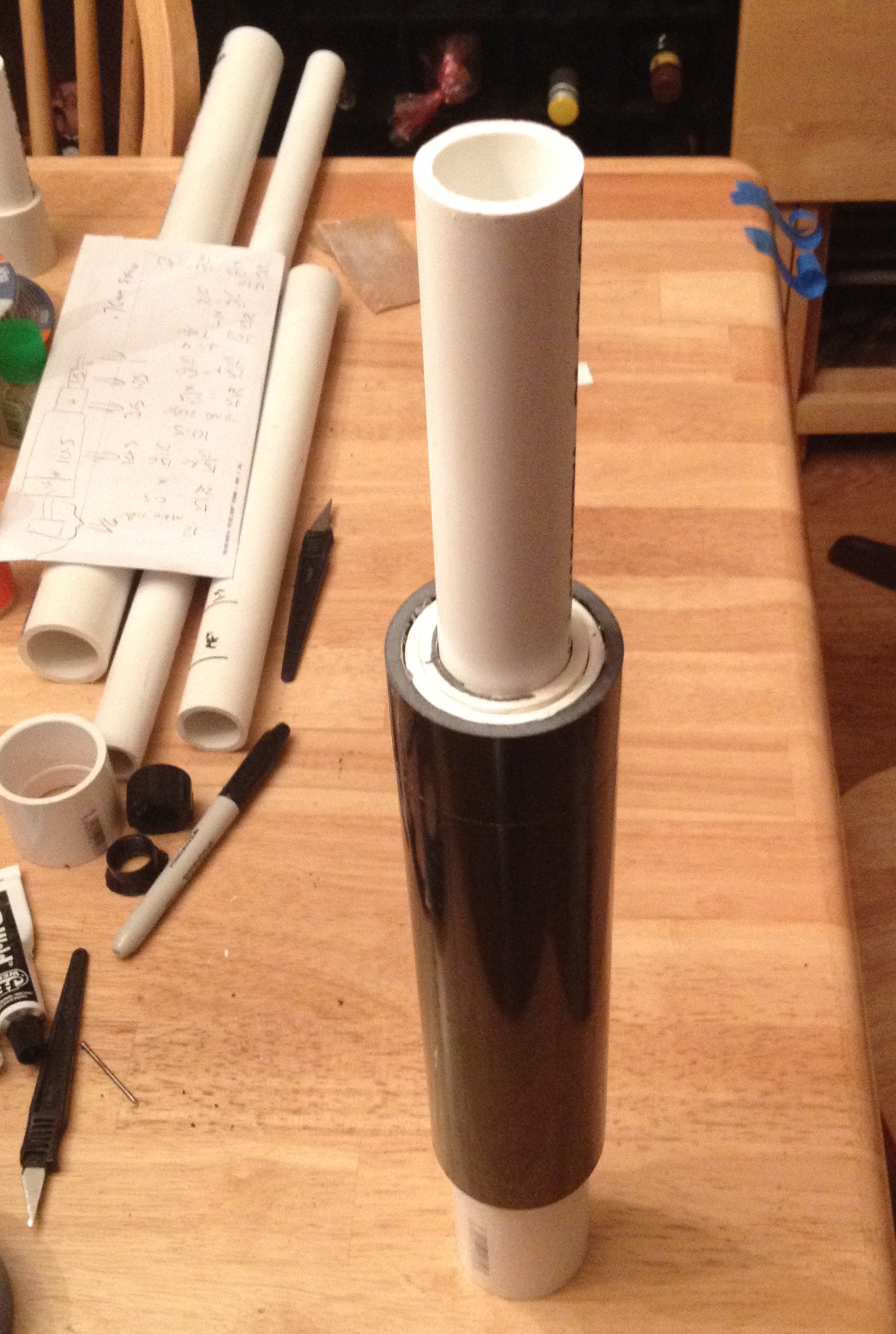

    Here's a look at the current proportions...

    MI II 011.jpg

    MI II 012.jpg

  14. Rusty85

    Rusty85 Sr Member

    Trophy Points:
    1,535
    Man I remember when I saw that trailer I was obsessed with the Oakleys inside there. Very cool project!

  15. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    ~$450.00 on eBay these days, but found a decent knock off for $14.95!

  16. BTTFSpencer

    BTTFSpencer Sr Member

    Trophy Points:
    1,356
    This is a super idea. Following.

  17. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    After further studying the original, my conclusion is that the spike is not a whole lot fatter than a standard pencil. Coincidentally, that is not too far off from the 3/8" esitmate.

  18. DrewSmith007

    DrewSmith007 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    967
    I don't know, it looks at least as wide as his fingernail, and mine is closer to 5/8".

    I'm 99% sure this is the base launcher, actually a dart gun with the barrel removed and plugged. Maybe they could help you out with dimensions? The spike looks close to what the barrel would be, if it was still there.

    http://www.dan-inject.com/CO2-Injection-rifles/model-jm-standard.html

  19. DrewSmith007

    DrewSmith007 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    967
    Actually, I might be able to scale it in cad when I get home from work. It states 11mm bore, and I can scale to the 105cm length listed.

  20. DrewSmith007

    DrewSmith007 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    967
    Here's what I came up with using their 105cm length. I dropped the image into autocad, drew a line 41.3386 inches (105cm) long, then scaled the image to match.

    Next, I drew lines at what I thought was the edges of the barrel. The dimension shown is derived from those lines.

    I also drew in a reference of 0.4330 inches (11mm) to show what the barrel bore would look like. Also included is the dimension of the part the shooter is holding, to offer scale for the next image.

    [​IMG]

    The next image shows the similarity in diameter of the spike and the rear barrel portion. The parallel white lines are the same distance apart on both the spike and the rear barrel.

    I scaled this image based on the dimension of the hand hold, and came up with the diameter of the spike = 0.6011 inches.

    [​IMG]

  21. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    Pretty impressive that you found that. I'd not even know what key words to use to search for it!

  22. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    tranqGot a price on the launcher / tranq gun...

    A cool $2,400.00

  23. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    The latest...

    MI II 013.JPG

    MI II 014.JPG

    YenChih Lin likes this.
  24. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    Looks like what I had a while back, but the black pipe is shorter, the tail pipe is more narrow, etc.

  25. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    Looking a small bit more rocket-like...

    MI II 015.JPG

    MI II 016.JPG

    Last edited: Aug 10, 2015
  26. DrewSmith007

    DrewSmith007 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    967
    Looking good. I found some 3/8" aluminum rod, so if it's something you end up needing I can make the spike for you. Just give me a week or so notice.

  27. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    I'm getting close to finalizing the spec on the spike. It's dictated by the dimentsions of all the other componets of the prop, and I am currently looking for the best-sized tube for the last tube segment prior to the spike.

  28. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    Got the kncok-off sunglasses yesterday, and have learned the error of my ways...

    The glasses fit my head almost like kid sunglasses (not that bad). But then again, I have a big head (7 3/4 hat size), and I'm certain Cruise has a fairly small head (he's what - all of 5'8"...?). And the glasses are most likely undersized anyway.

    All that being said, I have to squeeze them pretty tightly into the main tube. I thought the tube would be big enough based on the fact that my regular glasses fit fine. But I have to compress the sunglass notably to get them in, and the tailfin portion will not go in when the glasses are in there.

    So...

    Net result is that the center/main tube is a bit too small. Part of the reason why I was seeing it as not fat enough, I'm sure.

    However, using the materials I had available (this was to be a quick and easy, not dead-accurate project), the next size up would be too big. As a reminder, the main tube is a pre-cut length of ABS pipe from Home Depot, found in a stand-alone cart/display.

    In the end, I'm mostly OK with the prop as is, and may still devise a way to get the tailfin piece to fit with the sunglasses in.

  29. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,500
    Got the final tube done last night. Plus I have the mounting sleeve for the spike st to go. Just need to get the spike (waiting on delivery).

    MI II 019.JPG

    MI II 018.JPG

  30. BTTFSpencer

    BTTFSpencer Sr Member

    Trophy Points:
    1,356
    Would love to see if you finished this project, it's a good idea.
