MILLENNIUM FALCON 5' REPLICA

[Hammer3246]

I couldn't build this if I wanted to, just way to big but you're speed and quality are amazing! However if you ever decide to do a TIE, I'd be all over that.



[GEEK1138]

Having modeled every kit part on the Narcissus replica that I'm building, I can really appreciate the work you are putting into this - beautiful job.
I thought the Narcissus was a task and a half, but the 5 foot Falcon is just a daunting prospect. All credit to you - you're making it look easy!

Cheers NS4... your work on the Narcissus is truly awe inspiring. Real pioneering stuff!

I couldn't build this if I wanted to, just way to big but you're speed and quality are amazing! However if you ever decide to do a TIE, I'd be all over that.

Thanks...I wouldn't rule out a TIE but next up to have a go at is probably Slave 1

Also, HUGE thanks to Stu (Eagle 1) and Bjorn for their help

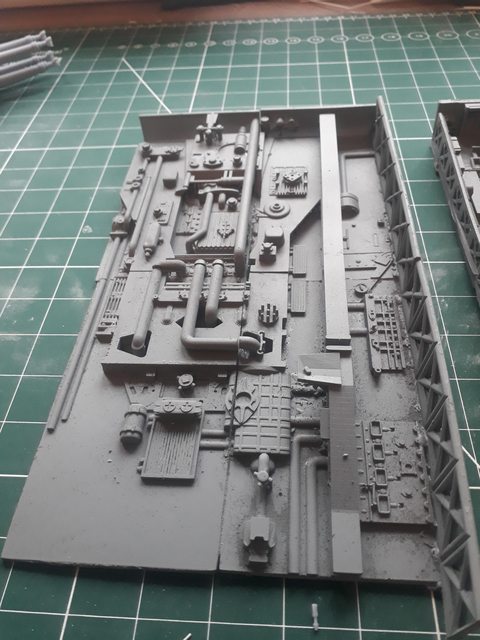

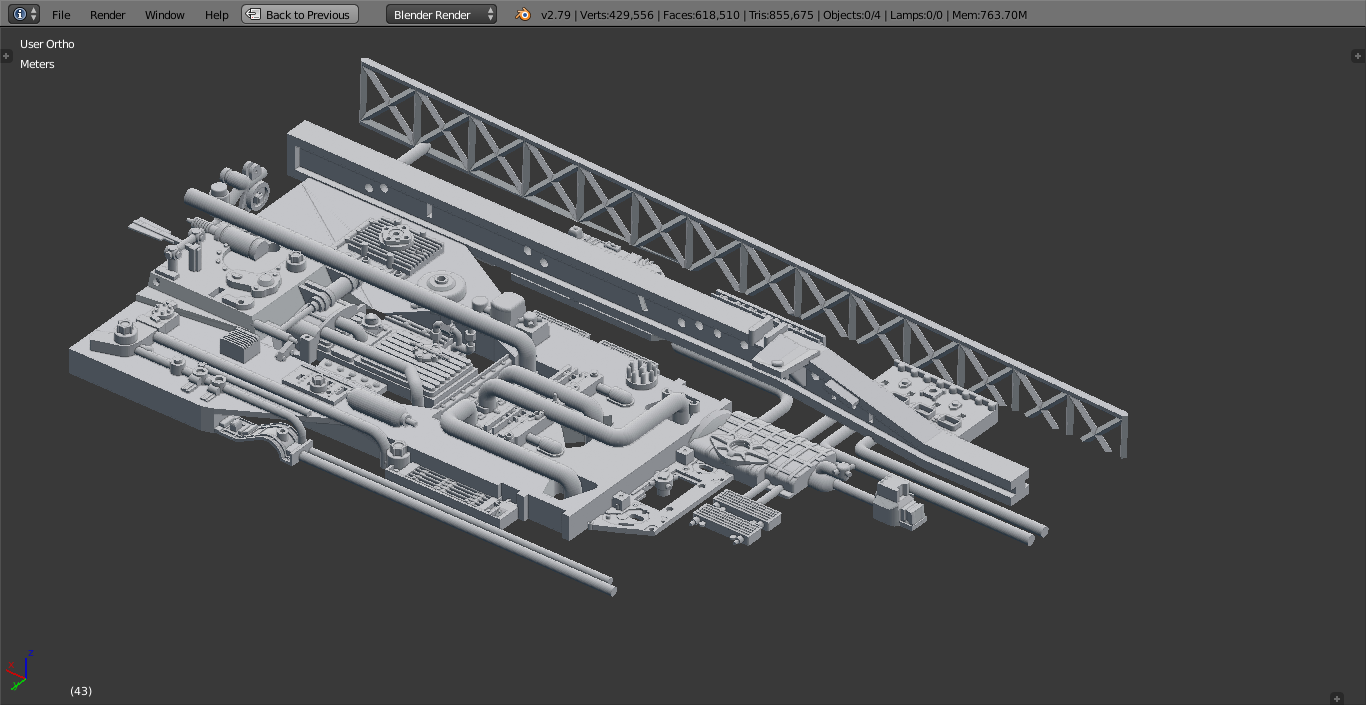

More progress; Port lower access pit sub-assembly. Couple of parts have been changed since finding more accurate pics and info



[GEEK1138]

Starboard lower access pit sub-assembly;



[GEEK1138]

So this seems to be a build of 2 halves...lots of modelling, scaling, reference etc, and the practical building side. And this week I have had some time to do a bit of work on the actual falcon;

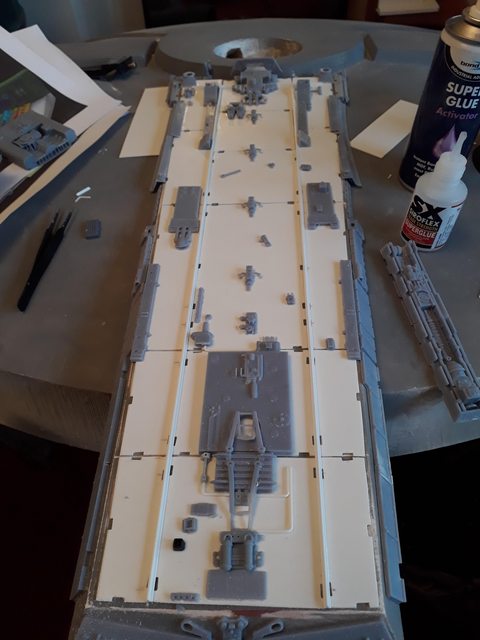

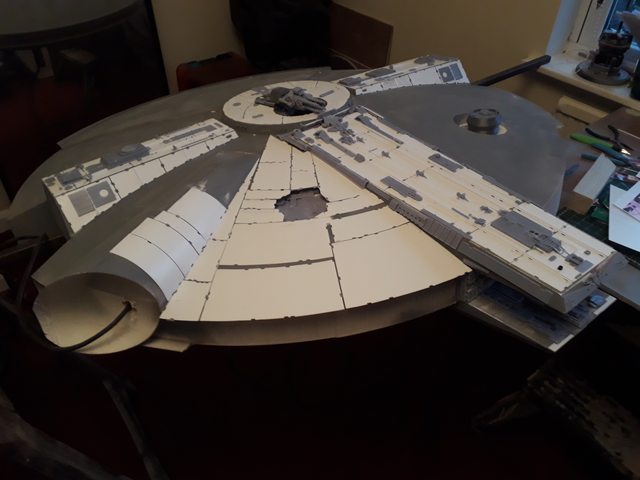

Got the Top Jaw and Gun Turret finished and the Damaged Hull section as well as the Upper Docking Arms

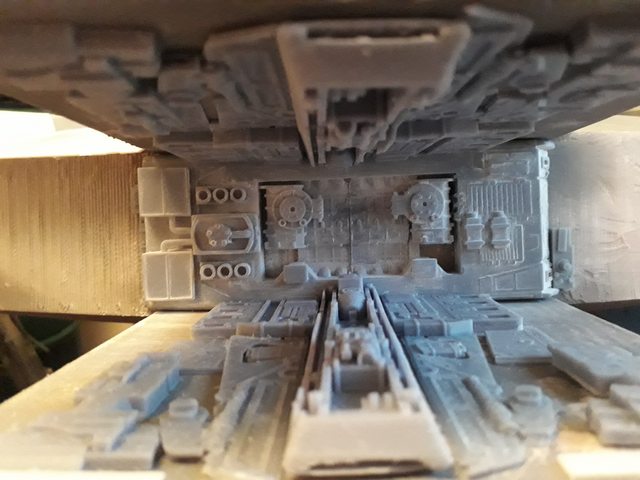

Also the Inner Jaw box;



[Redman99]

This is magic!



[kickman88]

This is magic!

And that makes him the Sorcerer Supreme!!!



[Jamesfett]

Wow!!!!!!!!!!!!!!!! as always.

How did you determine the hull plating size, shape, etc.?

Amazing work.



[GEEK1138]

Wow!!!!!!!!!!!!!!!! as always.

How did you determine the hull plating size, shape, etc.?

Amazing work.

I believe the plating used originally was around 1mm so I just found a load of pix from various threads and pix online and took it from there. I couldn't find any actual maps showing the layout and position of the plating/chips, but the are some pretty fine renders on the Falcon A blog



[Jamesfett]

Did you 3D print the cockpit cone?



[GEEK1138]

Did you 3D print the cockpit cone?

Yeah but I won't be fitting it until the whole cockpit interior is built. I think the files I sent u included the cone?



[dr_slurpee]

Are you cutting the panels by hand or some other means? This is fantastic!



[GEEK1138]

Are you cutting the panels by hand or some other means? This is fantastic!

Thanks...all by hand. I have done a lot of tiling and paving so maybe that helps with the required skillset. I tried a guillotine but really the best way for me is a metal ruler and an exacto, and of course my trusty nibbler



[Bjorn]

Looking awesome!



[GEEK1138]

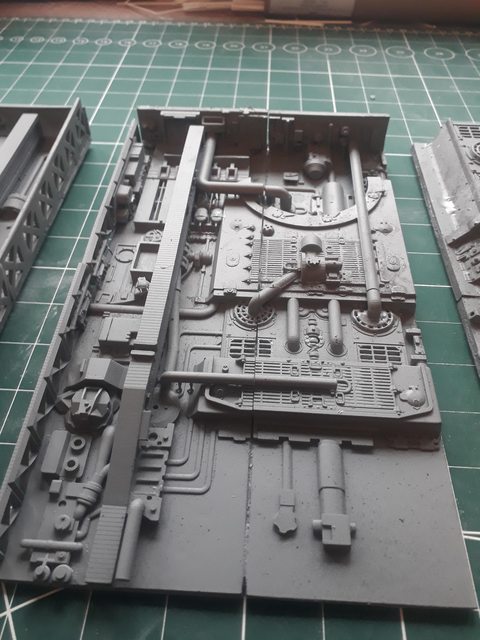

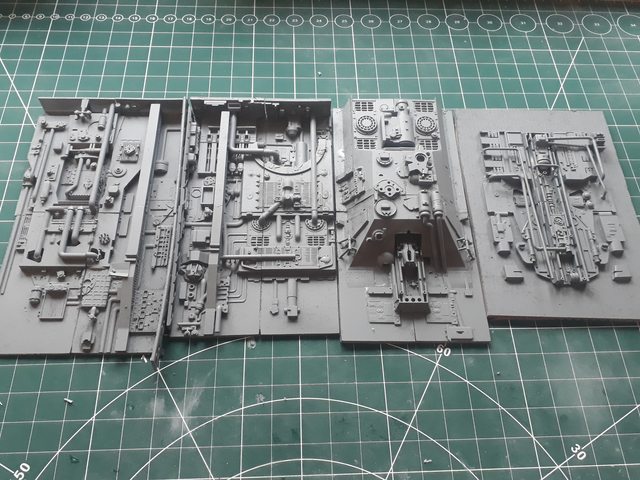

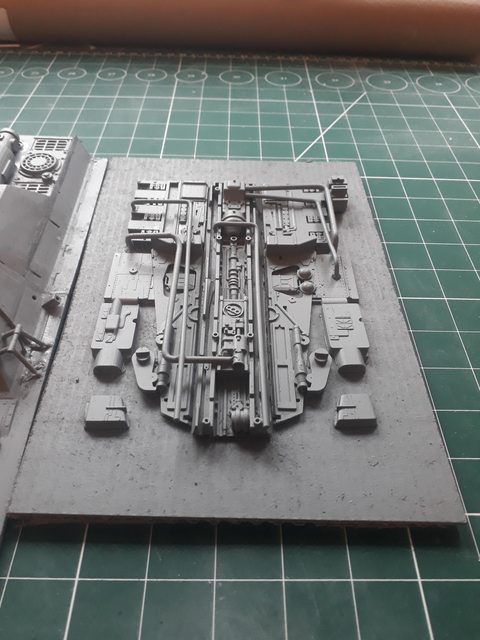

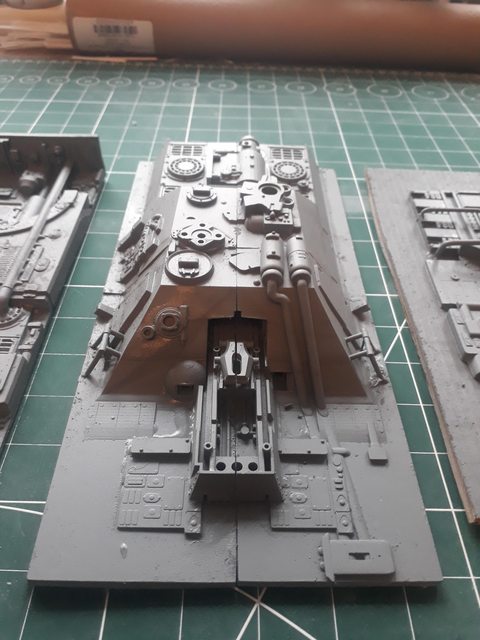

Got the sub-assemblies printed...just need a bit of spot putty;

And a bit of fun...my favourite piece, but bigger!



[MangyDog]

im still being utterly gobsmacked by how cool this is...



[GEEK1138]

Cheers. so, render time again

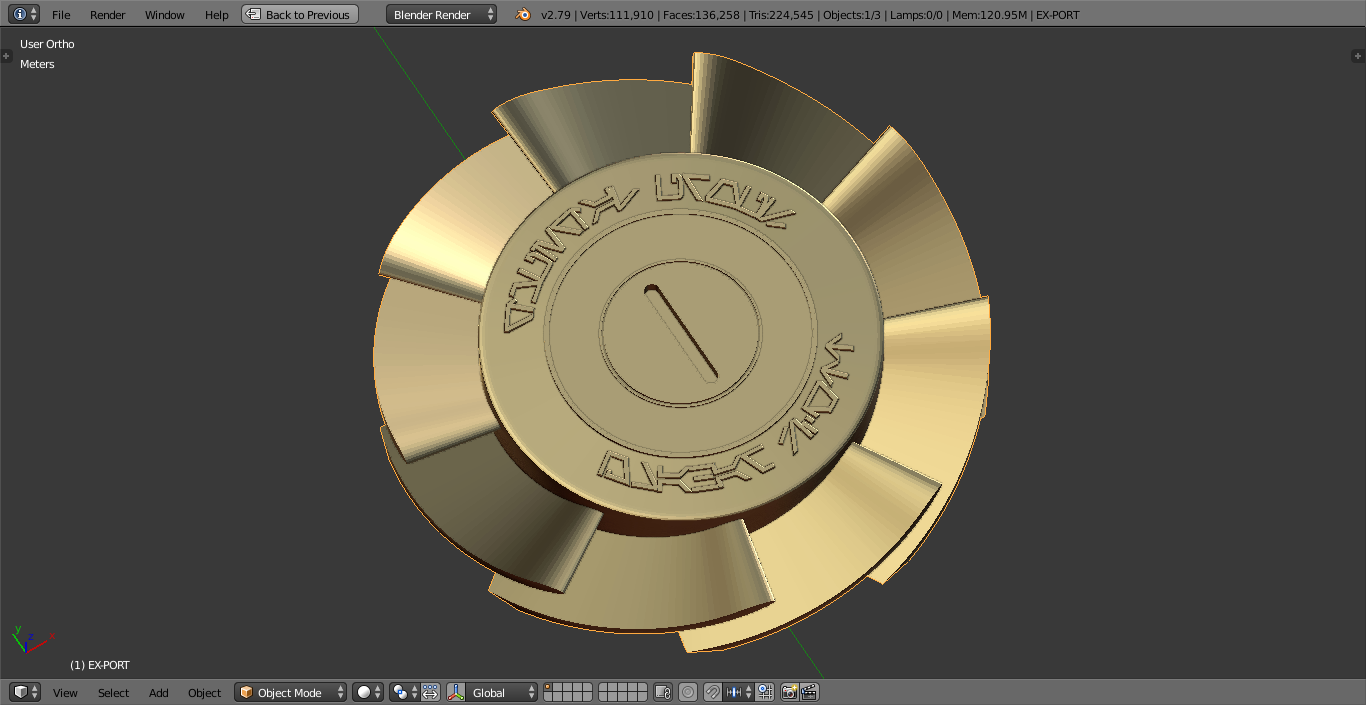

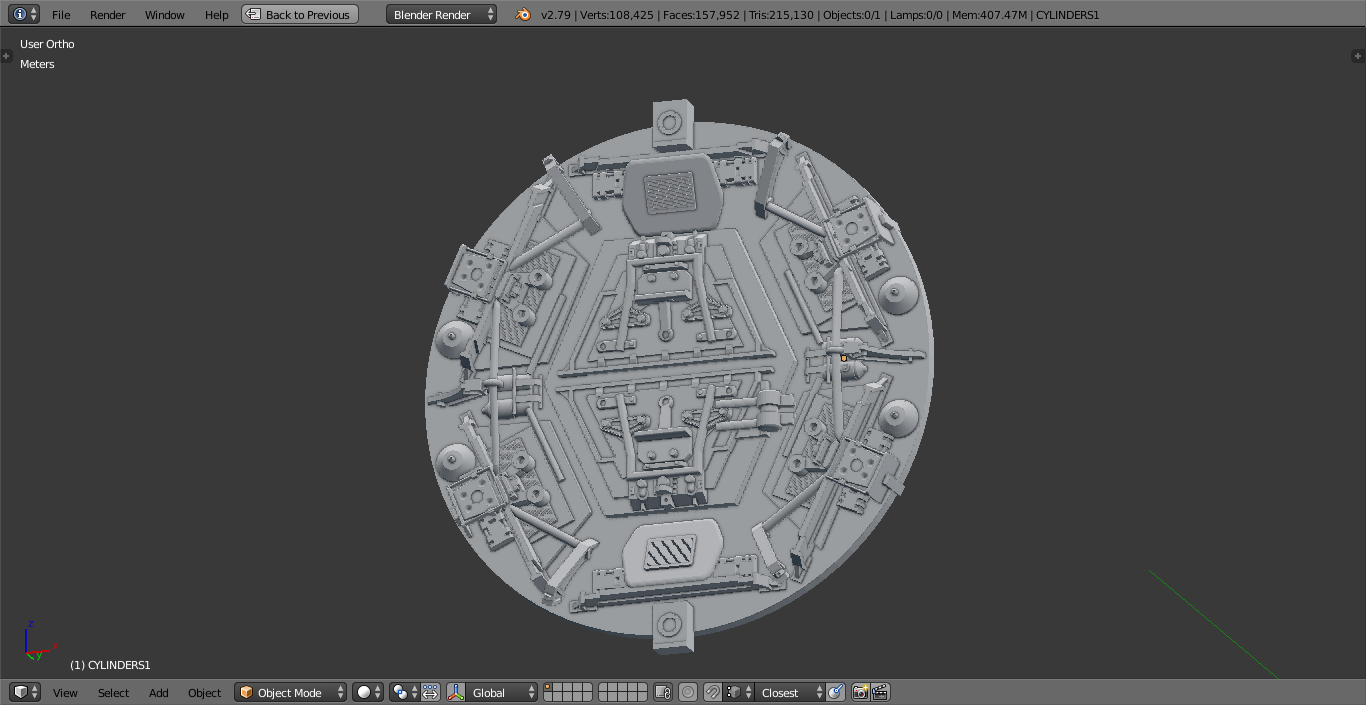

Decided to re-do the docking ring as I wasn't that happy with the accuracy

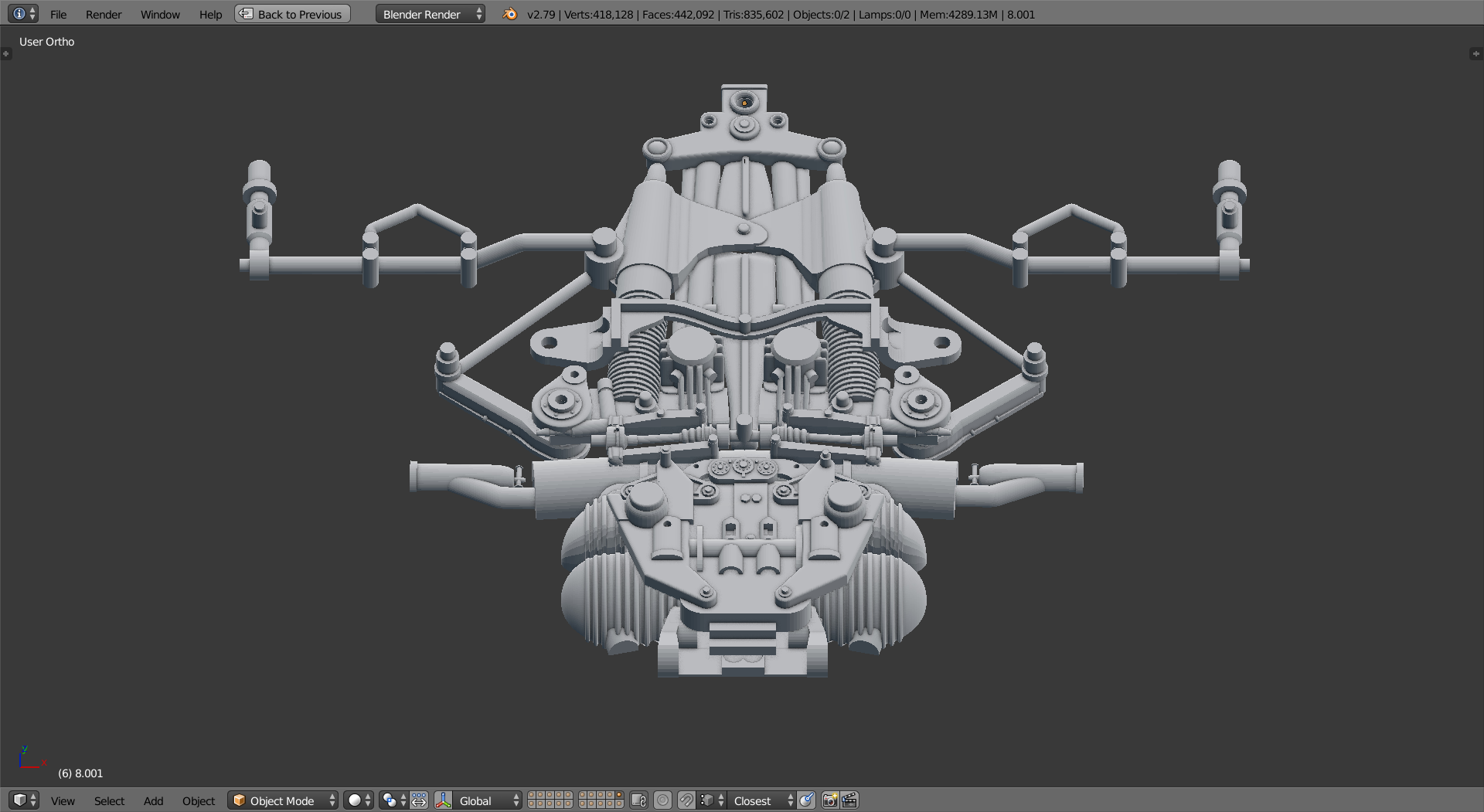

And the area I have been dreading, and leaving til nearly last...the mighty Upper Deck. just got the beetle looking part done so far as I will print it as one piece

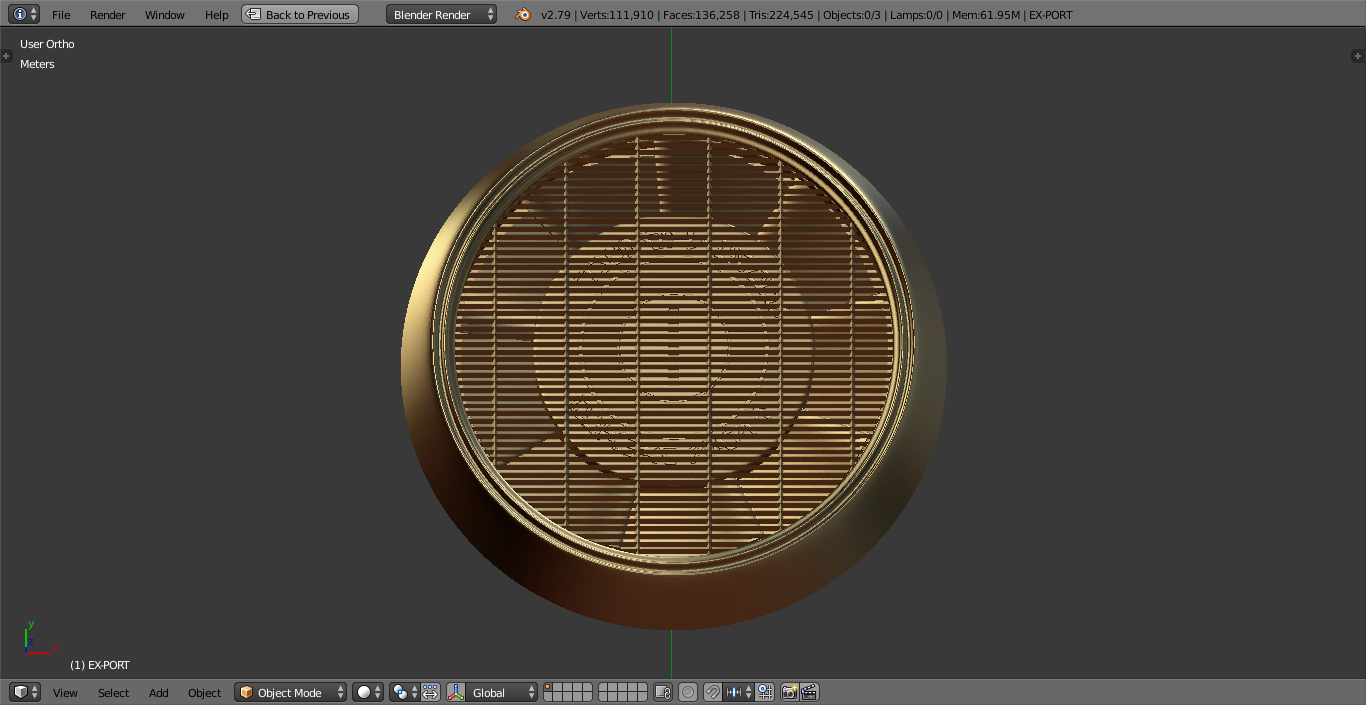

And also, following Sean's excellent biggest fan pun on his exhaust fans. I personalised mine too.



[joberg]

Amaze-sauce here



[GEEK1138]

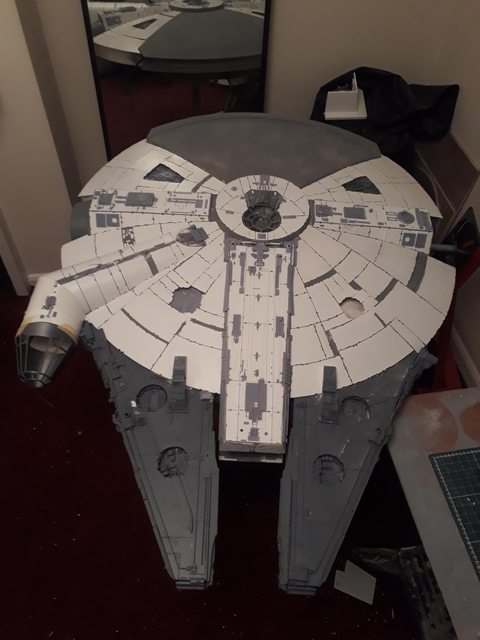

Thanks. So, another update. more progress on the hands-on stuff;

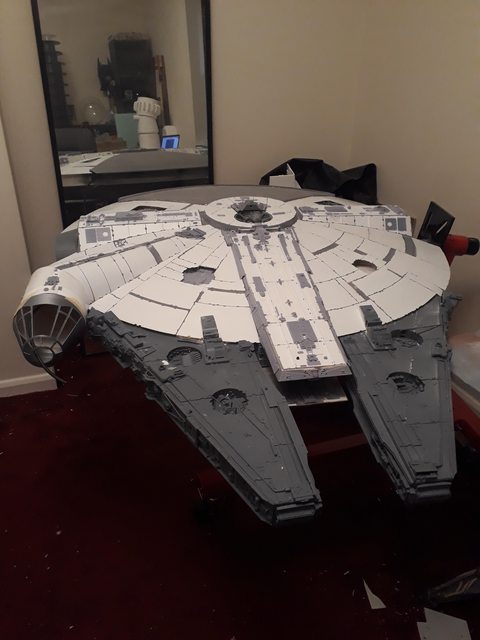

Got The Mandibles on! And both sub-assemblies and damage hole fitted

All the plating topside is done except around the Upper Deck. Still got all the chips to do though

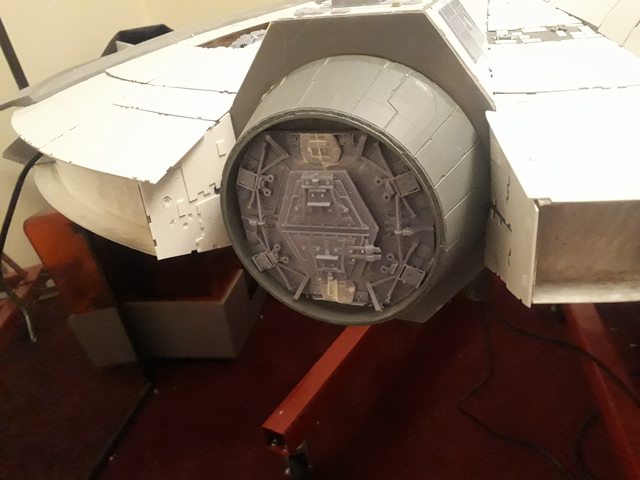

Also got both Docking rings nearly finished but not fitted all the greeblies/plating around the outside



[Jamesfett]

There really are no words. Just amazing!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!



[seknewb]

Absolutely brilliant work !
