Micronauts Glider Pack, used tv to outline proper scale. Needs Clean up

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


JPH

Sr Member

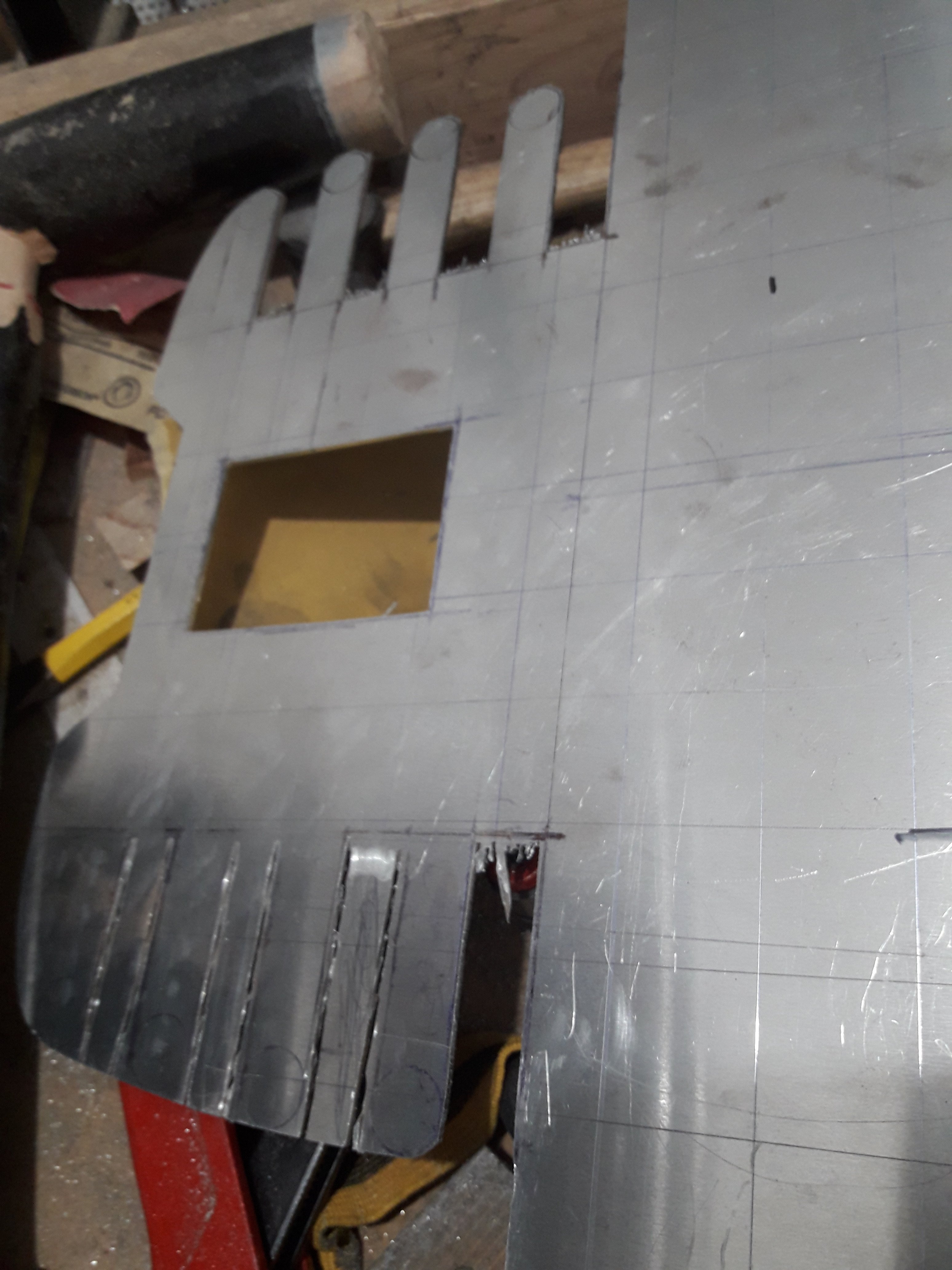

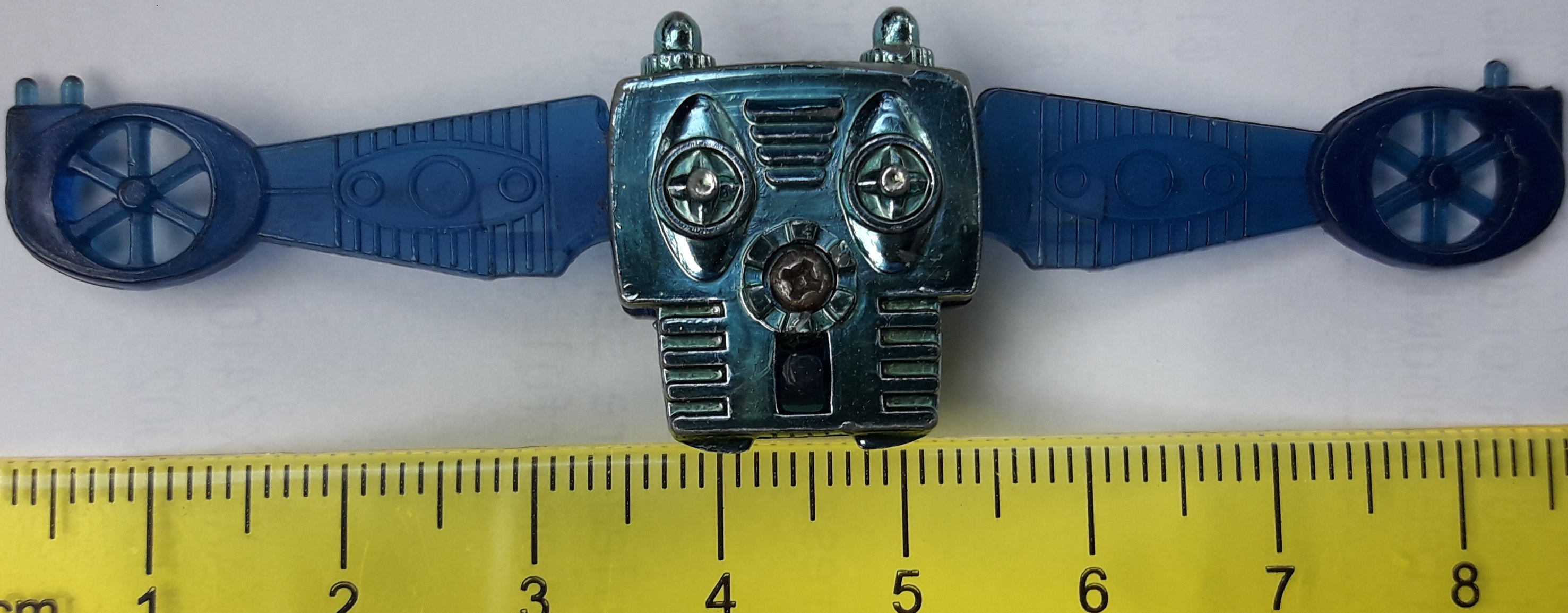

So, I got a micronauts glider pack. Took picks, use the height of the micronaut vs the size of the pack to figure out correct proportion for avg person.

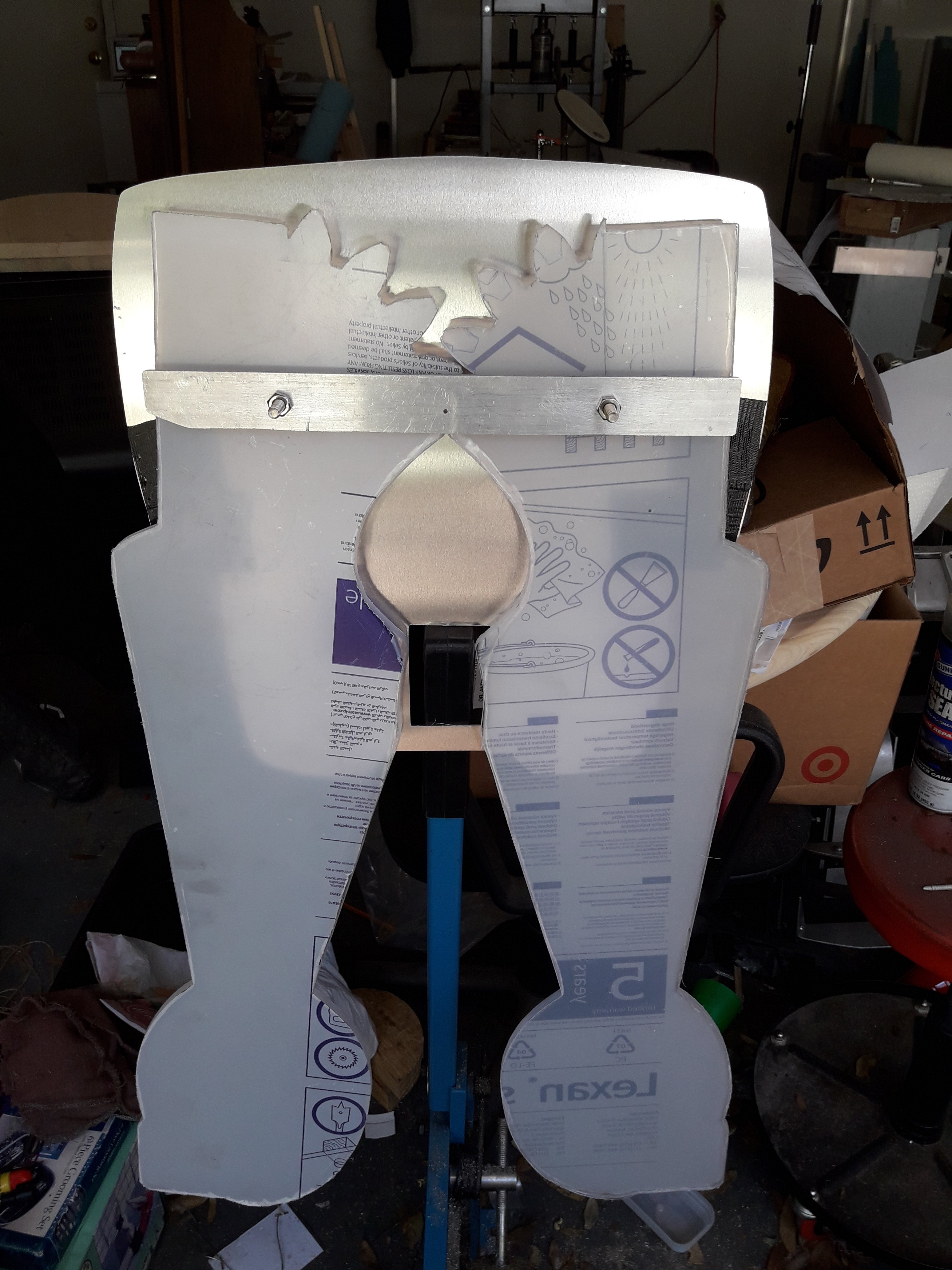

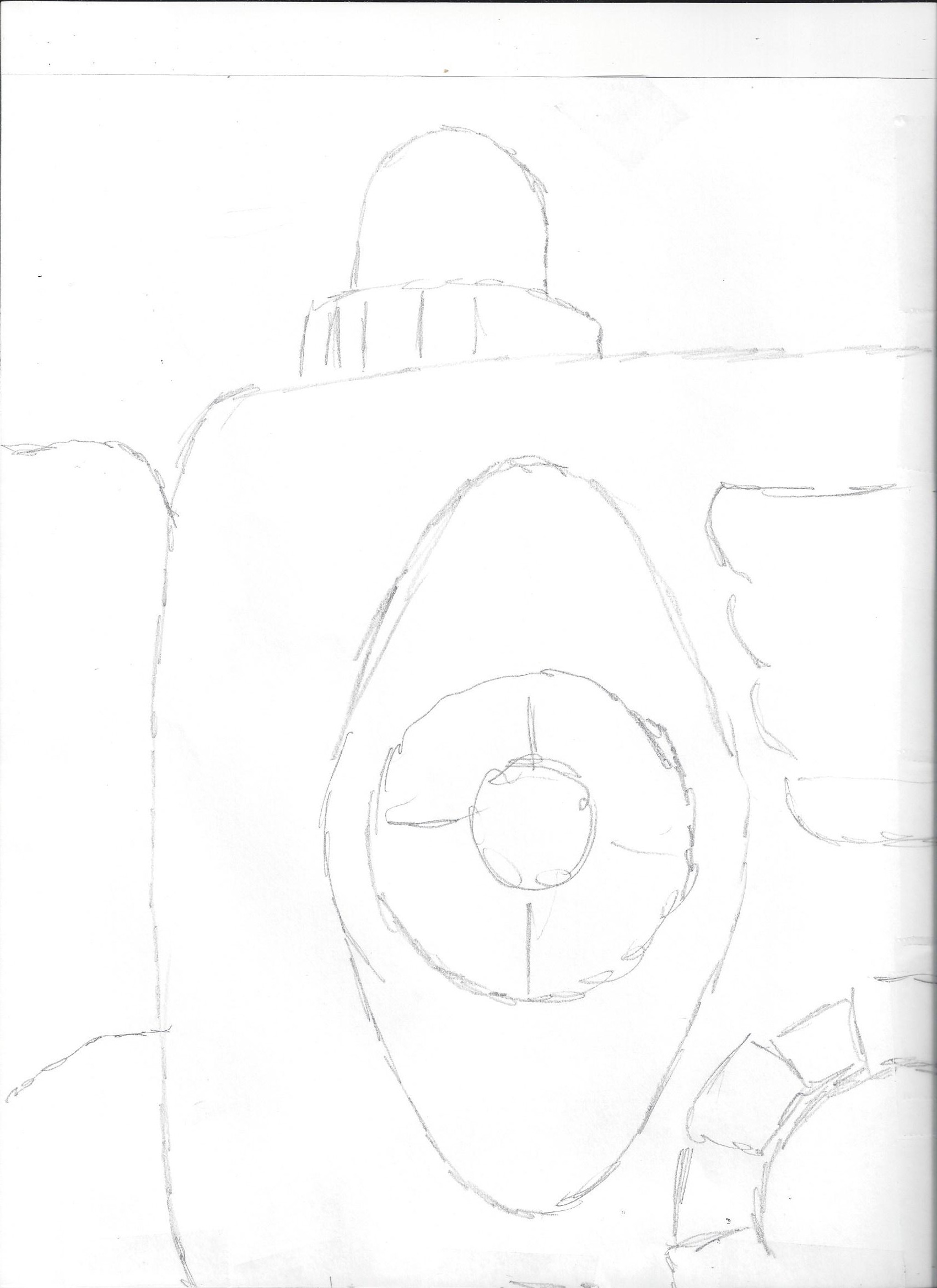

Then put it on a tv, made it correct size and drew the outline and some details. The bottom of the pack just mirror image and overlap to line up.
PacktopLeft.jpg packtopRight.jpg WIng1 001.jpg Wing2 001.jpg WIng3 001.jpg Packbase 001.jpg

Anyone want to clean this up?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

JPH

Sr Member

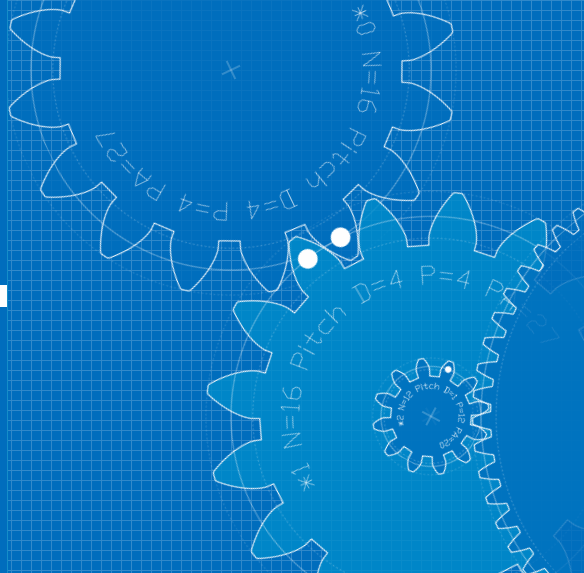

So, whoever made the "GearGenerator" website, THANK YOU!!!

WHy?

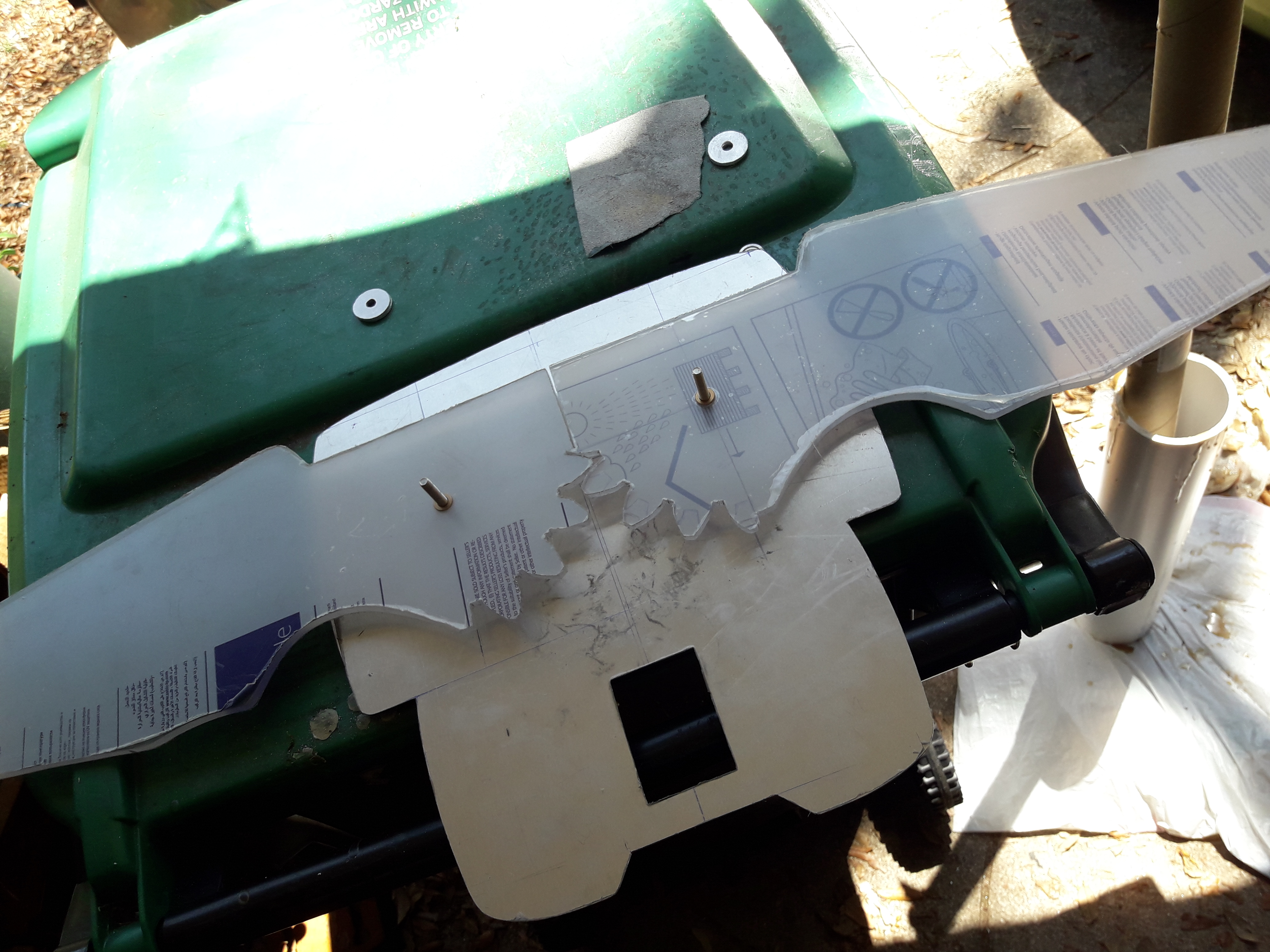

GearAligned.png 6 and 5/8 inches distance between gear centers...magnify on computer screen and trace out to cut out
GearTraceoutotcutout.jpg GearTahDah.jpg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Buliwif

Active Member
First I see a M.A.S.K. thread and now this? I'm in late 70's early 80's heaven. Looks great so far, can't wait to see how it turns out.


SofaKing01

Master Member
OH WOW! That brings back SO MANY memories!!! I played with my Micronauts and Biotron until they fell apart!

Looking forward to seeing this finished!

Thanks for the trip down memory lane! :)


JPH

Sr Member
So, any good advice on sculpting sculpey helmets? I started with aluminum, resined it, and now making outet layer outa sculpey. How do you get a smooth, round look?
Do I need to spray mold release? 20180504_210933.jpg 20180504_123622.jpg
Should I shout these questions to sound more like Robin Leech?
I will be using paint on mold stuff, for the helmet.


JPH

Sr Member
Using Smooth-on rebound 25. Does Sculpey need to be sprayed with release agent? Will release agent mess up the sculpey? What is the speed of an unlaiden swallow?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

JPH

Sr Member

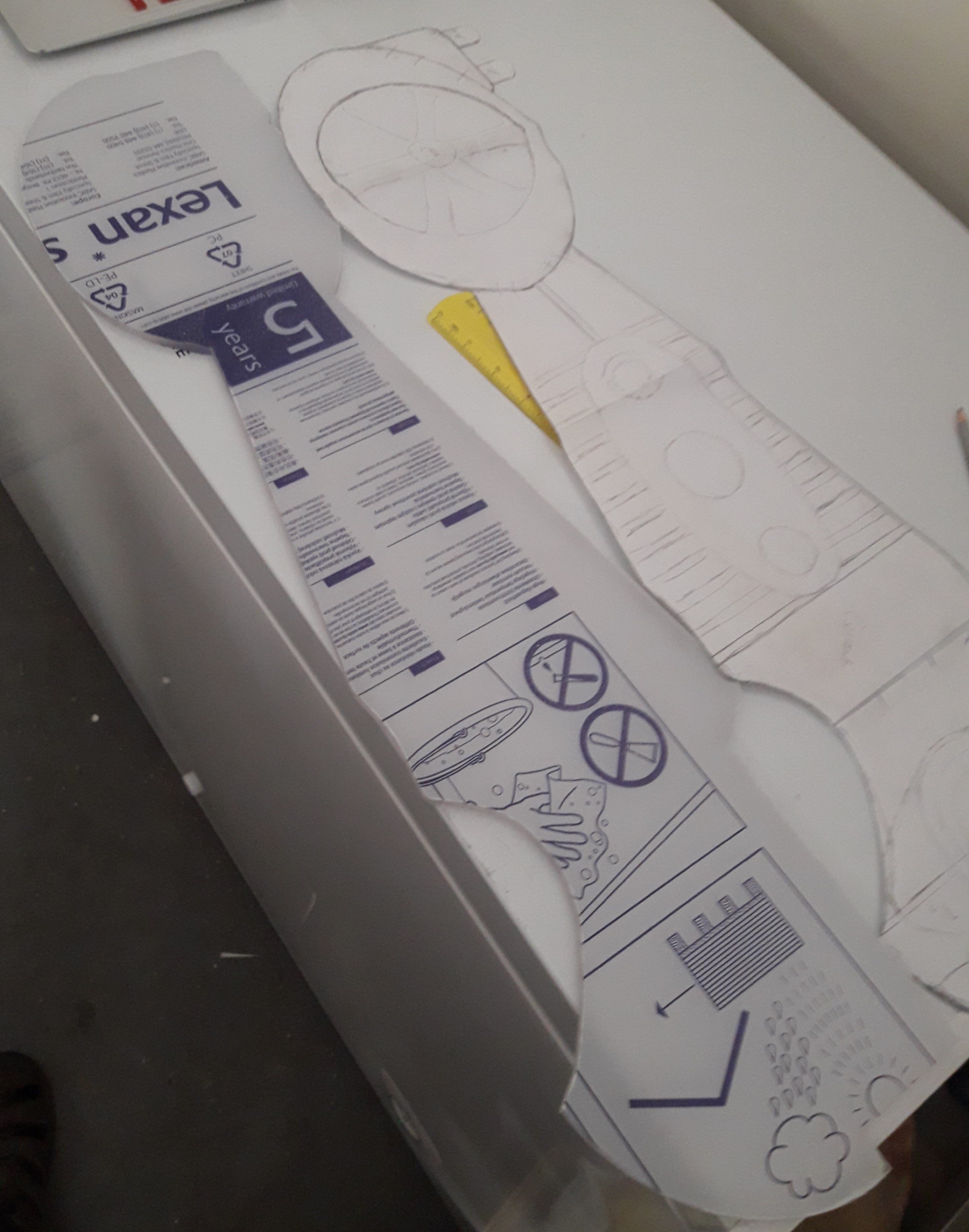

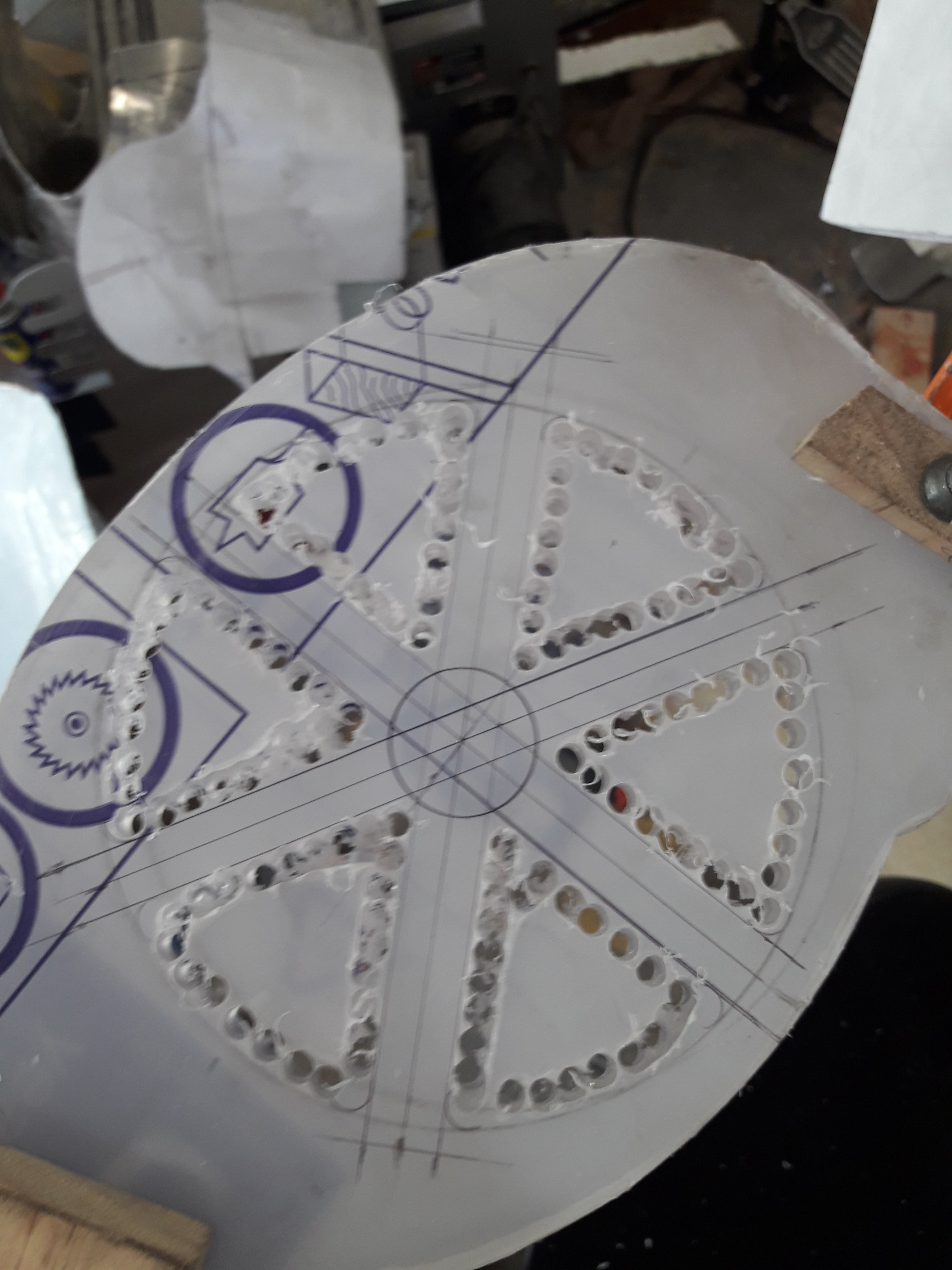

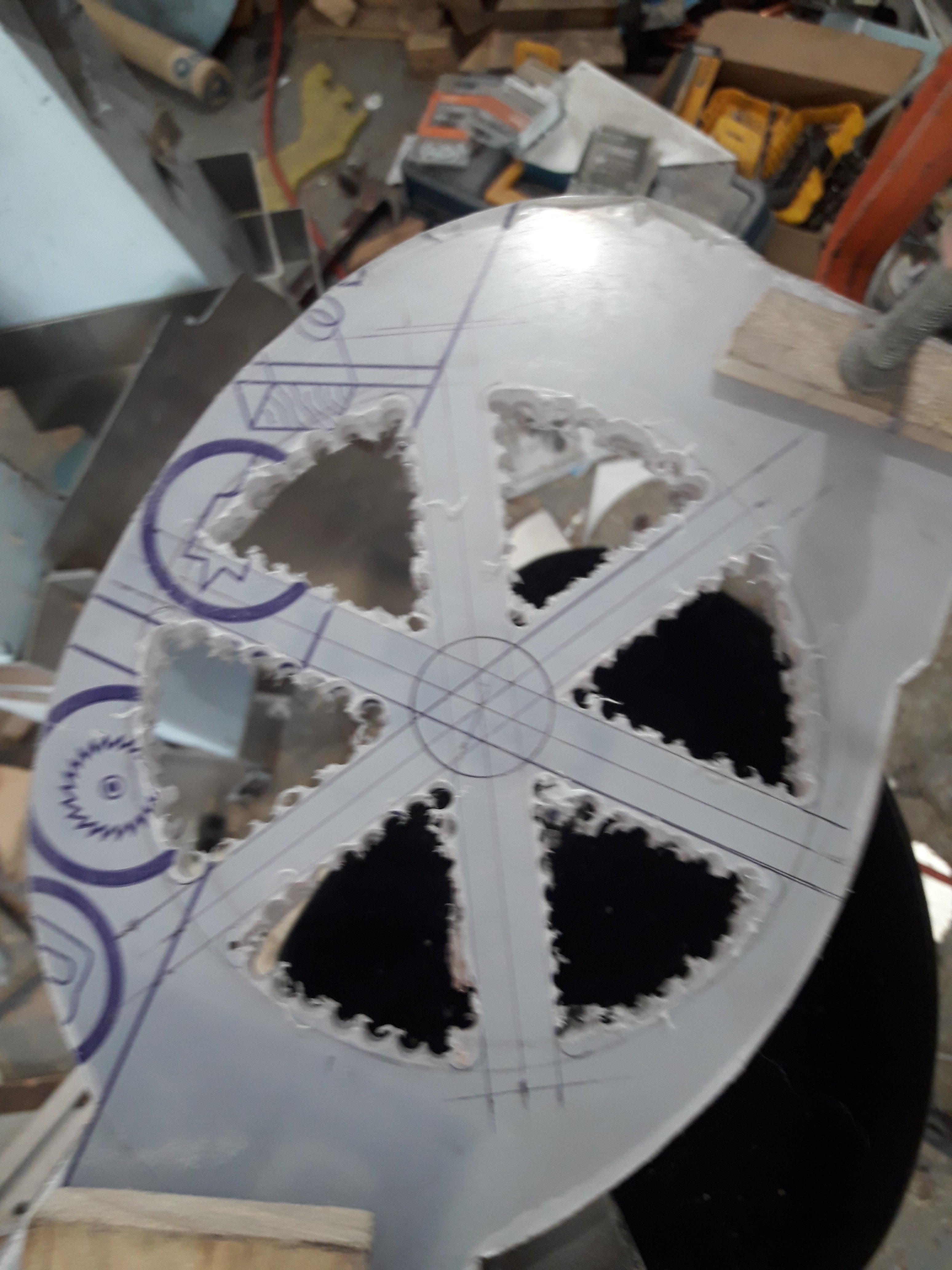

20180507_111741.jpg 20180507_115153.jpg wingin it 20180507_120956.jpg

Meanwhile, the helmet it soakin in silicone 20180508_134305.jpg I will sand out the roughness after casted-ed 20180508_151626.jpg


JPH

Sr Member
Its been a while...
Since I posted on this thread
And its been a while, but Im still working
and been a while,
Since I sanded down this head
And its been a while
So thanks for lurking

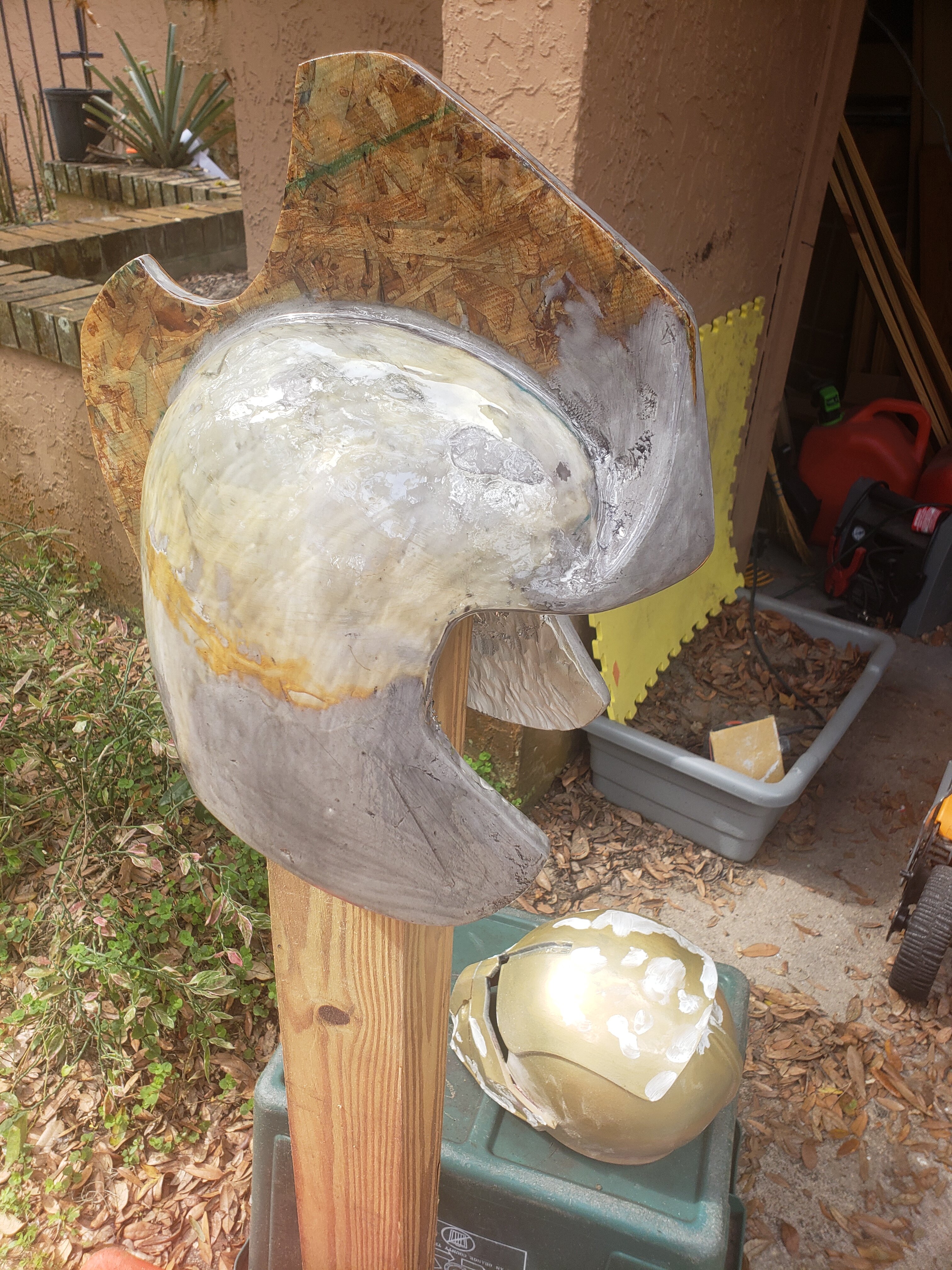

Coated helmet with e-poxy.
Let it flat-ten out the dents
Let is cure out of the rainstorm
Have to add details and vents


Attachments

  • 20210219_112736.jpg
    2.7 MB · Views: 18
  • 20210219_112731.jpg
    2.2 MB · Views: 17

JPH

Sr Member

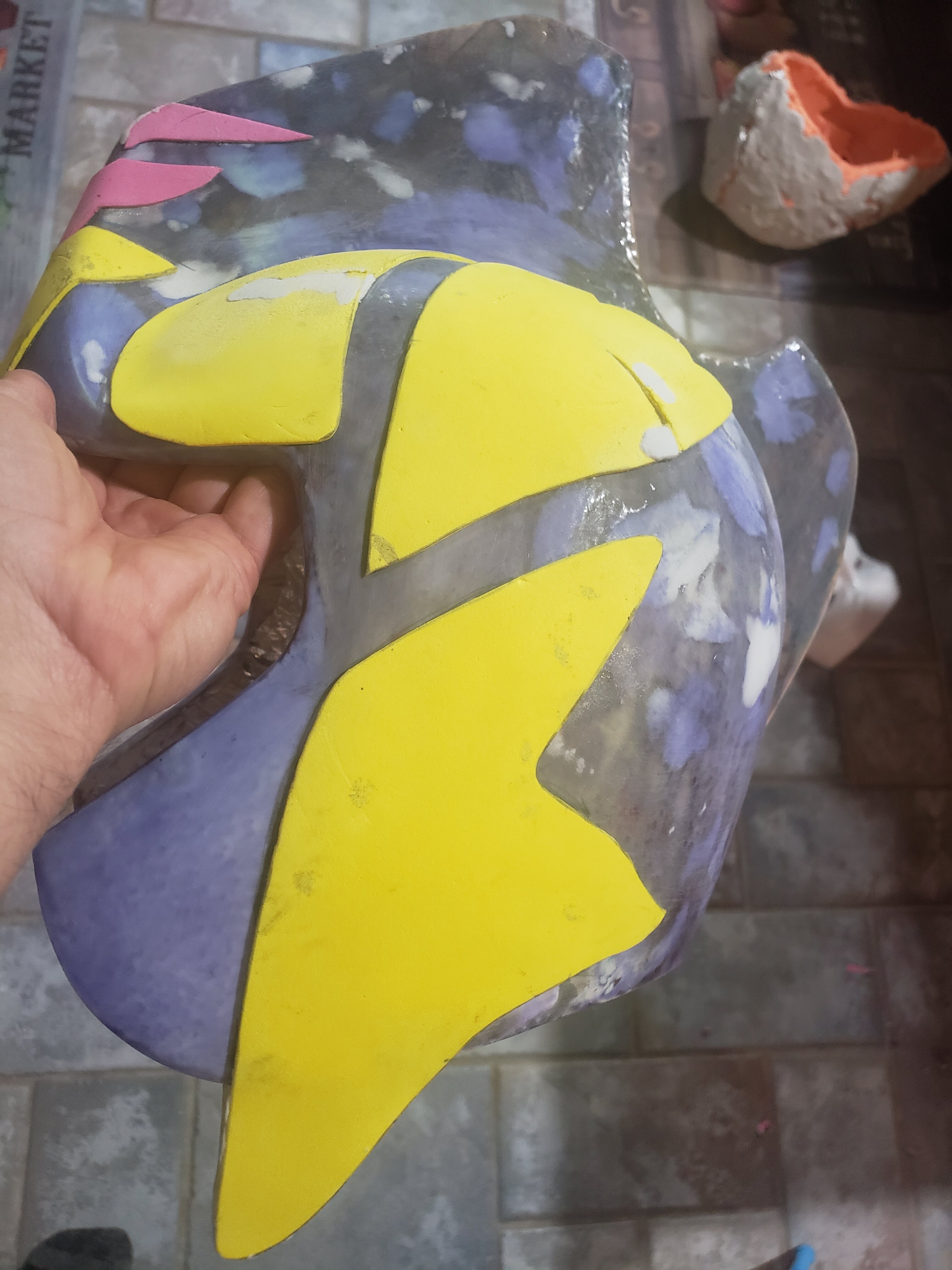

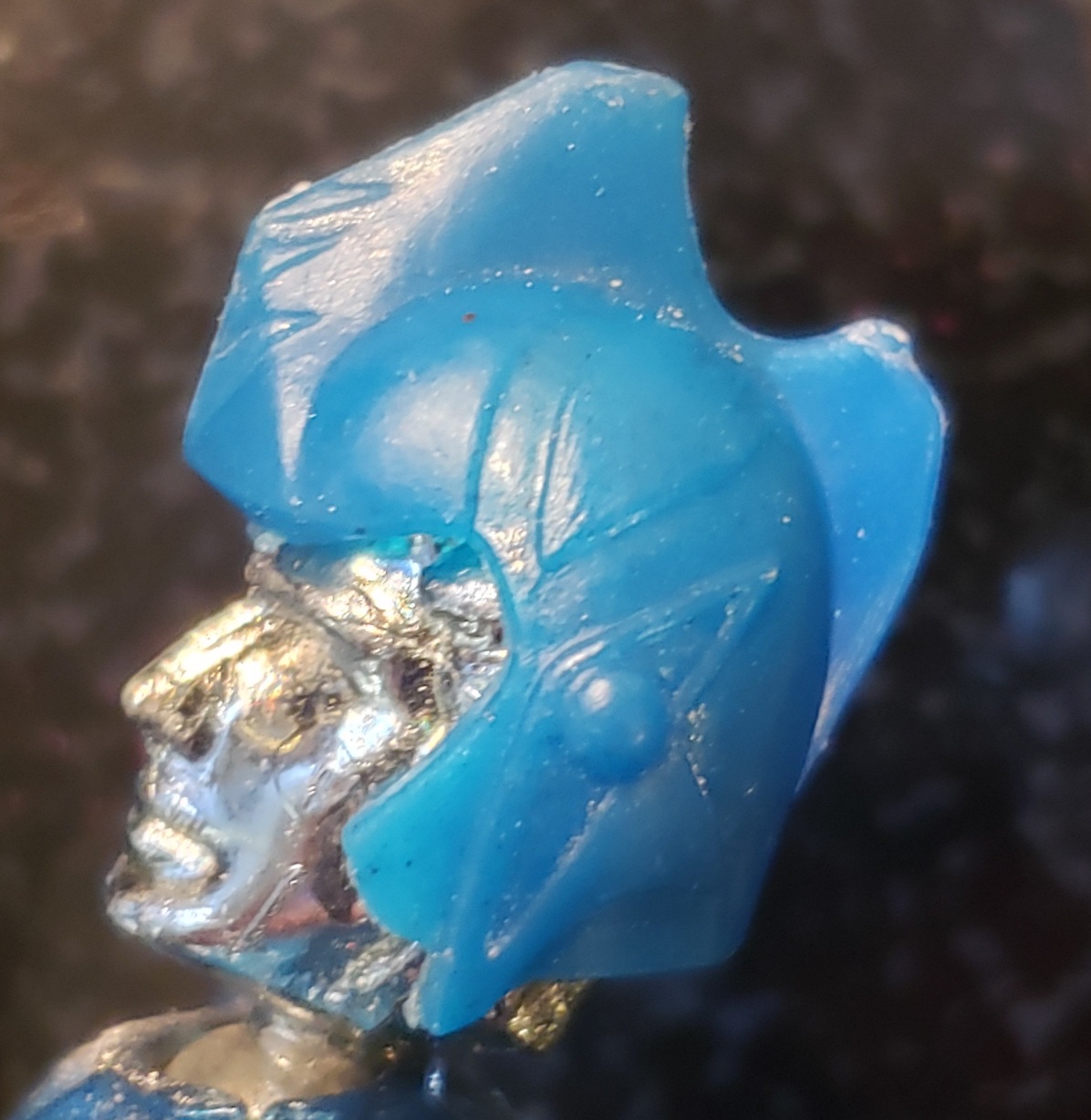

If you look close up on space glider helmets there are some designs. So, I guestimated them out of 1/8 inch foam. Since I have to make them 3D, I will add MORE FreeForm Air and then sand flat and coat with XTC.

I guess I could have stopped at the mohawk piece, but after taking some macro pics of the helmet, I went for it.

NOTE: the micronaut's head has a thick, hard layer of wavy hair, so going from toy dimensions to human head calls for some inaccuracies.


Attachments

  • 20210406_161926.jpg
    768.5 KB · Views: 20
  • 20210406_162026.jpg
    275.1 KB · Views: 21
  • 20210406_090026.jpg
    1.3 MB · Views: 19

JPH

Sr Member
3D printers are fun.

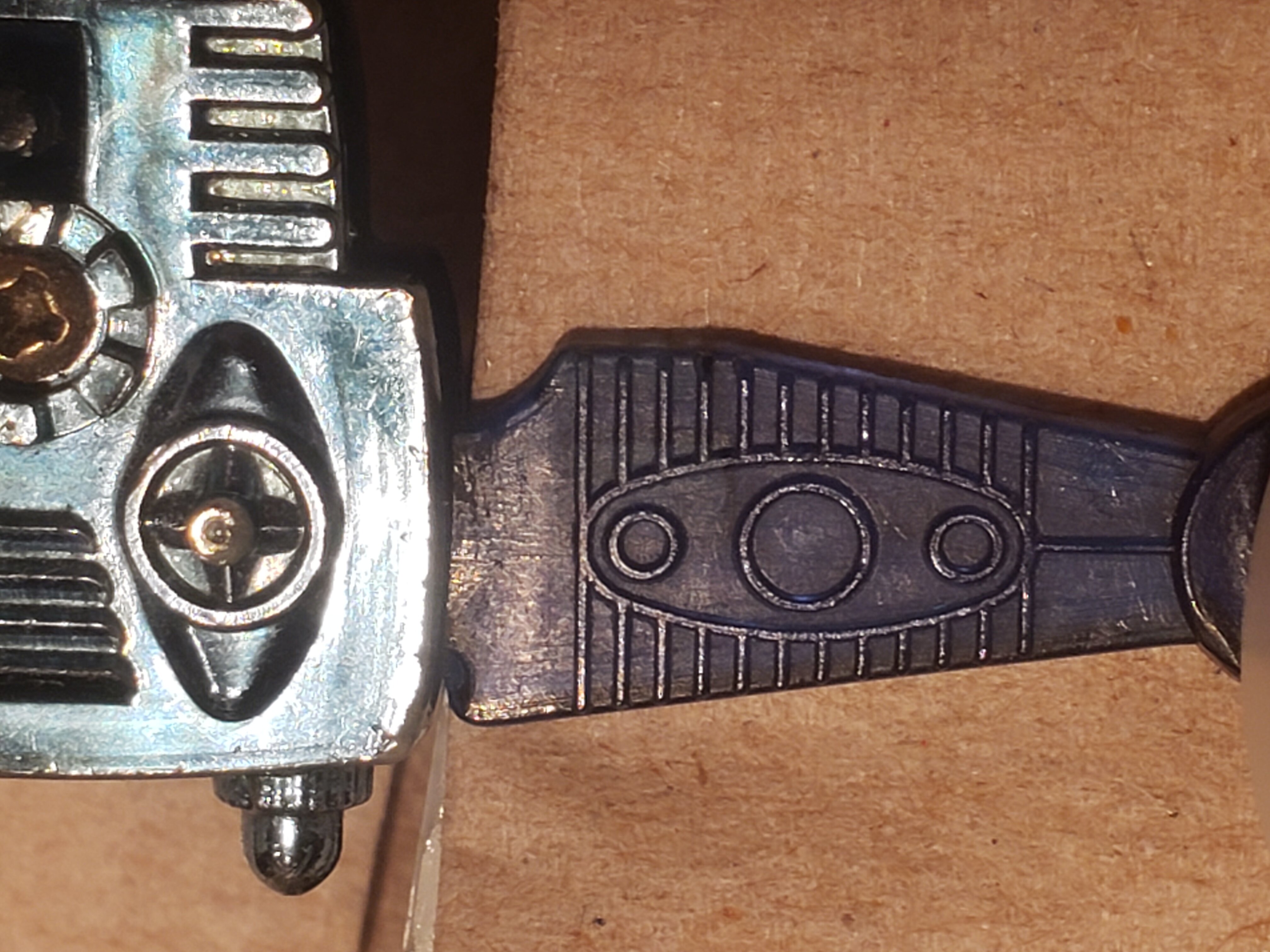

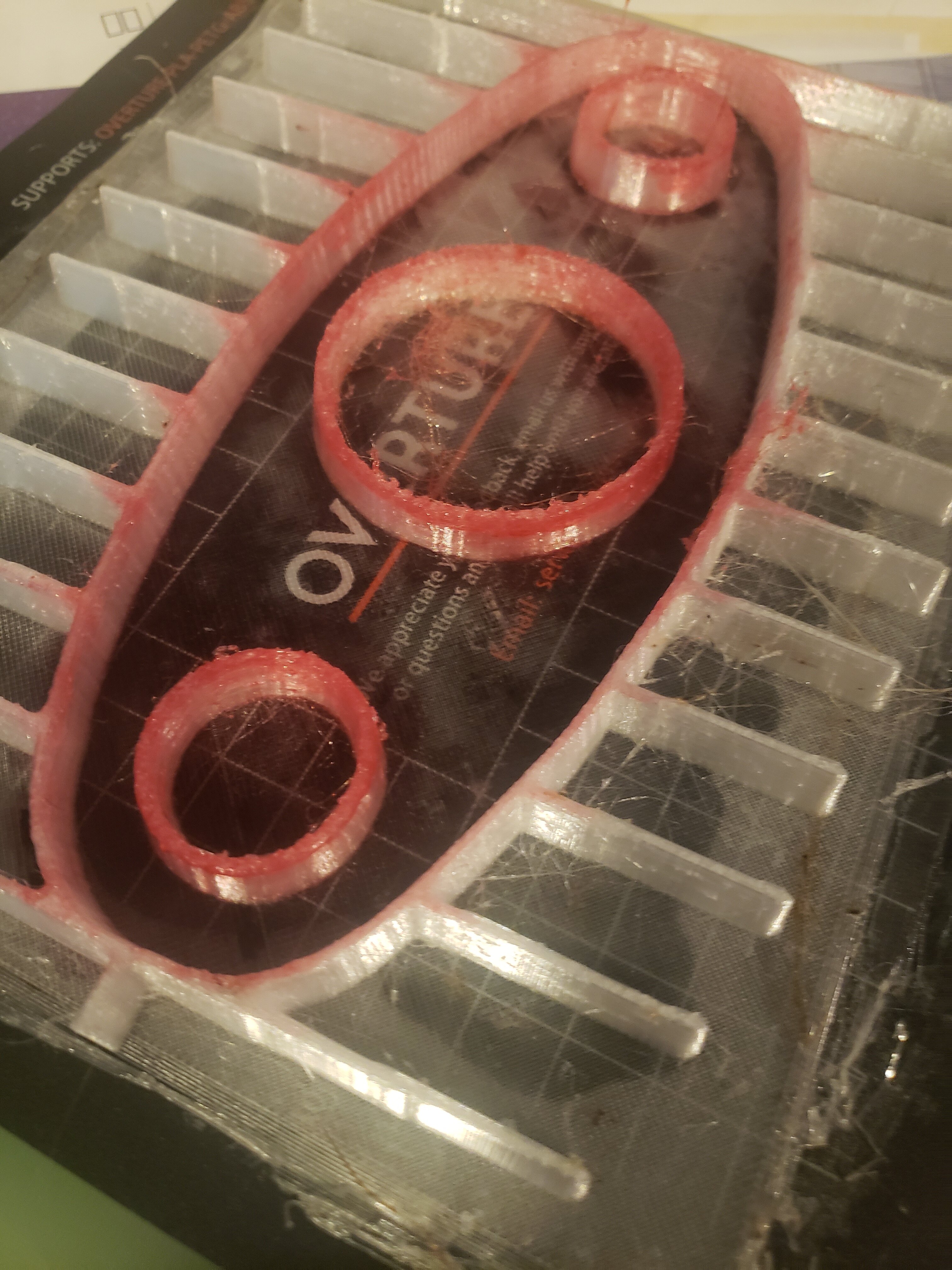

Take wing details, make them black and white. Turn into a 3D file, where black is higher.

Viola!

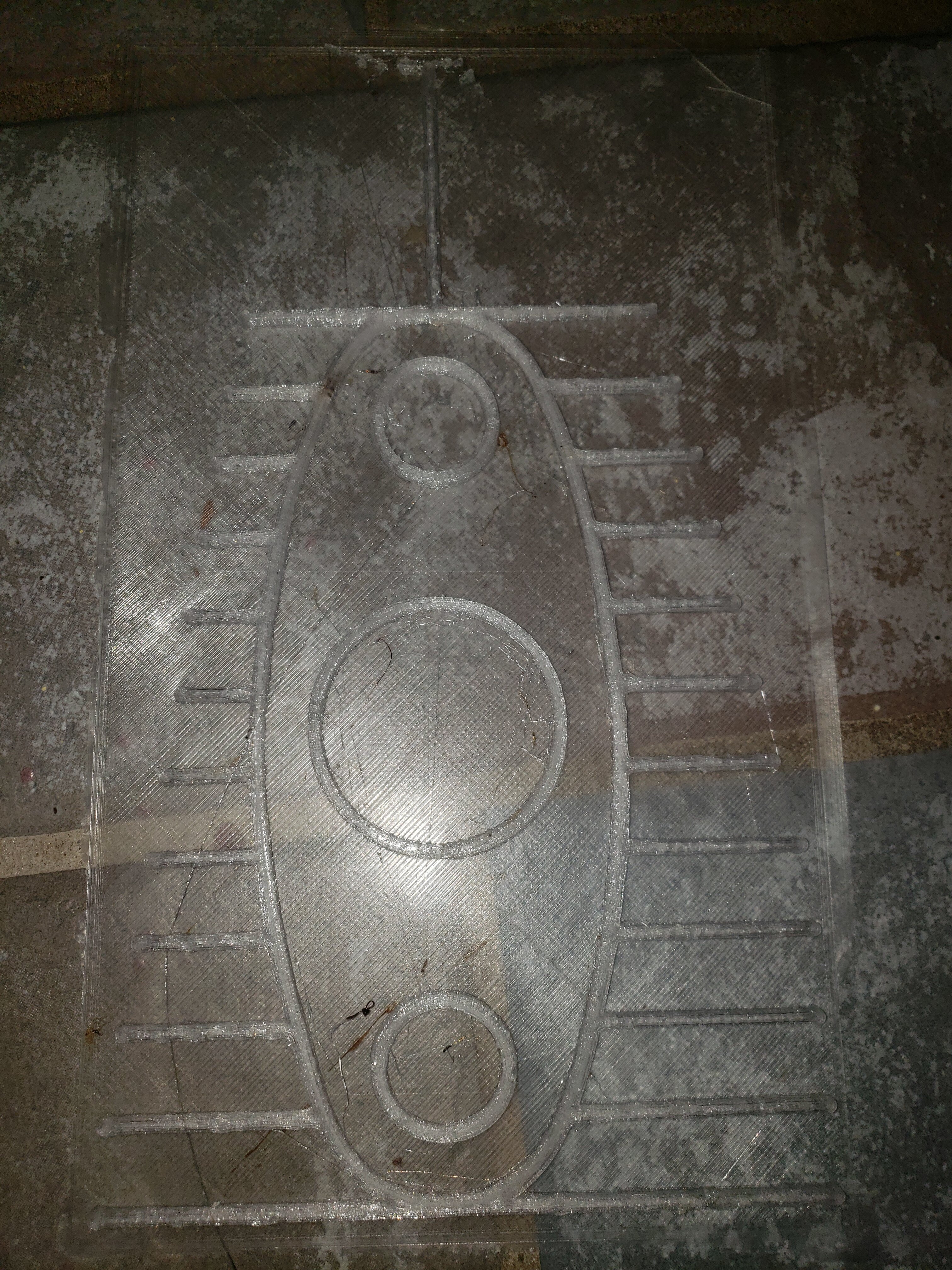

Wing details can now be printed and used to make molds, or even applied directly.

Oh! I feel resourceful and lazy at the same time


Attachments

  • Wingdetail.jpg
    1 MB · Views: 10
  • Wingdetailtweakedwhitening.jpg
    303.4 KB · Views: 10
  • Wingdetailprinted.jpg
    2.7 MB · Views: 10

JPH

Sr Member

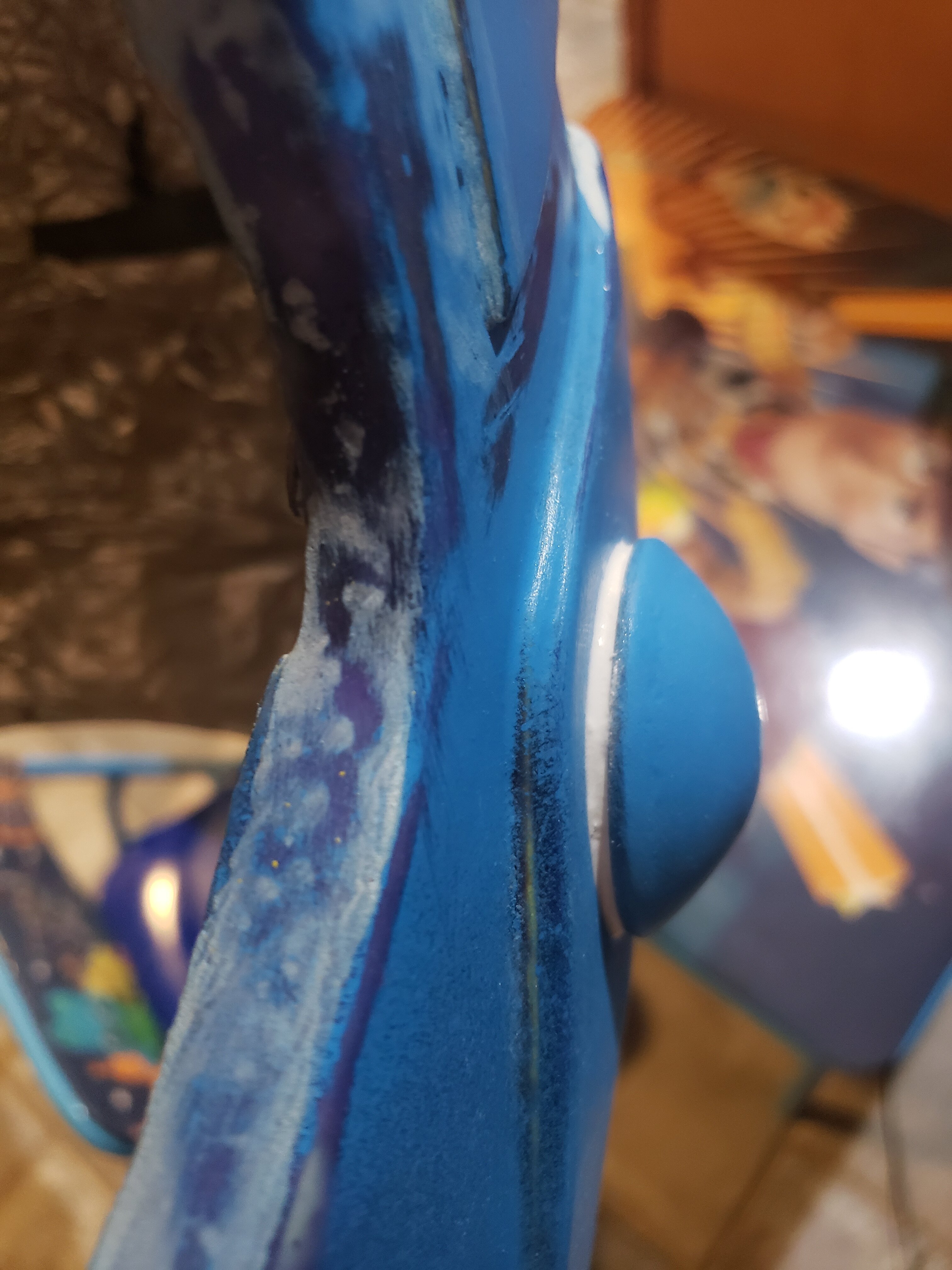

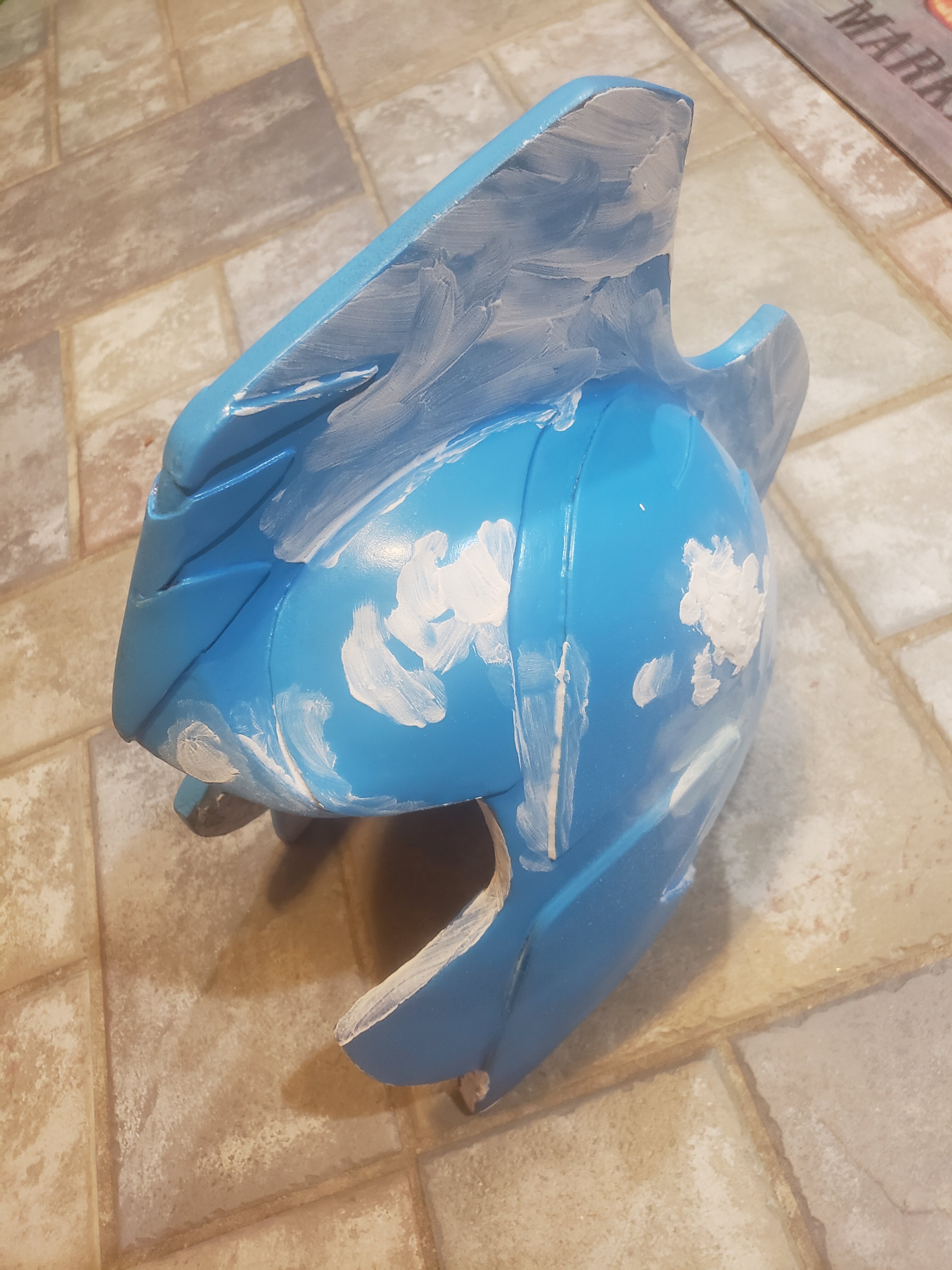

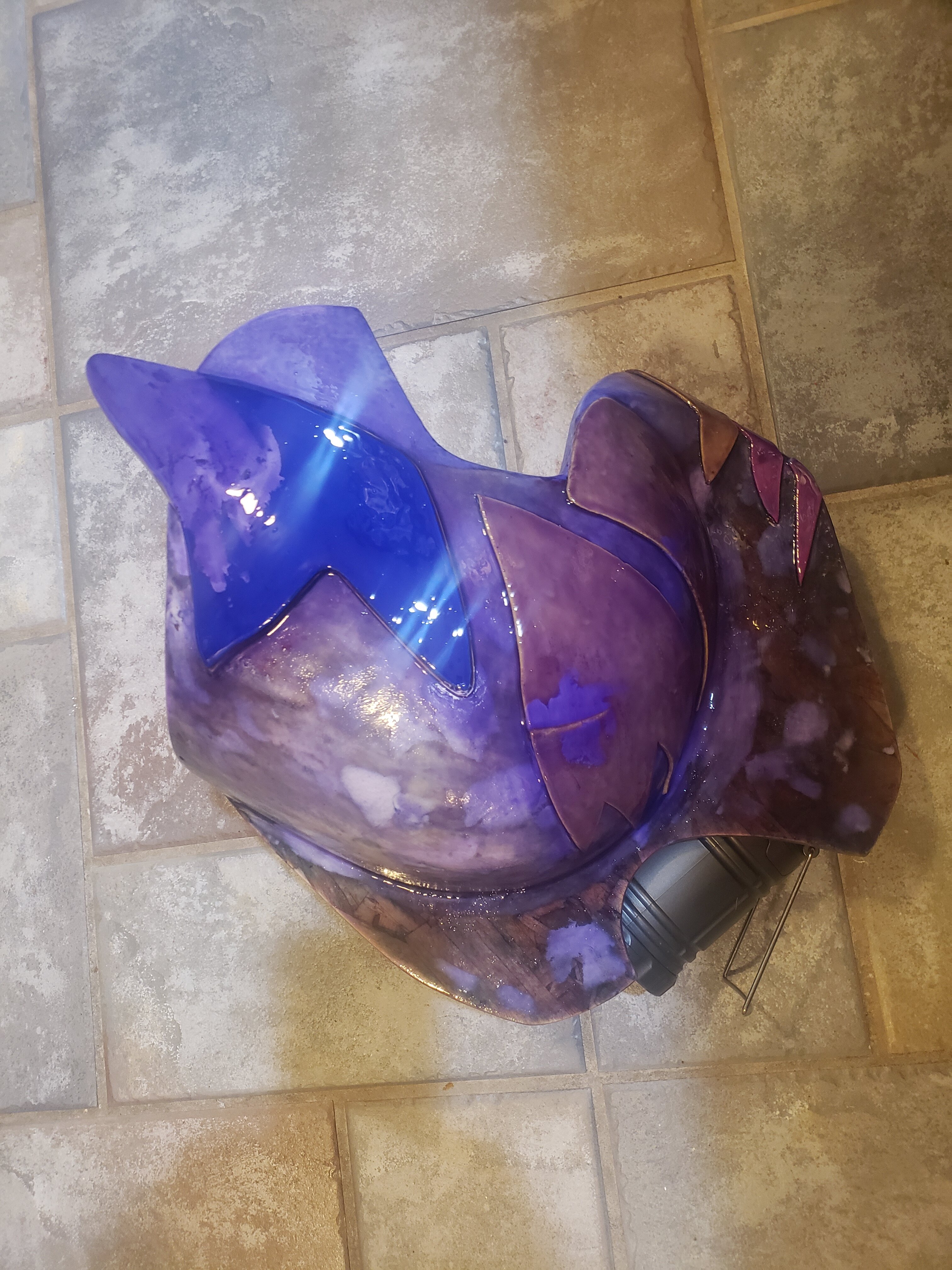

the helmet is still, "coat with XTC, sand, repeat. Debating how far to go with details...


Attachments

  • XTCFeeltheexcitement.jpg
    1.7 MB · Views: 10
