Edit, because of therpf's new 20 picture limit i'm having to spread this out over multiple posts which will push comments/pictures down to lower posts. No way around it, i'll use the dotted line to seperate the posts. -----------------------------------


Here is something i have been working on the last few weeks. The MIB Pulsar. Bought this from Rusty85 a few weeks back. The castings are pretty nice but unfortunatly the halves were assembled very badly. One side is shifted about 3/16 and in some places the space between halves is 1/4" so it needed to come back apart. The good thing is because there is such a big gap there is enough room to get a cuttin tool in it without doing any major damage to the original castings. Also the grip was broken off so that needed to be reattached

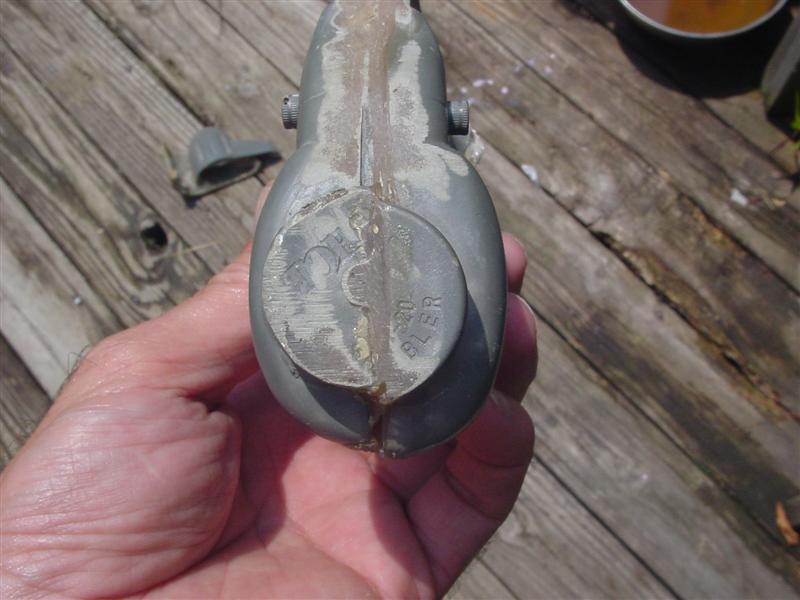

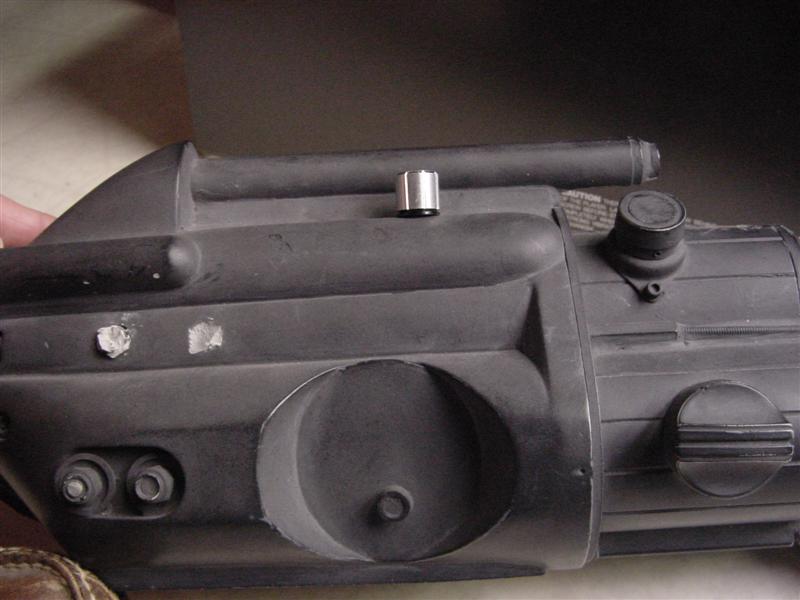

Here is a Toro part i will need to ID










This top bar is a mess and since it is nothing more than 1"x 1/8" aluminum strip i am going to replace it.








What a mess....




My first plan is to reattach the grip. It really needs to be done first so the grip is lined up properly. It could be a pain to get them to line up if i leave it for later. I need at least one side attached. I am going for the minimalist approach. I just want it attached enough so i can get behind it and reinforce it properly. I also wanted to keep exterior changes and mods to a minimum so if resin doesn't need to be there i didn't let it stay. I put tape on anything i didn't want the epoxy to get on. I do not want to ruin any detail. I epoxied the grip on and then before it was cured scraped away all resin on the exterior surfaces.

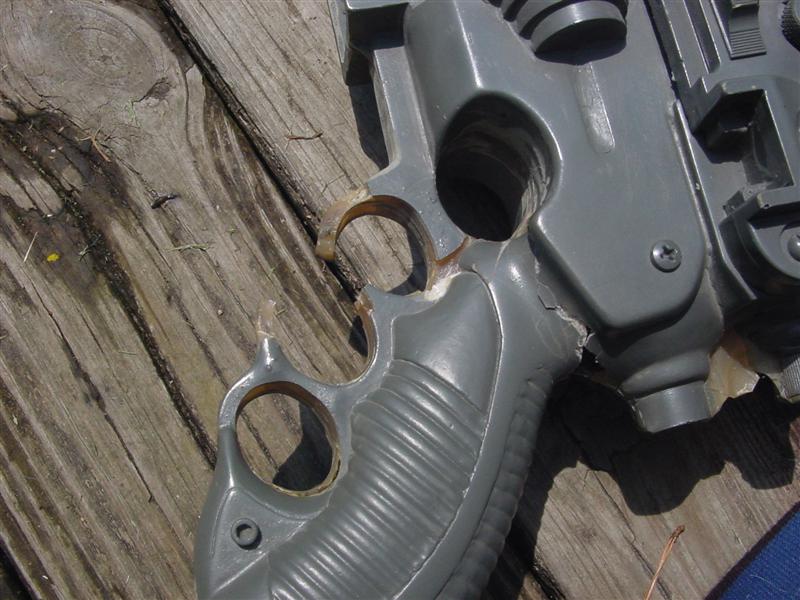

Luckily one side of the grip broke up high so i had multiple surfaces to line up to make sure it is lined up propely.


I ended up having some of one of the knobs. The indicator line and position of the 2 set screws match up perfectly. I am leaving the original for now just to have something else to register to when i reattach the halves. I'll cut it later and use the real knob.



Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Sundowner

Master Member
RPF PREMIUM MEMBER
Re: MIB Pulsar project

This has great potential and with your dedication I dont have any doubt. Good luck, looking forward to more build progress photos!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Zombie Killer

Master Member
RPF PREMIUM MEMBER
Re: MIB Pulsar project



It looks to me like one person started claying up this thing for casting and then someone else saw the mess they were doing and took over. Some areas look like they were finger painting with clay and then the other side of the same area is clean as heck. I am going to try to clean up as much of the clay marks on the smooth surfaces and leave any clayed in areas since this is the stunt rifle.




God what a mess. I am going to have to do something about the front sight too.


and after a few hours of cutting it came apart.


and a few more hours of cleanup and it's looking pretty good. The one grip that broke lower didn't hold up to my "repair". It's fine. I have one well located grip i can use it to line up this broken one.




From what i can tell this casting is straight and lines up real nice. If i line up one area all others look right.

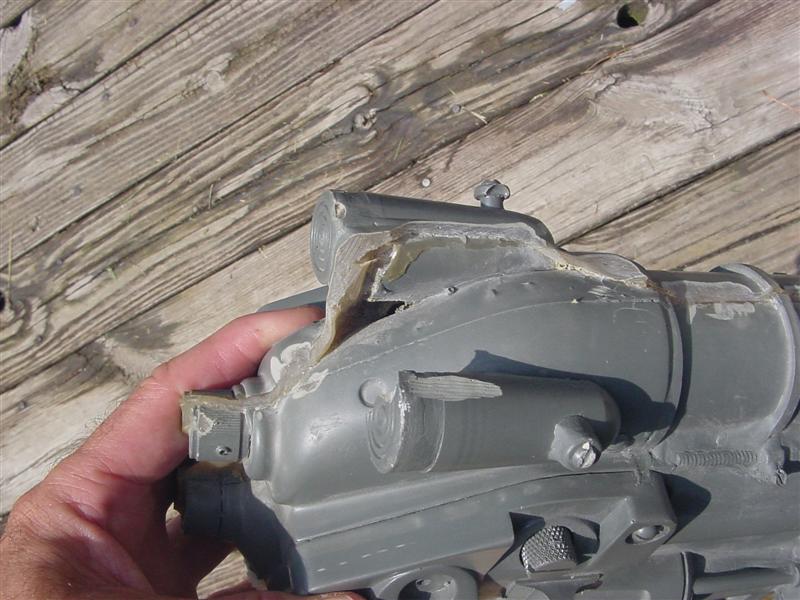

The nose piece needs love too. The front facet is mostly missing and it has more claying issues.

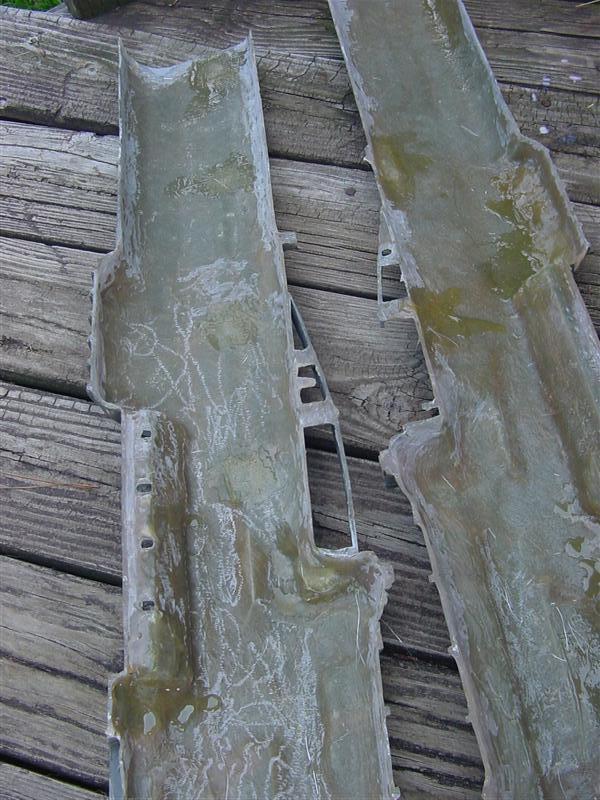

Although the castings are nice they are super paper thin in some areas. If this is not fixed and reinforced it will take nothing more than a push with the finger to mess it up. So i epoxied these areas thicker and started to reinforce the grip.

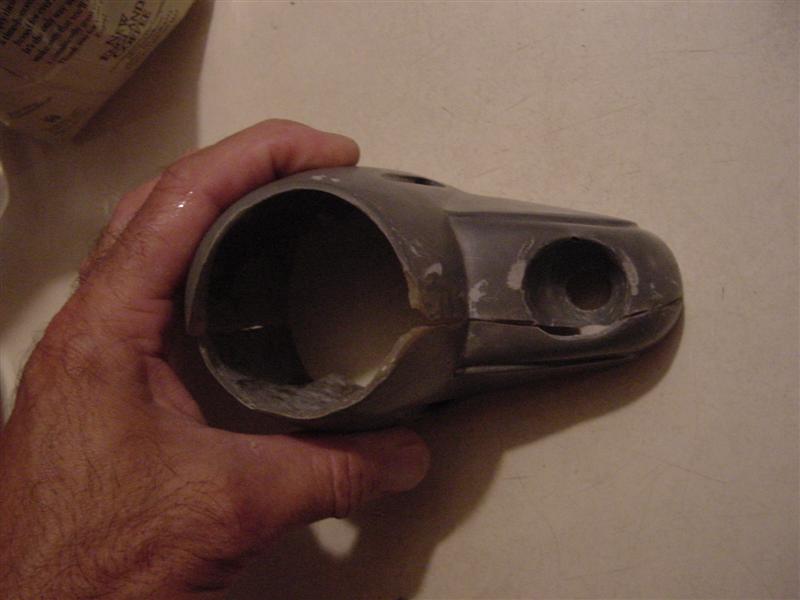

Here is the nose cleaned up.


I can't really go any further than this until i have the gun halves together to determine how far apart these should be. As it sits they are a hair wide which is a good thing.

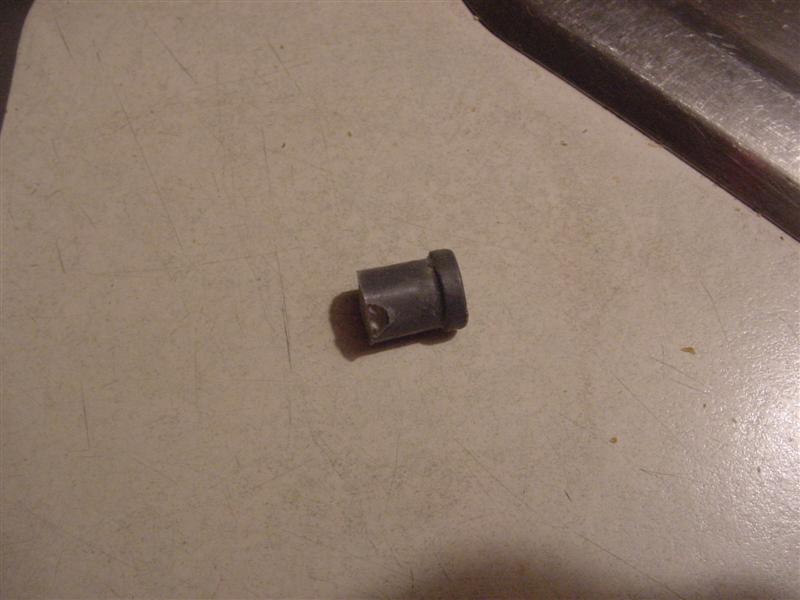

Unfortunatly the little center tip fell apart with the slightest touch. Glad it happened now.


Fortunatly there is enough left for me to measure and make a new one out of aluminum. There is supposed to be some recess work at the end so i will look though screencaps and try to figure out the details of it.

Last edited:

Bowelrock

Sr Member
Re: MIB Pulsar project

After seeing your Mal pistol work I am very excited to see what you're going to do with this... Any Plans of molding it>?


Zombie Killer

Master Member
RPF PREMIUM MEMBER
Re: MIB Pulsar project

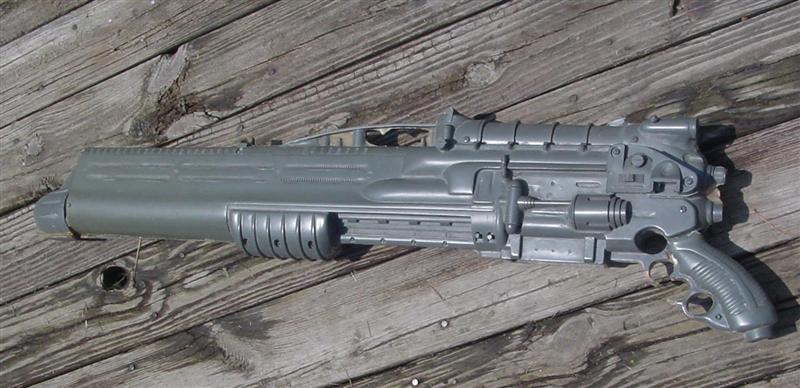

Here it is as it sits yesterday. I have thickened the thin spots and reinforced a few areas like the screw holes along the side of the barrel shroud. I have almost all the screws collected to replace the ones on the gun. Also I have a few areas i need to mold to replicate details needed elsewhere.




Thickening up the grip before i reattach it. I'll need to get the halves matched up before i can tackle this.


So here is the plan. This is a stunt casting and i want to build a hero version. I do not however want to ruin this casting by modifying it and cutting it all to heck which is what will be required to build what i want. I am going to reattach these halves and get this this as perfect as i can but not modify it or change too much on the outside. I am then going to mold it and keep it as is. There are so few of these i want to leave this piece as is once repaired. To build a hero means i will have to cut a casting to heck and reconstruct it like the original. All the side aluminum parts need to be cut off and remade in aluminum. The top cap and side plates need to be removed and remade seperate so they can be chrome like the original. All the holes, slots, barrel holes on the sides need to be reopened. The top acrylic tube area needs to be removed and a real piece of clear tube installed with real aluminum rings. Also i am probably going to remake the whole top rail with all the slots in aluminum too and have my buddy weld the top aluminum strip to it like the original. Also need to cut the lower front grip and rail off and mold the visible half of the rail to create the other half and make the rail seperate from the grip and then mold the grip so i can have a racking front grip. I have some work to do.
-----------------------------------------------------------------------------------------------------------------------------------------
Thanks guys. Not much to show today, just more glassin' and it's a bit of a slow process with dry time. Today i had 1 goal to accomplish 2 things, one was just trying to thicken the whole thing up and at the same time get the rear 2/3 covered in a sheet of glass and epoxy to seal the polyester resin used in it's construction. That stuff stinks forever. I put another 5 layers on the grip area so that is really getting nice and thick. I am done with glassin for now, i need more epoxy. Once it's dry i'll probably start sanding some of the clay crap on the sides and get them smoothish. I also need to figure out how to attach the halves properly. It's tough to get into the grip/receiver area to do inside glassing. I may just have to break down and cut the grip rail section out. This will allow me access to the inside. I need to make sure that is really what i want to do. Just got good news, the Tribarrel is on it's way to me now!! All i need is the Deatomizer now! Oh and the SI (Standard Issue) and noisy cricket. I am going from big to small......






-------------------------------------------------------------------------------------------------------------------------------
Yes i will have to mold it to make the hero and to recreate certain areas that are messed up. If your wondering about casts i am sure i will not be doing any big run of them. The original maker is a member and the license holder Factory Ent is also a member so it's probably not the best thing.
