Manuelzinho

New Member
Hi guys! I had this idea cause this year is Mazinger Z 45th anniversary (there will be a movie!) and that gave me the idea. I belong to Mazinger Z generation (he is just 5 years younger than me :D ), and used to watch the cartoons on TV when I was a child, they were so popular in Spain!!

15042168_1436491049712454_2444856317921239916_o.jpg Here is him at the Gran Via of Madrid, causing some mess around :lol

I have done only a few replica props (got just one post here at the RPF, a Captain America cosplay and a Thor costume for my 3 years old son) I am very proud of my eva foam & epoxy Captain shield, was a total success at Jerez Comic Con.

So I thought I wanted to do some giant cosplay and Mazinger Z seems not as complicate as other chars (not many details, flat parts, etc...) So I started to search around but could not find a decent cosplay of the giant robot and that encorauged me even more to go for it. Now I spent all day absent-minded thinking about ways to get my goal. Always happens to me when I am in the middle of a project, get very obssesed and every time I go into a shop or similar I am always looking for stuff that could help me achieve my goal.

So this is the plan:

PROPORCIÓN.JPG That should be my position inside the robot. I am waiting for those stilts to arrive: http://www.stelzen-shop.de/es/zancos-consumer-line-tamao-m.html
I plan to use the minimun height of the stilts, 38 cm, I consider that would be enough. I will wear the neck and head of the costume as a hat, on top of my head with a helmet belt. That way when I move my head inside the chest, the head of the robot will move too. My arms will get out through holes on the sides of his trunk and will get into the robot forearms. I will be wearing a black long sleeves shirt (got this idea from last year awesome Hulkbuster cosplay that you all must have seen) The chest part will rest on my shoulders and on my head. And my hands inside the forearms will help supporting total weight of chest, arms and head (all eva foam). I will wear a harness to hold all parts in their places.

So, with stilts (38 cm), my own height (172 cm) and robot´s head and neck height (around 40 cm), we get a total height of 250 cm!! (pretty impressive, right? :eek)

As for effects I want to set lights on Mazinger eyes, with 2 modes: regular light always on and stroboscopic light so they pretend to be laser beams like in the old japanese cartoons way. For this I got 2 flashlights having those modes. I want to set lights too inside the 2 red things on the chest, as those are Mazinger Z main weapon. They fire very high temperature rays wich melt his enemies in seconds.

For sound effects, I got this: https://www.amazon.es/gp/product/B010M8UNG0/ref=oh_aui_detailpage_o05_s00?ie=UTF8&psc=1 I already got big robot steps sounds and laser beams sounds too, to use them when I walk and when I will turn on the stroboscopic eyes lights respectively. Will set the speakers inside the chest at the back of it, making a few small holes in the eva foam to allow the sound to get out. Switches for light and sound will be inside of the forearms.

Between the 2 red things on the chest and under his neck, I want to put a window so I can see, and close it with some see-through stuff covered with this: https://www.amazon.es/dp/B018O2GD5Q...coding=UTF8&psc=1&refRID=6E3SNVS8YGEPR3WF1WWF this stuff will allow me to see and it will be black as the robot chest, so hopefully people will not be able to see my face. I will try to make this window able to open, for me to take some fresh air from time to time.

So this is the general idea. Please, feel free to advise and show me if my ideas are totally crazy :wacko

I will be updating this post with my progress, thank you all for taking time in reading my plans.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Manuelzinho

New Member
I searched the web for any Pepakura files or papercrafts of the head, even in Japanese, but couldn´t find any. I used some pics to start, but realized I needed a 3D image to do it right, so I bought this figure
DSC01407.JPG DSC01408.JPG DSC01406.JPG

and from that, I came up with this:
DSC01410.JPG DSC01411.JPG DSC01413.JPG

I ordered the antennas on the sides from a 3D printing service and made the eyes with methacrylate, bended with the heat gun, and with a transparent mirror vinyl on the back and transparent yellow vinyl on the front. Added two eye black masks for a nice effect:

DSC01428.JPG DSC01429.JPG DSC01431.JPG

the eyes and some mirror area to put around the light and create reflection
DSC01433.JPG DSC01434.JPG

And the general idea, with the sound for the laser beams mode:

and this one with the regular light mode:

See you soon with more updates, thanks for your time guys.

Last edited by a moderator:

Manuelzinho

New Member

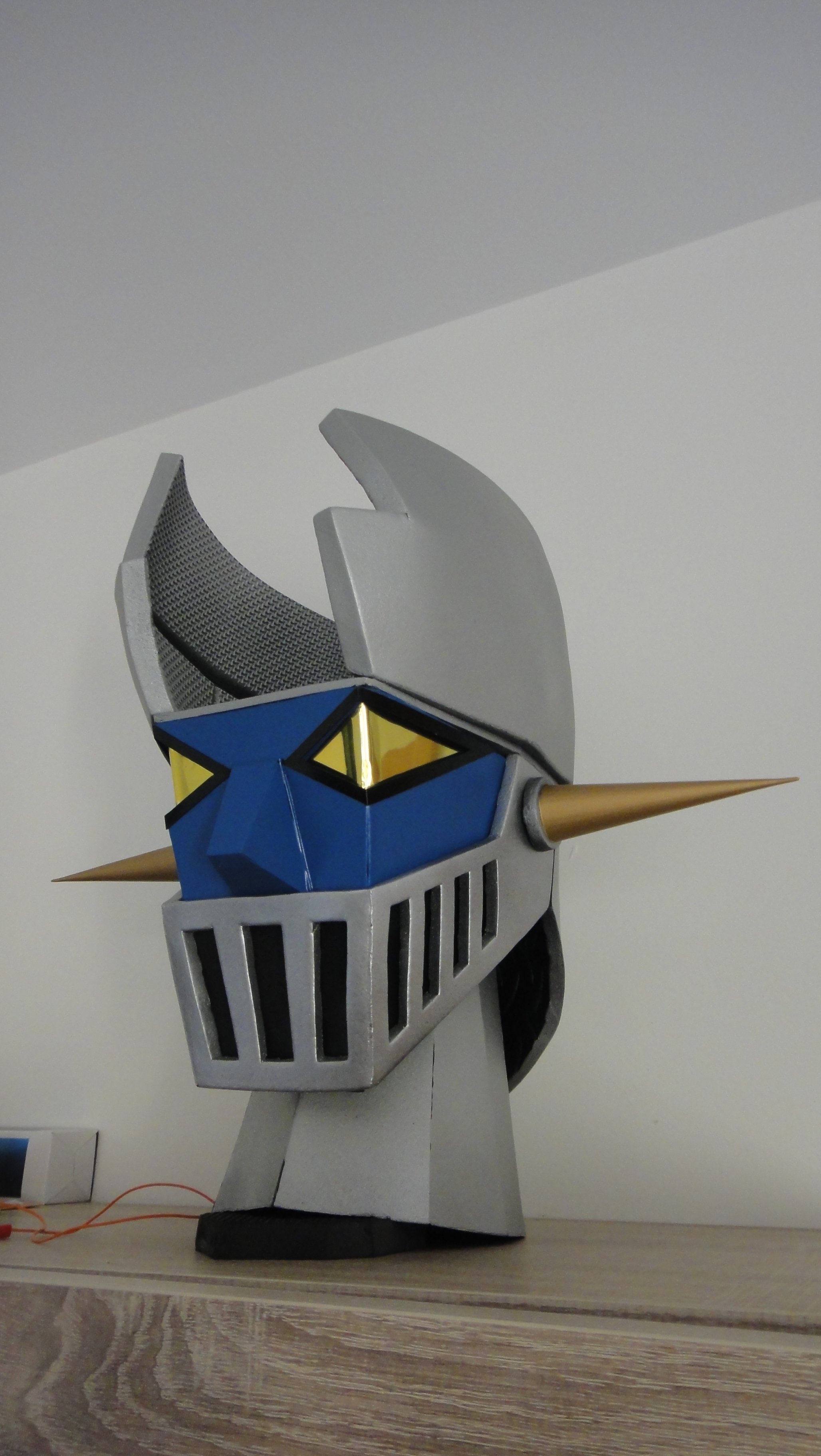

Well, here is the head. I opened a hatch on the top platform in order to be able to separate the neck from the head, for storage and it will be necessary later to suit on. LA MEJOR.jpg DSC01480.JPG DSC01491.JPG


Attachments

  • DSC01496.JPG
    590.1 KB · Views: 148
  • DSC01497.JPG
    565.1 KB · Views: 107
  • DSC01497.JPG
    562.6 KB · Views: 125
Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Manuelzinho

New Member
Thanks George! Yes, that´s the idea, a full suit. I just upload again in my first post of this thread a pic that went missing with my position inside Mazinger. There you can read what´s the theory.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

George

Master Member
You can either open 3D (.obj) files directly in pepakura designer and unfold them,or open a 3D/.stl file in 3D software and convert/save them as .obj so you can use them in pepakura.


Manuelzinho

New Member
KOJI KABUTO


I decided to use one Playmobil cause the scale would be right, so I stole an all white statue Playmobil from my son and a motorbike helmet from another.
(before you call Social Services, please note I gave him this one in exchange) :lol


the helmet build:
DSC01502.JPG DSC01506.JPG DSC01507.JPG DSC01508.JPG

and here is Koji, my Ratatouille :love
DSC01509.JPG 75890.jpg

No legs needed cause he goes inside the Hover Pileder ;)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Manuelzinho

New Member
Well, was waiting for some materials to arrive, but finally the hover is ready ;)

Thanks George for your 3D files, it helped as the hover file gave me a good idea of the thing from all views.

I made with eva foam and some other stuff (you will see at the pics) and layer of liquid vinyl, silver chrome and red paint. And used this for the glass: https://www.amazon.es/gp/product/B01MQLBSUL/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1

DSC01541.JPG DSC01543.JPG DSC01545.JPG DSC01546.JPG

DSC01547.JPG DSC01548.JPG DSC01550.JPG


- - - Updated - - -

DSC01561.JPG DSC01559.JPG DSC01562.JPG

DSC01551.JPG DSC01571.JPG DSC01574.JPG


Manuelzinho

New Member
FEET AND LEGS

Ok guys, I´m back, sorry to keep you waiting for so long. Been kind of busy and could not find the moment to update my thread.

Now that the build is complete from waist to feet, will show what and how I did it.

Been checking the progress of Mr. indiefilmgeek with his Iron Giant, got some inspiration from the posts about the feet movement, but his robot and mine has very different legs.

For the feet, I took a template from the feet of the figure and increased the scale:

DSC01513.JPG DSC01514.JPG DSC01515.JPG

Now some pics of the feet making and how I attached them to the stilts:

DSC01517.JPG DSC01520.JPG DSC01522.JPG DSC01526.JPG

Feet do not touch the ground to avoid trips and they are not attached rigidly, they can swing a little for the same reason.

DSC01528.JPG DSC01533.JPG

Here is a video of the walking test:


Last edited by a moderator:
