This is my second build of what I have dubbed the MPDA (Master Personnel Destruction Assistant)

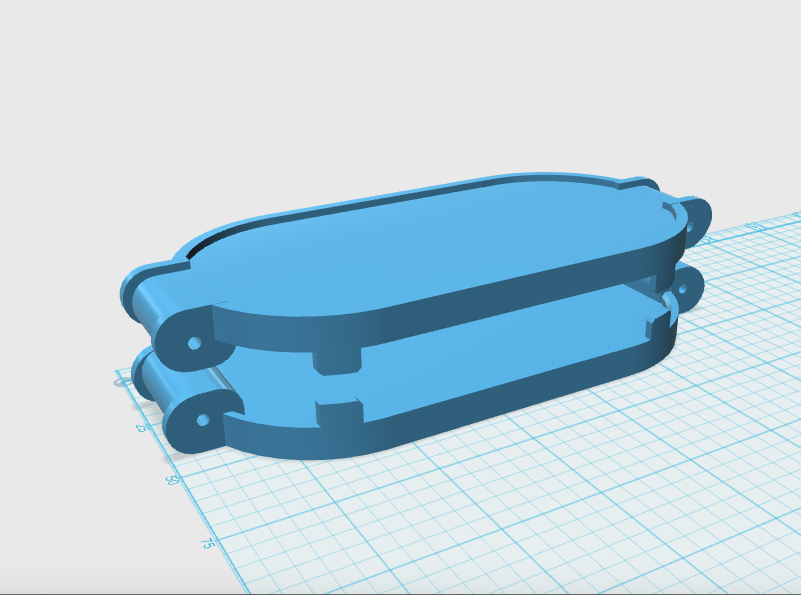

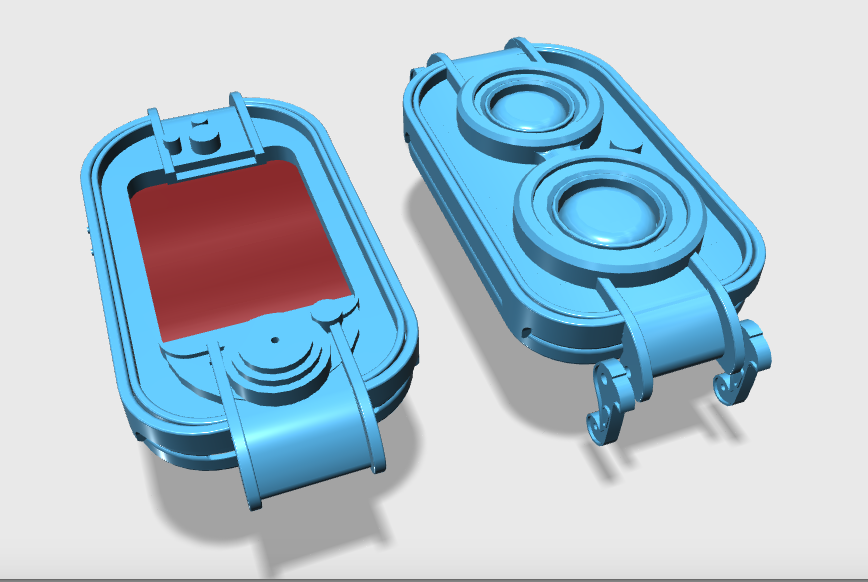

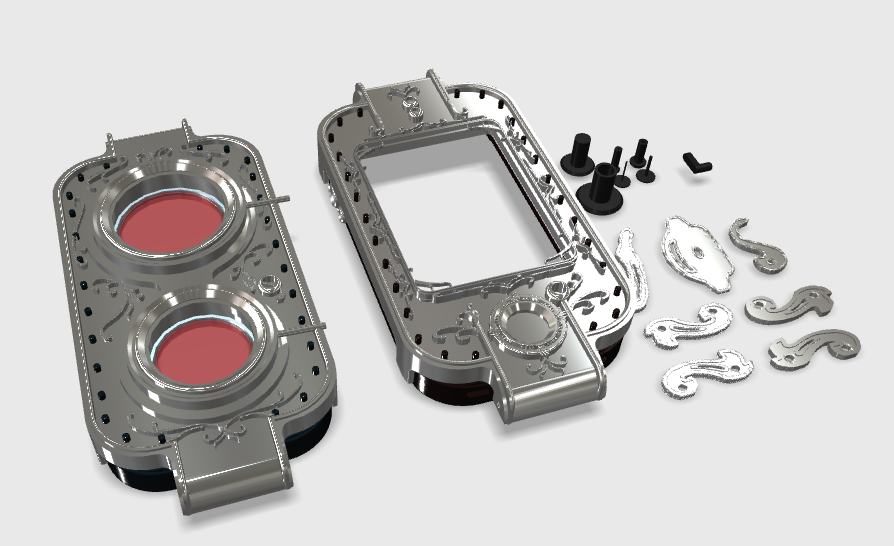

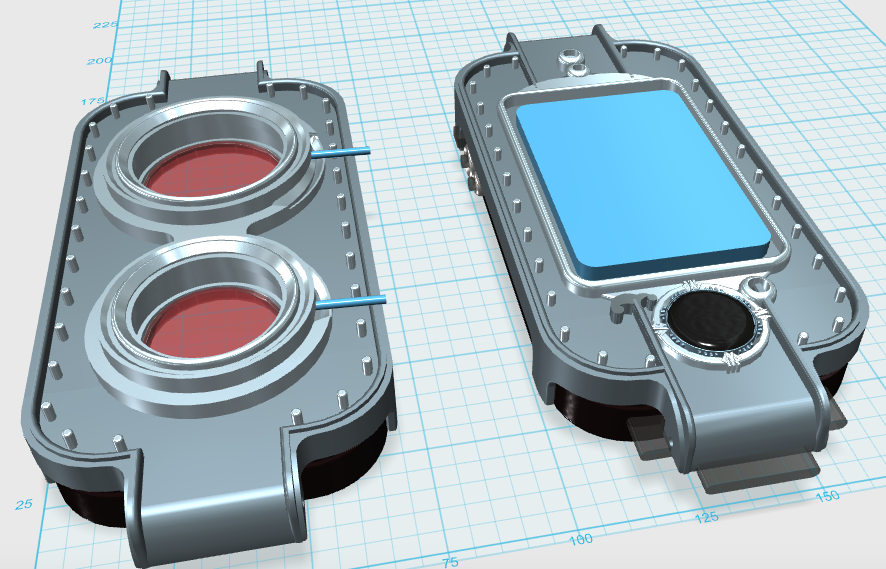

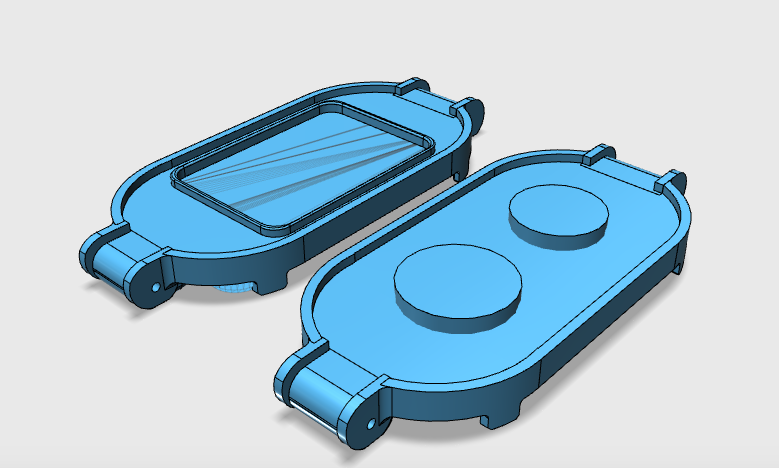

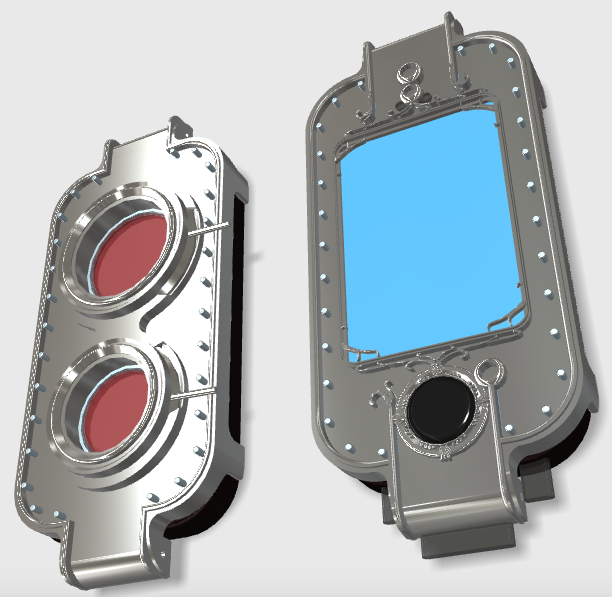

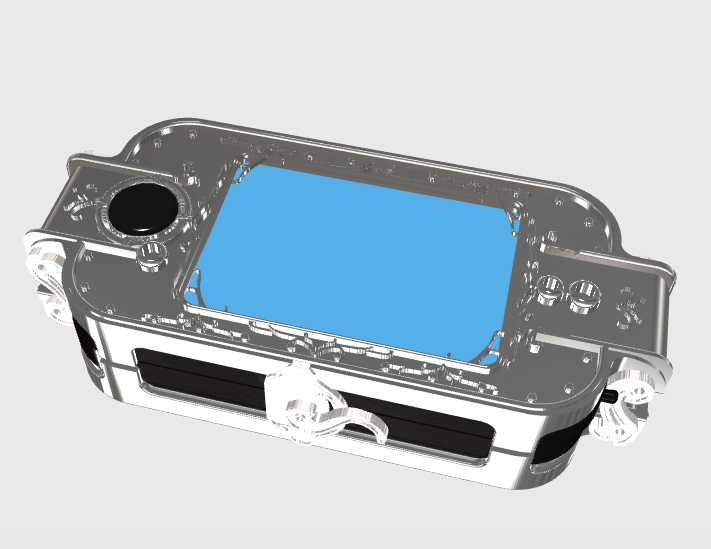

I had to teach myself to model this in 3D (using 123D Design) and was fortunate enough to get a bunch of close up pics from the day it hit the DWE. As you can see the design went through several versions before arriving on one that's SA. I also accounted for adding a pair of iris diaphrams. I then had Shapeways print the prototype in plastique and cobbled it together with a 1W & 3W led circuits as I wanted to debut it at Timegate. ATM I have it the prtotype modified to fit a droid 2 and am planning a new version for my droid 4
