Hello all,

I'm new to RPF but I am incredibly glad I found this place.

I've currently started making N7 armor for a Mass Effect cosplay. So far, I've only managed to make progress on the guns but I am very close to starting on the armor. However, I'd like to gather some information from those of you who have attempted this costume or something similar in the past.

My main problem right now is how to create those deep trenches that run along various parts of the armor (specifically the front torso piece; abdomen). Please see the picture below as a reference. (Note: I did not make that armor. The image does not belong to me. See: EvilFX. )

Spoiler

Does anyone know a way to create this without the use of a router tool (I don't have access to one)? I'm assuming I can try and dremmel it out but I'd rather not if there is an easier way. I wanted to refrain from cutting each piece out individually and pasting it on a black lower foam layer but that might be my only option.

Thanks in advance!

Also, here are some progression pictures. Like I said, I've been primarily working on the guns.

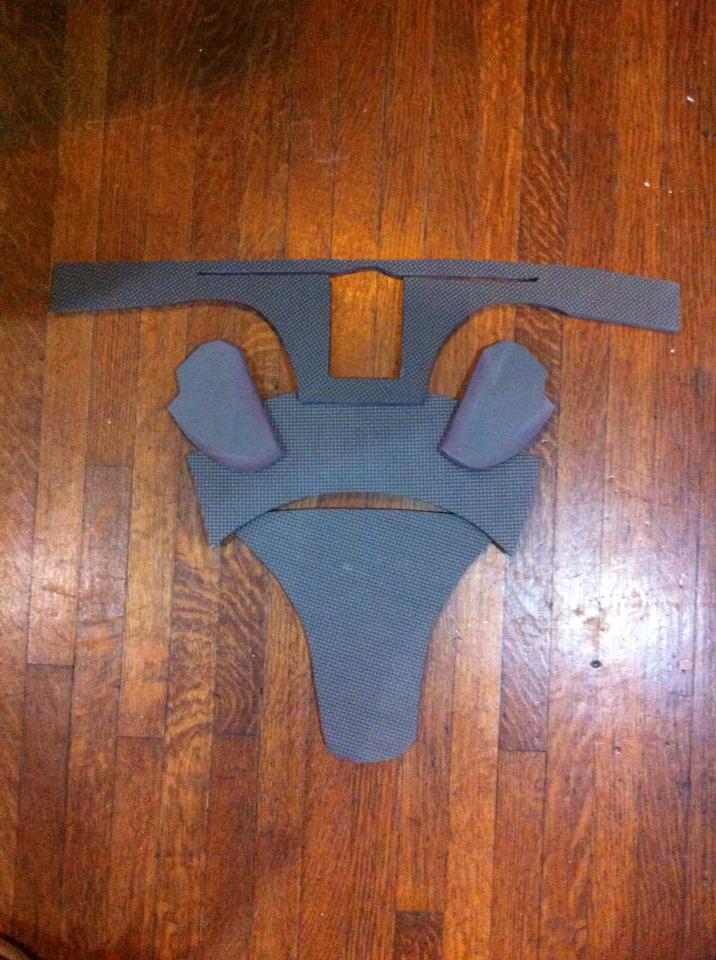

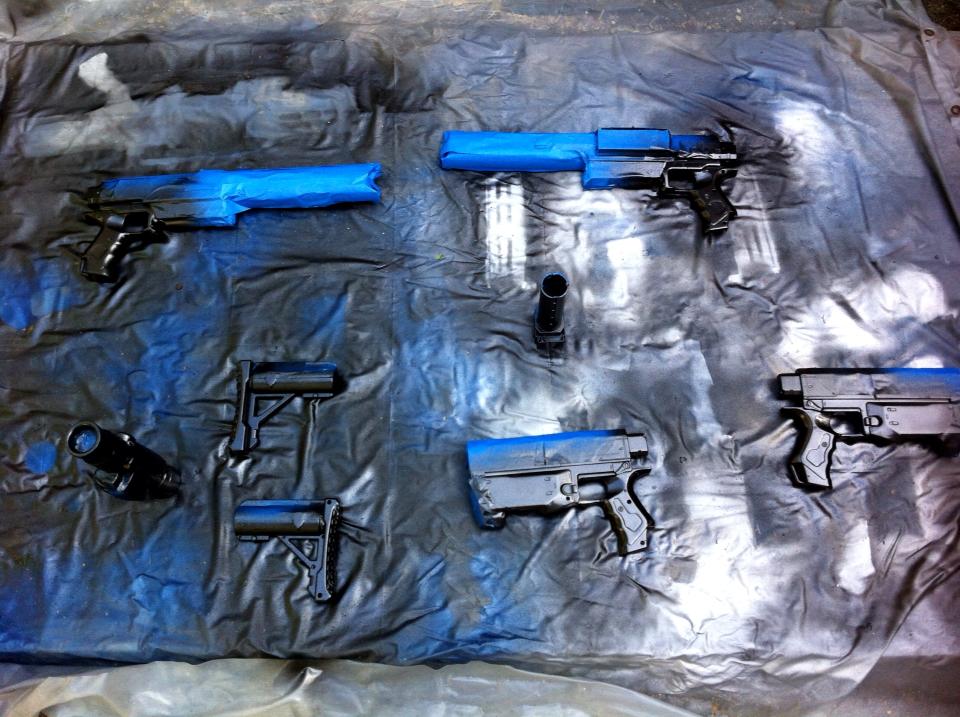

From Left to Right: Sanded and primed Nerf guns, First layer of paint for M-29 Incisor, Front torso template, Back torso template, various templates plus mess ups, Detailing for M-29 Incisor, Semi-finished result for M-29 Insicor, M-99 Saber first coat, and M-9 Tempest (plus me)!

If you have any questions about the guns, I'd be more than happy to answer them! If you haven't figured it out, they are Nerf guns.

Thanks again!



[Deelite]

Re: Mass Effect Femshep Armor and Weapons (Help!)

You don't need a router tool to do the groves. A hot hobby knife or even a soldering iron can create them for you. That's what I did for my N7 Armor.

You just go over your lines several times.



[Zombiiesays]

Re: Mass Effect Femshep Armor and Weapons (Help!)

You don't need a router tool to do the groves. A hot hobby knife or even a soldering iron can create them for you. That's what I did for my N7 Armor.

You just go over your lines several times.

I have a hot knife and a hot Exacto knife. However, when I tested that technique on the practice foam yesterday it came out pretty rough. The lines themselves aren't really the problem, it's making the indent without completely cutting through but still getting the piece out clean. I'm not really sure if that's possible without a router and routing table. :\

Thanks for the reply!



[Freya Willia]

Re: Mass Effect Femshep Armor and Weapons (Help!)

A hot hobby knife or even a soldering iron can create them for you.

That's what I'd do if I made my armor out of foam. I think a hot knife would be best.

Edit: I'd find/cut something the same curve/shape as the cut I wanted to indent, and guide the tool through that, slicing at a 45 degree angle on both passes to make a V shape.



[Deelite]

Re: Mass Effect Femshep Armor and Weapons (Help!)

Practice really. I was able to get smooth lines by simply going slowly with a soldering iron.



[Zombiiesays]

Re: Mass Effect Femshep Armor and Weapons (Help!)

Practice really. I was able to get smooth lines by simply going slowly with a soldering iron.

Just to clarify, did you cut all the way through or are we both talking about making a sort of indent in the armor with the piece still staying intact?



[Deelite]

Re: Mass Effect Femshep Armor and Weapons (Help!)

No, I didn't cut all the way through (there is no need to). Just enough to score the surface enough to create the lines.

I'm not talking about seams (the meeting of two foam pieces together). Just the detail lines, like around the breast area.

here is a thread suggesting the same thing:
http://www.therpf.com/f24/n7-lines-foam-151282/

this guy did it completely on the smooth side of the foam:
http://www.therpf.com/f24/n7-lines-foam-151282/#post2368572

Used a shelf liner mat as a template for the "carbon fiber" look when he sprayed painted it:
http://3.bp.blogspot.com/_KCs51sXJlII/TQzSHRt7fMI/AAAAAAAAAbc/iXwemSUp6-Y/s1600/DSC_0009-1-1.jpg



[Zombiiesays]

Re: Mass Effect Femshep Armor and Weapons (Help!)

No, I didn't cut all the way through (there is no need to). Just enough to score the surface enough to create the lines.

I'm not talking about seams (the meeting of two foam pieces together). Just the detail lines, like around the breast area.

here is a thread suggesting the same thing:
http://www.therpf.com/f24/n7-lines-foam-151282/

this guy did it completely on the smooth side of the foam:
http://www.therpf.com/f24/n7-lines-foam-151282/#post2368572

Used a shelf liner mat as a template for the "carbon fiber" look when he sprayed painted it:
http://3.bp.blogspot.com/_KCs51sXJlII/TQzSHRt7fMI/AAAAAAAAAbc/iXwemSUp6-Y/s1600/DSC_0009-1-1.jpg

You're amazing. These links are awesome. I really appreciate the help.
