Hello! My name is Adam and this is how I did my ME3 armor. Hope you like it.

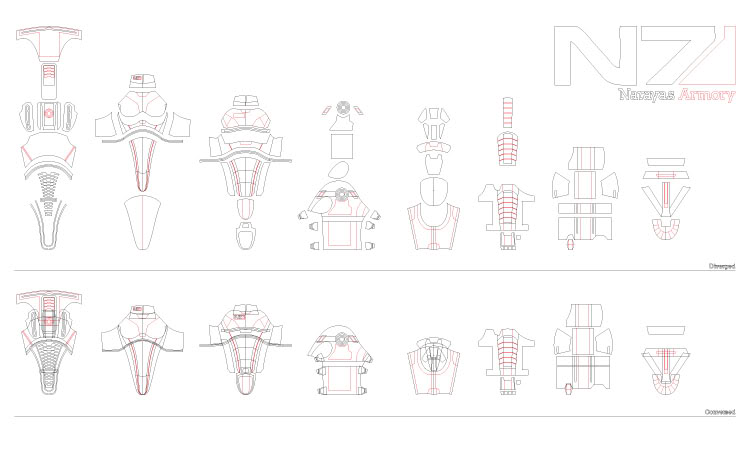

When I started the whole thing, I needed templates. I used this one:

I believe it's linked to Narayas, here on TheRPF, but I'm not sure, because I found it on google search.

So I got my templates, but there was a problem, these are ME2 templates. Unfortunately I couldn't find ME3 templates in good quality, so I modified some parts on this one. At the end, it worked out fine.

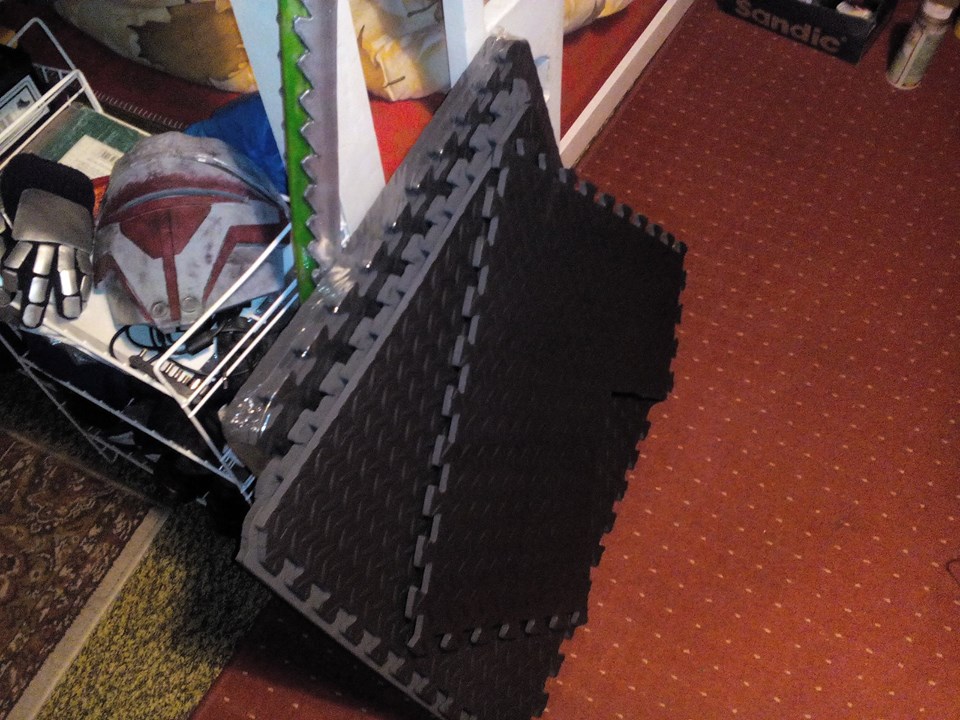

My main material was the good old EVA foam. (of course, duh) But, I didn't want to use the pattern on the inside to make it look like carbon fiber, cuz' I don't really like that.
I used up, like 10 sheets of EVA foam (60x60cm) for the armor. (helmet not included)

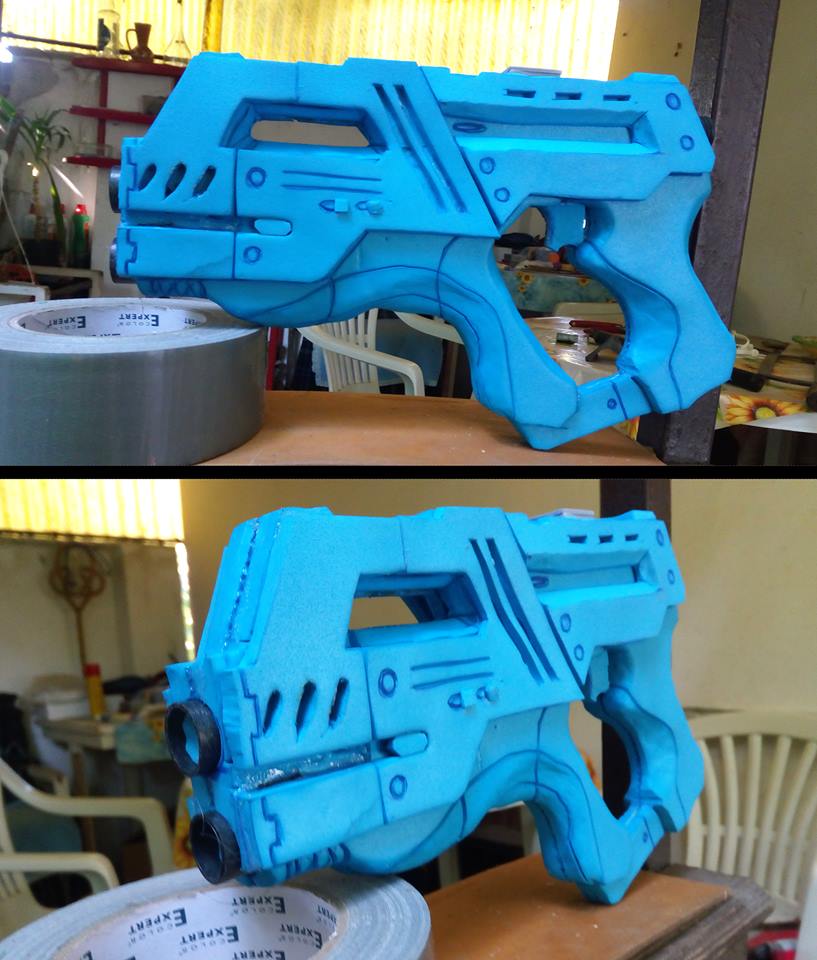

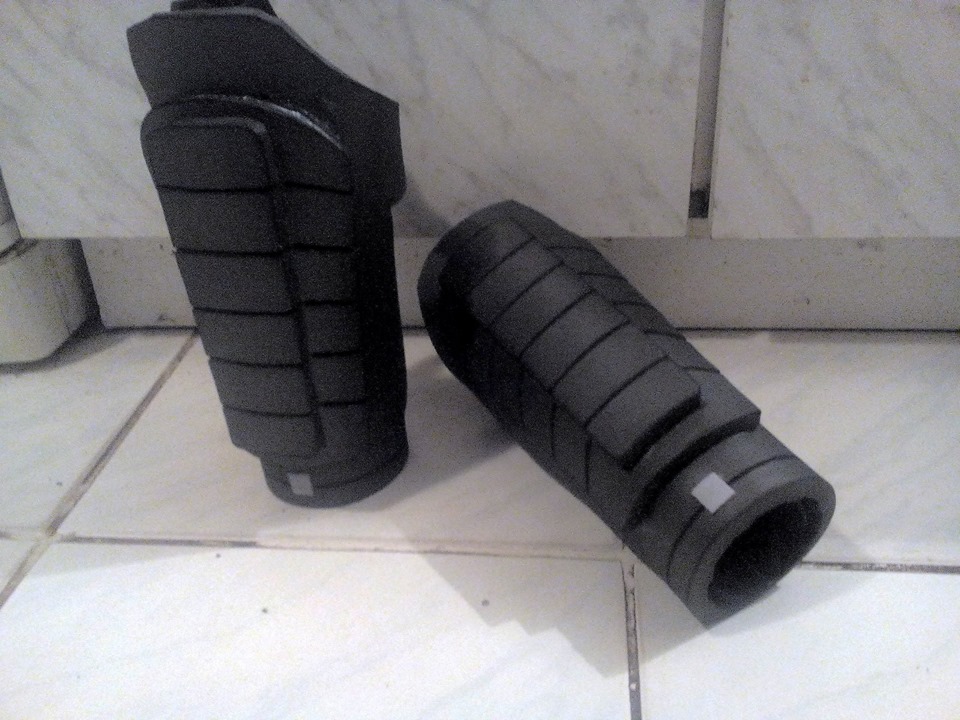

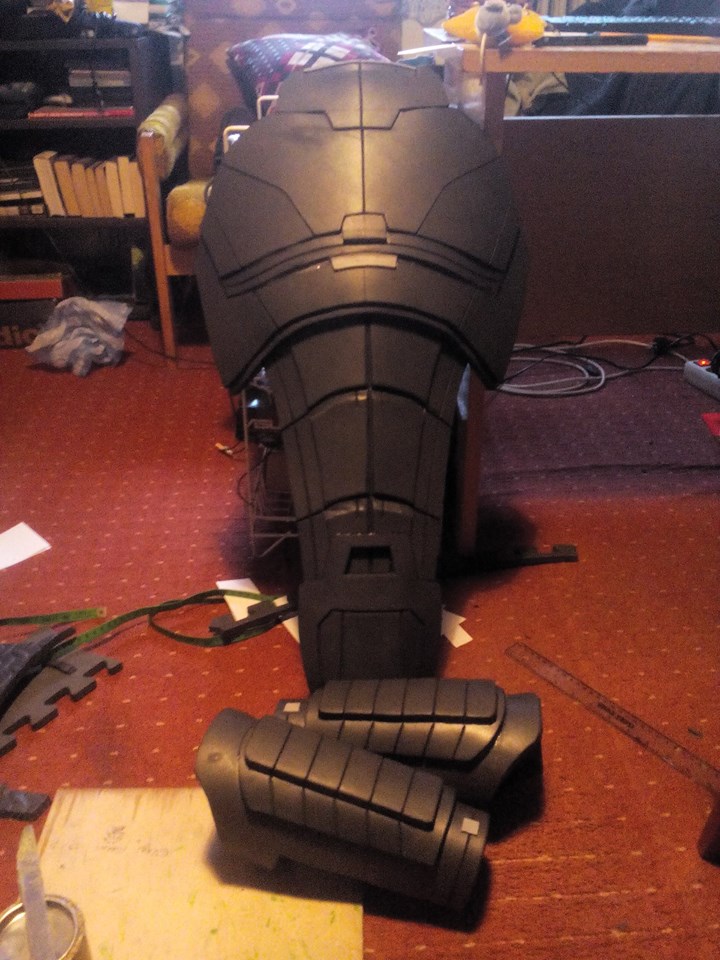

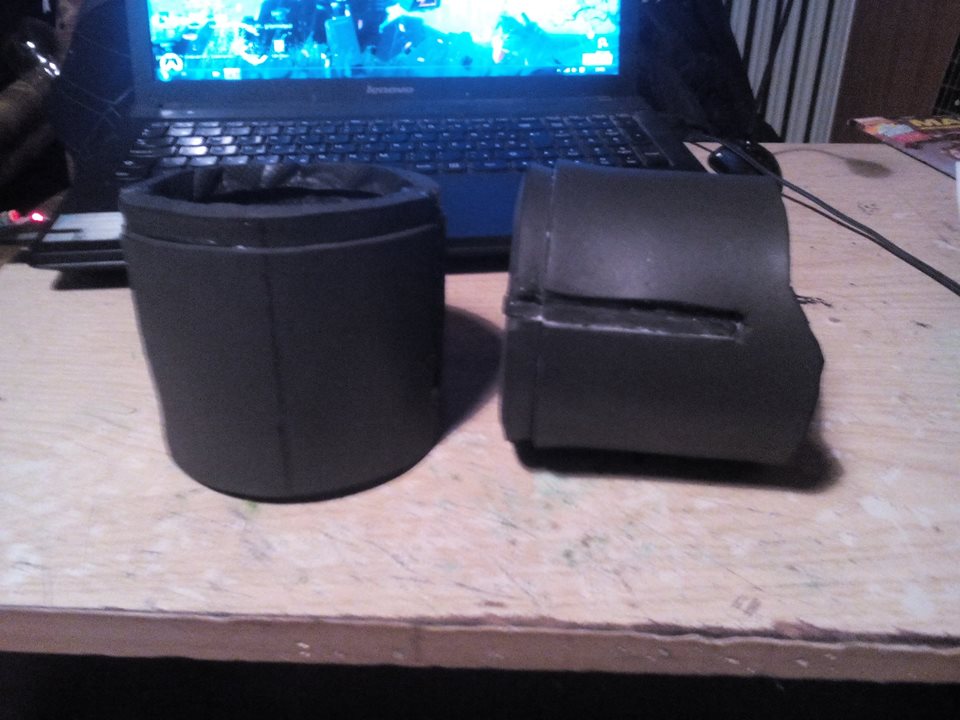

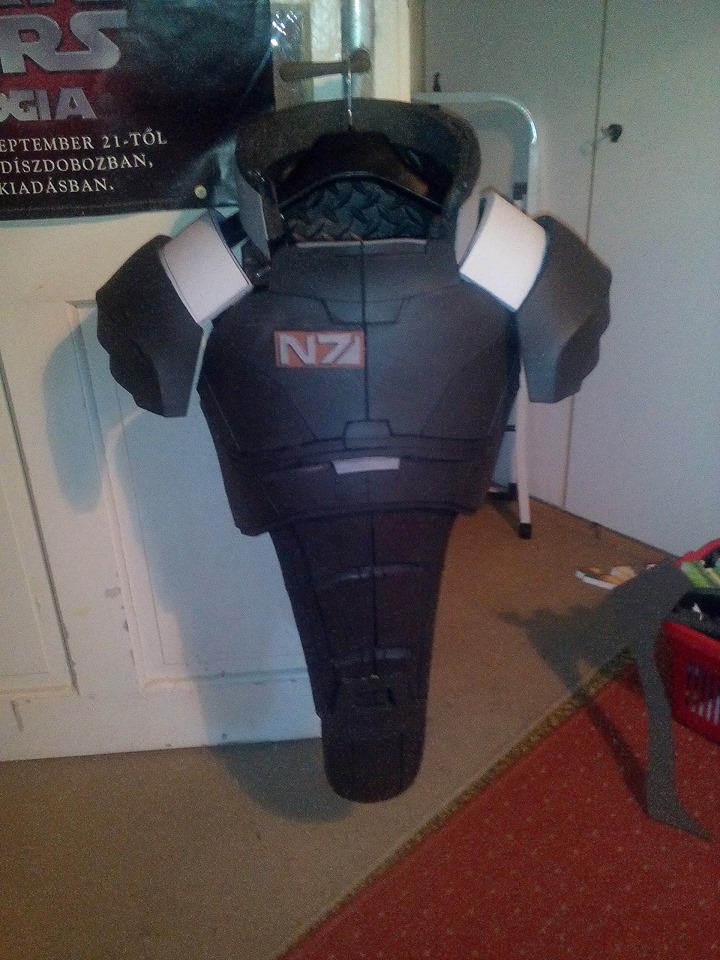

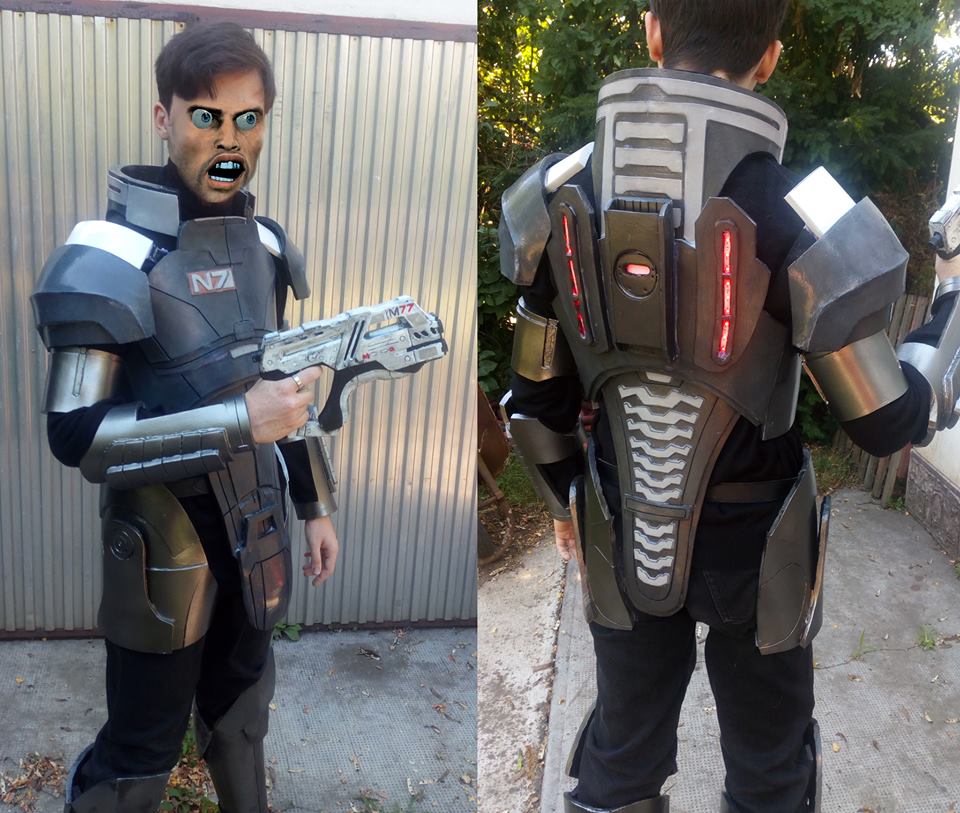

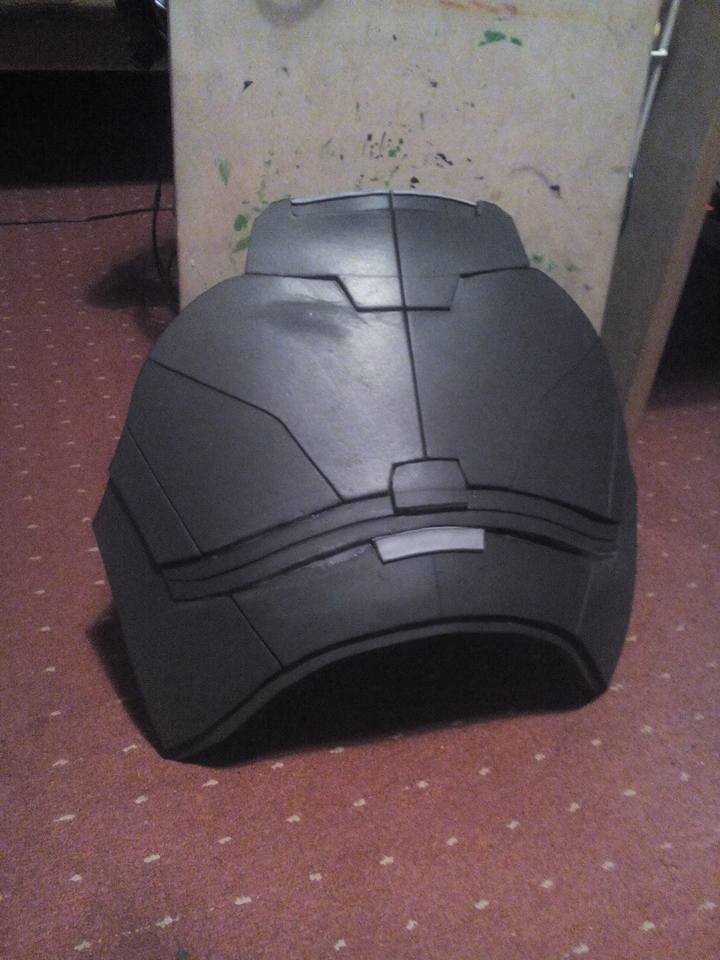

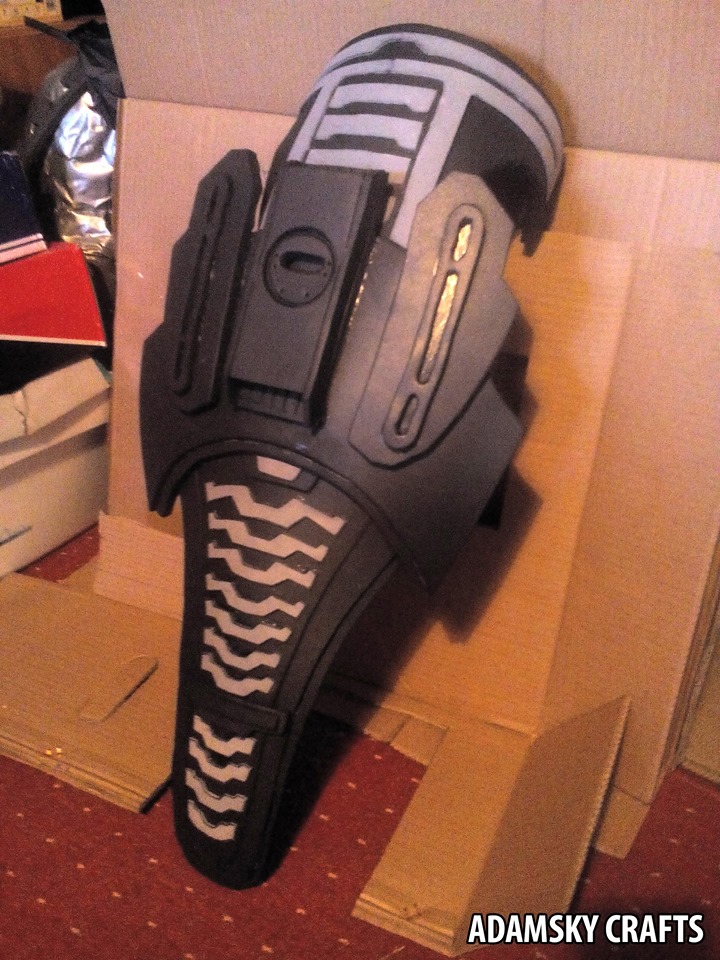

From now on, I followed the lines on the template, cut and glued. Here are some progress pictures. As I said I had to modify some parts like the abs, the little panel in front of the neck, the shouldpards and some little details.

15966028_384281528589676_5718080709813224992_n.jpg 16142380_385201841830978_1035628112082245662_n.jpg 16472960_393707474313748_8143849702850708851_n.jpg 16427284_394699614214534_6144679637594908525_n.jpg 16996478_405784089772753_1122752059088629873_n.jpg 19275092_462335870784241_7138926804963492268_n.jpg 19275061_463257744025387_2406144876828185399_n.jpg 19399949_464701817214313_3611314132604543001_n.jpg 19732280_468514136833081_4459891279414405794_n.jpg 19598523_469104163440745_5172585667162425871_n.jpg

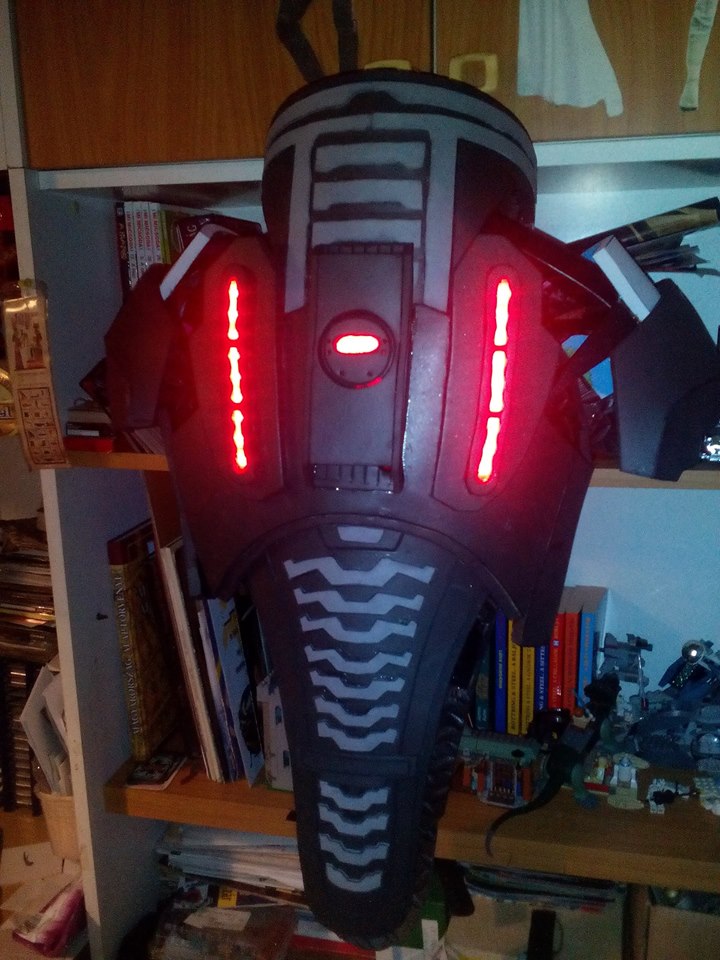

For the lights I used some LED strips and a 9V battery. Simpley stuff.

After the build, I sealed all the foams with my heatgun and 3-4 layers of wood glue. The wood glue gave it a nice sheen. After that I painted it with a metallic gray spraypaint (acrylic) and then for the weathering I used black and silver acrilyc paint applied with a small flat brush.

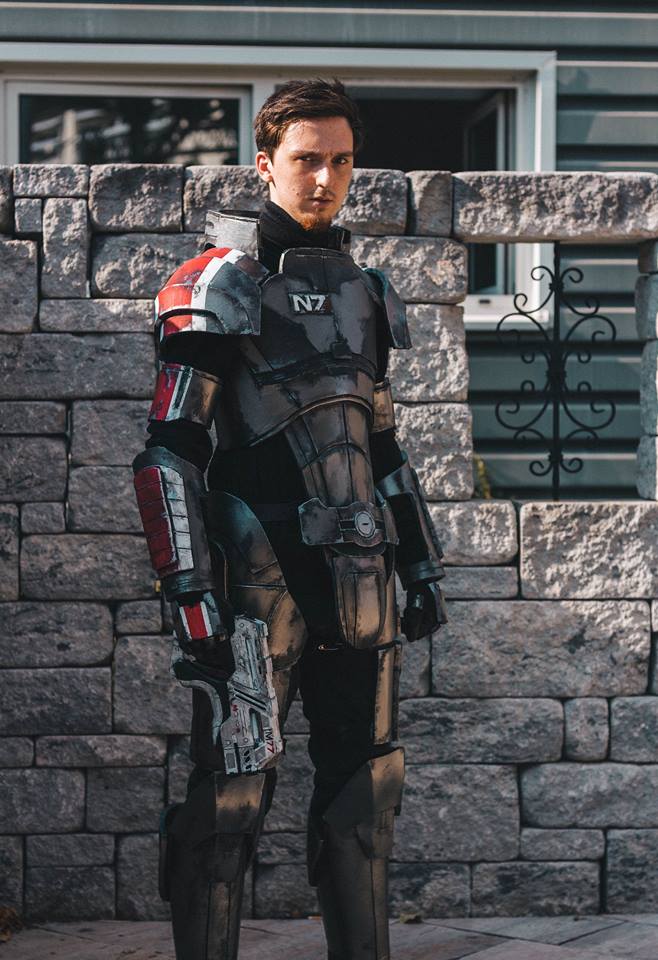

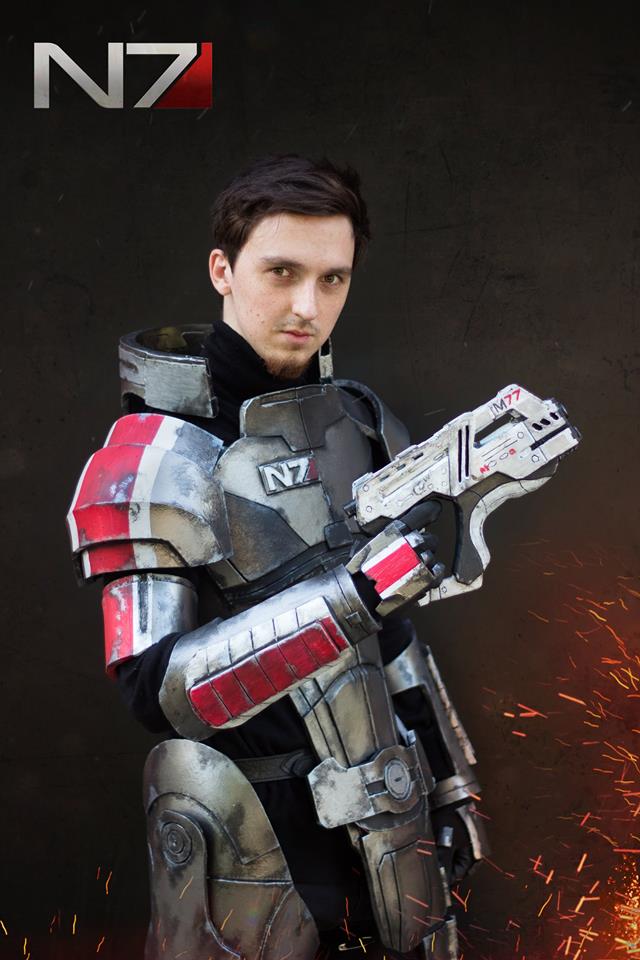

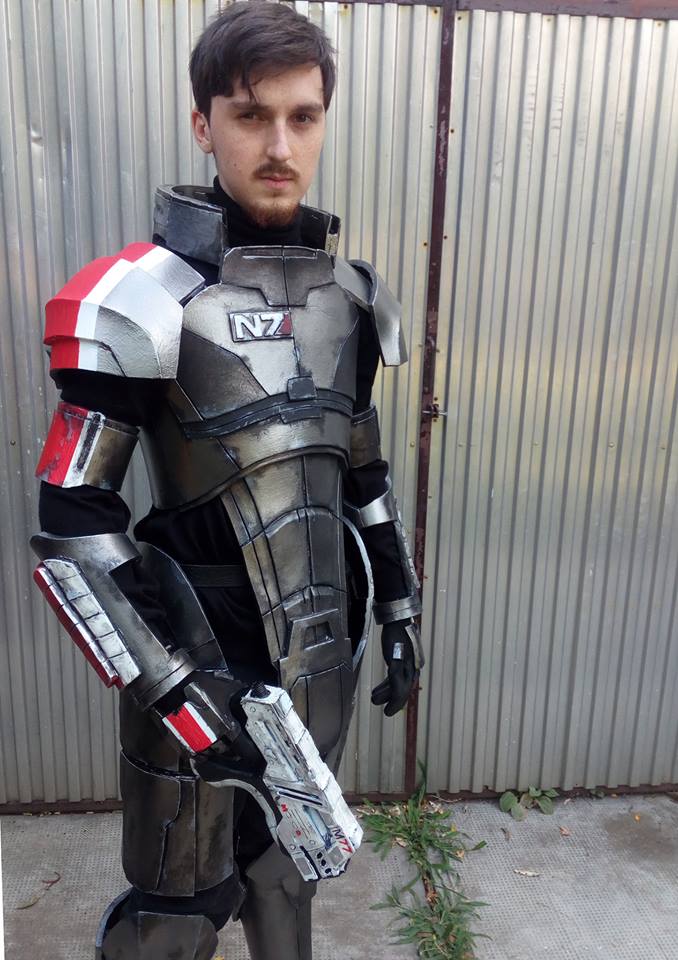

Aaaand, done. It survived a convention too (MondoCon Summer 2017, Hungary). Here are some pictures from the con.

19748354_473155576368937_3568272185632513280_n.jpg 19894775_479443452406816_869908591055428572_n.jpg 20155672_479443445740150_8692900636830178421_n.jpg 20246162_479443432406818_725142003253021539_n.jpg 20229122_480783802272781_1997165639045475131_n.jpg 20245860_480783842272777_5329739764373529456_n.jpg 20265073_480783952272766_6112186812499840810_n.jpg 20228661_480783872272774_3433128911138362220_n.jpg

If you have any question about this build, just ask me. I'm happy to answer.


I really loved this build, I hope you like it too.
If you are interested in my works you can follow me on my facebook page:
https://www.facebook.com/adamskycrafts/

Have a nice day!
