Mass effect 3: Garrus Vakarian COMPLETED

Discussion in 'Replica Costumes' started by MNCProps, Mar 31, 2015.

  1. MNCProps

    MNCProps New Member

    Trophy Points:
    18
    I'll be cracking up that Turian for August. Its build will be an hybrid between Foam build and Worbla detailing. Meaning most of the suit will be made of eva foam but some of the small and more organic detail will be made of Worbla. I started with the most important part the mask which, if fail will undermine the rest of the suit.
    I used the pep files found in the mass effect thread for the shape and ease up on the scaling process. I then transfer everything on foam as a frame

    View attachment 458503 View attachment 458508

    that foam frame was then cover with a thin layer of worbla, which I started sculpting from. adding layer when need to

    View attachment 458511 DSC07719.JPG

    that's it for the moment more update are on the way

    Last edited: Jul 29, 2015
  2. MNCProps

    MNCProps New Member

    Trophy Points:
    18
    Re: Mass effect 3: Garrus Vakarian WIP

    the mandible were done the same way using Eva foam as a base.
    took an other hour and a half to finalize the jaw as well

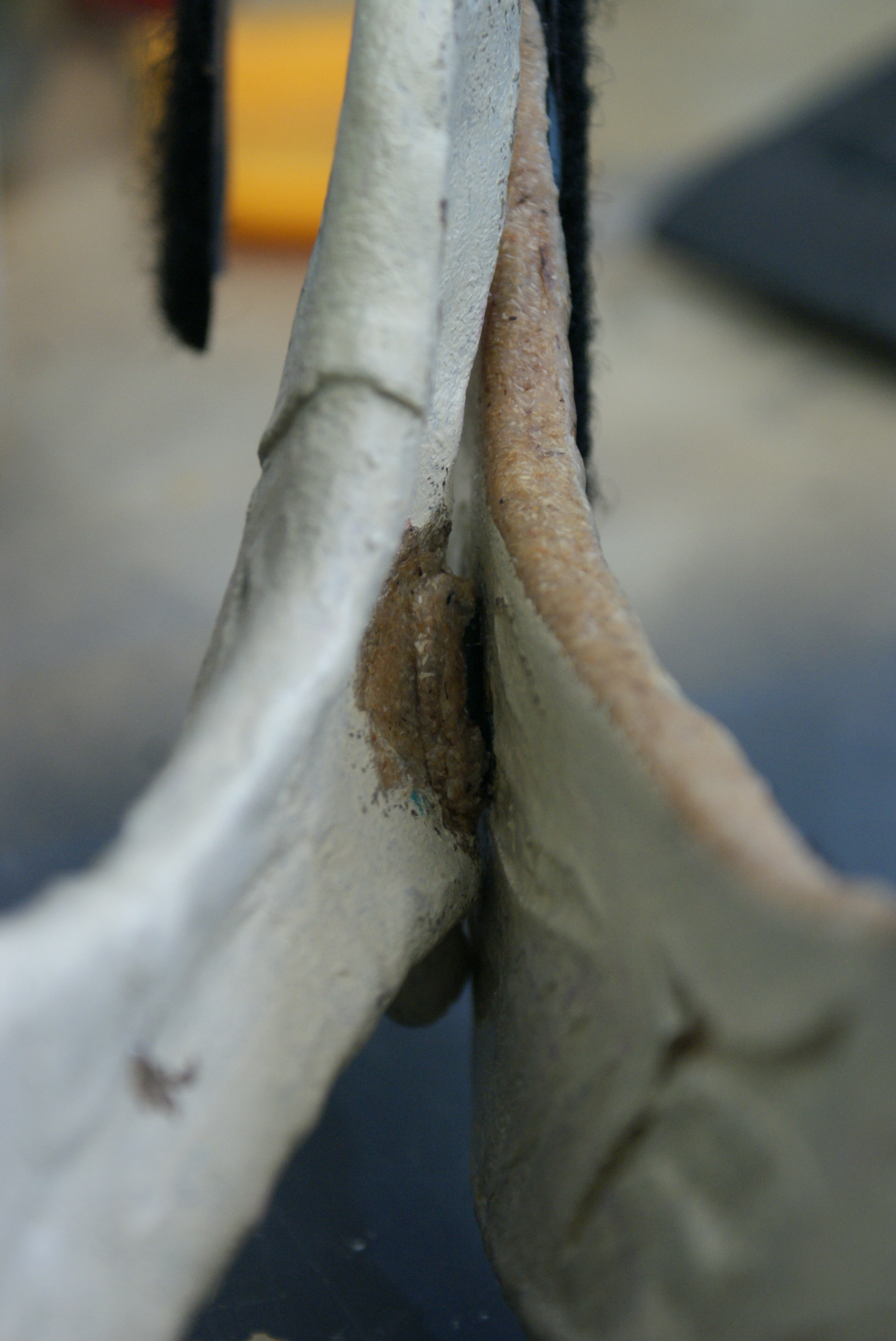

    I put some small hinges in the corner and blend them in the piece
    DSC07728.JPG DSC07729.JPG

    so for now I got some problem with the cable system which is not strong enough to withstand repeated abuse. I tried 0,10" illusion cord to make it invisible but the friction on the worbla got the better of it. any input?

  3. tjbro13

    tjbro13 New Member

    Trophy Points:
    17
    Re: Mass effect 3: Garrus Vakarian WIP

    Awesome, awesome start! Looking forward to seeing it come together. Not sure what to tell you about the cables, would fishing line be too thin then? Best of luck-

  4. MNCProps

    MNCProps New Member

    Trophy Points:
    18
    Re: Mass effect 3: Garrus Vakarian WIP

    yes it might be stronger I haven't though about that at all XD thanks

  5. MNCProps

    MNCProps New Member

    Trophy Points:
    18
    Re: Mass effect 3: Garrus Vakarian WIP

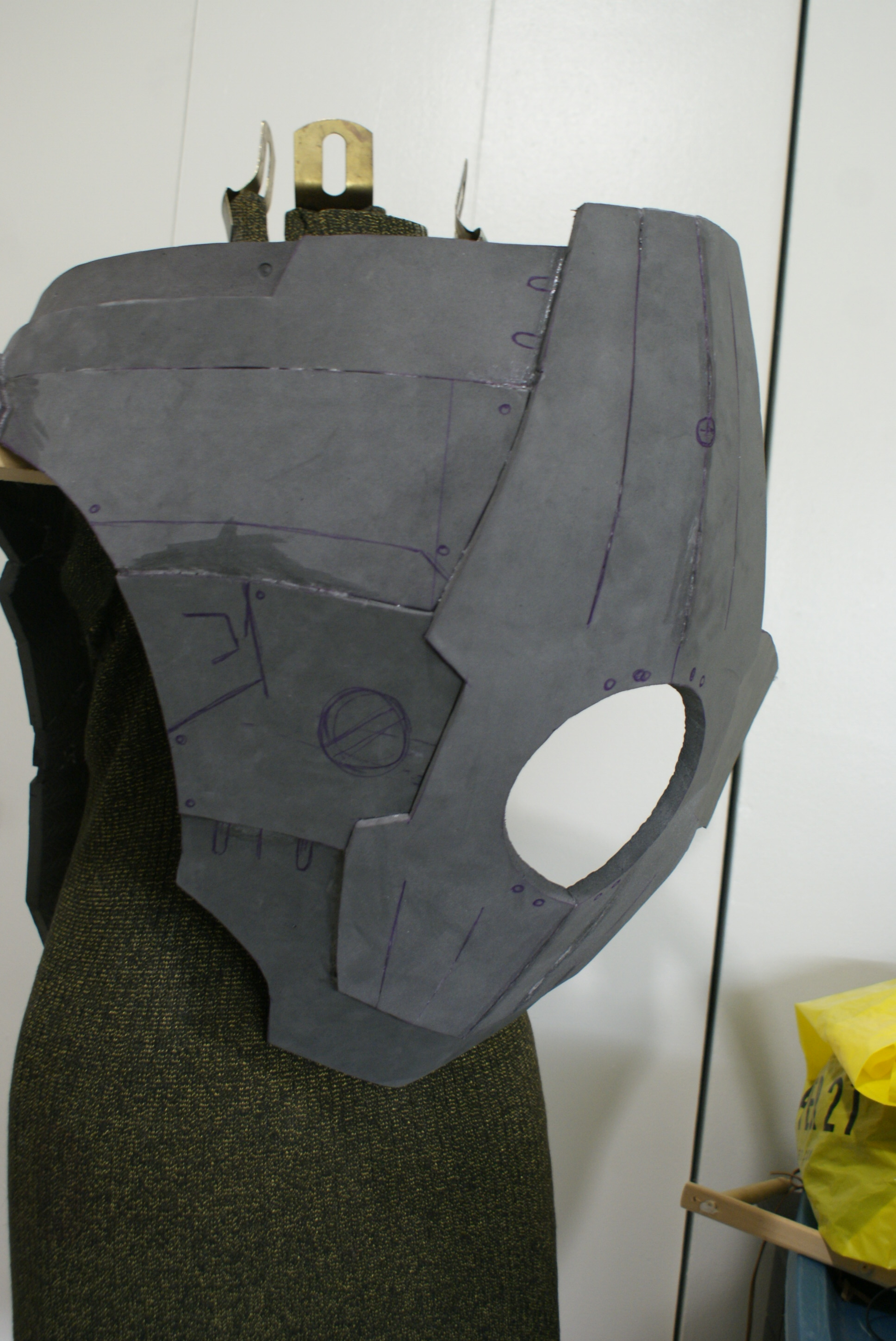

    the armor smithing have began. the chest piece even tho it scale and proportion to my size. I still feel like I'm inside a big egg shell
    DSC08016.JPG DSC08018.JPG DSC08019.JPG

  6. dustyleaves

    dustyleaves New Member

    Trophy Points:
    2
    Re: Mass effect 3: Garrus Vakarian WIP

    This looks absolutely amazing! If you don't mind answering, what is the white material that you're building details with on the mask? Is it a clay of some sort? Thank you in advance!

  7. MNCProps

    MNCProps New Member

    Trophy Points:
    18
    Re: Mass effect 3: Garrus Vakarian WIP

    I don't mind I got that question often about it. The while is painted worbla. As I was working on the mask itself I painted area that were finish white. That way, I wouldn't go back on area that I've already finished.

  8. MNCProps

    MNCProps New Member

    Trophy Points:
    18
    Re: Mass effect 3: Garrus Vakarian WIP

    and an other update on Garrus progress keep in mind that nothing have yet to be weather.

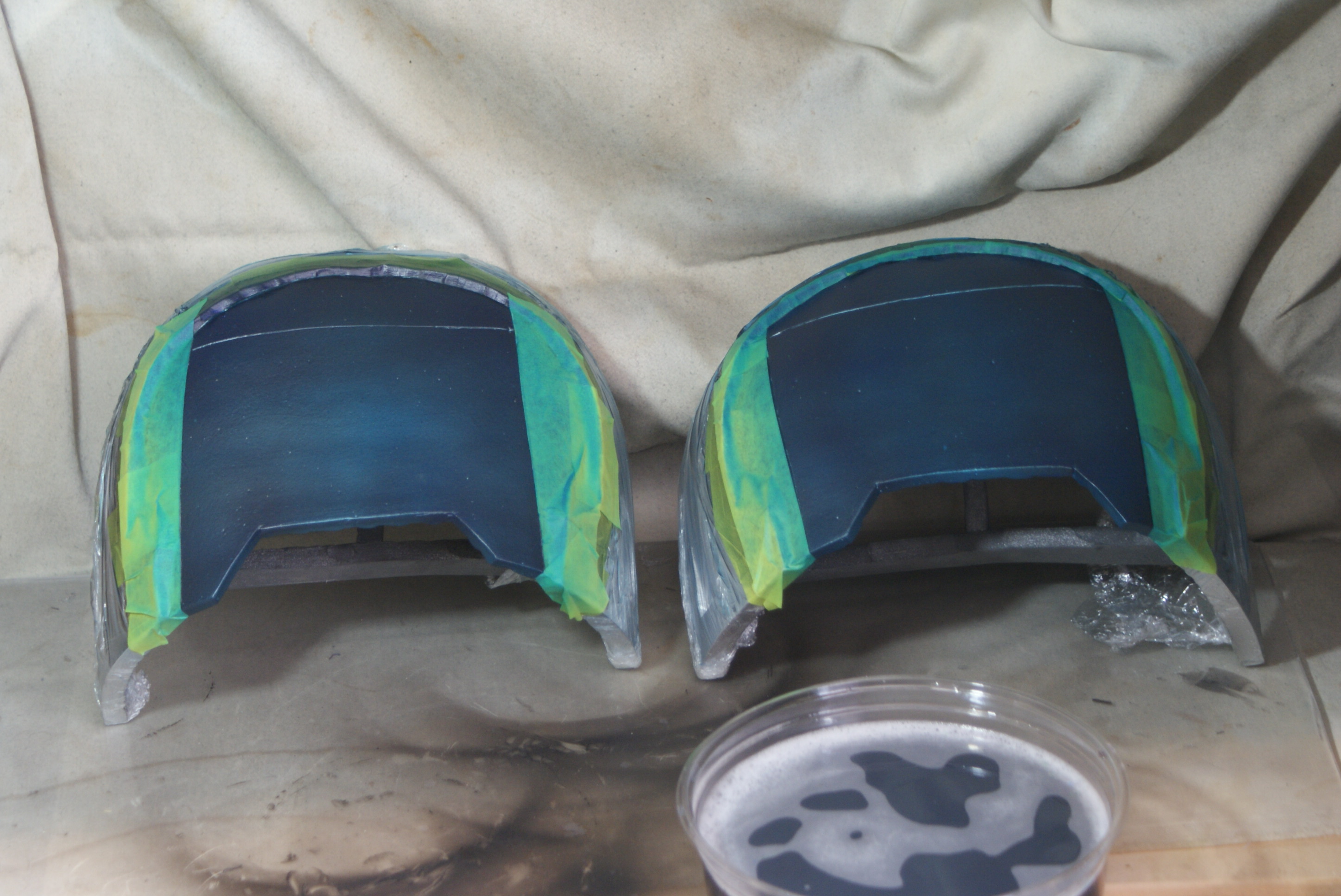

    arms are glued painted and clear coated
    DSC08071.JPG DSC08135.JPG DSC08138.JPG
    the body armor is finish and in the process of being sealed

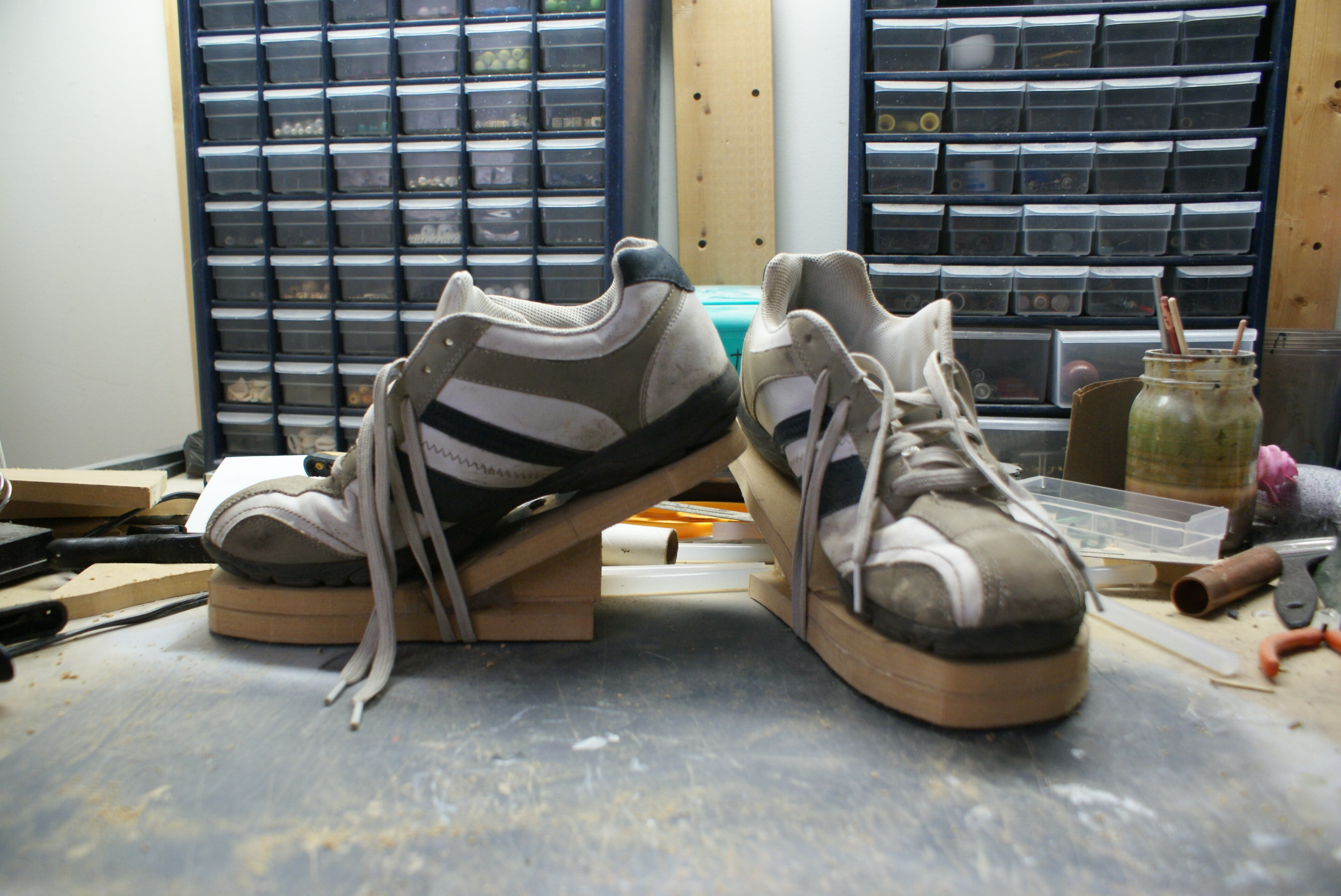

    and the boots platform are done and ready to be cover up

  9. MNCProps

    MNCProps New Member

    Trophy Points:
    18
    Re: Mass effect 3: Garrus Vakarian WIP

    since the last weeks of progress were made in a short time due to the con approaching, I haven't took much WIP picture so.. here what I got
    mask before paint was finish... in the hotel room XD

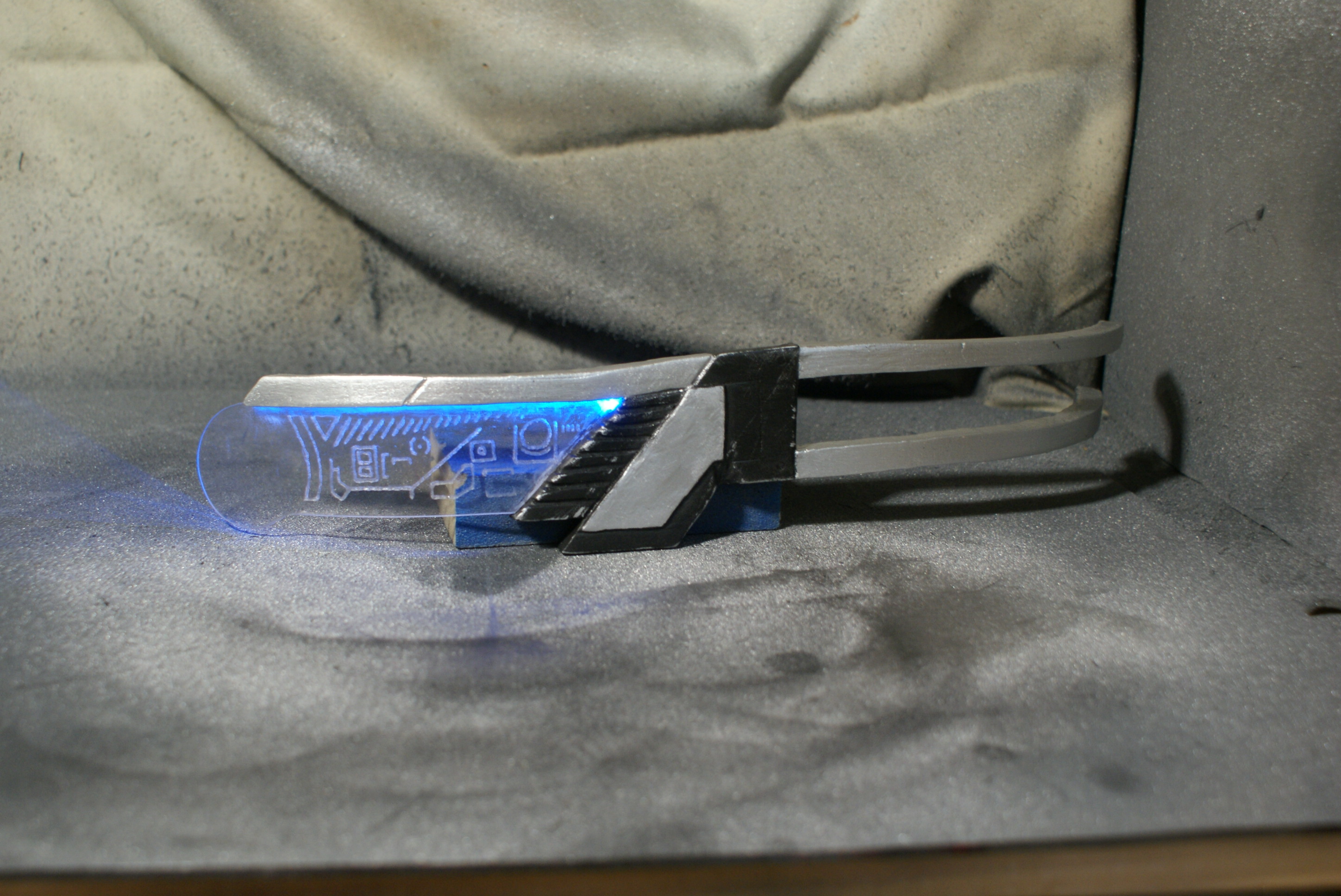

    the visor is held by one neodymium magnet inside of the mask and two washer in the visor itself

    beside all the lack of picture the suit was finish in a rush AND got a huge success to my surprise
    I even manage to see my favorite photograph who took amazing picture that I later photoshoped a bit
    garrus paleven moon copy.png

    STARL0RD likes this.
  10. Kamon

    Kamon New Member

    Trophy Points:
    17
    Well done! what type of or magnet did you use? I tried using n52's but mounting them proved to be impossible, how'd you manage it?

  11. MNCProps

    MNCProps New Member

    Trophy Points:
    18
    I used a rectangle neodymium magnet around 1 1/2 inch long that I embedded into the mask material (worbla) put I don't remember which type of neodymium. I added around 1/4 inch worbla over it so It won't rip off the washer from the visor. Which is completely made out of foam.
