Mandolorian build

Discussion in 'Star Wars Costumes and Props' started by Yoda, May 29, 2015.

  1. Yoda

    Yoda New Member

    Trophy Points:
    17
    SO I started my first Mando build in EVA

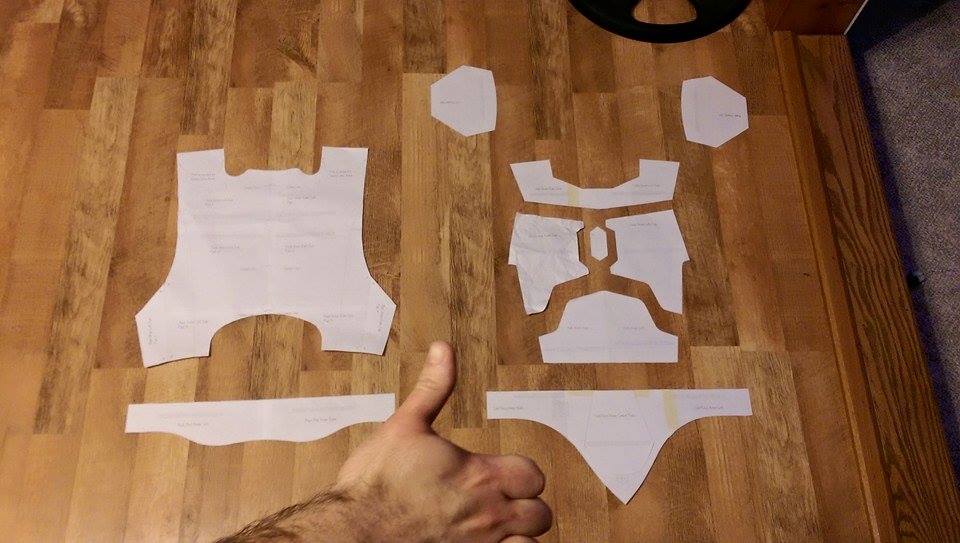

    patterns cut and Printed

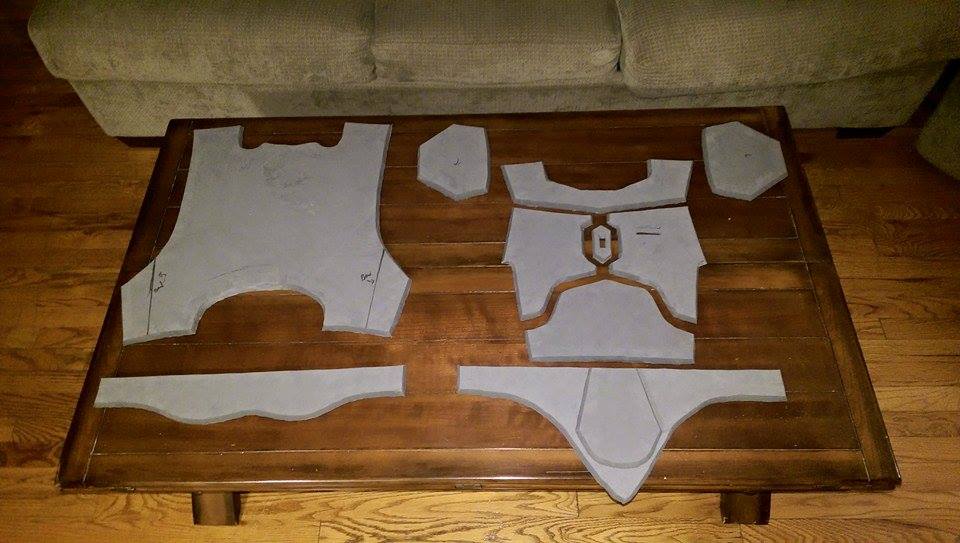

    EVA cut
    eva cut out.jpg

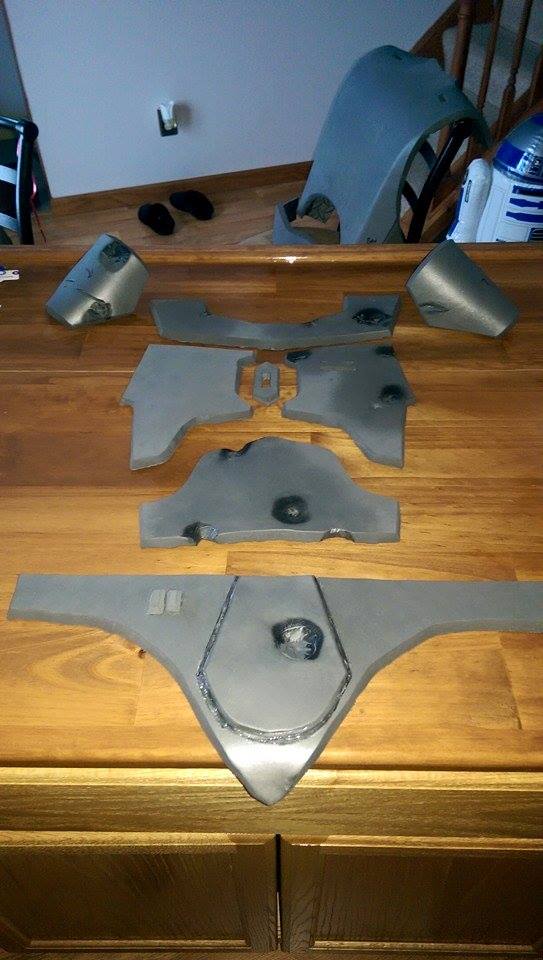

    damage added and parts shaped
    eva shaped and damage added.jpg

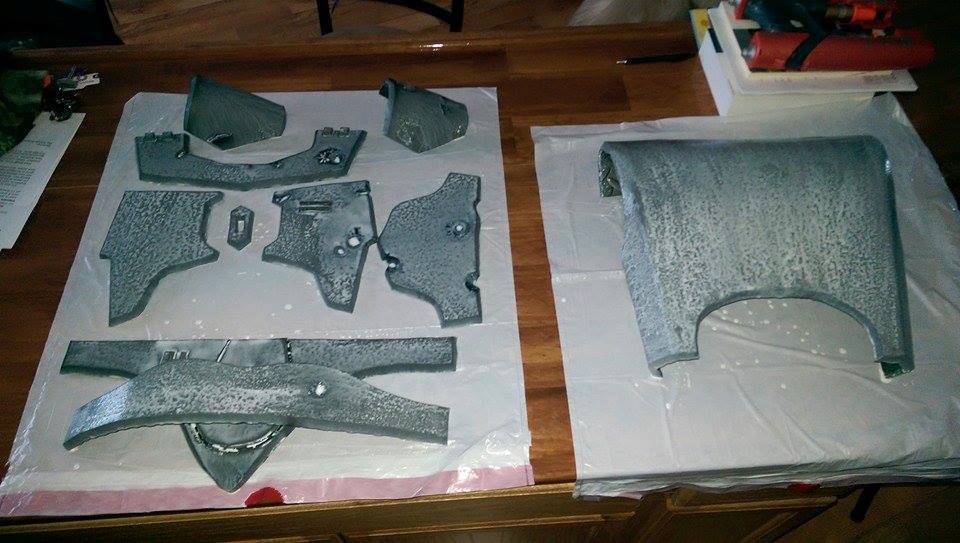

    Coated EVA in Resin
    first Pastic coat.jpg

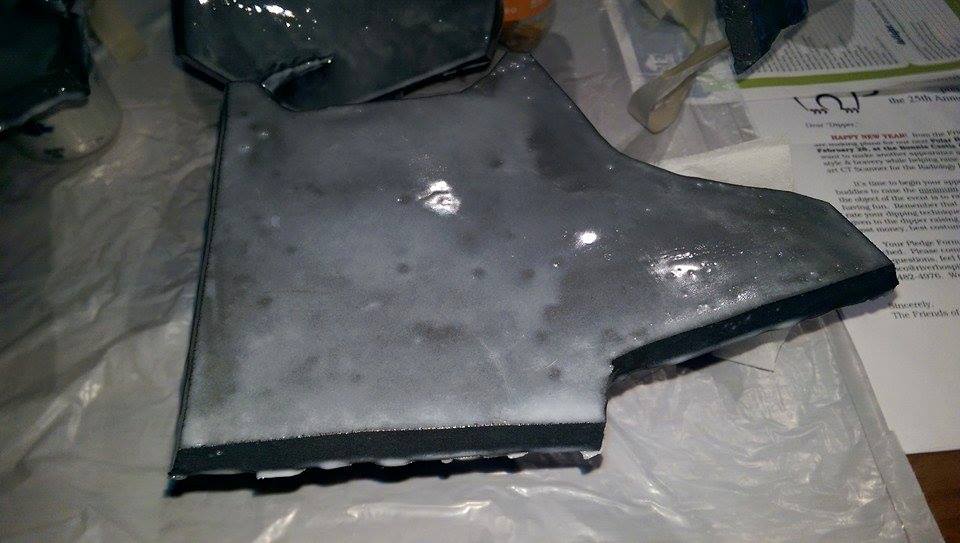

    a closer look
    glass ish finish.jpg

    coat 2
    second of 3.jpg

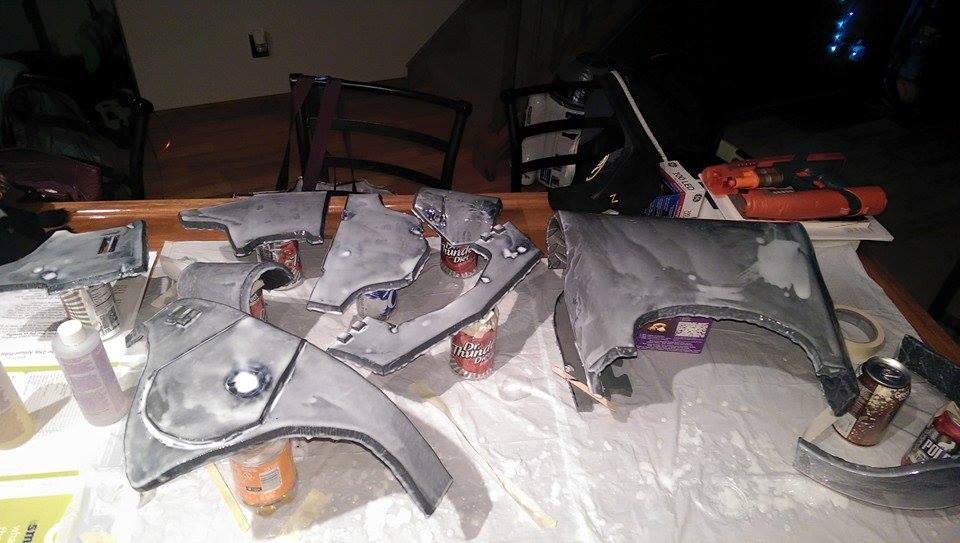

    Coat 3
    coat 3.jpg

    SofaKing01 likes this.
  2. Yoda

    Yoda New Member

    Trophy Points:
    17
    SO Merc's do not take EVA as a build material on to plastic

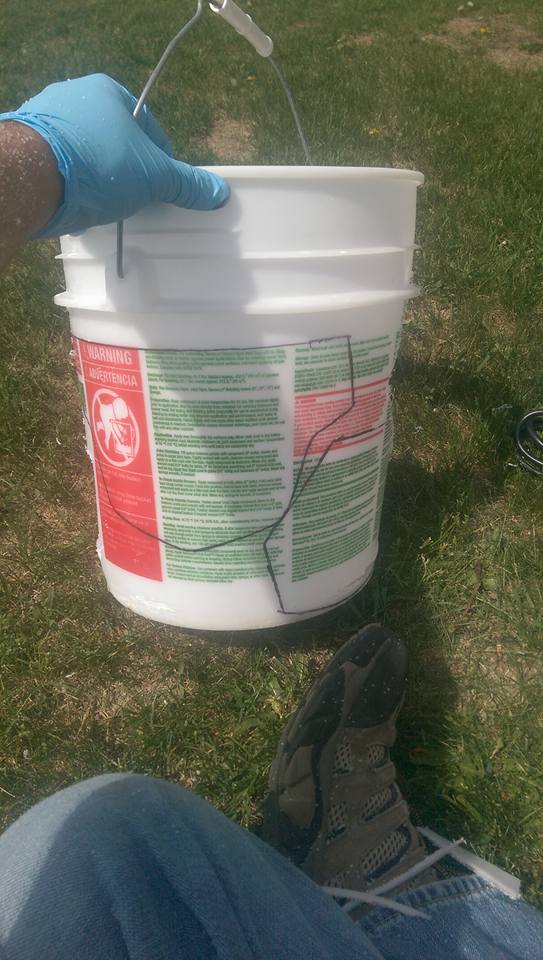

    Patterns traced out


    Bucket traced.jpg
    A few Pieces cut out
    parts cut out.jpg

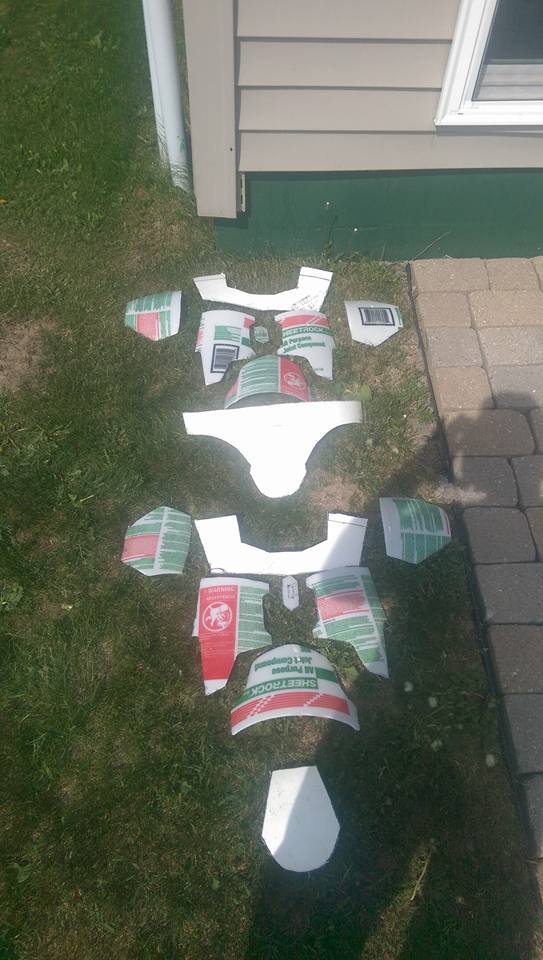

    2 sets cut out One for me one for a friend
    2 fronts cut out.jpg

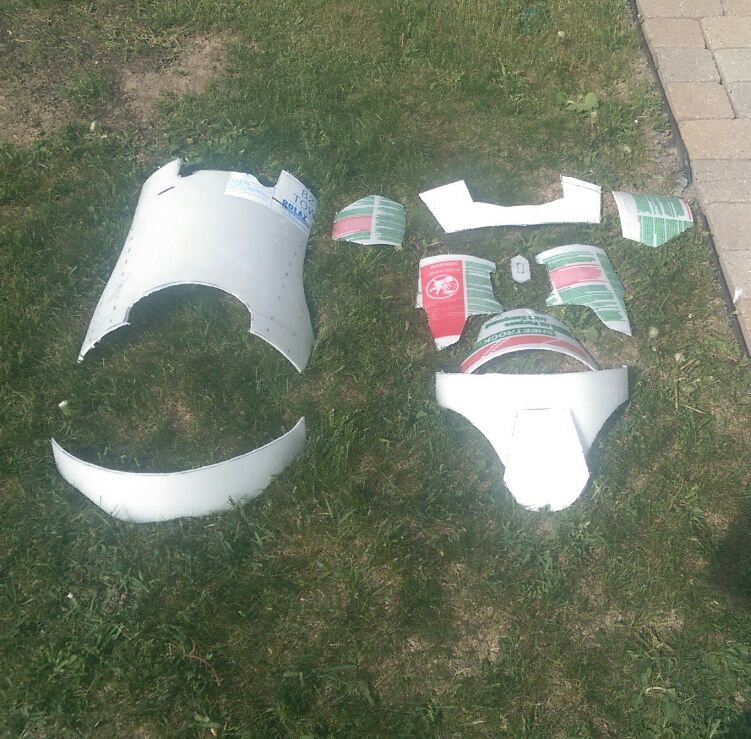

    one full upper body
    one full set.jpg

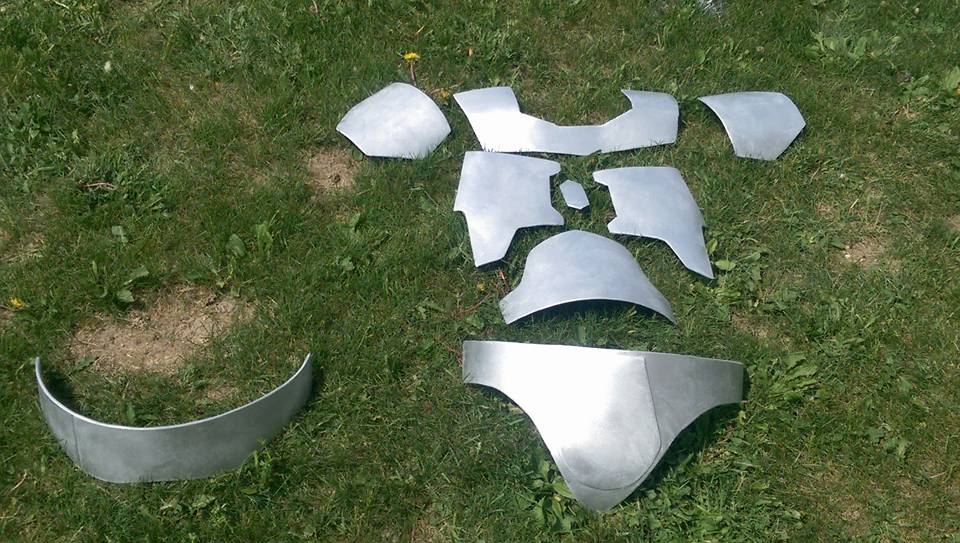

    A bit of color not formed back plate yet
    a bit of primer.jpg

    Insanedeer and JWMines like this.
  3. Insanedeer

    Insanedeer New Member

    Trophy Points:
    2
    looking good. Was thinking of doing the same but maybe using a 55 gallon drum instead for the added thickness but might be too heavy.

  4. Yoda

    Yoda New Member

    Trophy Points:
    17
    I was looking at that also but the ribs in it looked like an issue to flatten the only piece you would need a large bucket is the back plate . I got a large industrial cleaner bottle from the DPW is a lot thicker also.

  5. Mean Obiwan

    Mean Obiwan Well-Known Member

    Trophy Points:
    635
    Using a bucket to cut out the armor looks like a great idea to me. I've been interested in making a Mando suit and hadn't thought of that. I intend on purchasing the helmet, but for everything else, this bucket idea looks awesome.
    Looking forward to your progress.

  6. coondog45

    coondog45 Member

    Trophy Points:
    191
    That is looking good. Where did you get your patterns, if you don't mind me asking?

  7. Yoda

    Yoda New Member

    Trophy Points:
    17
    Last edited: Jun 9, 2015
    Insanedeer likes this.
  8. coondog45

    coondog45 Member

    Trophy Points:
    191
    Awesome! Thanks a ton.

  9. Yoda

    Yoda New Member

    Trophy Points:
    17
    no prob let me know when you start yours so I can follow progress

  10. Yoda

    Yoda New Member

    Trophy Points:
    17

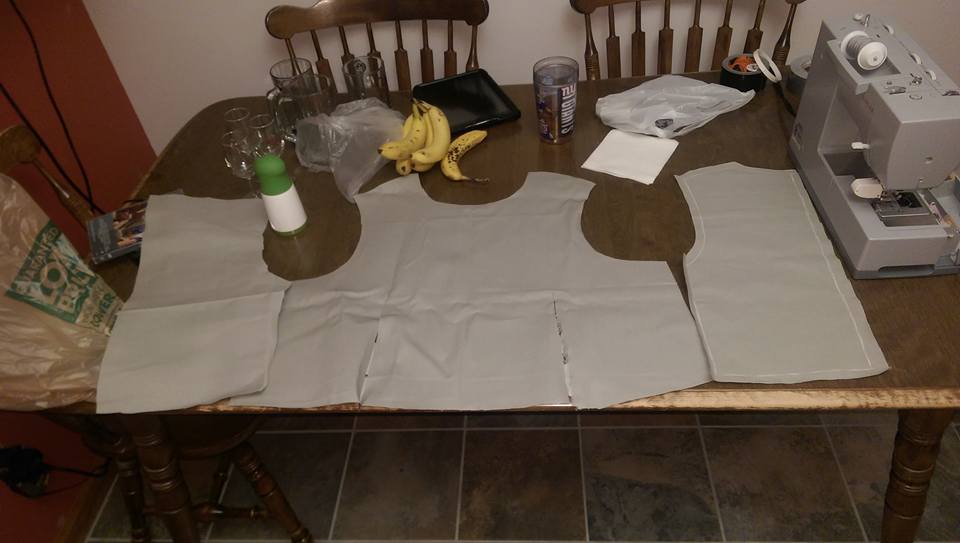

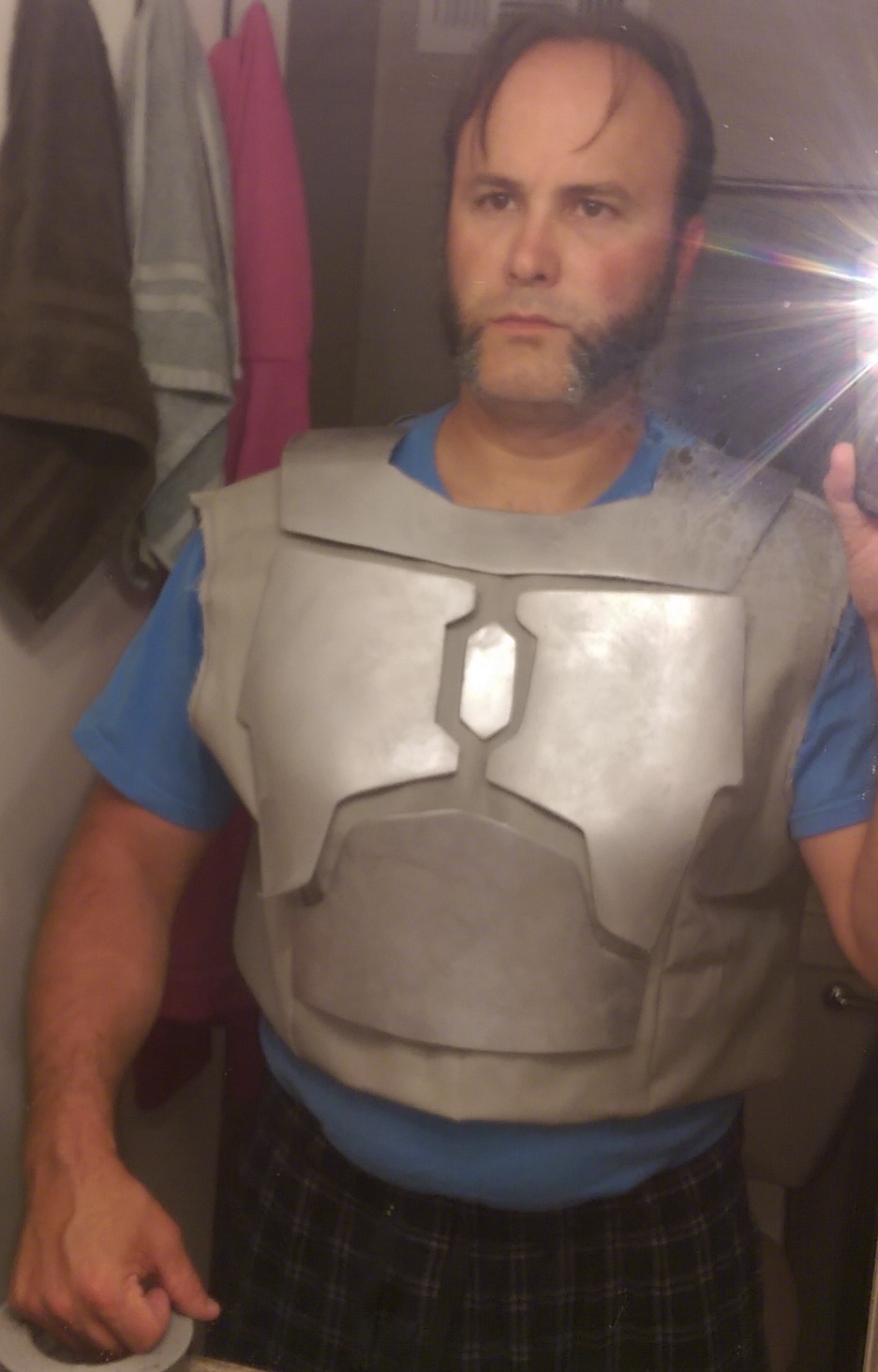

    OK so I roughed out the flak vest and then taped my armor plates to it for sizing
    the vest needs to be hemmed and the shoulder darts need to be added and I want to add the neck seal on vest also

    vest piece fit.jpg

  11. Yoda

    Yoda New Member

    Trophy Points:
    17

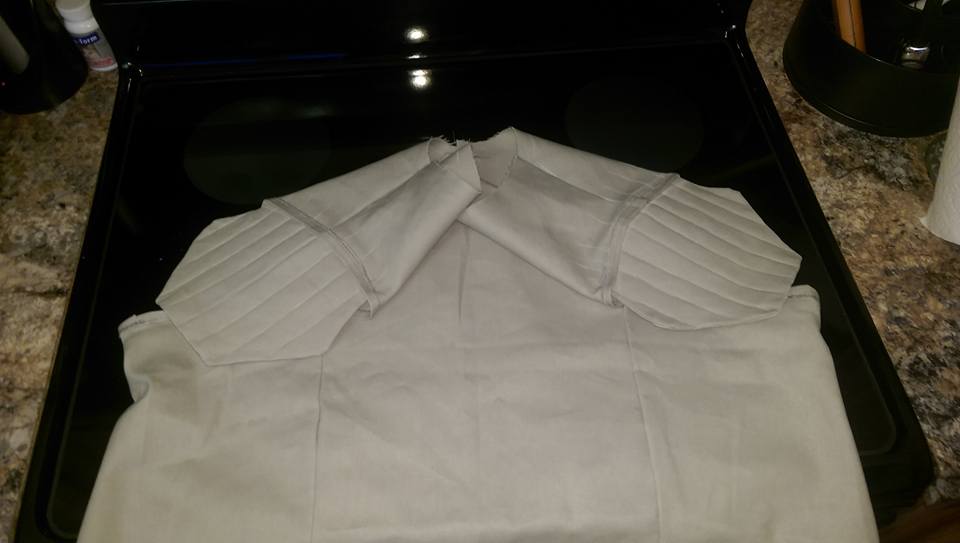

    Finished the trim and shoulders on vest, also have a Velcro closure on back. plus I got a better Idea of the plate placement Next is to figure out the neck seal

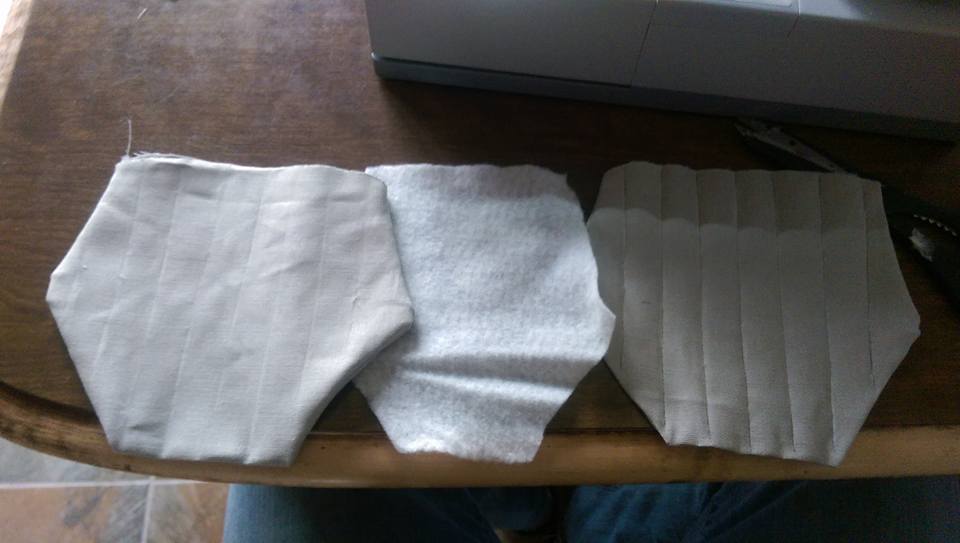

    quilting the shoulders
    quilted shoulder.jpg

    all together

    new plate image
    front done.jpg

    mugatu likes this.
  12. mugatu

    mugatu Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,782
    It's coming together and looking good, man.

  13. LB66679

    LB66679 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    567
    looking good ! eventually ill end up building mando armor .

    5xxicemanxx5 likes this.
  14. dmrforce1

    dmrforce1 New Member

    Trophy Points:
    3
    I used a hardhat and two 5 gallon buckets to make my Mando helmet. Worked great. PVC pipe works great for armor. You just heat it with a heat gun to flatten it. Then draw your patterns on, then reheat and shape to your body. The PVC has a nice thickness and feels like real armor. Also paint adheres great to the PVC. If you would like pics I can post some. I'm an official member of the Mercs.

    Insanedeer and Yoda like this.
  15. Yoda

    Yoda New Member

    Trophy Points:
    17
    I would love to see your work Post away Also what did you use for Glue to make the Helmet?

  16. Yoda

    Yoda New Member

    Trophy Points:
    17
    Was going to cast a replica of a Fett helm i have access to but it is deformed from how it was stored so I got the WOF template from the Dented Helmet and this is the progress:
    - an bunch of templates on cardboard
    [​IMG]

    -the cardboard template lower together:
    [​IMG]
    I was not happy with how it looked so ...

    Attempt 2 with card stock:
    [​IMG]
    Better curves

    -with dome attached I glued 2 pieces of card stock together for all the templates to add strength:
    [​IMG]

    -First Coat of glass on paper:
    [​IMG]
    got second coat on out side also need to resin the inside and add fiber mat

    Last edited by a moderator: Nov 9, 2018
  17. Yoda

    Yoda New Member

    Trophy Points:
    17

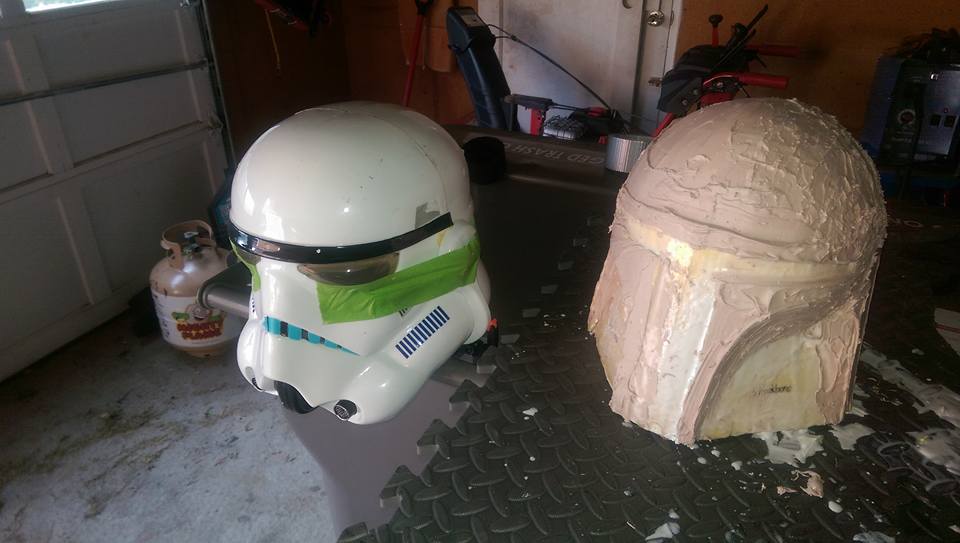

    Finally got some time to do some bondo work on helm

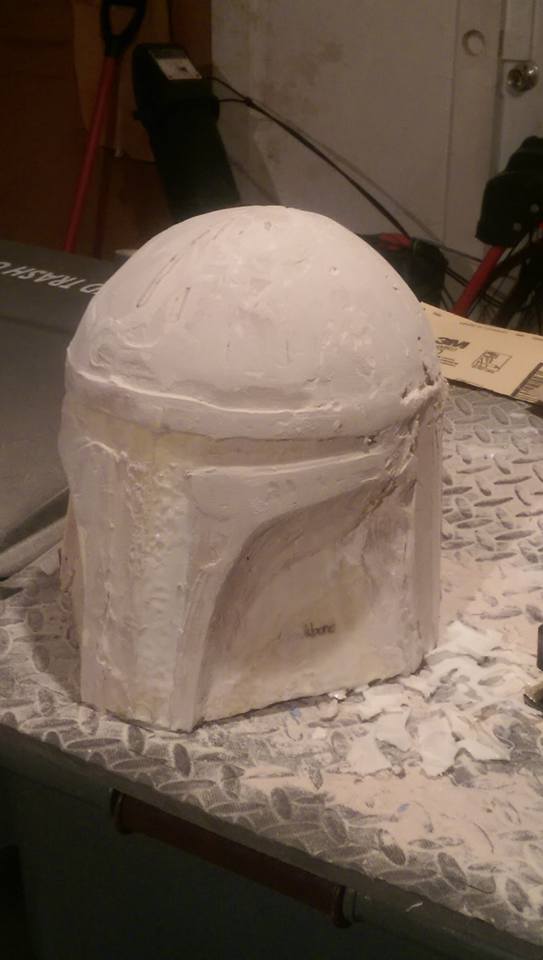

    Bondo Coat

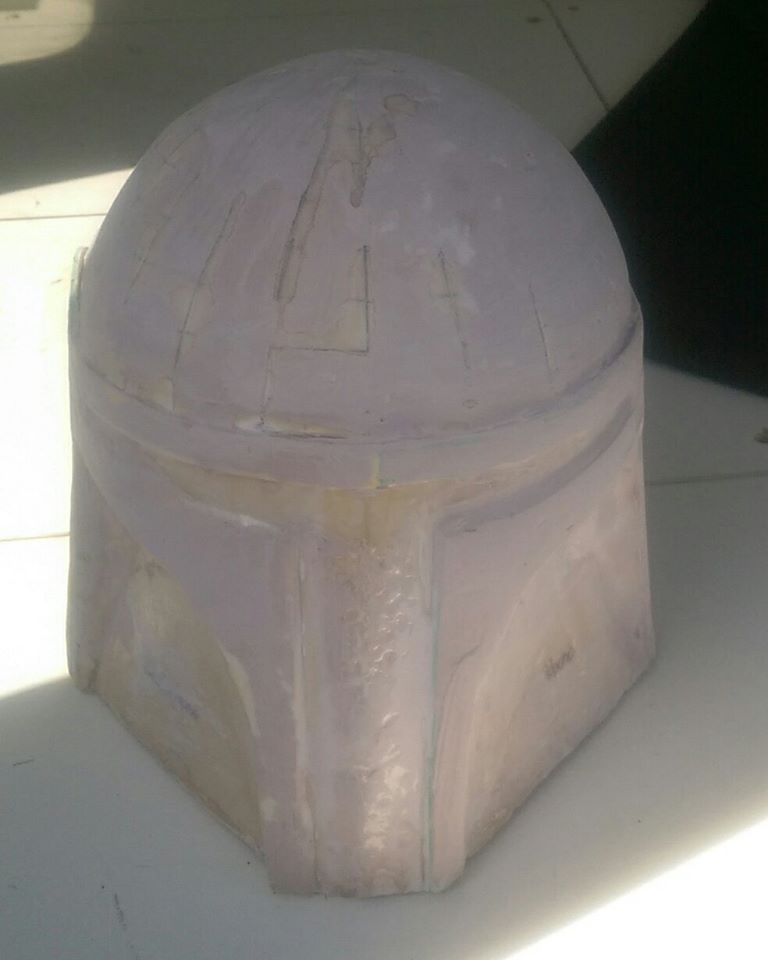

    a bit of sanding

    More sanding and dremel work

  18. Badgersbunk

    Badgersbunk Active Member

    Trophy Points:
    262
    Helmet is coming along pretty good. Armor is looking good also.
