Mandalorian IB-94 blaster build

[orntar]

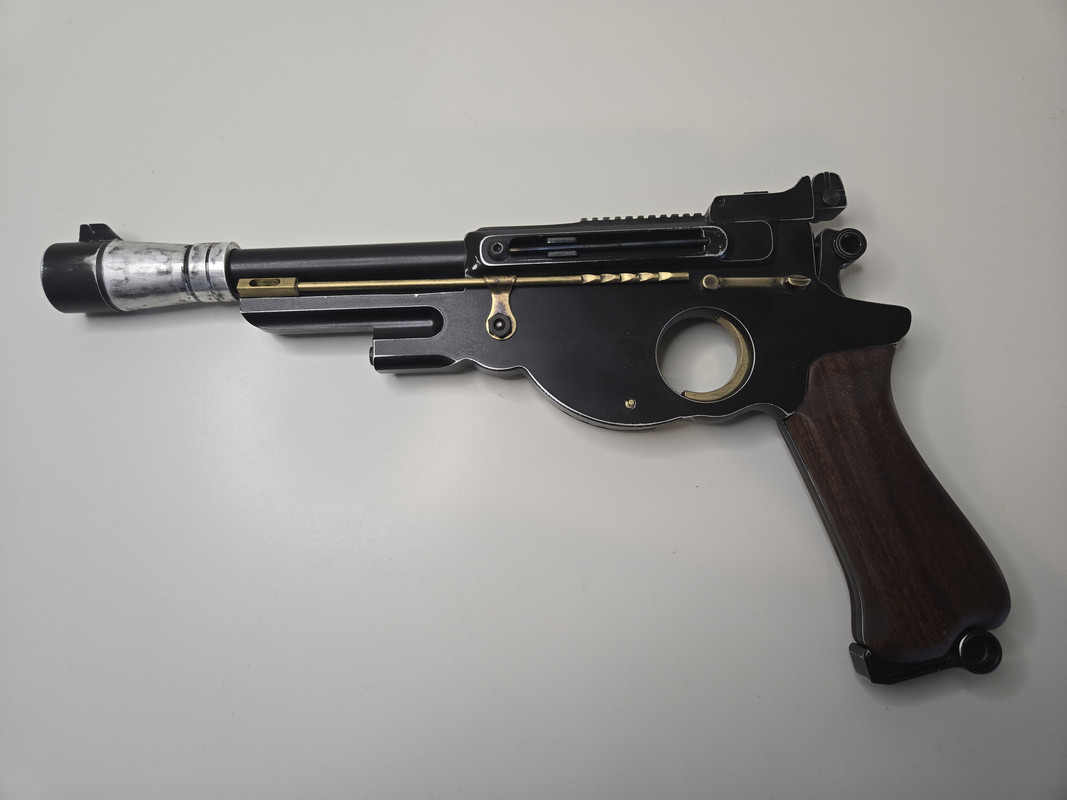

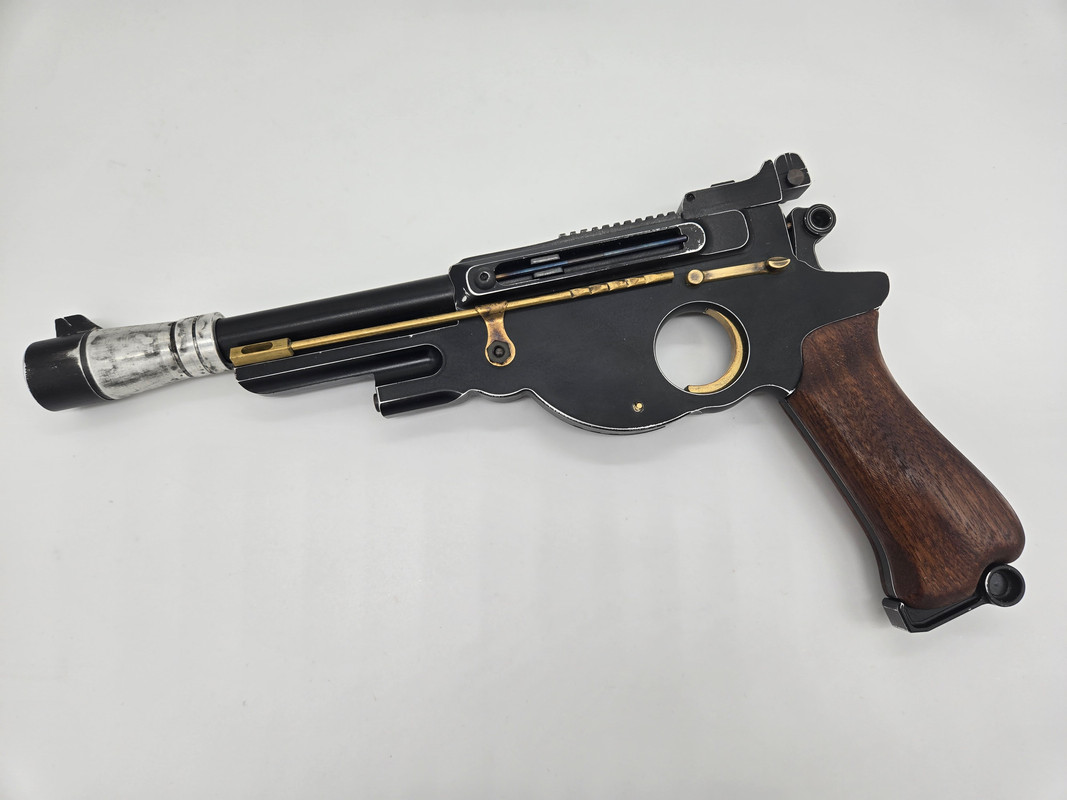

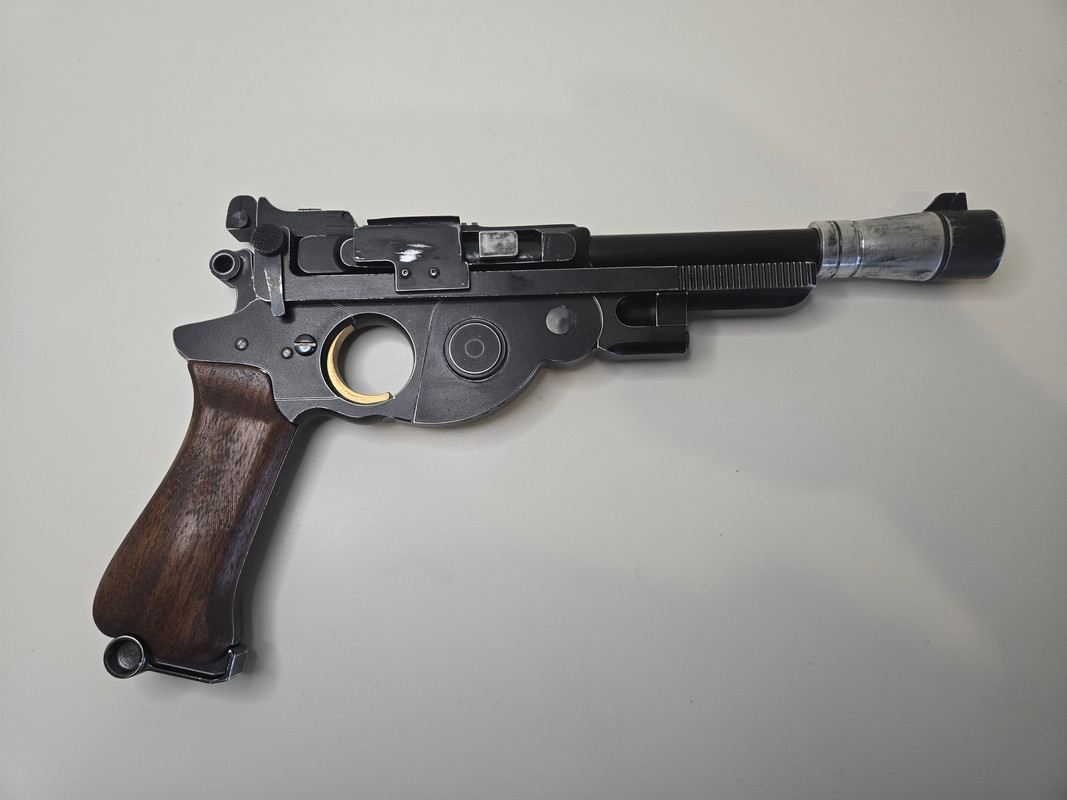

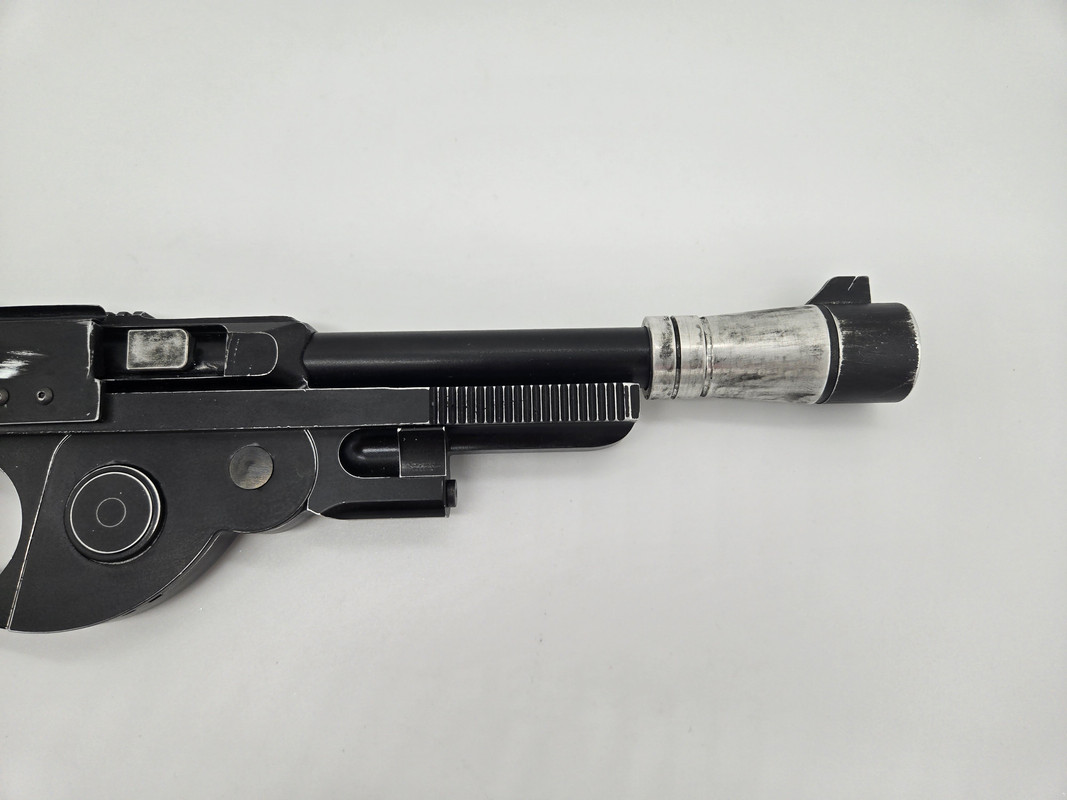

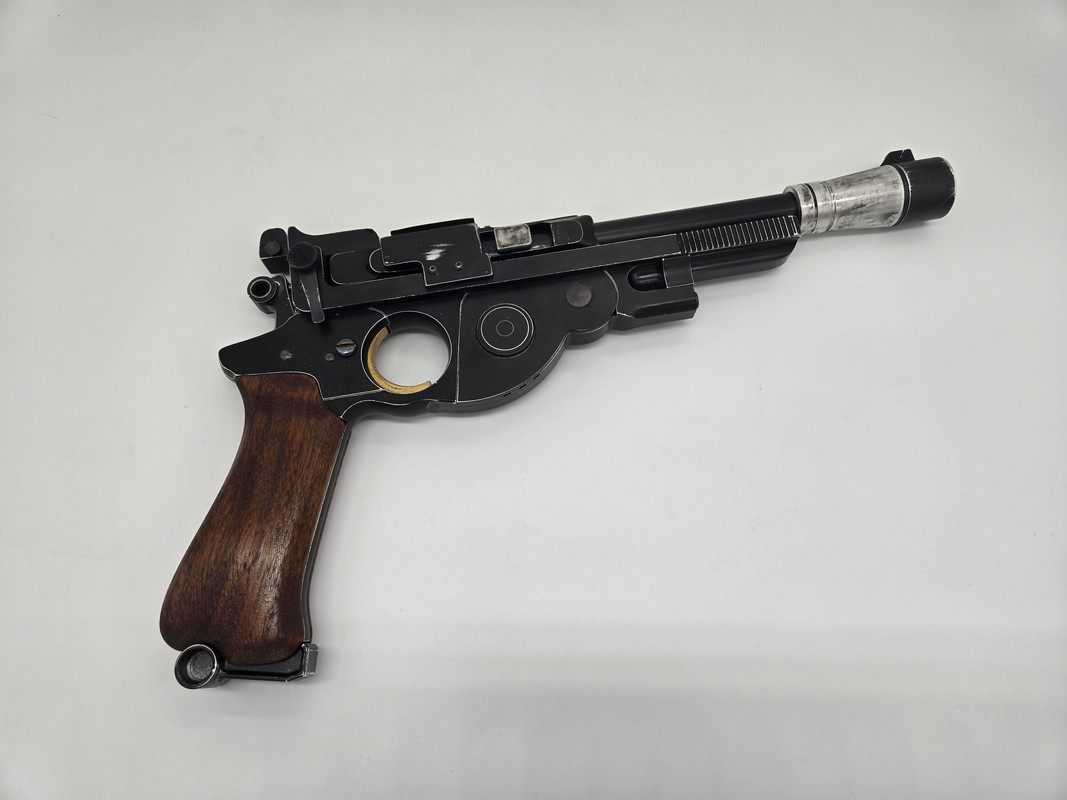

Here is my blasterfactory aluminum Mando Blaster.

The blaster is painted flat black (couldn't get a good finish with aluminum black), and I flame blued anything steel.

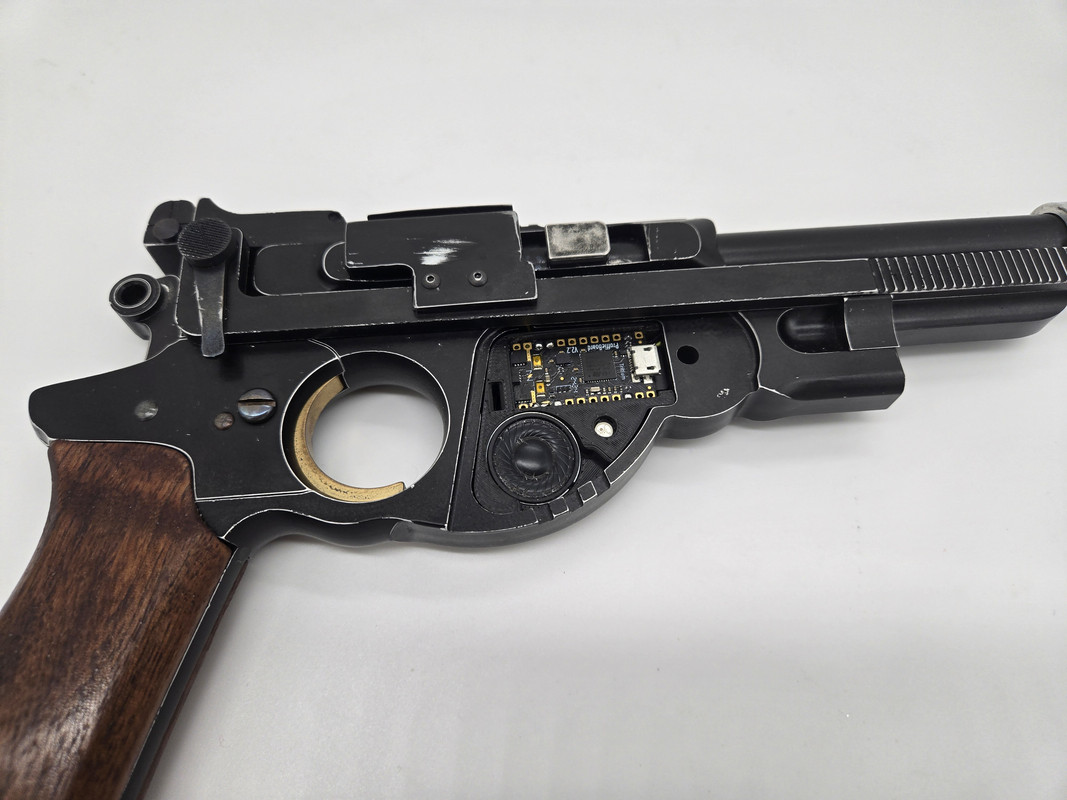

It also has a proffie v2.2 board, 13350 battery, 20mm speaker, single accent pixel and large 20 pixel ring for muzzle flash.

The battery is in the grip, I used a cnc to open up the frame and make recesses in each grip panel. Its pretty tight. I also used a cnc to make the wire paths and opening the frame for the proffie chassis. I designed a switch holder and the chassis and 3d printed them.



[orntar]

Here is a video

The small speaker sounds pretty good imo. Not very basey, but that's to be expected. It sounds better with the side panel on rather than off.



[Halliwax]

Sound too!! Wicked!!



[PHArchivist]

Was the chip, sound and lights part of the 'kit" or entirely custom?



[orntar]

It was not part of the metal blaster kit. I planned it out the electronics and did it my self. The kit is considered static display, I suppose.

I am pretty fond of and active in the proffie board install community, as it were. The sound board, as its called, is pretty capable of almost anything. I have done many lightsabers, and a few blasters. I also have a tricorder using a proffie board in the works.

I order my electronic parts from thesaberarmory, or saberbay. Lots of cool led options. I then use fusion to design the chassis (the holder of the electronics) for them. Its a fun hobby! I think blasters are my favorite!



[PHArchivist]

It was not part of the metal blaster kit. I planned it out the electronics and did it my self. The kit is considered static display, I suppose.

I am pretty fond of and active in the proffie board install community, as it were. The sound board, as its called, is pretty capable of almost anything. I have done many lightsabers, and a few blasters. I also have a tricorder using a proffie board in the works.

I order my electronic parts from thesaberarmory, or saberbay. Lots of cool led options. I then use fusion to design the chassis (the holder of the electronics) for them. Its a fun hobby! I think blasters are my favorite!

Very cool...

My Mando blaster is a (the) toy conversion. Beyond my meager painting skills, its still just a toy...

Hats off to you!
