    I just finished my build of my Mad Max muzzle, yesterday, from Fury Road. Thought I'd share the process and results.

    I made it out of 1018 steel bar and sheet with some leather for the straps and a bit of soft foam glued on the inside to make it wearable.

    The main bits 3/16" bar welded together and then hammered into shape using a coal forge. I was purposely incautious with the forge to add pitting and texture to the steel. I made the jaw, nose bridge, hinges and clasp at the back this way.

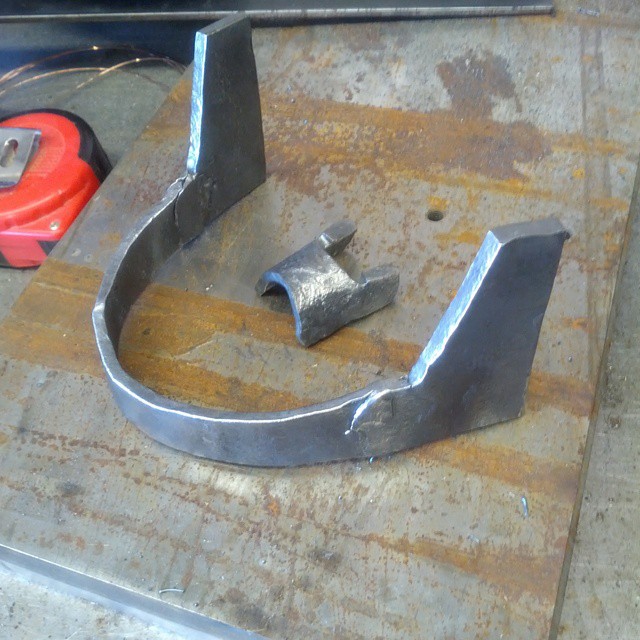

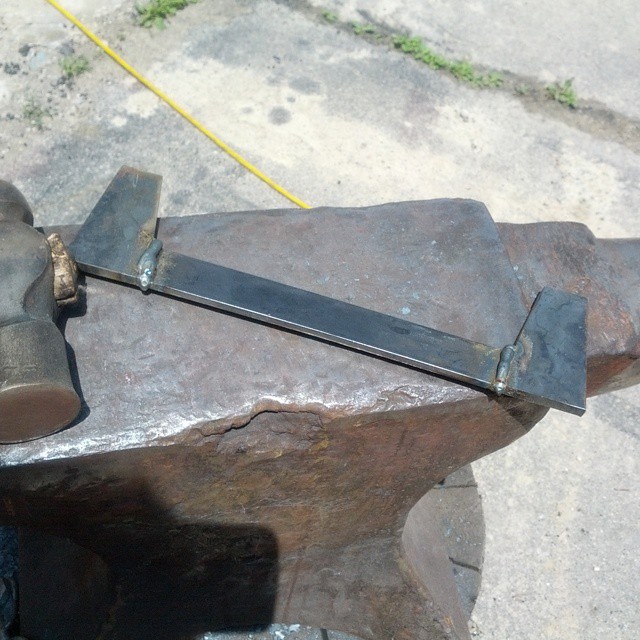

    1 Welded Jawline.jpg 2. Forged jaw and bridge.jpg 3 Forging Clasp.jpg

    The gardening-fork face cover thing I made from sheet steel. Just cut out and fluted over an stake with a rubber mallet. Not clearly shown here is a wider sheet-steel band over the back of my head.

    The straps on the face and around the head I decided to make out of painted leather for comfort.

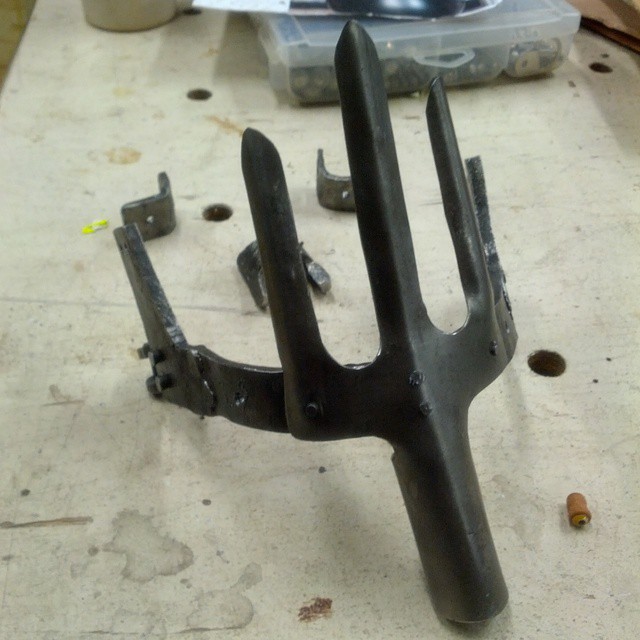

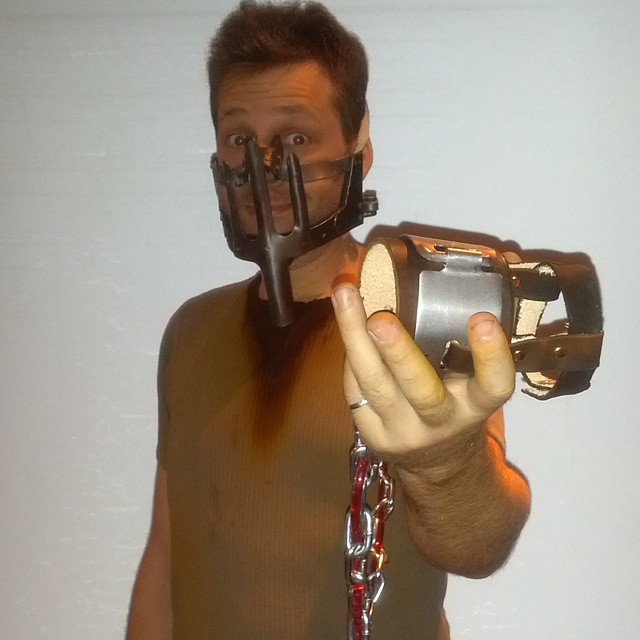

    4. Completed metal bits.jpg 5. Finished bloodbag.jpg Transfusion in progress.jpg

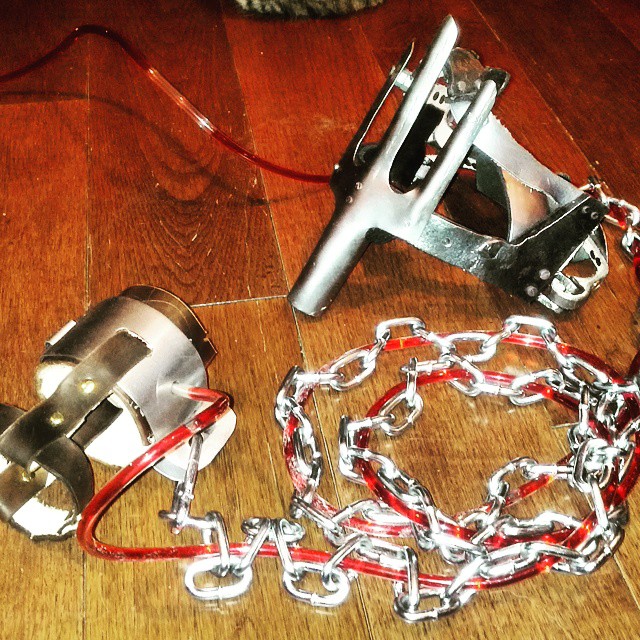

    7. Finished closeup.jpg

    cavx and B Wo like this.
  2. PoopaPapaPalps

    PoopaPapaPalps Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,565
    Witness me, blood-bag!

    B Wo likes this.
  3. NeoRutty

    NeoRutty Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,790
    Just found this... Great job!

  4. apolifka

    apolifka Active Member RPF PREMIUM MEMBER

    Trophy Points:
    441
    Excellent job! How's the weight feel with extended wear?
