M41A Pulse Rifle Completed

Discussion in 'Replica Props' started by neilo1, Dec 9, 2011.

  1. neilo1

    neilo1 Well-Known Member

    Trophy Points:
    717
    Completed! see post #4


    '''Hicks''': I wanna introduce you to a personal friend of mine. This is an M41A pulse rifle. Ten millimeter with over-and-under thirty millimeter pump action grenade launcher.


    OK I’m finally ready to post some of my pulse rifle build details. This is taking a lot longer than I thought because I keep getting distracted with other projects.

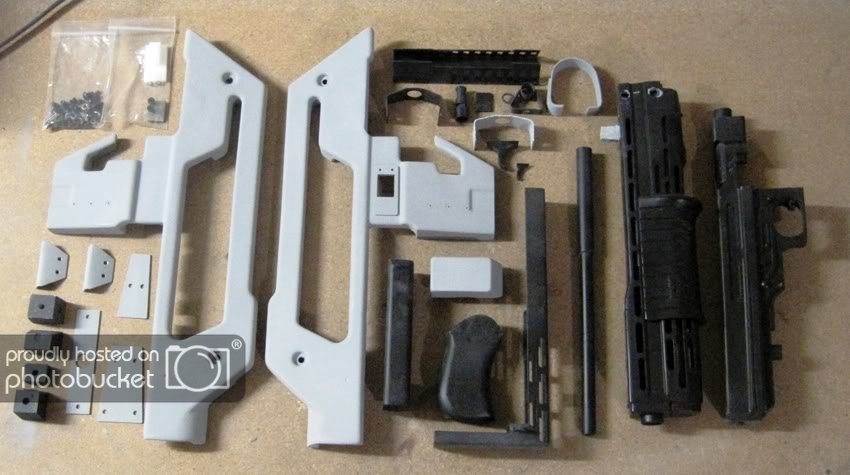

    I got this awesome kit from a member of the RPF.
    HCG grenade launcher
    Resin Thompson
    Steel barrel vents
    Steel stock
    Resin Shrouds
    Steel connector plates and screws
    Attached the barrel vents to the grenade launcher, the grip and stock to the receiver and replaced the resin barrel with a steel pipe. Attached the stock, nice and long, because I have ling arms.
    Test fit in the shrouds.
    Test fit closed.
    Now comes the hard part, attaching it all together solidly. I'm going to use magnets to hold the magazine in, and go with a fake counter for now.

    I was hoping to have this ready for the Burlington prop party but my family keeps getting in the way and making me do Dad stuff. I'd like to thank Canadian Tire for their blank looks:lol Comments and suggestions appreciated.

    :cheers
    Neil.

    Last edited by a moderator: Nov 9, 2018
  2. Lear60man

    Lear60man Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,890
    Re: M41A on the workbench

    Looking good Neil! Once you have the GL attached to the Thompson, the shrouds do a great job holding it all together. Just make sure to tap the screw holes in the resin shrouds. I went the extra step and epoxied in aluminum female screw posts on the lower 6 holes the hold the mag well together.

    Below is a link on how I made my HGC GL 'rack'. All you need is a the proper length spring, a dremel and a piece of scrap metal to hold it all together.

    The Aliens Legacy • View topic - Leftover Pulse Rifle Parts build.


    Good luck!

  3. neilo1

    neilo1 Well-Known Member

    Trophy Points:
    717
    Re: M41A on the workbench

    Lear60man,

    Good idea adding the female screw posts. Way better than tapping into the resin. I will definately do that! That's an awesome mod for the GL, I may try that at a later date.

    Thanks,
    Neil.

  4. neilo1

    neilo1 Well-Known Member

    Trophy Points:
    717
    Re: M41A on the workbench

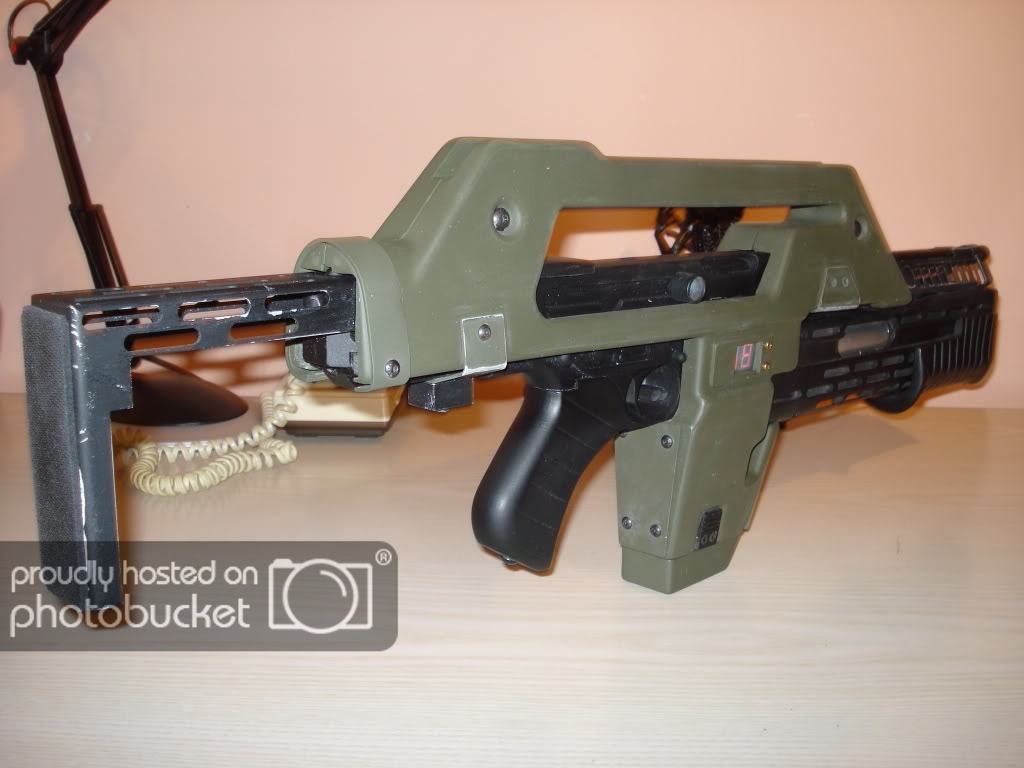

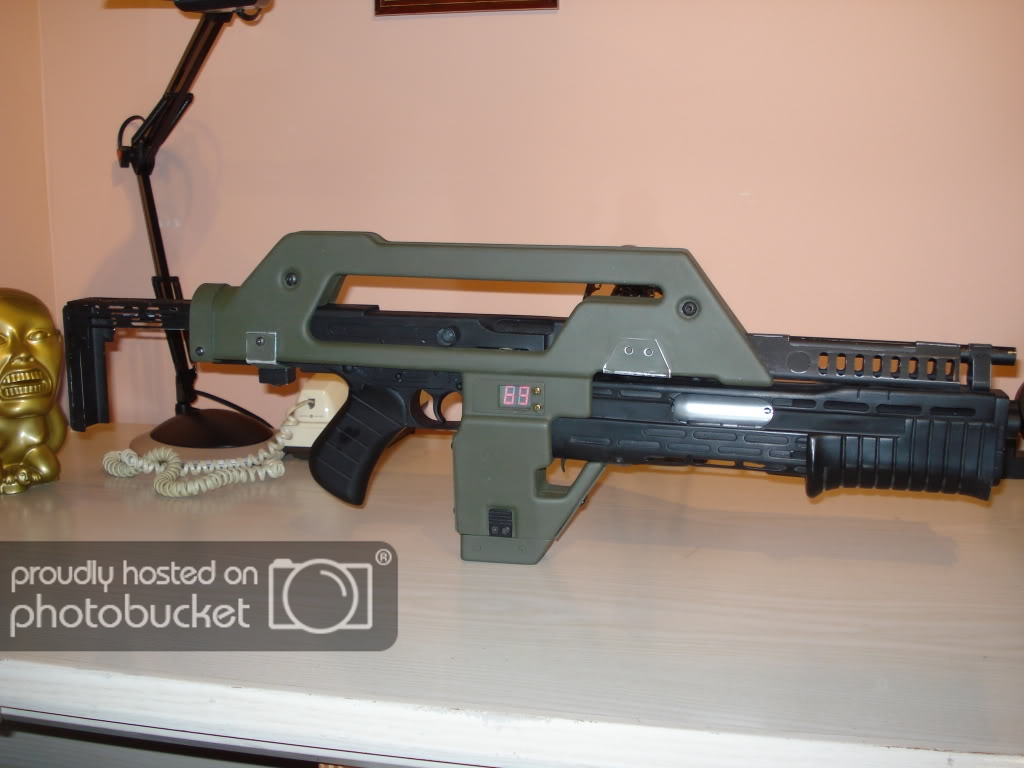

    Ok I final finished this baby on the weekend! I might do a little more dry brush weathering on the shrouds and GL front. The counter is just a print-out, not sure I want to spend the bucks on an LED counter, I’d rather buy a VP-70 kit to add to the collection.Now I need to come up with a wall mount display, it’s too big for my shelves.
