I jumped the gun on your disk ejector—does the nub pull the center plate out along with the disk?

And, a very elegant solution to your tap issue. The simplest things...

Best. Mike.

No. I carved a channel into the center plate and installed a hook-shaped mechanism, which pushes the disc out as the end with the nub is pulled forward. The center plate stays fixed in place.


Macnmike

New Member
In addition to the doors, I also added them to the hood, because the friction fit isn’t great (which was my fault). The magnets aren’t strong enough to shap them in place, but the encourage the hood to stay open or closed when rotated into either position. And, with a tiny bit of flexing, the hood can also pass the crossbar, and rotated a full 180 degrees, as seen in certain episodes.
Thanks, obviously you've done it the right way. My first Marco had to rely on bits of black duct tape as friction points. I hope to do better in the future, possibly with magnets. Best. Mike.


JFB64

Well-Known Member

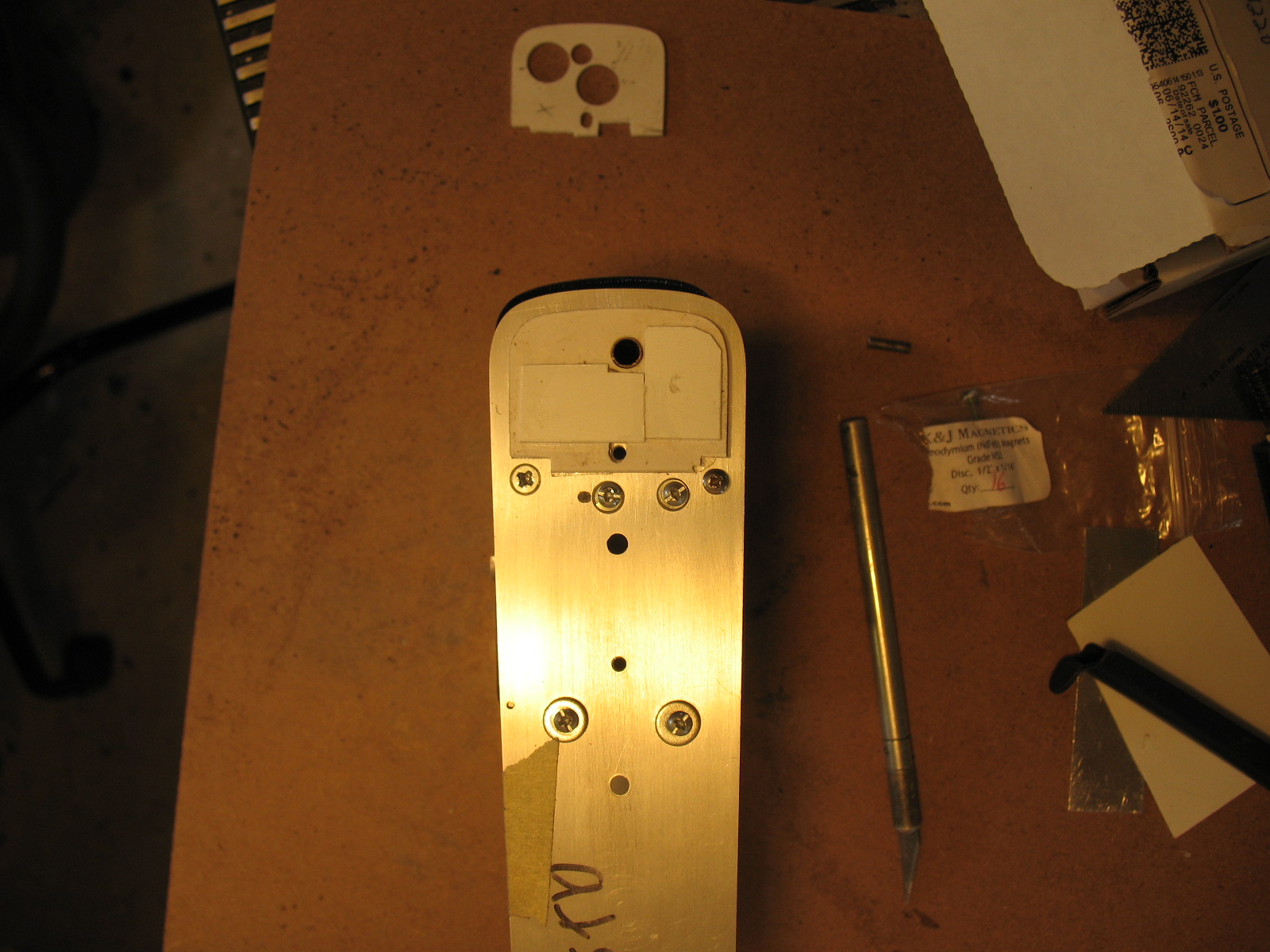

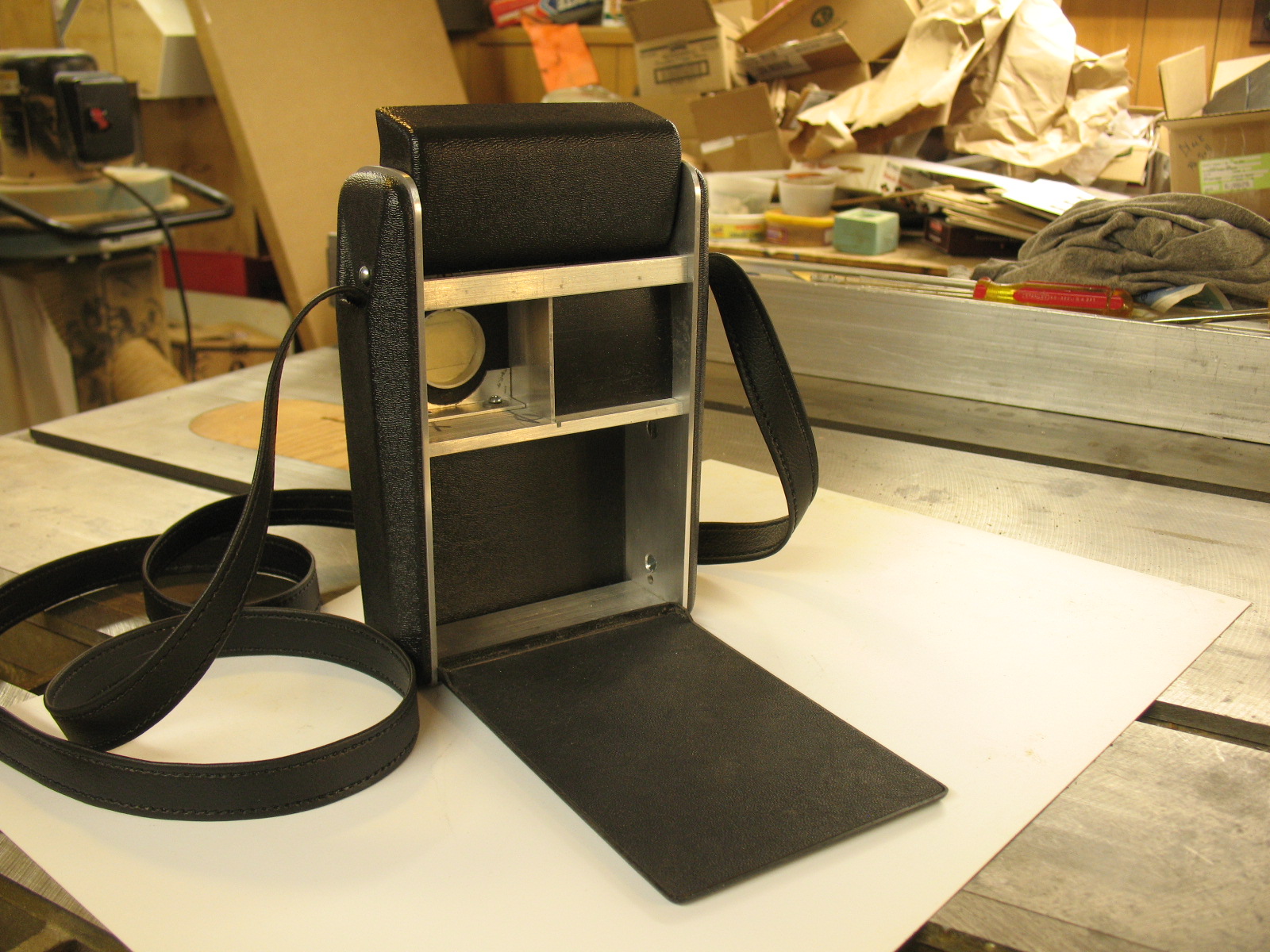

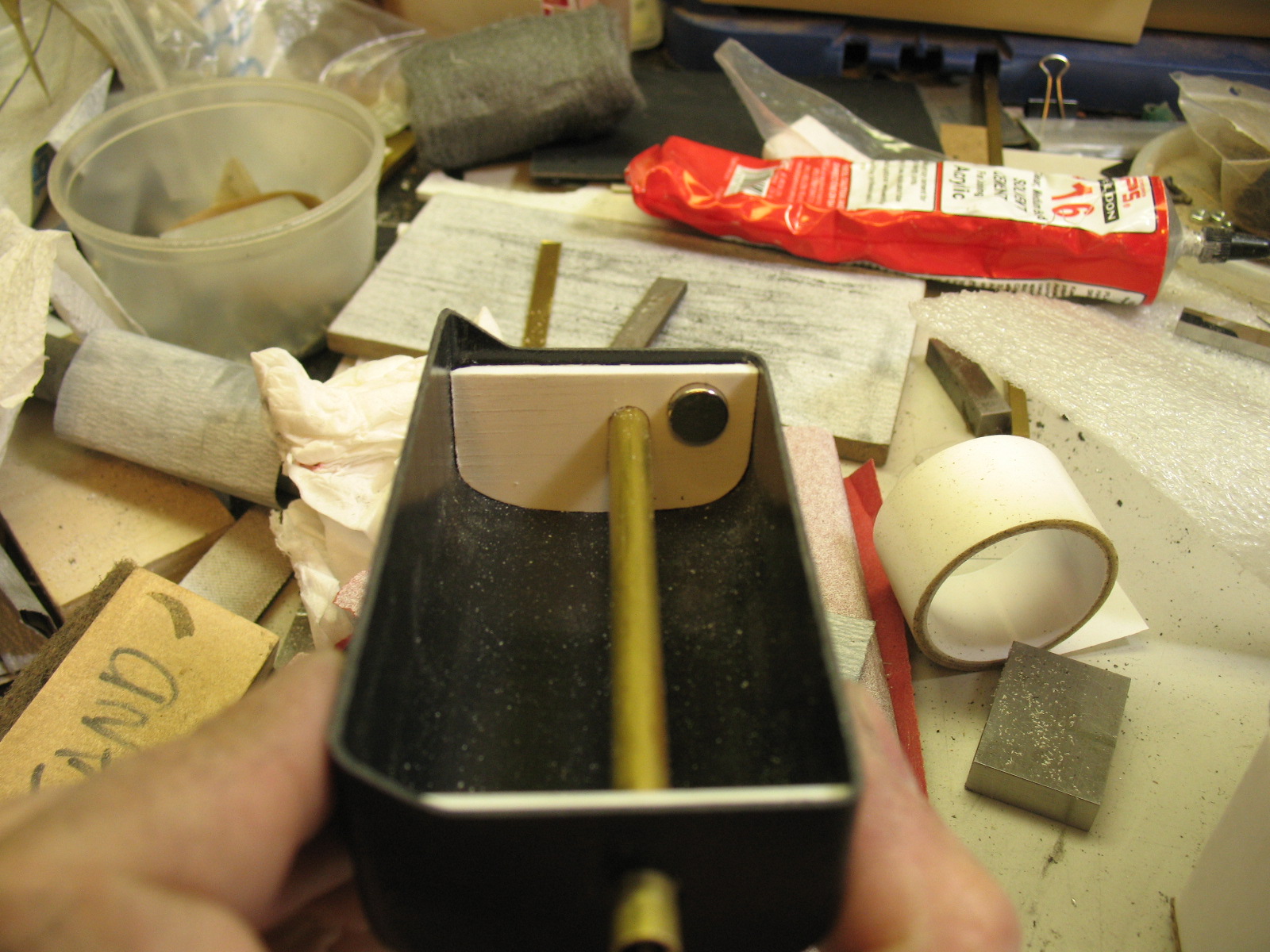

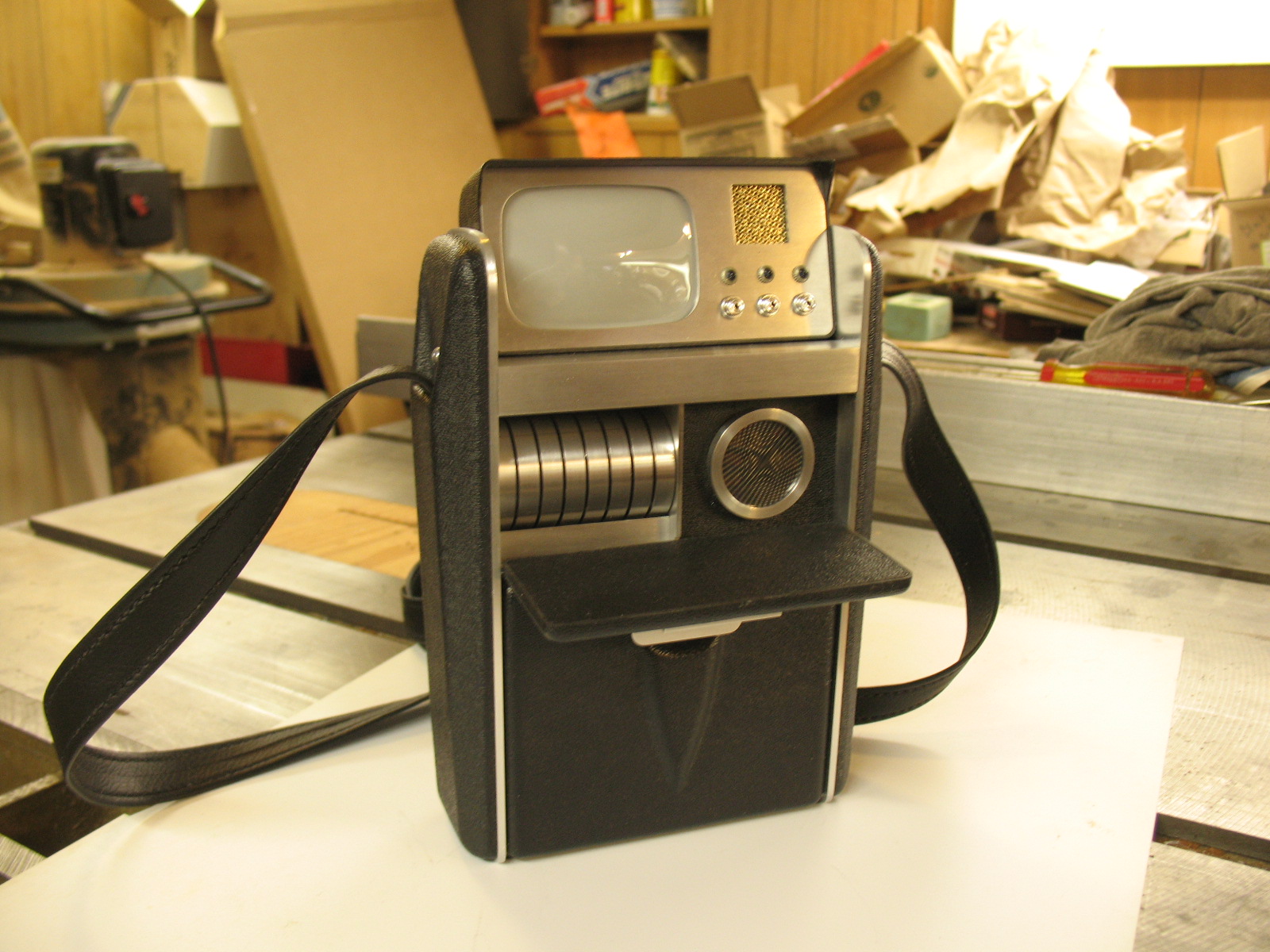

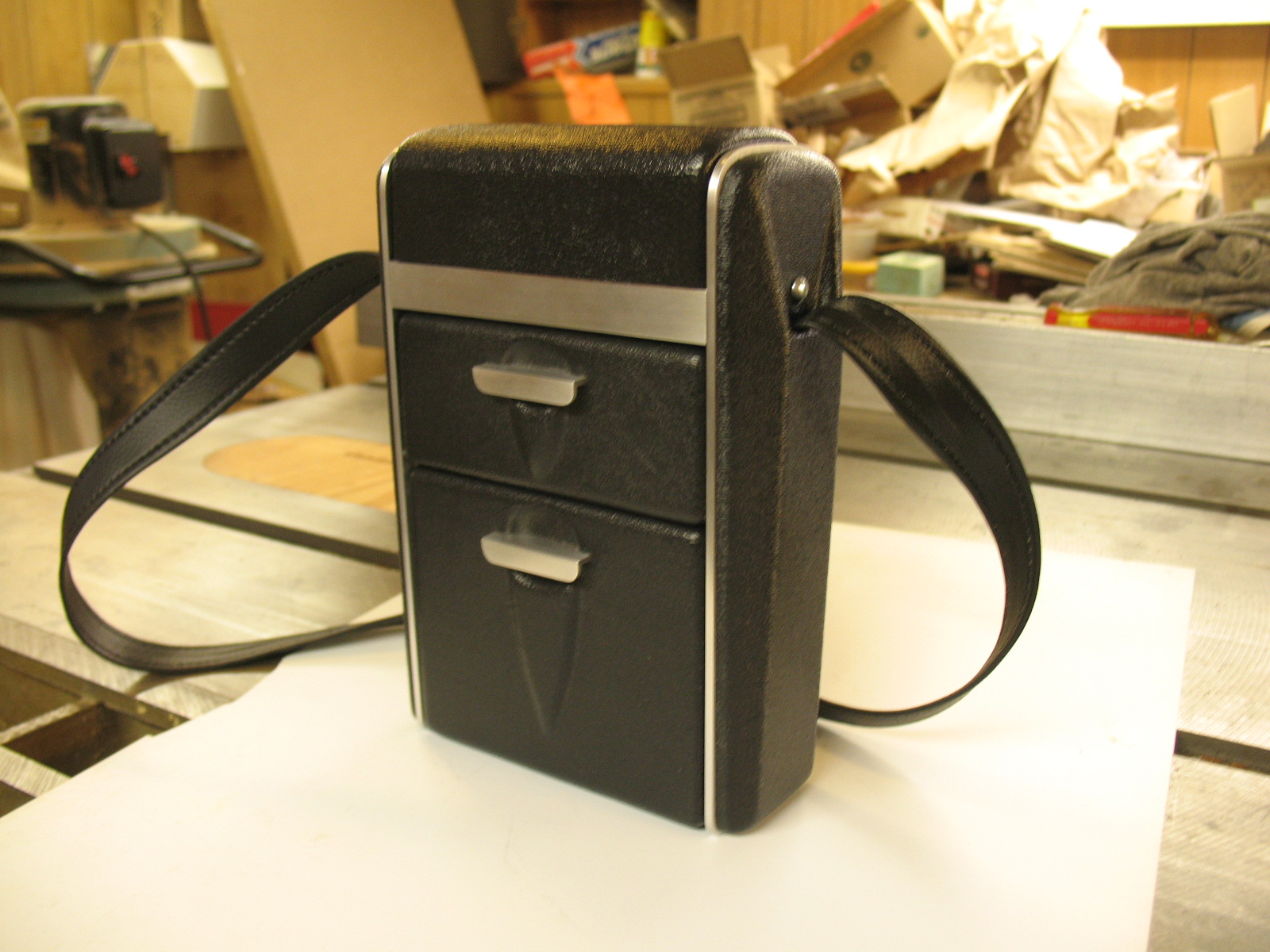

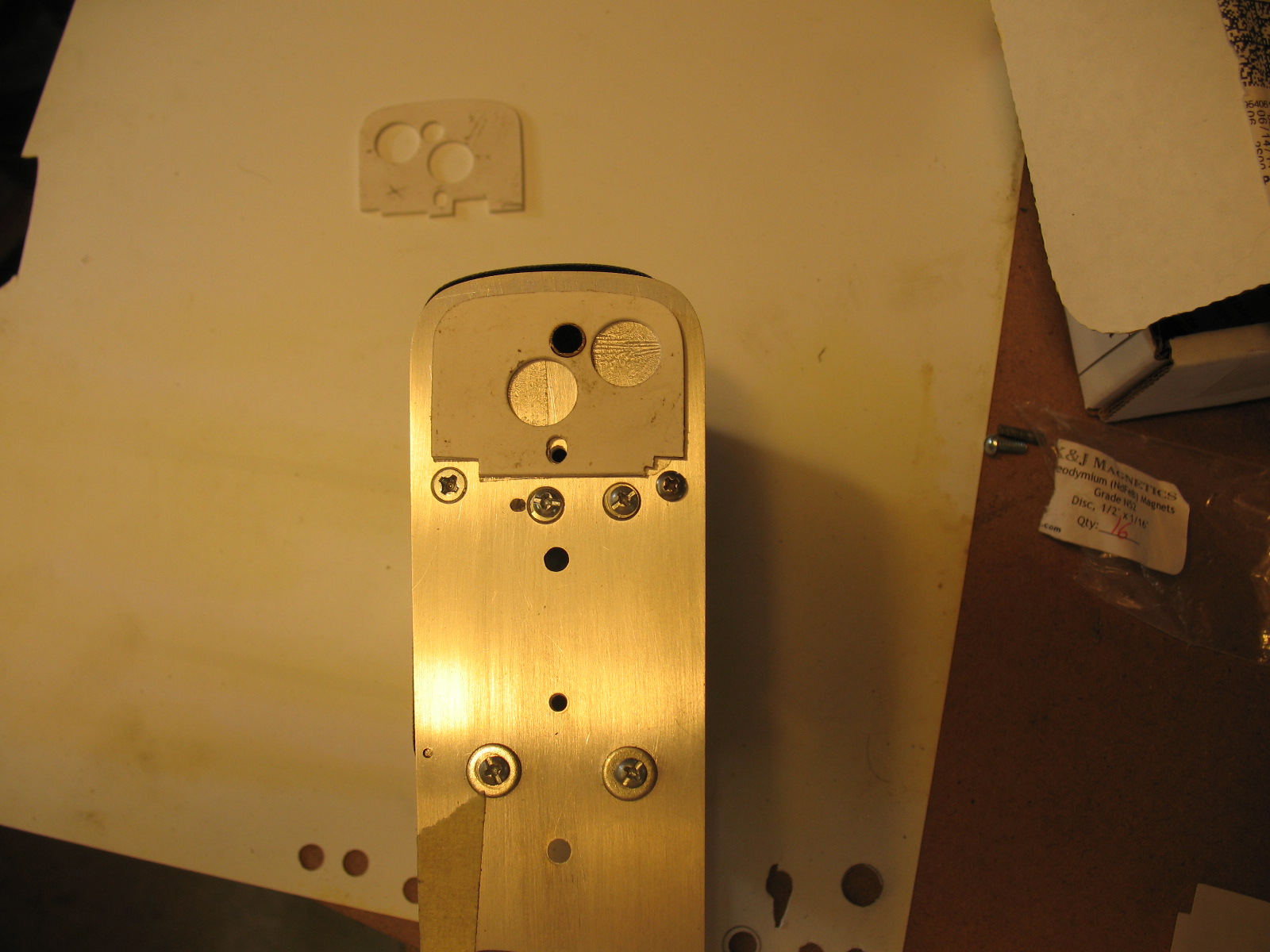

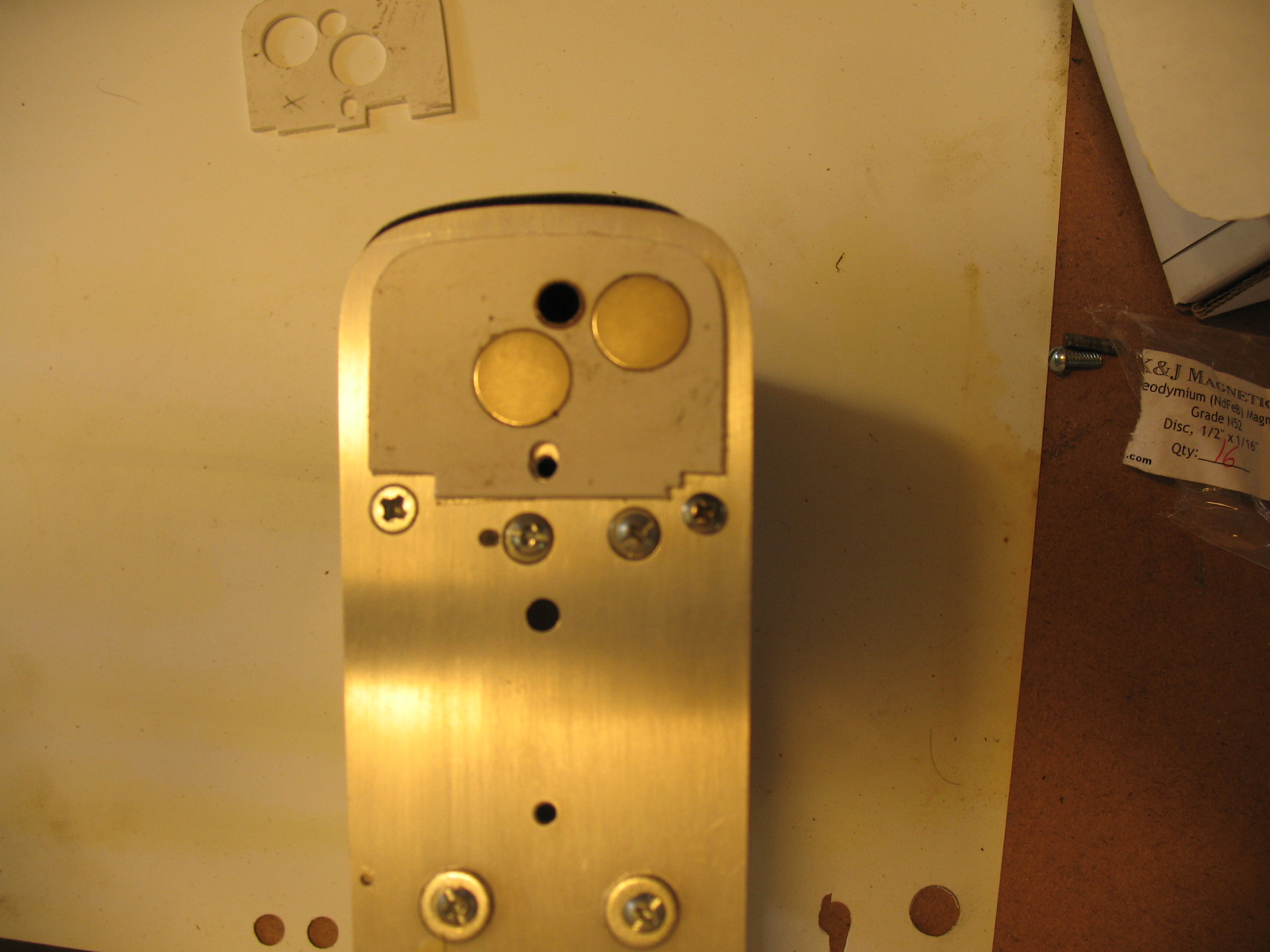

Here are some pictures of how I installed the magnets in the hood of my original build. They are powerful enough to open and close it with a snap feel. I also imbedded tiny magnets in the back panel and rear cross bar. I didn't care that it wasn't screen accurate I just hated that unsightly screw. I think gives the rear of the tricorder a much cleaner look. This decision has caused me years of gentle teasing from my fellow prop buddies. I'm looking at you LIT.
