Looking for 3D model, or at least blueprints, for this Star Trek prop

[drmoreau]

The Eminiar "sonic disruptor" from the episode original series episode "A Taste of Armageddon". It's a modified Klingon disruptor and if I really have to I will model it myself but it sure would save me a ton of time if I could find a ready to go 3D model of it. I've tried the usual sources (Thingiverse, Yeggi) and turned up nothing.

I did find this page which has instructions on making a papercraft one. http://perrypapermodels.altervista.org/eminiar-klingon-romulan-disruptor-tos.html

If I have to model it finding some blueprints (even if they aren't 100% show accurate) sure would help. Thanks!



[13doctorwho]

You might have an easier time finding blueprints of the Klingon disruptor to get the major geometry. Then you could workout the differences pretty easy.



[drmoreau]

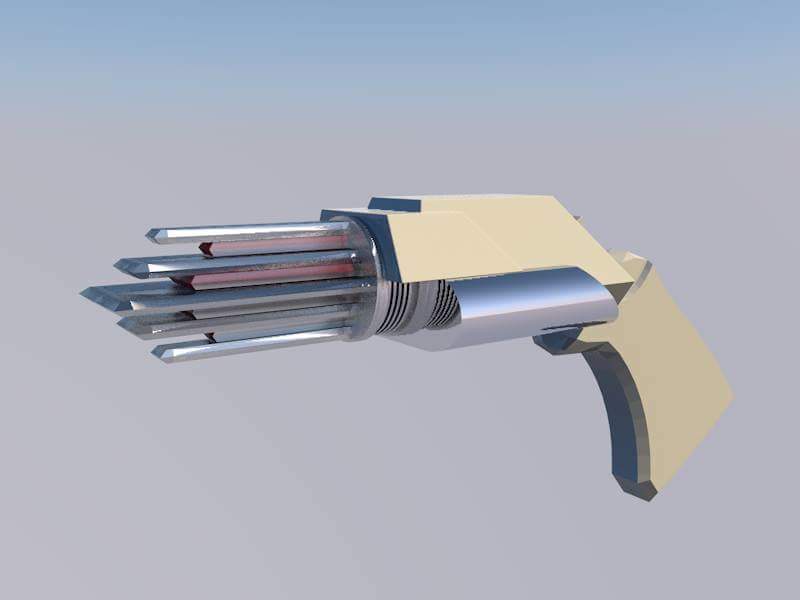

I went ahead and modeled it. It's not perfect but it looks pretty good.



[dsk001]

I also tried to model it. Looks like the doctor beat me too it.

Are you planning on 3d printing it, is so I would need to work on it a bit more to make it printable.

Here is a link to it on Fusion 360 to see it in 3D let me know if there is something you think should be changed.
https://a360.co/2Qvq1Xo



[drmoreau]

Cool. Is there a way I could download your file? I would be happy to share mine as well.



[dsk001]

Cool. Is there a way I could download your file? I would be happy to share mine as well.

Soon! Let me work out the details of making it 3D printable and adding the proper tolerance and I can upload them to thingiverse.



[dsk001]

OK so I couldn't wait, so I spent a few extra minutes at work before leaving and prepared the files.
You can download then here

https://www.thingiverse.com/thing:3104748



[drmoreau]

Sweet, thanks. I will probably make a remix, mixing in some of the details I used on mine.
