    Hey all,

    I'm a long time lurker here and I finally wanted to step in and show one of the things I've been tinkering on.

    I decided to build a live fire jawa ion blaster

    Because I want to play with this in California, and I don't want to file federal NFA paperwork on it the process was really, really really involved.

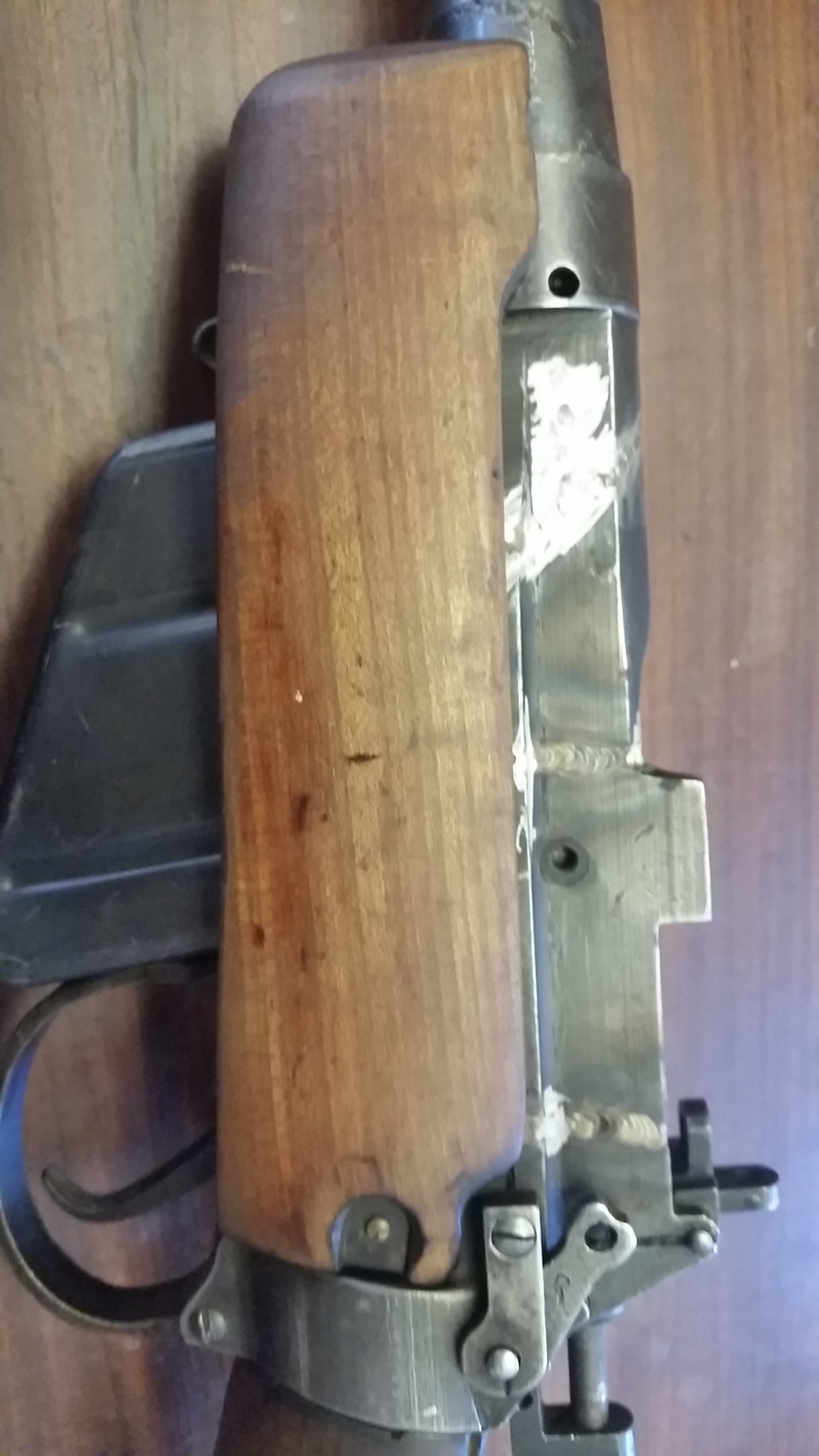

    I started with a No 4 MK II SMLE receiver that I had in storage (actually two of them) and torch cut them to BATFE specification. (removing 1/4 inch of material per cut and making 3 cuts through the receiver)

    I then cleaned up the slag and put the remaining bits on a jig so that they could be tig welded back togeather. (creating a virgin receiver which coulc be built into a pistol.

    To comply with CA law, the barrel was initally left long to comply with the single shot regulations on the drop safety exemption and only later was it cut back to a proper length.

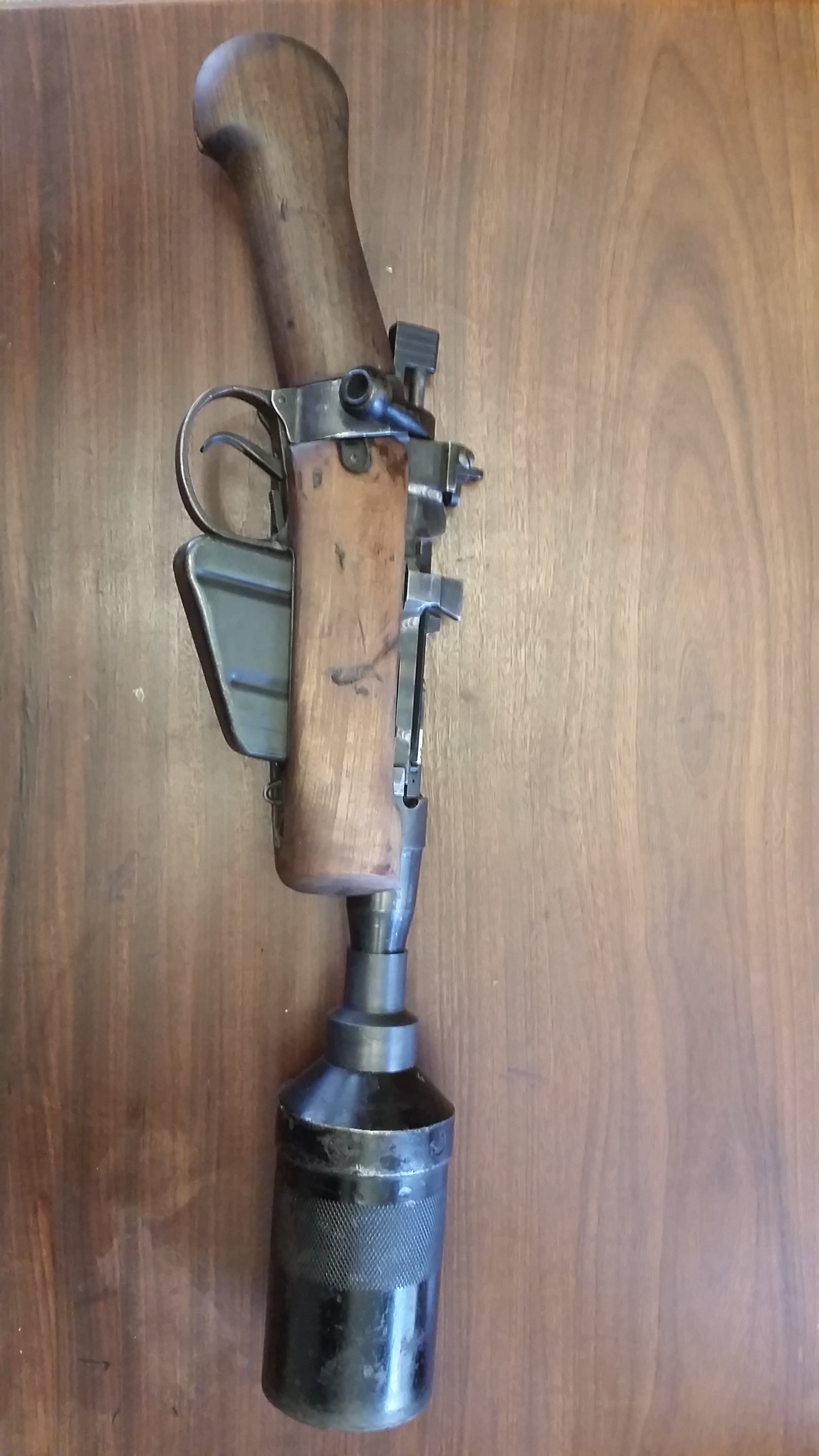

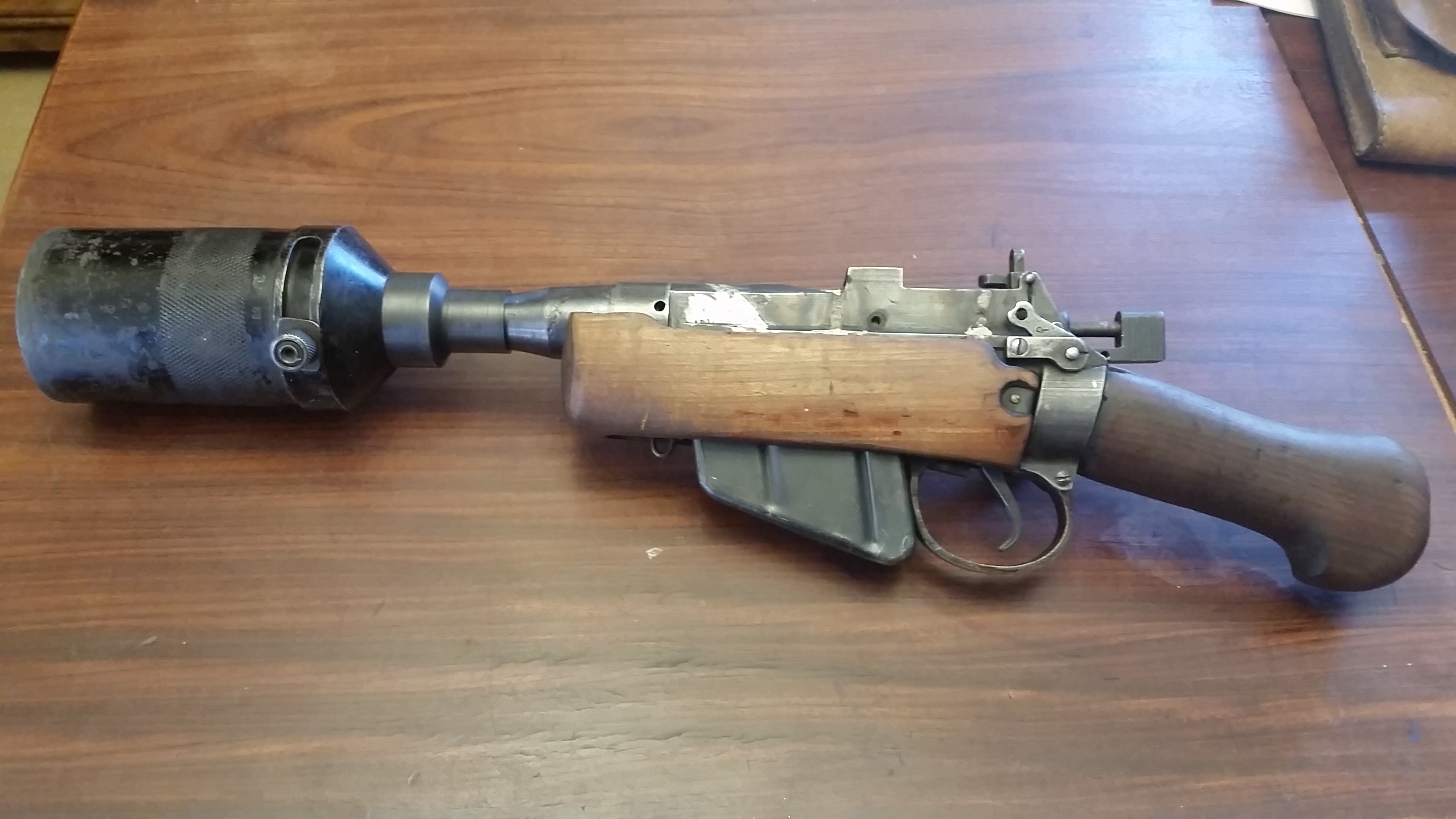

    Once the gun was back togeather, (a herculean task) I cleaned it up with a mill, fordom tool. hand files, and just work, lots of work....

    Yes, I realize I put all this work into the wrong type of reciever... I had been saving these for about 9 years while I practiced this technique on other platforms and made friends with tools, set up a shop etc.... so I just didn't realize I had the wrong ones untill i was way to far into it to turn around (I think I may have one of the correct receivers in storage, and I can always do it over again now that I have a better idea of how to not screw it up.

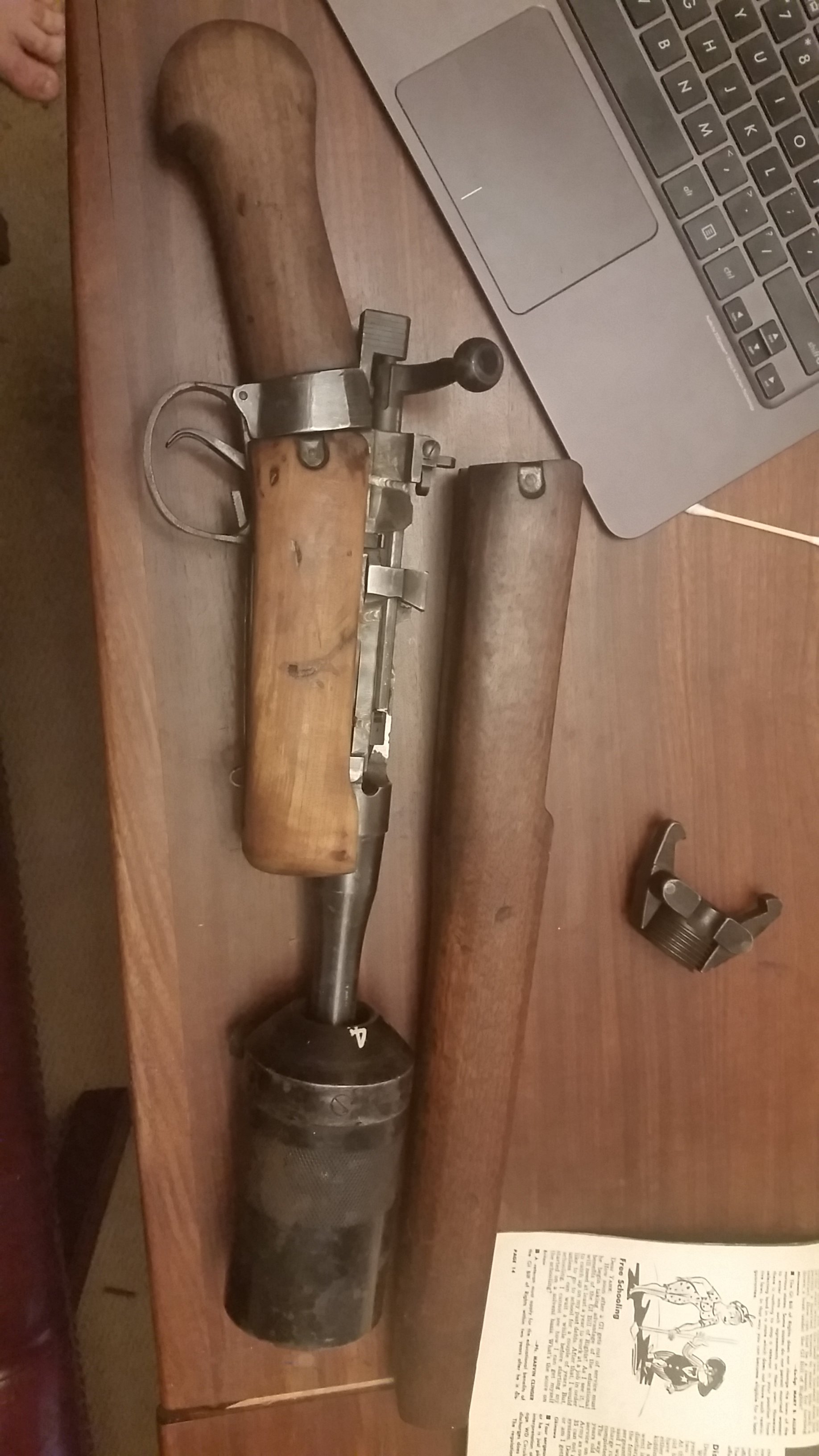

    20150718_144152.jpg 20150718_144159.jpg 20150718_144209.jpg

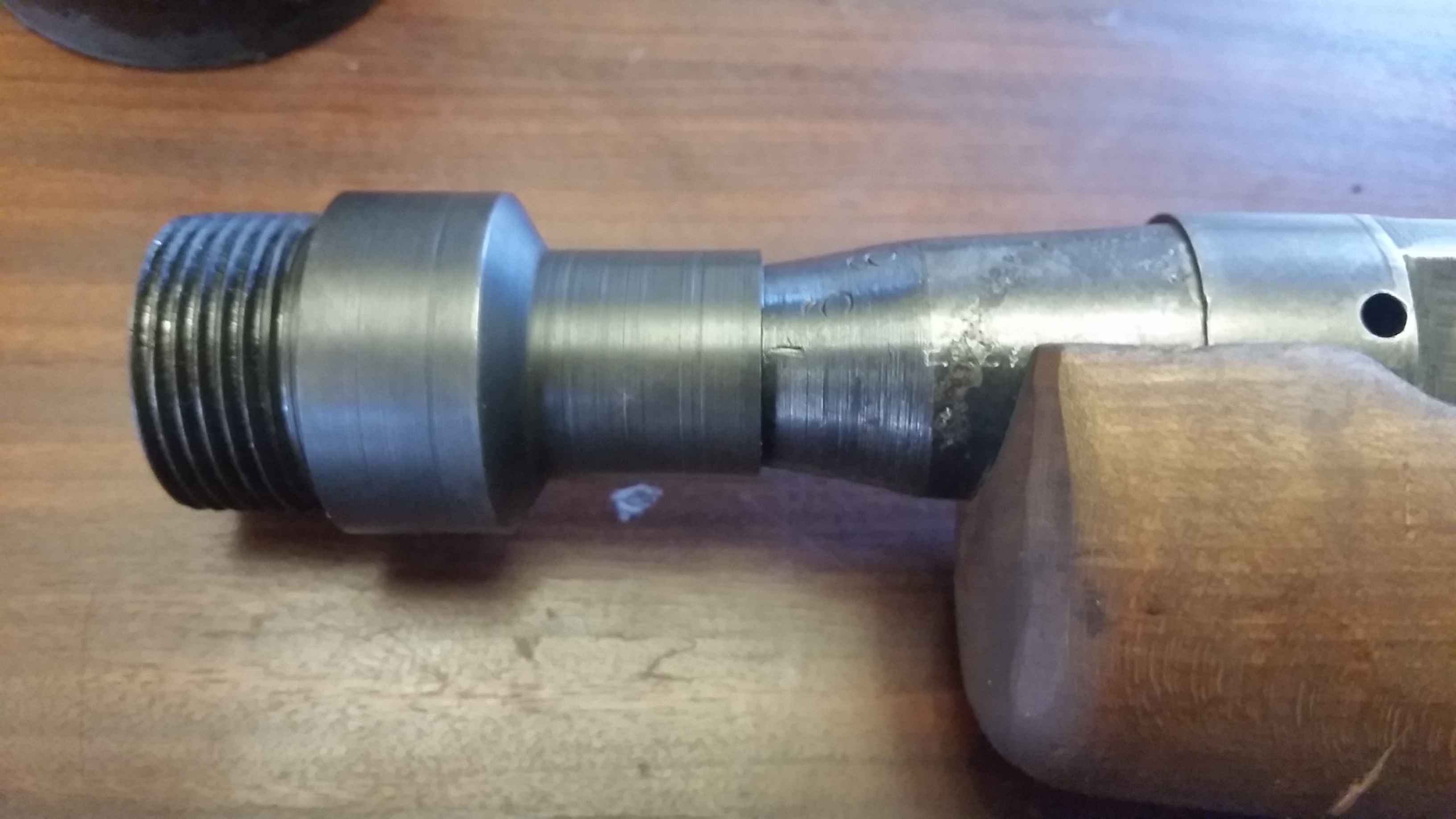

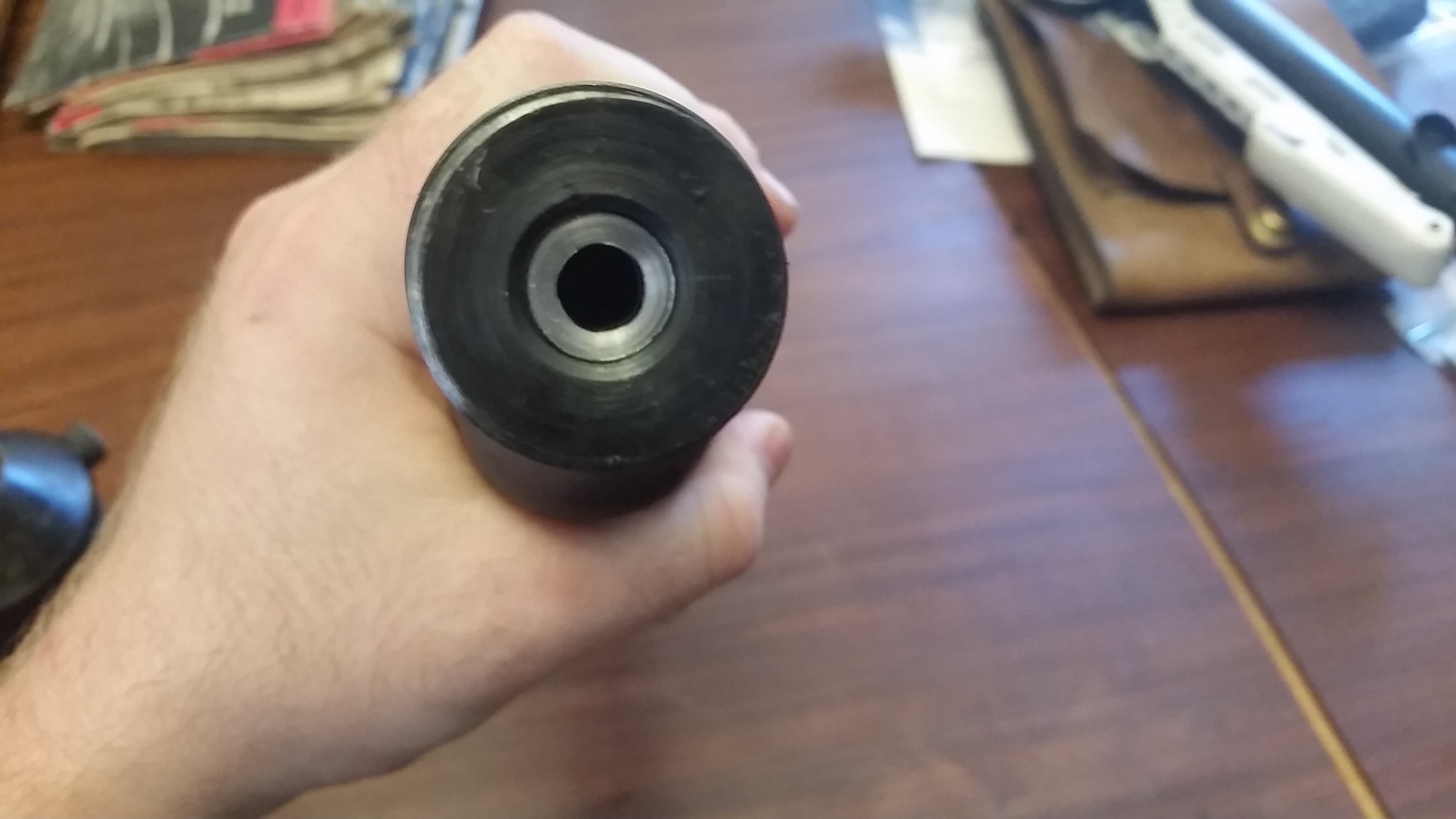

    I still have to re make the forend wood (I want it darker) and I have to make the adapter to put the reduced ID grenade cup onto the gun...

    After that, my buddies and I are throwing on some jawa costumes and then a 6'5" and a 5'11" jawa are going to go to a public range to shoot at a cardbaord R2D2...

    Oh and we will be dumping non dairy creamer into the bore of the lanucher cup to creat a greatly enhanced fireball.

    Here is the inspection video and the test fire video from my youtube channel.

    I'm very glad I finally have something to share on here. :D


    Last edited by a moderator: Nov 8, 2018
    jkno and mugatu like this.
  2. mugatu

    mugatu Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,782
    WOW! This looks great! I can't wait to see your video from the shooting range.

  3. LorduDesign

    LorduDesign Sr Member

    Trophy Points:
    1,085
    I'm totally speechless :eek:

  4. mortifactor

    mortifactor Well-Known Member

    Trophy Points:
    736
    Haha, I think this is the first time somebody has made a fictional non-lethal weapon into a real life, lethal weapon :D USA!!

    mugatu likes this.
  5. Proto Ordnance

    Proto Ordnance New Member

    Trophy Points:
    3

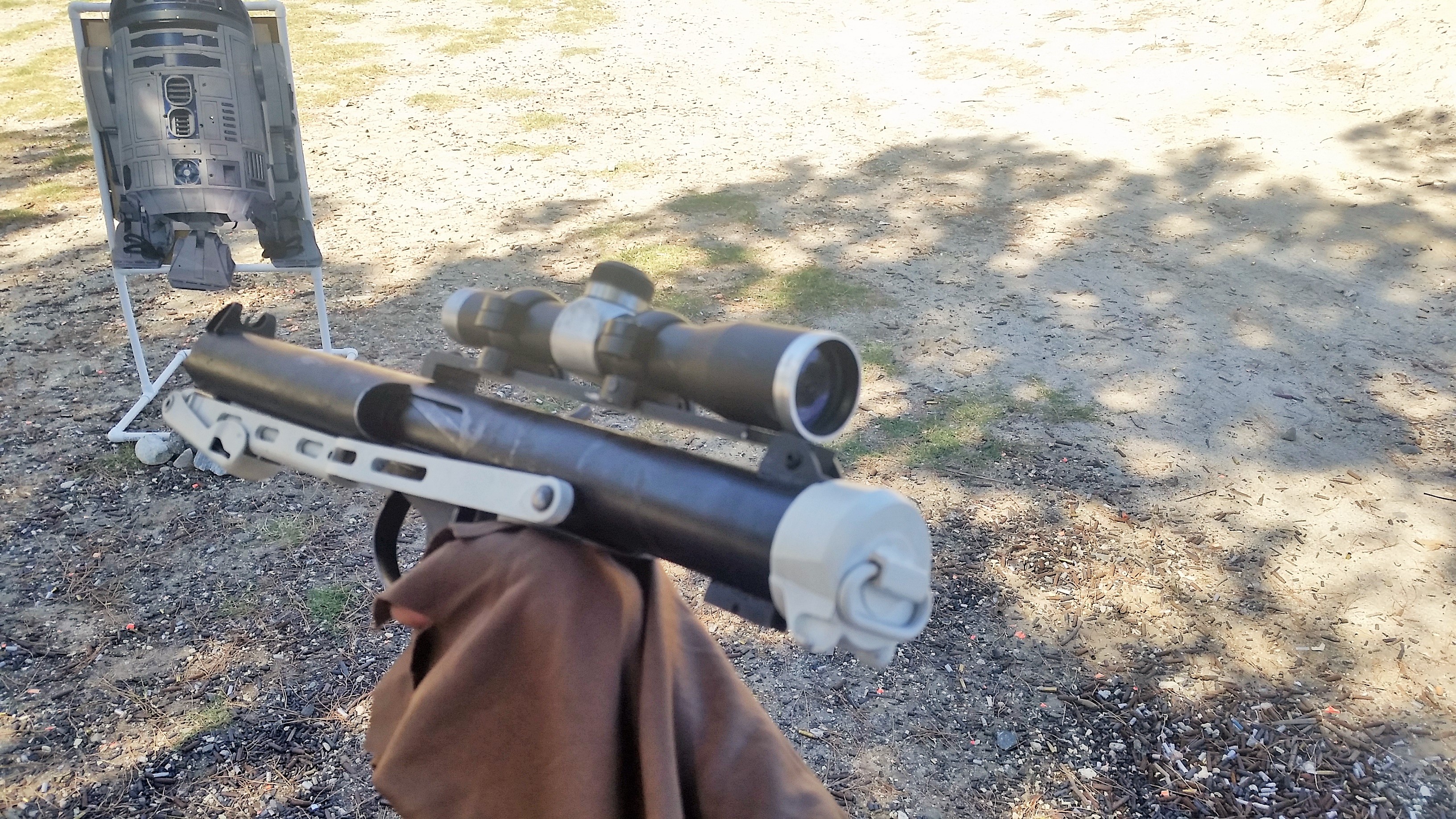

    We actually did a right side mag fed sterling based blaster from e7 first...

    Just haven't posted anything about it yet.... i really need to do a video on it

  6. Proto Ordnance

    Proto Ordnance New Member

    Trophy Points:
    3
    Got her ready to shoot:

    [video]www.youtube.com/watch?v=ACJx5LtMlrg[/video]


    20150722_150951.jpg 20150722_150355.jpeg 20150722_150422.jpeg 20150722_150929.jpg


    Attached Files:

    mugatu likes this.
  7. gunnerk19

    gunnerk19 Master Member

    Trophy Points:
    2,560
    Utinni!

  8. Proto Ordnance

    Proto Ordnance New Member

    Trophy Points:
    3
  9. Proto Ordnance

    Proto Ordnance New Member

    Trophy Points:
    3
    20150726_163253_zpsklqgcfu8.JPG 20150726_163259_zpsm7bldkyc.JPG 20150726_163304_zpsjaobfush.JPG 20150726_163331_zps6rs2gs7m.JPG 20150726_163341_zpsji6seudb.JPG 20150726_163402_zpsjff8qqhe.JPG 20150726_163412_zpsii71fbff.JPG 20150726_165515_zpsonw01at0.JPG

    - - - Updated - - -

    20150726_165533_zpswuhzqani.JPG 20150726_165519_zpsi4lurlgw.JPG 20150726_165544_zpsdlx7osj2.JPG 20150726_165548_zps8njellke.JPG 20150726_165553_zpswvbyi95b.JPG 20150726_165557_zpssxezrujk (1).JPG 20150726_174014_zpsefwwlcit.JPG

    - - - Updated - - -

    Uploading and editing footage of it being fired right now... I'll get a link up soon

  10. Proto Ordnance

    Proto Ordnance New Member

    Trophy Points:
    3


    Sorry for poor audio quality and rough editing..... we were having just way way way too much fun

    Last edited by a moderator: Nov 8, 2018
    bpatneaude likes this.
  11. mptachenko

    mptachenko Active Member

    Trophy Points:
    312
    Too much fun!

    !! Utini !!

  12. jedimax

    jedimax Member

    Trophy Points:
    191
    Omg it works, awesome .
