Leather Belt Pouches - Rough Templates

shagger999uk

Well-Known Member
I knocked these up using best guess based on a couple of known measurements, so probably not too accurate, but may be of use to someone.

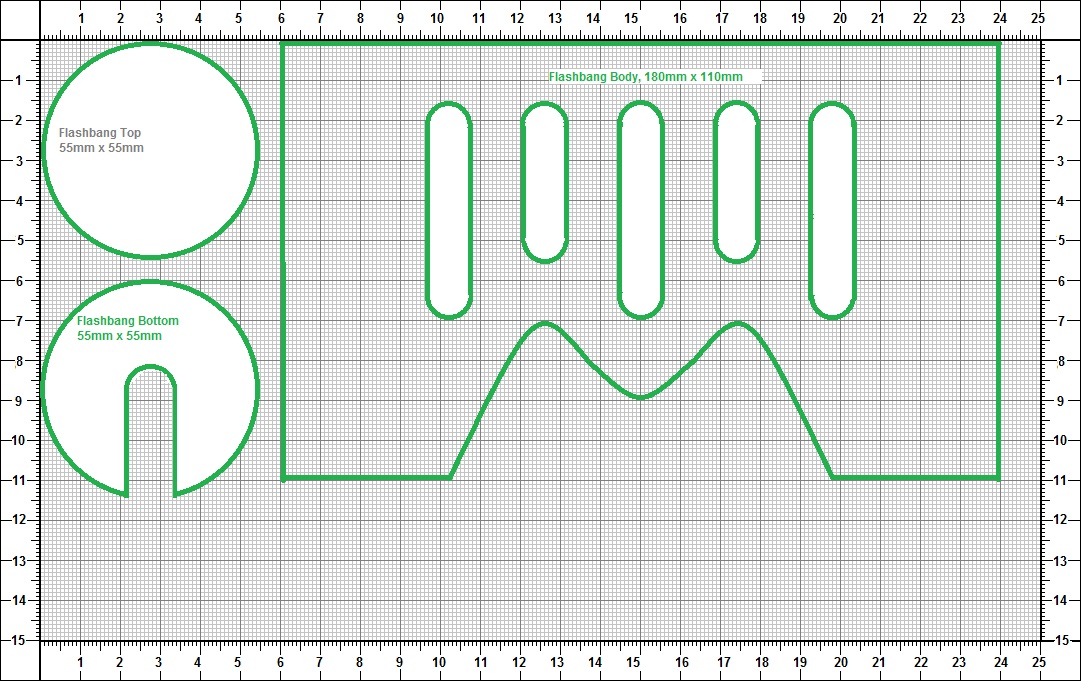

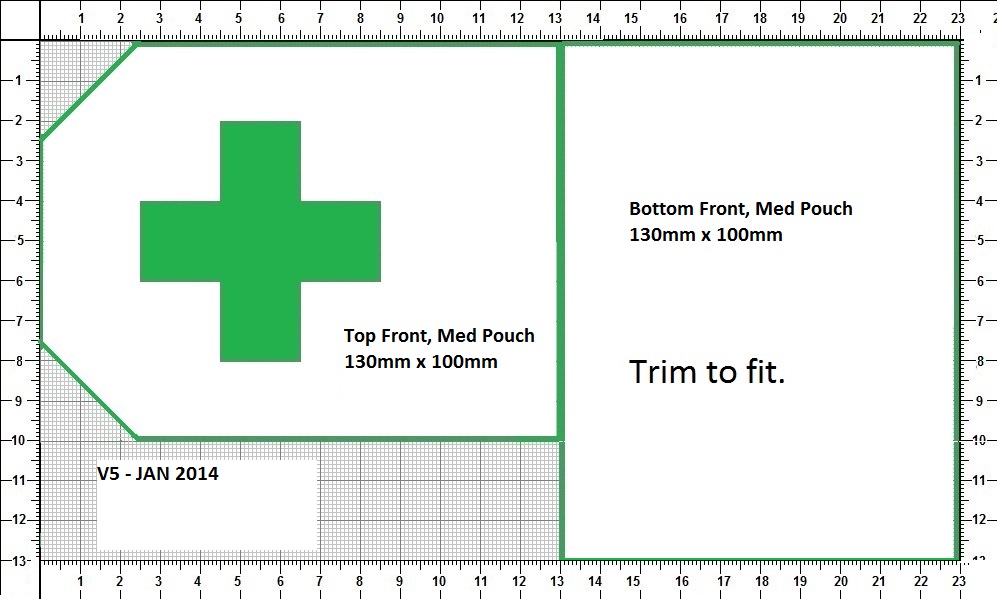

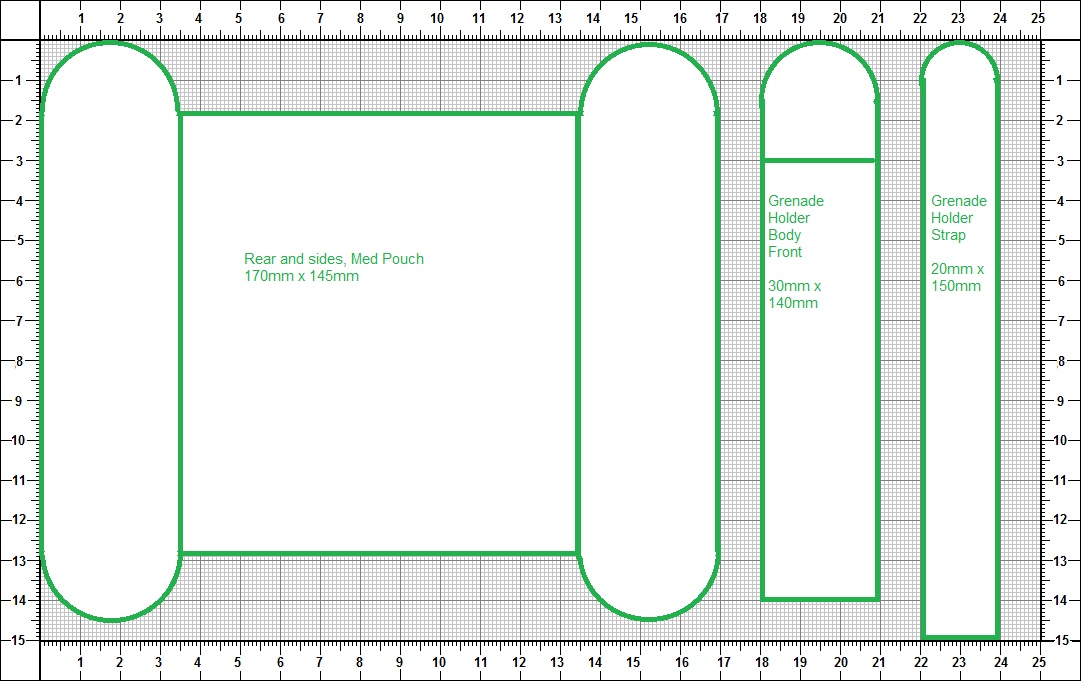

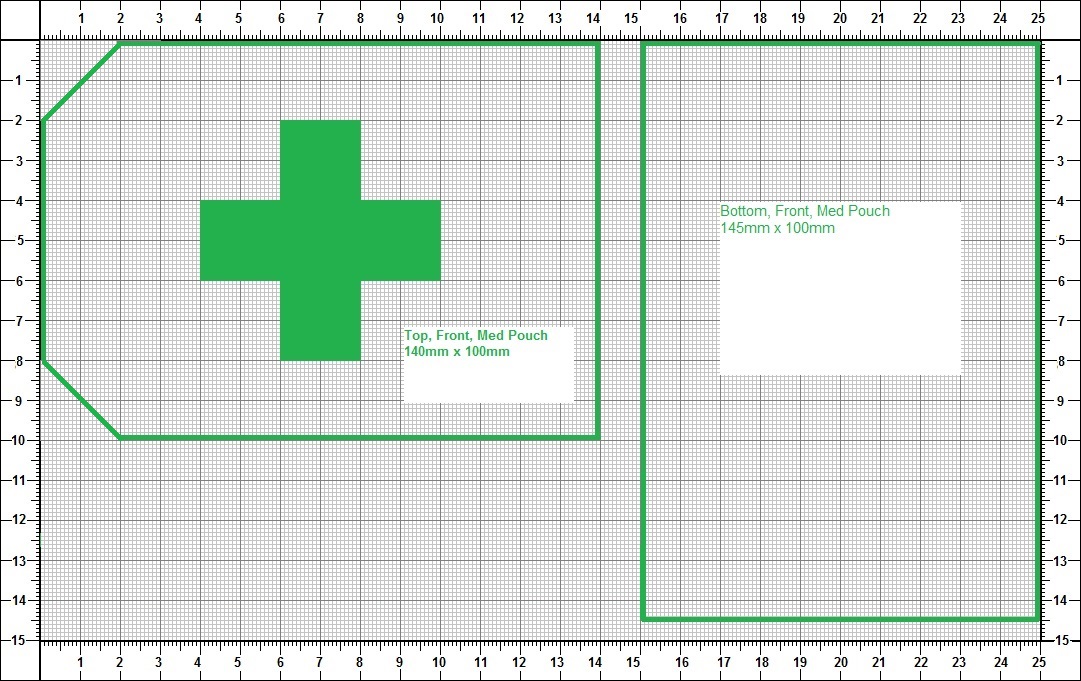

leather 1.jpgleather 2.jpgleather 3.jpgleather 4.jpg

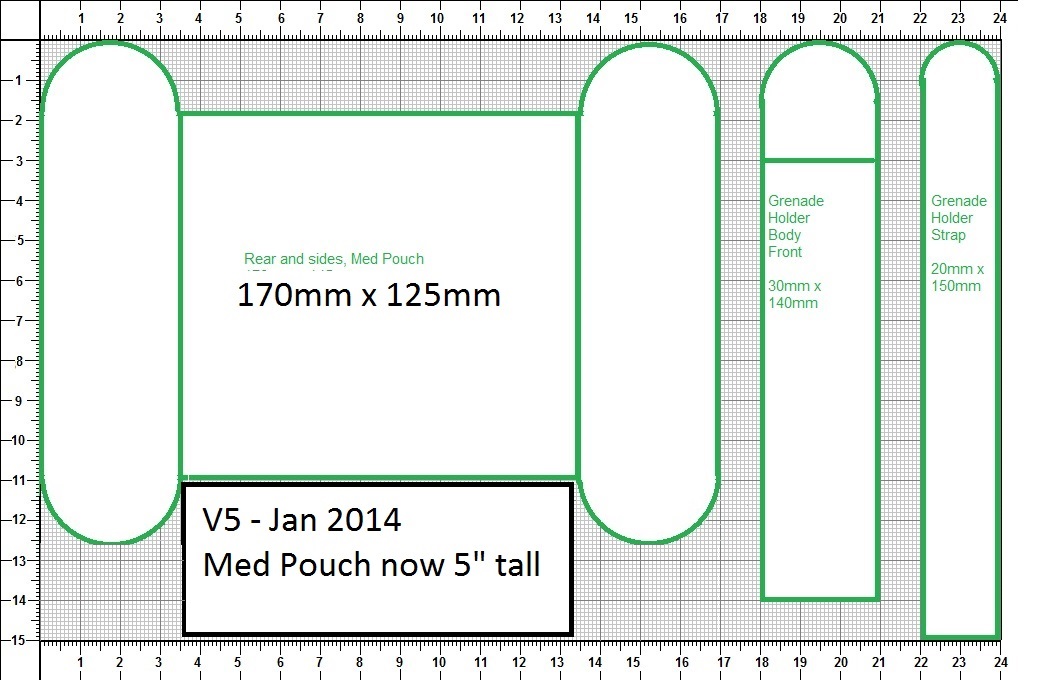

V5 Patterns as at Jan 2014.

DO NOT USE THE THUMBNAILS BELOW!


Attachments

  • leather 1a.jpg
    leather 1a.jpg
    412.8 KB · Views: 434
  • leather 2.jpg
    leather 2.jpg
    220.5 KB · Views: 7,067
  • leather 3.jpg
    leather 3.jpg
    421.8 KB · Views: 446
  • leather 4.jpg
    leather 4.jpg
    415.8 KB · Views: 392
Last edited:

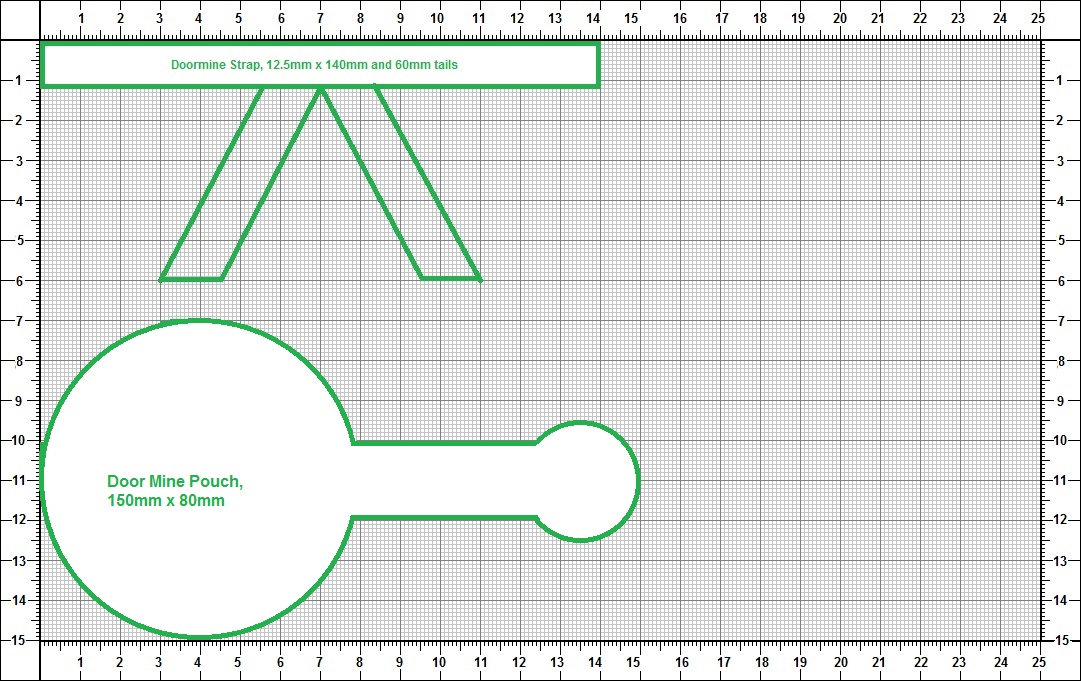

Revised the templates to make them more accurate. The Med Pouch now has longer 'flaps', better corners and a better placed cross. The Doormine Pouch now has a larger margin around the mine, slightly thicker strap and flap. The Flashbang and Gas Grenade Pouches remain the same.


Attachments

  • leather 1.jpg
    leather 1.jpg
    413.5 KB · Views: 1,385
  • leather 2.jpg
    leather 2.jpg
    220.5 KB · Views: 367
  • leather 3.jpg
    leather 3.jpg
    421.8 KB · Views: 1,895
  • leather 4.jpg
    leather 4.jpg
    400 KB · Views: 323
Last edited:

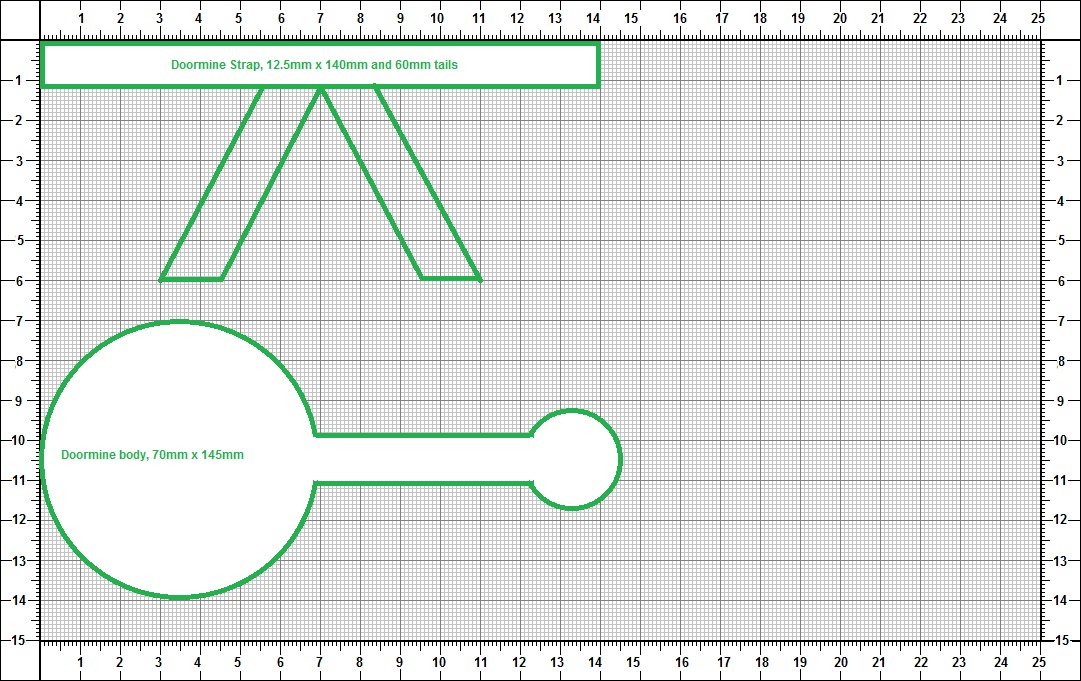

The arm of the mine holder that curves around with the snap has a gradual curve from the primary body into the arm, and then again from the arm into the circle on the end, rather than simply being two circles joined by a strip as seen here.

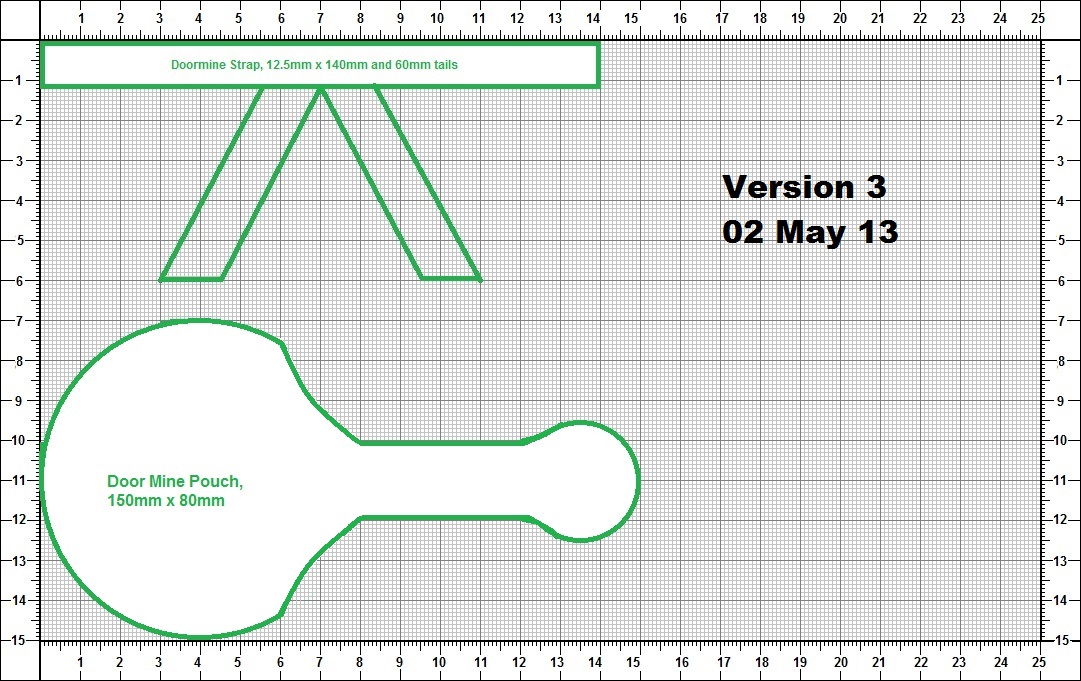

Amended Door Mine Pouch ;)
See first post for latest version of templates.


Attachments

  • leather 4.jpg
    leather 4.jpg
    403.5 KB · Views: 361
Last edited:
These are great! I just bought a bag of leather scraps from a surplus store (only costs about $7) and started using these templates to make the pouches.

One question though...how do you attach the straps on the backside of the door mine pouch? I'm assuming you just sew them flush against the backside of the round base, but I think I've seen others use rivets as well.

Last edited:
Thanks again.
All sizes were up to specs and fits well with with respective accessories...

[/URL][/IMG]

[/URL][/IMG]

I just wanted to thank you for sharing this with the community. It is much appreciated!
