Kylo Ren: Buckle WIP

Discussion in 'Star Wars Costumes and Props' started by Sni9er, Apr 16, 2015.

  1. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    hey guys

    so like everyone else i watched the SW Trailer and GAWPED

    cant wait to see more Costumes from the Film

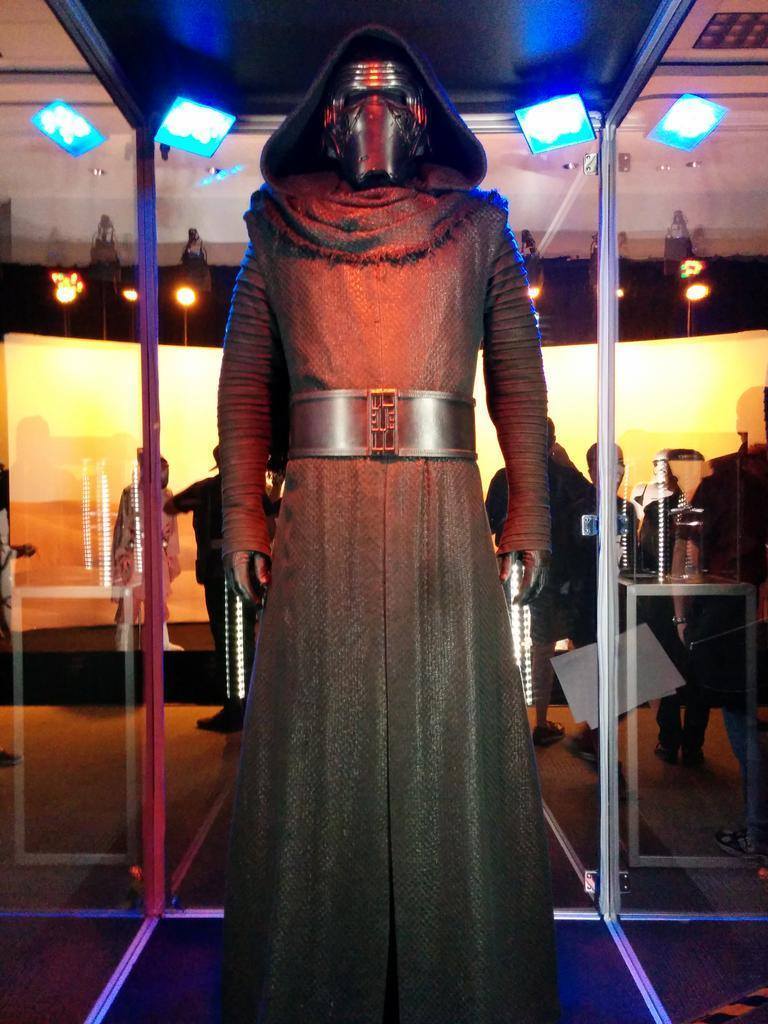

    this photo of Kylo Ren appeared

    I decided to design the Buckle and go from there with plans on the helmet over the weekend since we have so many reference shots now from CVII (or at least make a start)

    So anyway I derived my measurements from Adam Drivers Height (as supposedly he will play the titular Sith) as 1.91 meters which gave me a buckle height of about 125mm /5 inch

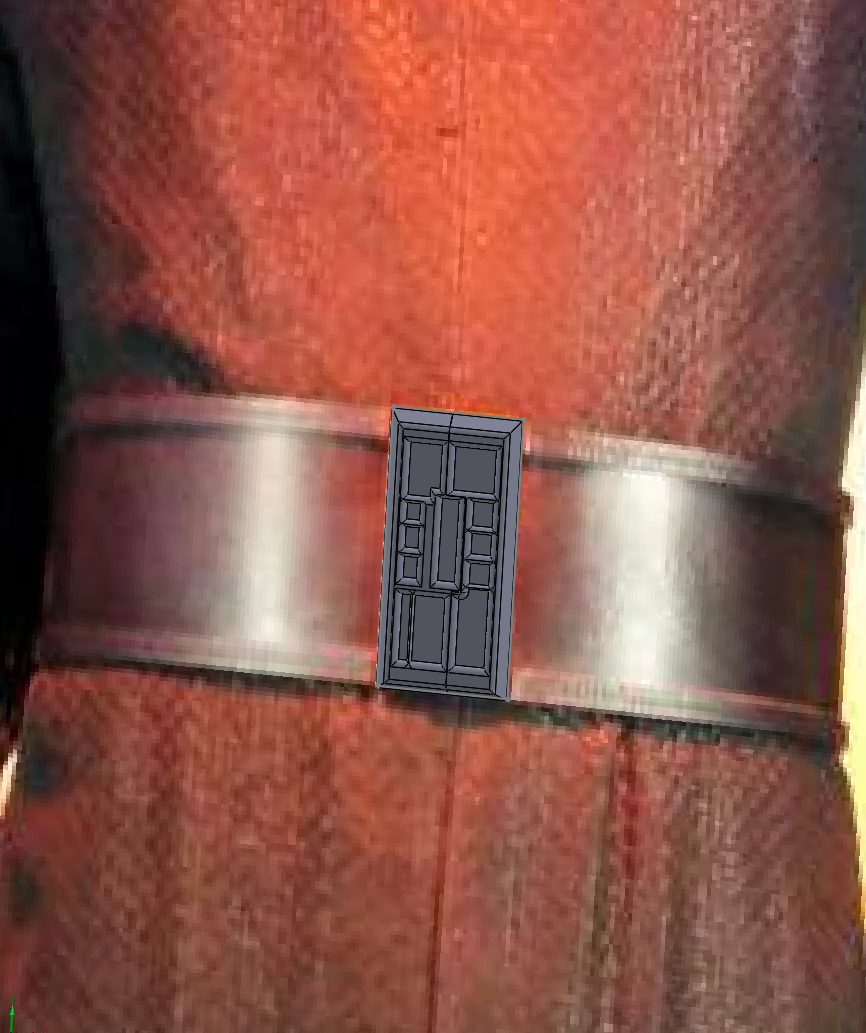

    without further adu my model is here:

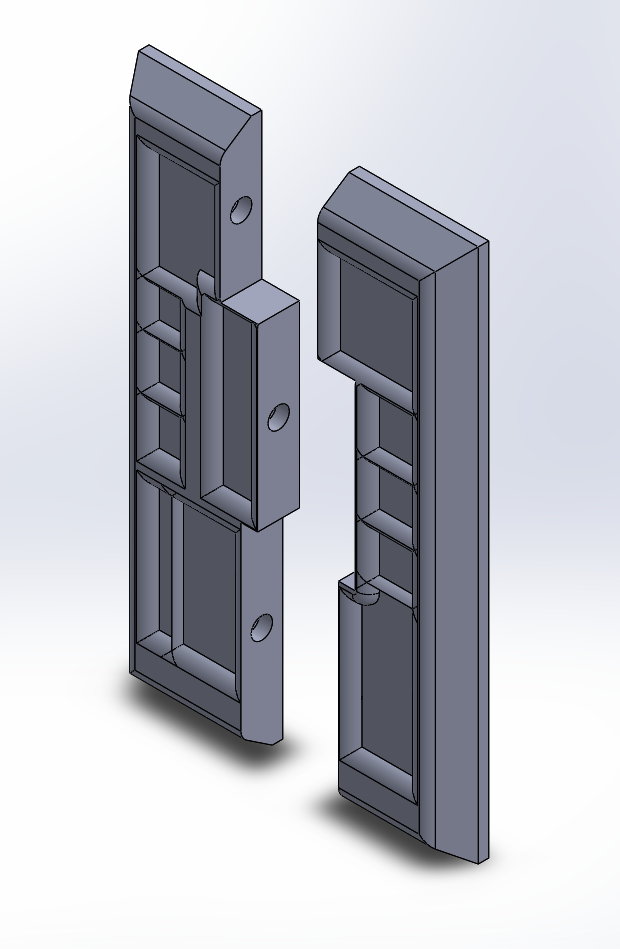

    I also from the photos seemed to spot a seem line on the buckle for now i've built in a magnetic closure until i consider a better method of closure


    I'll print the mesh tonight and if there is interest i'll happily share it tomorrow :)

    comments, adjustments anything ?

    =JJ=

  2. joshvanrad

    joshvanrad Sr Member

    Trophy Points:
    1,991
    Following!

  3. RINZLERTRON

    RINZLERTRON Sr Member

    Trophy Points:
    1,356
    Definitely have some interest from me! I'd love to get a copy of the model (or the buckle itself if you do a run) off of you!

  4. Chicagovader

    Chicagovader Sr Member

    Trophy Points:
    1,010
    If you offer casting I want one!

  5. mvanwalks421

    mvanwalks421 Active Member

    Trophy Points:
    487
  6. zorg

    zorg Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,661
    bigger pic


    Attached Files:

  7. The Amazing SM

    The Amazing SM Member

    Trophy Points:
    191
    Totally keeping an eye on this!! Would love one

  8. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    Awesome thank you! I'll refine based on this shot cheers bud!!

  9. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    Can anyone attending confirm or snap the belt is just continuous ? Also a flash shot of the mask would be REALLY Appreciated!

  10. RINZLERTRON

    RINZLERTRON Sr Member

    Trophy Points:
    1,356
  11. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
  12. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
  13. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    Update :)

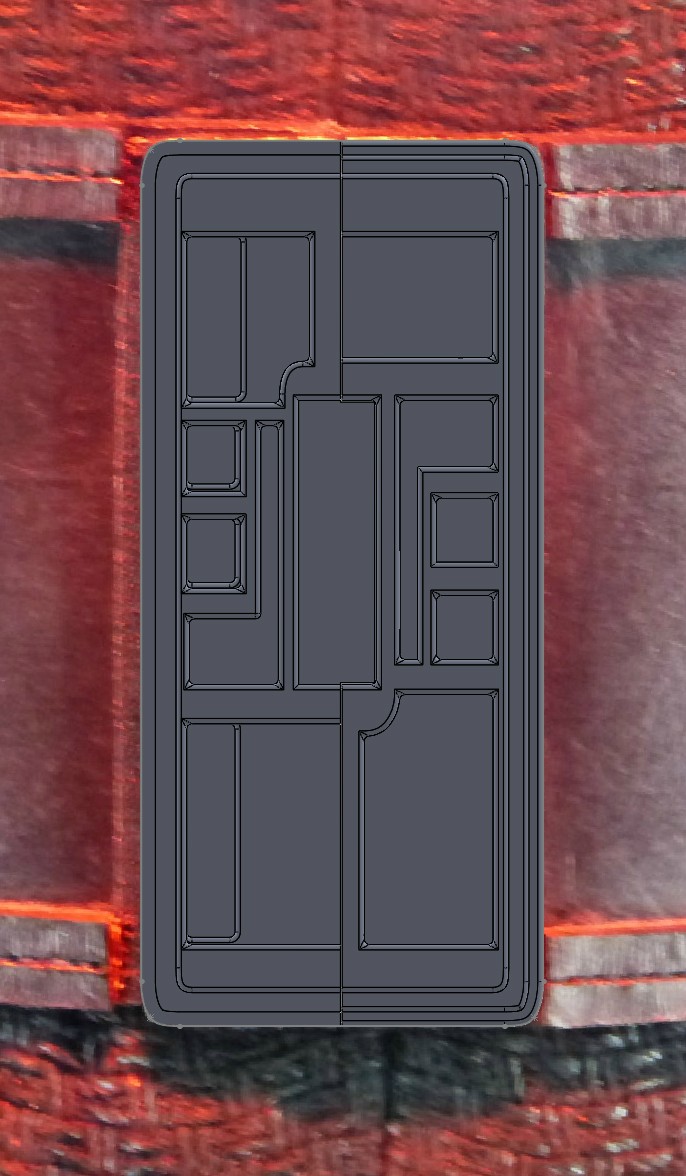

    Version 2.0:

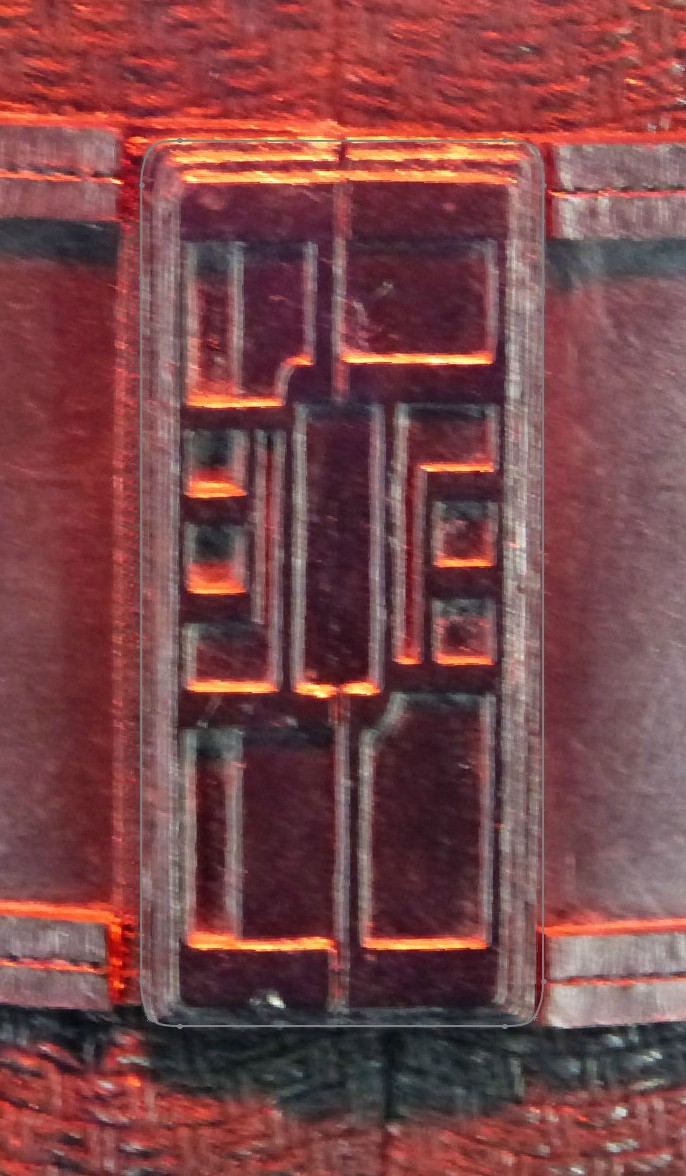

    R9SfY1I.jpg 75dSUkG.jpg

    will work on the clast later today :)

    Kilryth likes this.
  14. Kilryth

    Kilryth New Member

    Trophy Points:
    17
    Thats looking great!! The vertical lines are spaced out a bit more in some of your model than the replica (I.e. slightly wider in your model). Particularly the center rectangle, upper left box's center line, and lower left box's center line.
    Looks amazing though!!!!

  15. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441

    I'll be reminding this model to V3 again as someone sent me an even higher res pin sharp shot so i'll update this today !

  16. VegasSkywalker

    VegasSkywalker Well-Known Member

    Trophy Points:
    716
    [​IMG]

    Can't wait to see what you come up with!! :) looks great to far!
    Here's mine!

    JJ Griffin likes this.
  17. Prankzter

    Prankzter New Member

    Trophy Points:
    3
    Following haha

  18. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441

    could you grab a shot n MS paint and annotate not quite sure i see what you see ^^

  19. astralrayn

    astralrayn Member

    Trophy Points:
    162
    This is looking great so far! I like your magnetic closure design! I was having trouble getting my head around the clasp design and was thinking about doing this as a solid "buckle cover" kind of piece. I like your method much better, so accurate!

  20. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441

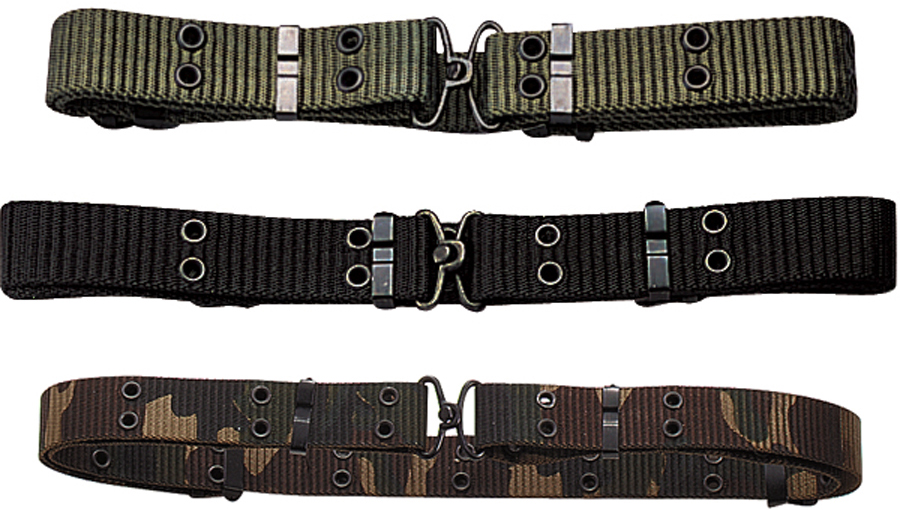

    i'm still considering that exact idea as the magnets might now be strong enough in a pose to hold i was going to use a 38mm webbing clasp buckle in a hollowed out version of my design to try out

    (this type)


  21. astralrayn

    astralrayn Member

    Trophy Points:
    162
    I'd just grabbed this buckle from JoAnns yesterday, sorry for the lousy quality cellphone pic:

    My only concern with magnets was if you pushed your hips/stomach forward all of a sudden for whatever reason (spontaneous pelvic thrust - why not?) the magnets may pop open. But it seems like it would make a cleaner clasp design than trying to hide something behind it.


    ----- addition ------


    If you wind up using the buckle and get it to sit nice and flat, please post pics!

    chizbot likes this.
  22. Kilryth

    Kilryth New Member

    Trophy Points:
    17
    Sure. It could just be an optical illusion, but your model appears to have a couple areas that are marginally wider than the prop. Nothing major, just something I had noticed & pointed out. You just may want to confirm the dimensions the best you can. I drew in yellow "dimension lines" of each area that I thought might be a hair too wide, but it may be an illusion.


  23. bobafett669

    bobafett669 Active Member

    Trophy Points:
    371
    Actually the whole thing looks wider than the photo.

  24. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    It shouldn't be as I drew directly on an overlay I think this is a bit of optical tricker going on here as the one at the exhibit has lighting and different reflections going on where as the mesh is basically just flat colour sonits going to look wider in places right now, I'll post up a transparent overlay later for everyone

  25. levallois

    levallois New Member

    Trophy Points:
    17
    Here is a no-blurred picture

    [​IMG]
    click to enlarge.

  26. dday

    dday Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    What if it's not a straight up click together construction but rather parts inside that actually lock in? Purely hearsay but as you mentioned, magnets will not hold this together.

    So if there were semi hooks on one side the inserted into the main body of the otherside.

  27. dday

    dday Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    I also have a feeling that this bucklet is non functional. It is made to look like it comes apart but I'm thinking it doesn't

    On the top and bottom here I have circled what I think is supposed to look like an 'inserted part, like the hook I mentioned to latch things together. The right side is the male end and the right side being the female. You can see on the female side the internal part is not all the way to the left edge, seeming to me like it's the inserted part and a continuation of a clip from the male side (on the right).

    But in the buckle (like in the middle circle) you see a very rough edge up and down but it looks like the where the actual connection point should be, the parts look very much like a single piece. My guess is that the belt actually closes in the back behind the cape and the front buckle is just a visual part.

    [​IMG]

    Kilryth likes this.
  28. guabe

    guabe Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    785
    there is actually some velcro between the leather and the buckle.. I also think its non funcitonal and just decorative.
    [​IMG]

    JJ Griffin and Kilryth like this.
  29. dday

    dday Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830

    If this is the case (which it seems to be) it might be functional to hold it together.

    Velcro on the left and right of the belt and the buckle on top to hold them both together? Good velcro would hold the weight I"m sure.

  30. astralrayn

    astralrayn Member

    Trophy Points:
    162

    This is so simple and brilliant, I feel like an idiot for not thinking of it. Industrial velcro would accomplish this easily and it's very low profile and strong: http://amzn.com/B00006RSP1 I've used it on a few costume belts in the past. Edit: My boyfriend also used it on his first mando build to attach his armor plates. So it's very durable stuff and will tolerate a lot of stress and movement.

    Last edited by a moderator: Nov 9, 2018
  31. mikkonator

    mikkonator Member

    Trophy Points:
    191
    Fantastic catch on the Velcro!

  32. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    Haha I considered that from the front shot there is a slither!!

    Does anyone have a preference for a casting of smooth finish for you to texture or a cast of a textured buckle ??

  33. astralrayn

    astralrayn Member

    Trophy Points:
    162
    My experience in working with casts is limited to pretty much my mando helmet. But I imagine cast smooth so we can paint and then weather ourselves? Right?

    Kilryth likes this.
  34. Evil Benius

    Evil Benius Active Member

    Trophy Points:
    341
    I would say a smooth cast would probably make more sense and allow for people to customize as they see fit. I have no idea how much of a difference that makes on your end however.

  35. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    makes life a little easier actually ^^

  36. Kilryth

    Kilryth New Member

    Trophy Points:
    17
    Smooth cast preferred. I agree its a Single cosmetic piece, rather than two pieces.

  37. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    Vycanthus and JJ Griffin like this.
  38. JJ Griffin

    JJ Griffin Sr Member

    Trophy Points:
    1,135
    Great work here, Luke, looking forward to how the print turns out. :)

  39. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    thanks JJ ! I'm printing it in 3 layers so i can sand the edges better and then glue before casting

    and we're live !

    http://bit.ly/MMF-JJIndustriesUK

    Last edited: Apr 23, 2015
  40. mikkonator

    mikkonator Member

    Trophy Points:
    191
    Wow, you werent kidding. I'm watching this getting printed LIVE, brilliant! :lol

  41. astralrayn

    astralrayn Member

    Trophy Points:
    162
    This is awesome to watch! Do you have a price on what your casts will cost? I'm interested.

  42. Hanslow

    Hanslow Member

    Trophy Points:
    191
    Put me down for one of these as well ;)

  43. Hanslow

    Hanslow Member

    Trophy Points:
    191
    At this rate Sni9er, you've got my paychecks for months! haha

  44. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    hey someone might yet swoop in and outdo me by a mile haha that helmet is murdering me haha

    aiming to cast that buckle this week maybe

  45. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    First shot of the 3D Printed Buckle prototype


  46. Hanslow

    Hanslow Member

    Trophy Points:
    191
    Much sexy. Very wow. ;)

  47. bh1138

    bh1138 Active Member

    Trophy Points:
    361
    Beautiful print! If I could offer one slight critique, the round corner on the middle right side is the one thing that bugs me. It doesn't quite line up where it should. Other than that, it looks fantastic! :)

    [​IMG]

    Kilryth likes this.
  48. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441
    That's a great shot !! And ill correct that for sure that picture has actually highlighted some more detail I didn't see on the buckle mods incoming !!!

  49. Chicagovader

    Chicagovader Sr Member

    Trophy Points:
    1,010
    what's the length of the buckle? 3"- 3.5"?

  50. Sni9er

    Sni9er Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,441

    i'll post up a full measurement shot later today

    i took the measurment based on adam drivers height 1.91 meters the buckle comes out at about 125mm high (i rounded it to this to account for a 5 inch belt)
