Hi all!

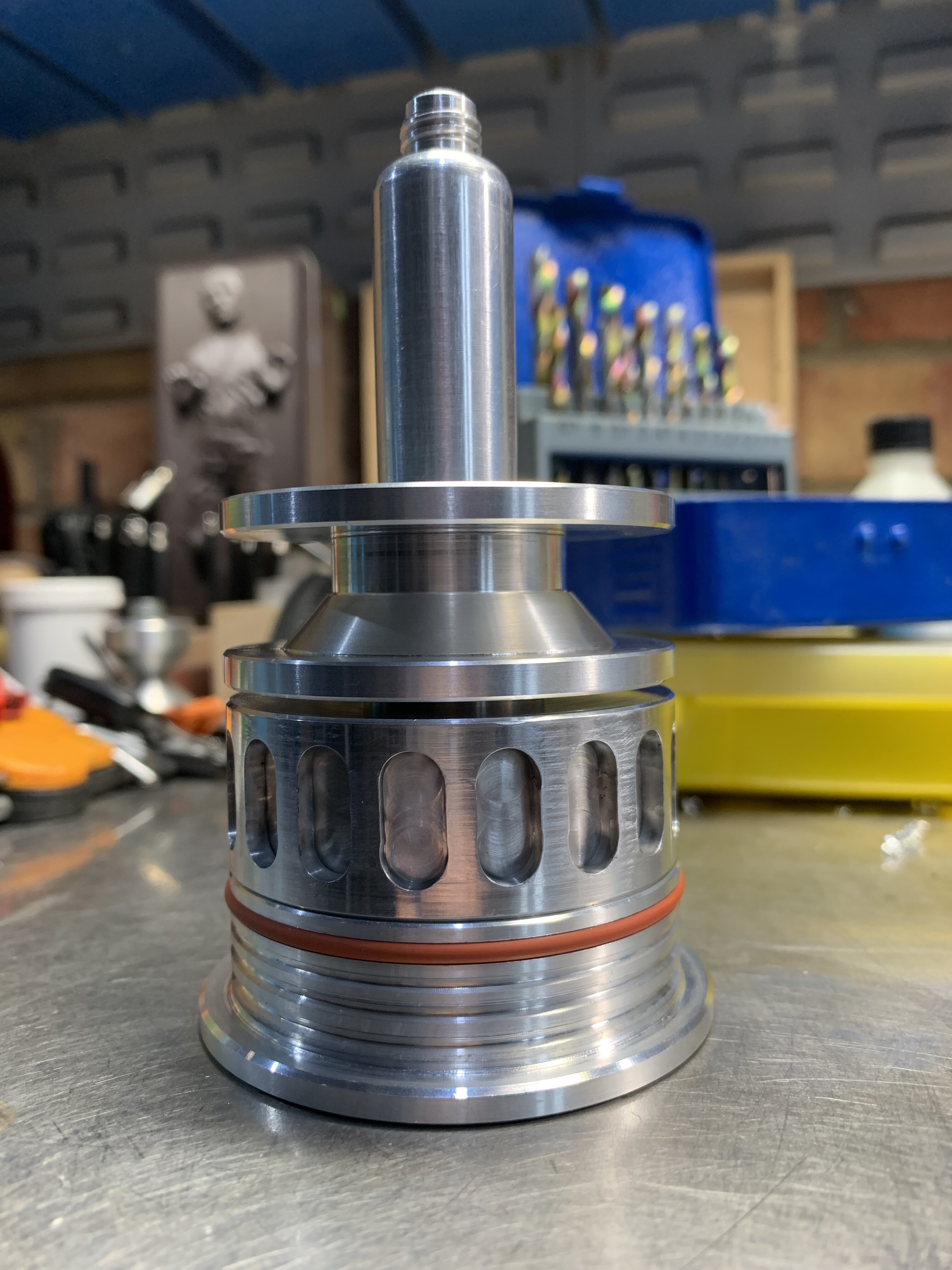

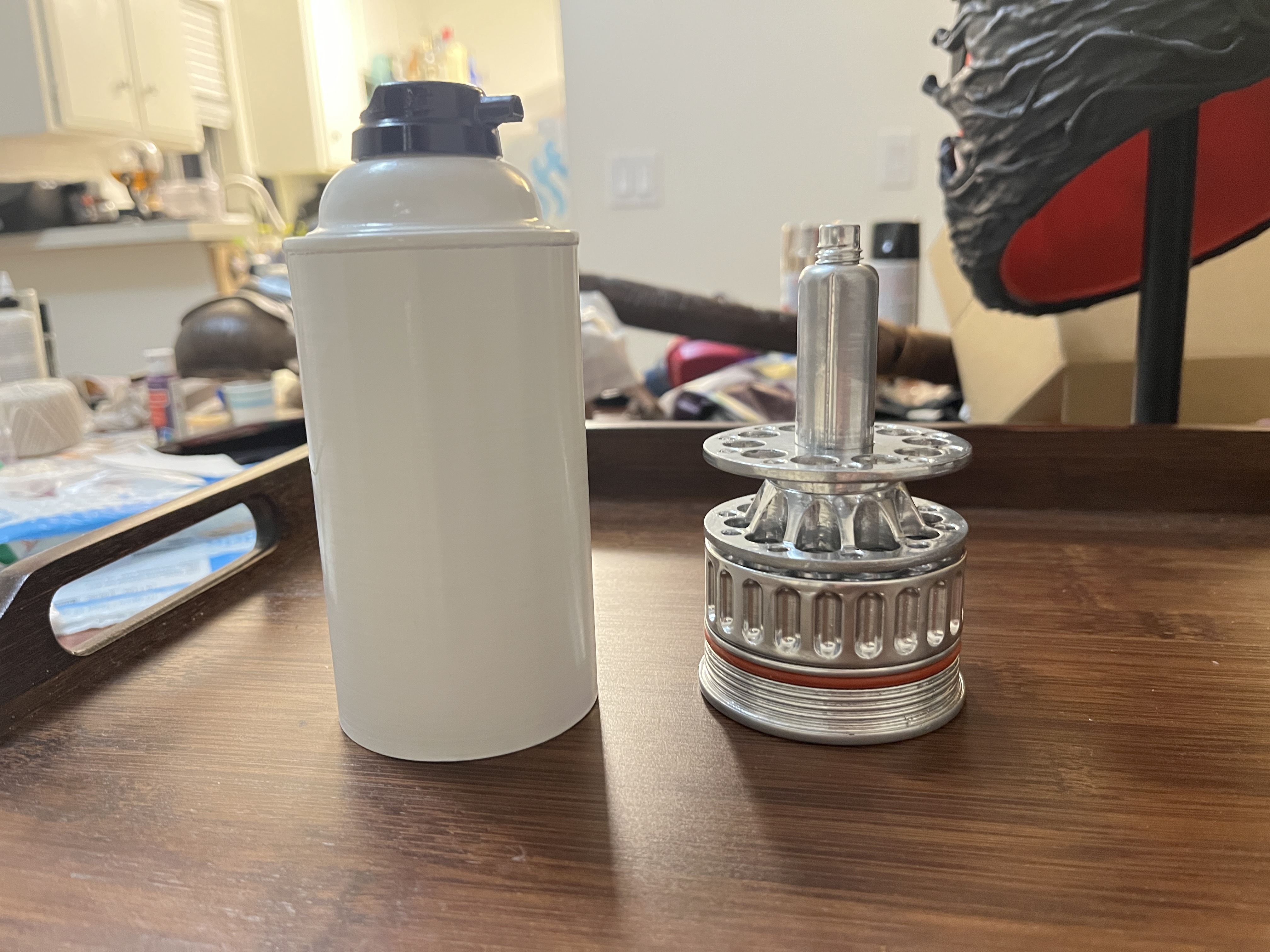

Some of you might have seen my last thread with a review of a cryocan, and I expressed that my frustrations with it made me want to make my own— well, here's my progress on that! Once I'm done, I'm going to try and get this machined in aluminum, but I'll also be sharing the files publicly through this thread for anyone to use.

Also, anybody know if the cryocan is still at the Universal Citywalk in LA? I just moved here and actually seeing the piece in person would be so helpful, but I'm not exactly sure where in the Citywalk I'd need to go and don't want to waste the parking money if its not—but I need to see about how many indents that bottom piece has (I have 22 right now and it looks right, but might be 24? My math might have been off).

All these measurements were made with the assumptions that the diameter inside the can is 65mm and the centrifuge vials are the same size, as those are what I used to make the measurement scale

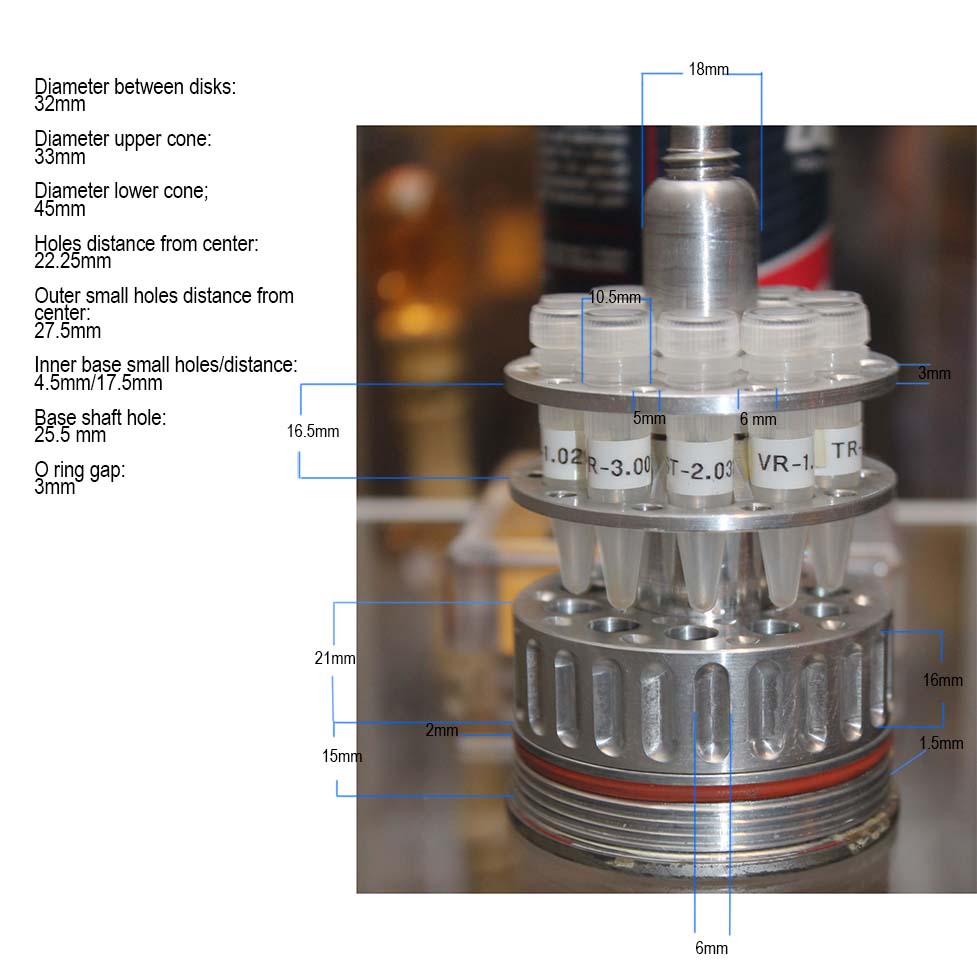

Here's the measurements made in Photoshop, I used screenshots, the photos taken of the prop while on display, and I started using photos from the Chronicle collectibles promotional photos, but I actually think there are a few things incorrect about the model, so I switched back to only reference from the actual prop:
Cryocan Spec.jpg

I see now that a few of the measurements aren't there or are a little off, I made a lot of the measurements on the spot while I was modeling in blender and forgot to write it down, and a lot of the measurements were made for my own reference/notes, so if anything is confusing or if you have questions please let me know!

IMAGES

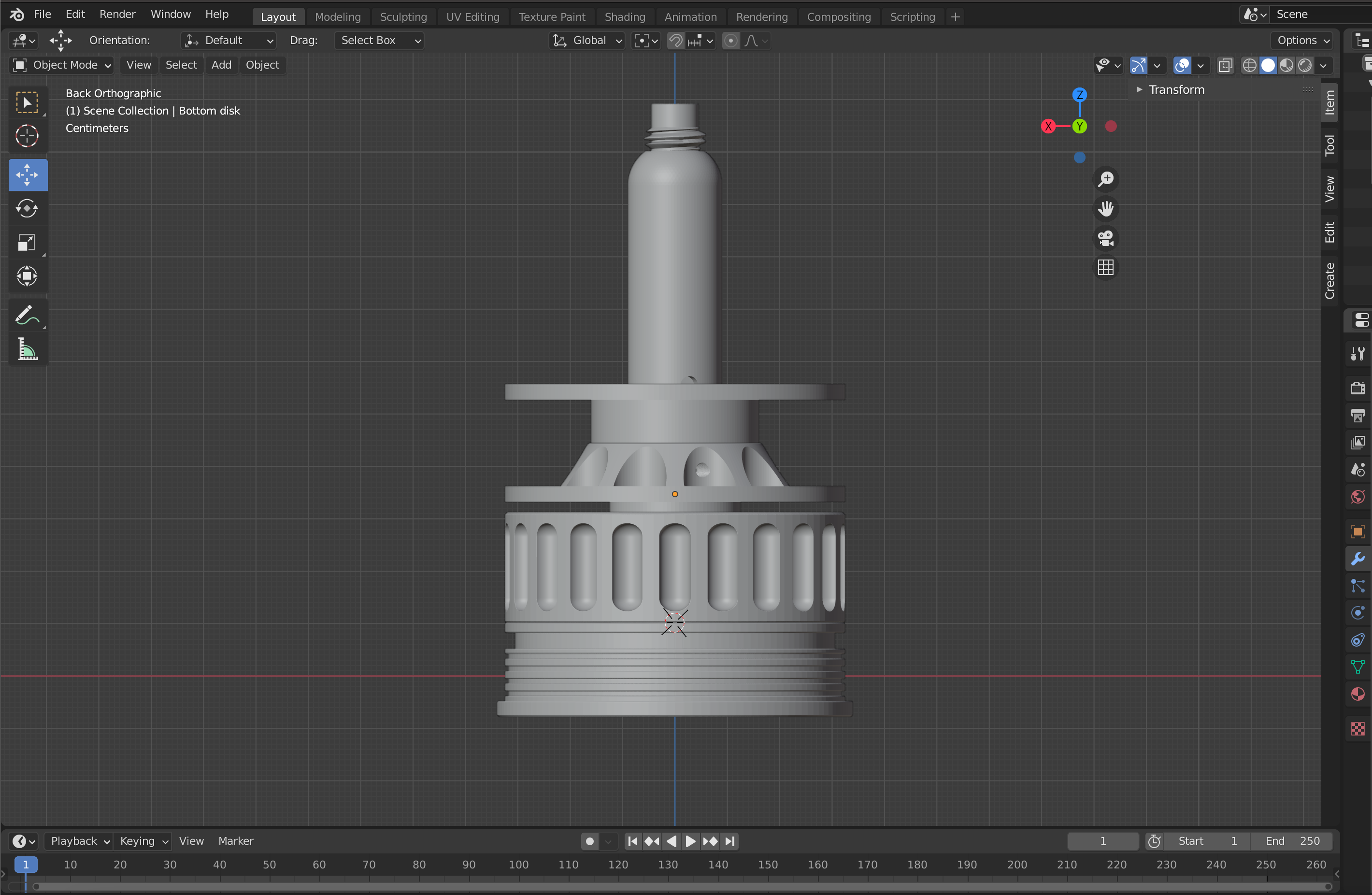

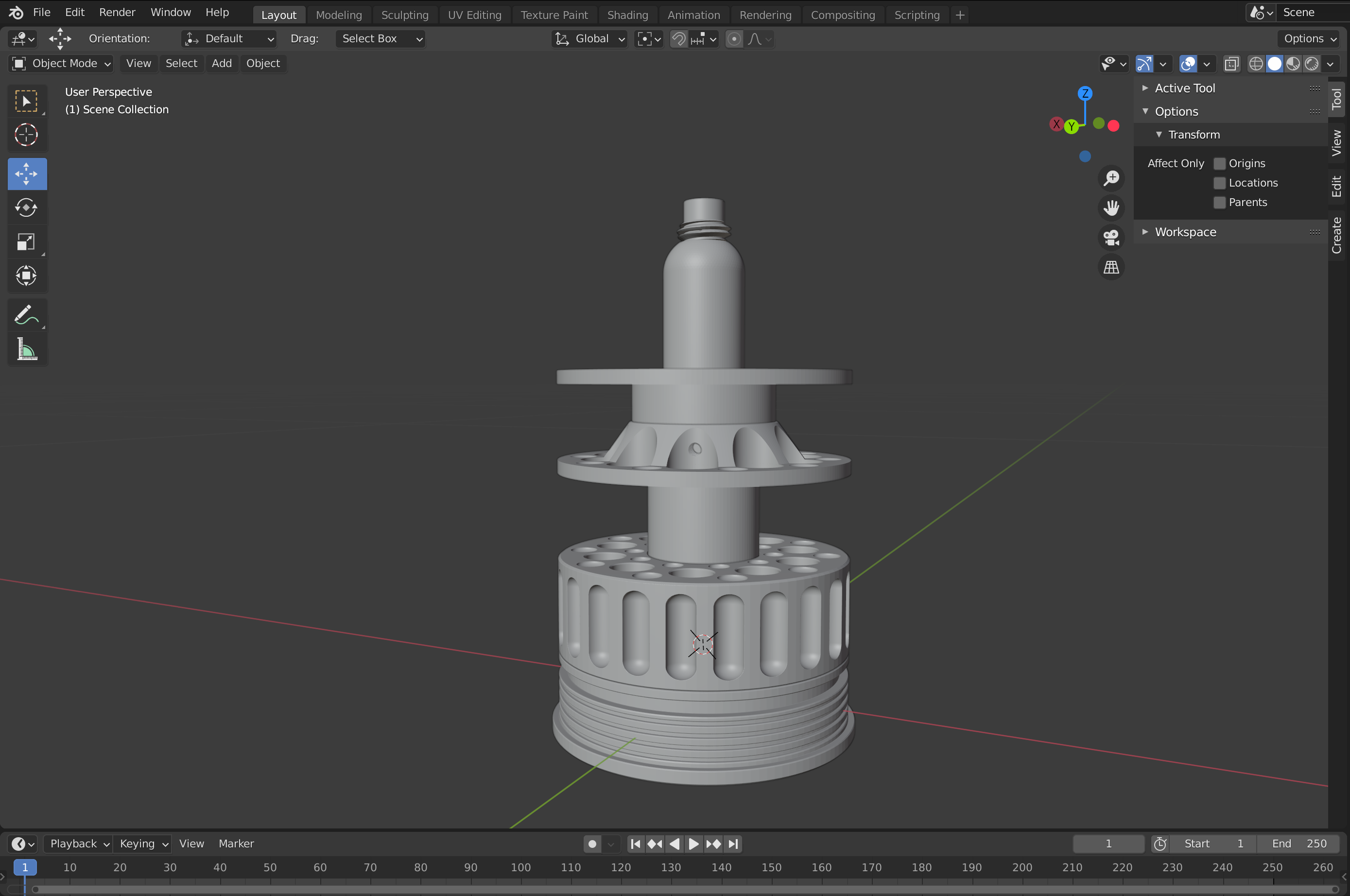

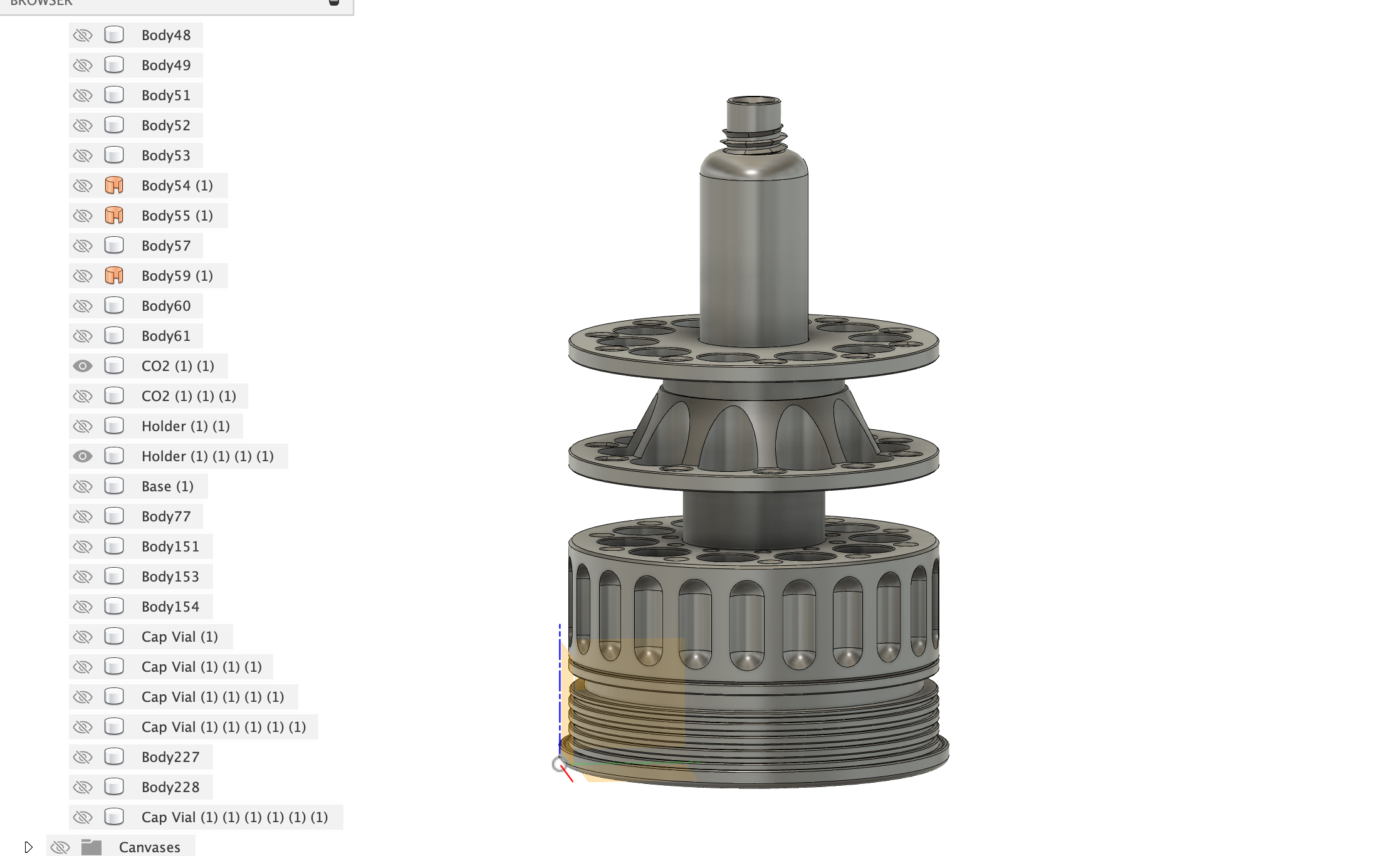

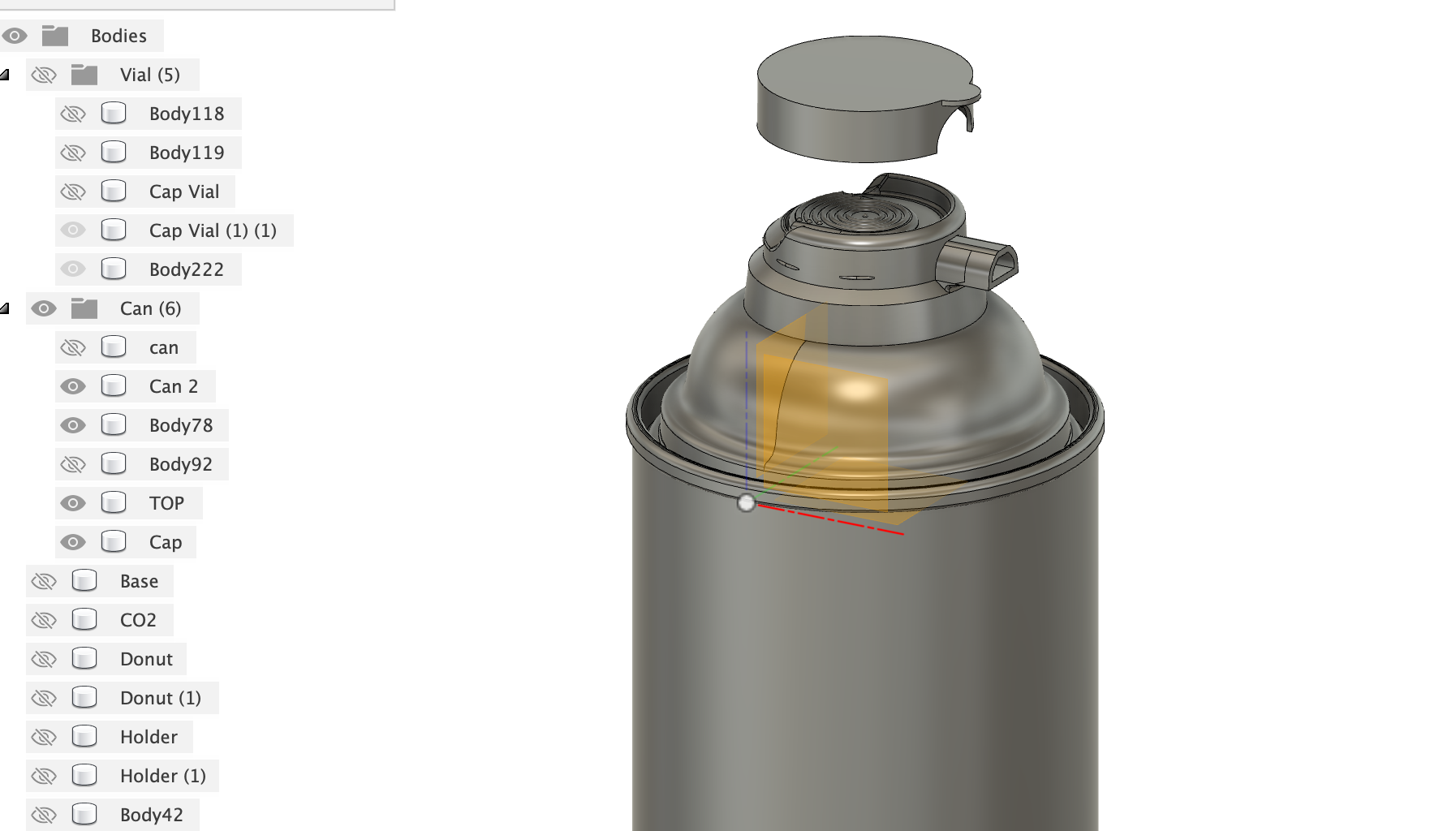

Here's the progress with the 3D model (yes, I forgot the notch, but I will be re-doing it anyways for reasons stated bellow):
Screen Shot 2021-08-27 at 2.23.46 AM.png
Screen Shot 2021-08-27 at 2.23.34 AM.png
Screen Shot 2021-08-27 at 2.22.05 AM.png
Screen Shot 2021-08-27 at 2.22.23 AM.png
Screen Shot 2021-08-27 at 2.24.38 AM.png

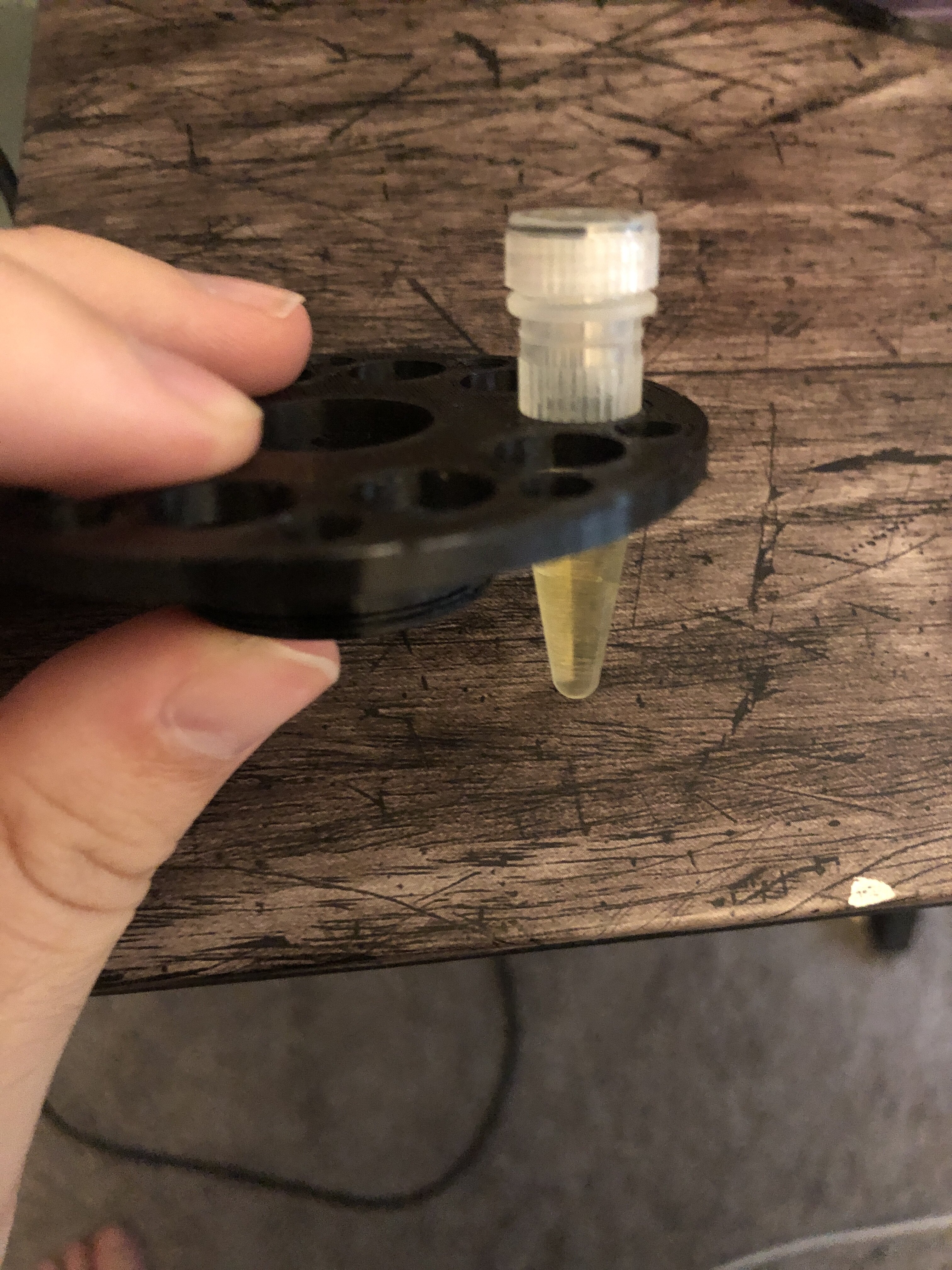

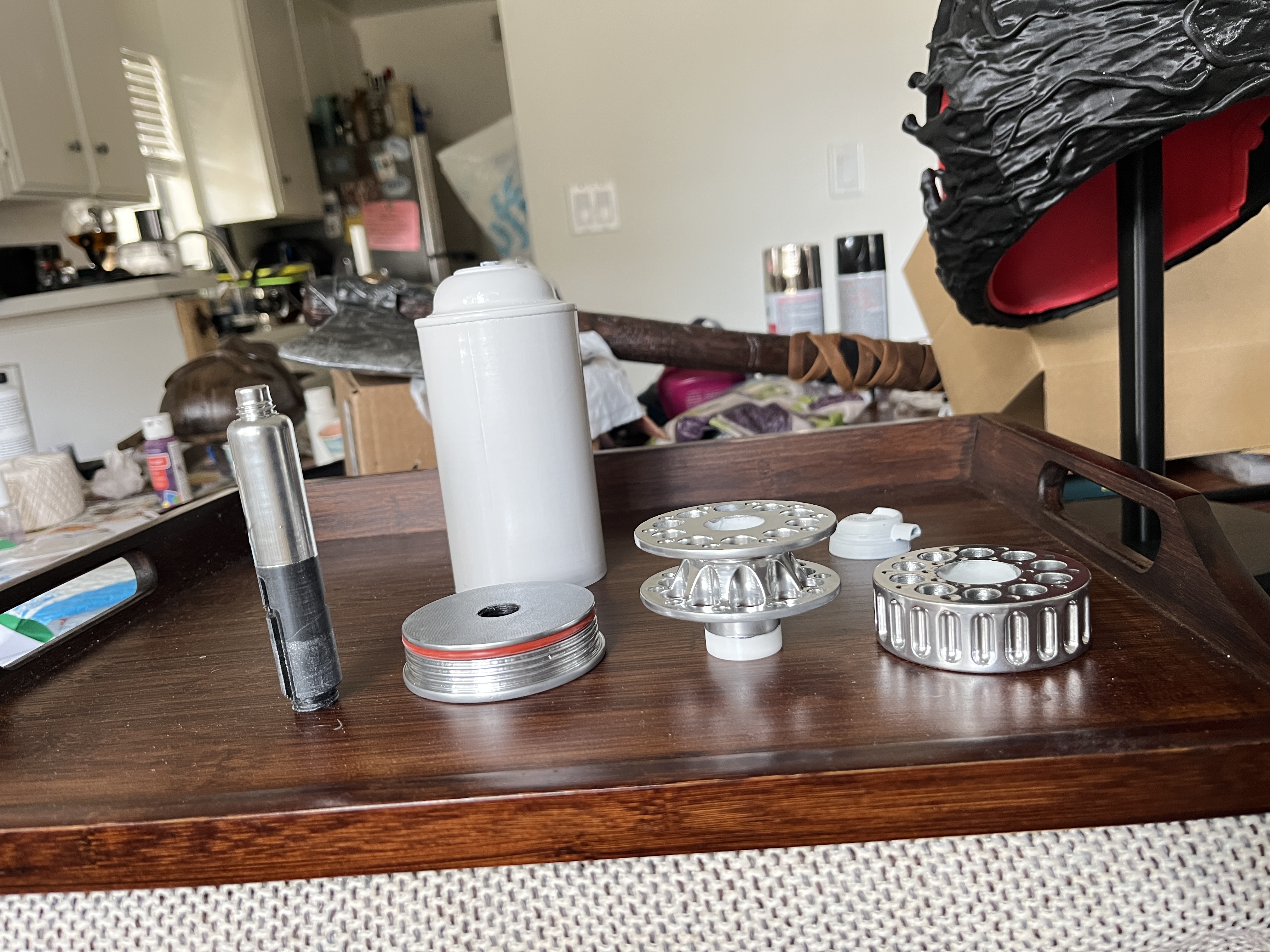

TEST PRINT

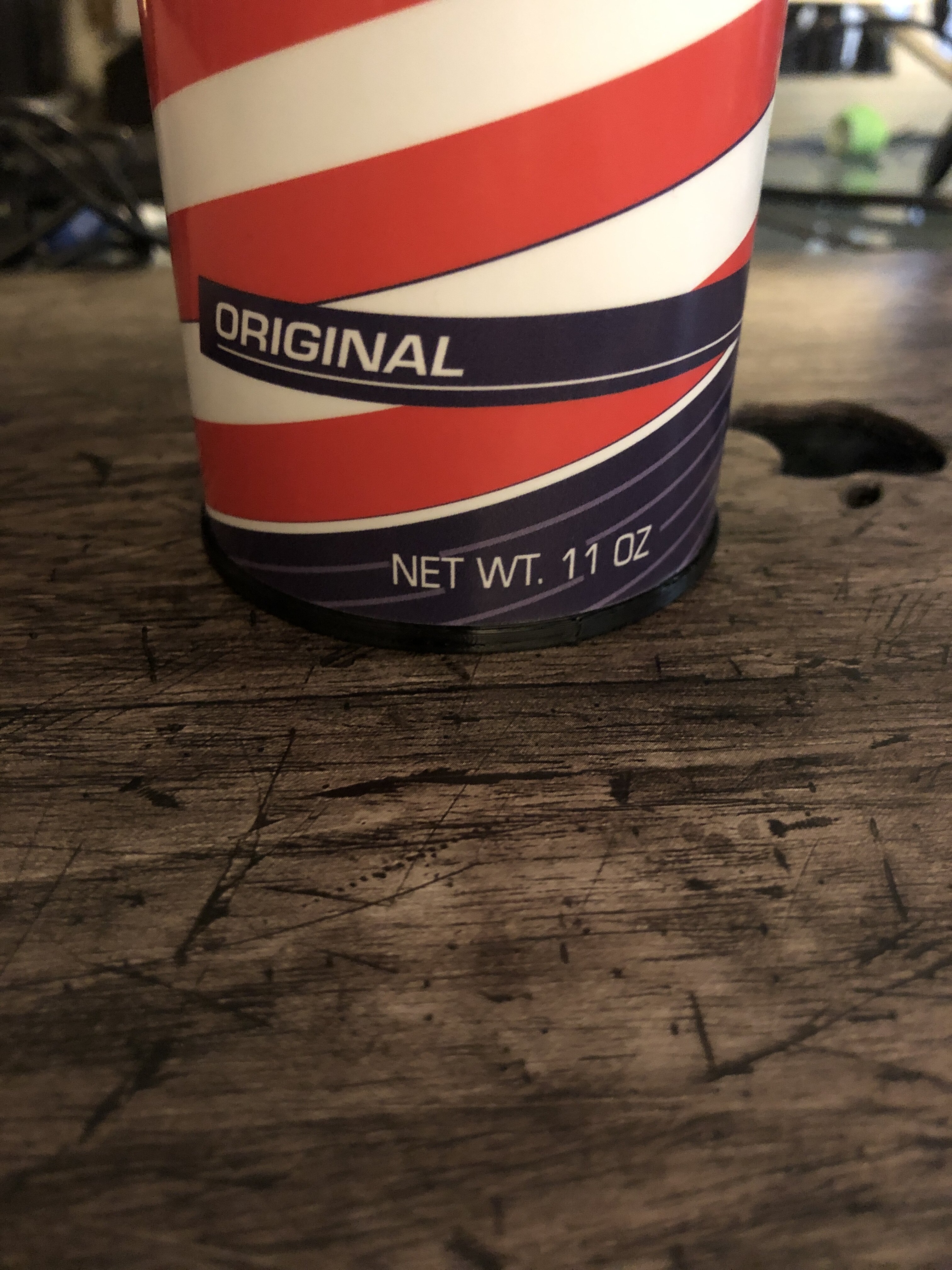

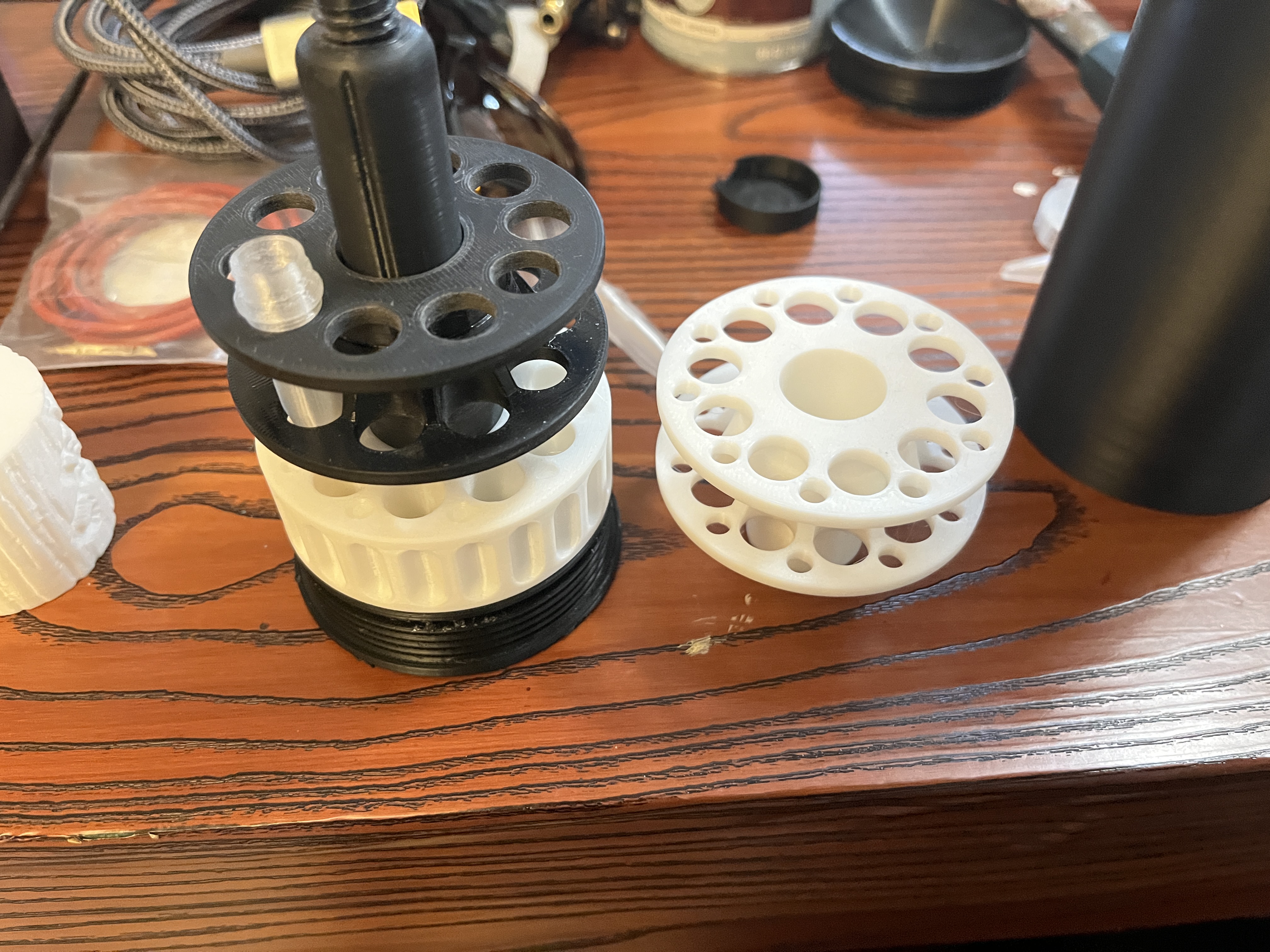

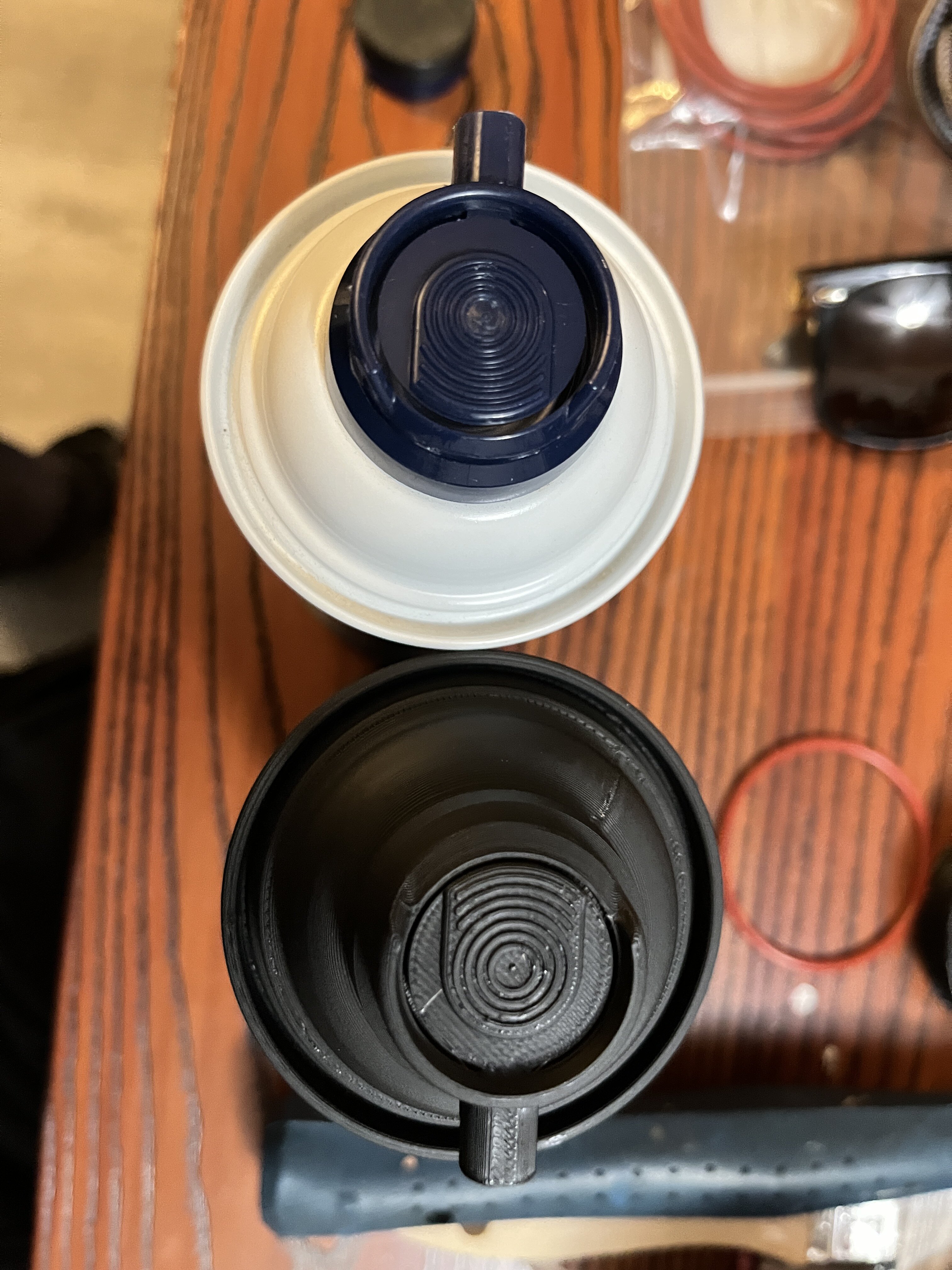

I then 3d printed the parts to test if the middle disks would properly screw together, if it would fit inside a barbasol can and if the centrifuge tubes fit. Once I get the bolts and o-ring in the mail, I'll be testing the threaded holes as well as the if the o-ring/o-ring indent is the right size.


1) Does it screw together: despite a faulty STL/print, yes!

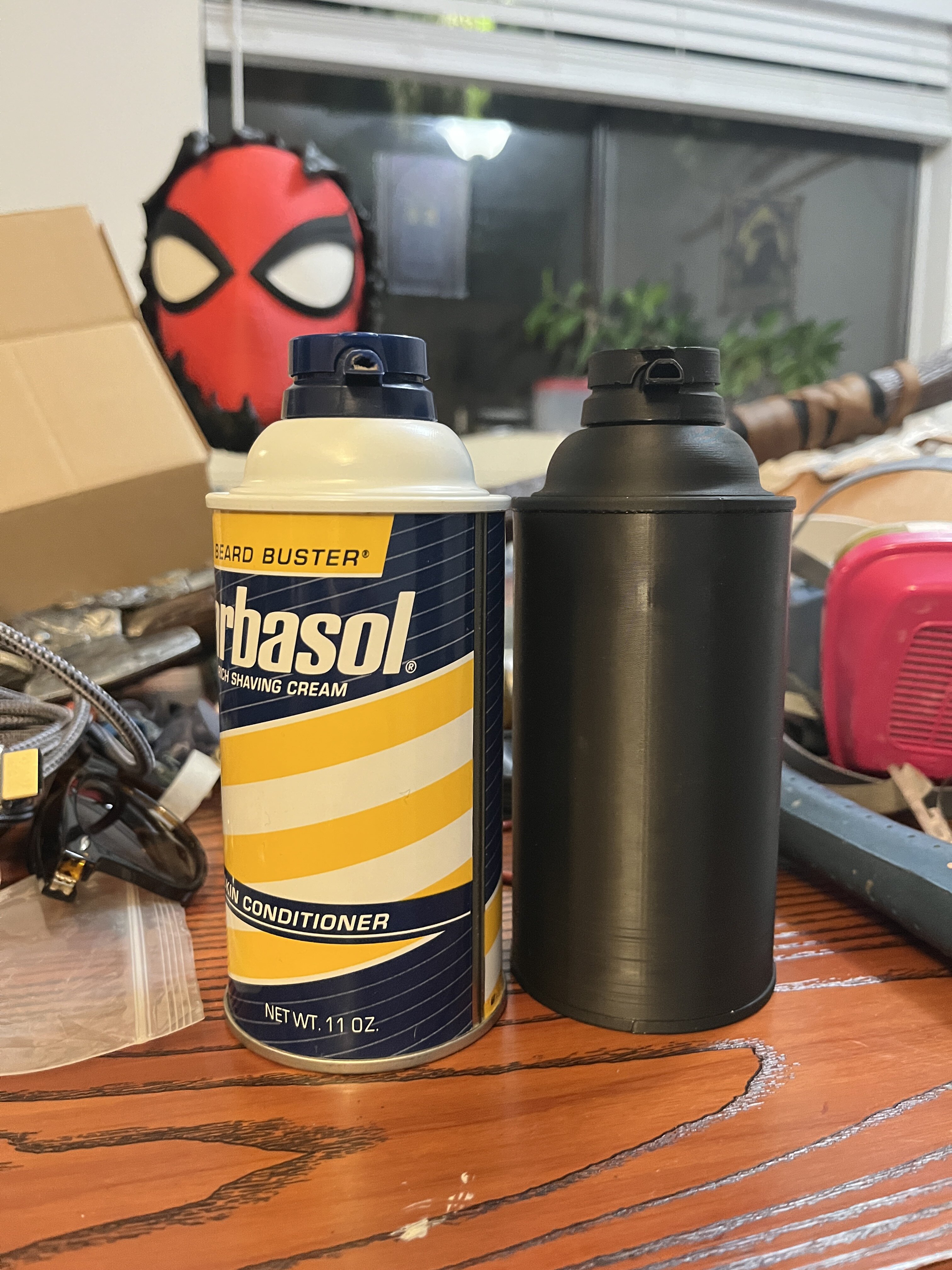

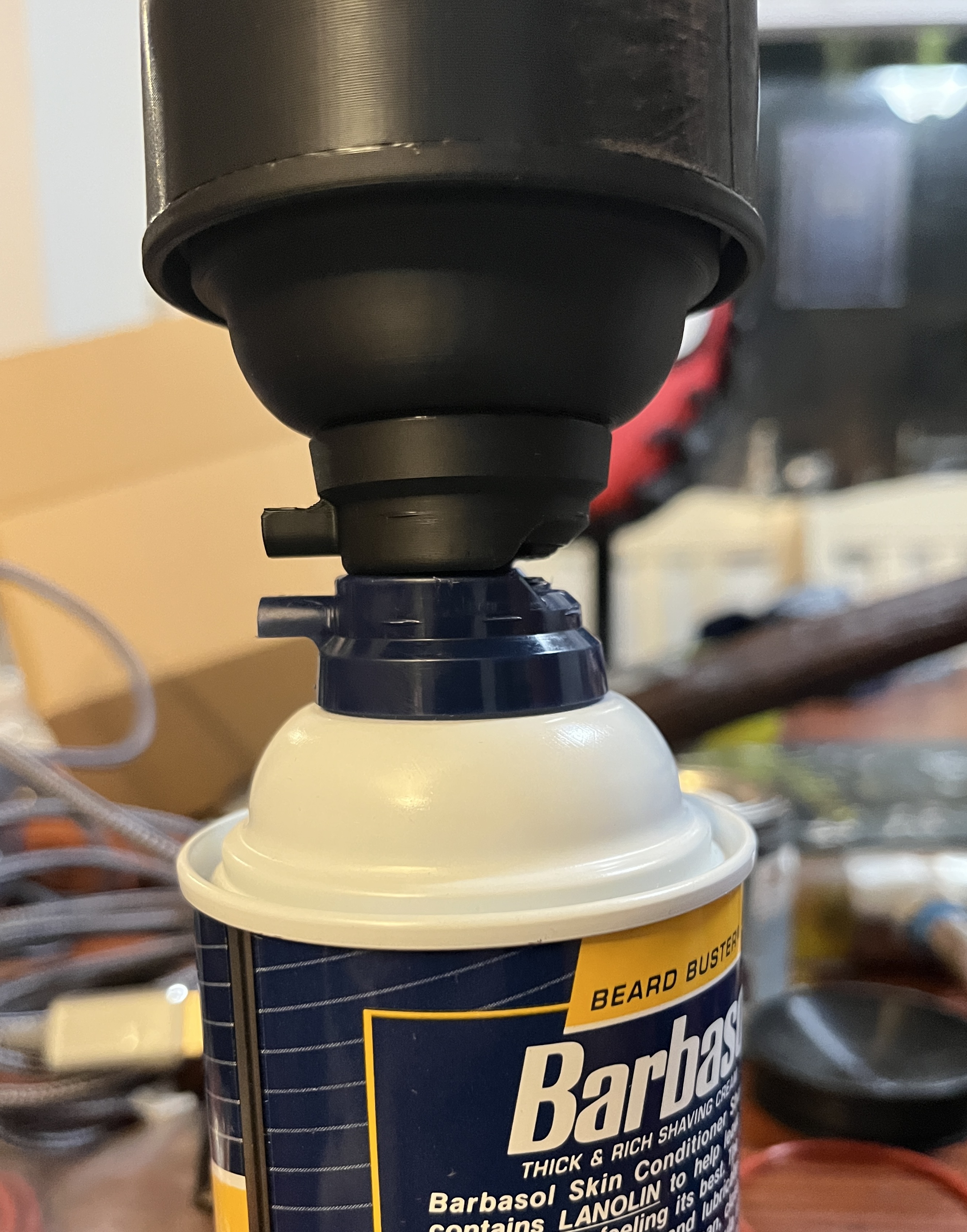

2) Does it fit in the barbasol can: Yes! Snuggly.

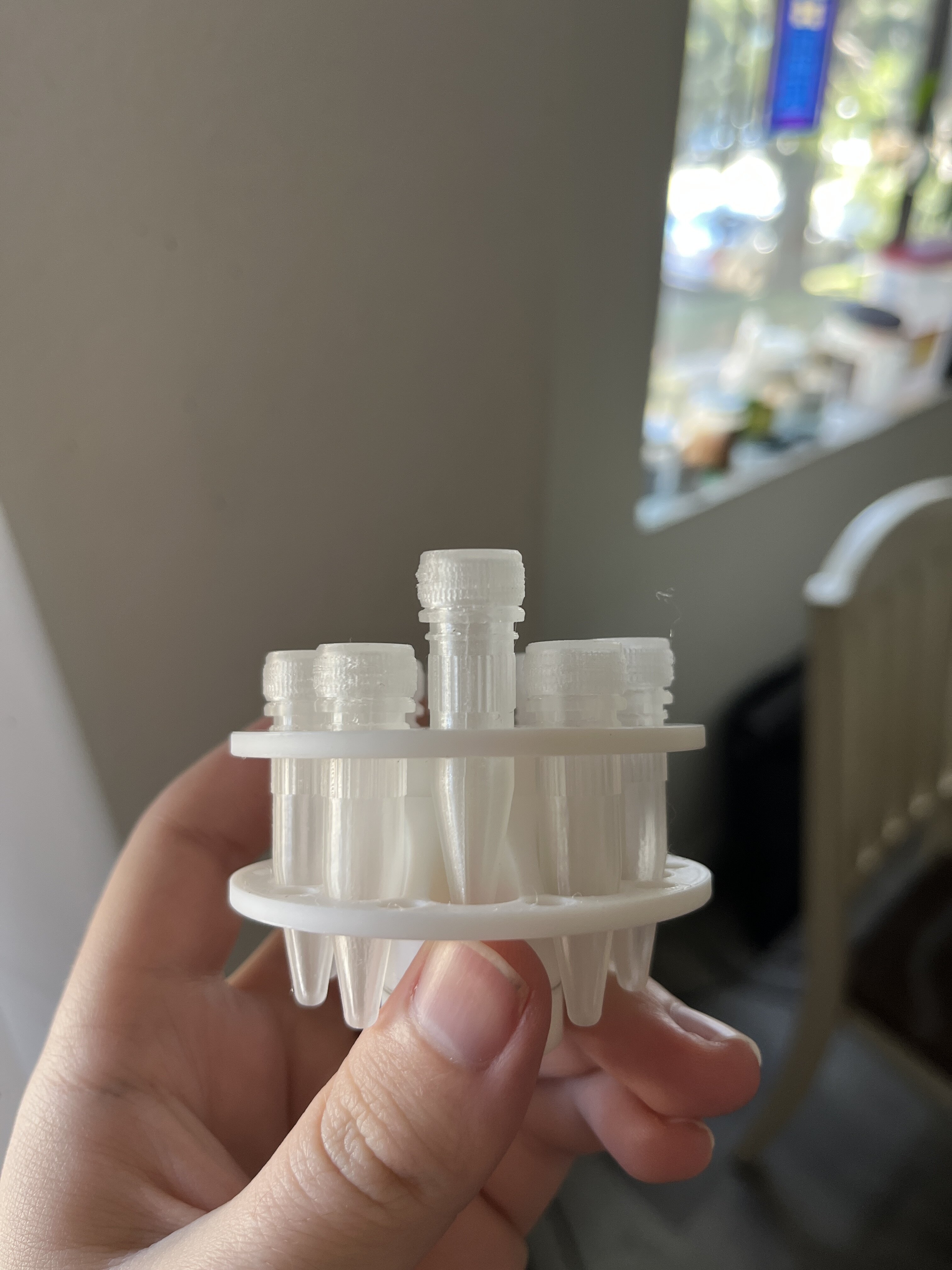

3) Do the centrifuge tubes fit in the rings? NO. I made the rookie mistake of making it snug to the diameter of the flat part of the tube.


And a side note, I need to make the bottom lip a bit taller

I have some re-modeling to do to fix some of these issues.

MECHANISM
So I want to reinvent the wheel I guess... With the inner tube I'm doing the same sort of channel that I've seen other models use, but I noticed in a lot of screen shots that the cryocan does not have this vent here:
Screen Shot 2021-08-27 at 2.23.29 PM.png

at least not in the spot I see on a lot of the other replicas, if its there at all.

I can't find that vent in a single screenshot, but maybe I'm not looking hard enough. Without actually seeing the prop myself, its hard for me to figure out if it's just always facing away from the camera—so I could definitely be wrong, but might as well try and make a prop without that channel.

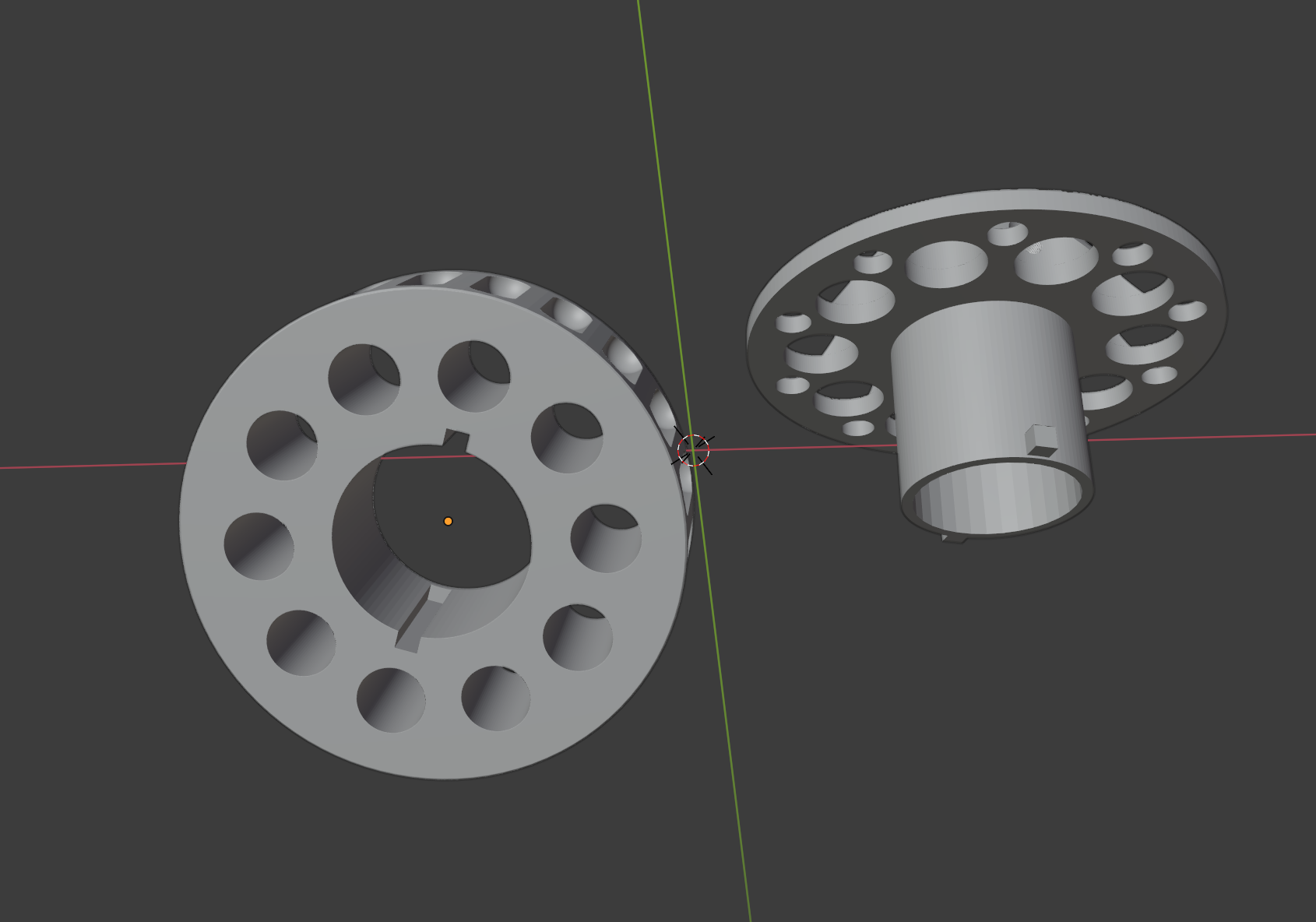

SO I came up with this...
Screen Shot 2021-08-27 at 2.29.41 PM.png


...but only after I attached the bottom tube to the bottom disk and it was 2am so I didn't even think about how there would be no way to fit that tube into the base with the disk on top of it. :rolleyes: In v2 I'll be fixing that by making that bottom tube a separate piece that screws on (too many parts? Maybe.)


PROBLEMS to be fixed in V2:
  • Resize centrifuge holes (bottom disk holes might be smaller than top disk??)
  • Add notch to center tube
  • Fix threading between disks
  • Make tube under the bottom disk threaded and separate
  • Recount/recalculate indents on upper base
There are a lot of problems with this model, and the 3D model itself is a bit buggy, with the vertexes all over the place in size and number. This is because I did a lot of overcomplicated methods to get a result I know now I can do in 2-3 steps instead of 6, which is why, along with the errors listed above, I'll be redoing this entire thing, while preserving some parts that are simplified and still work well.

Any advice, critique, and observations would be welcome! Thank you!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

mottrex

New Member

I may be miss remembering (a strong possibility) but that looks like a spring.
Wasn't it sprung when Dennis( the scamp) showed Dodds the cannister at the cafe, I seem to remember it popping up but it's been a while since viewing the movie.


PhantomForge

Well-Known Member
RPF PREMIUM MEMBER

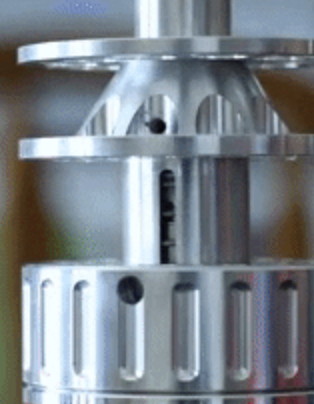

View attachment 1489101
I may be miss remembering (a strong possibility) but that looks like a spring.
Wasn't it sprung when Dennis( the scamp) showed Dodds the cannister at the cafe, I seem to remember it popping up but it's been a while since viewing the movie.

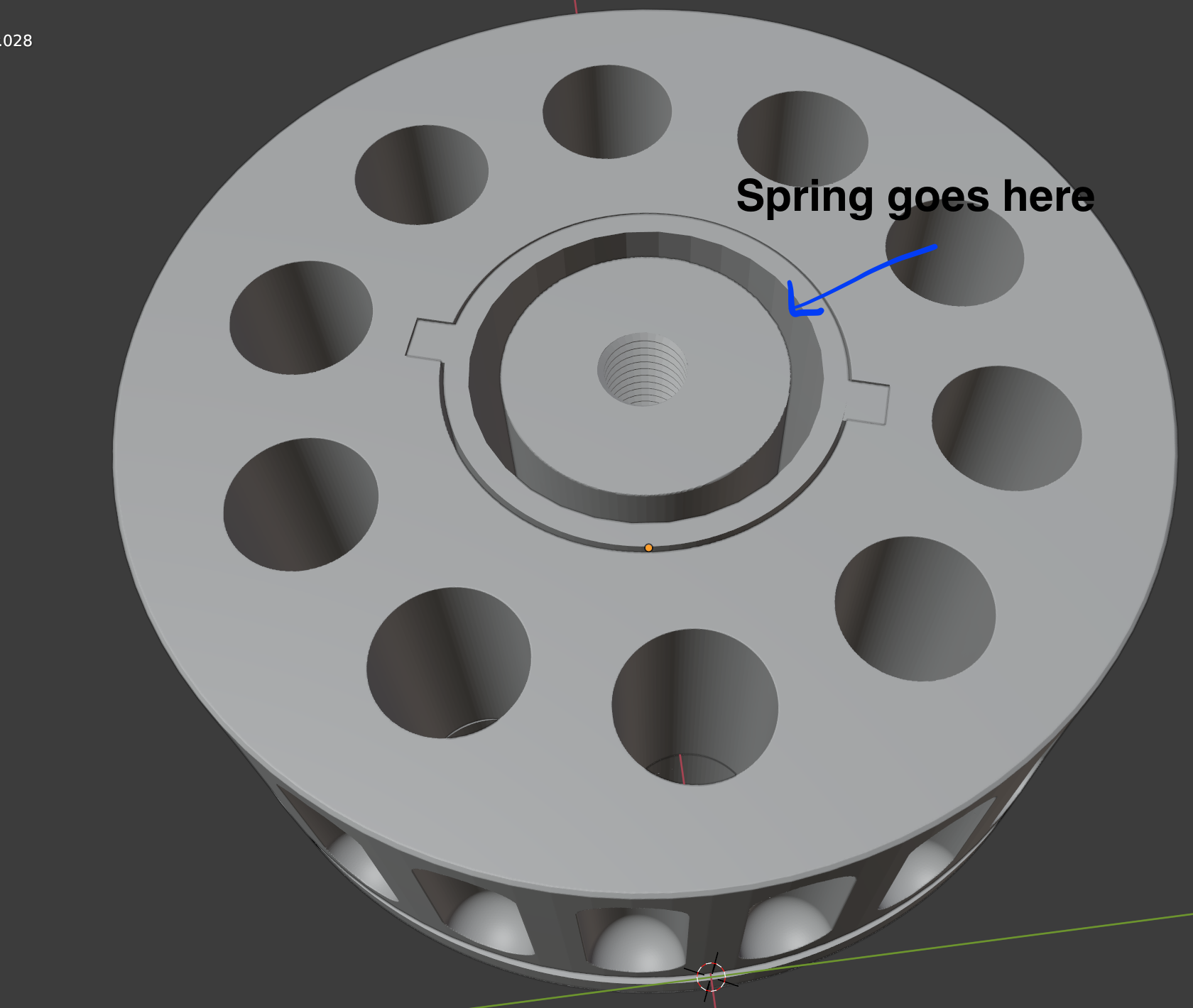

Yes! There is a spring in there, but when I say I don't see it in the movie, I'm talking about that vent that SHOWS the spring, not the spring itself. My version still has a hallow section between the central cylinder and that outer cylinder for the spring, but no vent exposing the innards.
Screen Shot 2021-08-29 at 2.07.28 PM.png

I can also very much be wrong about this, I just haven't seen that vent in any photos of the prop at any angle.


mottrex

New Member
Yes! There is a spring in there, but when I say I don't see it in the movie, I'm talking about that vent that SHOWS the spring, not the spring itself. My version still has a hallow section between the central cylinder and that outer cylinder for the spring, but no vent exposing the innards. View attachment 1489262
I can also very much be wrong about this, I just haven't seen that vent in any photos of the prop at any angle.
Multiple Props used during filming I'm guessing with the Hero prop being the All singing version for close ups..


Pyrotechnic

New Member
Just going through the model I'd mocked up, looks like we were very similar on some of the measurements, which is encouraging! I had 20 indentation on the bottom (2 per vial) but I think my spacing is a bit far compared to your reference pic. I also had mine at 5mm diam, but 6 seems more likely (based on a 1/4" ball-end mill bit).

edit:

Also, on an 'ease of machining' train of thought, my money would be on there being 24, since that'd be 1 every 15°. 20 would be every 18°, but as said, they seem too far apart, and 22 would be 1 every ~16.36°, which sounds like a nightmare to index.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Pyrotechnic

New Member

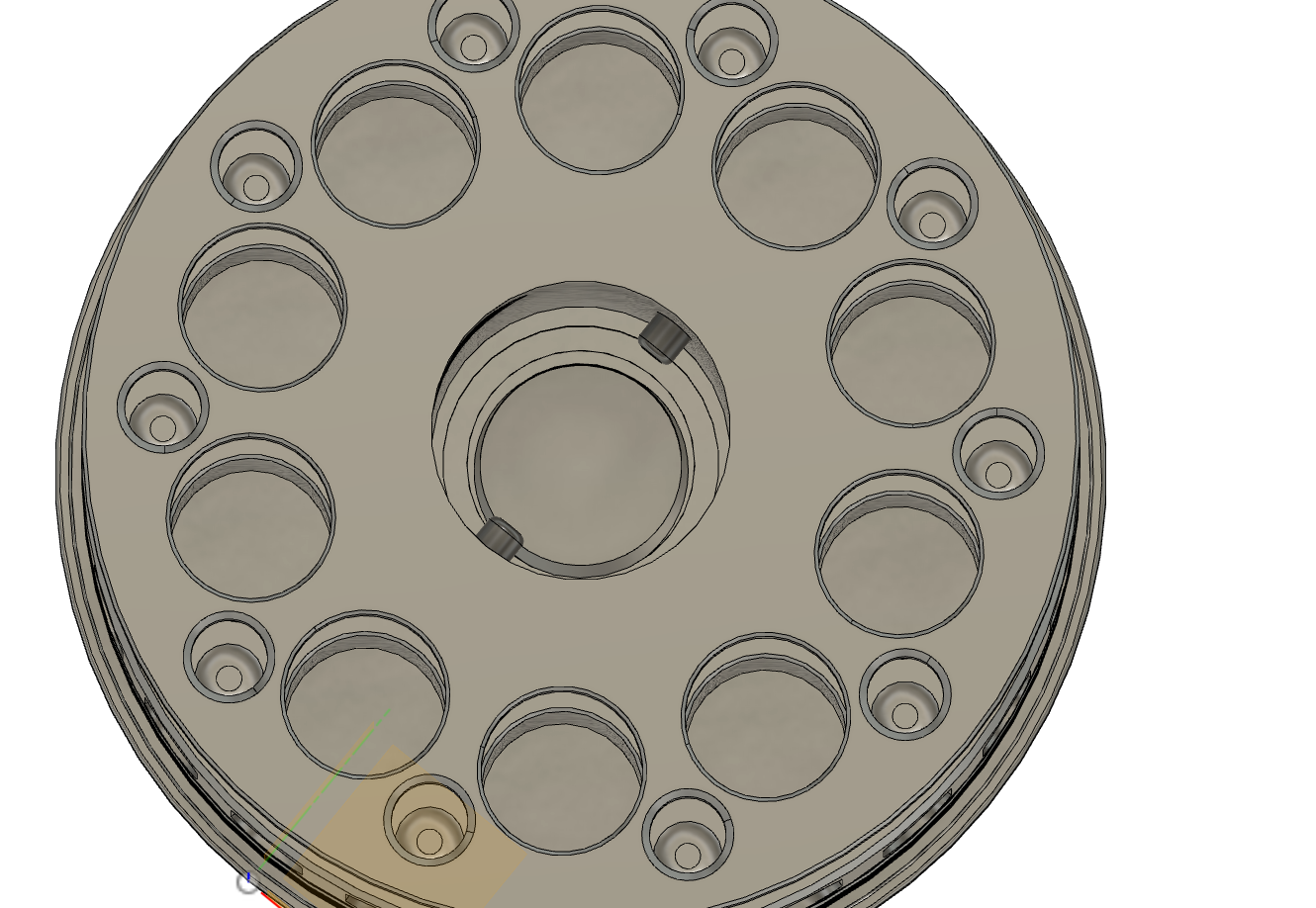

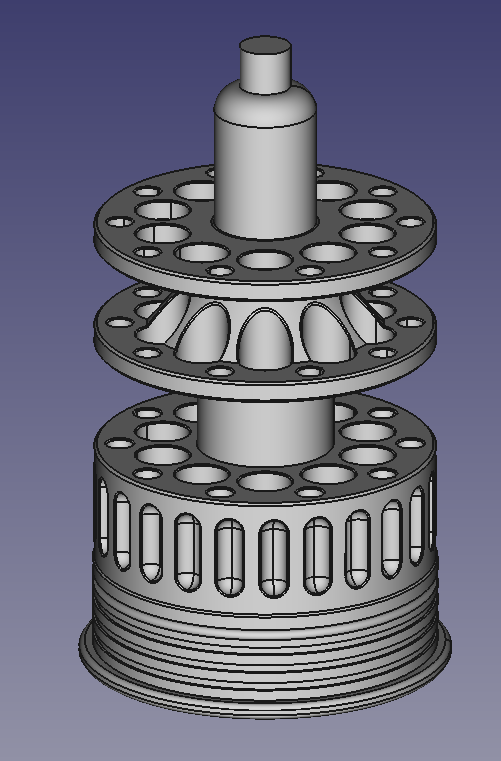

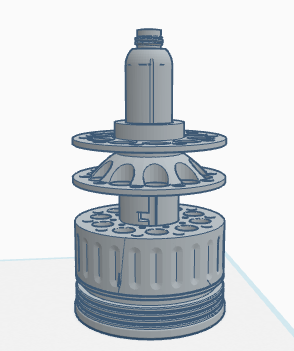

Had a play with my model tonight. taken some more of my own measurements from various references, mixed in with a few of yours. Using 24 15x5mm grooves:


I then went through and 'inched' them (to the nearest nice mm) as I assume the original will have been spec'ed in imperial, and this is what I have so far:
