Marthony
Active Member
George, I mean that the pep file here is designed for paper/cardstock and needs modification to work with 1/4" EVA foam. For example, many of the darts/relief cuts aren't applicable/needed or are too small to be practical for use with foam along the sides of the helmet. Of the image here, the squares on top need to be integrated into the surrounding shapes, the folds on the facemask are replaced with heat-shaping etc., and once revised one tries to get shapes that don't need to span many pieces of 8.5x11" paper.
As I hadn't heard back from any of my inquiries, I'm running with the assumption that I'm yet again asking questions too obscure/specific to get a quick answer to. =) Few seem interested in this version of Iron Man AND pepakura.

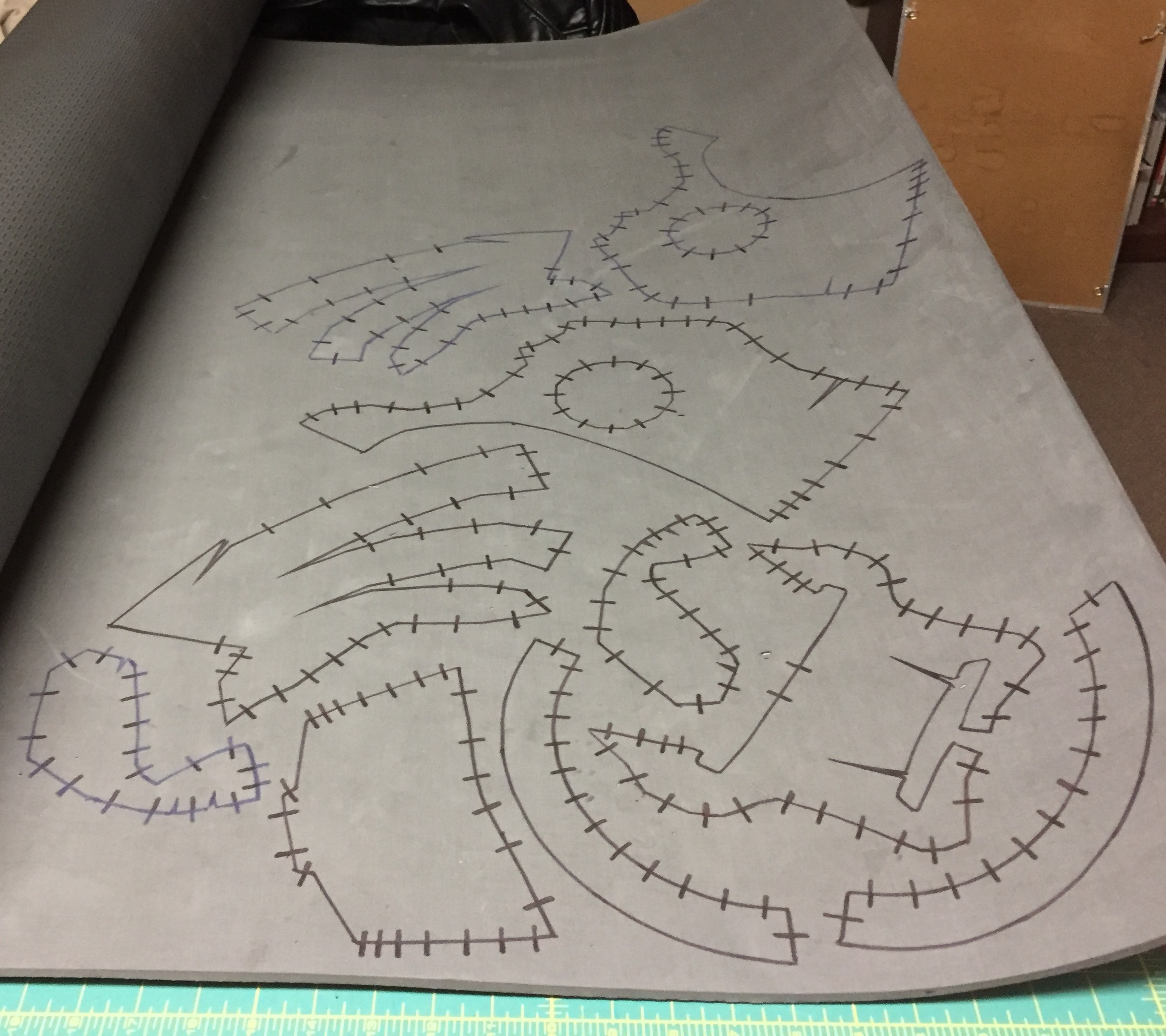

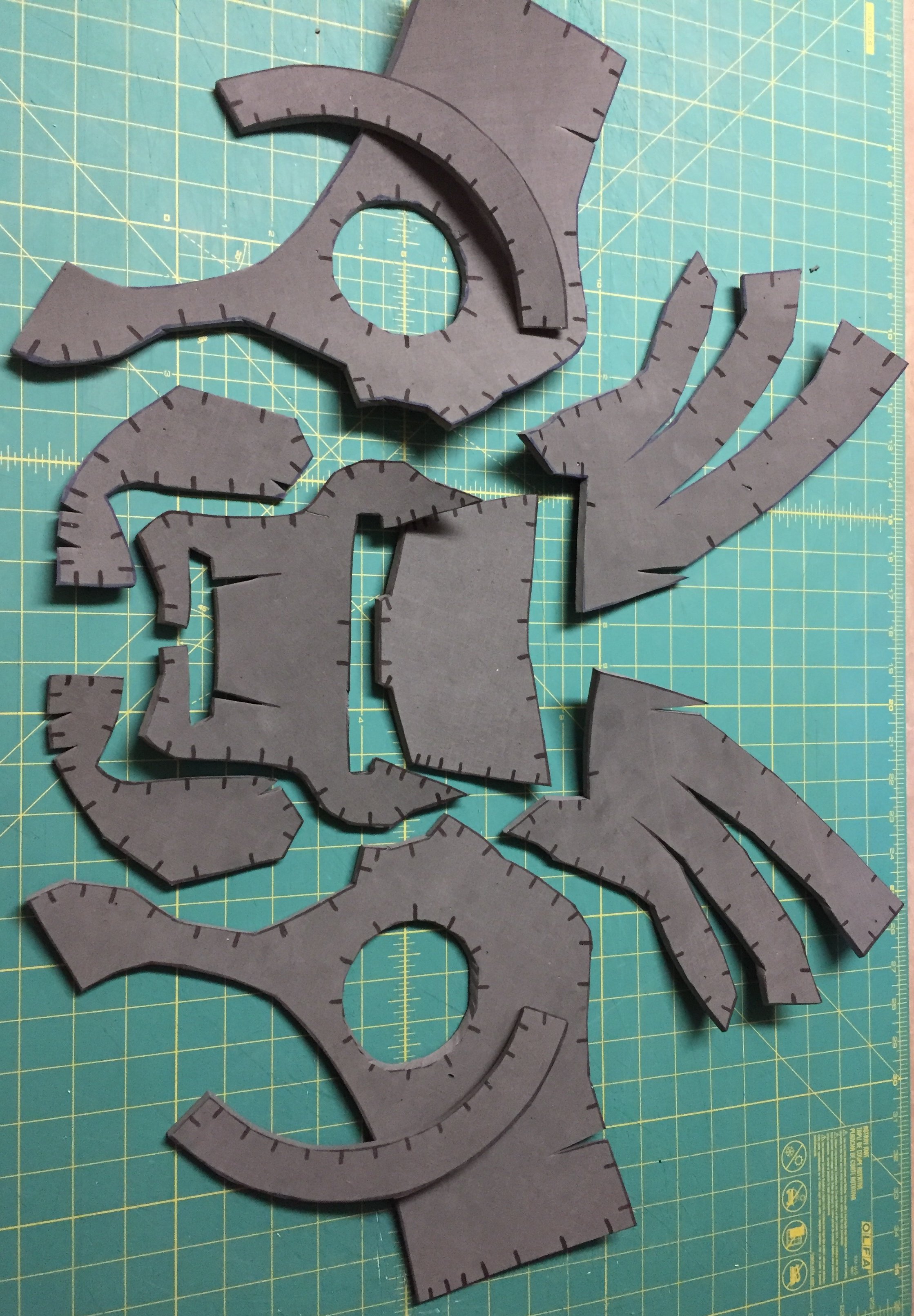

I've done my attempt at editing this - first time using Pepakura Creator 4.16 - and tonight seek to glue the parts together. They are up-sized by 10% thanks to use of a foam caliper via Wayne's Workshop of YouTube.
Once I've a good version made, the question becomes: what is the best way to share my edited version of PFCustoms/EyeOfSauron's work for others?
As I hadn't heard back from any of my inquiries, I'm running with the assumption that I'm yet again asking questions too obscure/specific to get a quick answer to. =) Few seem interested in this version of Iron Man AND pepakura.
I've done my attempt at editing this - first time using Pepakura Creator 4.16 - and tonight seek to glue the parts together. They are up-sized by 10% thanks to use of a foam caliper via Wayne's Workshop of YouTube.
Once I've a good version made, the question becomes: what is the best way to share my edited version of PFCustoms/EyeOfSauron's work for others?
Attachments
George
Master Member
I see.But some of the cuts are actually part of the model, even the ones in the face plate are meant to make that curve, I think in cooperation with the heat gun.The program dissects the 3d model into parts with cuts for a reason.I don't think you can just omit some, as it will affect the design.
Your foam pieces look good though.I think the biggest difference between paper and foam building is depth, since foam has thickness and thus edges.Small edges that are replaced by thickness of foam can easily be separated and omitted from the design, and the rest can be fused/altered according to your own point of view.
I'm not sure to what extent you are allowed to share altered material, since I never needed to do so myself thusfar.I'm sure seasoned members are willing to elaborate/explain further.Sorry for not being of any real use.
Your foam pieces look good though.I think the biggest difference between paper and foam building is depth, since foam has thickness and thus edges.Small edges that are replaced by thickness of foam can easily be separated and omitted from the design, and the rest can be fused/altered according to your own point of view.
I'm not sure to what extent you are allowed to share altered material, since I never needed to do so myself thusfar.I'm sure seasoned members are willing to elaborate/explain further.Sorry for not being of any real use.
Marthony
Active Member
Trying to be of use is a nice start George! =) I'll see if I can find the right person to ask regarding sharing edited material. I got the impression that provided the original creator of the work was credited it was ok, but will check. In this case I figure it would be nice to the next person to save on the conversion work.

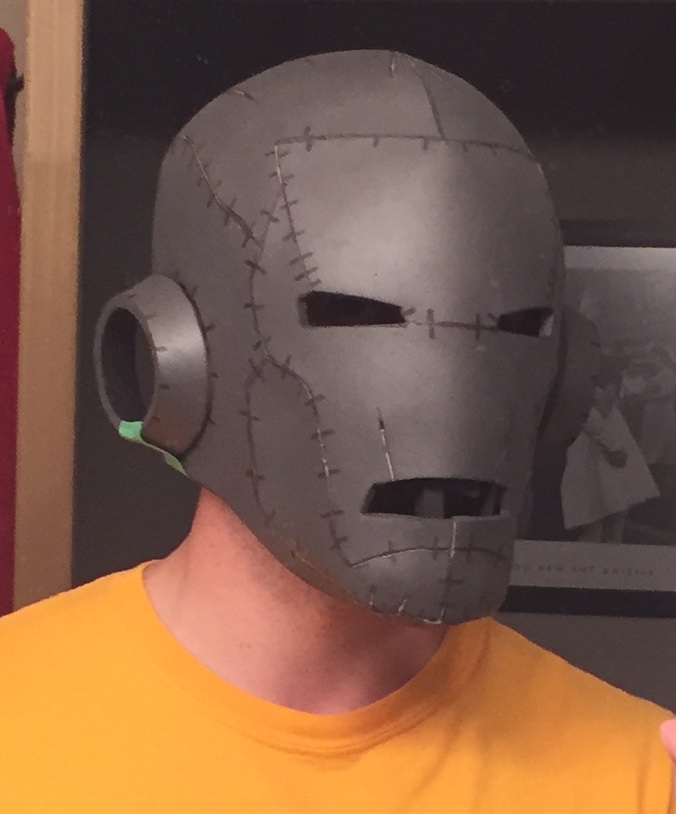

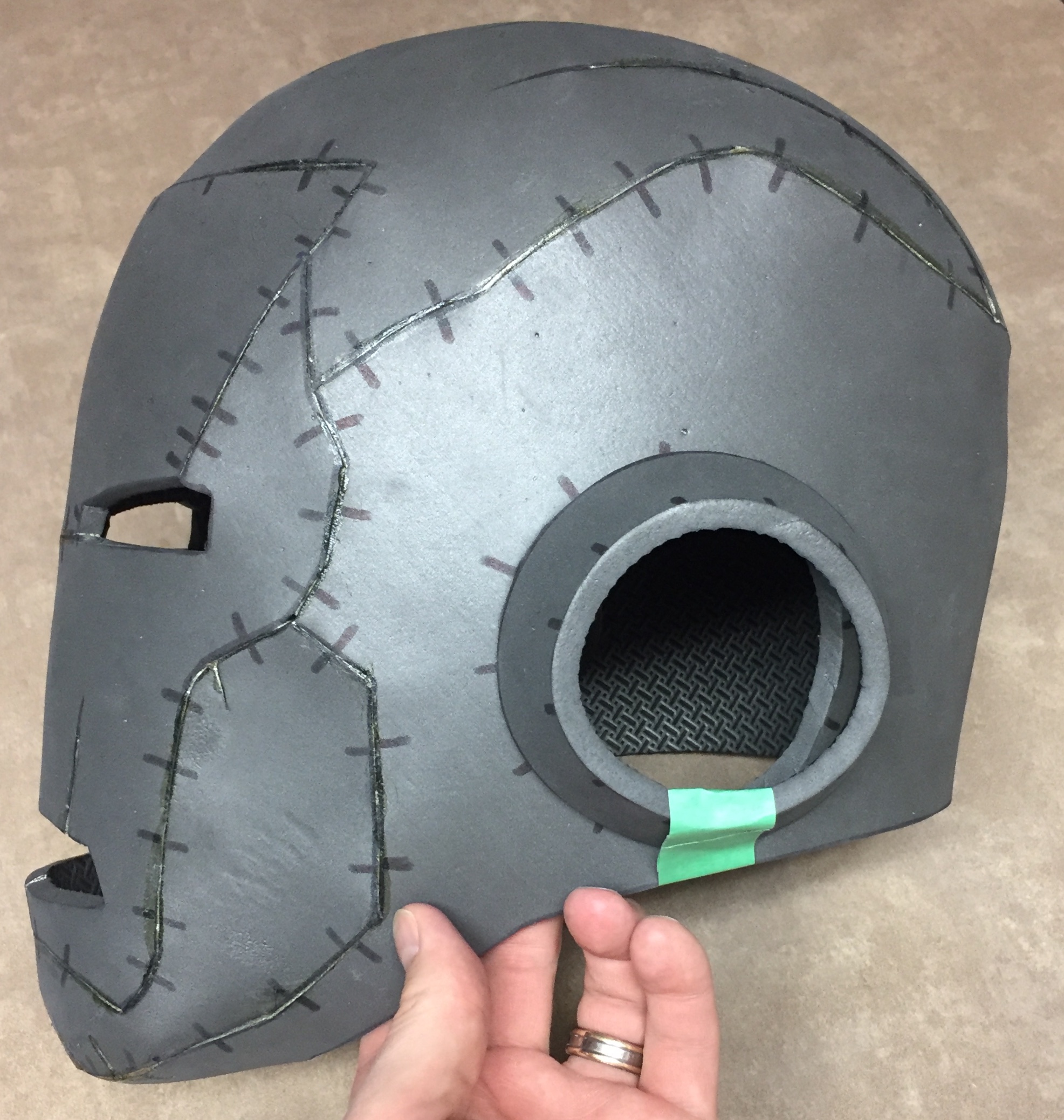

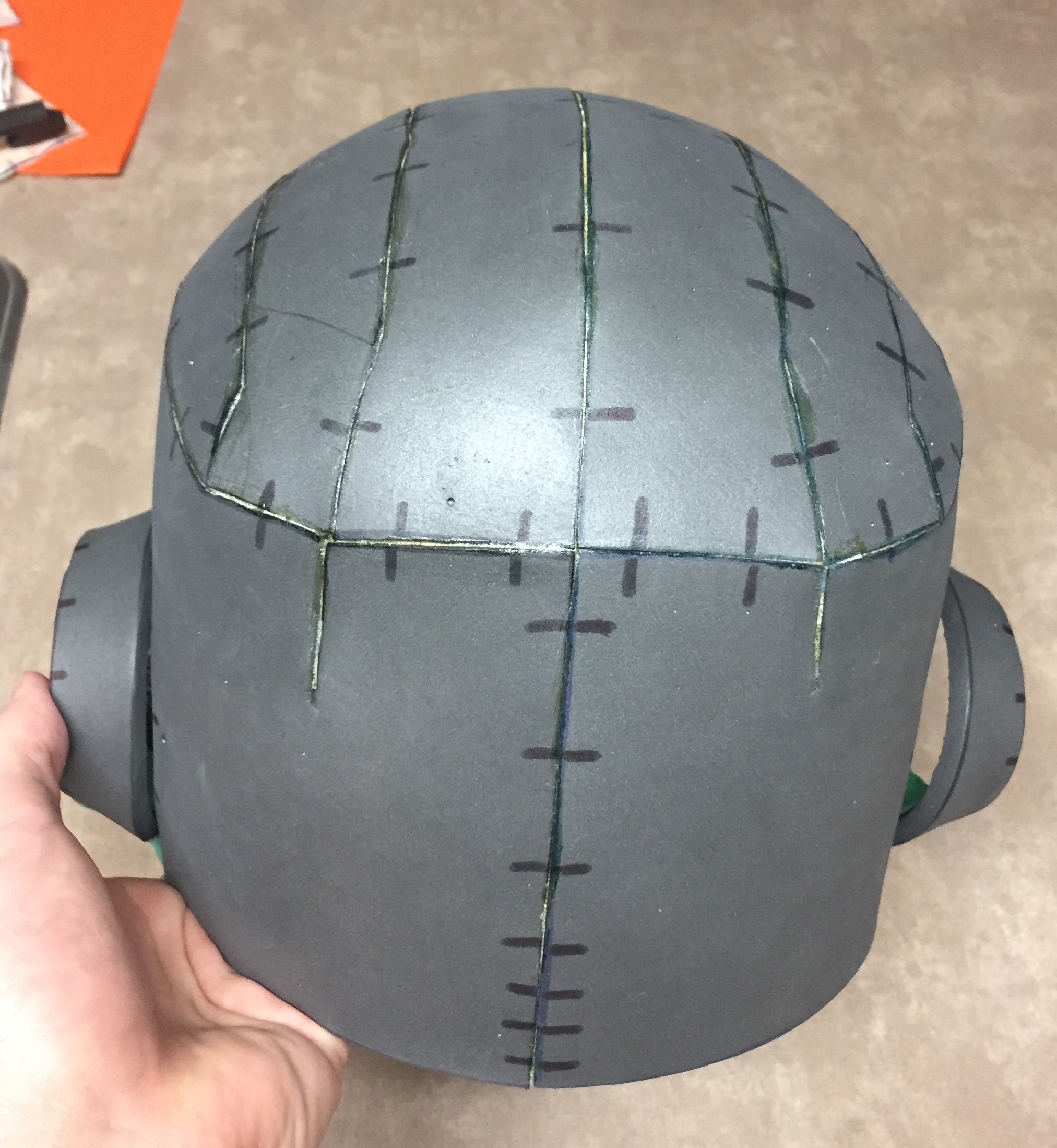

Indeed, there's a sliding scale of importance of the curves. It took me a record 4 hours to glue this together as well & carefully as I could, being my first try with these shape sizes & 1/4" foam. The upper forehead would have done a bit better with that relief cut, but I'm satisfied with how mine turned out there. It was a fight near the end to get the seams lined up..!
I've yet to re-heat shape after gluing but will do so (lower lip is most obvious part). I do have a fair bit of work to do cleaning up the seams, but I think I'll use this first attempt for the costume. Happy with the results!
There is enough space for 3/8"+ padding within which is what I was hoping for. I've a large head and this is +10% scale. It is clear I'd have a hard time getting it on/off if smaller, though once on it might be ok.
Progress!
Indeed, there's a sliding scale of importance of the curves. It took me a record 4 hours to glue this together as well & carefully as I could, being my first try with these shape sizes & 1/4" foam. The upper forehead would have done a bit better with that relief cut, but I'm satisfied with how mine turned out there. It was a fight near the end to get the seams lined up..!
I've yet to re-heat shape after gluing but will do so (lower lip is most obvious part). I do have a fair bit of work to do cleaning up the seams, but I think I'll use this first attempt for the costume. Happy with the results!
There is enough space for 3/8"+ padding within which is what I was hoping for. I've a large head and this is +10% scale. It is clear I'd have a hard time getting it on/off if smaller, though once on it might be ok.
Progress!
Attachments
Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.
CyberPaddy66
Well-Known Member
I believe the file you are referring to is a .RAR entension which means that it is an archives file set, either use WinRar or any other archiving program like WinZip or B1 to extract the files, if you already have a suitable program installed you should see the 'extract' option when you right click on the RAR file. Once the files have been extracted then and only then will you be able to open the up in Pepakura
For purely informative reasons here is a link to a list of archiving file types and the relevant programs... List of archive formats - Wikipedia according to this source RAR files are second only to ZIP files and both have been arround since DOS which predates Windows operating systems by some years.
Marthony
Active Member
(non-pepakura related)
A progress shot of retro Iron Man's V2 torso - success! Hard to see (and pleased about it) the flared-out bottoms of the upper torso, but they fit well with the curved-in top of the stomach wrap! I can twist comfortably. I expect I can get away with a single elastic-nylon-Velcro tensioning tether at the front-center to keep the pair auto-centering when I'm not twisted. My back would not be exposed however I bend forward, so no elastic needed there. This is good...one attachment under the layers will be enough fun to reach!
Back muscling went better than expected, and front rib pairs are satisfactory. As Evil Ted does with his new torso templates, my cardstock template has a dotted cut so it is traced on both front & back of the piece. The back is for cutting, the visible side is for finger placement during heat-shaping.
On to the codpiece! =)
A progress shot of retro Iron Man's V2 torso - success! Hard to see (and pleased about it) the flared-out bottoms of the upper torso, but they fit well with the curved-in top of the stomach wrap! I can twist comfortably. I expect I can get away with a single elastic-nylon-Velcro tensioning tether at the front-center to keep the pair auto-centering when I'm not twisted. My back would not be exposed however I bend forward, so no elastic needed there. This is good...one attachment under the layers will be enough fun to reach!
Back muscling went better than expected, and front rib pairs are satisfactory. As Evil Ted does with his new torso templates, my cardstock template has a dotted cut so it is traced on both front & back of the piece. The back is for cutting, the visible side is for finger placement during heat-shaping.
On to the codpiece! =)
Attachments
marcoricosanti
New Member
were can i find pepakura files?
George
Master Member
marcoricosanti On page 1 of this JfCustom thread
Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.
George
Master Member
Pepakura Mannequin (Pic Heavy And Unfolded)
Size of whole model from neck to toe is 5'1". I scaled it to about a person of 5'8" like myself but for armor purposes, it should be fine from 5'6" up until 5'10". If you wanna scale it for you, find your total height, and then find your total height of your head, from the chin to the top. For...
www.405th.com
MediocreMaleStatue by johnniewhiskey
Half Polygon Half Sculpted 8 head units proportion male. Made for my practicing anatomy modeling and 3D printing study. About 30 cm tall.
www.thingiverse.com
1_72 scale human males diff body types by PabloNada
From: https://free3d.com/3d-model/male-base-mesh-arshlevon-sizes-22492.html This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/8mPinPdaL0W
www.thingiverse.com
ArthurChantz
New Member

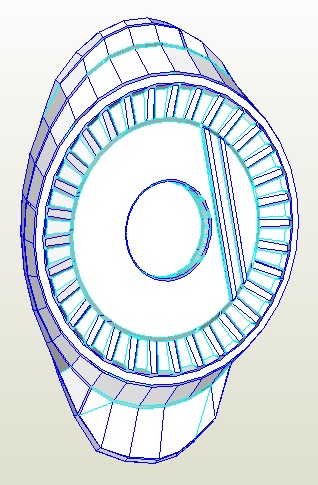

Is there a foam template for this armour piece???
