When I bought the Blade Runner birds chess set from Hoyles last year, I decided to try and build a decent light up chess board to display it on. I’m happy with how it turned out and thought I’d share it on here. It’s remote controlled, can be dimmed and has 3 tone settings.


Attachments

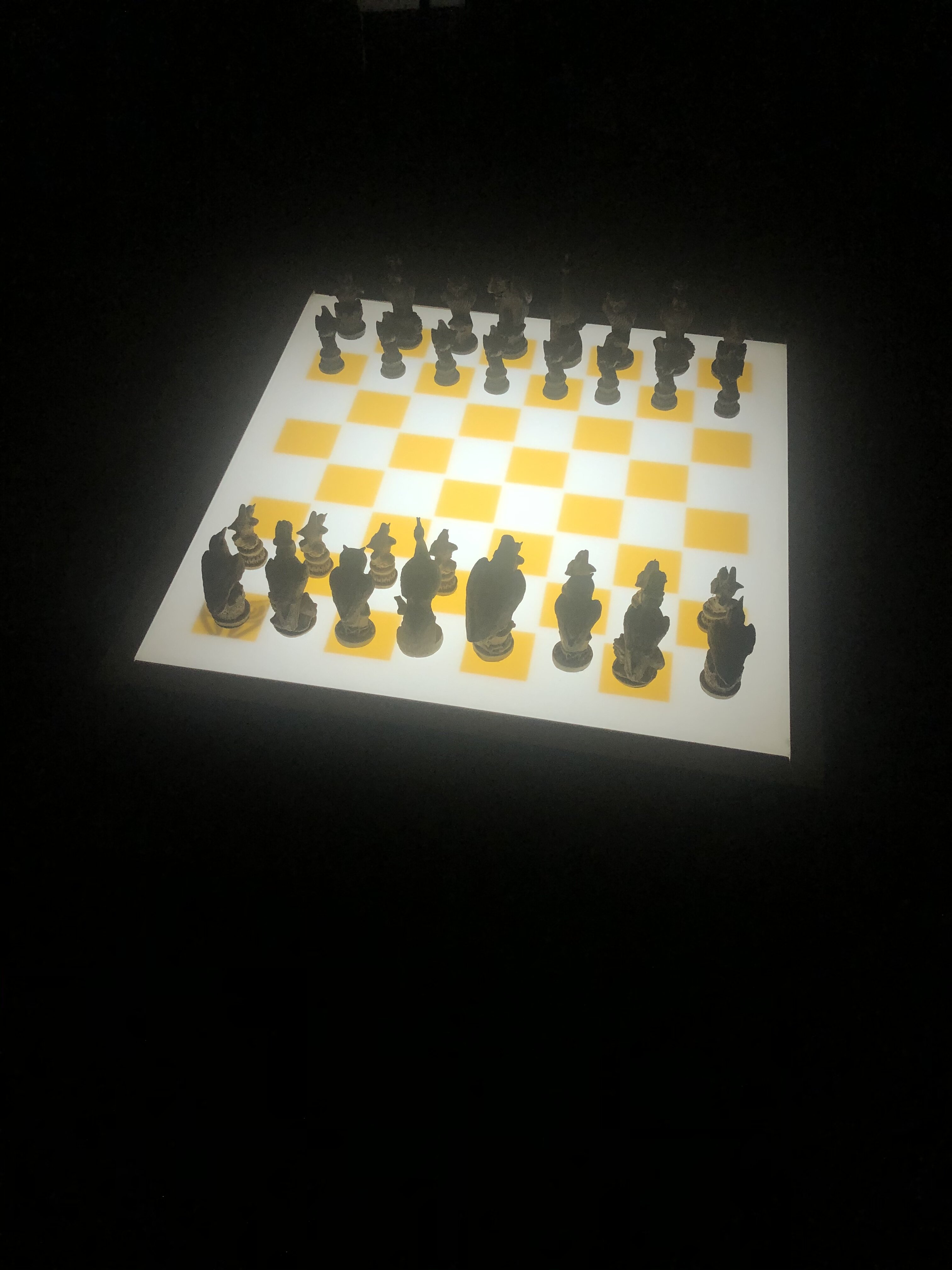

  • 30282356-DA2F-405A-A544-60C0EDCC2FC0.jpeg
    623.8 KB · Views: 36
  • EDCCEF41-A6FA-4FE0-B779-C06966B85052.jpeg
    581 KB · Views: 36
  • D80400CF-8E8A-4685-9FB5-577697CA3764.jpeg
    1.5 MB · Views: 38
  • 2767FADF-F3C3-4E38-9519-FF589F4828A5.jpeg
    1.2 MB · Views: 34
  • F49BA738-D696-4EE7-8F63-D5A388AA333A.jpeg
    940.6 KB · Views: 34
  • 77C3ABA5-8C04-43F7-957F-8FD7E3C55B76.jpeg
    925.5 KB · Views: 39
  • 863CE922-58F2-4683-AB1E-2F34B789A241.jpeg
    1.3 MB · Views: 44

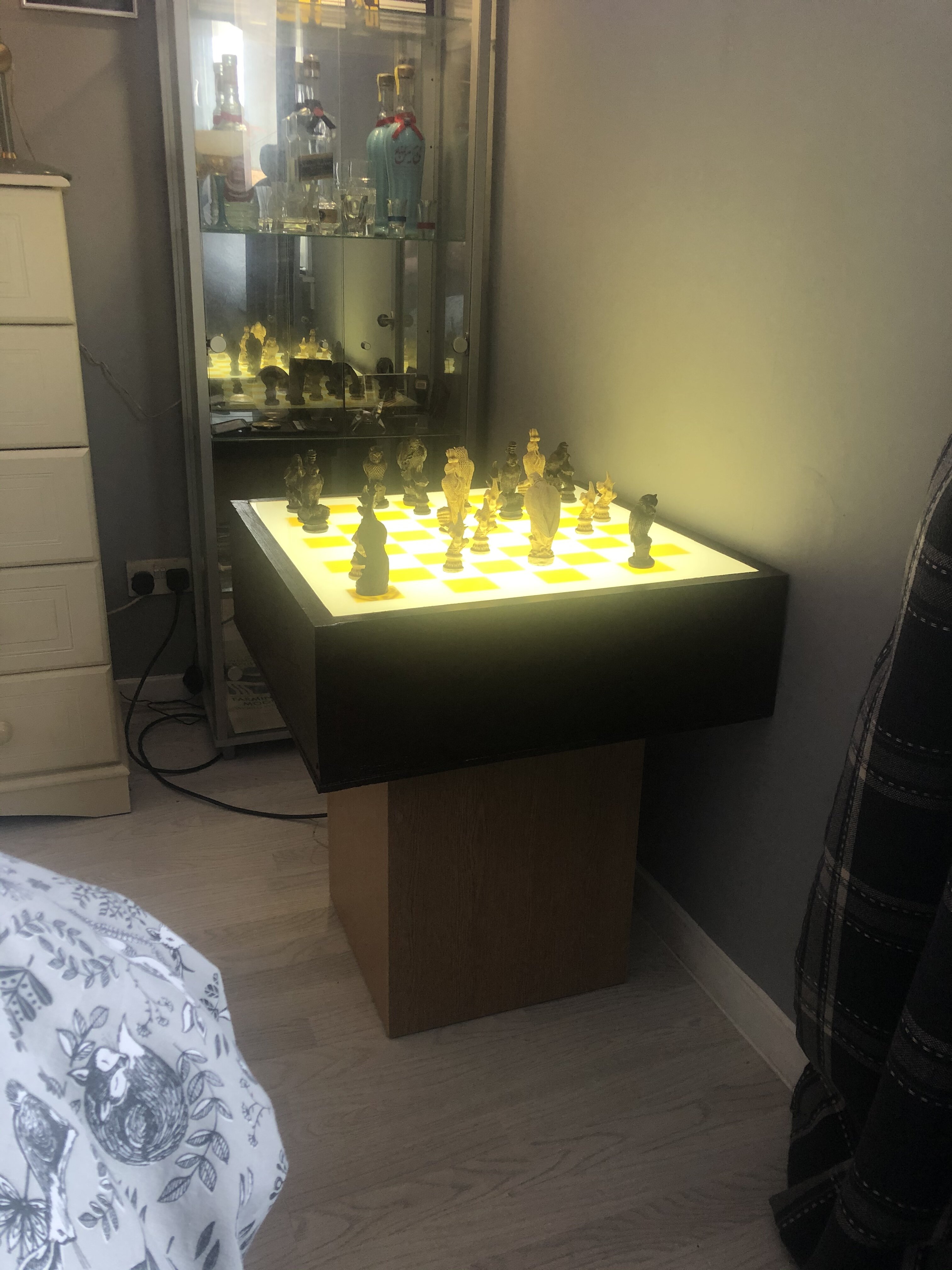

  • D1B2D7D2-7893-46D2-B4B7-48E19DFC9D63.jpeg
    1.2 MB · Views: 42
  • B100D4BA-5BC1-41CF-ABA9-775F119658F0.jpeg
    1.1 MB · Views: 47

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

userd1402

Sr Member
RPF PREMIUM MEMBER
Excellent build mate. I'm a bit behind you with my own, which is based on a vintage advertising lightbox, but I'm definitely going to pinch your idea to have it dimmable in due course to match the room ambience.
Loving your subtle Tyrell logo too.

2020-09-25 18.22.00-1.jpg

Last edited:

Bishop6

Member
RPF PREMIUM MEMBER
Looking good mate, what is the top chequerboard made of? For the light I used a ceiling light panel. Just wired it up to a cable and standard plug. Worked a treat.


userd1402

Sr Member
RPF PREMIUM MEMBER
It’s fused glass which I made myself from 50mm squares of opal white and vanilla, sitting on top of the original acrylic face, but it’s too small so I’m going to re-make it with the correct border to fit the box..


Bishop6

Member
RPF PREMIUM MEMBER
It’s fused glass which I made myself from 50mm squares of opal white and vanilla, sitting on top of the original acrylic face, but it’s too small so I’m going to re-make it with the correct border to fit the box..
Excited to see it when lit up. I think you’ve cracked it with the vanilla colour. Might actually try find that colour vinyl and build another board.
