JayCVenlo's - Iron man Mark 43 Avengers 2 - Sintra and Fibreglass Build

[JayCVenlo]

Hi Everyone,

after working on my Mark VII last year, and not finishing it, i decided to continue Building.
This time i used a different base material for my pepakura build. Instead of paper i used Sintra PVC 2mm.
I will go for a smooth as possible and result. I respect all the foam build but it just not does the trick for me. I really want to achieve a screen used quality.
I also decided to make a tread for myself so fellow members can check this progress. Maybe it could help them and maybe some tips will be handed to me as well.

-Parts allready pepped:

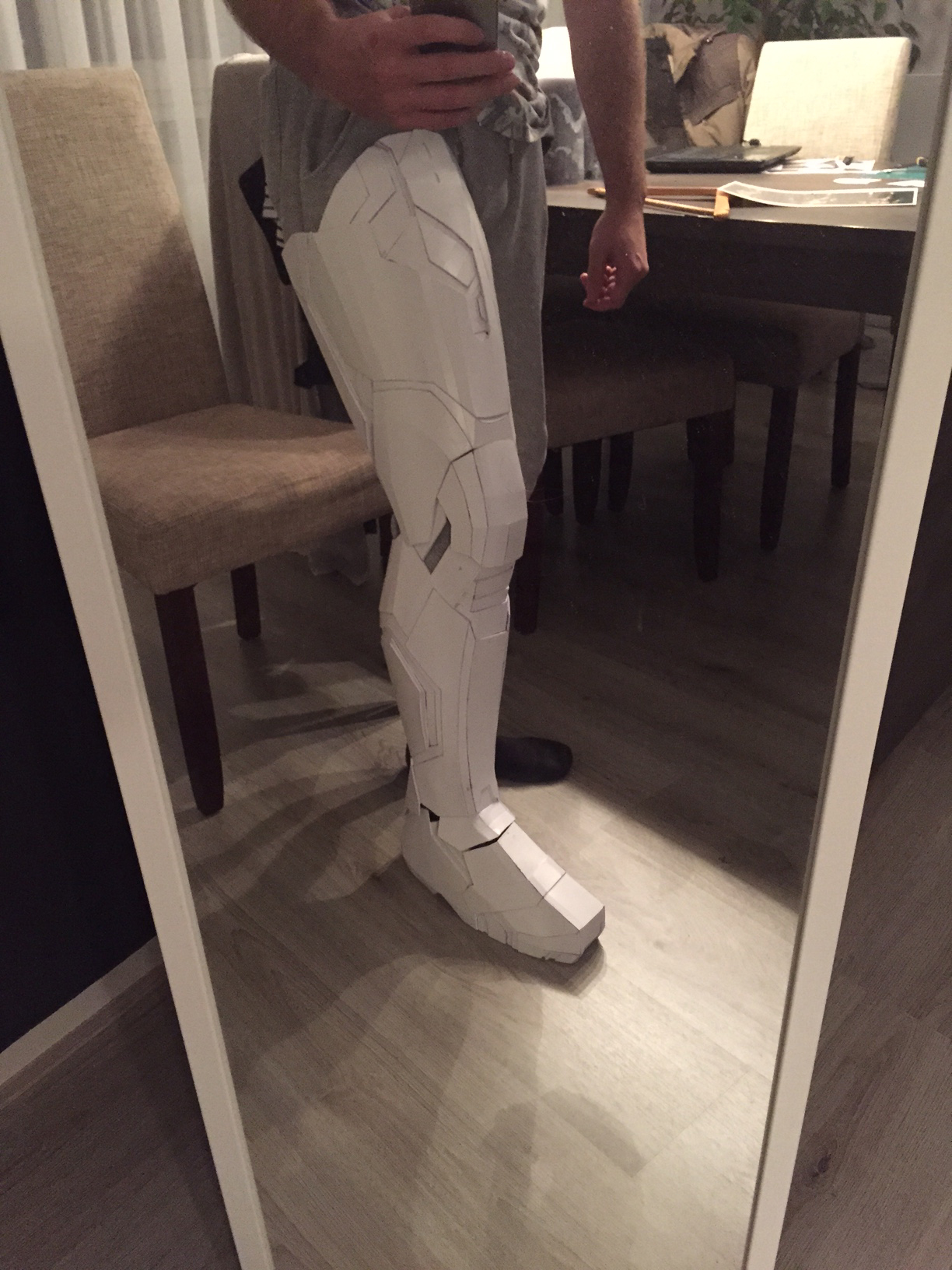

Neck - Chest - Back - abs - Left arm - left leg - right forearm.

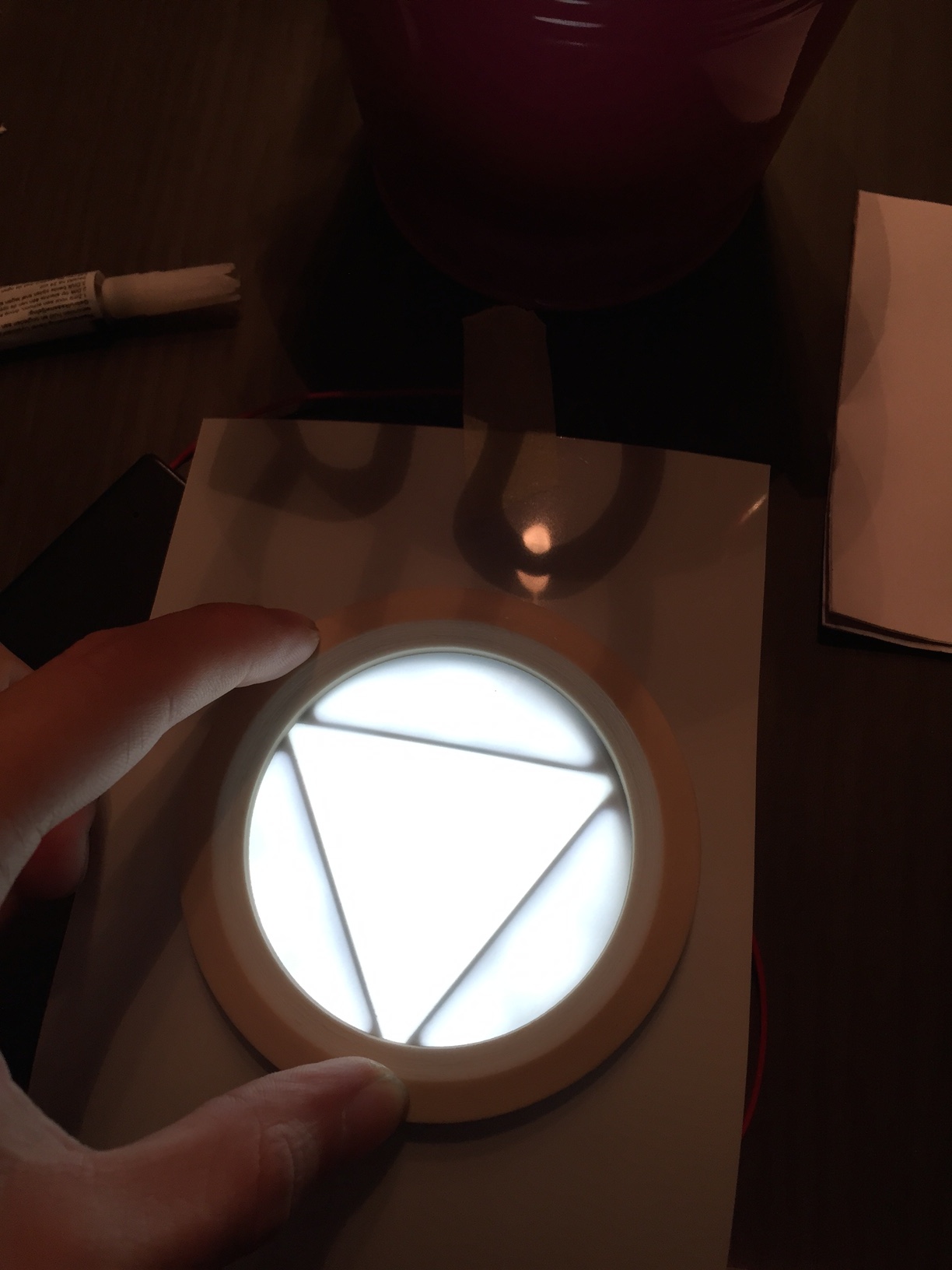

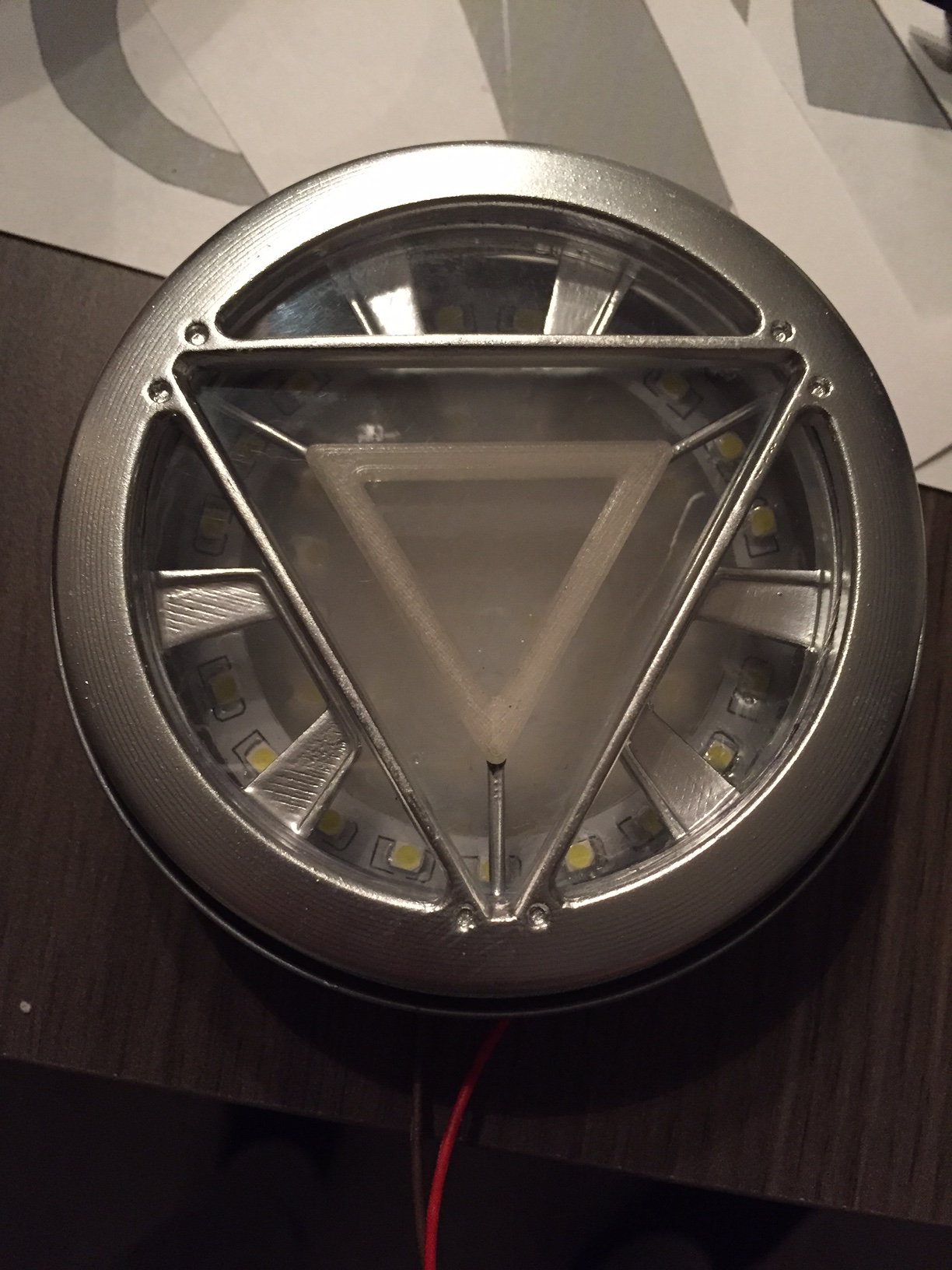

-Helmet and 3D printed arc reactor parts comes from Detour Props (Daniel) - This guy offers really great casts

Hopefully you will like my build. Comments or Tips/tricks are always welcome.

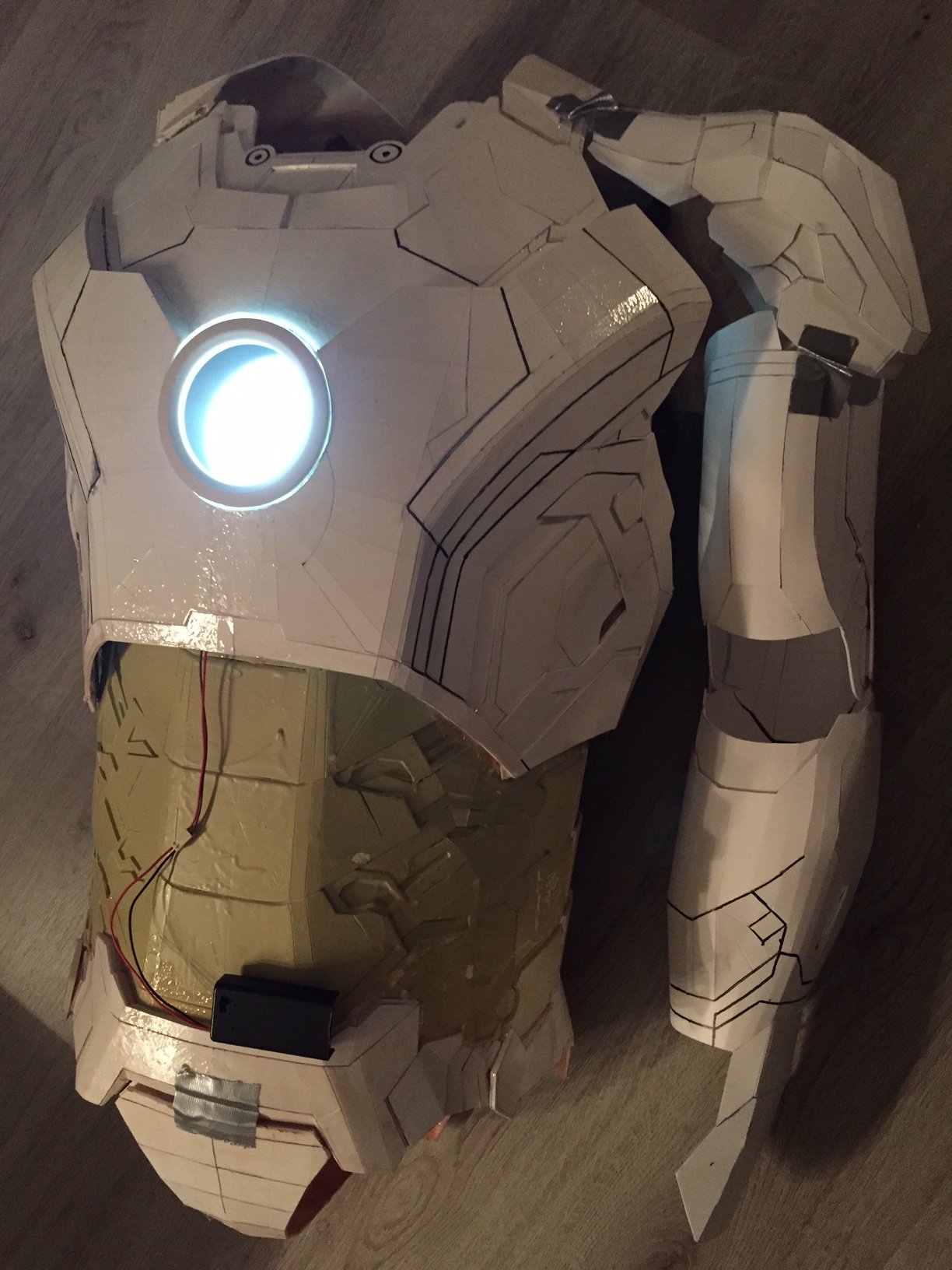

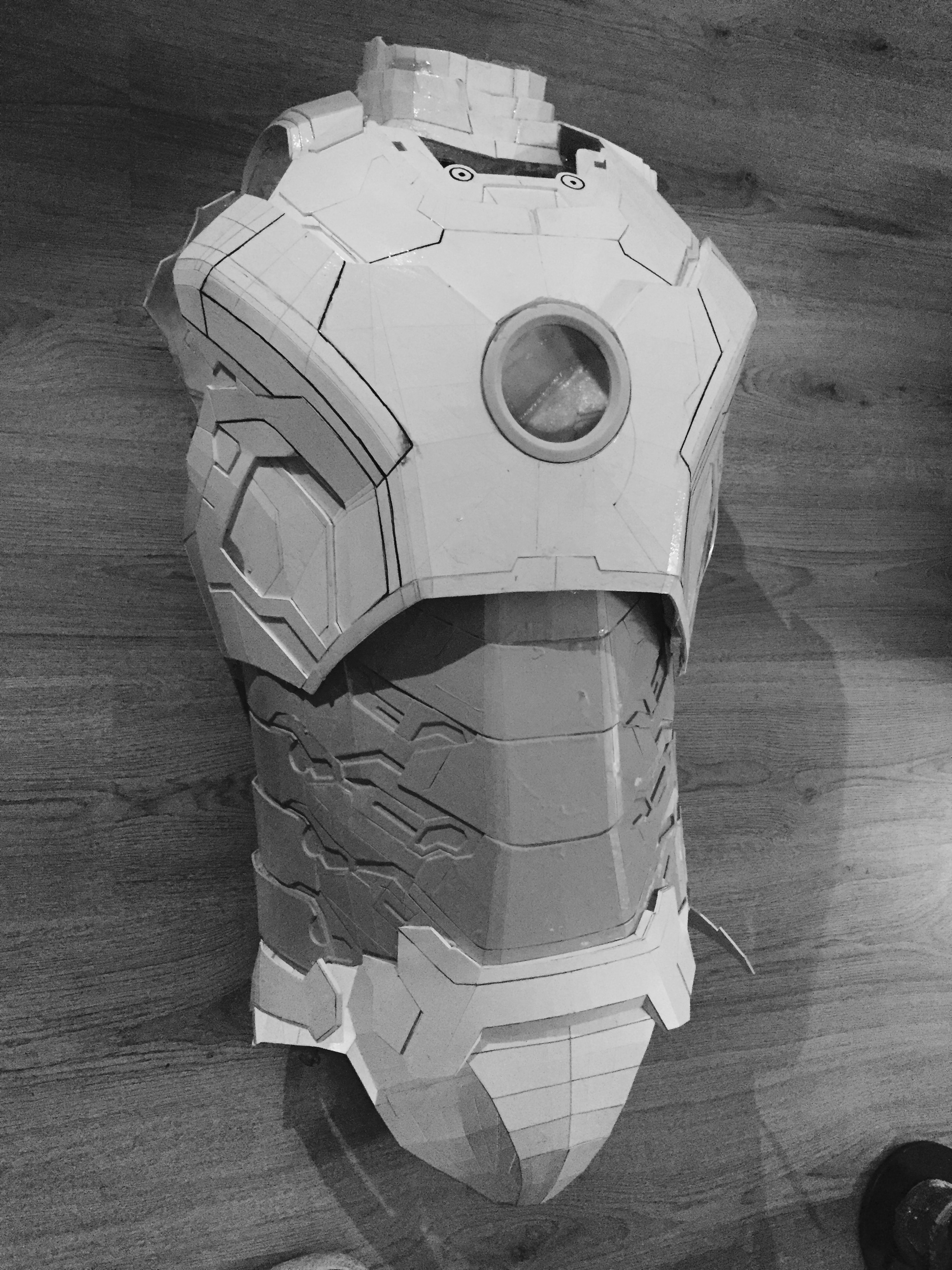

Here are some of the first pictures of the build.

Greetz

Jimmy



[Motuxmen]

Wow. Looks great. You planning to mold any of this? I'd be interested. In either casts, or even buying molds if you don't feel like messing with the hassle.



[JayCVenlo]

Wow. Looks great. You planning to mold any of this? I'd be interested. In either casts, or even buying molds if you don't feel like messing with the hassle.

Tnx.
i havent thought about recasting yet. I am first going to finish this baby and then we will see. Never see never



[JayCVenlo]

Update:

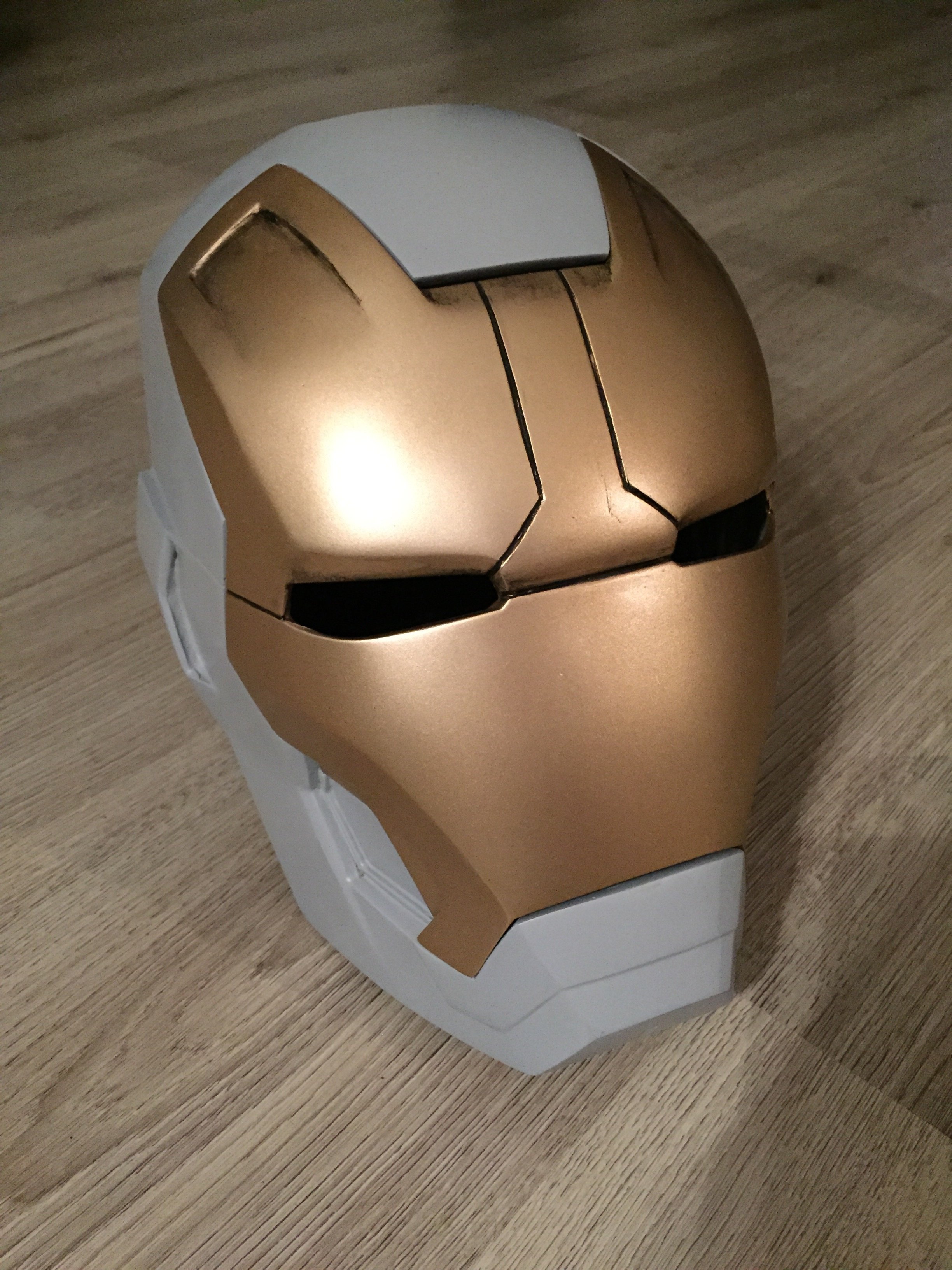

faceplate painted, helmet primed almost ready for paint:

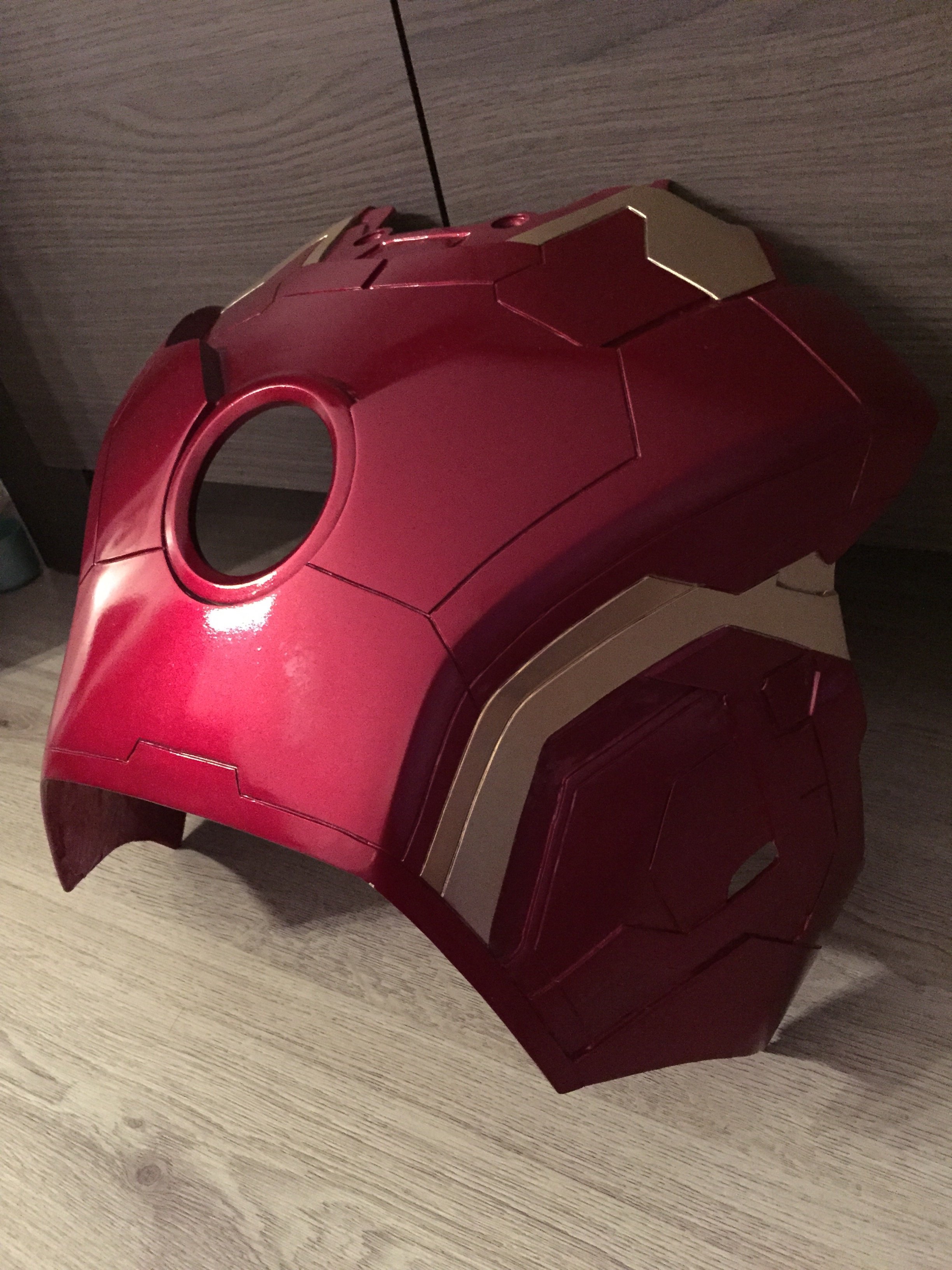

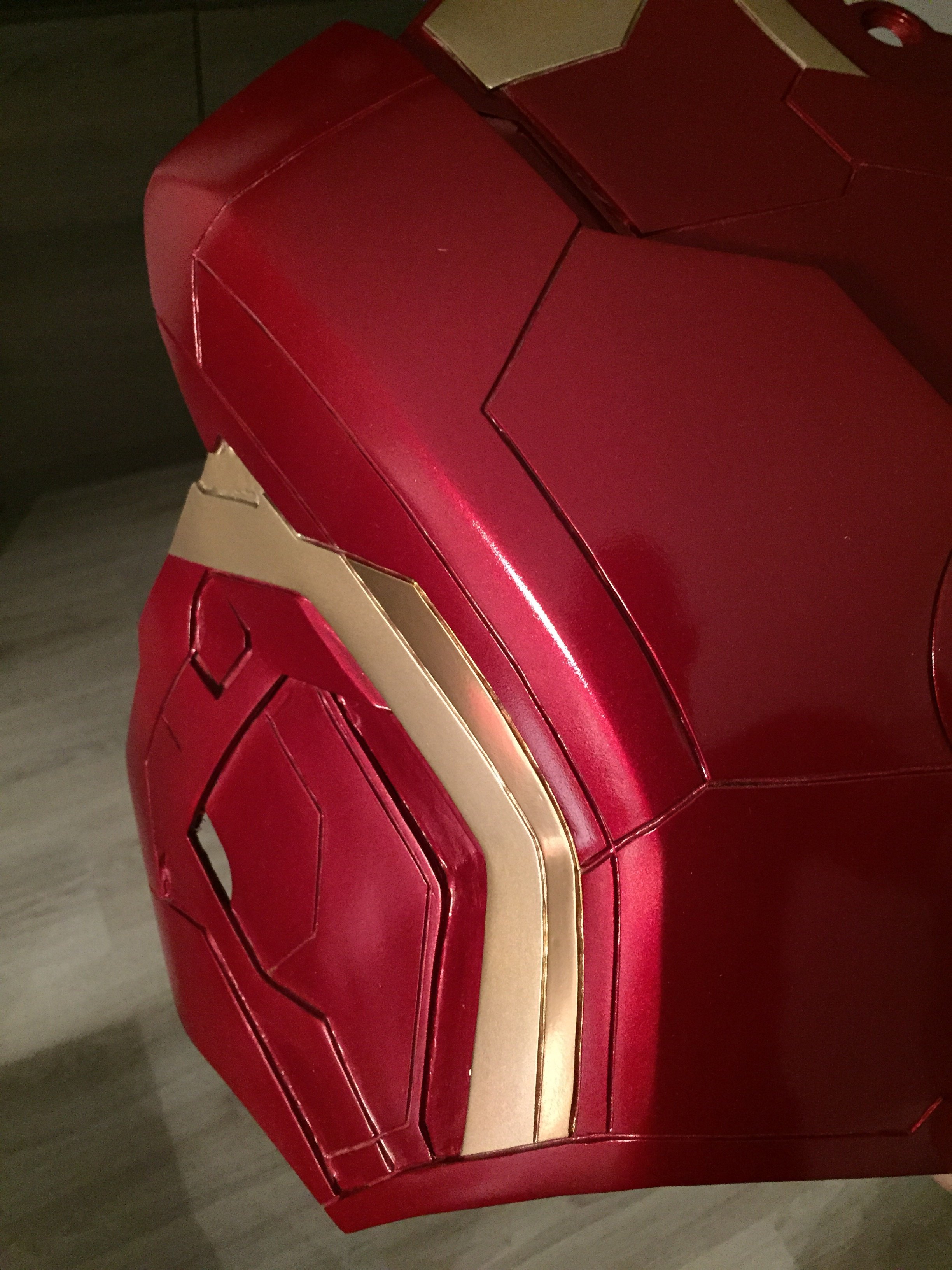

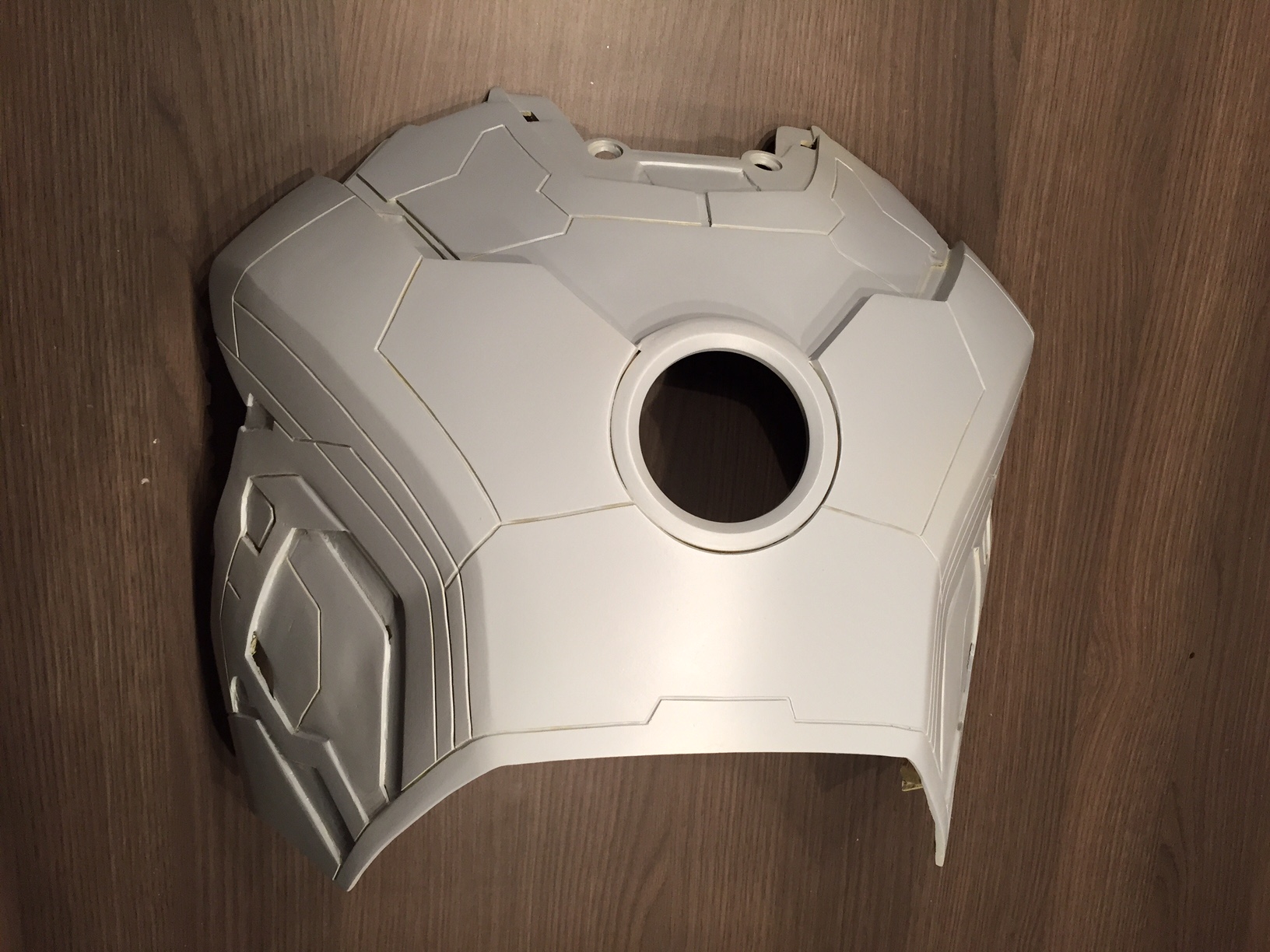

Chest 3 out of 4 colors painted. (Airbrushing the silver with alclad 2 airframe aluminium, first time try)
After that the lines will be darkned and maybe some flight damage. (this i will decide in the final stage)



[JayCVenlo]

Does anyone know how to remove those thumbnails?



[GhostMinion]

Does anyone know how to remove those thumbnails?

Nope. :lol



Killer work, though. :thumbsup



[Fetts.Sobriquet]

Looks great man! Love the non foam builds! Are you using the foam unfolds or the standard unfolds?



[JayCVenlo]

Looks great man! Love the non foam builds! Are you using the foam unfolds or the standard unfolds?

These are foam unfolds. Both helegaks and jackierockies files. I piked the ones who were the cleanest and easiest to build



[RyBeast]

Loving the build!
Thinking of using Sintra on mine!
Have you fibreglassed the inside like you would cardboard or just straight glue and then bondo on top?
Also hot glue gun to stick it all together?


Sent from my iPhone using Tapatalk



[IndridColdx]

the paint looks really nice, very glossy



[JayCVenlo]

Loving the build!
Thinking of using Sintra on mine!
Have you fibreglassed the inside like you would cardboard or just straight glue and then bondo on top?
Also hot glue gun to stick it all together?


Sent from my iPhone using Tapatalk

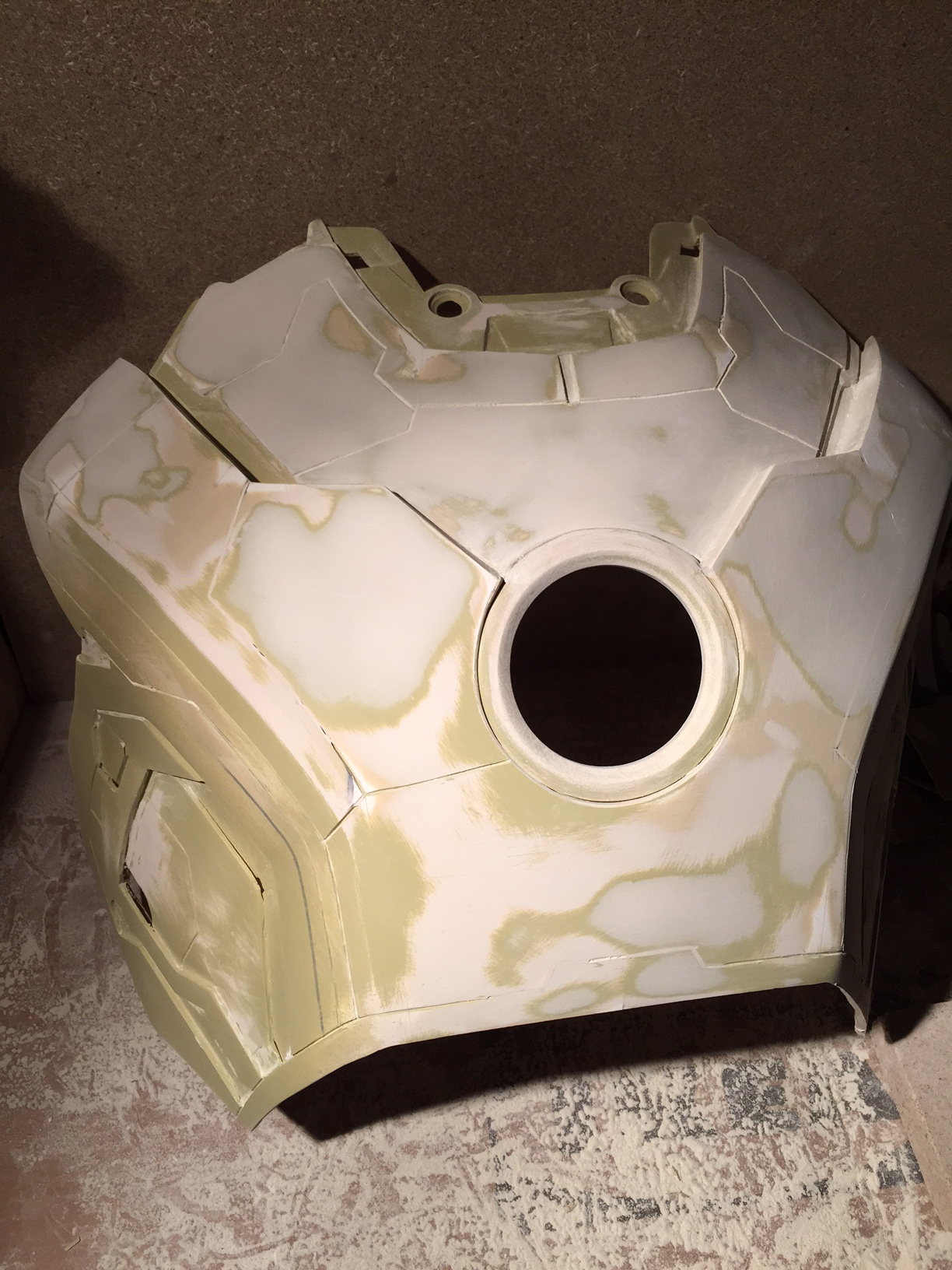

Yes. I used fibreglas on the inside and bondo the outside. First with polyester putty, then fine putty, spray filler and primer.
i glued the pieced together with very thin en liquid industrial one second glue. It was really cheap bit it glue like hell. It has a really strong hold. (Also on fingers lol)
i dont like hot glue, because it might melt during the fibreglas stage with the risk some part come loose.



[hansugrove]

Good work, impeccable.



[JayCVenlo]

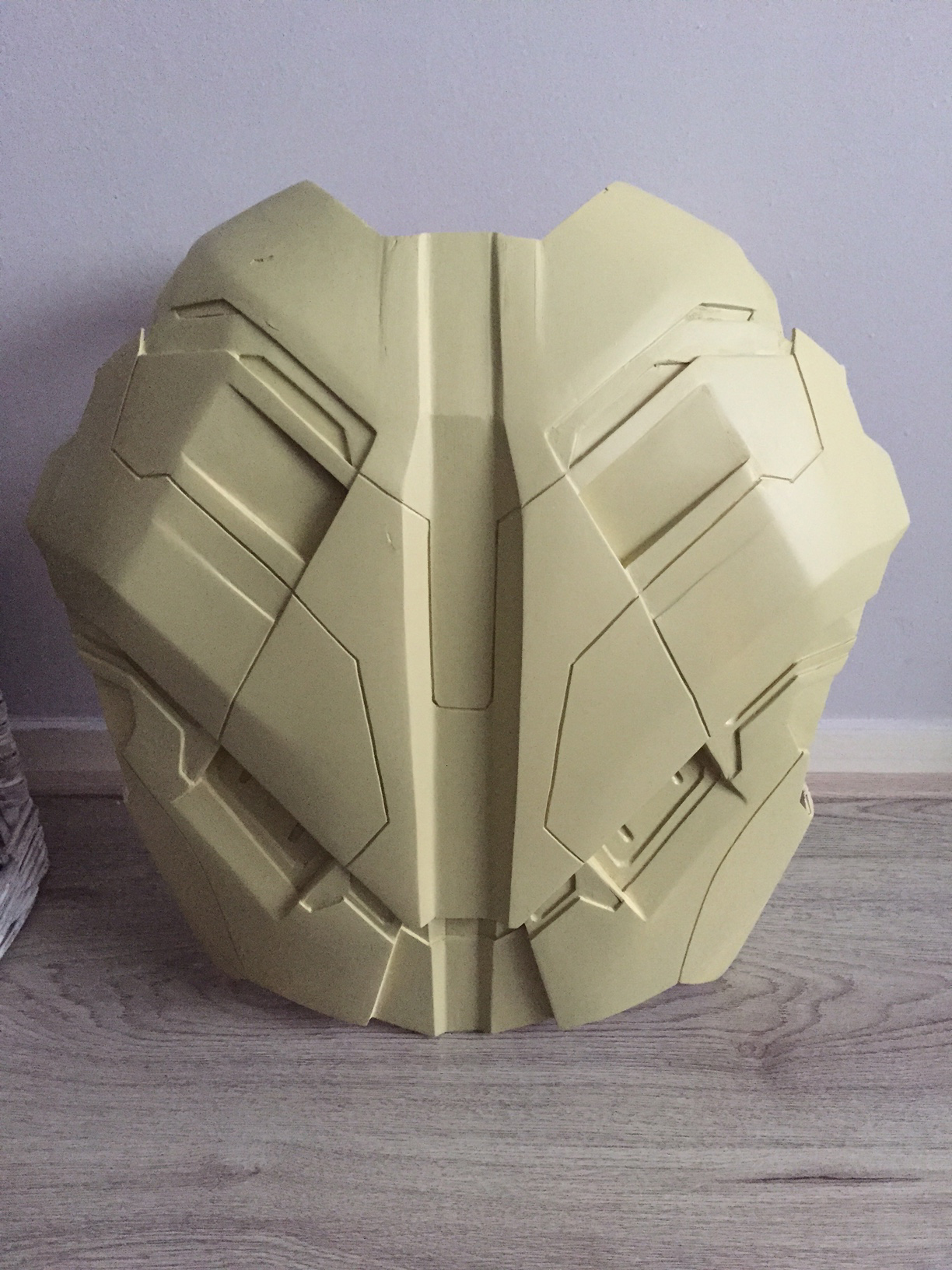

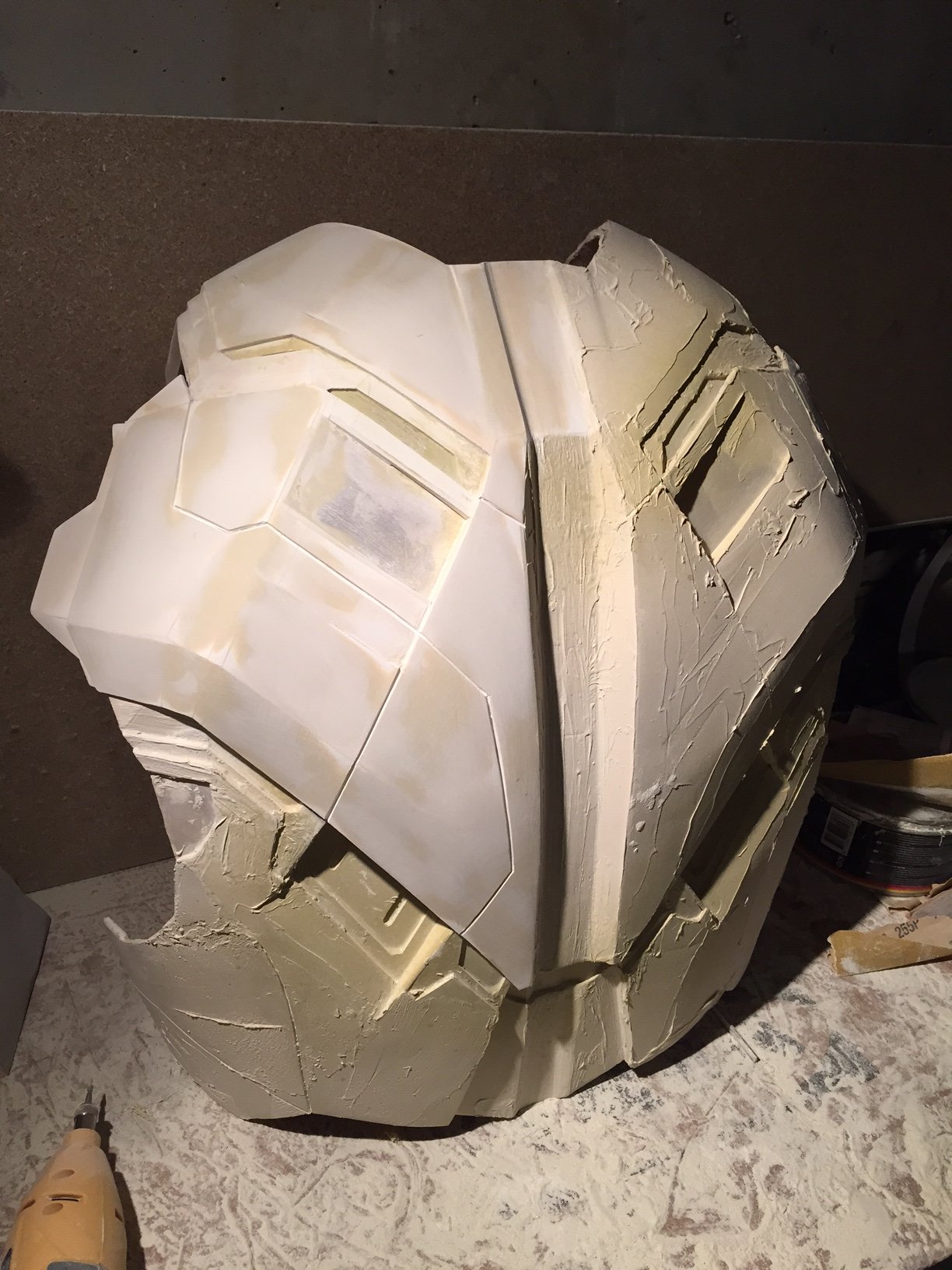

Some minor edges and gaps to fill, but this baby is 90% ready for paint! (cant wait to paint).



[Bandiet]

Some minor edges and gaps to fill, but this baby is 90% ready for paint! (cant wait to paint).
View attachment 418141

You've got me so inspired to tackle a MK42/3... really amazing work there bud. subdcribed....

Sent from my GT-I9500 using Tapatalk



[JayCVenlo]

You've got me so inspired to tackle a MK42/3... really amazing work there bud. subdcribed....

Sent from my GT-I9500 using Tapatalk

Tnx mate. Thats great. Looking forward to see more MK43 builds.



[markseven]

Some minor edges and gaps to fill, but this baby is 90% ready for paint! (cant wait to paint).
View attachment 418141

Wherever I see ur progress I always envy your craftsmanship [emoji2] what's the name of your glue in German? Would it work with eva foam?



[JayCVenlo]

Wherever I see ur progress I always envy your craftsmanship [emoji2] what's the name of your glue in German? Would it work with eva foam?

Thank you sir.

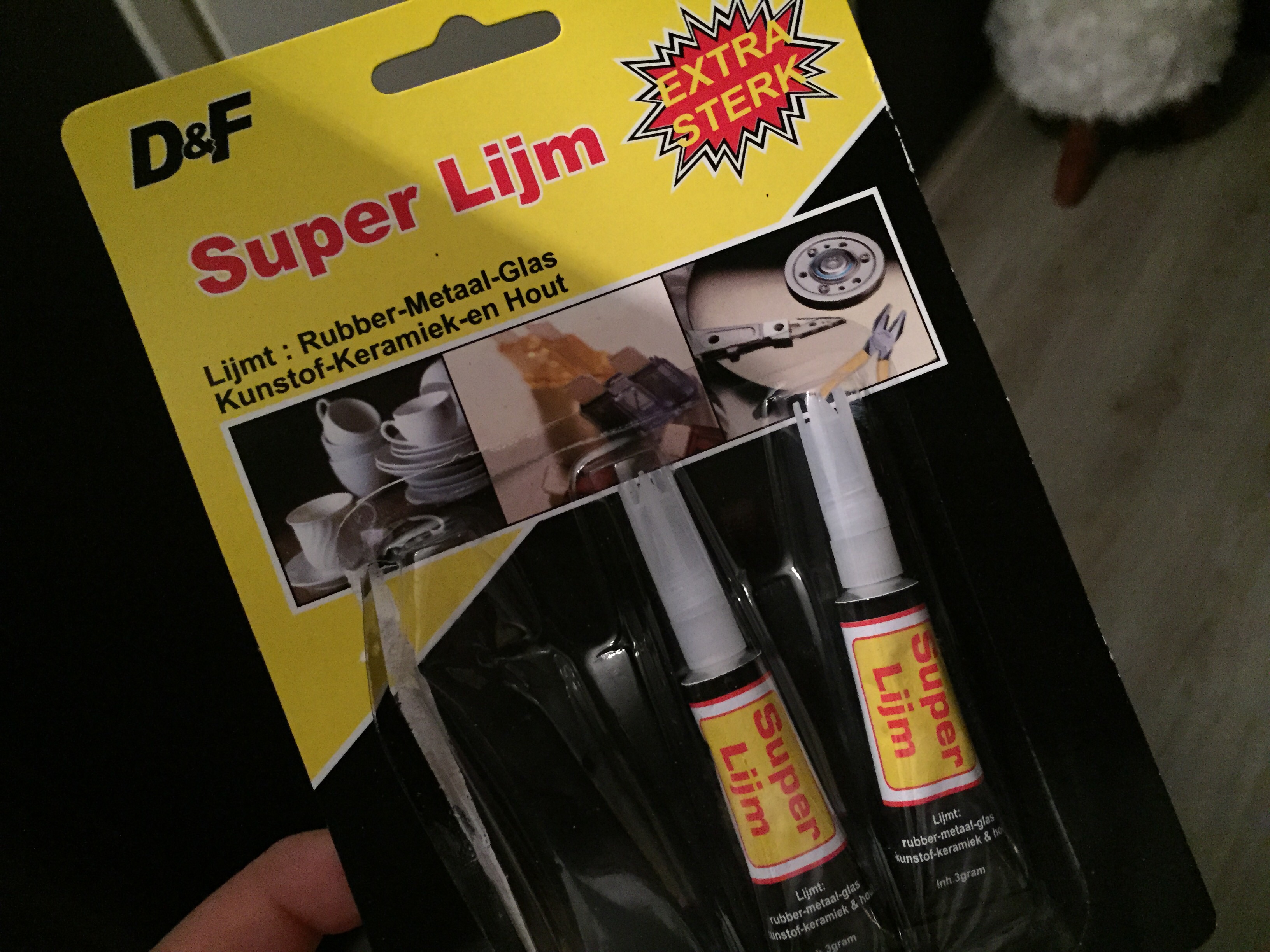

this is the glue i used. Sekundekleber



[Psicorp7]

Really great, clean work! Top notch!!



[hansugrove]

That back is fantastic , amazing job.



[Syrus54]

Is this sucker done yet? Put it on, I wanna see how it fits
