Ironman Wearable Wireless Ver.1 Arc Reactor (99% Movie Accurate)

[pRoJectEarth7]

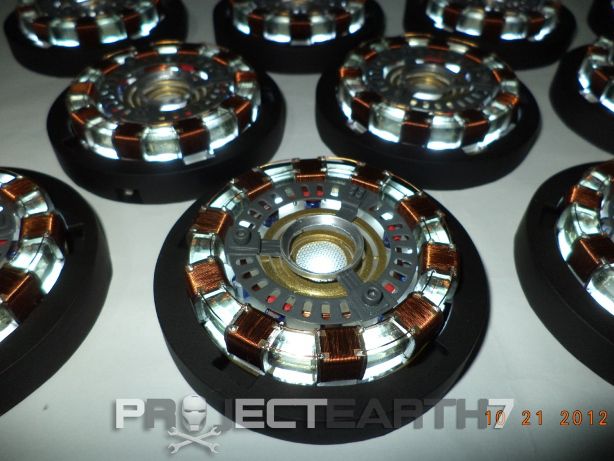

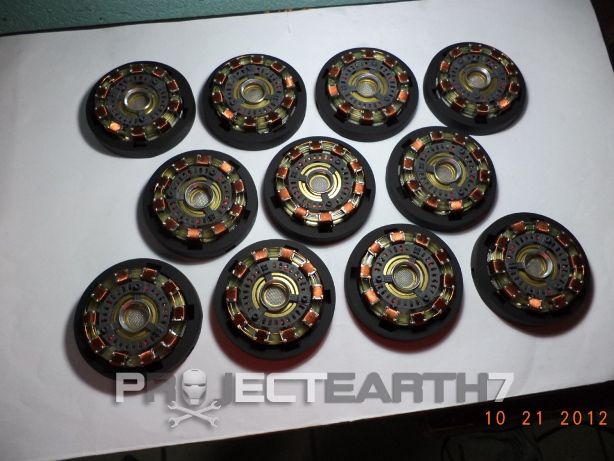

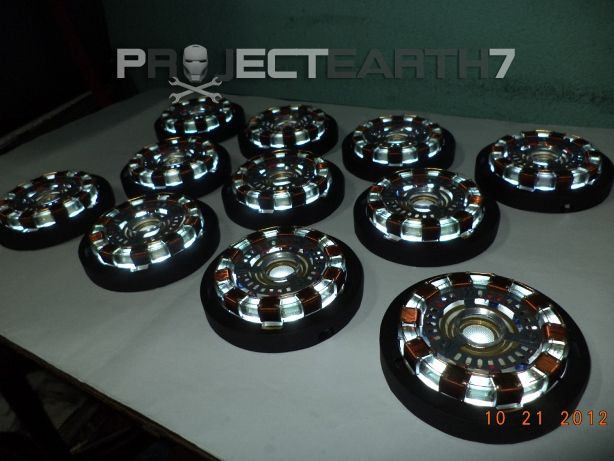

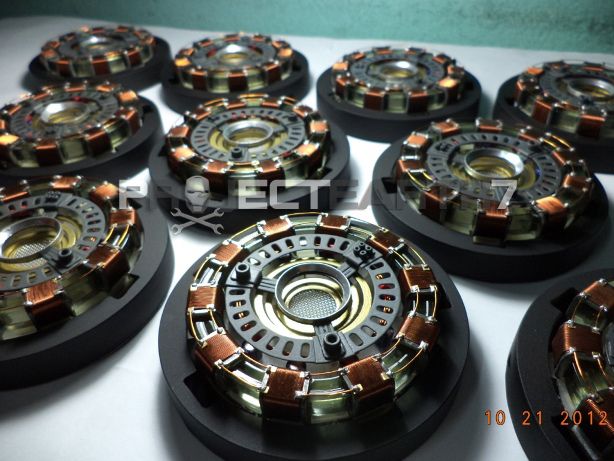

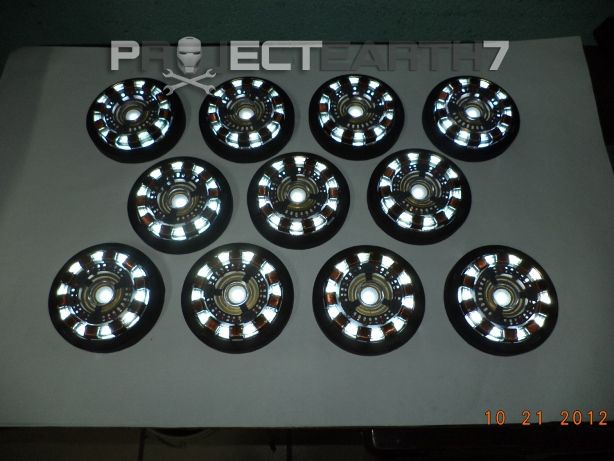

Copies were made and shipped :thumbsup

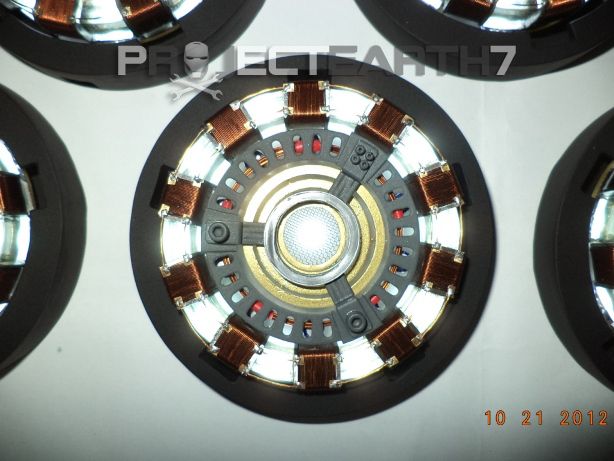

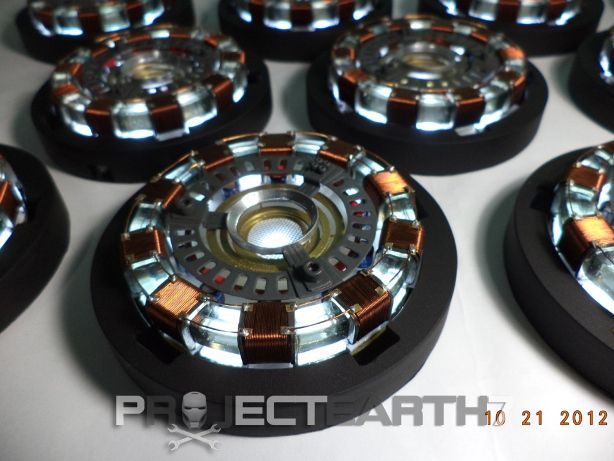

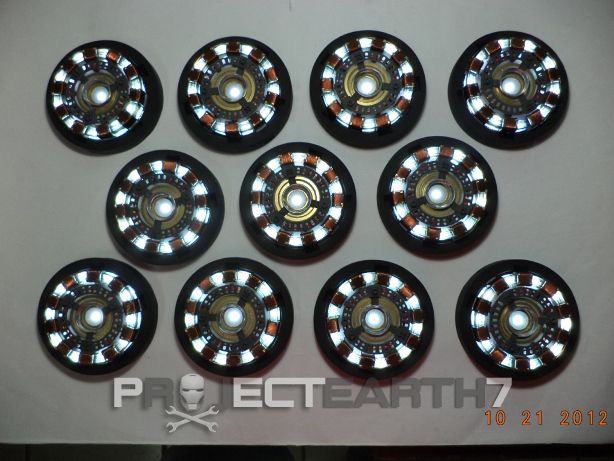

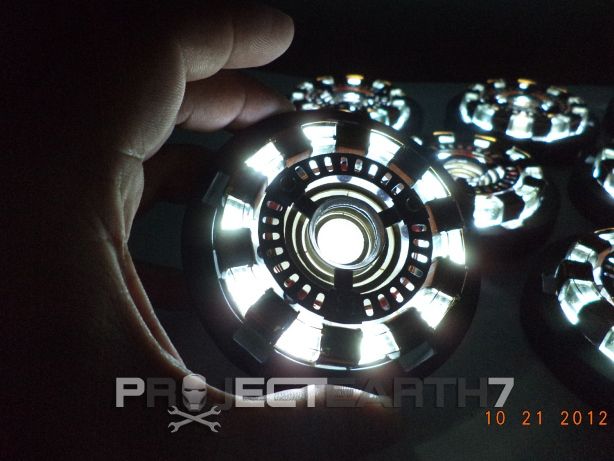

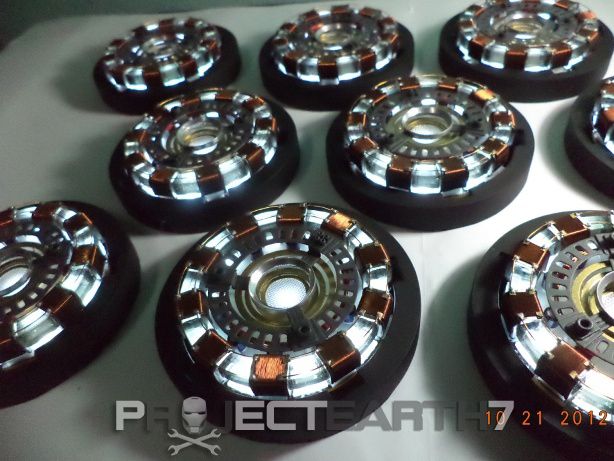

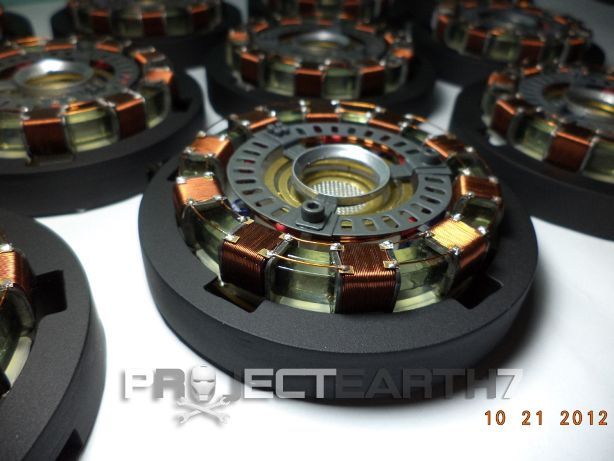

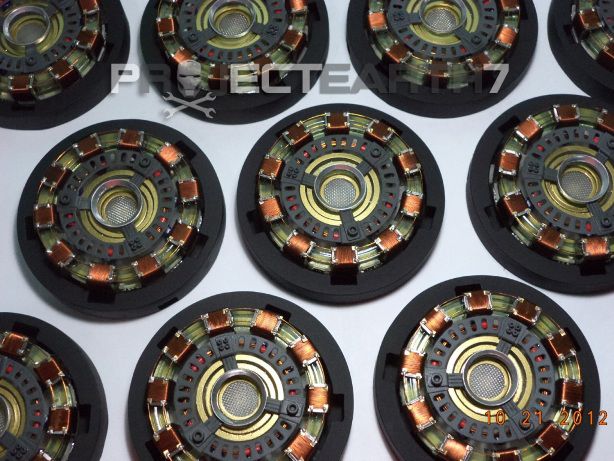

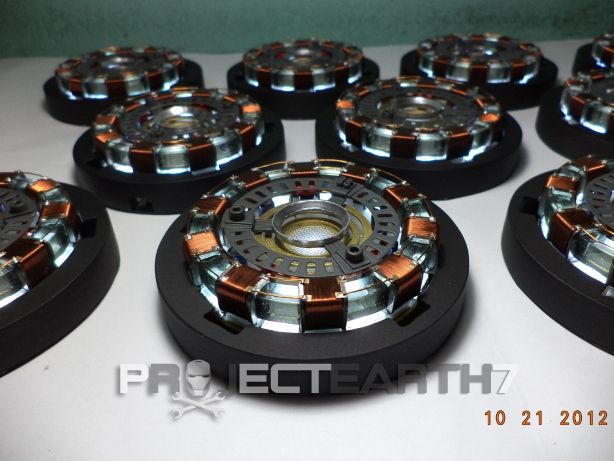

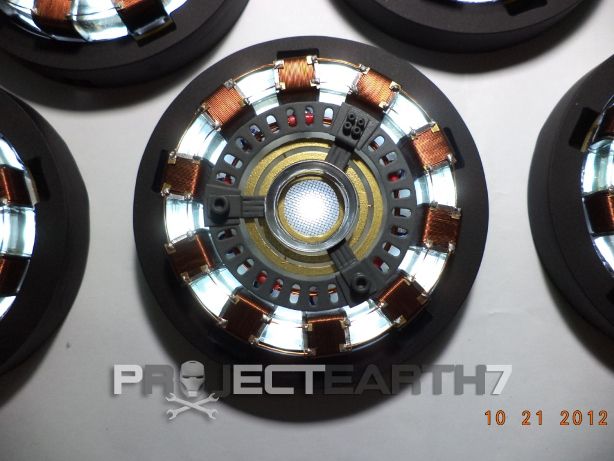

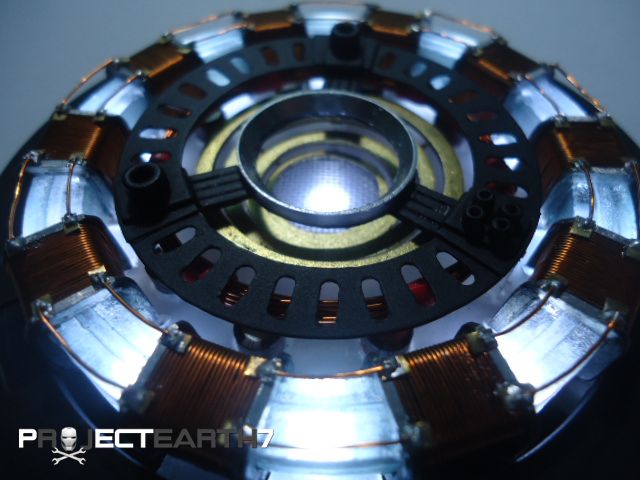

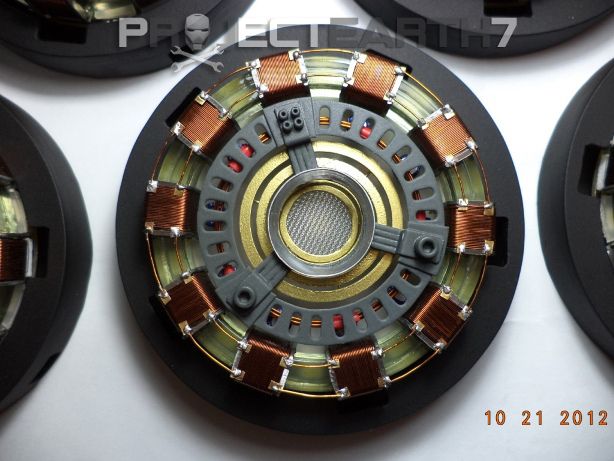

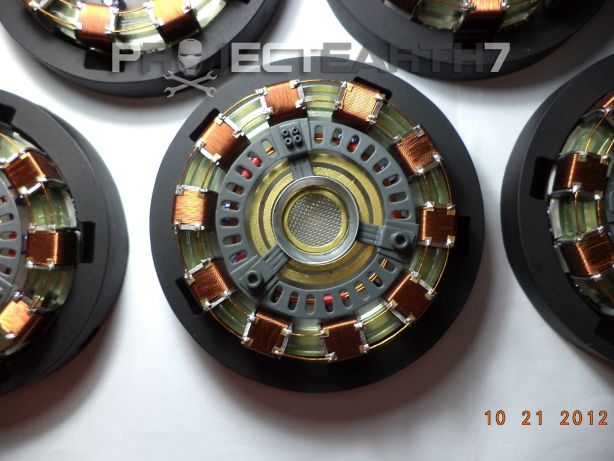

Below photos are revised ver1 Arc Reactors... more accurate-looking than the prototype.

The prototype you can find on post#2

THE REV1



[pRoJectEarth7]

Re: Wearable Ironman Ver.1 Arc Reactor (Hand Crafted/Found Item Build)

THE PROTOTYPE


Its been raining non-stop here in our place for the past 3 weeks so progress on casting my helmet was really slow.

But I did not waste any time, so I work on my Wearable Ironman Ver.1 Arc Reactor (the very first RT unit in the movie)

I was able to find/gather parts when I was searching for the parts for my Ver. 3 Arc Reactor.

The found items I used in this build are as follows:
1) Sugar container
2) Different sizes of PVC pipes
3) PVC pocket calendar
4) GI wire
5) Beads (from arts and crafts store)
6) Aerator (from plastic faucet)
7) Brass shim
8) Electrical tape
9) Plastic tray

Yes it's NOT SUPER ACCURATE but the accuracy was very much dependent on the shape, size, and color of the found items.

But even given such limitations on found items, I still tried my best to achieve the highest accuracy possible :thumbsup...

So here goes... SORRY PIC-HEAVY:confused

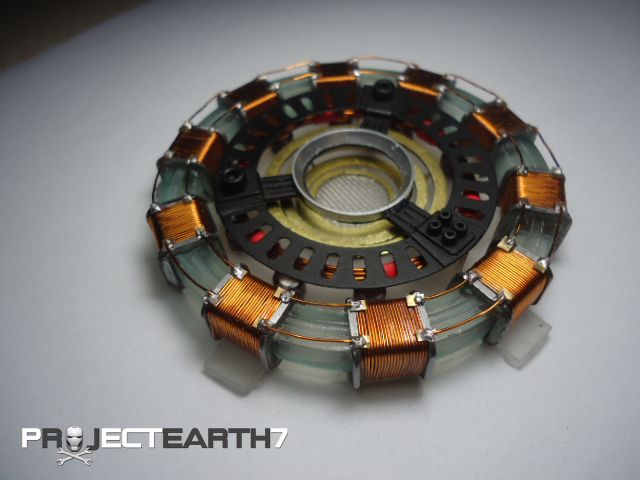

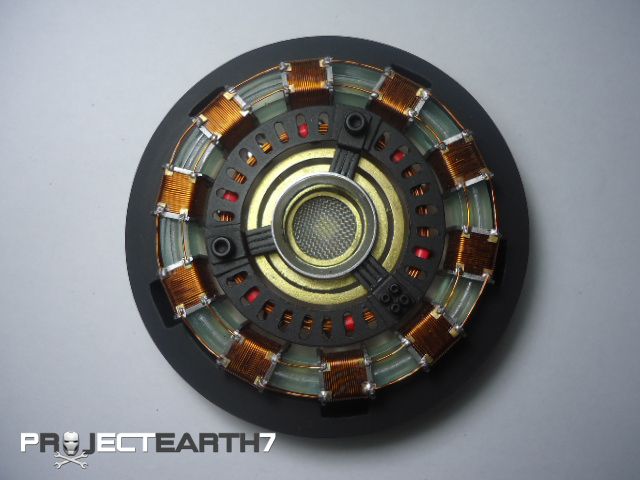

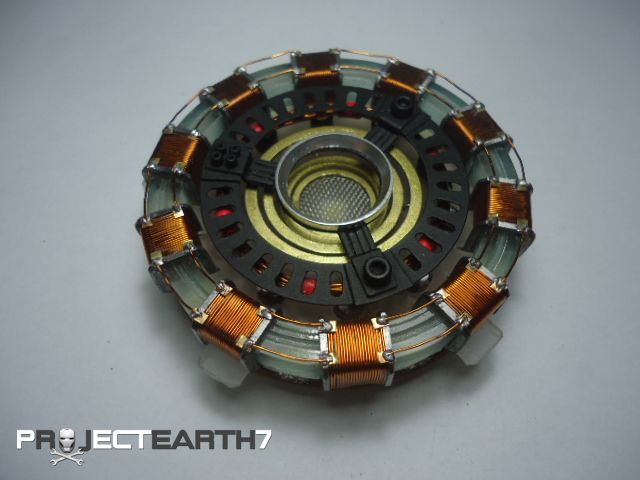

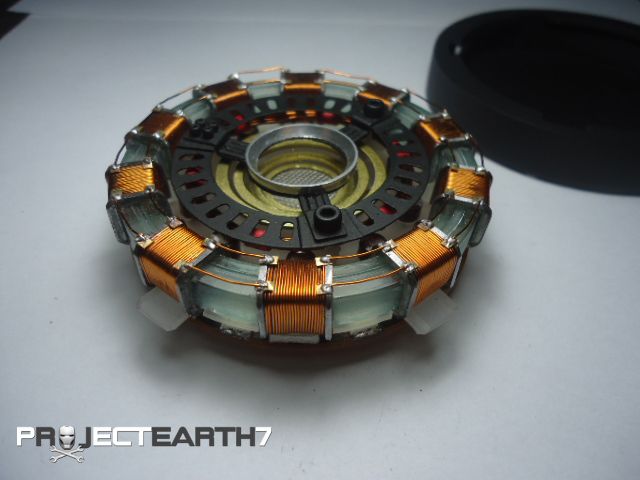

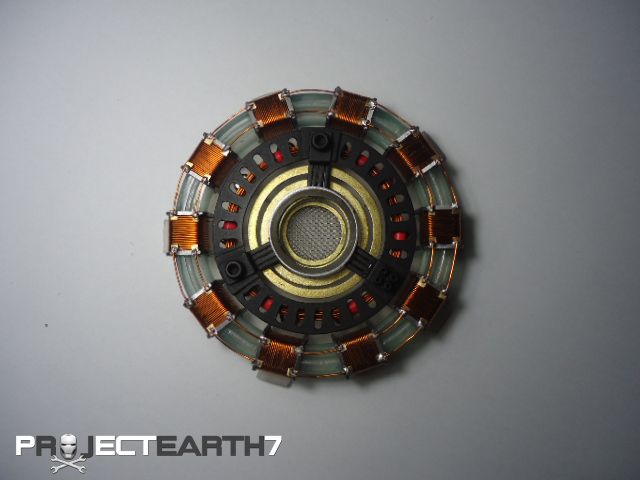

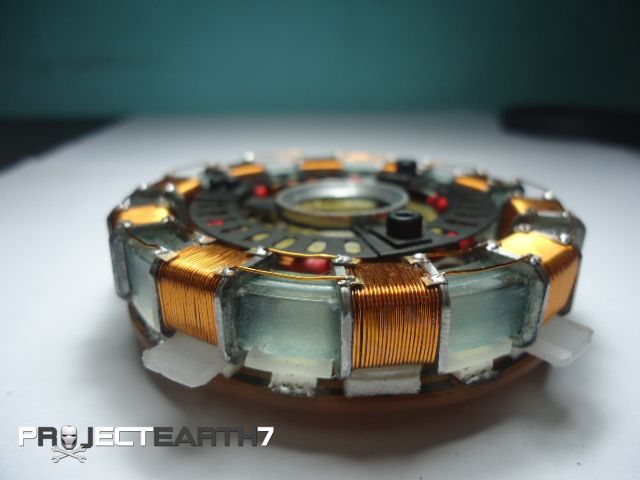

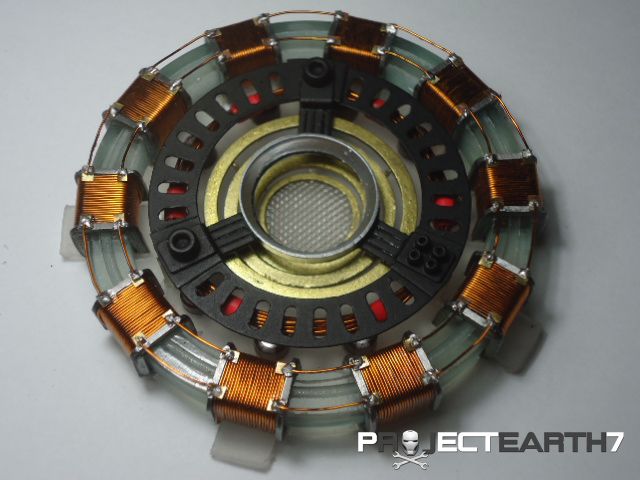

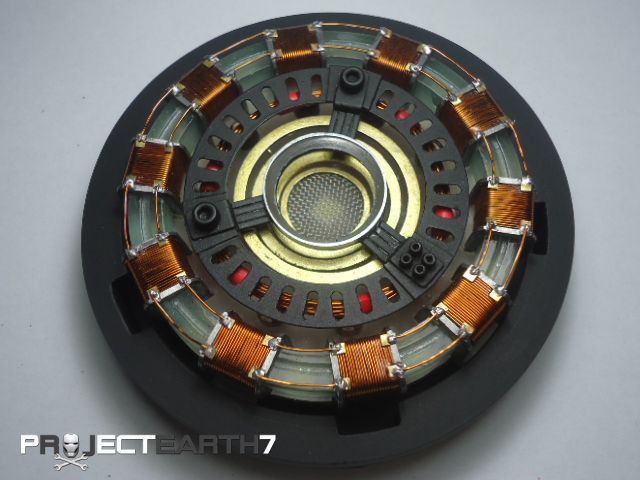

Here is the finished mechanical assembly without the electronics...

I was not able to find a more red-ish magnet wire but its ok... maybe next time...

Also, brass wire was not available in our local hardware store so I just used the same magnet wire...

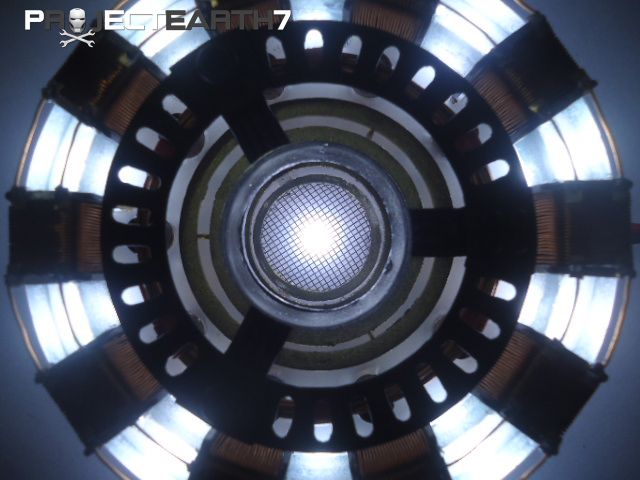

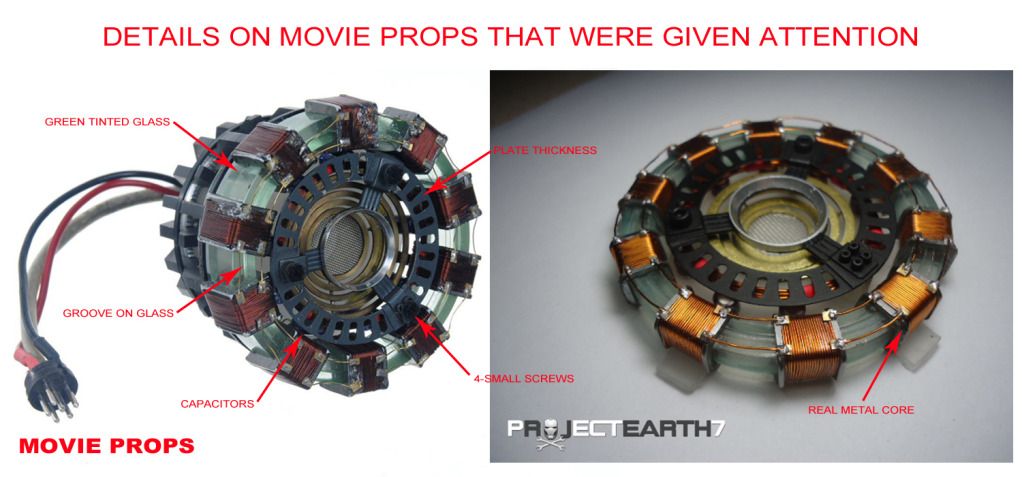

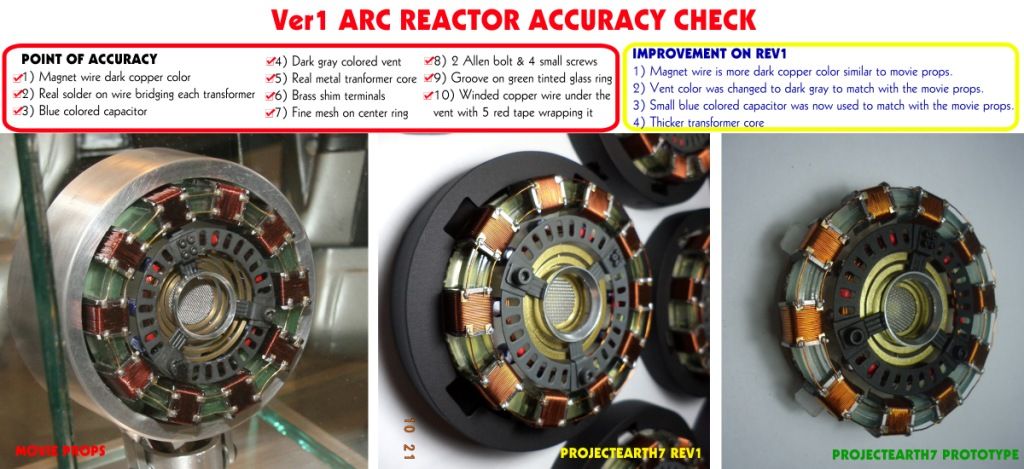

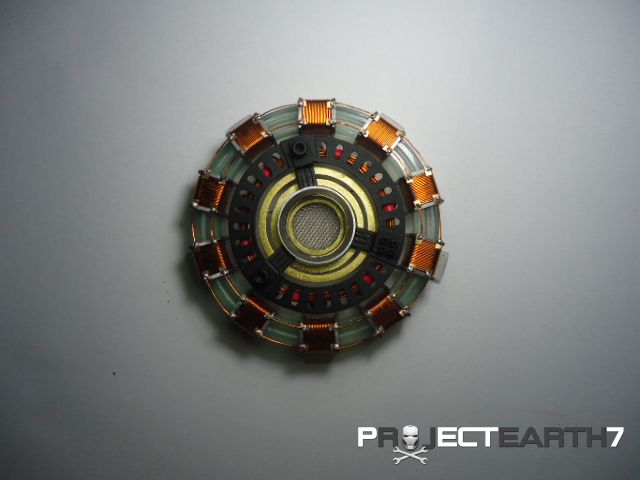

Below photo shows what was given attention to achieve as much accuracy as I can...

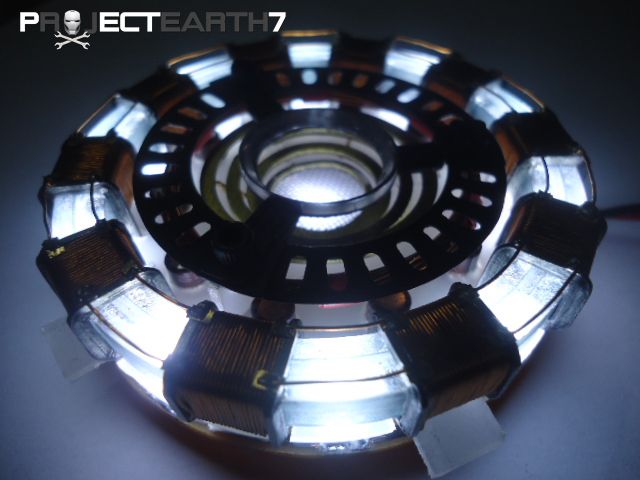

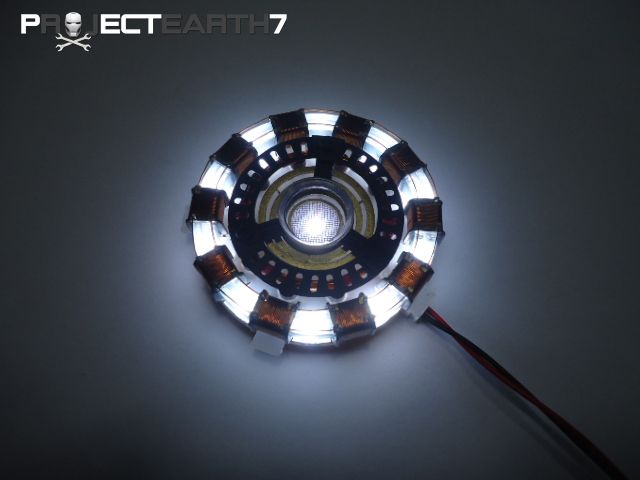

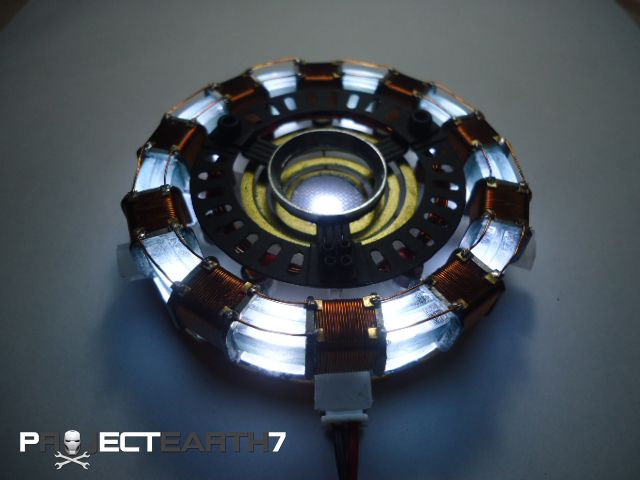

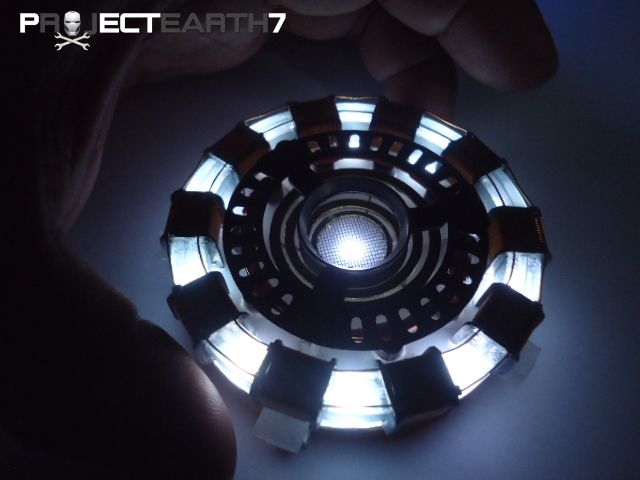

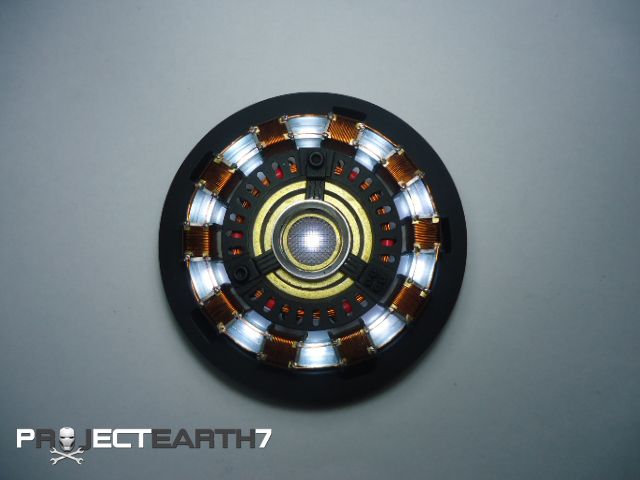

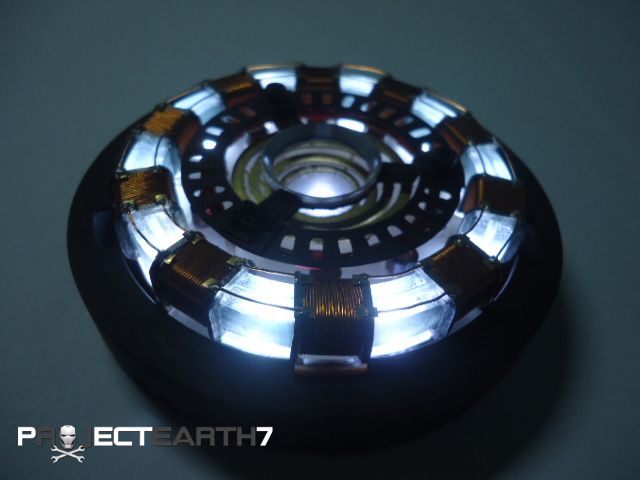

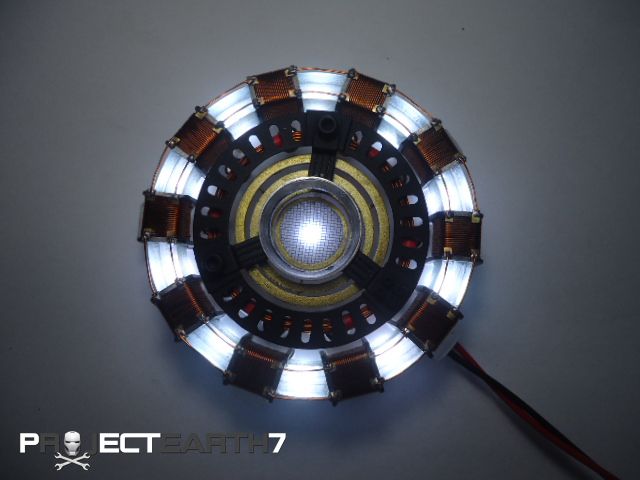

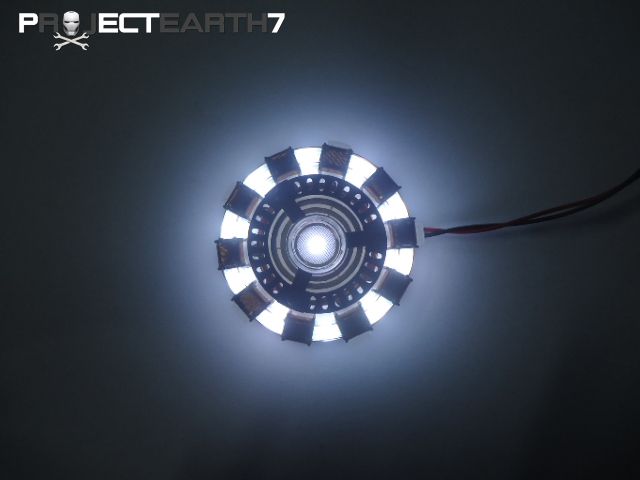

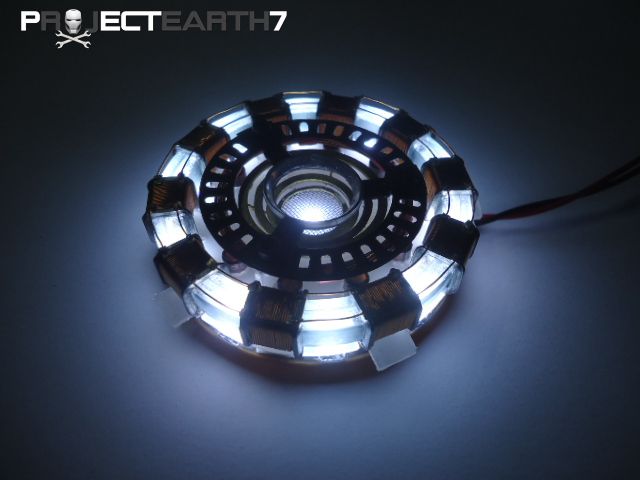

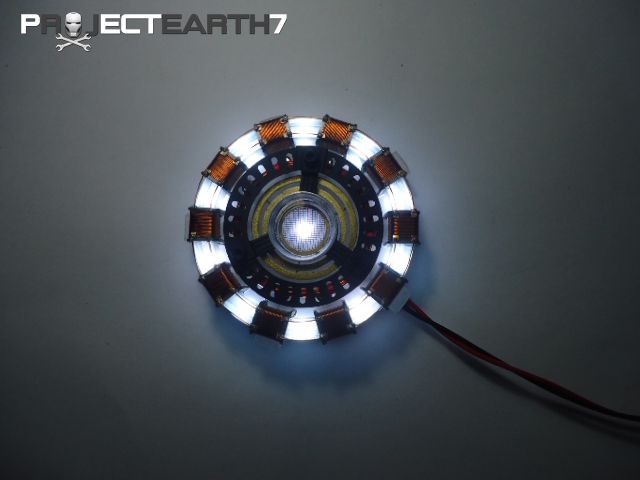

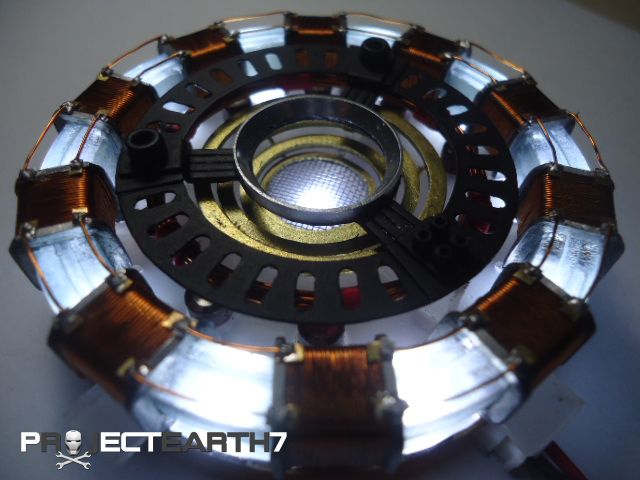

With the electronics installed and lit...:thumbsup

Powered by 2 x CR2032 (3V) cell battery (total = 6V)...

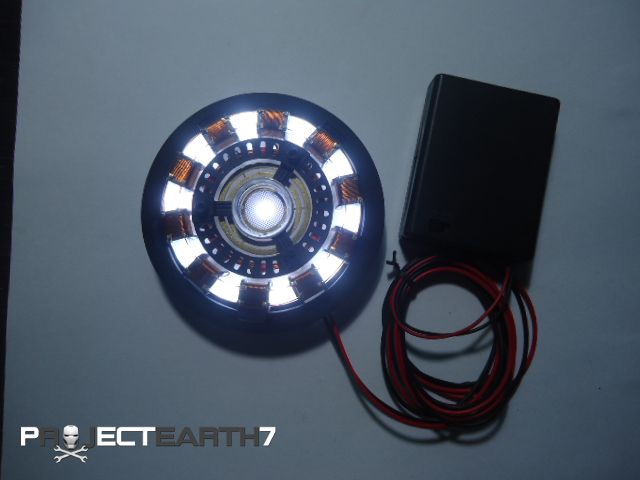

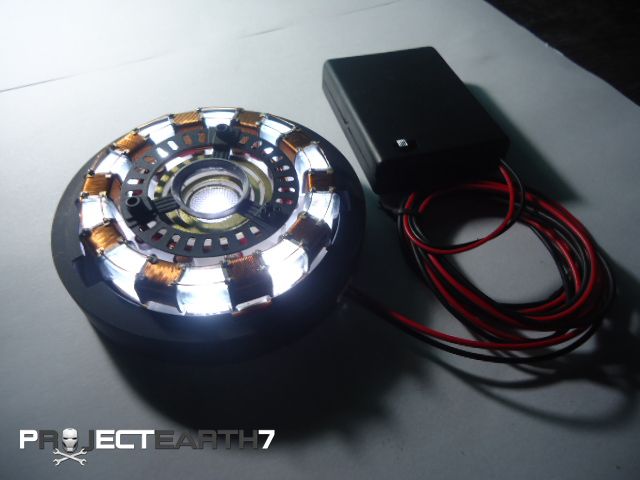

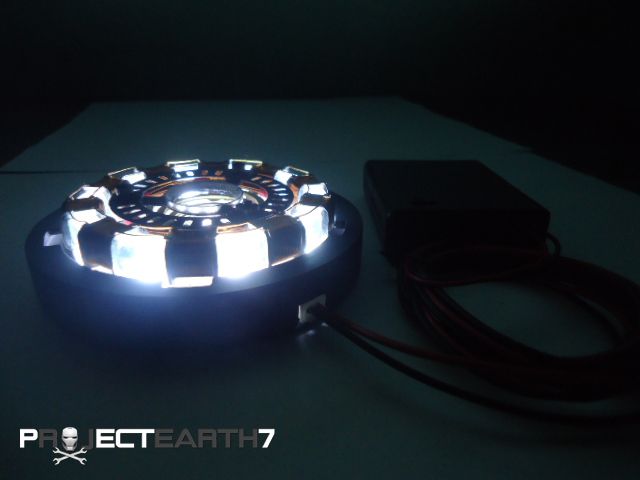

Also can be Powered by 4 x AAA (1.5V) external battery pack (total = 6V)

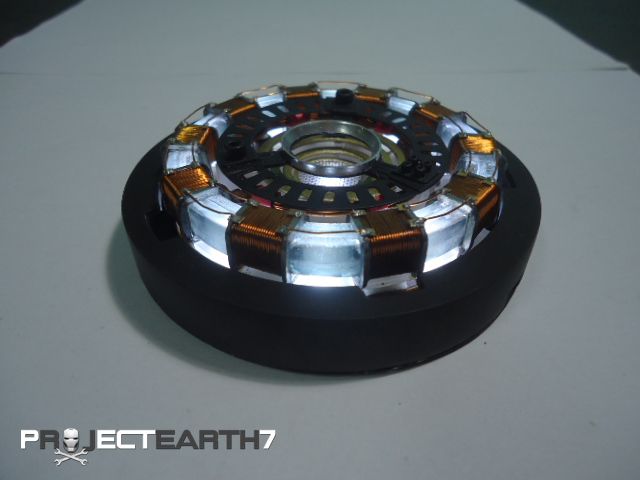

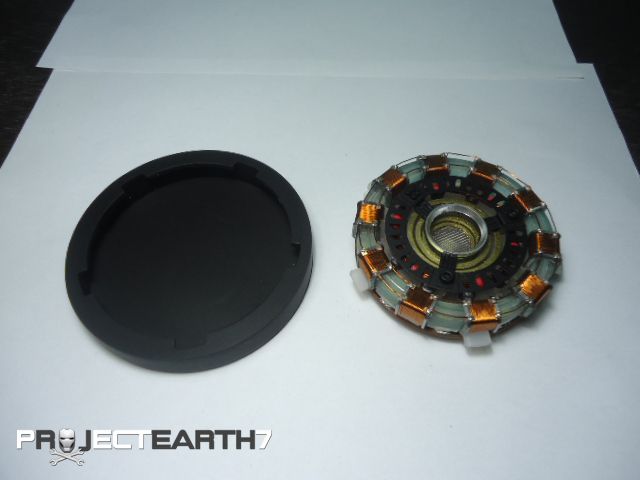

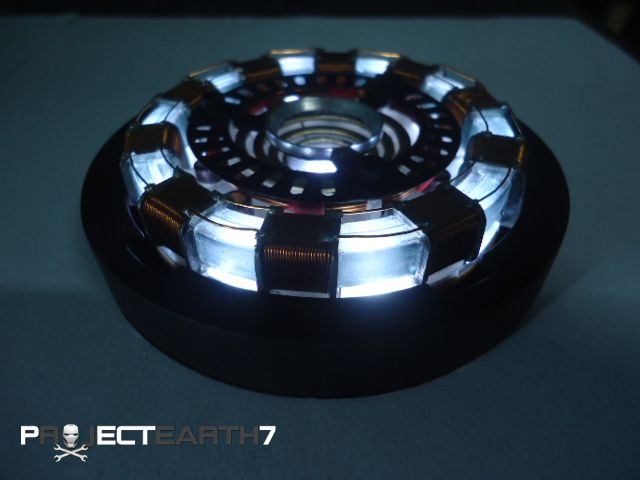

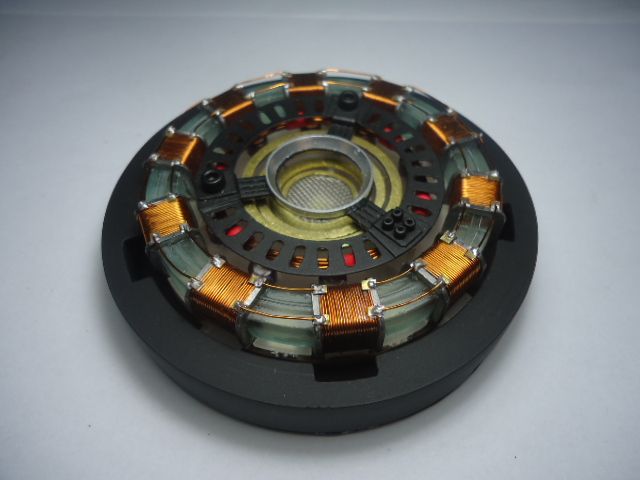

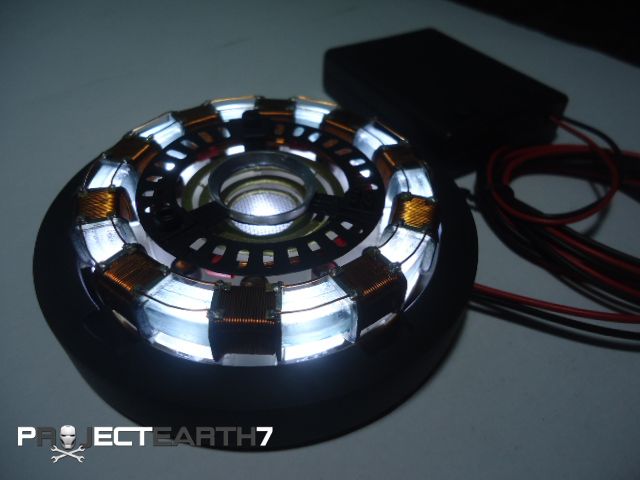

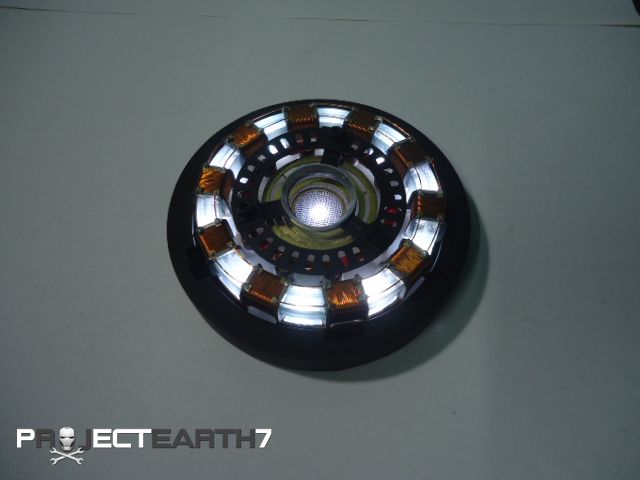

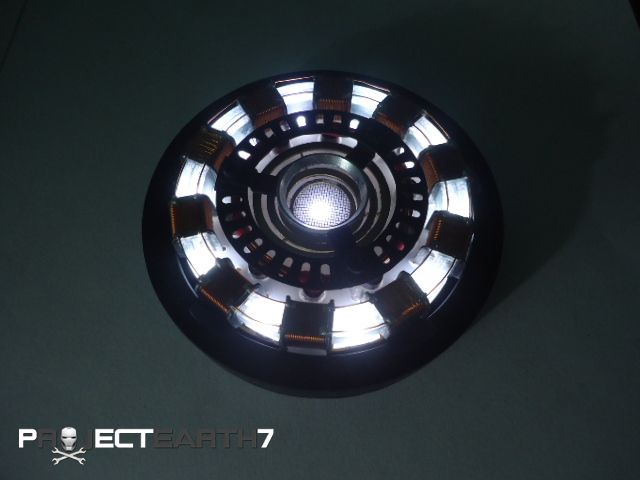

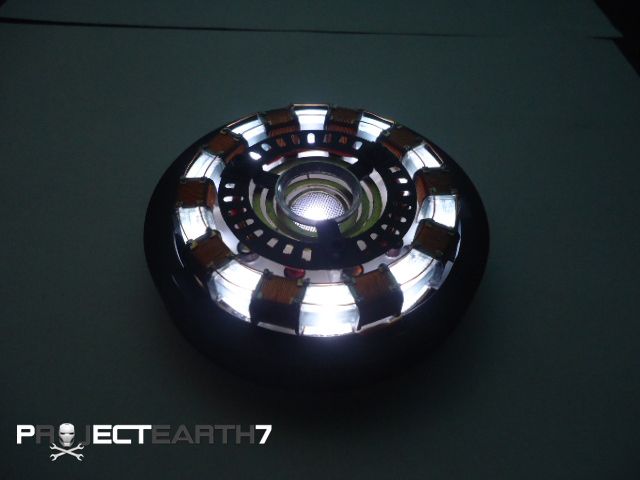

Now installed to its casing...

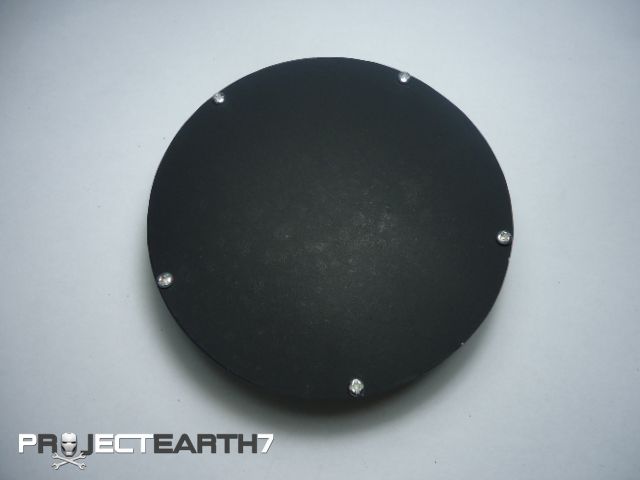

Back cover is GI sheet and magnet can be attached...

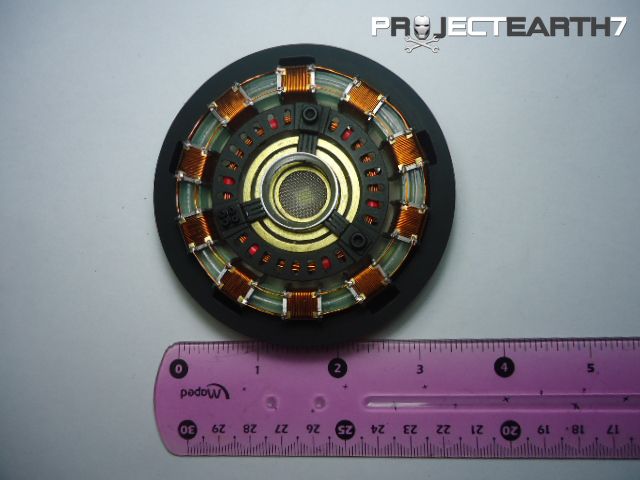

Outside diameter (casing) = about 3.5"

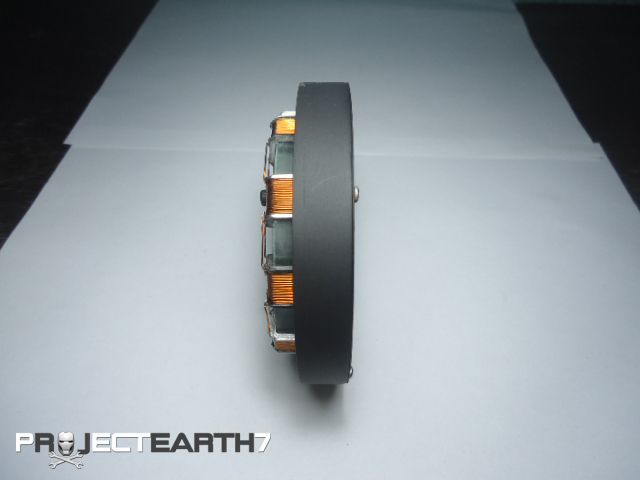

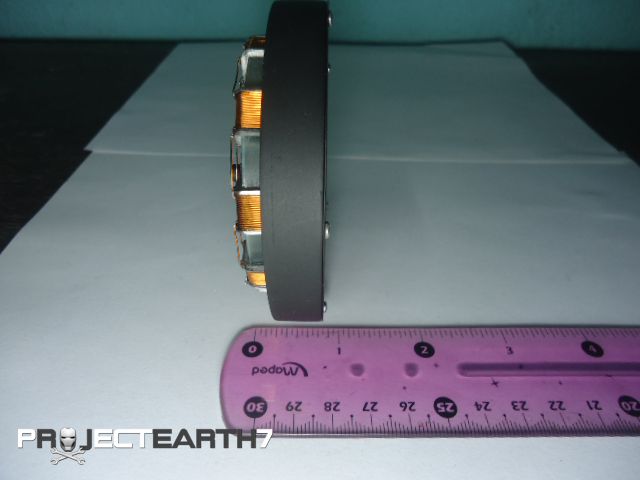

Overall Thickness = about 3/4"

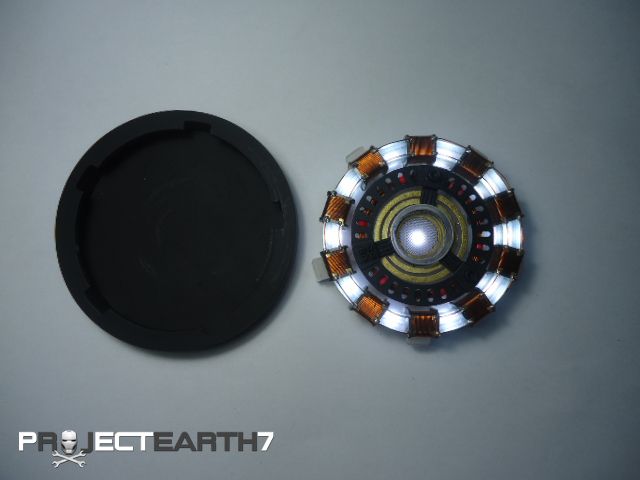

The Arc Reactor can be attached and detached to its casing ba twisting action...

Switch at the back of the reactor should be turned on before installing it to the casing...

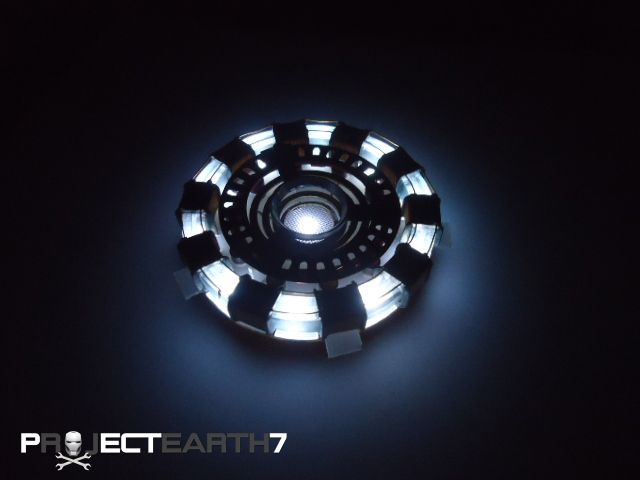

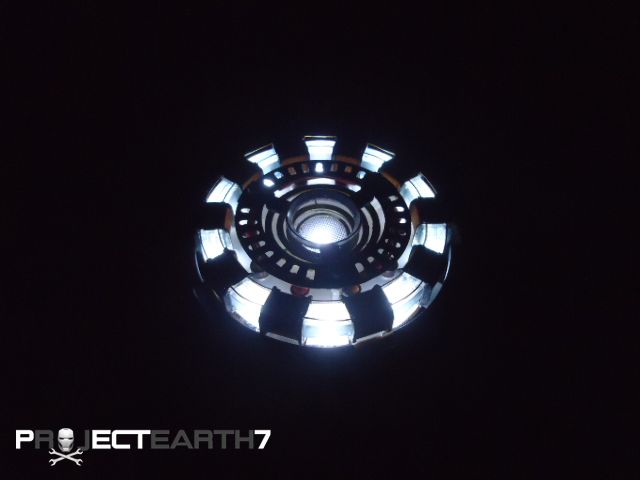

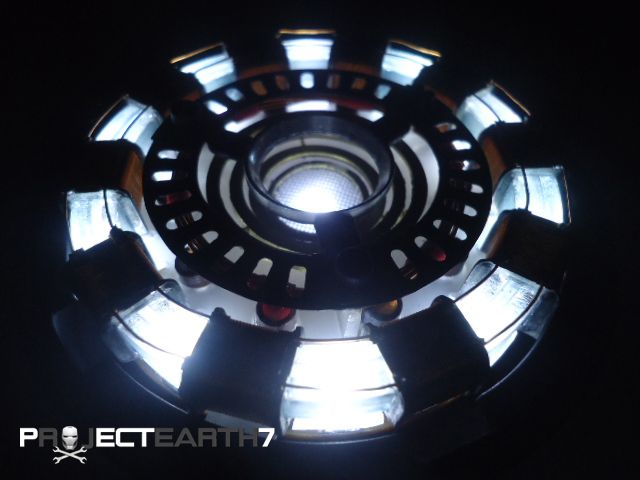

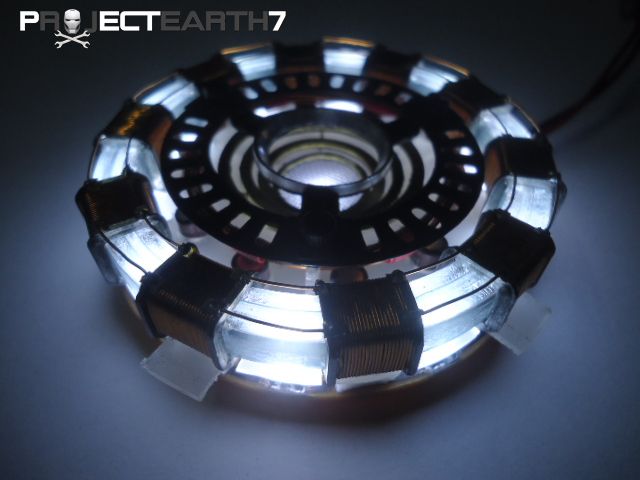

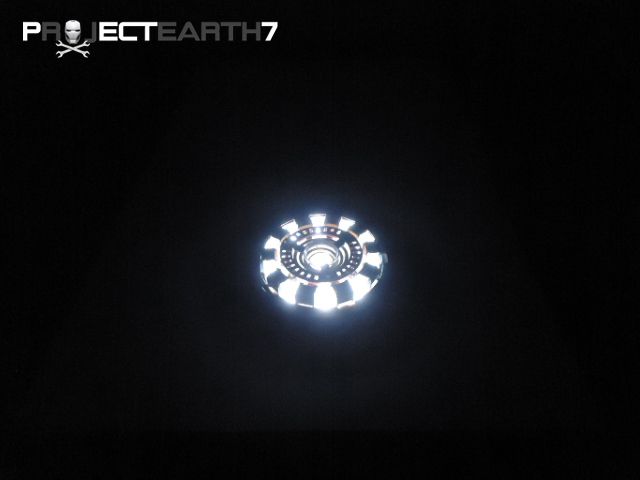

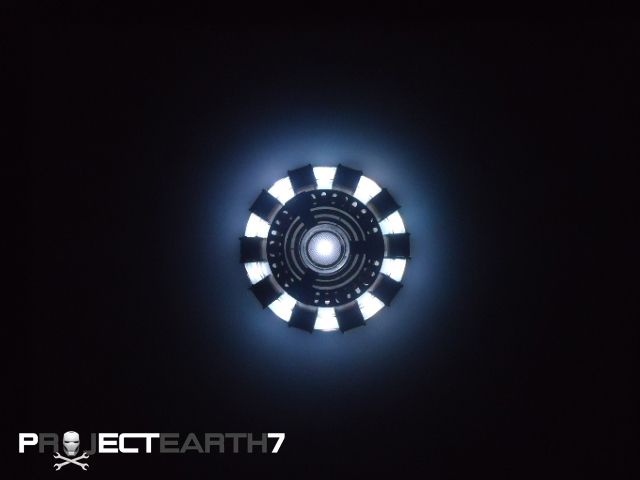

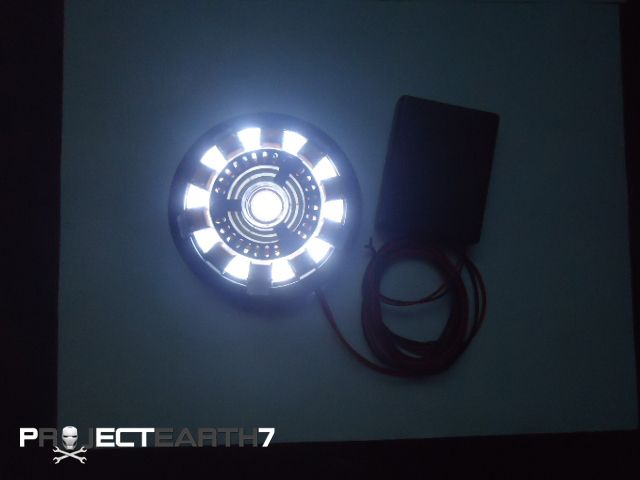

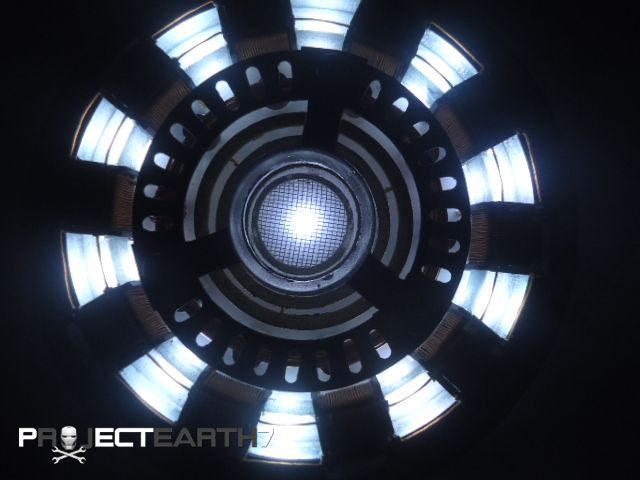

Room light's OFF...

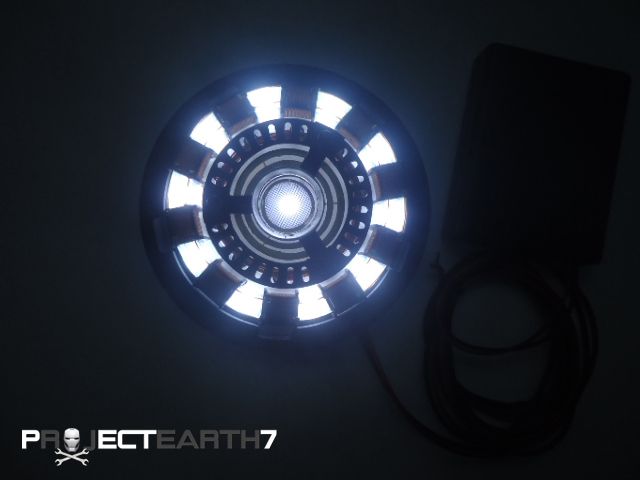

Lamp shade's ON...

I attached flat magnets on my chest using bandage tape... then attached the Arc Reactor on top of my shirt...

Then I attached the arc reactor under my shirt...

Just to show how the magnets held it well in place... :thumbsup

I was not able to take WIP photos but I will reserve the 2nd post for it when I make a 2nd unit...

Thanks for watching and for your time.

cheers everyone!



[Crank729]

Re: Wearable Ironman Ver.1 Arc Reactor (Hand Crafted/Found Item Build)

Dude, awesome job! So good, even if it's not 1 billion percent accurate, it still looks fantastic.



[gyoung2993]

Re: Wearable Ironman Ver.1 Arc Reactor (Hand Crafted/Found Item Build)

Oh wow I love the work you did, curious on the copper wire going around over the clear plastic tube ,how did you make that looks factory done ??? Awesome job........



[msleeper]

Re: Wearable Ironman Ver.1 Arc Reactor (Hand Crafted/Found Item Build)

Looks amazing! Looking forward to build photos.



[animefan]

Re: Wearable Ironman Ver.1 Arc Reactor (Hand Crafted/Found Item Build)

you did a great job man, it looks great at every angle lol.



[Izam]

Re: Wearable Ironman Ver.1 Arc Reactor (Hand Crafted/Found Item Build)

perfect.

Can you share the photo of the material that you're using and show the steps how you do it?



[duality]

Re: Wearable Ironman Ver.1 Arc Reactor (Hand Crafted/Found Item Build)

This is awesome... Jaw dropping for a bunch of found objects. Can't wait to see the tutorial.



[pRoJectEarth7]

Re: Wearable Ironman Ver.1 Arc Reactor (Hand Crafted/Found Item Build)

Dude, awesome job! So good, even if it's not 1 billion percent accurate, it still looks fantastic.

Thanks man :thumbsup

Oh wow I love the work you did, curious on the copper wire going around over the clear plastic tube ,how did you make that looks factory done ??? Awesome job........

Thanks man... PM sent :thumbsup

Looks amazing! Looking forward to build photos.

Thanks... as soon as I make a 2nd unit I will post build photos...:thumbsup

you did a great job man, it looks great at every angle lol.

LOL:lol... Thanks man :thumbsup

perfect.

Can you share the photo of the material that you're using and show the steps how you do it?

Thanks... will do soon... keep your eyes peeled...:thumbsup

This is awesome... Jaw dropping for a bunch of found objects. Can't wait to see the tutorial.

Thanks man...:thumbsup



[markkNL]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

Looks good man, very accurate for a wearable arc reactor. some questions, how much LEDs did you use? And how do the wires run through it?



[pRoJectEarth7]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

Looks good man, very accurate for a wearable arc reactor. some questions, how much LEDs did you use? And how do the wires run through it?

Thanks man... I used 11 LEDs... runs thru parallel connection...:thumbsup



[Zendragon]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

WOW... fantastic!



[pRoJectEarth7]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

WOW... fantastic!

Wow... coming from Tony Stark himself :$... Thanks Zen :thumbsup



[Dericrw]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

SWEET! I might have to pick one of these up just because!



[pRoJectEarth7]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

SWEET! I might have to pick one of these up just because!

Thanks Deric :thumbsup... Saw you already completed your turtle sculpt and it looks AWESOME!



[hikarub]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

Another one?! Nice!! Good job with this build, it looks fantastic!!



[Feraud]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

Very cool. I never get sick of seeing this prop!



[bignatedegg56]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

odd question, you said you attached a magnet to your chest with bandage tape, I was thinking of trying something similar but couldn't think of how to do it so you wouldn't have a picture of just that would you? or was it just normal adhesive tape such as this with the magnet under? (Apologies for the enormous image!)



[pRoJectEarth7]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

Another one?! Nice!! Good job with this build, it looks fantastic!!

Yes, another one... will complete all 4 version soon... thanks man :thumbsup

Very cool. I never get sick of seeing this prop!

Thanks man :thumbsup

odd question, you said you attached a magnet to your chest with bandage tape, I was thinking of trying something similar but couldn't think of how to do it so you wouldn't have a picture of just that would you? or was it just normal adhesive tape such as this with the magnet under? (Apologies for the enormous image!)

I'll post photo soon... thanks :thumbsup



[Sepirot]

Re: Wearable Ironman Ver.1 Arc Reactor (99% Movie Likeness/Hand Crafted/Found Item Bu

pRoJectEarth7-- > would you be able to look up for all the parts you have used for us on ebay so we know exactly what parts we would need to make such a beauty?
Hope you wouldn't mind sharing it with us.
