Hello all!
First constructive post here.

I have been working on a IM mkIII display for a while and now I'm starting to make some of the smaller, more detailed parts. I have found the easiest way to generate these is on a 3D printer as many have already done. As 3D printers become more accessible to everyone I figured I would go ahead and create a thread where I could make these files available as I go and share them with the group.

Any helpful criticism is MUCH appreciated. From my experience lurking on this board for some time I have found many of the members here to be extremely talented and I would certainly welcome the feedback.

I am using 3dsMax for all of my modeling and generally converting the max files to .obj for print. If you need any other format there are free file converters out there... Sorry, but it has become overwhelming try to convert files for everyone.

------IRON MAN mkIII 3D parts------

Hip Pod:
Updated 05-02-2013 Screws more recessed, beveled edge and less detail in flat part.
Updated: 05-14-2013 Scaled to 5" diam., Revised details to match new movie ref. (last revision, I swear!)
http://kenlandrum.com/IM-mkIII_HipPod_v012.obj
---------------------------------------------------------------------------------------------------------
Shoulder Pivots:
1-7/8" diameter
http://kenlandrum.com/IM_mkIII_ShoulderPivot.obj
---------------------------------------------------------------------------------------------------------
Forearm (including Elbow Pivots & Inner Elbow Shutters)
http://kenlandrum.com/IM-mkIII_Forearm.obj
---------------------------------------------------------------------------------------------------------
Arm Ring Base:
Ring is approximately 5-3/4" diameter
www.kenlandrum.com/IM-mkIII_Arm_Base_Ring.obj
---------------------------------------------------------------------------------------------------------
Neck Details:
Not sure how to go about separating this one out for printing...
http://kenlandrum.com/IM-mkIII_Neck_Detail.obj

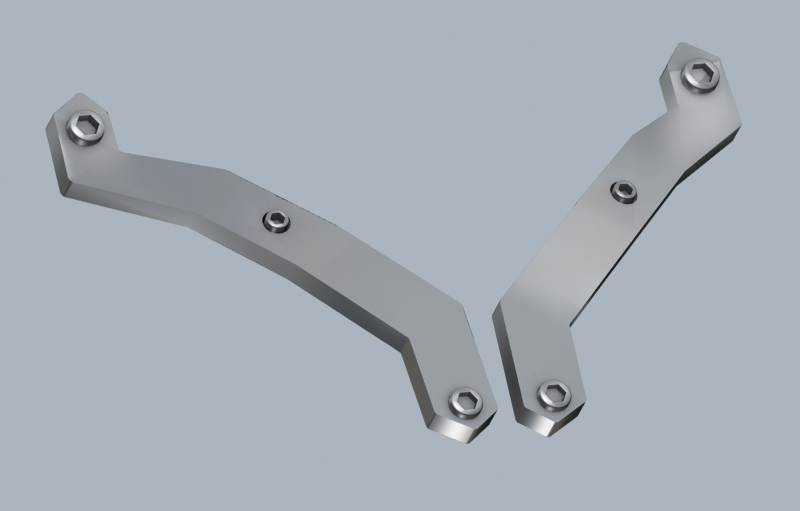

For those who just want the Collar Bone.
http://kenlandrum.com/IM-mkIII_CollarBone.obj
---------------------------------------------------------------------------------------------------------

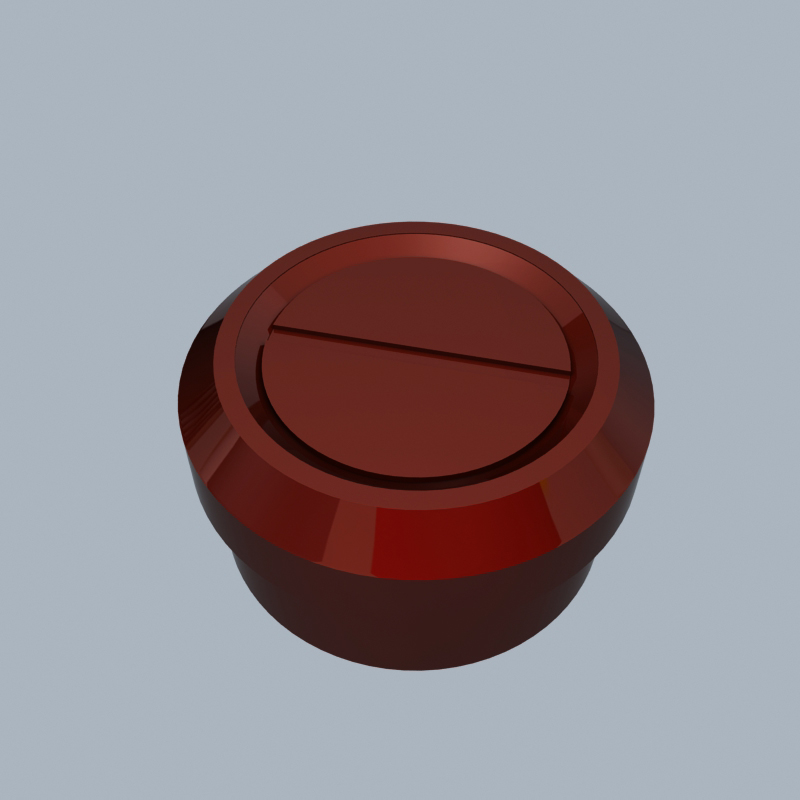

Knee Pivot:
Knee Pivot is sized to 2-5/16" Diameter
http://www.kenlandrum.com/IM_mkIII_knee-pivots.obj
---------------------------------------------------------------------------------------------------------
Inner Knee Shutters:
approximately 5-3/8" wide and 10" tall
www.kenlandrum.com/IM_mkIII_knee-shutters.obj
---------------------------------------------------------------------------------------------------------
Chest Buttons:
Sized to 27/32" diameter
(revised 5-03-13 deeper larger slot)
http://kenlandrum.com/IM_mkIII_chest-button_v02.obj
---------------------------------------------------------------------------------------------------------
Back Button:
1.25" diameter
http://kenlandrum.com/IM_mkIII_BackButton.obj
---------------------------------------------------------------------------------------------------------
Arc Reactor:
http://kenlandrum.com/Arc_Reactor-disassembled_v03.obj
---------------------------------------------------------------------------------------------------------
Unibeam:
(Revised 05-10-2013 - Complete overhall! The correct size for the Unibeam is 3-11/32" ---Enjoy)
http://www.kenlandrum.com/Unibeam.obj

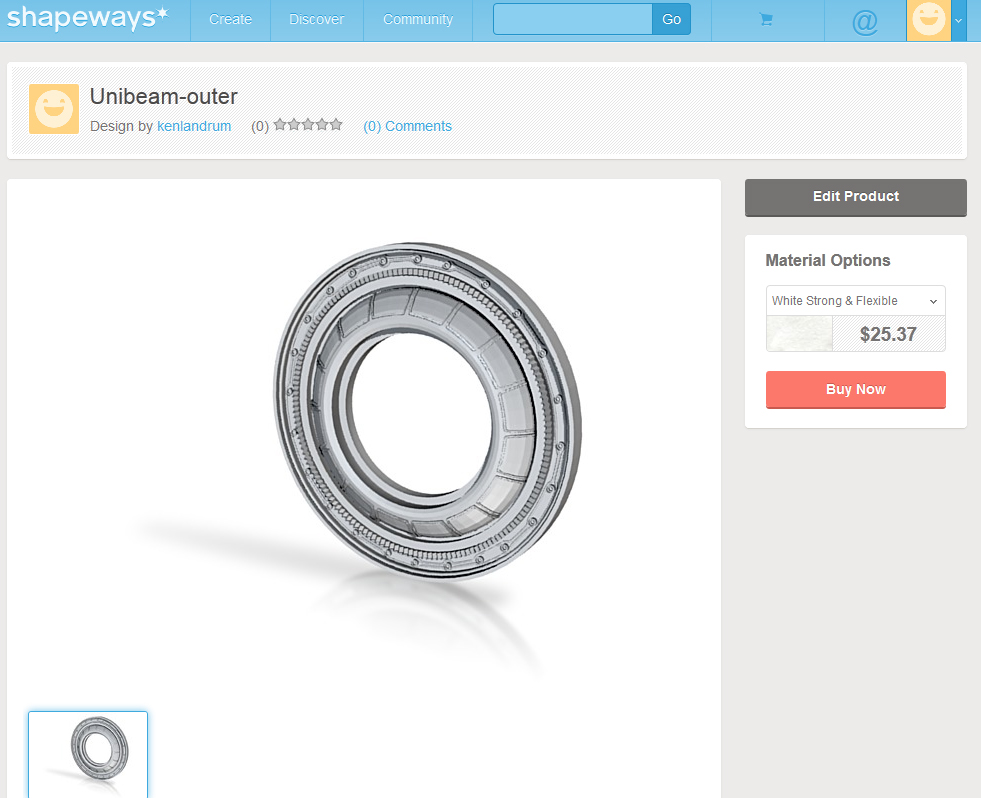

...and now the "Shapeways Friendly" version
center.jpg middle.jpg outer.jpg
http://www.kenlandrum.com/unibeam-center.obj
http://www.kenlandrum.com/unibeam-middle.obj
http://www.kenlandrum.com/unibeam-outer.obj
---------------------------------------------------------------------------------------------------------
Right and Left Hand available:
(revised 05-30-13 - shell modifier added for print, minor geo tweaks)
http://www.kenlandrum.com/IM-mkIII_R_Hand.obj
http://www.kenlandrum.com/IM-mkIII_L_Hand.obj
Here is Andy's file cut up and ready to print. Thanks Andy!
http://www.kenlandrum.com/andy-hand_HD_solid.stl
---------------------------------------------------------------------------------------------------------
Palm Repulsor:
http://www.kenlandrum.com/palm_repulsor-02.obj
(Revised: 05-15-2013 Redesigned to match boot jet, etc.)
---------------------------------------------------------------------------------------------------------

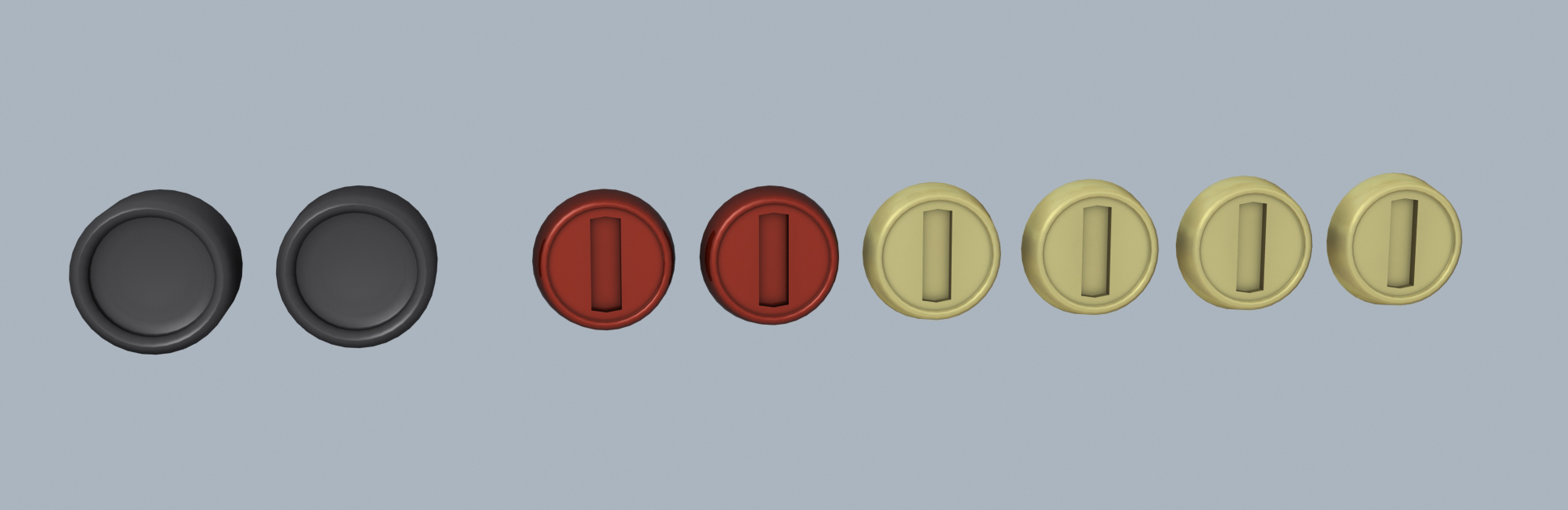

Helmet Fasteners:
Slotted Fasteners: .26" Smooth Fasteners: .27"
http://kenlandrum.com/IM_mkIII_HelmetFasteners.obj
---------------------------------------------------------------------------------------------------------
Ears:
(Updated: 05-06-13 Slot tapers on outer edge.)
2-7/8" diameter
http://kenlandrum.com/ironman_ear-v02.obj
---------------------------------------------------------------------------------------------------------
Mouth:
http://kenlandrum.com/IM-mkIII_Mouth.obj
---------------------------------------------------------------------------------------------------------

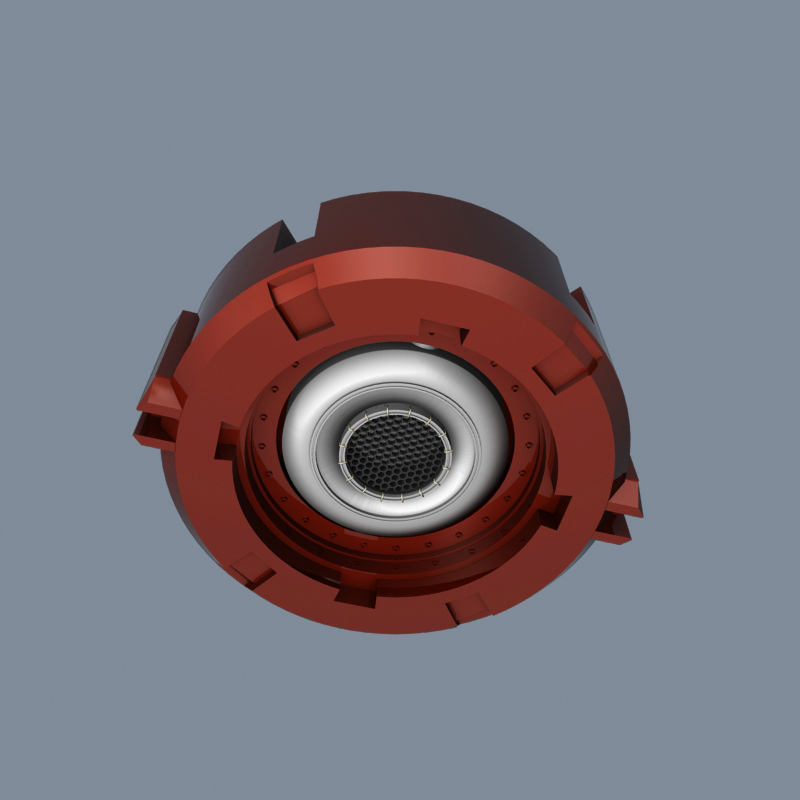

Boot Jet:
http://www.kenlandrum.com/IM-mkIII_BootJet_v01.obj
**In sticking with the movie scale the Jet has been sized to 2.25" diameter (to fit the pep boot it should measure about 2")
---------------------------------------------------------------------------------------------------------
Boot Pivot:
Sized to approximately 1-3/4" diameter (for pep boot size to 1-1/2" diameter)
http://www.kenlandrum.com/IM-mkIII_BootPivot.obj
---------------------------------------------------------------------------------------------------------


Attachments

  • elbowv03.jpg
    147.8 KB · Views: 744
  • inner_elbow.jpg
    222.9 KB · Views: 913
Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

deathgrey

Active Member
Thanks for sharing these amazing files man!
I will give it a try later today ;)
I needed to print a hip pod later today anyway so this is perfect timing :D!


kenlandrum

Sr Member
Thanks for sharing these amazing files man!
I will give it a try later today ;)
I needed to print a hip pod later today anyway so this is perfect timing :D!

Great! Would you happen to know what the diameter of the pod is? I am finding 15cm to about right, but I am just not sure.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

kenlandrum

Sr Member
Thanks! Any comments on the accuracy are much appreciated. I have access to a few renders of the movie model, but without the actual model it's hard to get everything 100% perfect.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

kenlandrum

Sr Member
Been getting a lot of requests for the files as .obj's... so I converted models to .obj and added links just below each posting. If you require a different file format just let me know and I will get it to you.

Enjoy!


Andy W

Member

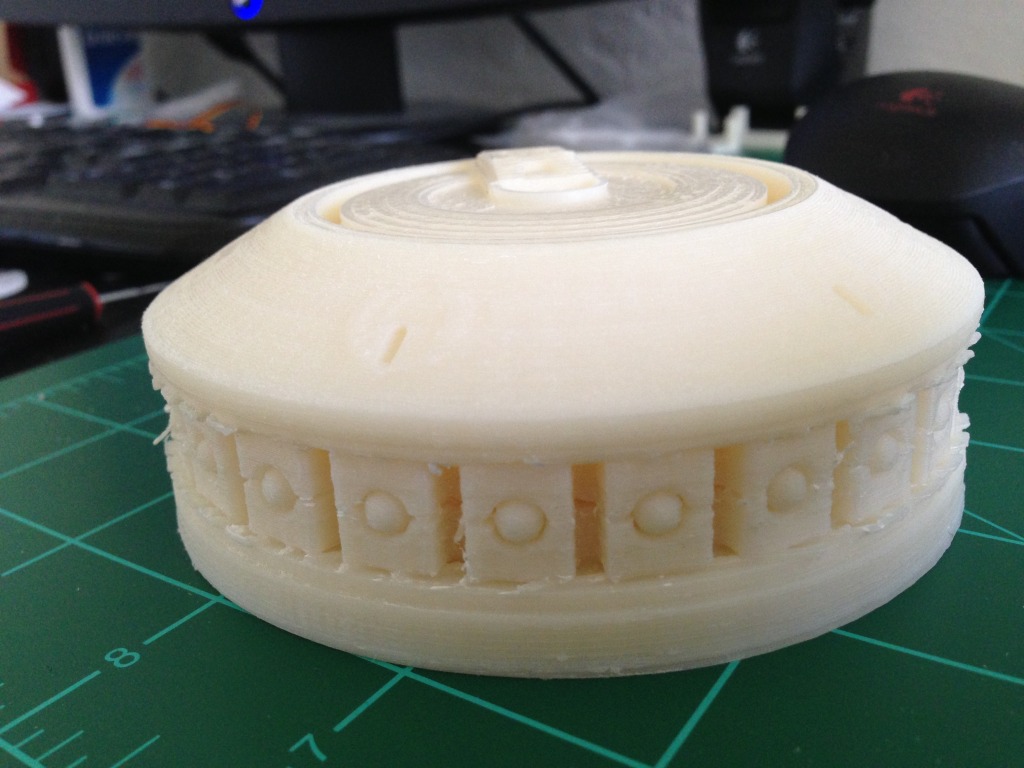

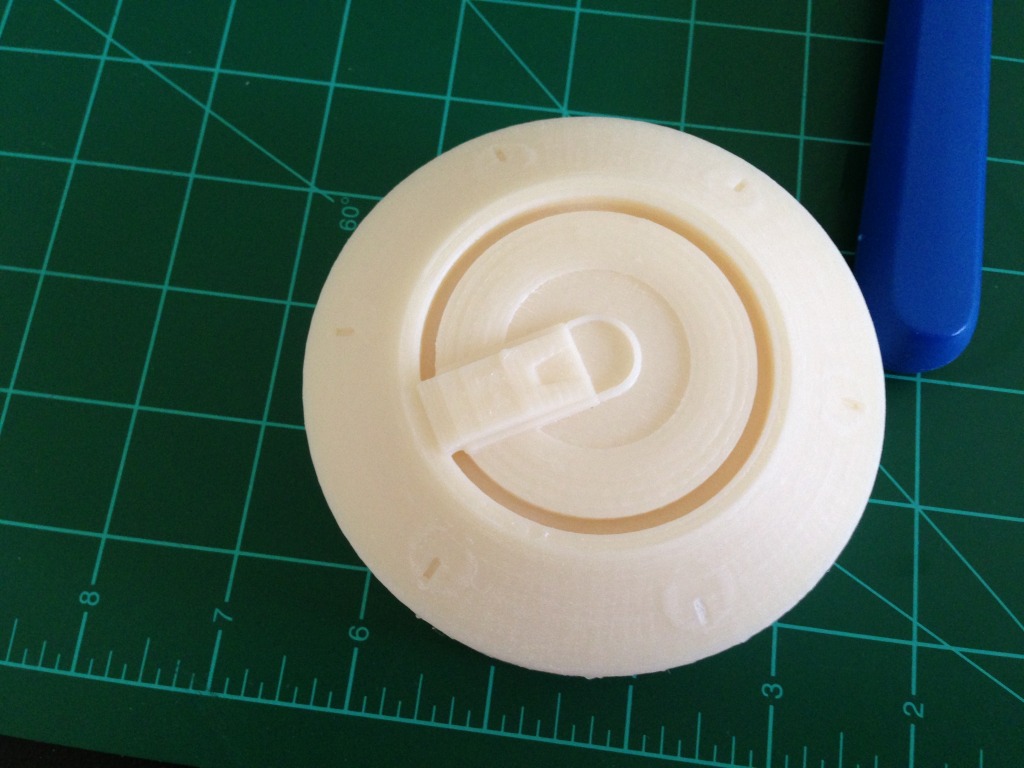

Printing the HipPod right now! Takes 5 hours and 21 minutes with 381 layers, layers are set to 0.1mm!
