Iron Man MK42/43 Movable Jaw Concept

Discussion in 'Marvel Costumes and Props' started by lllusion112, Jun 2, 2015.

Tags:
  1. lllusion112

    lllusion112 New Member

    Trophy Points:
    3
    Hi all,

    I am quite new here but just wanna share my current build and ideas on the movable jaw for the MK42/43 helmet.

    I remembered seeing some posts regarding this but it somewhat died off...

    Anyway, just want to share some details i noticed.


    I was working on the helmet for easy 3Dprinting, I noticed that the inner cheek piece doesn't move when the jaw moves forward,.
    Here's the result after some modifications to the helmet.

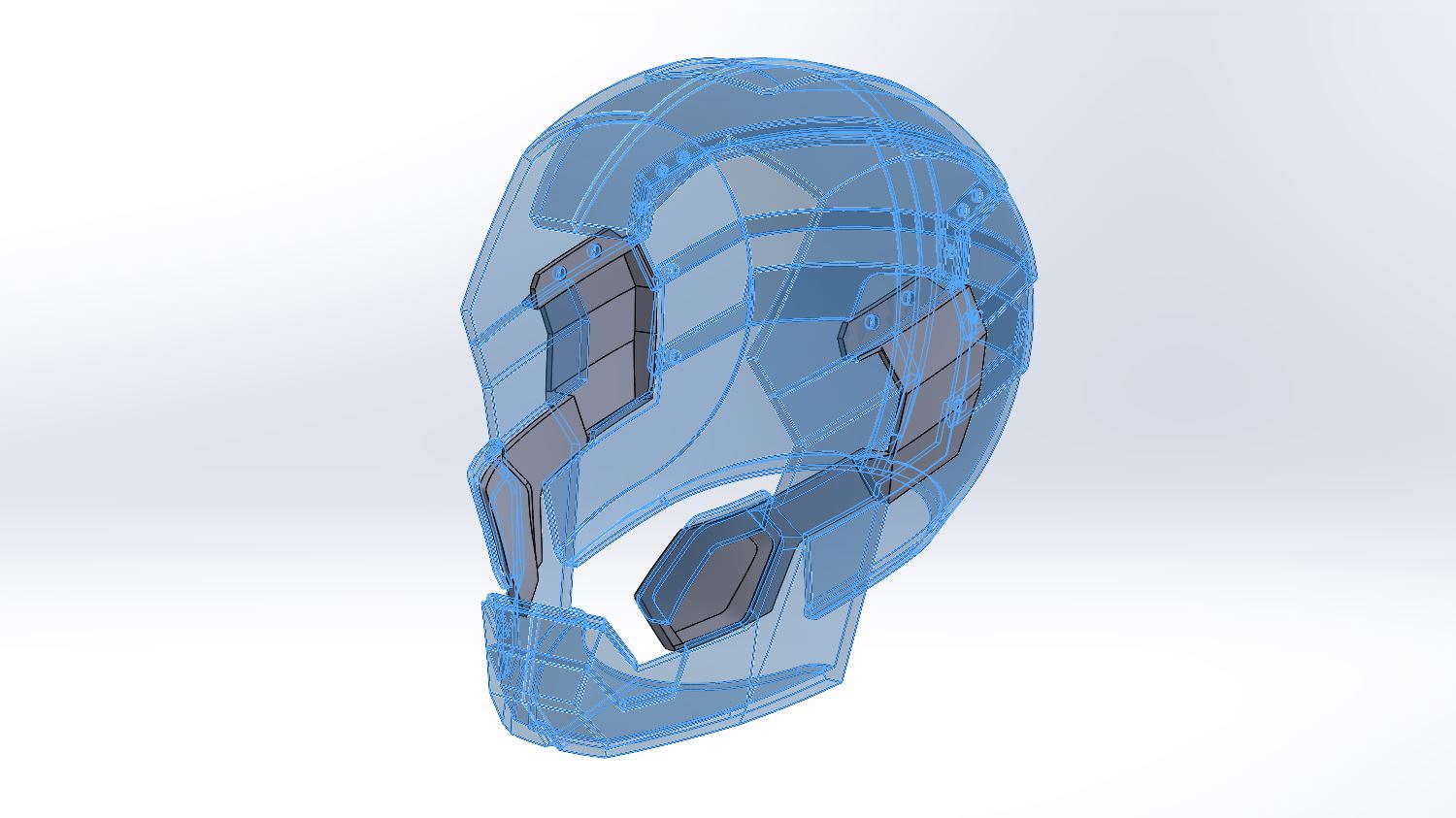

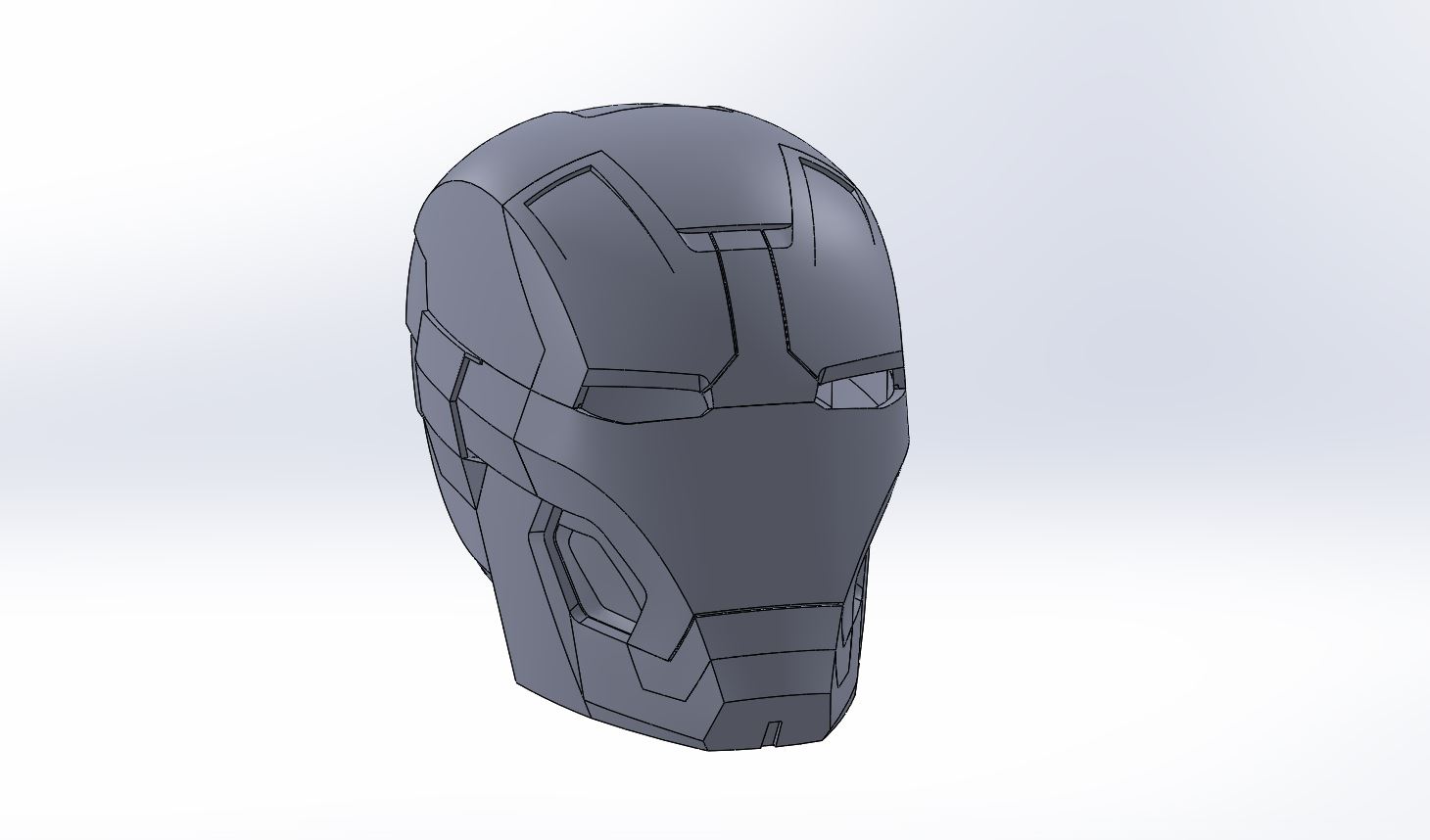

    MK43_3.JPG MK43_2.JPG

    Here's a little link to the exploded view of the different parts for printing!

    https://www.youtube.com/watch?v=_fCfv3fNxIY

    I'm still quite new to the simulation features in SW, so i guess I'm gonna just have it 3d printed and figure out the mechanisms.
    Any suggestions for motorizing it...? (I'm a noob in these! =P)

    Cheers,
    Jason Loo

    Last edited: Jun 5, 2015
  2. blue2k

    blue2k Well-Known Member

    Trophy Points:
    566
    Any chance you could provide a direct link to this video without having to sign up for something?

  3. lllusion112

    lllusion112 New Member

    Trophy Points:
    3
    Oops! Alright it's working now! >_<!

    blue2k likes this.
  4. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    It says the video is set to private

  5. lllusion112

    lllusion112 New Member

    Trophy Points:
    3
    T_T!!! Ok try again!

  6. lllusion112

    lllusion112 New Member

    Trophy Points:
    3

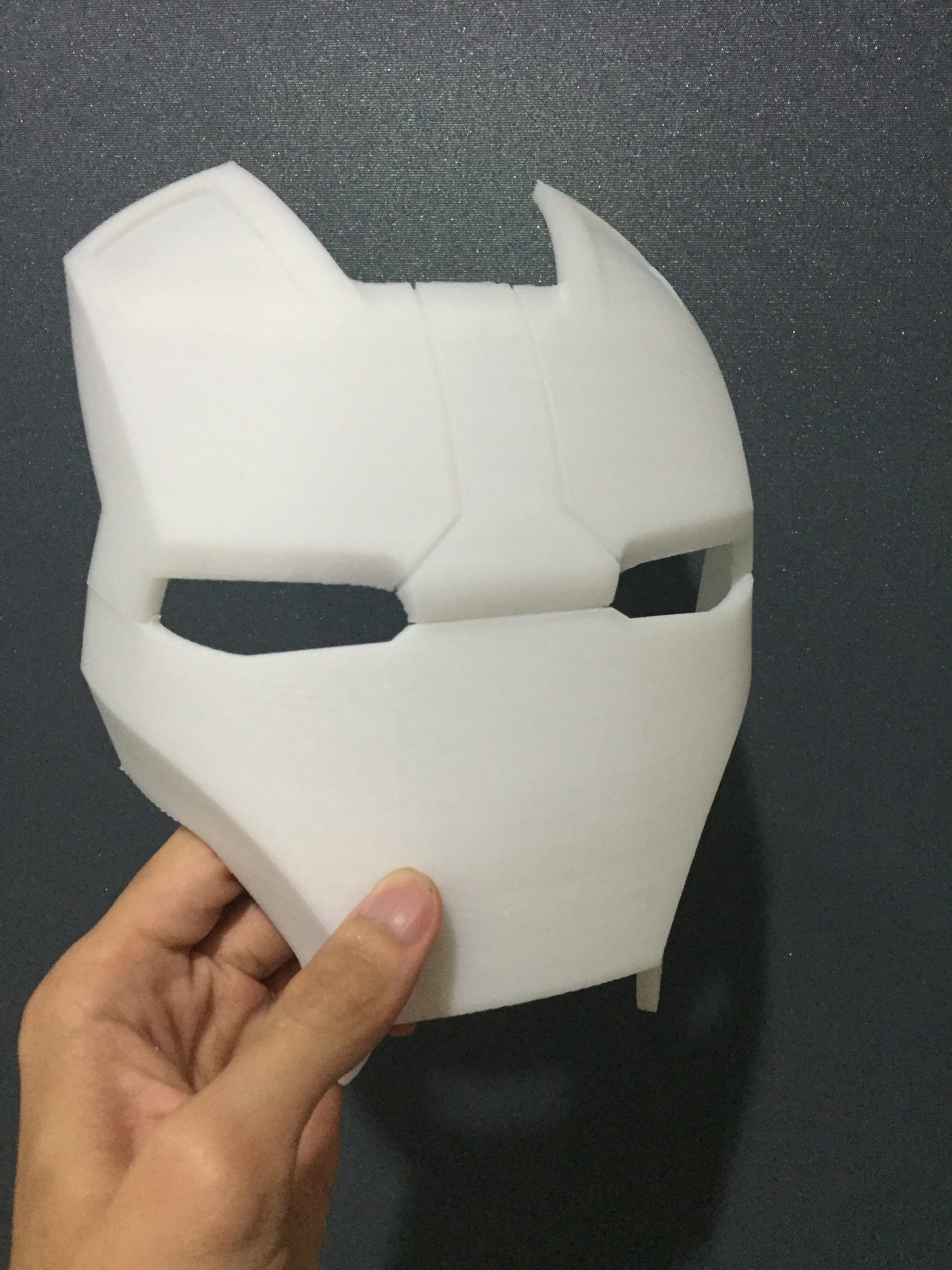

    Some progress on the 3D printed faceplate!
    It's designed in 2 parts to save material on support and for my small printer!
    Stuck together w acetone after tht.


  7. lllusion112

    lllusion112 New Member

    Trophy Points:
    3

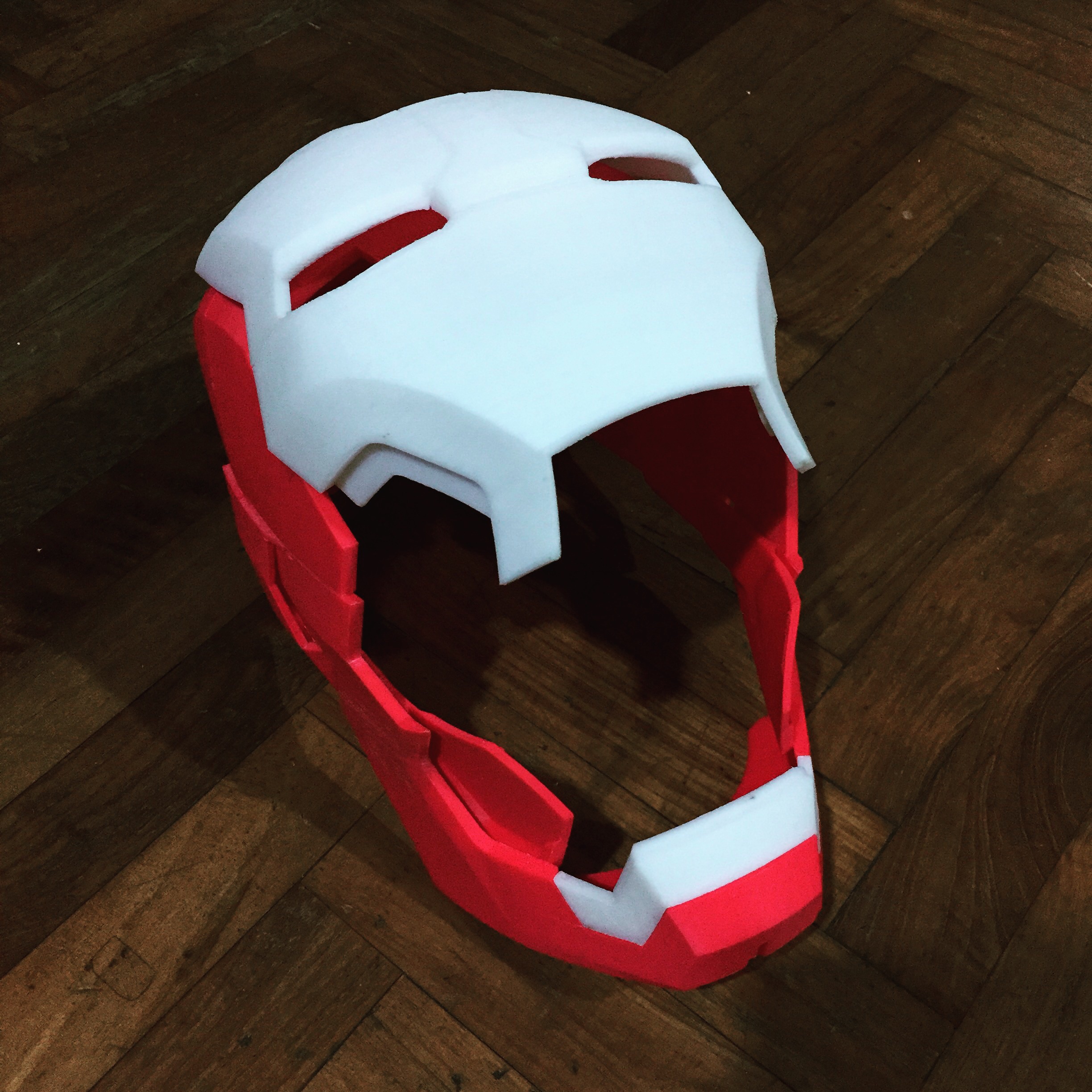

    Here's the progress of the print so far!
    Everything seems to fit quite well tgther, though there's still some gaps here and there...

    The jaw movements seems alright. Will post a vid on tht soon!

    Gonna start figuring out the mechanism to motorized it! *fingers crossed*

    image.jpg image.jpg

    Bogleo likes this.
  8. devildog12

    devildog12 Active Member

    Trophy Points:
    361
    I'm working on motorizing my mk42 as well, it's not like the mk3 where it has slots to put rods to the face plate can move up. The mk42/43 is gonna be a monster to tackle but xrobots on youtube has some good tutorials to watch for laying the groundwork to get started. I think just behind you in progress, I have to bondo, prime and paint it before I add electronics to it. I'm gonna have my tied into my forearm and arc reactor so it all works together. Good work though.

  9. lllusion112

    lllusion112 New Member

    Trophy Points:
    3
    Thanks! I'll update my progress on the mechanism here!
    It's definitely a challenge! But thts the fun of what we are doing isn't it! ^^

  10. lllusion112

    lllusion112 New Member

    Trophy Points:
    3
    Been really busy with work and squeezing time for this!
    Here's an update on my progress. Finally done finishing and painting!
    Moving on to electronics and the mechanism now!


  11. creative stress

    creative stress Well-Known Member

    Trophy Points:
    635
    Looks great nice finish
