Iron Man MK33 - Silver Centurion Arc Reactor

Discussion in 'Marvel Costumes and Props' started by pRoJectEarth7, Jul 1, 2015.

Tags:
  1. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Hello everyone,

    I was asked to make the MK33 - Silver Centurion Arc Reactor by a client and here are the results...

    So it started from some reference I found on the net and some provided by the client.
    [​IMG]

    I traced it via CAD to get accurate dimensions
    [​IMG]

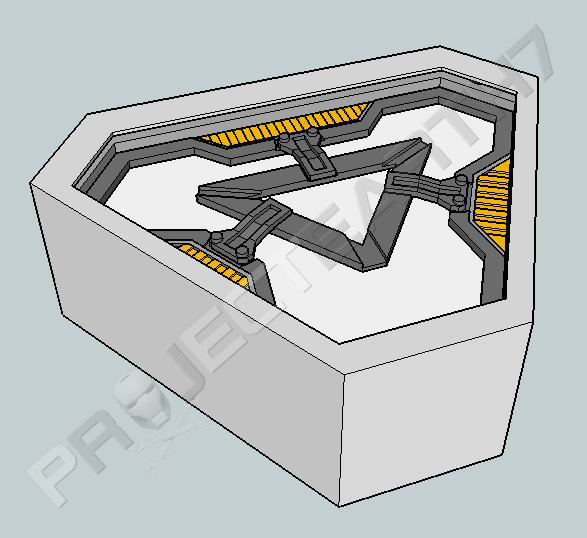

    Then designed it... the thickness of the casing is important to prevent LED hot spot
    [​IMG]

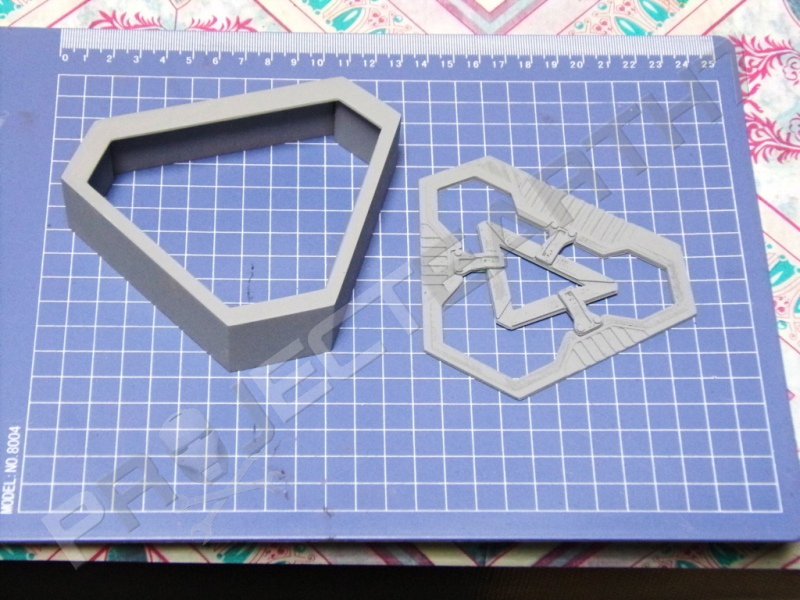

    Made the parts...
    [​IMG]

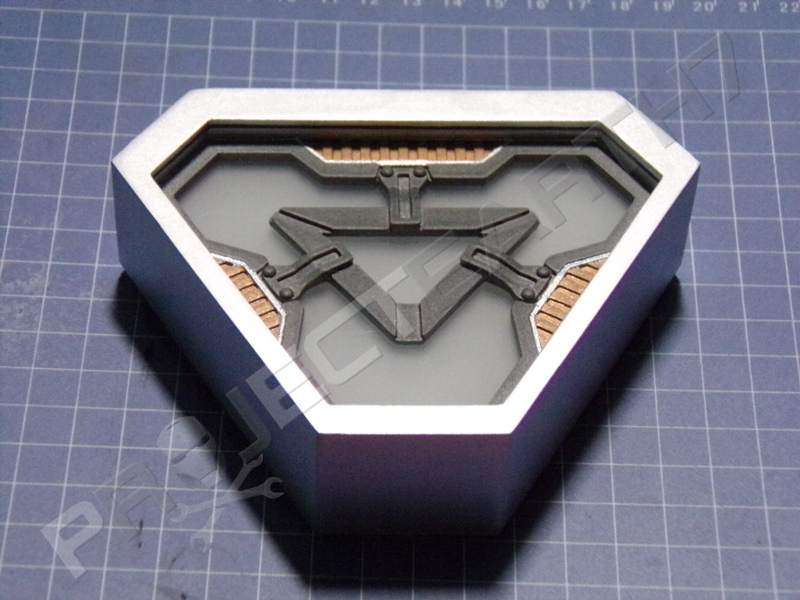

    Proceeded to painting and assembly...
    [​IMG]

    [​IMG]
    I used gun-metal paint color for the element to resemble real metal look

    [​IMG]

    Clear acrylic glass on top
    [​IMG]

    [​IMG]

    NEXT.. will be installing the electronics real soon...

    Keep building everyone... cheers!










    14717026187_e64a59066b_b.jpg HPIM0626.JPG HPIM0627.JPG HPIM0628.JPG HPIM0629.JPG HPIM0632.JPG MK33 AR3.JPG MK33AR parts.jpg MK33AR trace.jpg

    aryo16, Shadeling, George and 3 others like this.
  2. IronAmerica5150

    IronAmerica5150 Member

    Trophy Points:
    191
    That looks fantastic! The silver centurion has always been my favorite armor, it should really receive more love.

    Lildo likes this.
  3. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Thanks man... I'll be adding some more details into it :)

  4. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Digging into details on the reference photos I saw some layering which are a bit subtle but still gives the arc reactor more depth and intricacy... I tried to copy it using a thin clear acrylic and here are the results....

    [​IMG]
    I cannot find a clear adhesive that will not affect the transparency of the acrylic so I just minimized the amount I put on it

    [​IMG]

    [​IMG]


    Will proceed on the electronics shortly.... cheers!






    HPIM0633.JPG HPIM0634.JPG HPIM0638.JPG

    Murdoch likes this.
  5. Murdoch

    Murdoch Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,286
    Another quality project PE7. I just love the pieces you put out there. Looking forward to seeing the end result...GM

  6. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Thanks man... glad you appreciate it... :):thumbsup

  7. pRoJectEarth7

    pRoJectEarth7 Well-Known Member

    Trophy Points:
    866
    Here is the final result...

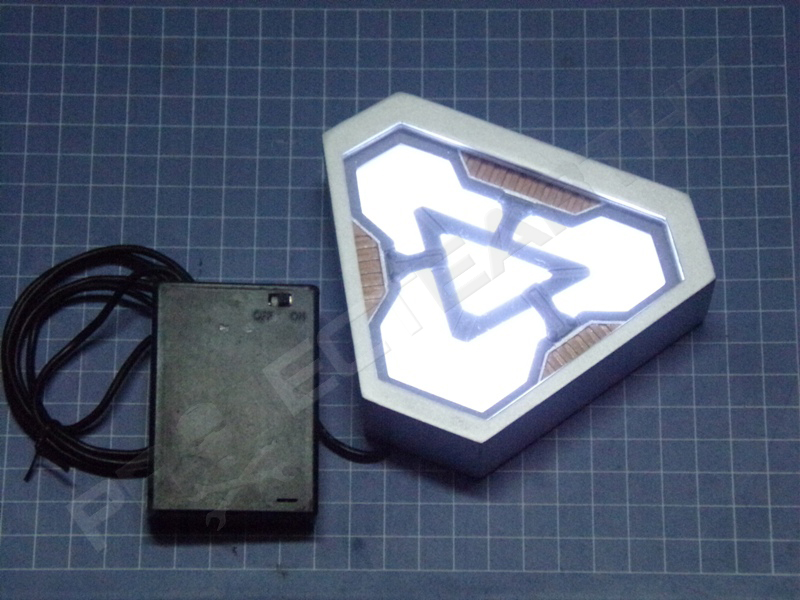

    The electronics consists of 26pcs 5050SMD Super bright LEDs
    [​IMG]
    [​IMG]

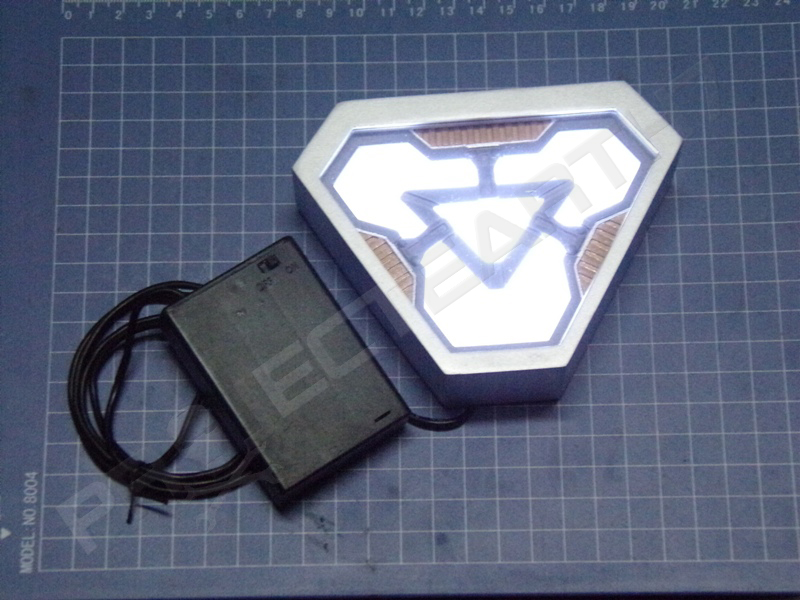

    Powered by 3 AA batteries
