Iron Man Arc Reactor Build

magdielr21

New Member

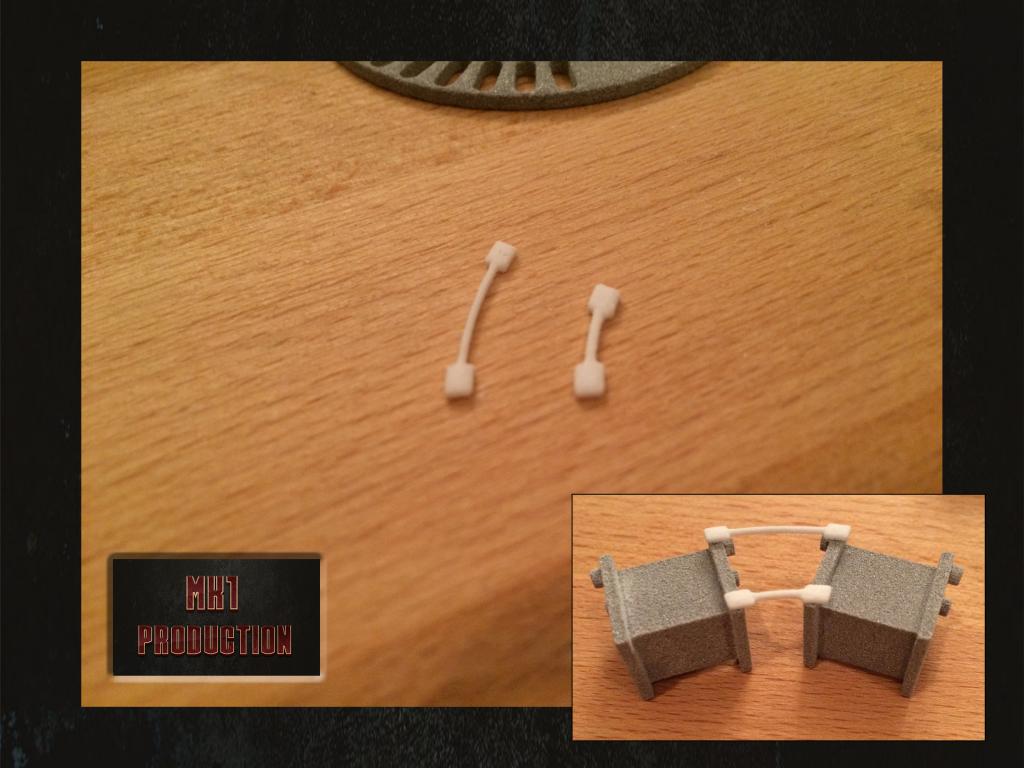

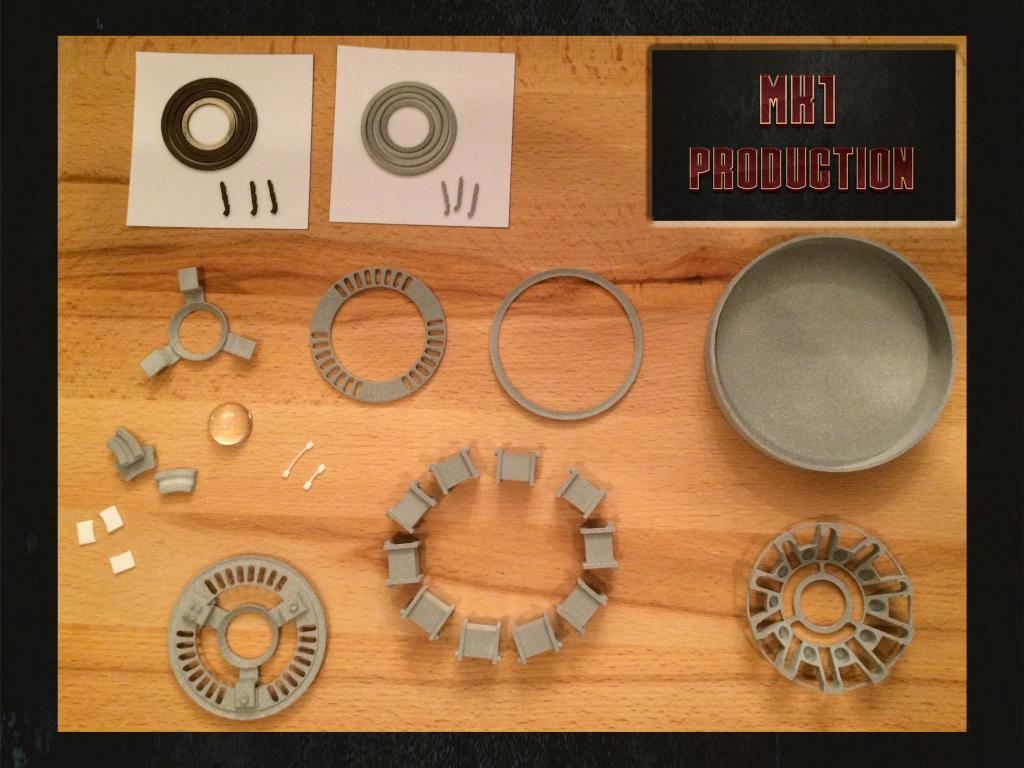

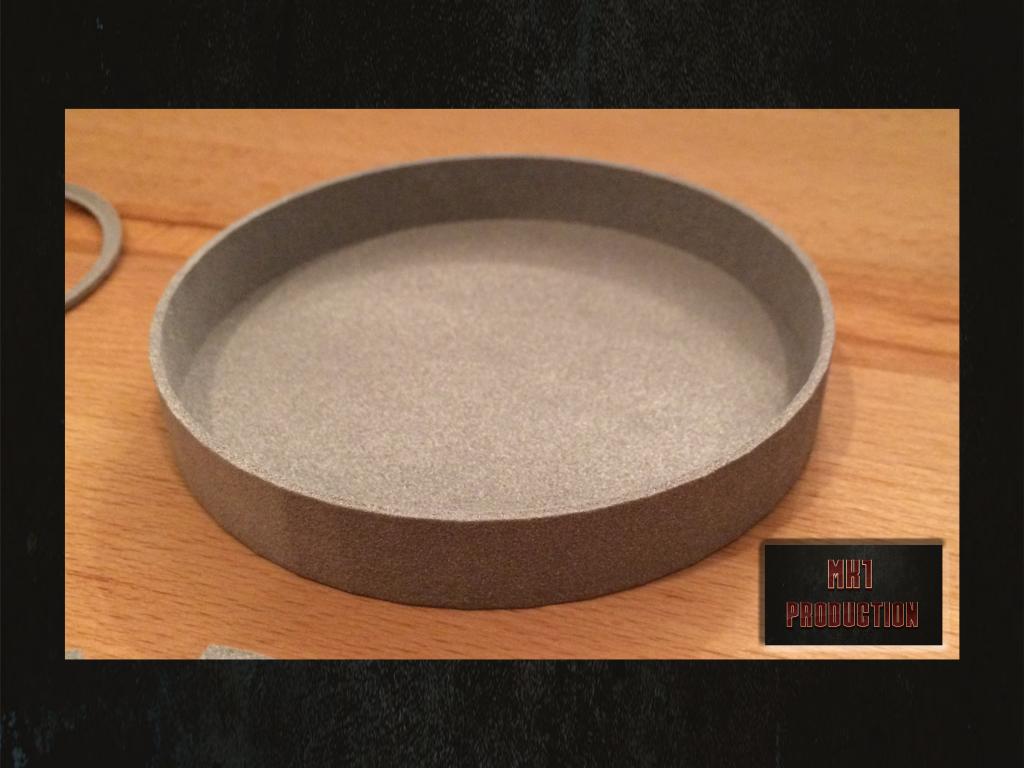

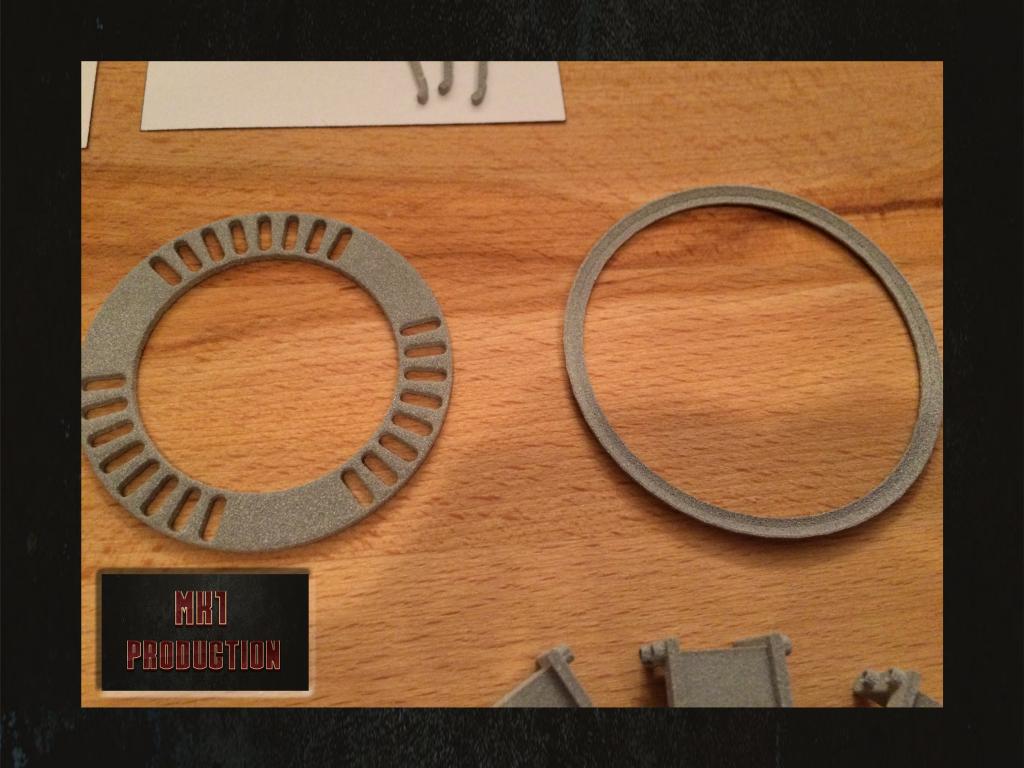

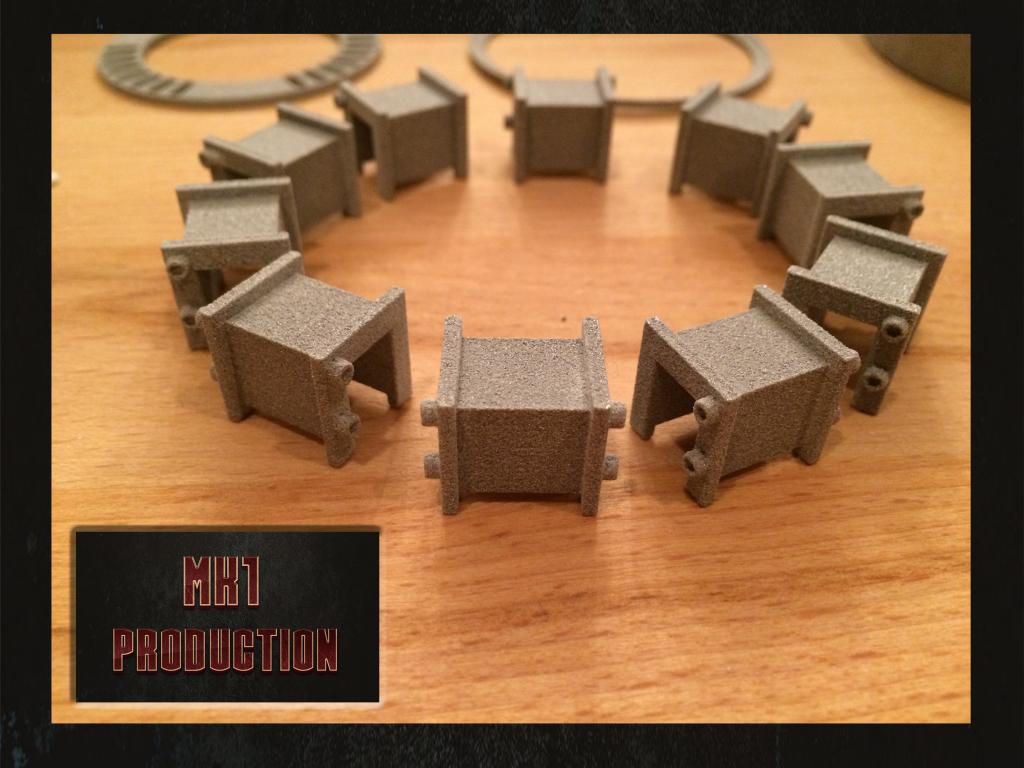

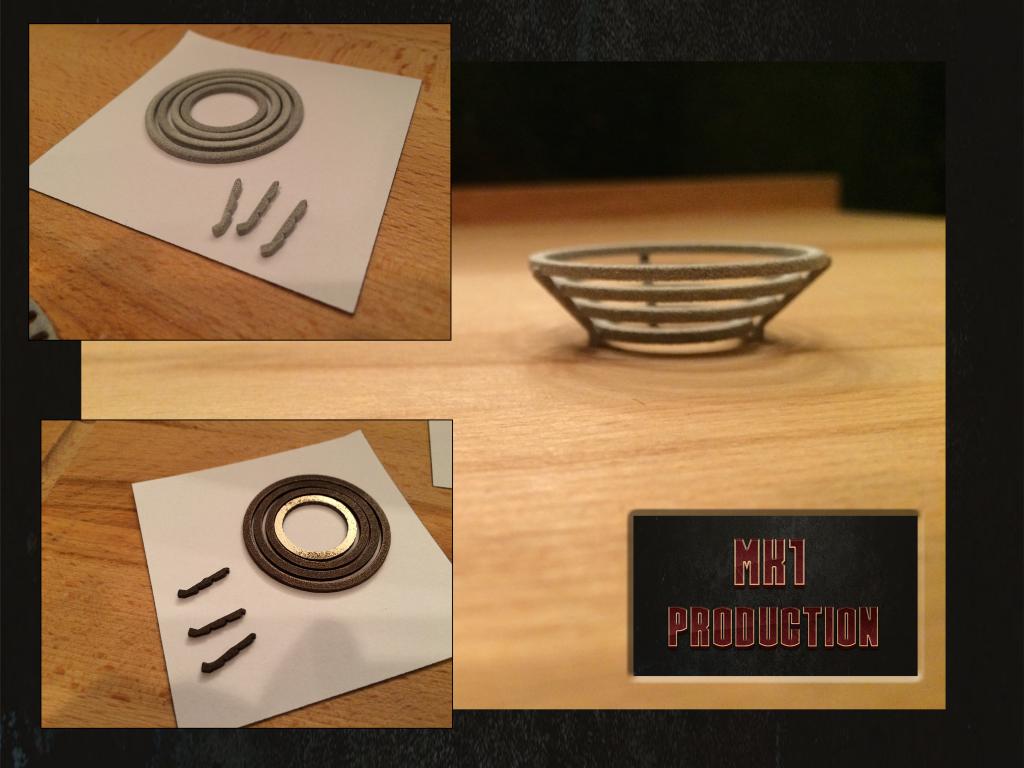

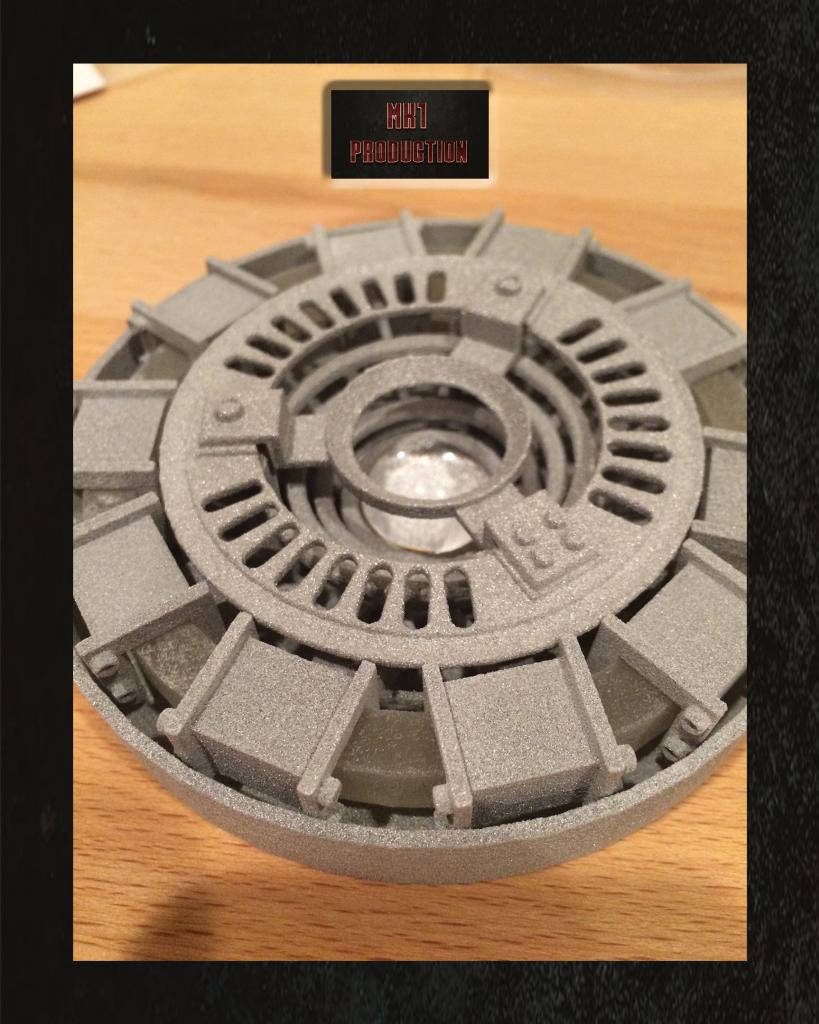

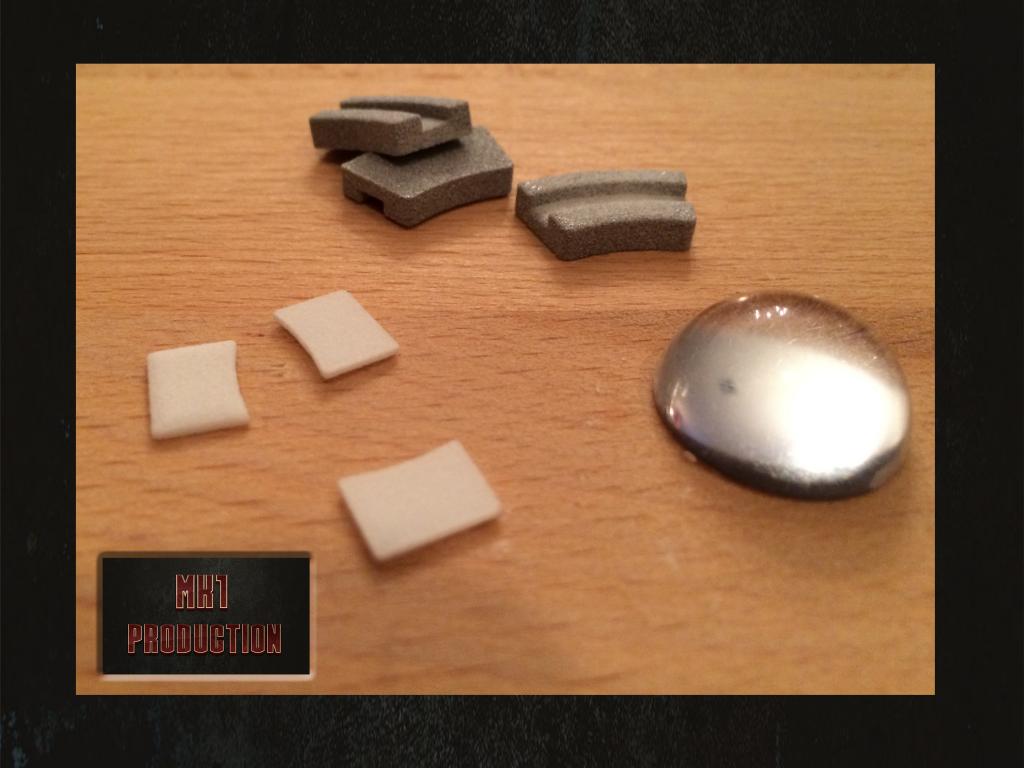

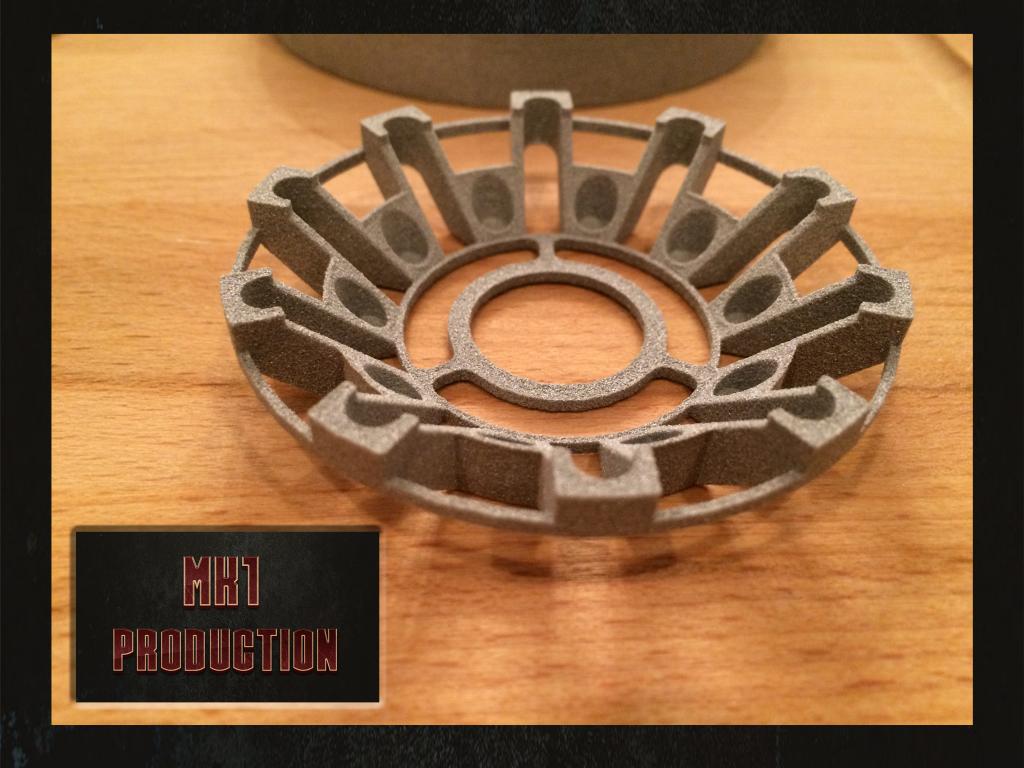

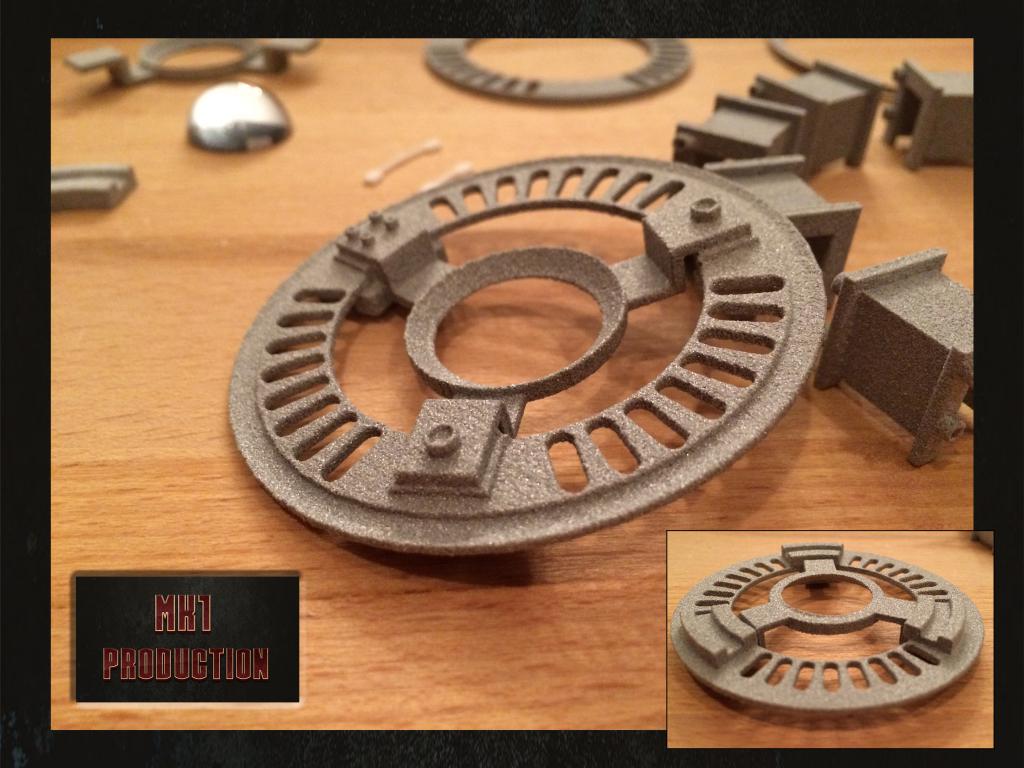

Hello everyone. I am trying to make my own wearable arc reactor from the first movie. I started this project about a year ago, I made some plans and 3D models and then tried getting some quotes to have my arc reactor machined from aluminum and copper but all the quotes I received were from $3,000 to $4,000 dollars. So I put the project away for about a year until a month ago that I ran across the file while cleaning out my computer. I decided to give 3D printing a shot, although what I really wanted was machining from metal but 3D printing doesn't cost as much. I just received some of the parts last week and I thought I would post a thread to show my progress. Here are some pictures. I am also looking into getting some of the copper pieces laser cut from actual copper. In the pictures, the dark looking rings were 3D printed brass, as you can see from the inner ring once you polish it, it brings out the brass color. In the last picture I tried a mock build to see how it would look. I am still missing the light ring. Let me know what you think.
9_zps219075b6.jpg 8_zpsbdf8dfb8.jpg 7_zps74bde797.jpg 10_zps67f2686f.jpg 4_zpsfd370093.jpg 2_zps38eb6994.jpg 1_zps34403a13.jpg 6_zps0220e6fd.jpg 5_zps923696f2.jpg 3_zps6507ad02.jpg

Last edited:

IAmTheClayman

Active Member
RPF PREMIUM MEMBER
Hey, I'm building a wearable arc reactor myself and I'd love to see how yours is coming along but your attachments don't seem to be working


ReVolt

New Member
Hi guys.
I built an Arc reactor light engine kit with 4 selectable light patterns (3 concentric LED ring zones) plus a sound sensitive mode so it can pulse in rhythm to music or voices. Sleep mode for battery saving.
It's going into a 'kidsized' version wearable DIY kit @ CLUBJameco.com. This version is for a 2.5" diameter, 1" deep unit, featuring replaceable 'transparency' bezels (laser printable) for the desired look. WHITE Piranha LEDs so your bezel or TEE shirt color customizes the look!
The kit will run off a rechargeable NB4L cell phone battery 'internally...so, NO WIRES. Optional 4.5V connection for external 3 x1.5V penlite cells battery pack.

I'd like to support the community by making light engines to any popular specification diameter from 2.5" up in DIY kit form. Please let me know what u might want.
mosaicmerc at yahoo


magdielr21

New Member
Hi guys.
I built an Arc reactor light engine kit with 4 selectable light patterns (3 concentric LED ring zones) plus a sound sensitive mode so it can pulse in rhythm to music or voices. Sleep mode for battery saving.
It's going into a 'kidsized' version wearable DIY kit @ CLUBJameco.com. This version is for a 2.5" diameter, 1" deep unit, featuring replaceable 'transparency' bezels (laser printable) for the desired look. WHITE Piranha LEDs so your bezel or TEE shirt color customizes the look!
The kit will run off a rechargeable NB4L cell phone battery 'internally...so, NO WIRES. Optional 4.5V connection for external 3 x1.5V penlite cells battery pack.

I'd like to support the community by making light engines to any popular specification diameter from 2.5" up in DIY kit form. Please let me know what u might want.
mosaicmerc at yahoo
Hey sounds good, send me some pics and a video of how it works. I might pick one up for mine.


stigmorgan

Sr Member
Hi guys.
I built an Arc reactor light engine kit with 4 selectable light patterns (3 concentric LED ring zones) plus a sound sensitive mode so it can pulse in rhythm to music or voices. Sleep mode for battery saving.
It's going into a 'kidsized' version wearable DIY kit @ CLUBJameco.com. This version is for a 2.5" diameter, 1" deep unit, featuring replaceable 'transparency' bezels (laser printable) for the desired look. WHITE Piranha LEDs so your bezel or TEE shirt color customizes the look!
The kit will run off a rechargeable NB4L cell phone battery 'internally...so, NO WIRES. Optional 4.5V connection for external 3 x1.5V penlite cells battery pack.

I'd like to support the community by making light engines to any popular specification diameter from 2.5" up in DIY kit form. Please let me know what u might want.
mosaicmerc at yahoo

Perhaps you could start a new thread telling us about this with some pictures? It would be better than hijacking someone else thread and getting into trouble.

- - - Updated - - -

Magdielr21 this looks amazing, cant wait to see it finished


ReVolt

New Member
Actually,the intent was to offer the potential for a custom PCB design for other folk's ARC reactors. I am not trying to compete or hijack anyone.
It was a response to the thread and a help offer.

Anyhow I apologize..
I'll start a new thread when I have more info etc.!

Last edited:
