Iron Man Age of Ultron Mk45 3D Printed Armour build

Discussion in 'Marvel Costumes and Props' started by wannabe, Dec 4, 2016.

Tags:
  1. wannabe

    wannabe Active Member

    Trophy Points:
    460
    I’m going to start straight off with a warning that this is going to be a long and pic heavy post. With that stated, let’s get right into it.

    I have been a keen follower of several Iron Man 3D printed build threads notably the excellent mk46 recently completed by @TKCC71
    . Some of these threads seemed to have stalled, so I have been prompted to start my own perhaps to "fill in the gaps" as my own build has been, so far, somewhat of a very steep learning curve.

    So here goes...

    I’ve never really wanted an Iron Man costume before now. Whilst I've always considered the mkIII (and latterly the mkVII) of the original movie to be an outstanding design it just seemed like a lot of, well, hassle to build: foam, and glue, and paint, and stuff. That, and there were already many out there.

    And then I bought a 3D printer. A Wanhao Duplicator i3 to be precise. I was pretty much goaded into buying one after spending lots of time modelling parts for a friend to print and seeing what kinds of things were possible. Personally, I think it is the future of replica prop-making and cosplay.

    After printing a few models of my own, including a Dredd 3D lawgiver, a T21 heavy blaster, and some assorted greeblies I was looking for a new project to challenge me. It was around this time that I re-watched Avengers: Age of Ultron and my interest in an Iron Man costume was rekindled. It just seemed like the logical step.

    I started this build in June 2016 and I've set myself the rough goal of having a wearable costume in time for Fantasy Basel in May of 2017 here in Switzerland. This led me to an estimation that I should have the upper torso, helmet and arms complete in time for the new year with the rest of the costume i.e. legs and final paintwork finished between January and May. Ambitious, probably. But lets aim high and I figured a year seems like a decent estimate. Electronics such as working flaps details and opening visor would be optional.

    What I want to achieve:

    [​IMG]

    I know, it's gorgeous. Closely followed by the mk46, the mk45 really is the most beautiful Iron Man armour to date: more red than gold; a more streamlined and anthropomorphic look but with a certain style that recalls modern supercars seen in the aggressive looking intakes for example.


    I played around with the idea of modelling my own armour but quickly realised that this was clearly beyond my skill level using 3DS Max. It was then, after some research that I discovered Do3d and their catalogue which included the mk45 armour from AoU.

    I contacted them, and one PayPal transaction later I was downloading their models. It took a while to part them out into sections that fit my printer volume (20x20x18h) but after a bit of research I set out with the part that everyone seems to start with – the helmet…

    Helmet build

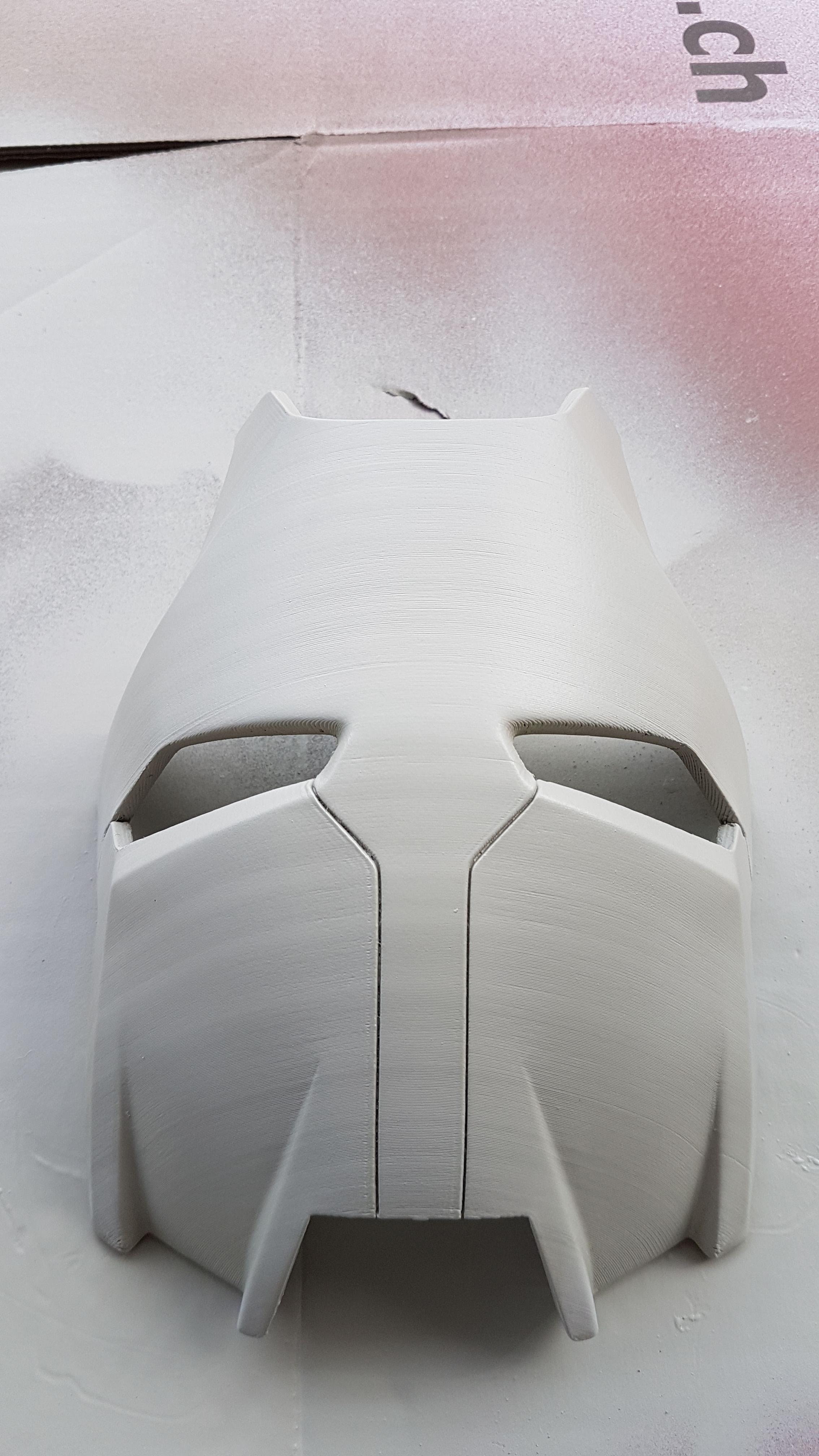

    The faceplate was printed on medium settings in Simplify3d (0.2mm layer height). I managed to print this in a single section using some nice and efficient branched support generated in Meshmixer.

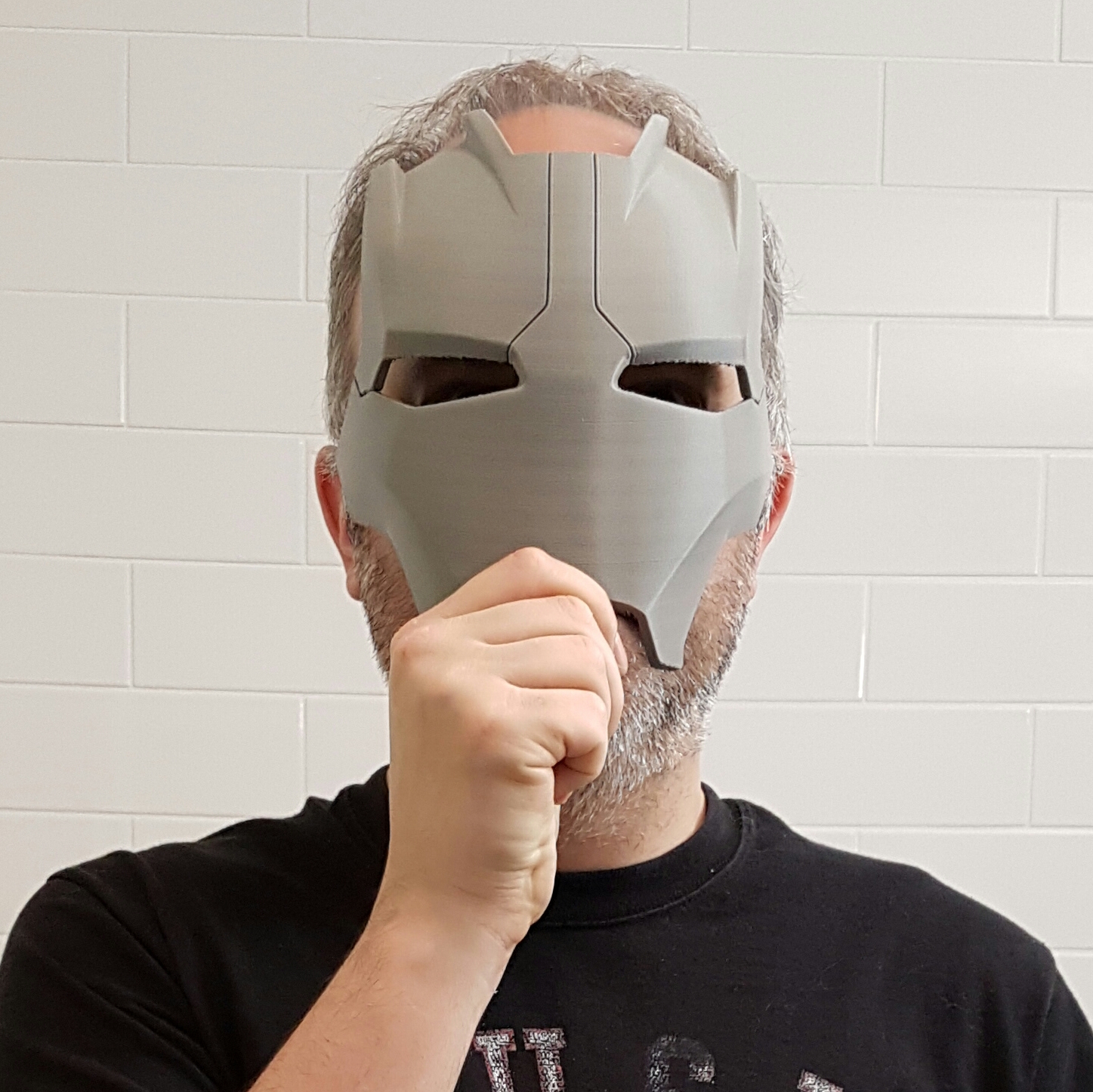

    The obligatory mask shot...

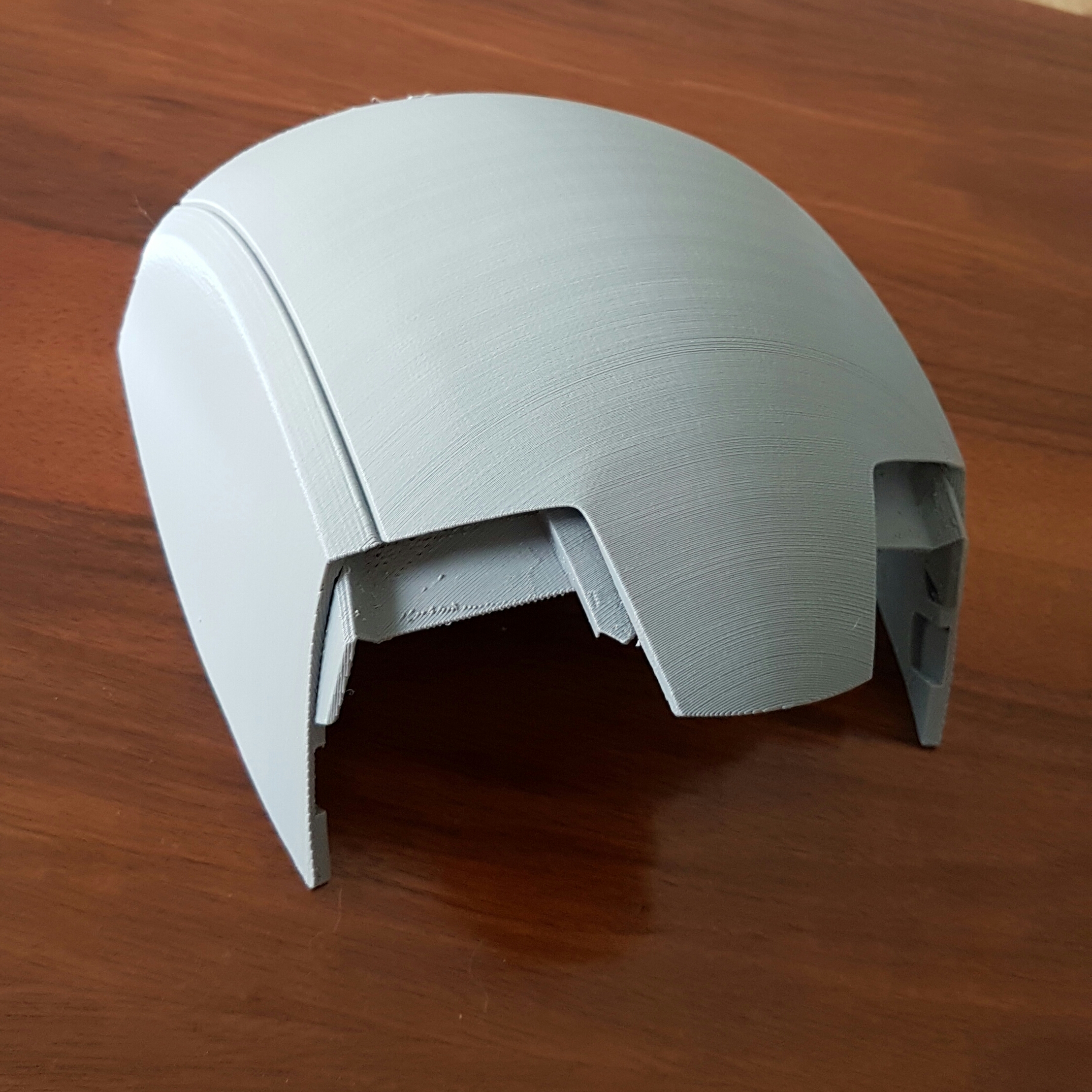

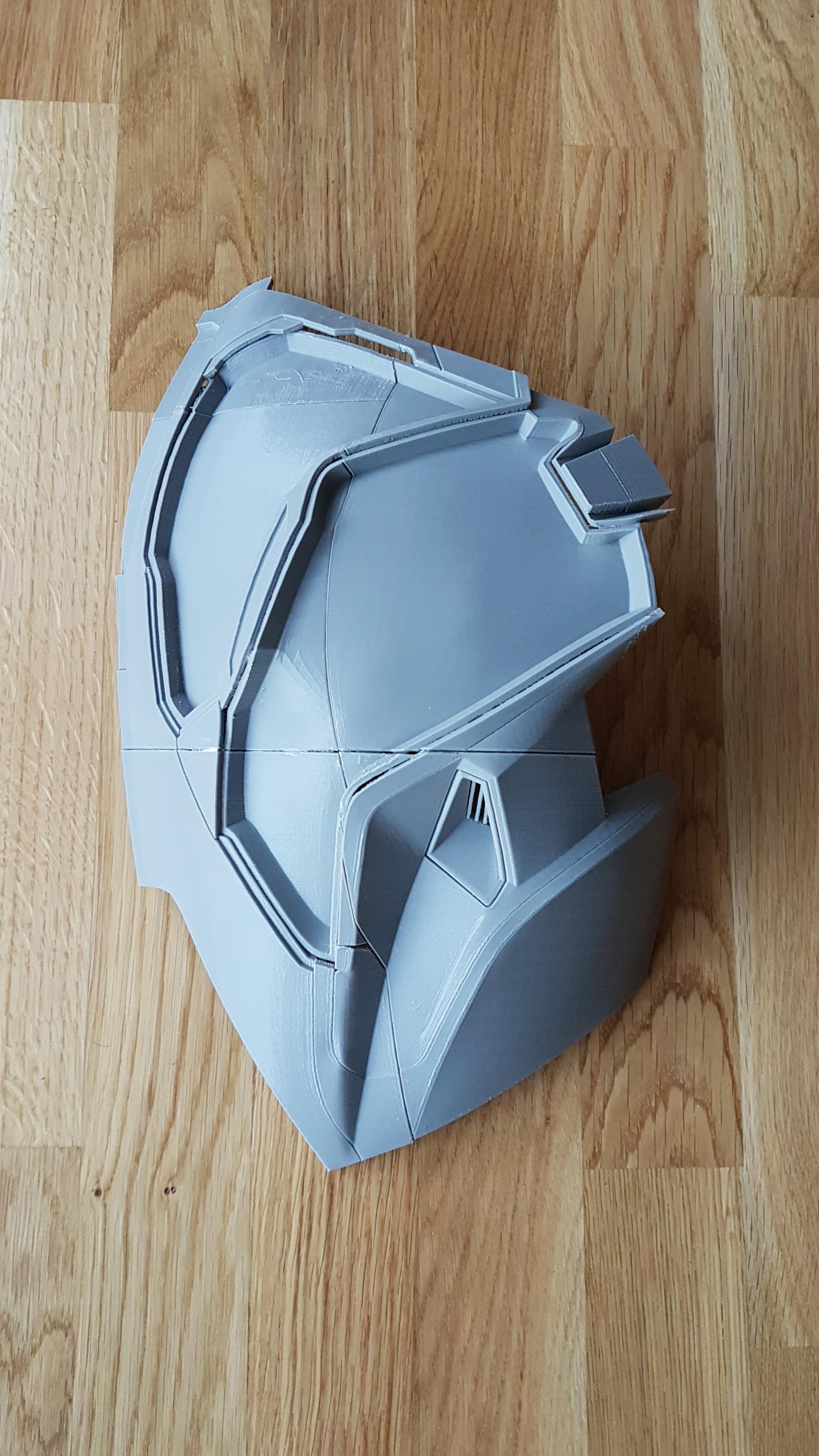

    Dome printed with same settings

    [SUB][/SUB] srGs7Pj.jpg

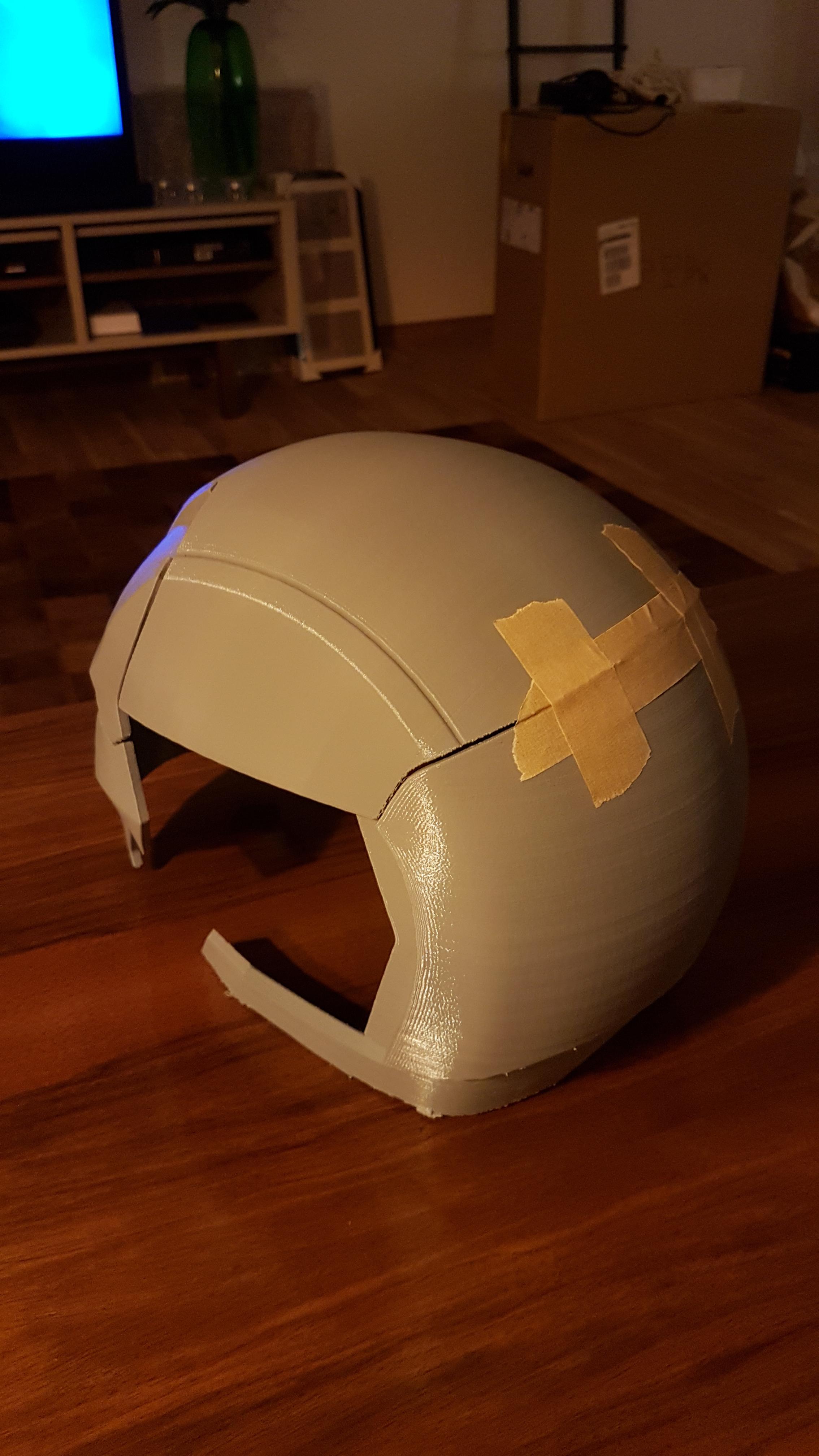

    Rear section next...

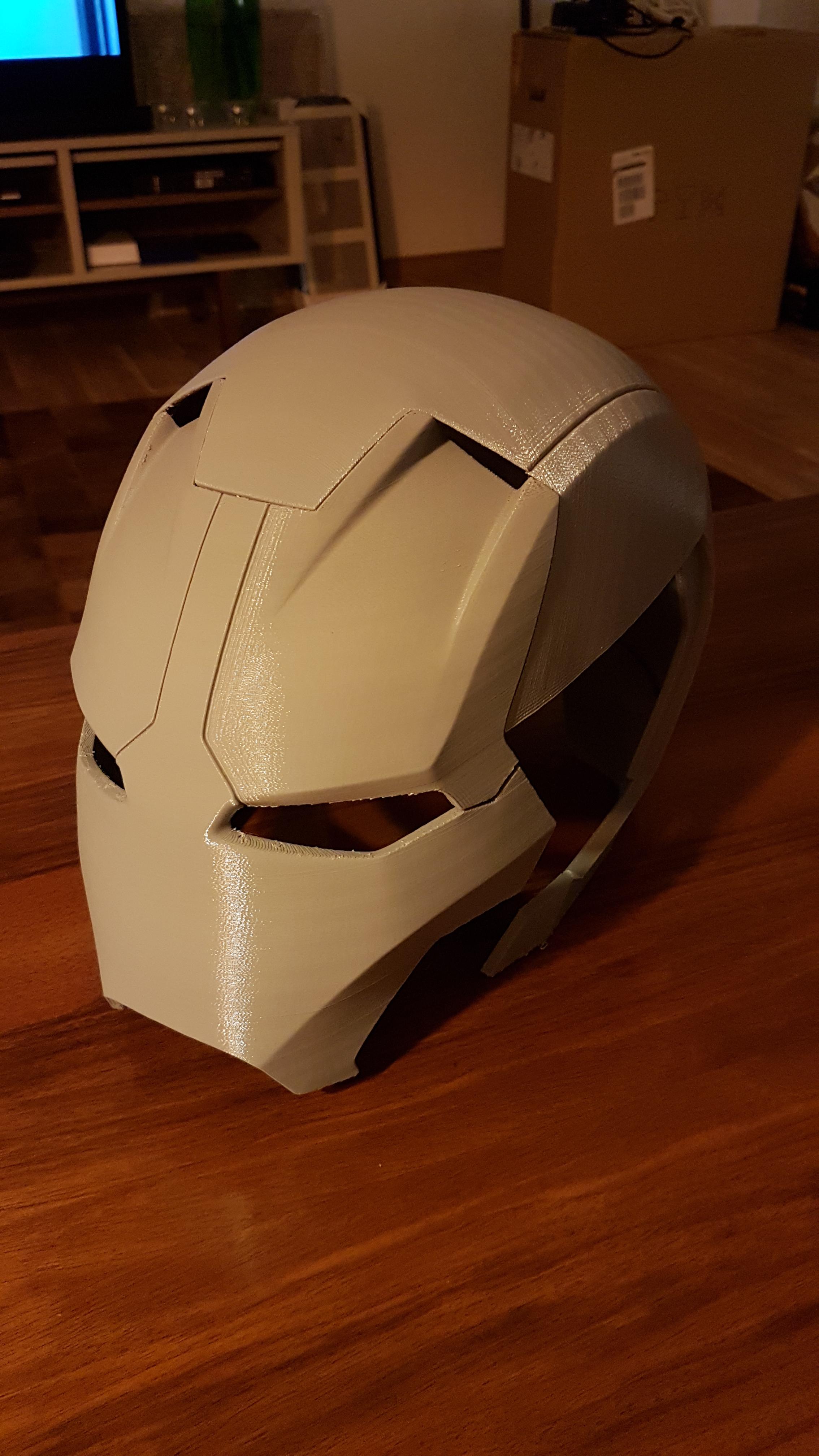

    Dry fit

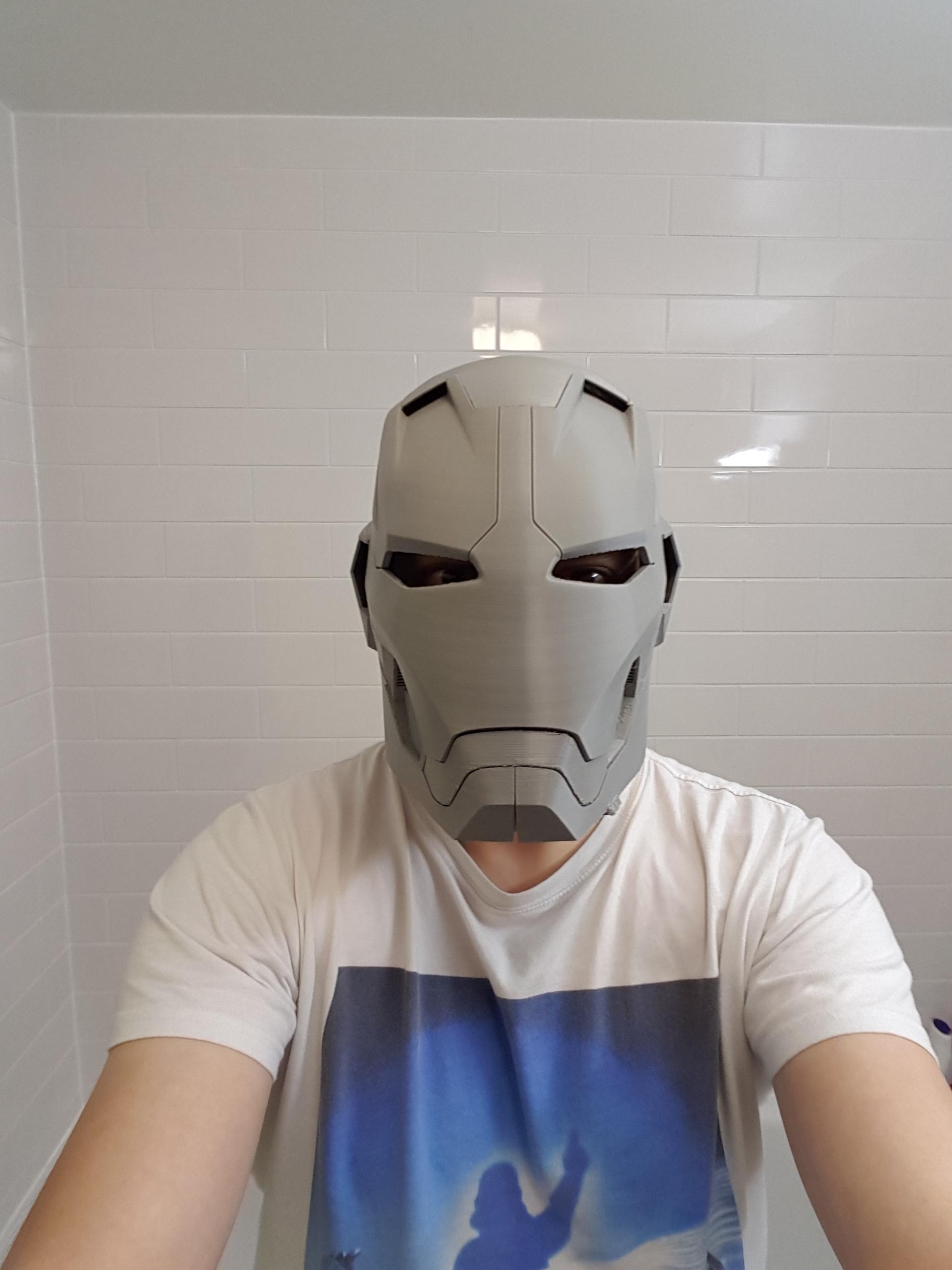

    Ears and cheeks printed and the whole thing assembled for a test fit. Pretty tight fit to my big head and I don't think there will be much room for servos and electronics in the end but so far so good.





    After gluing everything together and a spot of bondo filling, I moved directly onto hitting it up with a first coat of filler primer...


    This, unfortunately, was where the dreaded "z-wobble" become highly noticible. These are the horizontal "waves" artifacts you can see in the print which are caused by tiny pertubations in the printer z-axis. A common problem with the i3 I was to later learn. This took me ages to figure out. In the end it was solved by adding flex couplers to the printer. But by that time I'd spent so long trying in vain to sand, fill, sand, fill, and sand and fill again it was driving me nuts.



    In any case, I got the helmet to a state where I figured it looked fairly smooth and acceptable (enough for cosplay anyway) and I proceeded to the final paint selection.

    I went with a black basecoat, followed by a Duplicolor (European brand) Metallic silver 10-0130, then 2 coats of Chrysler PRP Deep Cherry Red Crystal, Duplicolor metallic gold 40-0190, finished with a 2k gloss clear coat:



    The black eye frames I had SLS printed as they were too small to print at home...



    The end result makes me smile every time.

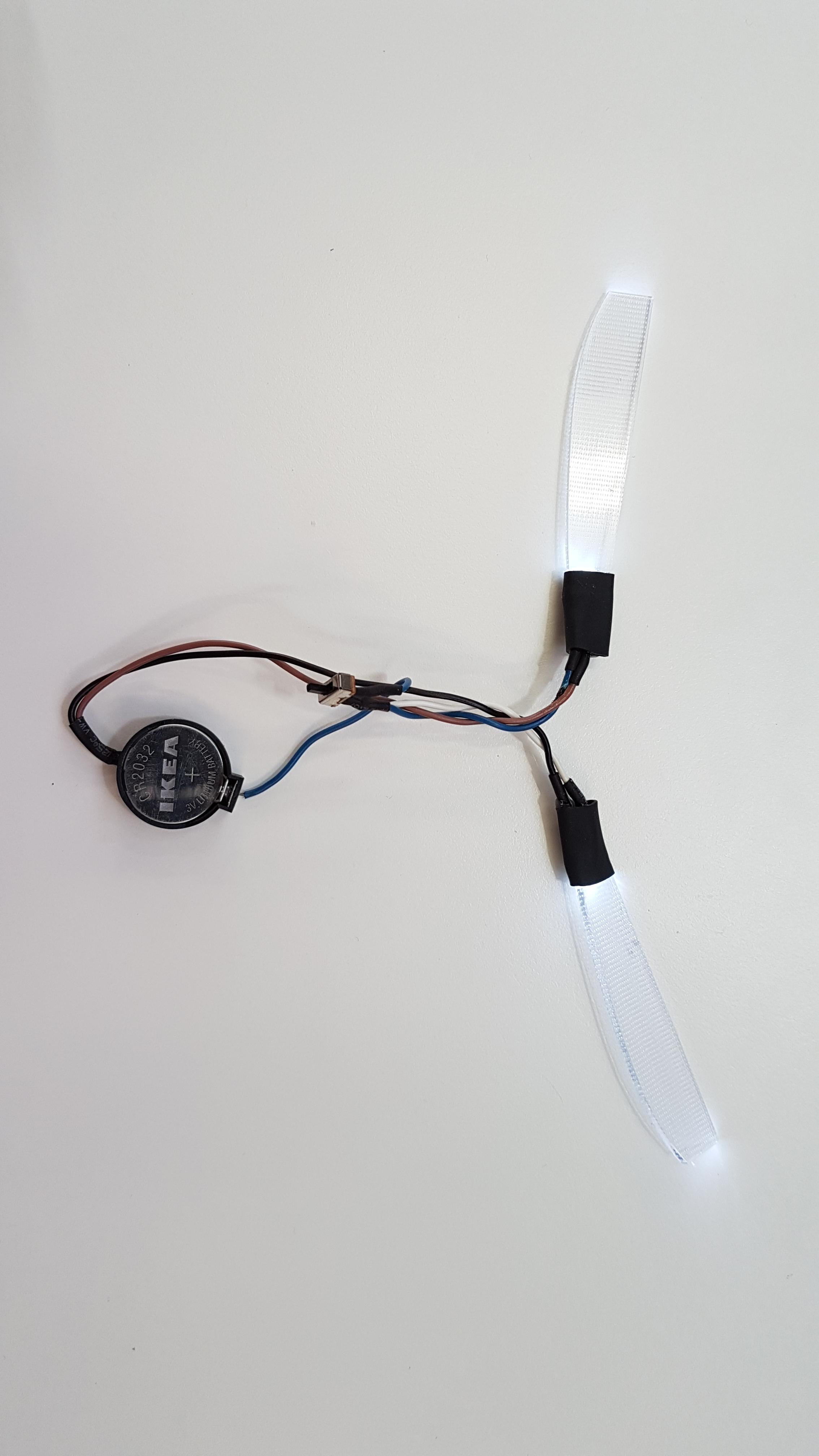

    The illuminated eyes were purchased on Etsy. I'm no good with electrics. They are laser-etched plastic illumiated by an LED and can be seen through without requiring the slit trick. Well, in daylight anyway.



    My side is chosen...

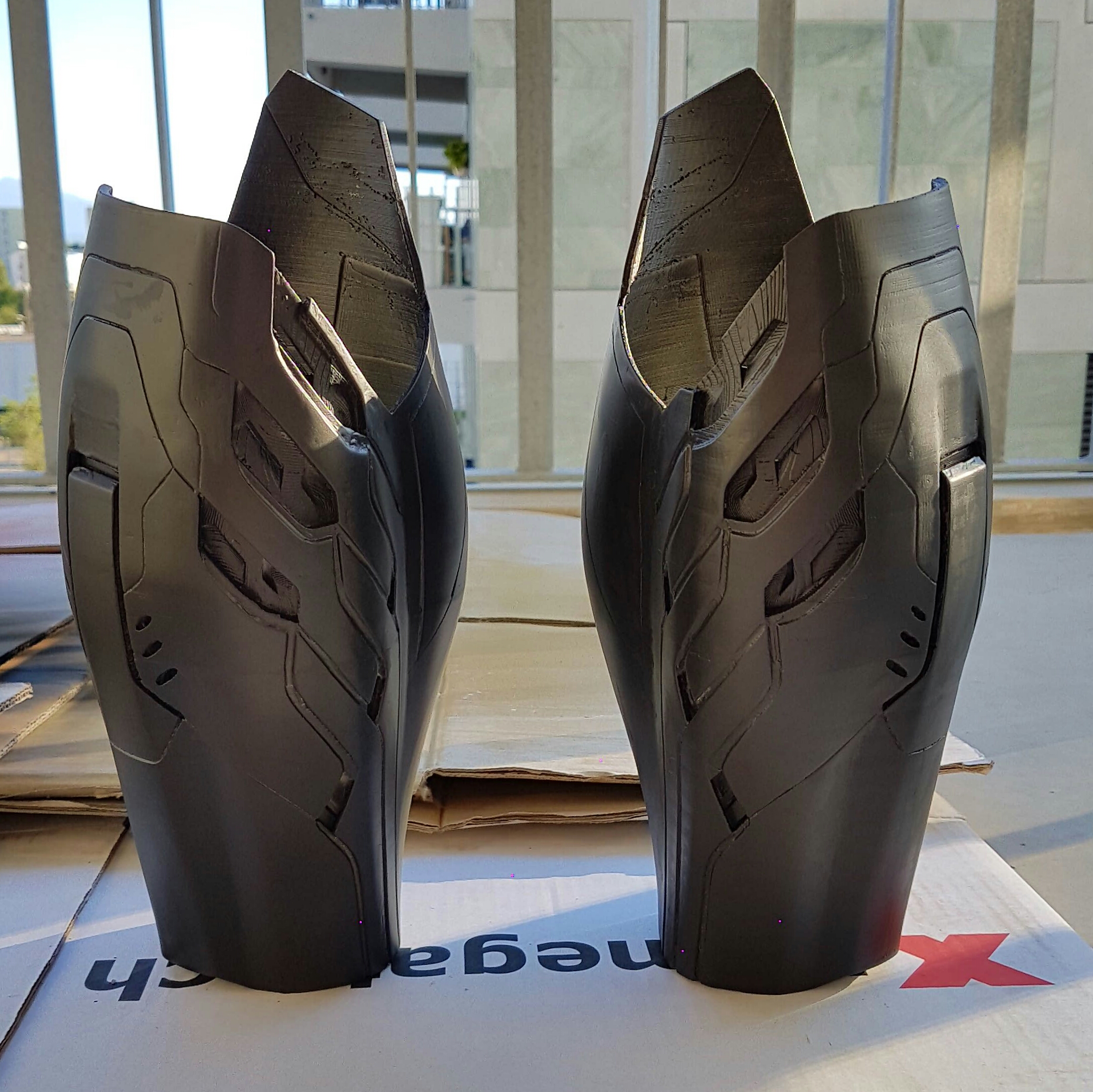

    Bolstered by my apparent success with the helmet, I moved on to printing a forearm. The first slice looked ok. Again printed on medium settings. But again that dreaded z-wobble was going to kill me...



    Pretty good fit though...



    Painting this thing was a nightmare. I must have gone through half a dozen cans of primer. Sanding, priming, filling, etc. trying to remove the z-waves. I was so close to quitting at this stage as the * things just wouldn't get smooth enough.


    Finally, with a bit of perseverance I got them to a stage where, painted flat black at least, they were kind of looking ok. I decided to leave them in basic black and move on.


    I started on the ill-fated chest and back sections next. Man were these prints were turning out rough. I'd later upgrade to an all-metal hot end from Micro Swiss and the quality of my prints would increase greatly...


    Lots of gaps in the ****ty prints that would need to be filled...

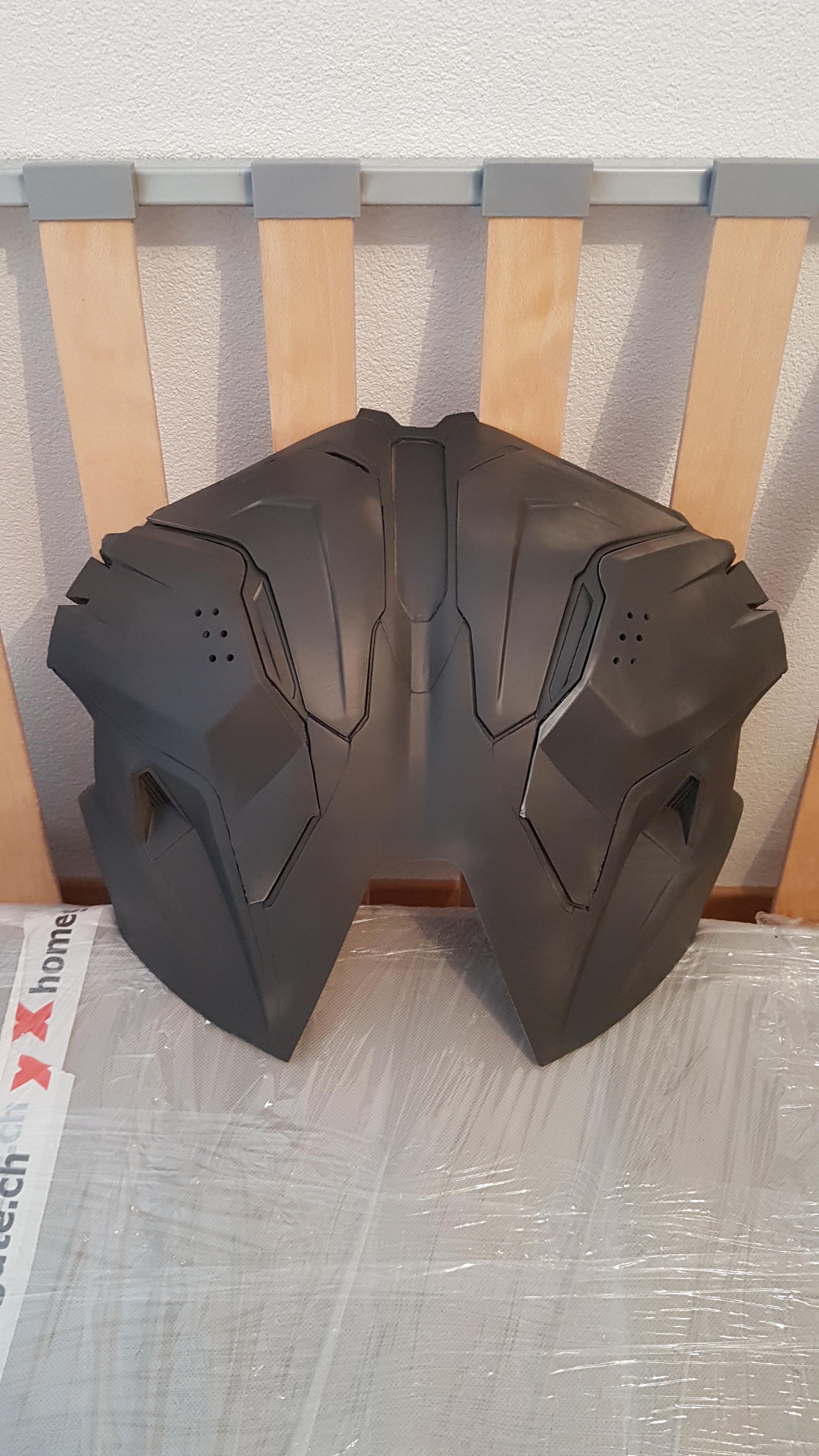

    Back sections. Do3D's model features opening flaps but no under-flap detail, unfortunately. I emailed them about this to ask if they could model something, but I received no response from them. Ho hum.

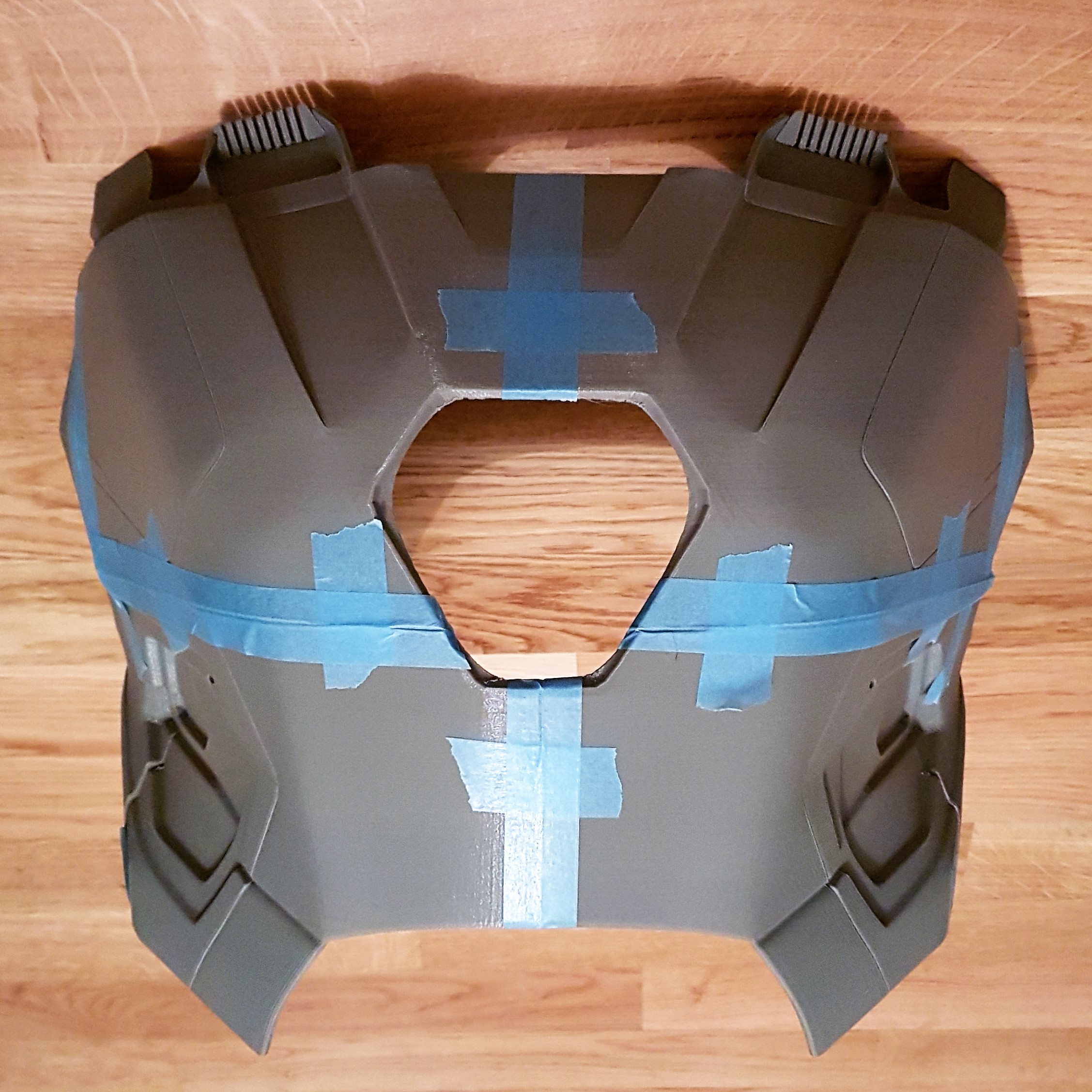

    Final assembly...



    After filling, sanding, priming, rinsing and repeating a few times and the addition of the flap sections it was starting to look pretty nice and reallly close to the movie design...


    A few things I printed and assebled but didn't bother to document were the shoulders and shoulder bells. Here is a full upper-upper torso laid out to show all the components. It's pretty impressive when it's laid out like this and made me feel better about my progress at a time when I felt I was getting nowhere fast...

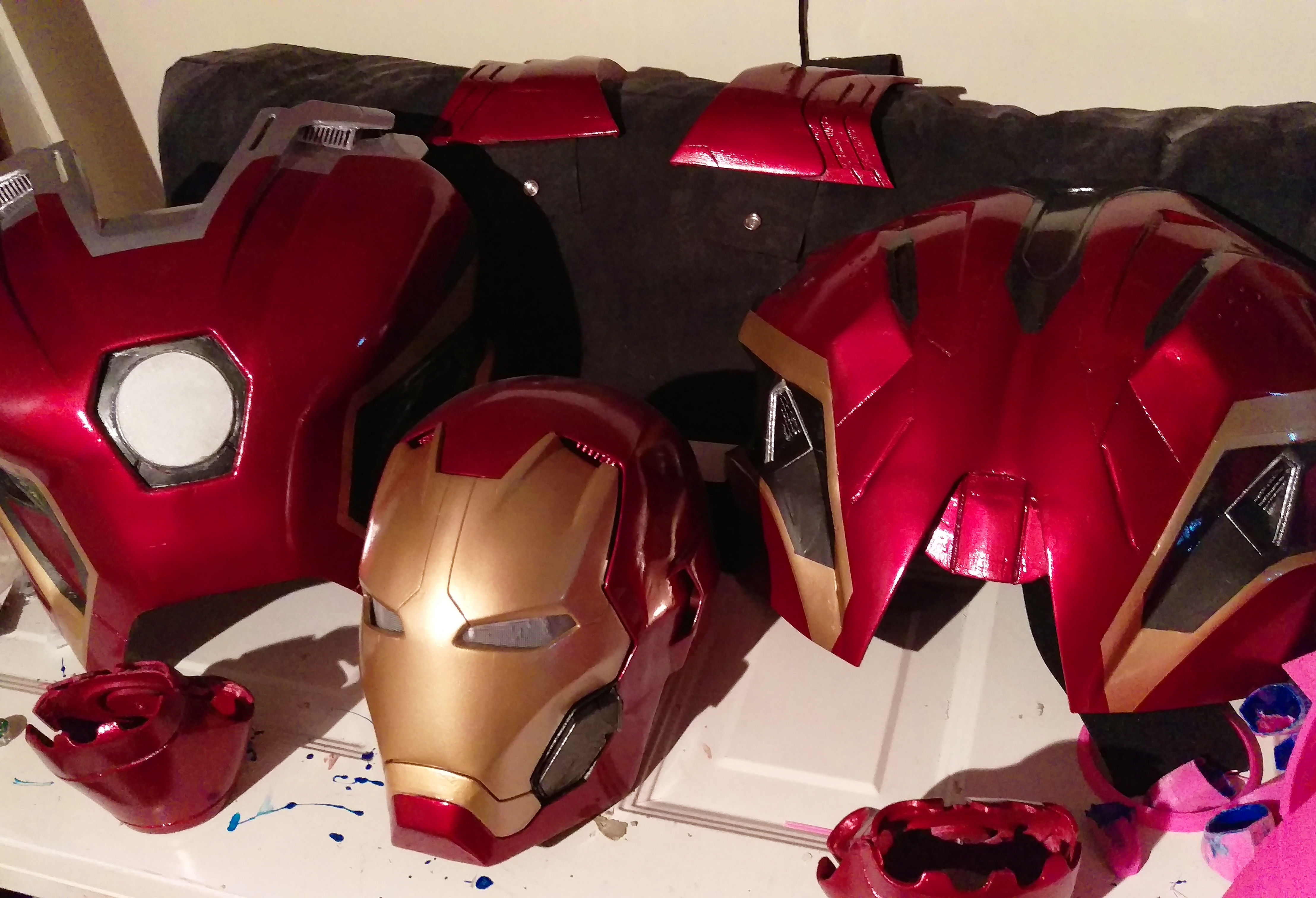

    A dry assembly of the bust showing my efforts at filling and smoothing the chest section...



    Obligatory selfie...


    A sudden change of direction

    It was around this time that I started to try to figure out how I was going to continue with the armour. I had printed the Abs section, but because of the idealised dimensions of the Do3d model there was no way that I was going to be able to fit my "normal" frame into their "hourglass" abs section. No way. Unless I lost about 10kilos and wore a corset. I wasn't going to suffer that much for my art, that is for sure.

    I was very frustrated. I felt a bit cheated. I had invested about 4 months hard work and a considerable amount of money into the armour at this point and I had pretty much just the bust to show for it. I was just about ready to quit and abandon the project.

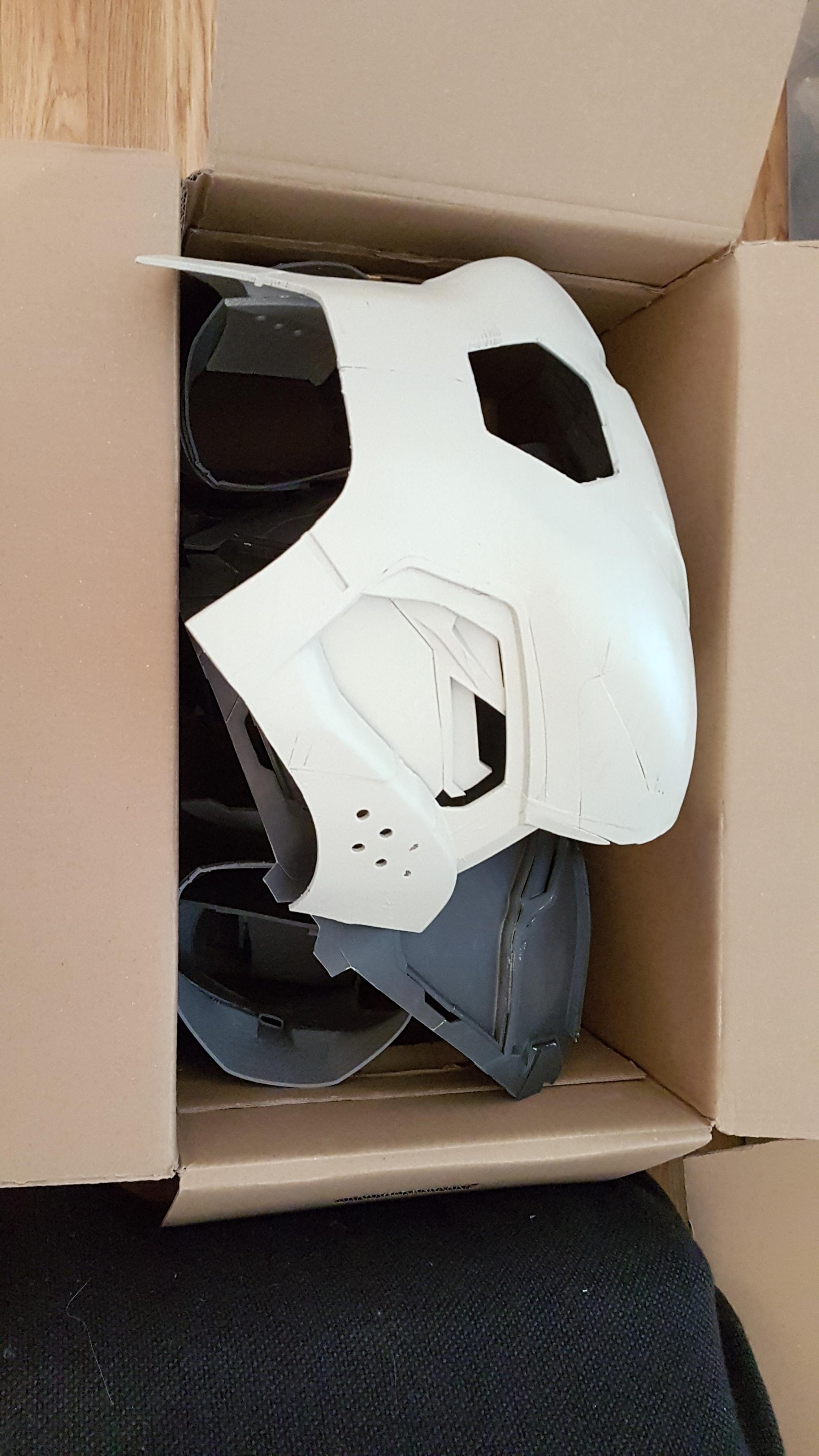

    Here is my junk box of the plastic I was throwing away...

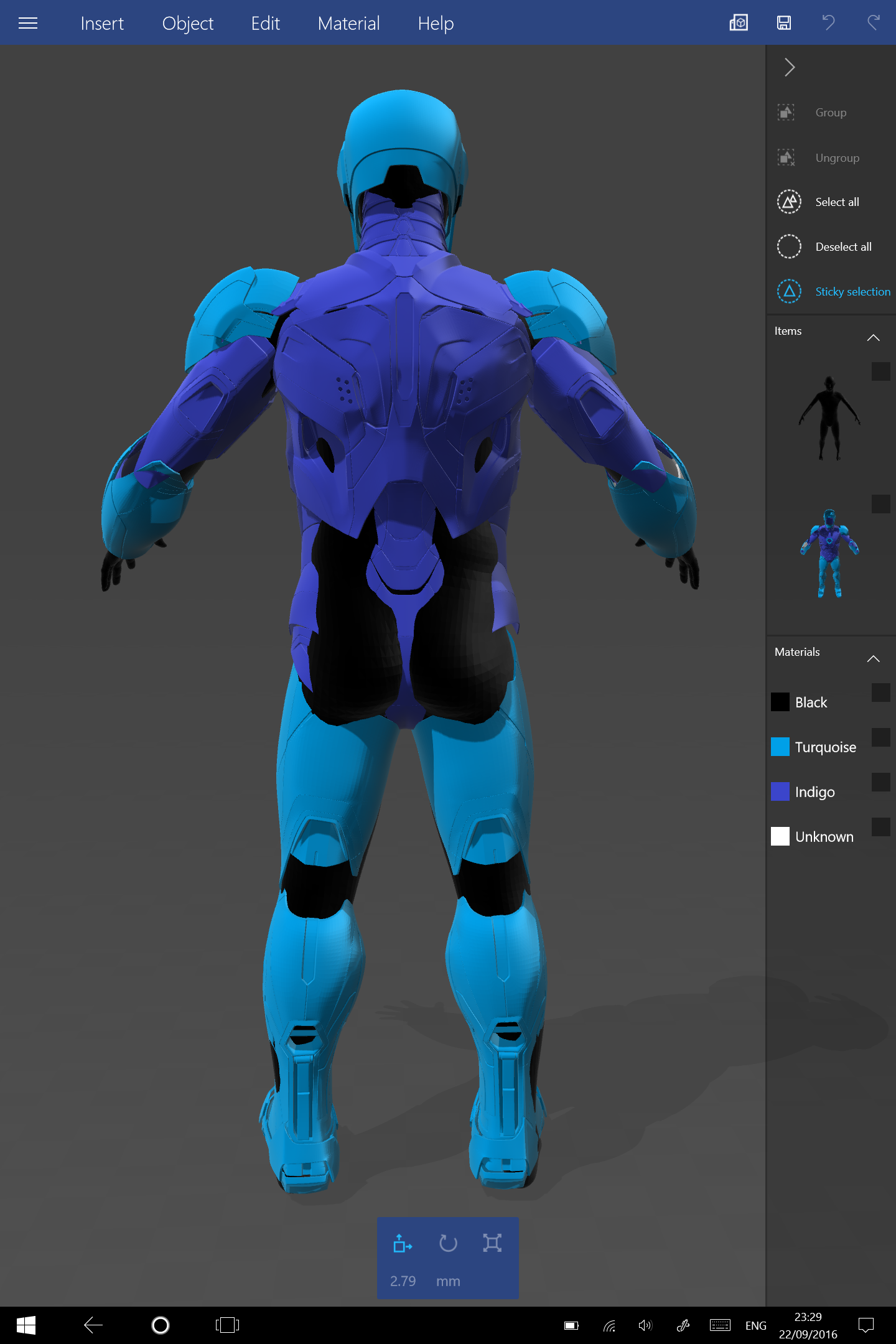

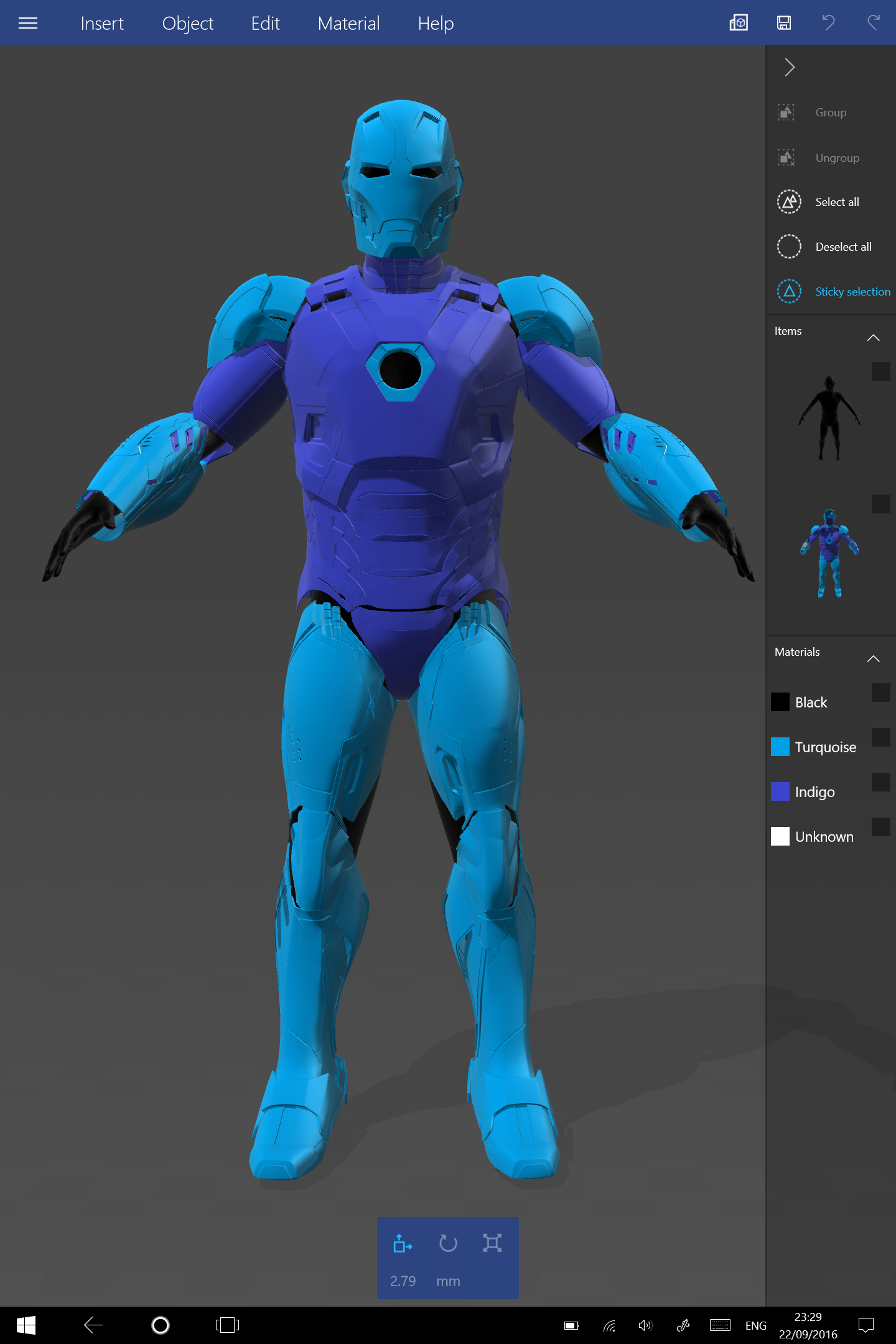

    It was then that I discovered MaxCrft models on Etsy. Max had 3d printable mk45 files for sale and I purchased them from him with the intent of reprinting everything and starting from scratch. His models are not as "screen-accurate" as Do3d, but they do have the advantage of being modelled to be wearable by the average human being. Bringing myself to toss all the parts that I had struggled to print and build was just about breaking my heart. However, through a lot of trial and error I eventually realised that I could potentially make a successful hybrid suit using parts from both Do3d and MaxCrft models. That is to say, the nicely streamlined arms, legs, and helmet from Do3d and the normally proportioned chest, back, and abs from MaxCrft. I pieced the models into 3D builder to test my theory:



    Light blue parts: D03d
    Dark blue parts: MaxCrft

    So here we go, with newly refound zeal, I jumped straight into printing the new chest section...

    (printed after the z-wobble killing upgrade to my printer, so the parts are considerably smoother from the get go)


    I also started soldering iron welding my parts for strength. Time consuming process, but works a treat...

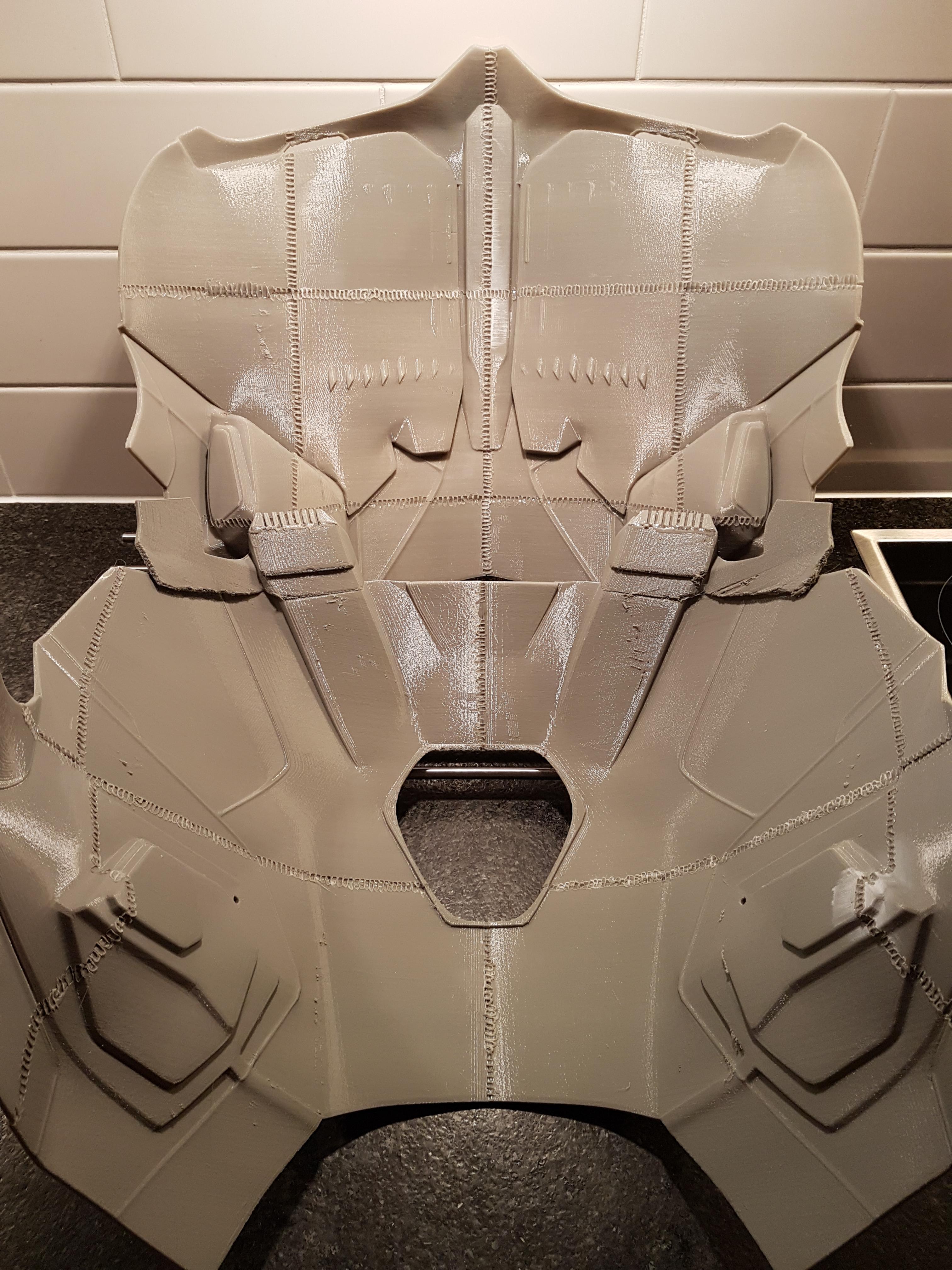

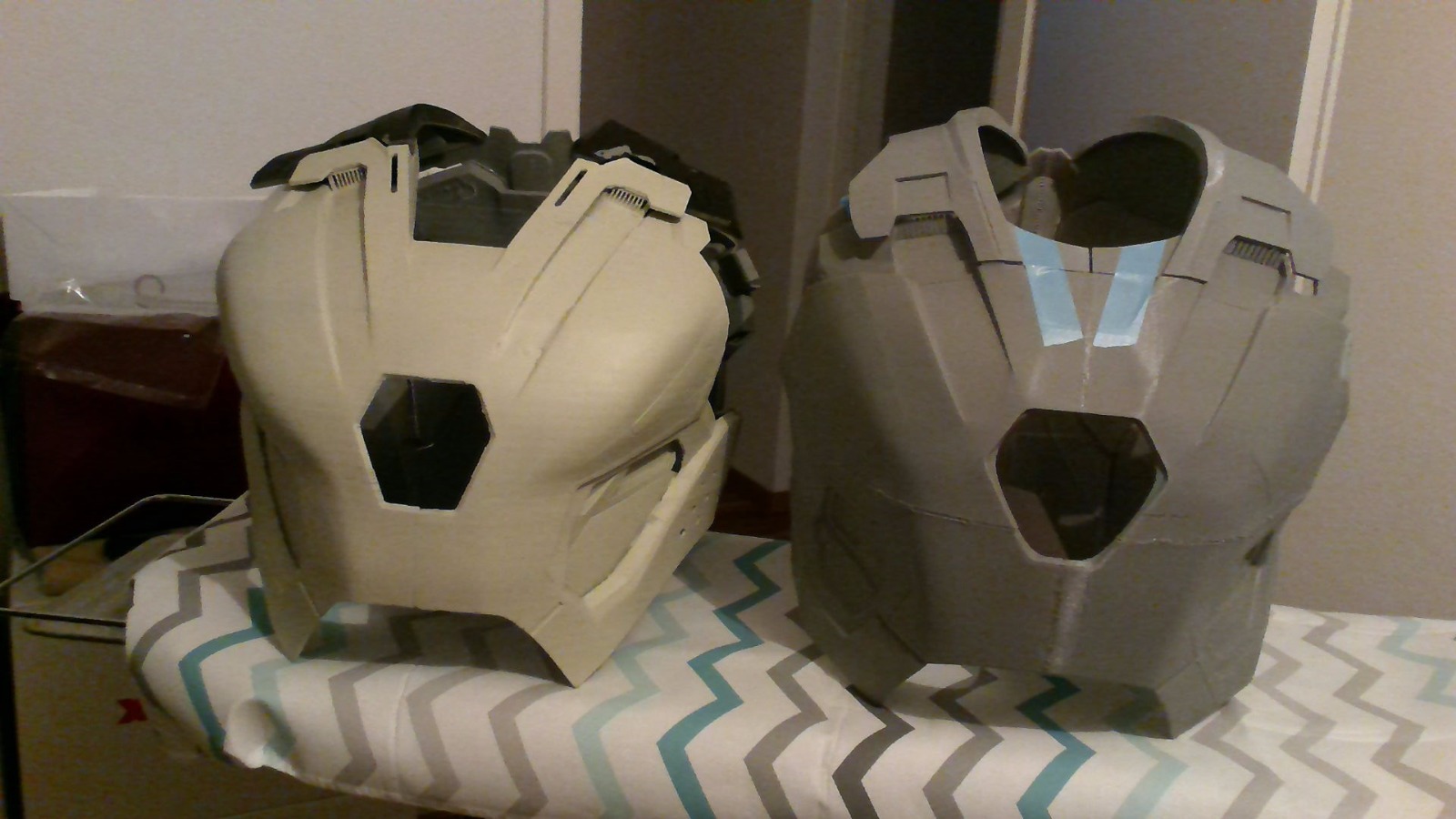

    Here are a couple of comparison shots of the chest and back sections between models. Do3d on the left and MaxCrft on the right. The differences are considerable, but each has its merits. I still think that the Do3d is the more screen accurate design, but unfortunately its just bloody unwearable.


    Oh, and as a bonus the MaxCraft comes with some pretty sweet under-flap details...

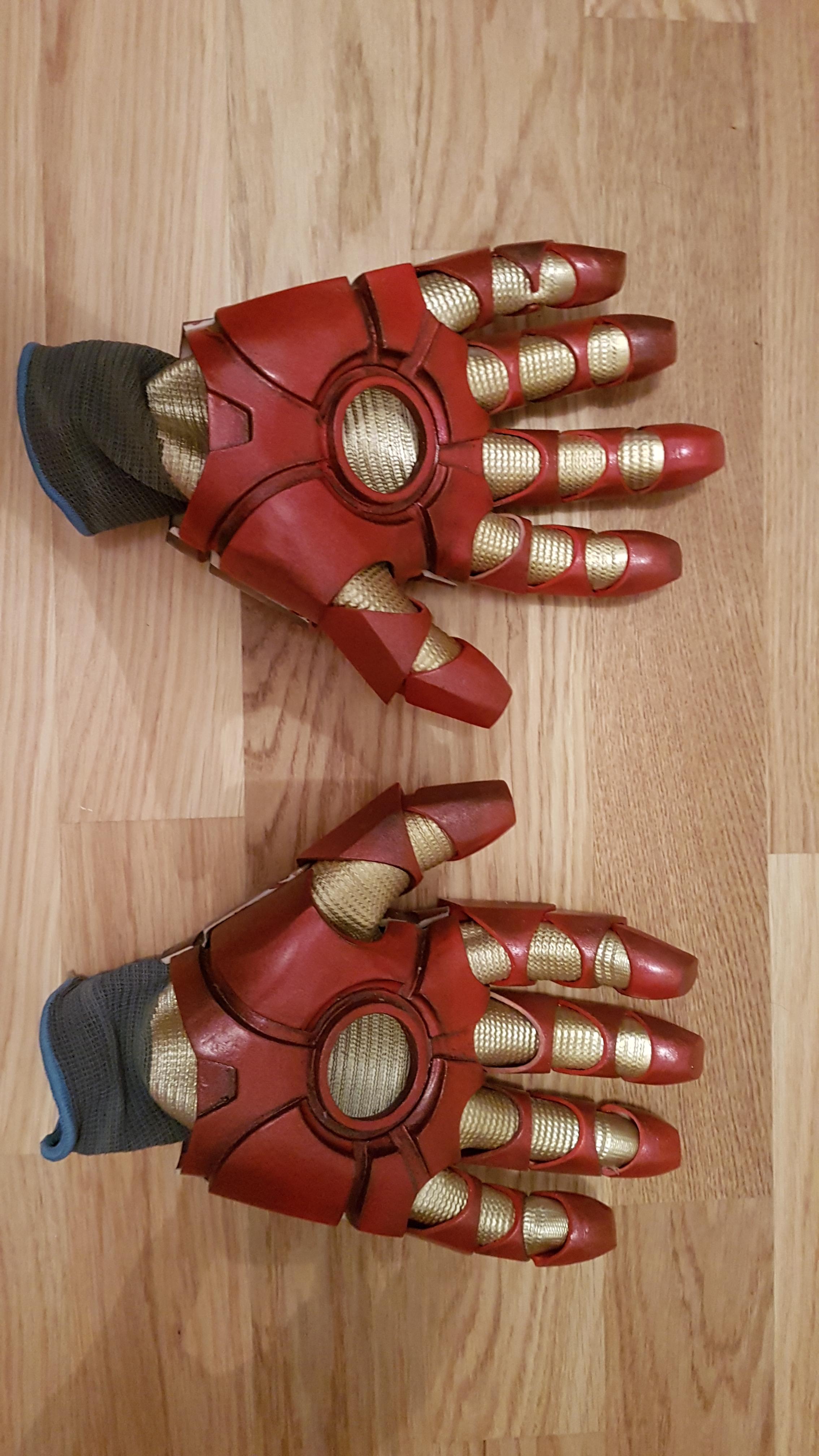

    Hands need repainting. The colour is not the same Cherry Red as the helmet. The colour matching didn't work for some reason...

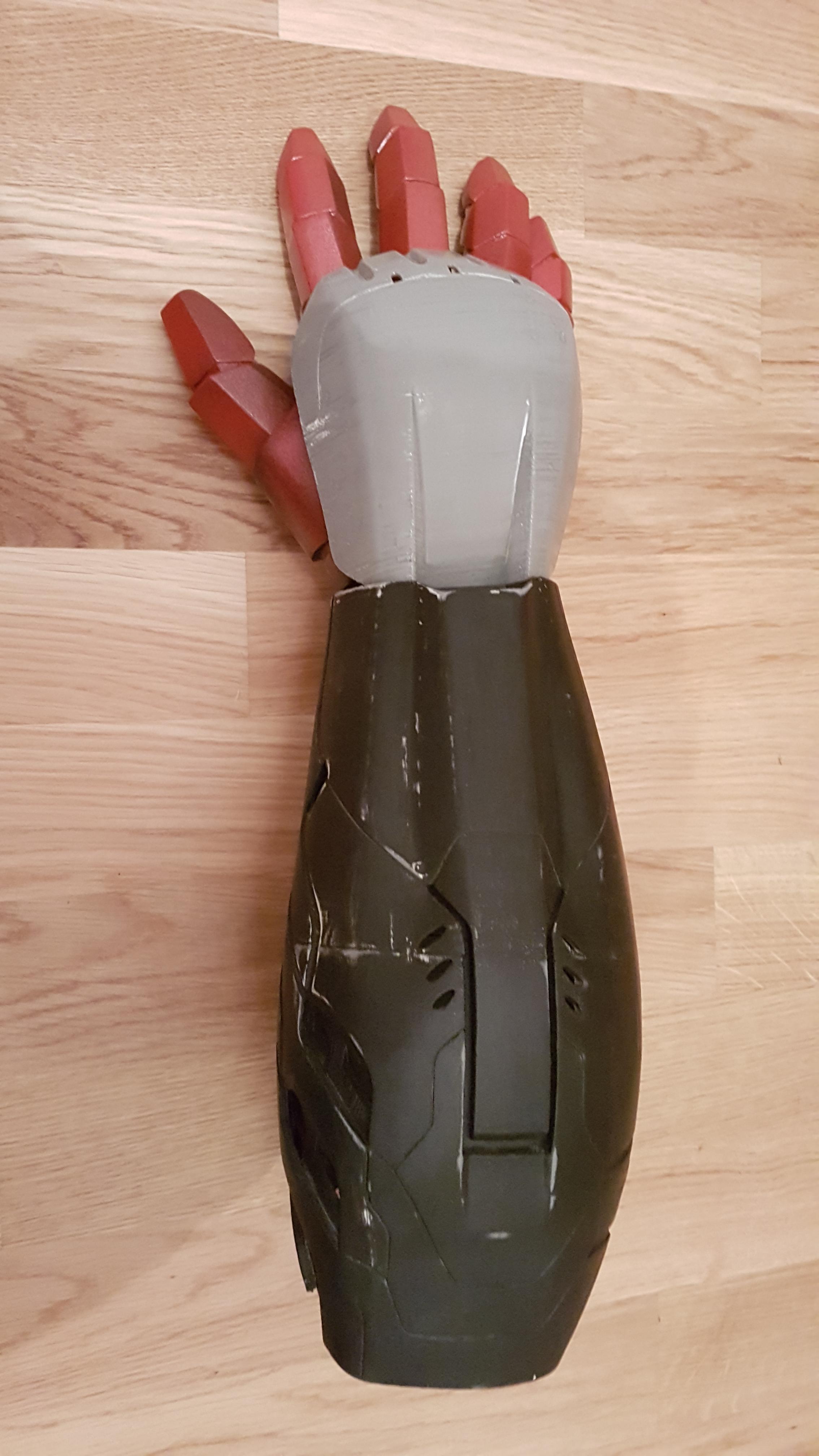

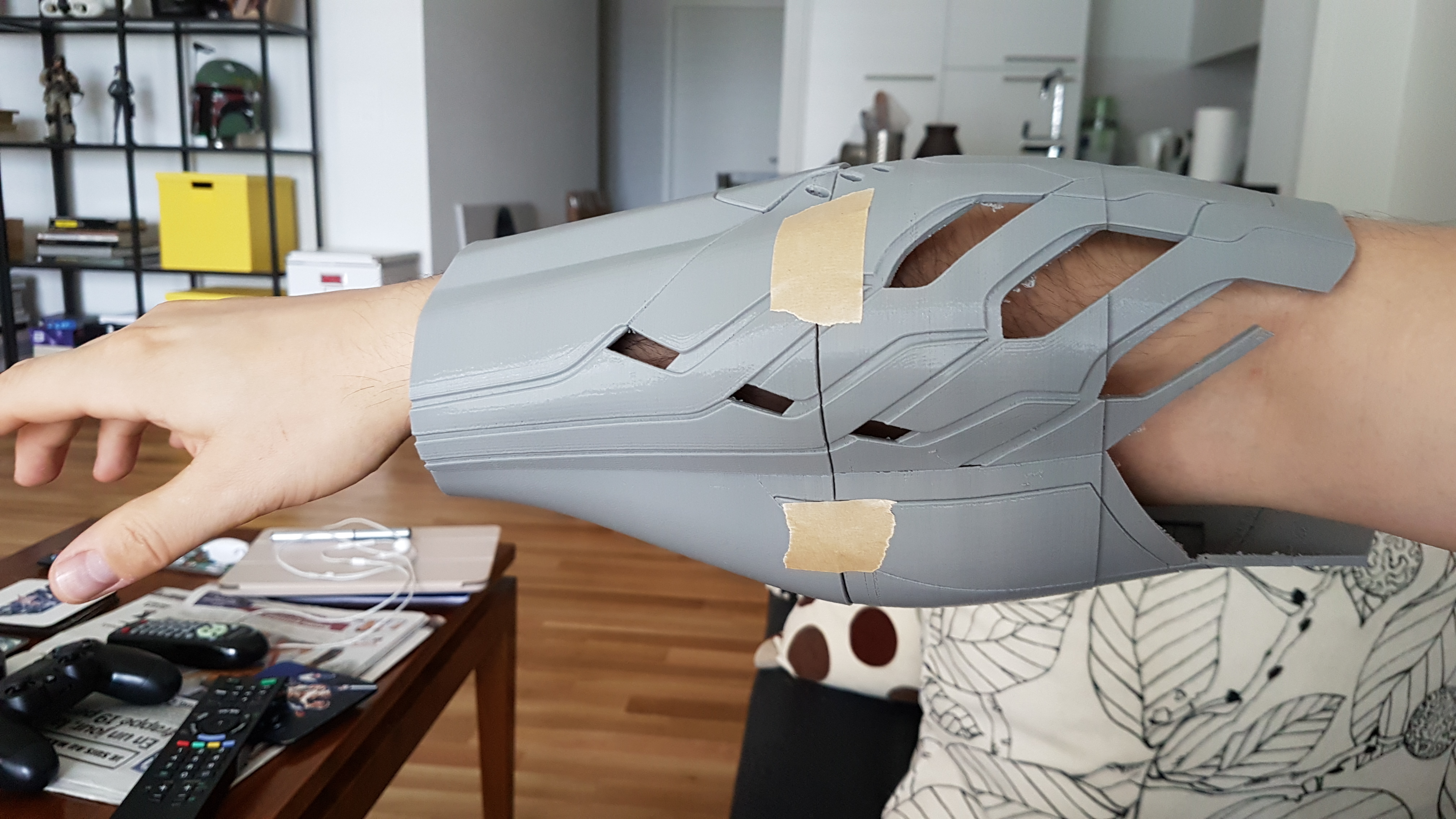

    Forearms test

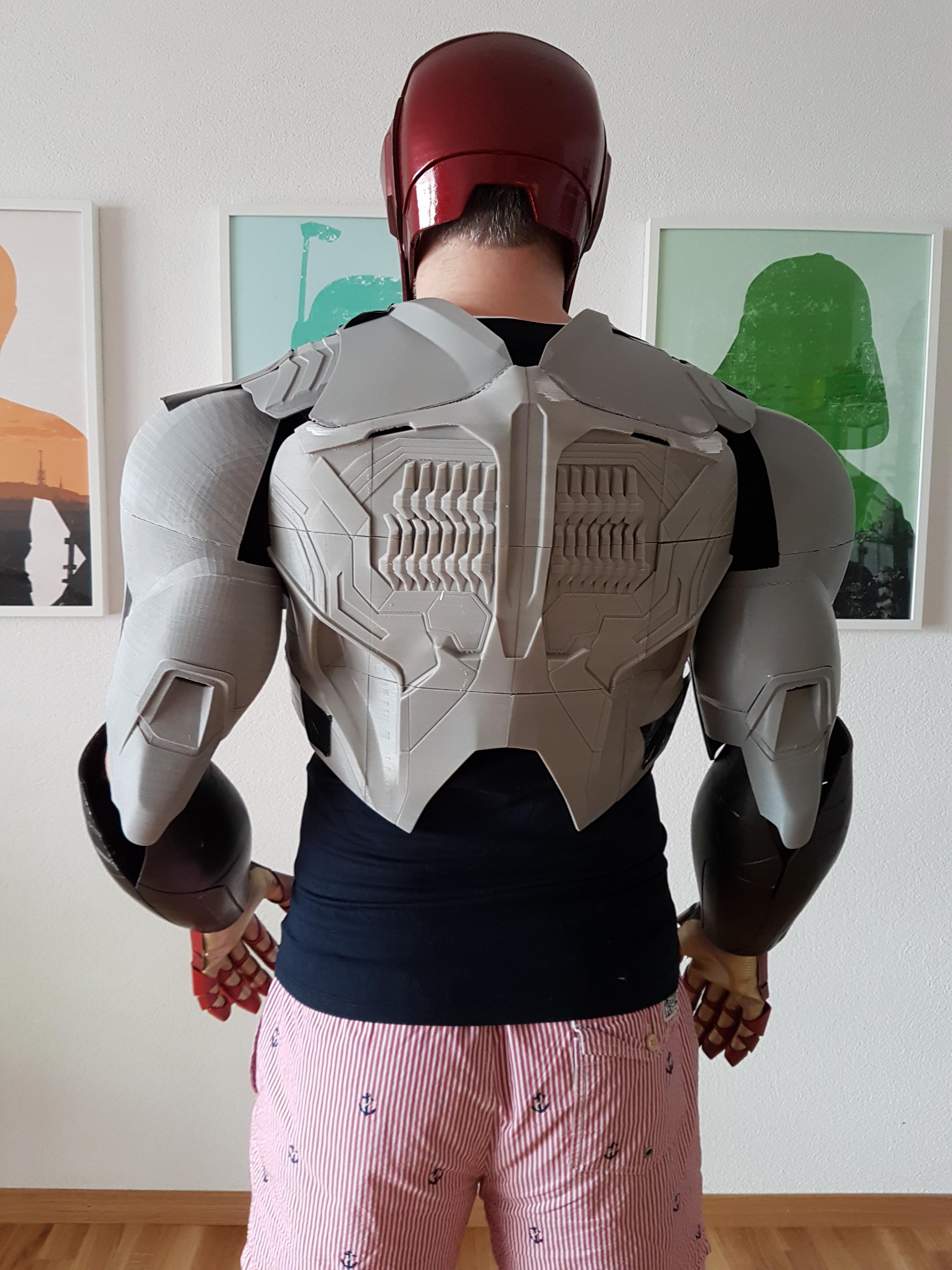

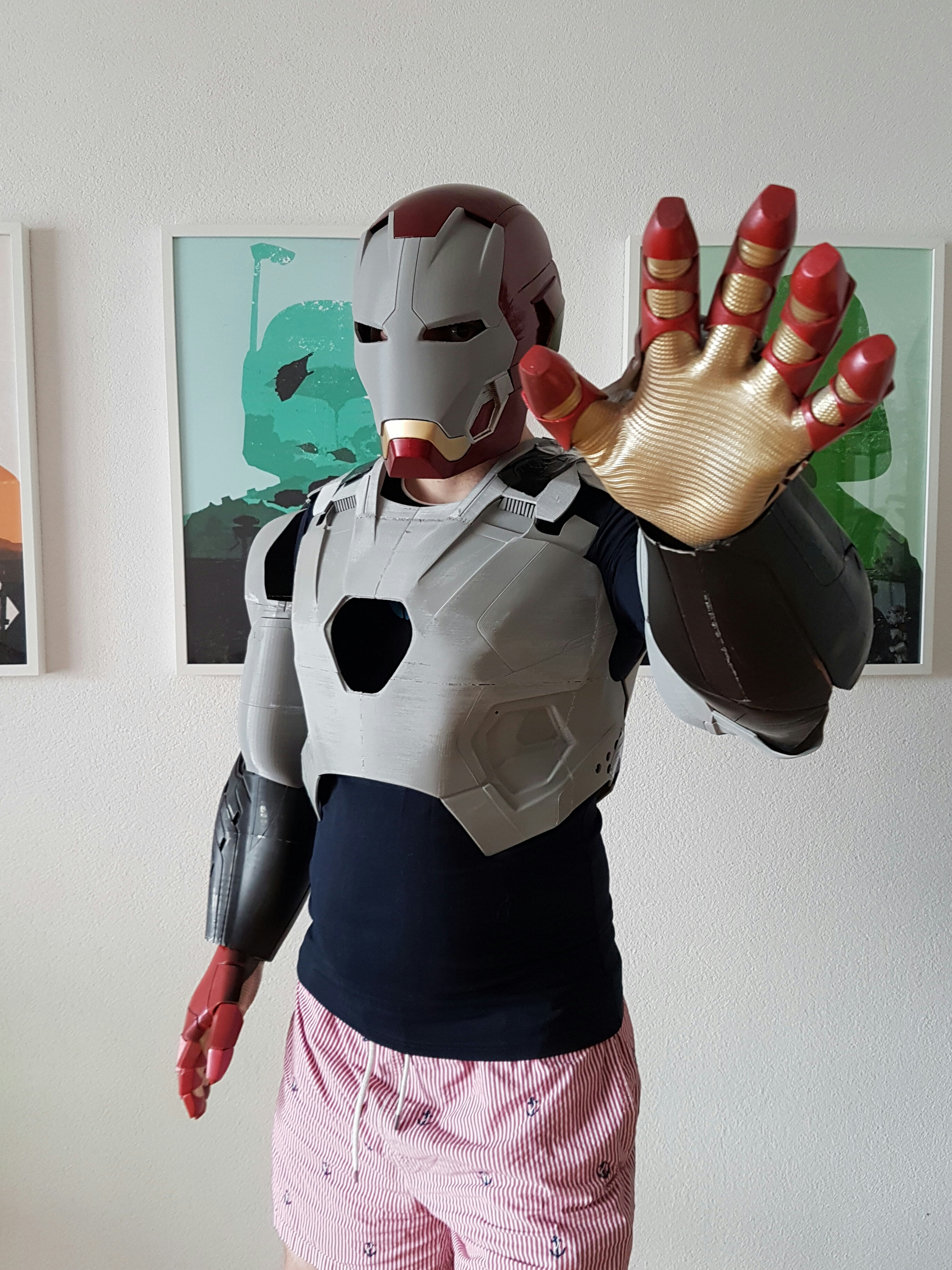

    You may have noticed that this thread hasn't been presented in a linear manner. Much of the printing and finishing was done concurrently. But that brings me pretty much up to date. Here is my latest test fit of the parts. Remember this is a mongrel: Do3d helmet and arms with MaxCrft chest and back. It all fits together pretty well and I'm pleasantly surprised how little black undershirt is showing through at the shoulders. This will hopefully be even less once the shoulder bells are attached. I've some ideas about the undersuit also which should hepl make the joints appear more robotic...


    No, those are beach shorts. Just sayin'...




    So that's where I am right now. I've spent this weekend smoothing and filling the new chest section. I'm trying hard to get back on schedule following my derailment. This hasn't been helped by my printed going down and I've just managed to get it back up and running after rebuilding the hot-end completely. I think I'm having fun. My friends and missus think I'm crazy and most people think my timescale is way too optimistic. Let's see. I like a healthy amount of optimism. I just learned that my brother is skilled at programming Arduino and RaspberryPi, so I will be tasking him with sorting out the electronics. Bonus.

    I'll try and keep the thread up to date, but please don't expect daily progress reports. I'll keep an eye on the thread for comments and questions, but if I post updates once a week I think I'll be doing extremely well.

    Let me know what you guys think. I'd love to hear your suggestions and hints and tips.









































    View attachment q6Ui4ZB.jpg





































































































































































    Last edited by a moderator: Nov 9, 2018
  2. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Gros boulot! When I saw your box of rejected parts, my heart sank:cry All that effort for nothing. But glad you've switched machine and that now, you'll have less sanding and filing with your prints. Keep up the good work; eager to see your next update!!

  3. johnojodo

    johnojodo Active Member RPF PREMIUM MEMBER

    Trophy Points:
    362
    "And then I bought a 3D printer. A Wanhao Duplicator i3 to be precise. I was pretty much goaded into buying one after spending lots of time modelling parts for a friend to print and seeing what kinds of things were possible. Personally, I think it is the future of replica prop-making and cosplay."

    Your welcome!

    "I played around with the idea of modelling my own armour but quickly realised that this was clearly beyond my skill level"

    No where near the credit your work deserves

    Last edited by a moderator: Nov 9, 2018
  4. TKCC71

    TKCC71 Well-Known Member

    Trophy Points:
    836
    Wannabe,
    Glad to see you back in business. Will be following this thread and really looking forward to seeing your progress. I'm also getting the itch again to start another Iron Man suit myself but haven't decided which one yet (Possibly War Machine Mark II). I too had so many issues trying to fit into my abs/cod piece (And still due with my current suit). Don't think I can even put on the suit anymore its such a tight fit. However it has now become a nice static display in my basement. Best of luck to you and looking forward to seeing this dream come true.

    Cheers

    Tim

  5. Cri7e

    Cri7e Active Member

    Trophy Points:
    262
    Hey man, very nice build, im really looking forward to more updates!

    What type of gloves did you uss for the hands? Any link where I can buy them? They look fantastic!

    Cheers, Cri7e

    Gesendet von meinem Nexus 7 mit Tapatalk

  6. wannabe

    wannabe Active Member

    Trophy Points:
    460

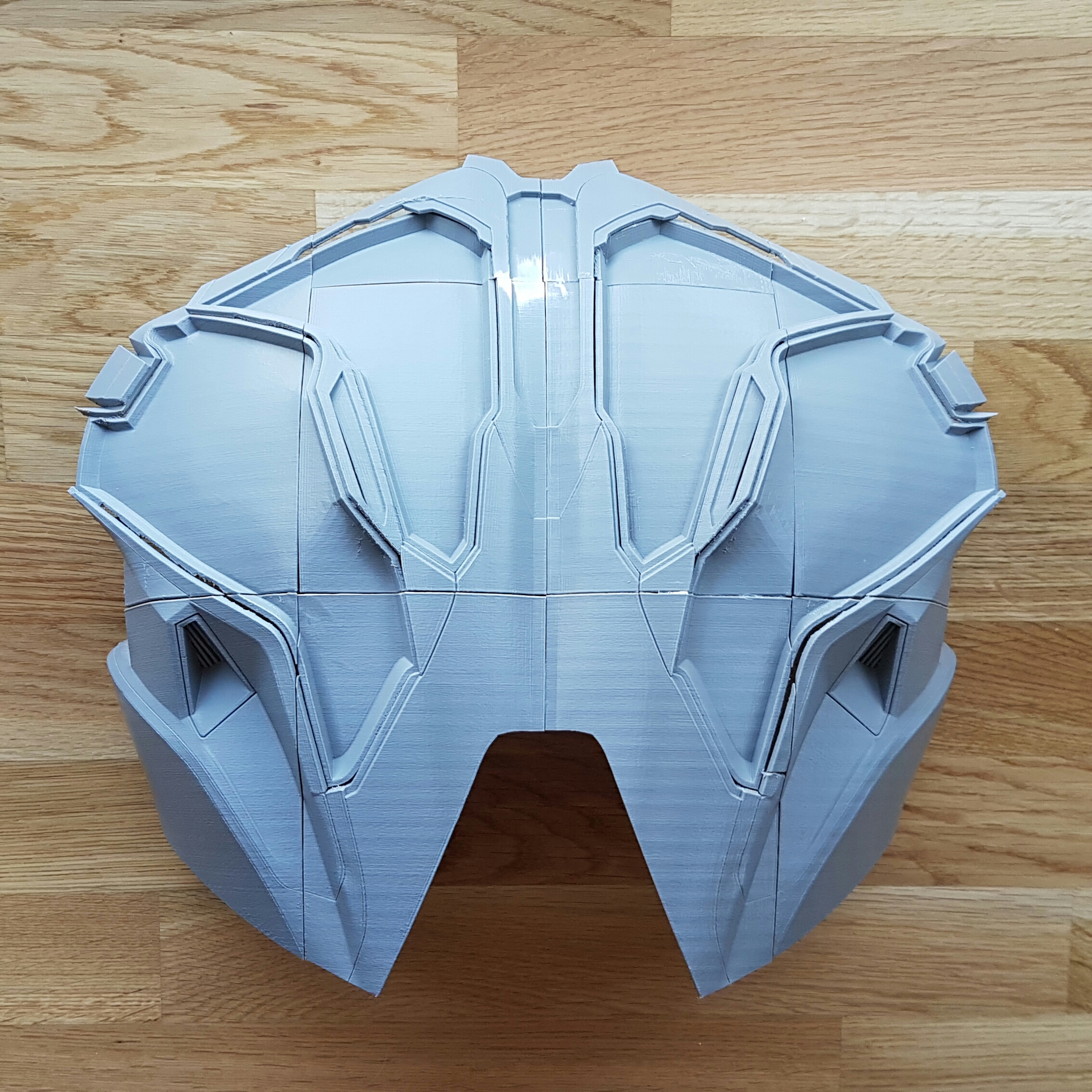

    Just for your interest, here is a comparison shot of the back section with flaps between Do3d on the left and MaxCrft on the right:

    [​IMG]

    Again, Do3d are the more screen accurate. But MaxCrft looks great too. If you've purchased Max's files you won't be disappointed.

    Last edited: Jun 25, 2017
    Sporkey likes this.
  7. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Also, if you are looking for a comparison between the Do3d and MaxCrft models before you decide which one to buy:

    [​IMG]

    And between the MaxCrft mk45 and mk46:

    [​IMG]

    DrCyanide and Remba989 like this.
  8. LeClubNerd

    LeClubNerd Well-Known Member

    Trophy Points:
    536
    Thanks for the comparison shots.
    Nice work too :)

  9. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Little bit of progress over the weekend. Printed out the abdomen section. Still trying to decide about the vertical scale, but it seems to fit pretty well around. Parts will be heat welded together as before. Printing the kidney and hips now.

    [​IMG]


    Last edited: Jun 25, 2017
    George and Sporkey like this.
  10. brokechick

    brokechick Active Member

    Trophy Points:
    460
    Here I am wanting to 3d print MaxCrafts mk46 suit for Supanova here in Australia which is at the end of April..hrmmm I'm thinking that's too ambitious!

    Oh and by the way, awesome suit! Will be following!

  11. robsuro

    robsuro New Member

    Trophy Points:
    3
    As a long-time lurker to these forums I am always impressed by the quality of work and knowledge here. Interested in seeing your build as I also printed a MK45 (from do3d as well). Starting another MK45 to address printing issues (I was/still am new to 3d printing and there were infill and sizing issues). Anyways, back to your thread:

    You may already know this but if you're printing in ABS some of the harder-to-heat-weld pieces can be bonded using Acetone. It's fast and the bond is incredibly strong. I started bonding with an all-purpose cement, then used a plastic welder....and finally using an abs slurry (ended up my go-to solution).

    Your build looks great so far...I am giddy to see another MK45 lol. I'll be following!


  12. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Thanks for the positive comments guys. They are truly appreciated.

    @robsuro I'm printing in PLA as it's the material I am the most confident in using. I might try PETG for my next build (if there is one). Your armour looks great and I'd love to see more images. Unfortunately the Do3d abdomen sections are crazy small and I just couldn't see how they would work. Also, looks like you are using their old files? You might want to contact them about updates. Drop me a PM if you like and we can compare notes.

    @TheArmourDen Max's mk46 files are great. His recent updates have fixed a few issues in accuracy. His files are just way better value for money than Do3d if screen-acuracy is not your no1 priority.

    I'll be starting on thighs this week. Some long prints ahead of me. I'll keep you guys posted for sure.

  13. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Just for fun...

    [​IMG]

    Last edited: Jun 25, 2017
    Remba989, RacerMachX and Jmen like this.
  14. brokechick

    brokechick Active Member

    Trophy Points:
    460
    Nice! The hands are looking really good, can't wait to start printing

  15. Jmen

    Jmen Well-Known Member

    Trophy Points:
    935
    Awesome build so far and i have a question - you will make it "factory new" look or battle damaged? Thnx)
    :thumbsup

  16. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Jmen My plan is to weather the armour. Not completely battle-damaged with holes etc, but dirty and distressed like it's seen some action.

    The other benefit of this approach is that the weathering will camouflage some of my bad finishing and spray painting. [emoji1]

    Last edited by a moderator: Nov 8, 2018
    Jmen likes this.
  17. wannabe

    wannabe Active Member

    Trophy Points:
    460

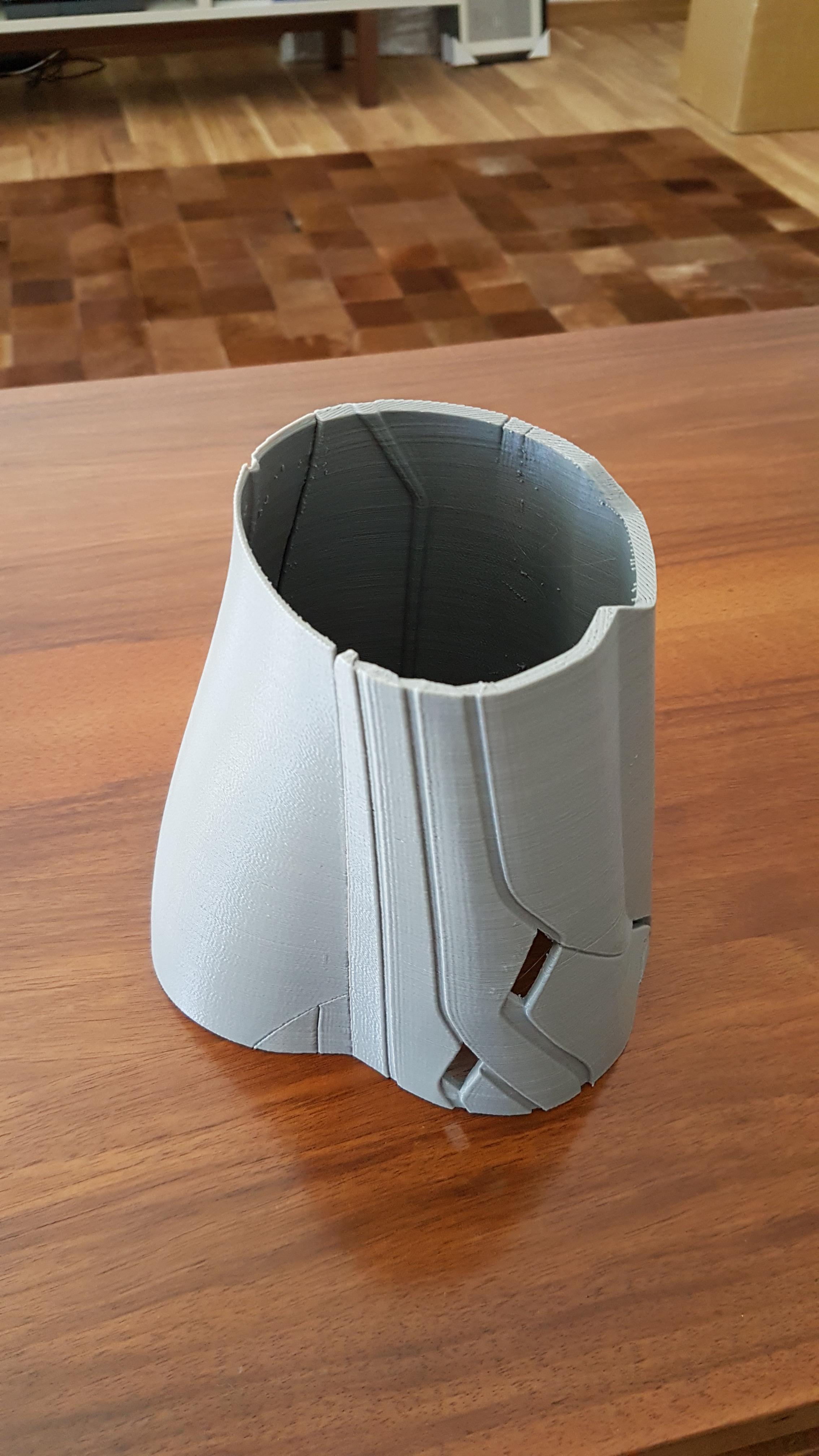

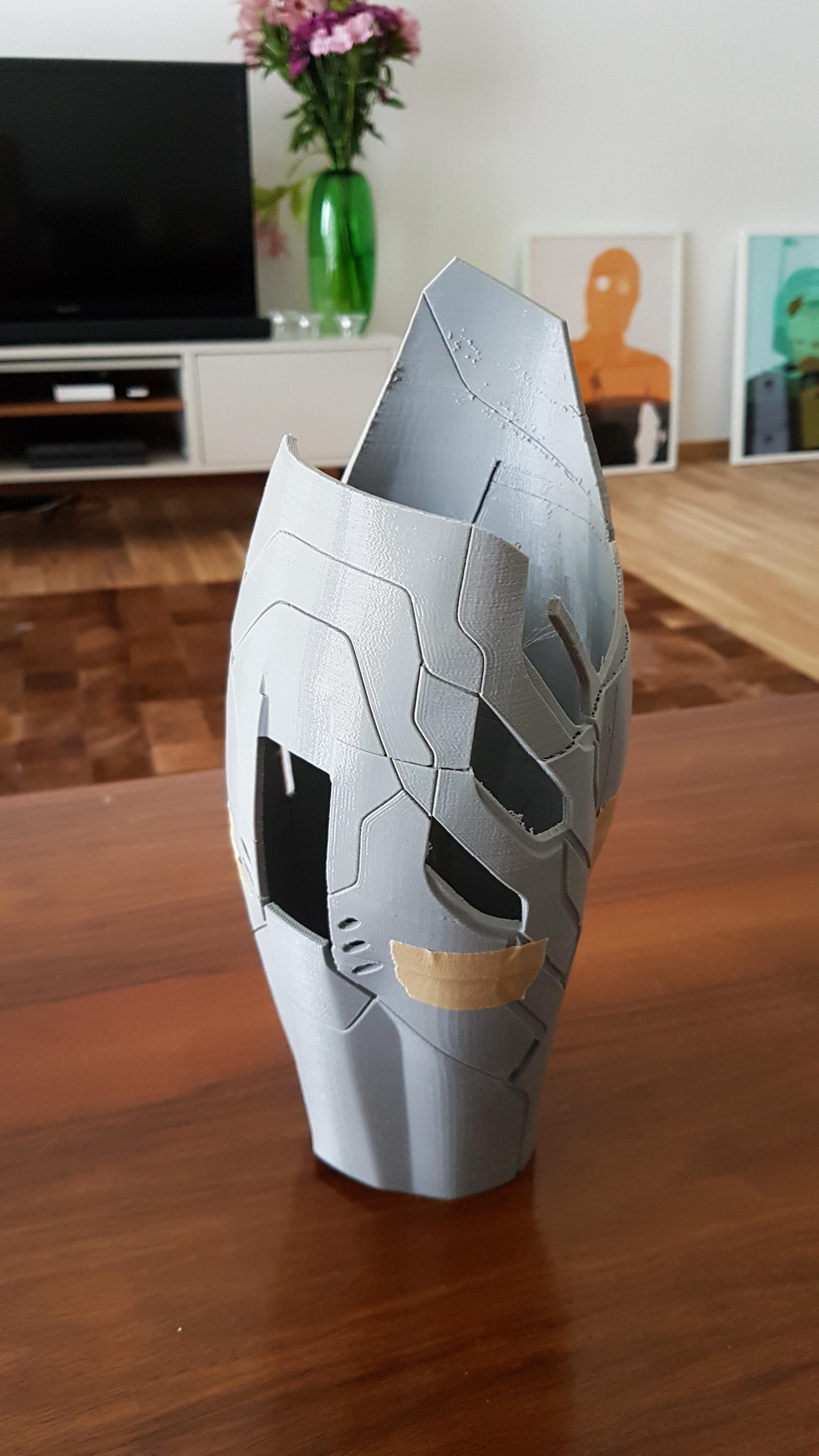

    Ive finished the first thigh section. It should really be the second thigh section but the first didn't fit so well so I upped the scale factor a touch and reprinted. My thighs and butt are quite large from years of cycling so the fit is somewhat, ahem, special. Anyway, will print the left one after the new year. Until then, here it is in all its glory. Lots of filling to do.

    Last edited: Jun 25, 2017
  18. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Another quick update. I received a Raspberry Pi beginners development kit for Christmas so if anybody has any experience of how to implement one into an Iron Man build I would greatly appreciate the help. I think I have a Micro with some kind of sheild attached, and a Teensy. I'd like to be able to control rear flaps servos and the suit lighting via a couple of simple momentary switches.

    Sent from my SM-G935F using Tapatalk

  19. wannabe

    wannabe Active Member

    Trophy Points:
    460
    By the way it has recently come to my attention that someone has posted the maxcrft mk45 files on thingiverse. Without wishing to derail this thread I just wanted to mention that I paid Max for my files and do not condone anyone using or freely distributing the hard work of another without the consent of the original author.

    Sent from my SM-G935F using Tapatalk

    vincentallen2 likes this.
  20. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Sorry for the lack of any updates recently, it's been a busy beginning to the year. Here is where I am with the right leg:

    [​IMG]

    [​IMG]

    [​IMG]

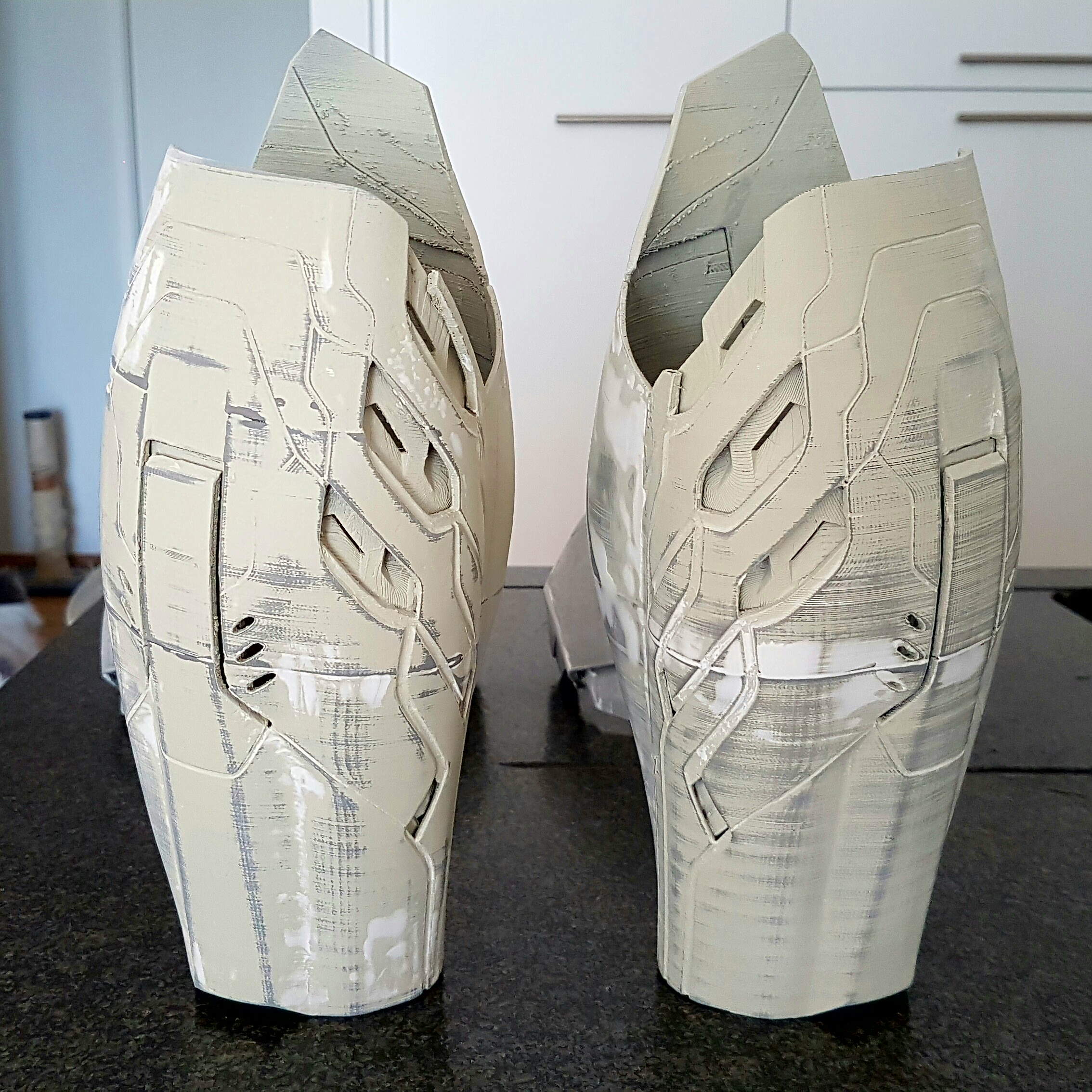

    Fits pretty well so the left is following along similarly. Will be starting the boots next. Proportionately speaking they should end up large enough to cover a pair of sneakers and some lifts which will help the fit of the legs and give me an extra couple of inches in height ��

    Have been considering how to join the shin and thigh sections. Will experiment with a double hinge system most likely.

    Last edited: Jun 25, 2017
    George and Psicorp7 like this.
  21. snaze1

    snaze1 Active Member

    Trophy Points:
    211
    Fantastic build, looking excellent!

    I am working on a 3D printed suit myself and wonder if you would mind telling me which Etsy seller you got those eyes from and how much they cost you?

    Many thanks

  22. wannabe

    wannabe Active Member

    Trophy Points:
    460
  23. snaze1

    snaze1 Active Member

    Trophy Points:
    211
  24. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Great work so far...eager to see your next update:cool

  25. KilTheMaskedGuy

    KilTheMaskedGuy Well-Known Member

    Trophy Points:
    562
    I like especially the face plate. more agressive eys with black outline, agressive shapes ~sexy~

  26. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Thanks guys. Hopefully back on track now. Not sure if my deadline will be met, but progress is progress.

  27. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Little bit of progress this weekend. But so much to do to get these pieces smoothed out ready for paint proper...

    [​IMG]

    Last edited: Jun 25, 2017
  28. wannabe

    wannabe Active Member

    Trophy Points:
    460
    In other news ...

    [​IMG]


    Last edited: Jun 25, 2017
    DrCyanide and LeClubNerd like this.
  29. wannabe

    wannabe Active Member

    Trophy Points:
    460
    So this weekend marked pretty much the end of the 3D printing of the Iron Man armour sections. In celebration of this I decided to have a little fun with a roll of duct tape ...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    As you can see the parts are in various stages of smoothing, priming, filling, and sanding. So much left to do...

    Last edited: Jun 25, 2017
    George, knnyjay, RacerMachX and 5 others like this.
  30. Psicorp7

    Psicorp7 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    That is just a beautiful set! Well done with the smoothing so far.

  31. celtic touch

    celtic touch Well-Known Member

    Trophy Points:
    566
    Wow this is just fantastic. I have just ordered my first 3d printer as is something I want to get into and just love the thought of being able to do this someday . Im getting the i3plus printer so hopefully it will be up to the task. May I ask how much filament went into making this and roughly how long print hrs? great job :)

  32. wannabe

    wannabe Active Member

    Trophy Points:
    460
    celtic touch Thanks for the comments. I'm afraid that I didn't keep track of how much filament or printing time went into the armour. I would say its well over 10kilos though.

    Last edited by a moderator: Nov 8, 2018
  33. TKCC71

    TKCC71 Well-Known Member

    Trophy Points:
    836
    Looking good Wannabe. Glad to see your almost there. :)

  34. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Looking very cool!! Keep on going:cool

  35. doppelganger

    doppelganger Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,092
    Wow, that is excellent. It would appear that 3d printing will be taking over from traditional build methods sooner rather than later.... so who's gonna 3d print some stormtrooper armour? Or a wearable Optimus Prime suit?

  36. Sith Lord

    Sith Lord Active Member

    Trophy Points:
    487
    Looking great! How did you join the pieces? I see you did the soldering iron on the backs. Any adhesive before you did that?

    I saw someone do a Star Wars build and they coated the exterior with fibreglass resin to get rid of the little z-wobbles and lines. Not sure if that would work with Iron Man having all those detailed lines?

  37. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Sith Lord Thanks man. I use CA glue to tack the sections together before I solder the pieces. I also use XTC to coat the exterior and then a combination of 2-part body filler with a nitro-cellulose glazing putty to smooth.

    Last edited by a moderator: Nov 8, 2018
    Streeter1981 and Sith Lord like this.
  38. Danlex9

    Danlex9 Active Member RPF PREMIUM MEMBER

    Trophy Points:
    287
    Awesome! the mk45 doesn't get enough love.

    wannabe likes this.
  39. LeClubNerd

    LeClubNerd Well-Known Member

    Trophy Points:
    536
    It's looking amazing. I assume you've tried it on? How did the mix of Do3d and Maxcraft work out on the comfort level?

  40. wannabe

    wannabe Active Member

    Trophy Points:
    460
    @Danlex9 Thanks man. I agree. The mk45 is an amazing design. I just hope I can do it some justice with my build.
    @LeClubNerd Thanks. I've tried individual sections on for size, but I haven't yet assembled and strapped the whole thing wearable. I'm actually still trying to work out how everything is going to attach. I've pretty much decided, however, that the arms and legs will be hinge articulated at the elbows and knees, and will be hung from the undersuit as much as possible. I'm taking many cues from how my Stormtrooper armour is strapped together. Any advice is welcome.

    Last edited: Mar 8, 2017
  41. pchrisbosh1

    pchrisbosh1 Active Member

    Trophy Points:
    211
    Looks amazing Joel, can't wait to see your finished product.

  42. njacob

    njacob New Member

    Trophy Points:
    16
    This is so great. Love the build. You have convinced me to buy a 3D printer! Cannot wait to see this complete.


    Sent from my iPhone using Tapatalk

  43. sureshot

    sureshot New Member

    Trophy Points:
    2
    Amazing work! I have just downloaded the MaxCraft file - I am 6ft tall with a 30 inch waist and slim do you reckon I need to get the Dod3 FIles as well? you mentioned the Helmet being more streamlined? I would like to adjust the suit so it stands at 6ft 3 like in the film (RDJ wore angled platform wedges in IM1) - tall and slim. Not too worried about the helmet I can always get another.

    How did you find the other parts of the suit in comprison from the 2 files?

    Regards!

  44. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Sorry for the lack of updates recently. Work and life have been somewhat taking priority right now. Things are still moving, only slowly. The self-imposed deadline of this weekend is well and truly missed however, so I'm making the Spiderman Homecoming première my next target. We shall see. Hope to have some updates for you shortly.

  45. Darktophie

    Darktophie New Member

    Trophy Points:
    2
    Would love to see what you are planning to use as hinges for the arms and legs. I printed this same suit and used overall hinges but they didn't hold well in the long run

  46. wannabe

    wannabe Active Member

    Trophy Points:
    460
    Darktophie What are overall hinges?

    Sent from my SM-G935F using Tapatalk

    Last edited by a moderator: Nov 8, 2018
  47. Darktophie

    Darktophie New Member

    Trophy Points:
    2
    Sorry, these are the clips i was referring to below. In theory they should have worked but i had issues with the studs popping off or digging into my leg. I have tried chicago screws in the past on my foam armor but couldn't figure out a way to get those to work with the 3d parts. I am curious to know what ideas you may have. i also had issues with the knee pieces as i just attached them with straps of velcro to the inside of the thigh.

    https://www.amazon.com/dp/B000BI1WC...t=&hvlocphy=9010945&hvtargid=pla-305170713289

  48. wannabe

    wannabe Active Member

    Trophy Points:
    460
    So I'm probably going to use a system of webbing and fastex buckles and/or poppers connected to a harness sewn in to the under suit. I'll scan my sketches and upload them when I get a moment. Otherwise, for the elbows and knees I have been experimenting with 3D printed double hinges.


    SonofDathomir likes this.
  49. sdasi1

    sdasi1 Member

    Trophy Points:
    112
    awesome build, really amkes me want to try assembly my costumes with 3d printed parts

  50. Tony Stark III

    Tony Stark III Well-Known Member

    Trophy Points:
    566
    interested in printing another set of elbow hinges for me? :p Ive been trying to tackle the elbow hing idea forever now, and cant come up with anything flat enough to hide inside without stabbing my arm. that idea looks sweet. please dm me if interested.


Share This Page
