    So, because I am apparently a glutton for punishment, I've decided my first full suit will be this beauty:


    I'm hoping to document my progress here, if for no other reason than to help me keep at it to the end!

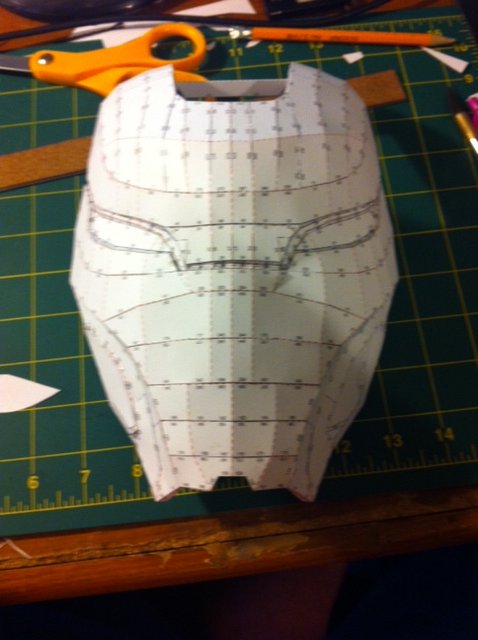

    Since it's usually the most interesting part, I naturally started with the helmet:

    photo 3 (1).JPG


    and a little further on:

    photo 2.JPG photo 1.JPG

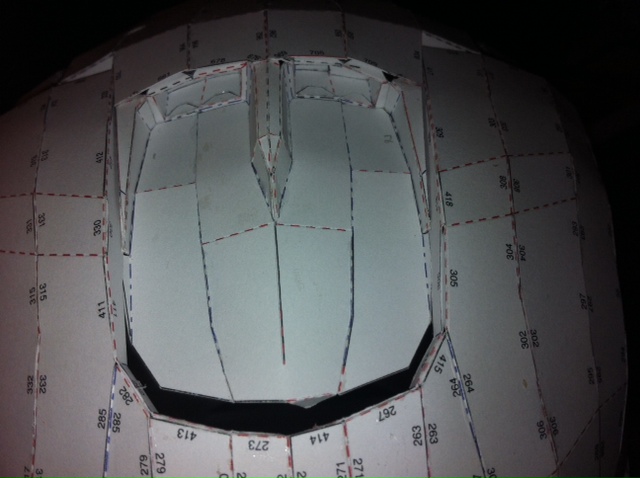

    Those vents were a pain in the *, by the way. As were those ridges around the eyes and the groove on the helmet, but I got em in!

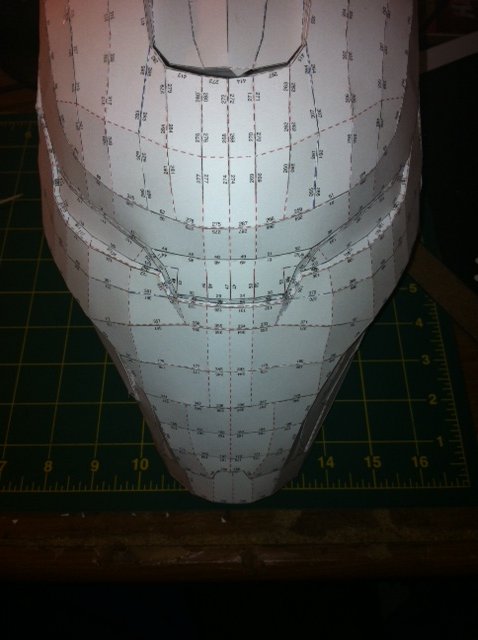

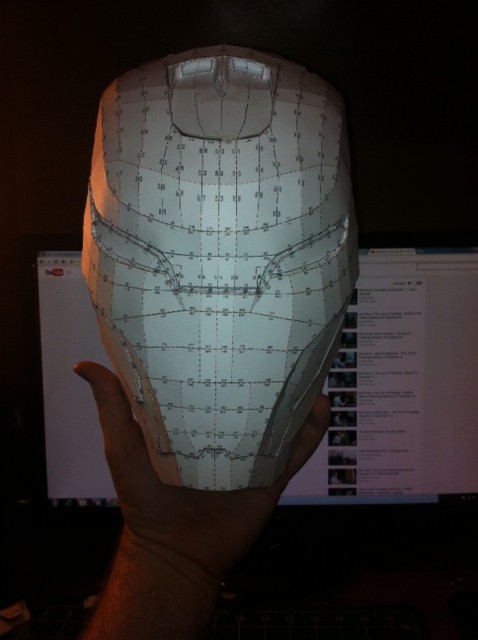

    Now, when I put the faceplate on, it doesn't seem to fit quite right, but that may just be me trying to hold it on with one hand and take a picture with the other:

    photo (1).JPG

    The plan is to modify the suit once built. Thanks to a horrible pun between my daughter and I, I'm planning on painting the whole thing heavy metal style, with spikes and stuff, and replacing the arc reactor with a speaker (probably with a light ring around the outside). The idea being that we can play some heavy metal music through the speaker...say...Iron Maiden? :D

    Obviously going the paper route, but pondering going the smooth-on route instead of standard resin/glass/bondo. Any thoughts? I have to attach the face plate for hardening, then remove it later...do I just attach with masking tape before hardening? Will the tape being there interfere with the hardening process?

    George likes this.
  2. CSMacLaren

    CSMacLaren Sr Member

    Trophy Points:
    1,890
    It's a beautiful design. Is that a 3D model you developed in the first shot of the 3 poses of the blue armor?

  3. Irishpanda

    Irishpanda New Member

    Trophy Points:
    3
    Oh heck no, that design and model is by a guy named Bogdan Gabelko, I got the pep file from SmookCMb on this forum.

    It's a gorgeous design. I hope my build does it justice. It's big drawing point for me is that it looked feminine, without resorting to armor * cups or exposed skin. I am sticking my daughter in this, after all.

  4. George

    George Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,207
    How cool is THAT :D I.P.
    I hope your build will be a great success :thumbsup better yet: build one together with your daughter :cool:cool

  5. LancLancDoubleD

    LancLancDoubleD New Member

    Trophy Points:
    3
    That is an beautiful design. Good luck with the build I will be keeping an eye on this progress.

  6. gunnerk19

    gunnerk19 Master Member

    Trophy Points:
    2,560
    Coming along nicely.

    I was however expecting Bruce Dickinson when I clicked on the thread :lol

    Dart likes this.
  7. Irishpanda

    Irishpanda New Member

    Trophy Points:
    3
    A bit of progress:

    First, a quick test fit:


    photo 1 (3).JPG photo 2 (3).JPG

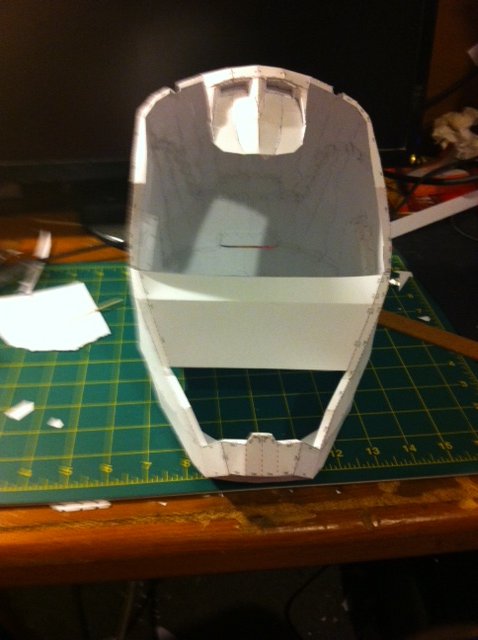

    All the supports go in and the back piece goes on:

    photo 3 (3).JPG photo 4 (3).JPG photo 1 (2).JPG photo 2 (2).JPG photo 5 (2).JPG

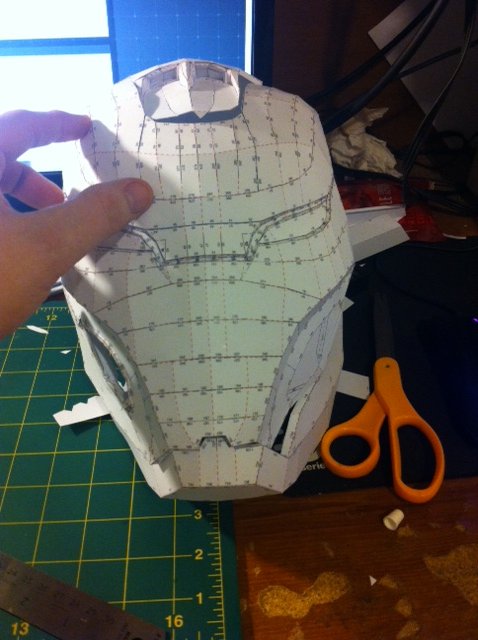

    Time to put it all together!

    photo 3 (2).JPG photo 4 (2).JPG photo 4.JPG


    Only problem, is I can't quite get the faceplate to line up quite right:

    photo 2.JPG photo 1.JPG photo 3.JPG



    Any ideas there? I figure I'm going to have to tape the faceplate in place, but will the tape interfere with whatever hardening I do (resin, smooth-on, etc)? Will it cause issues when I later go to cut the faceplate off?

    George likes this.
  8. Alpha Proto

    Alpha Proto Sr Member

    Trophy Points:
    1,356
    Your progress is looking good! You are definitely in the right place. There are a lot of resources, and information on Iron Man armor on this forum.

    I was just talking to someone about their brother's Iron man armor.
    I was told he has been working on his for 2 years.
    So these armors are quite a time investment.

  9. Irishpanda

    Irishpanda New Member

    Trophy Points:
    3
    After wrestling with some weak, weak masking tape in an attempt to get the faceplate to line up, I just gave up and glued the * thing into place:

    photo 1 (2).JPG photo 2 (2).JPG photo 3 (2).JPG

    This weekend: hardening! (hopefully)


    Attached Files:

    Last edited: Jul 9, 2015
    Murdoch and George like this.
  10. Ikras

    Ikras Active Member

    Trophy Points:
    487
    I've seen the model floating around a bit and it'll be good to see the build coming together.

    Definitely an interesting variant on the typical iron man build.
    Helmet is looking good already. Hope the hardening goes well.

  11. hobosox

    hobosox New Member

    Trophy Points:
    3
    This is not what I expected when I clicked on Iron Maiden lol \m/

  12. Irishpanda

    Irishpanda New Member

    Trophy Points:
    3
    Well, if I ever reach completion, you'll get that too. I plan to blast Iron Maiden music through the chest speaker :)

    Dart, Rysjin7717 and George like this.
  13. Rysjin7717

    Rysjin7717 Well-Known Member

    Trophy Points:
    866
    Right on! \M/\M/K.S.H.C. Subbed.

  14. Irishpanda

    Irishpanda New Member

    Trophy Points:
    3
    Helmet is still not hardened, but hopefully will get to that tomorrow evening! Planning to go the smooth-on route. If I dont like it, or it's too costly, I will revert to a different method for the remaining pieces. Worst case, I rebuild the helmet and correct mistakes I made the first time.

    Iron *...er...um...the chest!

    photo 1 (3).JPG photo 2 (3).JPG


    Will probably just cover up the arc reactor hole rather than assembling the pieces that go there from the file. Some of those strips are less than 1mm wide with tabs on both sides; no thanks!


    Attached Files:

    George likes this.
  15. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Just hitting your thread right now...learning curve for sure, but looking good. I know that some folds are really, really tiny but sometime, it has to be done;) I'm eager to see the next update.

  16. Mclabop

    Mclabop Active Member

    Trophy Points:
    242
    I hate the thin strips of pep so very very much. I deleted them from my cyberman build, and ended up taking a lot of time with bondo and dremel. So i think it depends on if you're going to trade off with some other technique to fill it in, or take the time to do the 1mm strips. For me I'll stick with the bondo...

    cant wait a it to see the final product. Considering a similar costume for my daughter. Yours is coming along nicely!

  17. Irishpanda

    Irishpanda New Member

    Trophy Points:
    3
    It's a bit of a catch-22...we do paper over foam for the extra detail, but that detail so often comes in the form of skinny strips of pep that feel like they will tear if you breath on them wrong. When you omit pieces like that and elect to add them later after bondo, how do you normally deal with the gap it leaves? Just slap some extra card behind it? Do you just connect the parts on either side of the narrow bit directly?

  18. Irishpanda

    Irishpanda New Member

    Trophy Points:
    3

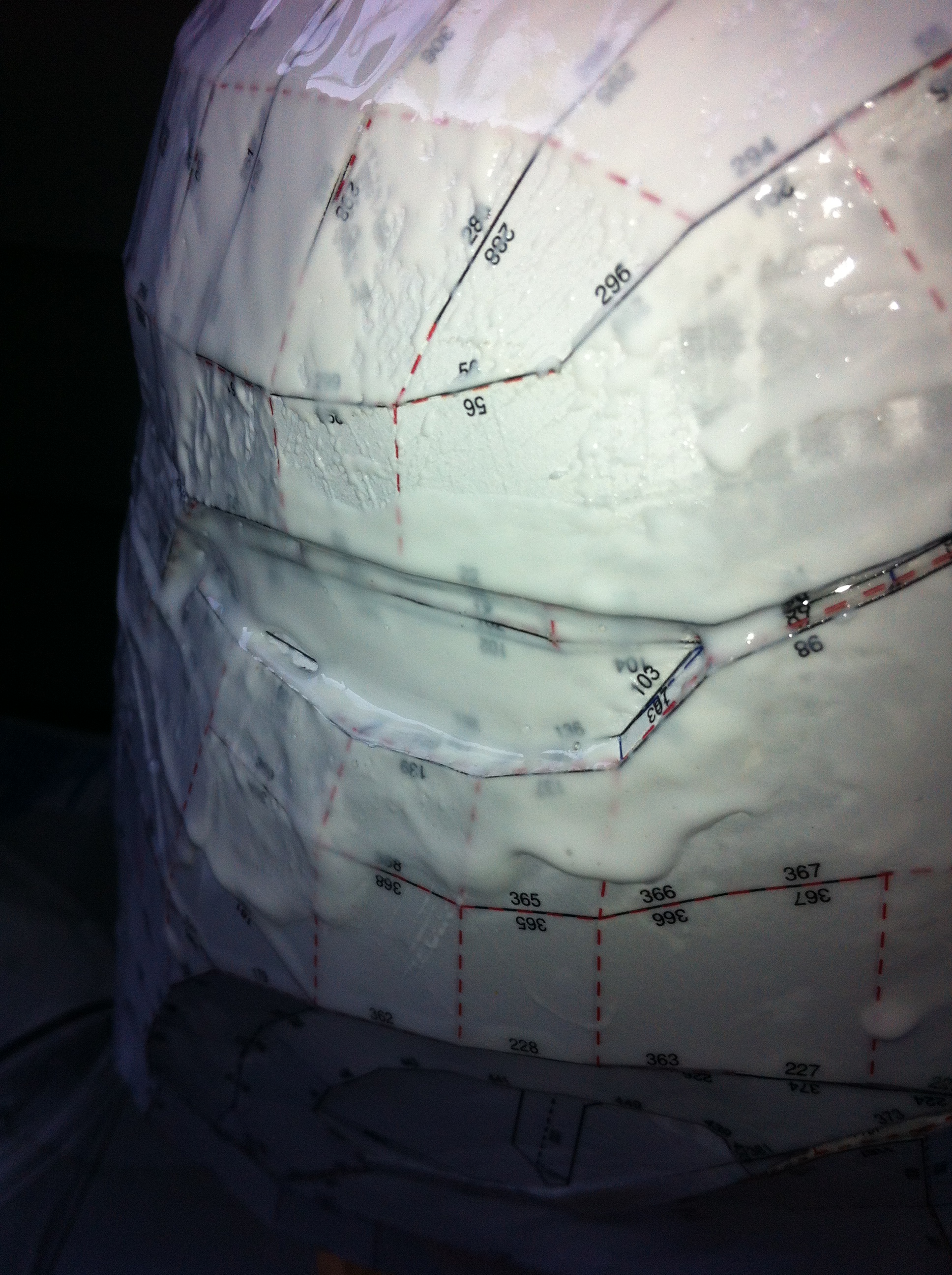

    TIL that when Smooth-On says a pot life of 3 minutes, they are not kidding:

    IMG_0559.JPG IMG_0558.JPG IMG_0560.JPG

    I was part way through my first small batch when it suddenly started gumming up there on the side. You really have to work fast with this stuff! If I do this again, I may just order some of the ROTO from the net, or at least something with a slightly longer pot life. I put a coat (though probably far thicker than was needed) on the outside so that I felt comfortable removing the supports on the inside. The big pitfall here was the edge where the faceplate attaches to the helmet. The pep file was made like many other helmets like it, with the faceplate separate, and both faceplate and face opening having a flat edge. This formed a ridge inside the helmet that was a bit of a pain to work around. Eventually though, I got the inside coated too. This thing is way heavier than before, but I swear this thing is hard enough it could stop a bullet! At least now if my cats knock the thing down, I dont have to worry about it getting destroyed now.

    IMG_0563.JPG IMG_0565.JPG IMG_0566.JPG IMG_0567.JPG

    So what do you think? Did I overdo it? Should I just sand down what I have there, or bondo on top of it?

    George likes this.
  19. Mclabop

    Mclabop Active Member

    Trophy Points:
    242
    Fill in with a removable support. Card works, or if it can be shaped later just leave it open. It's what I did for parts of my helmet. Tho I still haven't gotten my vents sorted the way I want. So I need to go back and do that.

  20. Irishpanda

    Irishpanda New Member

    Trophy Points:
    3
    Well, support is no longer an issue, since I have plastic on the inside and out. Now I just need to smooth and shape. I'm assuming from here in it's just good old Bondo on top of this?

  21. Mclabop

    Mclabop Active Member

    Trophy Points:
    242
    Bondo, and sanding. And more bondo, and sanding... repeat ad nauseum. I'd do small batches and thin coats. Large batches can set faster than you think they will and the thick coats can get somewhat away from you and you need to do more sanding than with thinner easier controlled coats.

  22. Hazmat

    Hazmat Well-Known Member

    Trophy Points:
    566
    Your pepakura looks really good. it's tough to keep it that symmetrical.

    I'm finding that sanding Bondo will get you pretty far but when it's almost done I paint some thin layers of resin to get it really smooth before sanding with higher grit sand paper. But, I'm nowhere near an expert.
