Hey all,

this is the very first peak at my latest project. The Flying wing from Indiana Jones: Raiders of the Lost Ark. Since there are very few Models available, I will do it all in 3D and 3D-Print it. I am aiming for something around 1/48 to 1/32 scale. Files will be free to download one done (may take a while, though)




Cheers,

Till


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

TazMan2000

Master Member
Hey all,

this is the very first peak at my latest project. The Flying wing from Indiana Jones: Raiders of the Lost Ark. Since there are very few Models available, I will do it all in 3D and 3D-Print it. I am aiming for something around 1/48 to 1/32 scale. Files will be free to download one done (may take a while, though)

View attachment 631350



Cheers,

Till
Thanks for sharing your 3D work in the future.

TazMan2000


Krest

Well-Known Member
RPF PREMIUM MEMBER
How big is the model going to be in either 1/48 or 1/32 scale?
I could't find any reliable measurements of the flying wing yet, but my guess is, that the wingspan must have been around 23 meters / 75 ft that would make the mode around 48 cm / 19 in or 72 cm / 28 in respectively. (alle measurements inculde some rounding & conversion margins - your calculations may differ)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Krest

Well-Known Member
RPF PREMIUM MEMBER

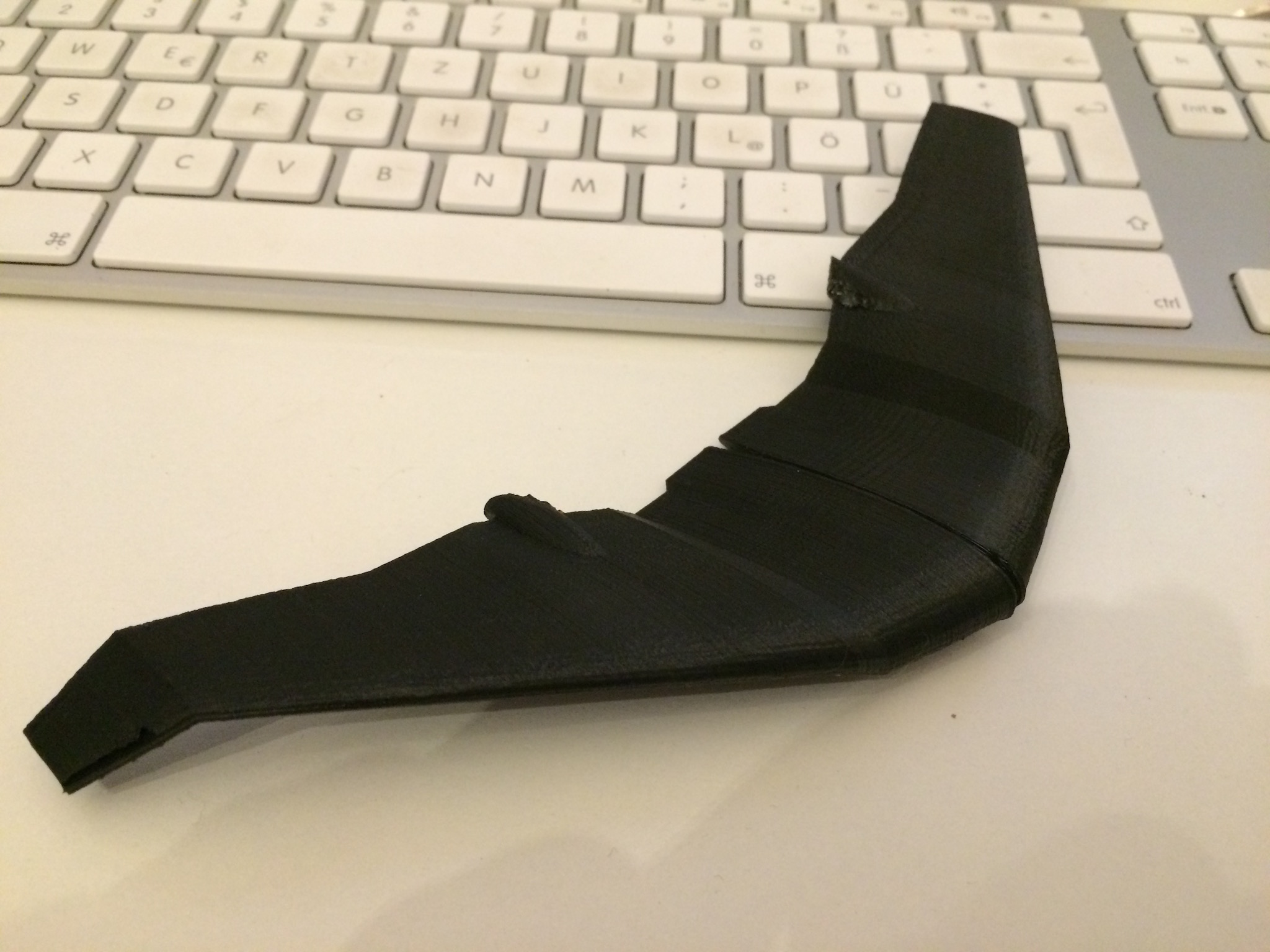

Here is a scaled down test print - just a proof of concept (to myself ;))

The gap in the middle is from warping during cooling. Should be less in the larger scale, otherwise I will have to print it a bit larger and sand it down.



StevenBills

Sr Member
RPF PREMIUM MEMBER

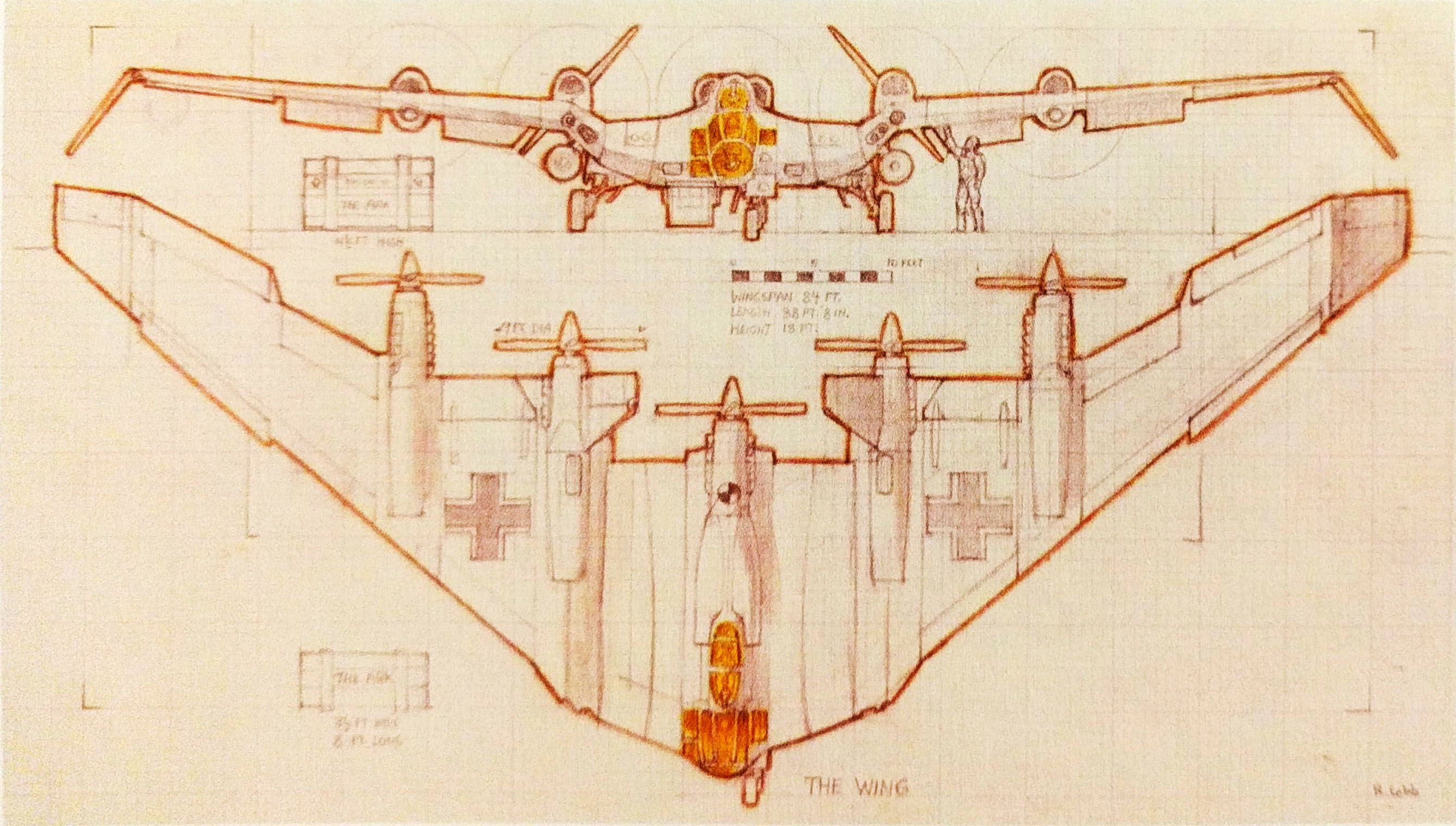

@Krest, I know it's a bit late, but here's a drawing of the flying wing from the Rinzler making-of book, where it says the wingspan is 84':

IJ Flying Wing drawing.jpg

EDIT: Also when it had five propellers instead of two. So... Not really sure how much this helps actually haha

SB


Dlhno1

New Member
Here is a scaled down test print - just a proof of concept (to myself ;))

The gap in the middle is from warping during cooling. Should be less in the larger scale, otherwise I will have to print it a bit larger and sand it down.

View attachment 631667
Hi Krest, did you ever complete this 3D model, I really want to print one to 1:18 scale. Cheers David
