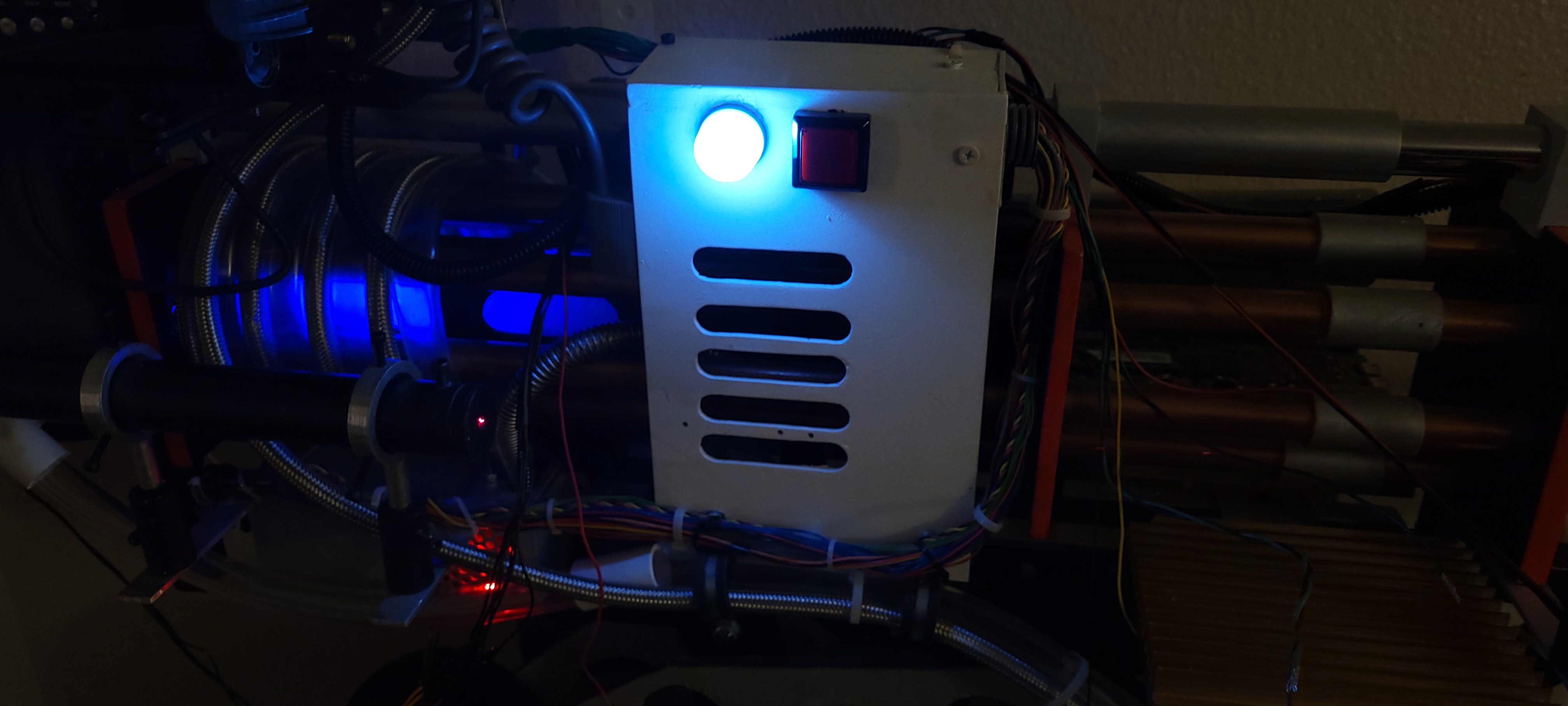

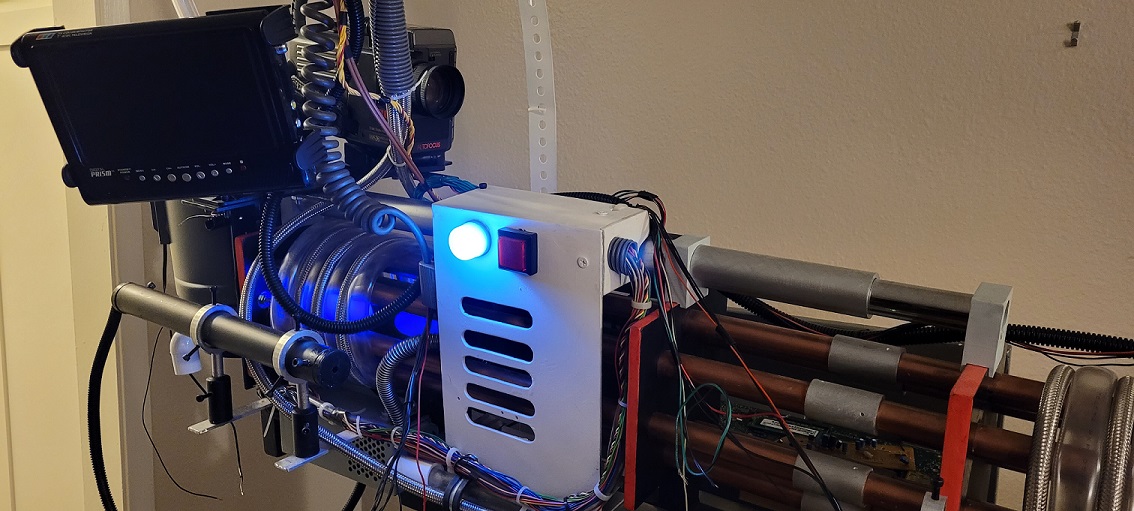

Said "AV bracket" has been assembled and populated with actual, working gizmos! All I need now is an RF cable to link the camera to the monitor...



RagnarokandRoll

Active Member

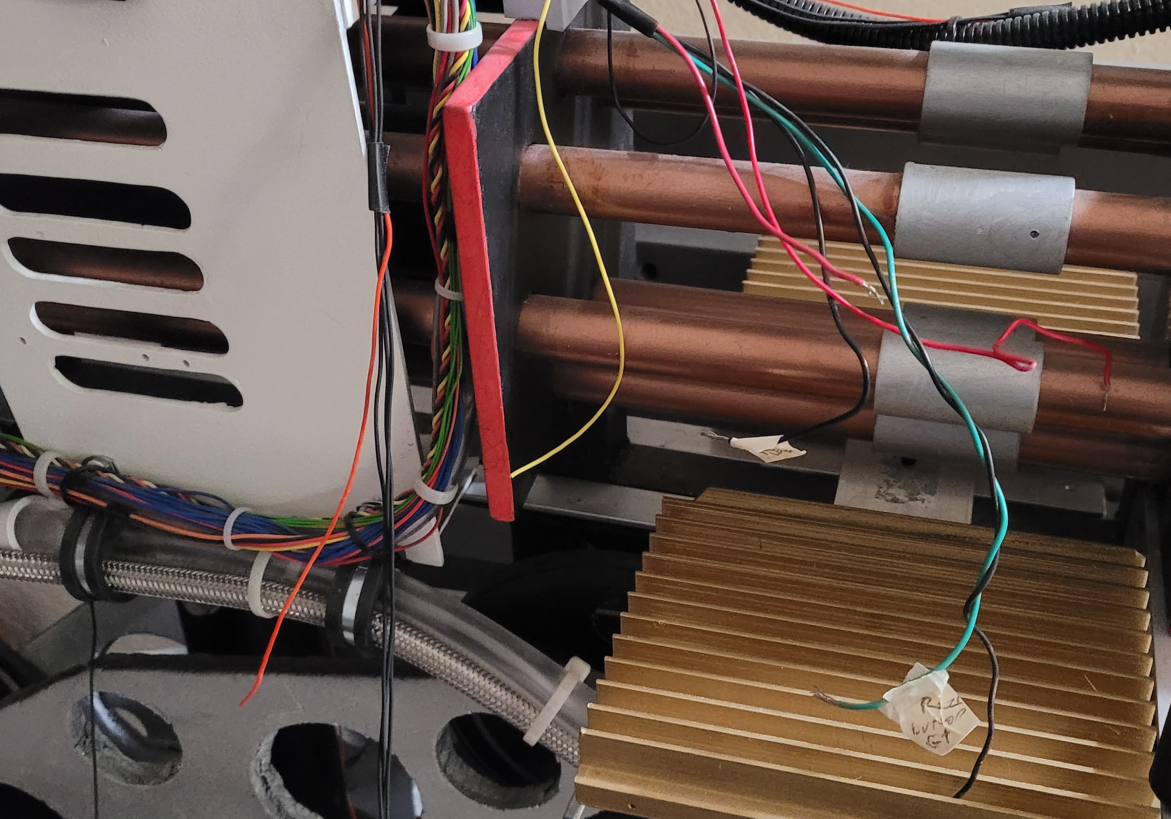

Managed to glue together the network of tubing that should allow glycerin fog to propagate thanks to the 12v fan in the rear tank. It doesn't work very well but it does produce a lot of fog, and since the point is to make the side laser visible it does a good job there.

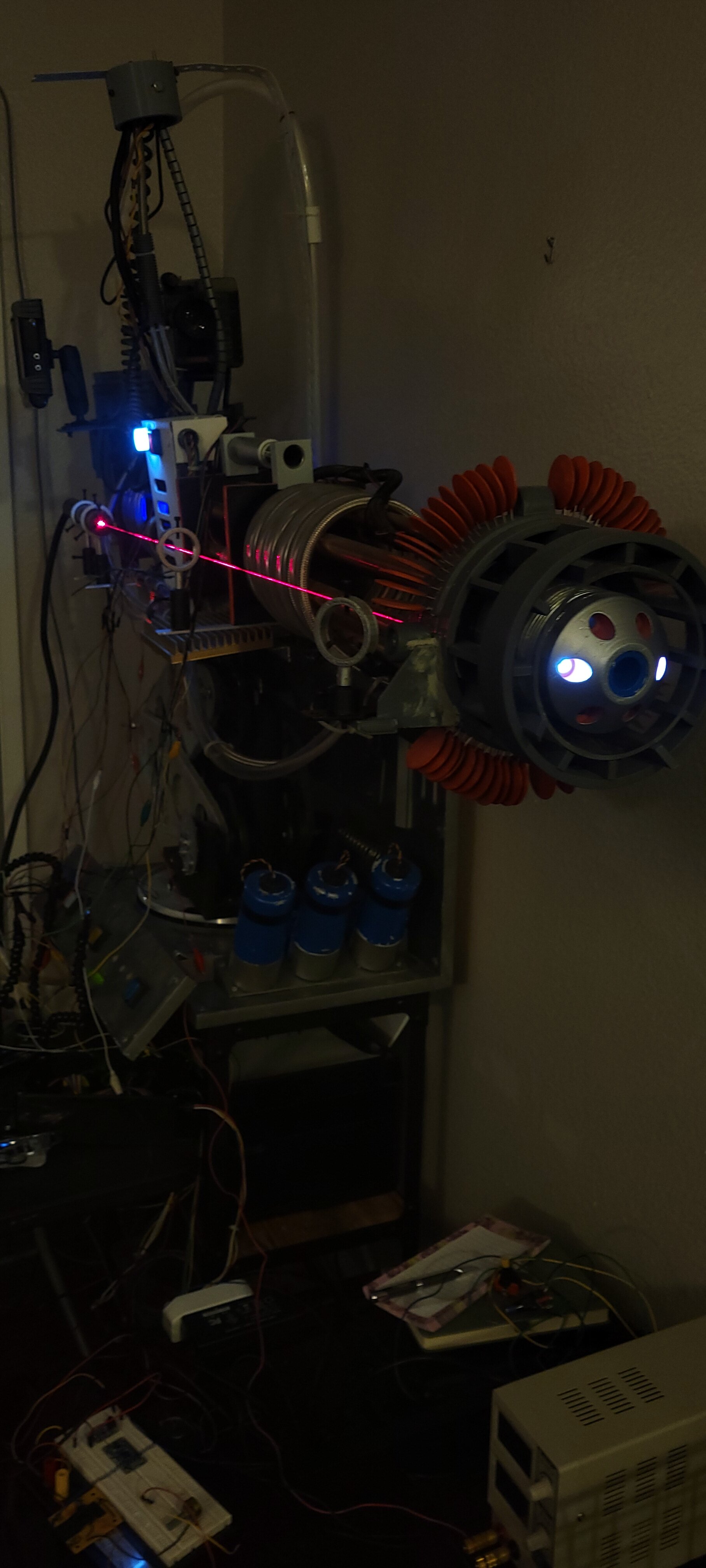

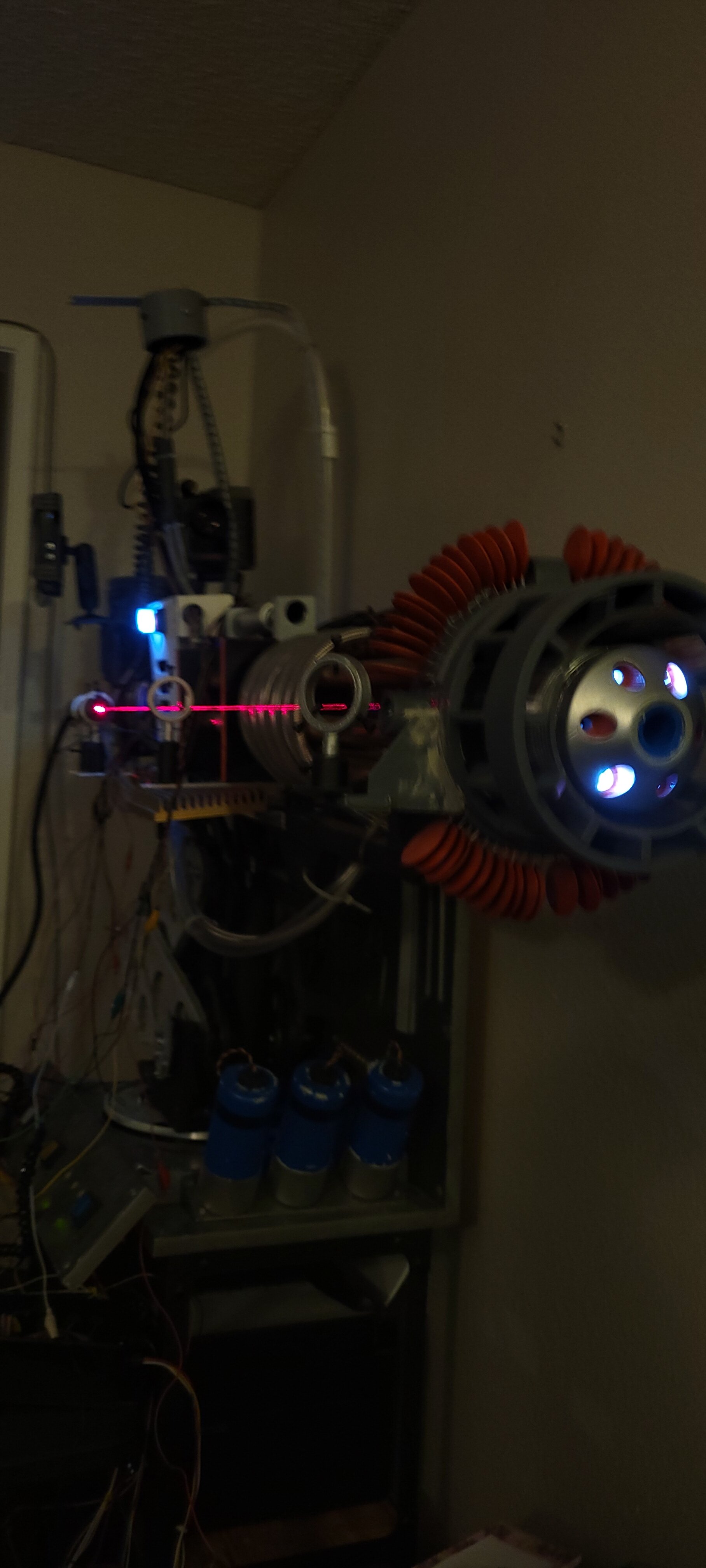

The fog revealed the fact that the side laser is very askew inside the housing, as you can see here...guess I need to fix this next. I also repaired the nozzle reflector arm, albeit haphazardly.



RagnarokandRoll

Active Member
Greetings friends!

It's been a long while - I got very busy with work, and then...I had to move. Now that the proverbial (and also most of the literal) dust has started to settle, here's a photographic journey of the "stink machine"'s sojourn to its new home.

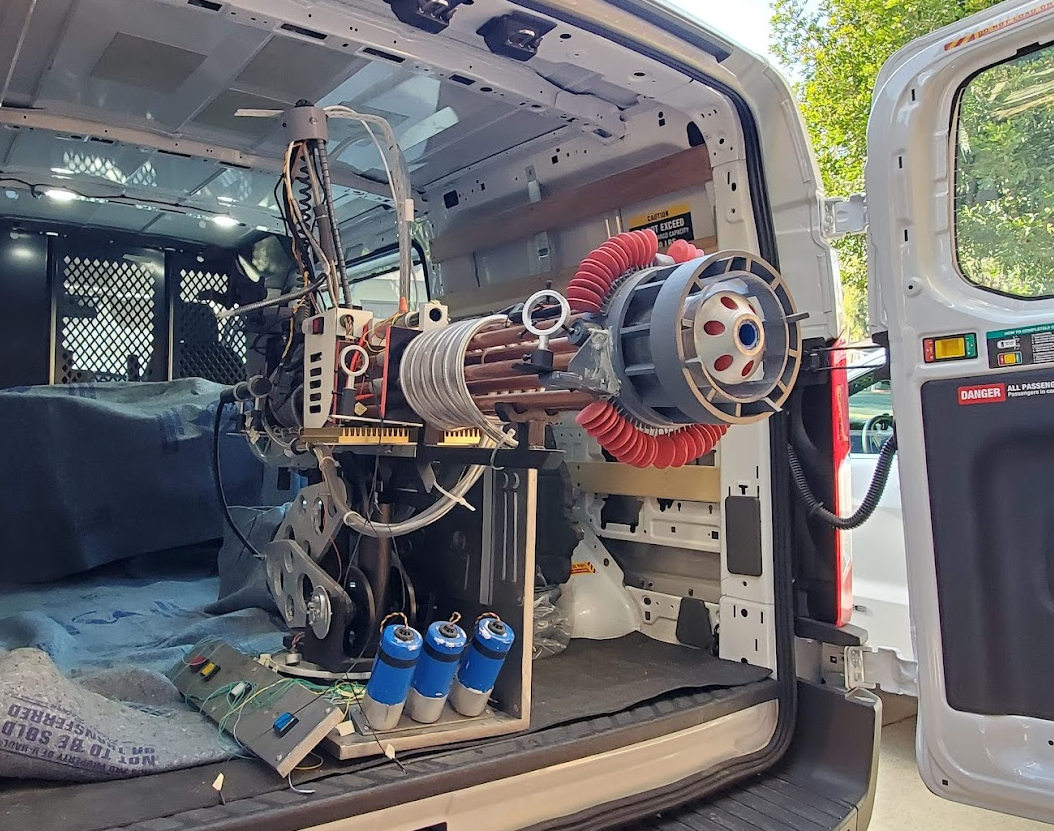

The machine was one of my only possessions that didn't wind up in a box. Because of its relatively fragile nature, conveyance of the prop to its destination was accomplished via the personal rental of an additional box van. And let me tell you, after 2 years of poor choices during the pandemic in terms of my overall physical care, it's a miracle both I and the machine made it down (and up) several flights of stairs in one piece.



A classic example of life imitating art. No, I didn't shrink any motorcycle cops...that I know of, anyway.

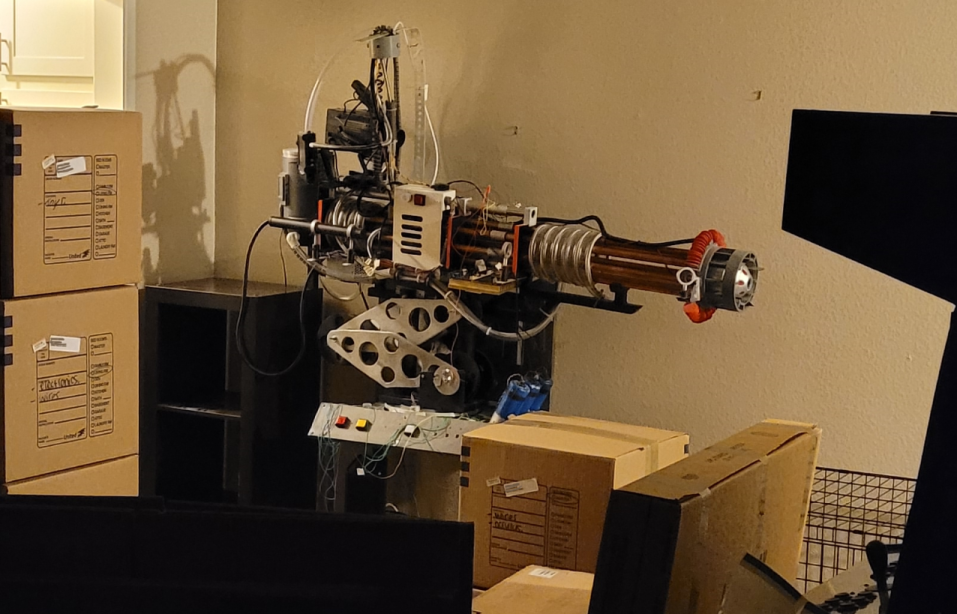

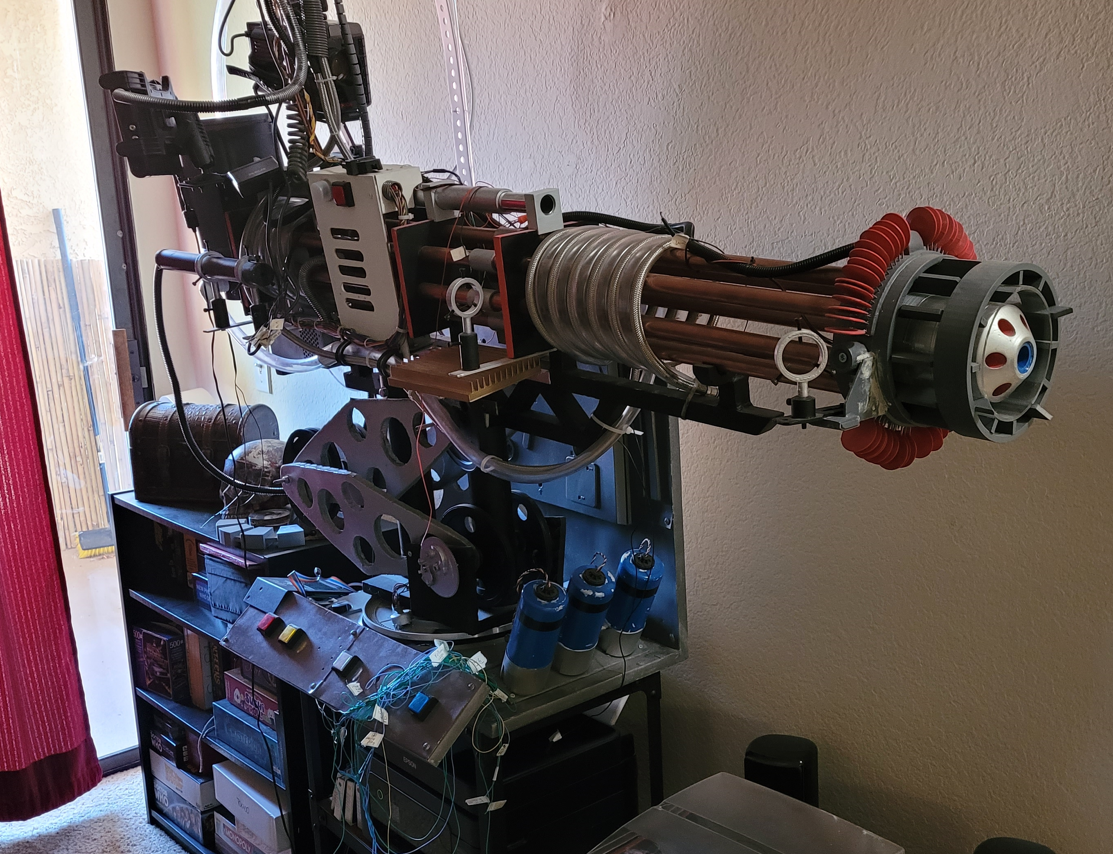

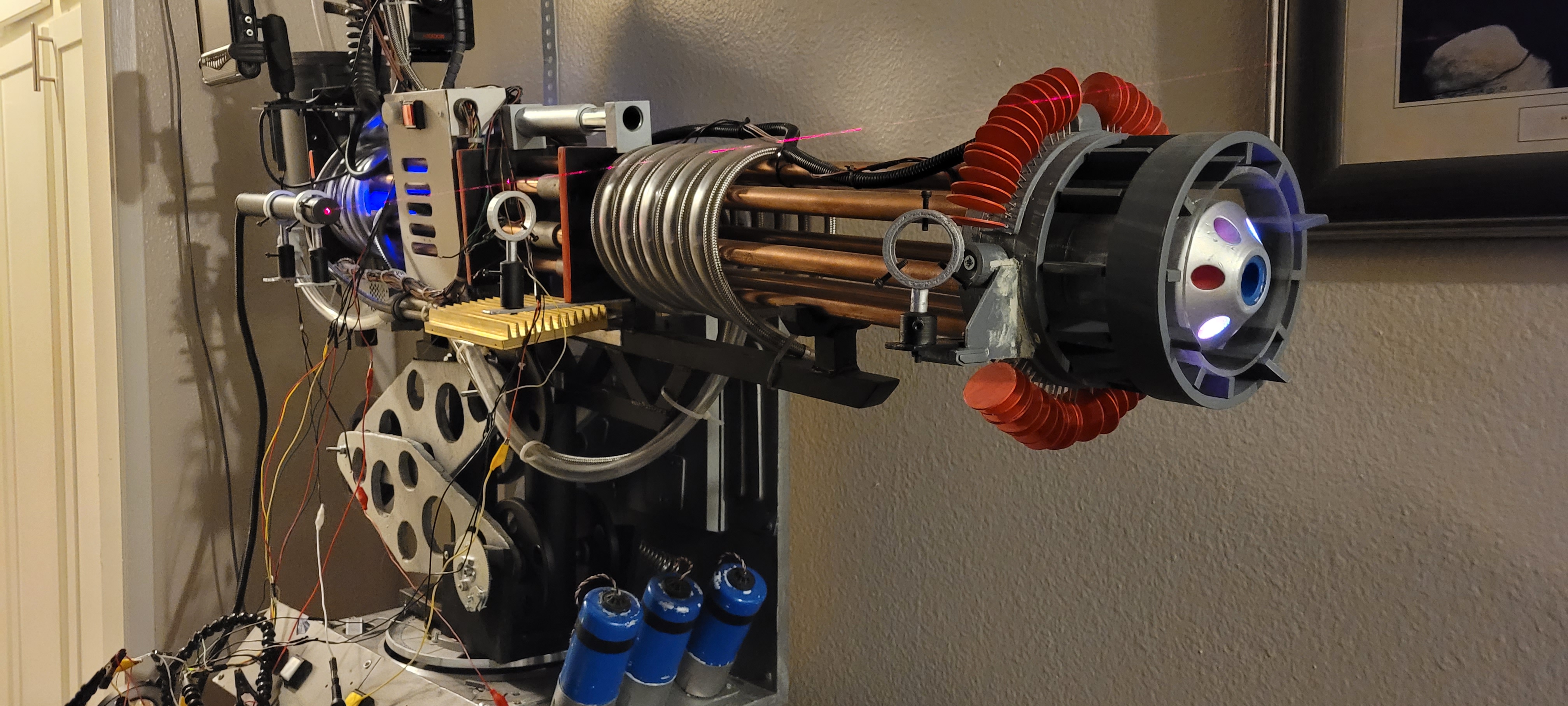

The stink machine is now resting peacefully in its new environment. However, the lights are in need of some TLC...

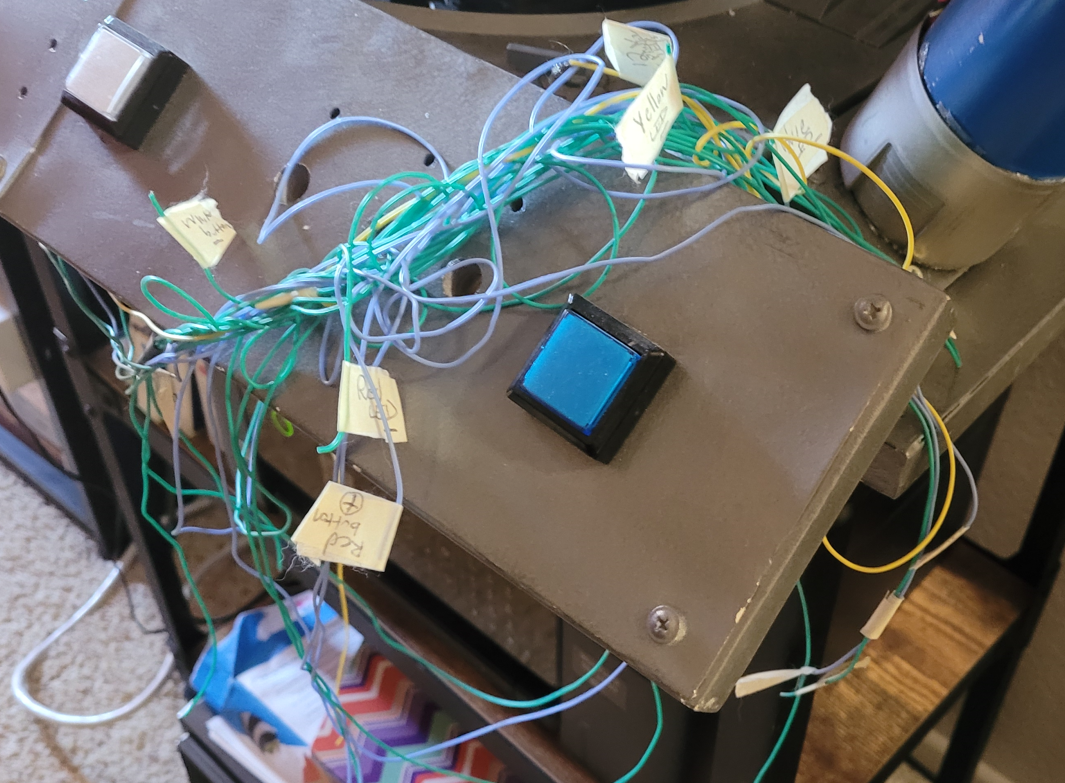

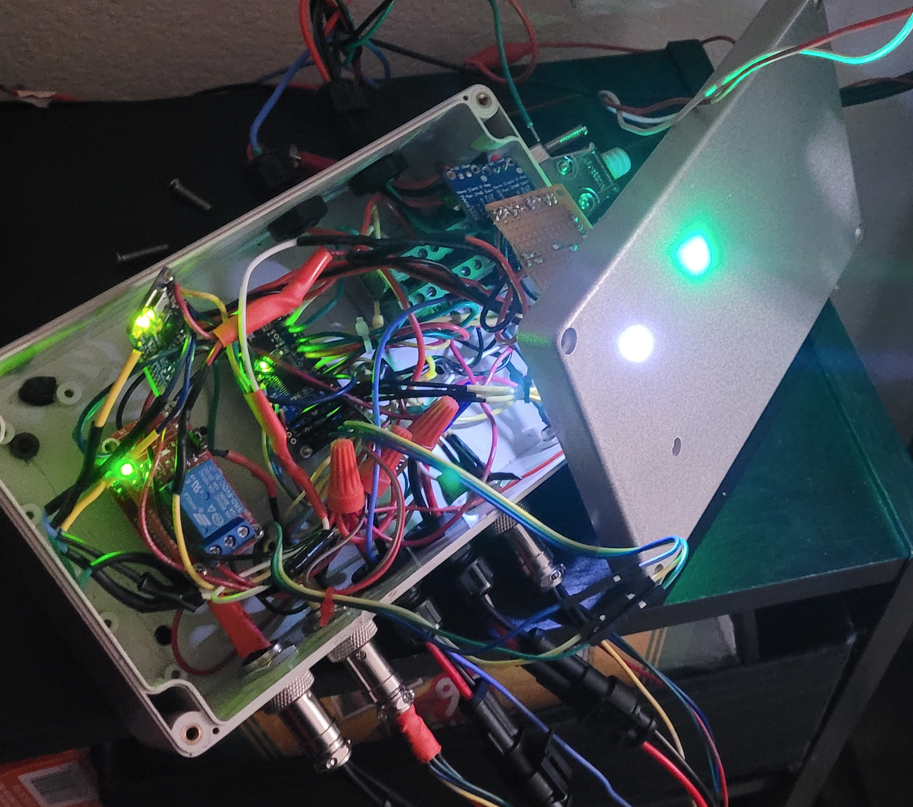

Got a bit of a rat's nest to sort out.

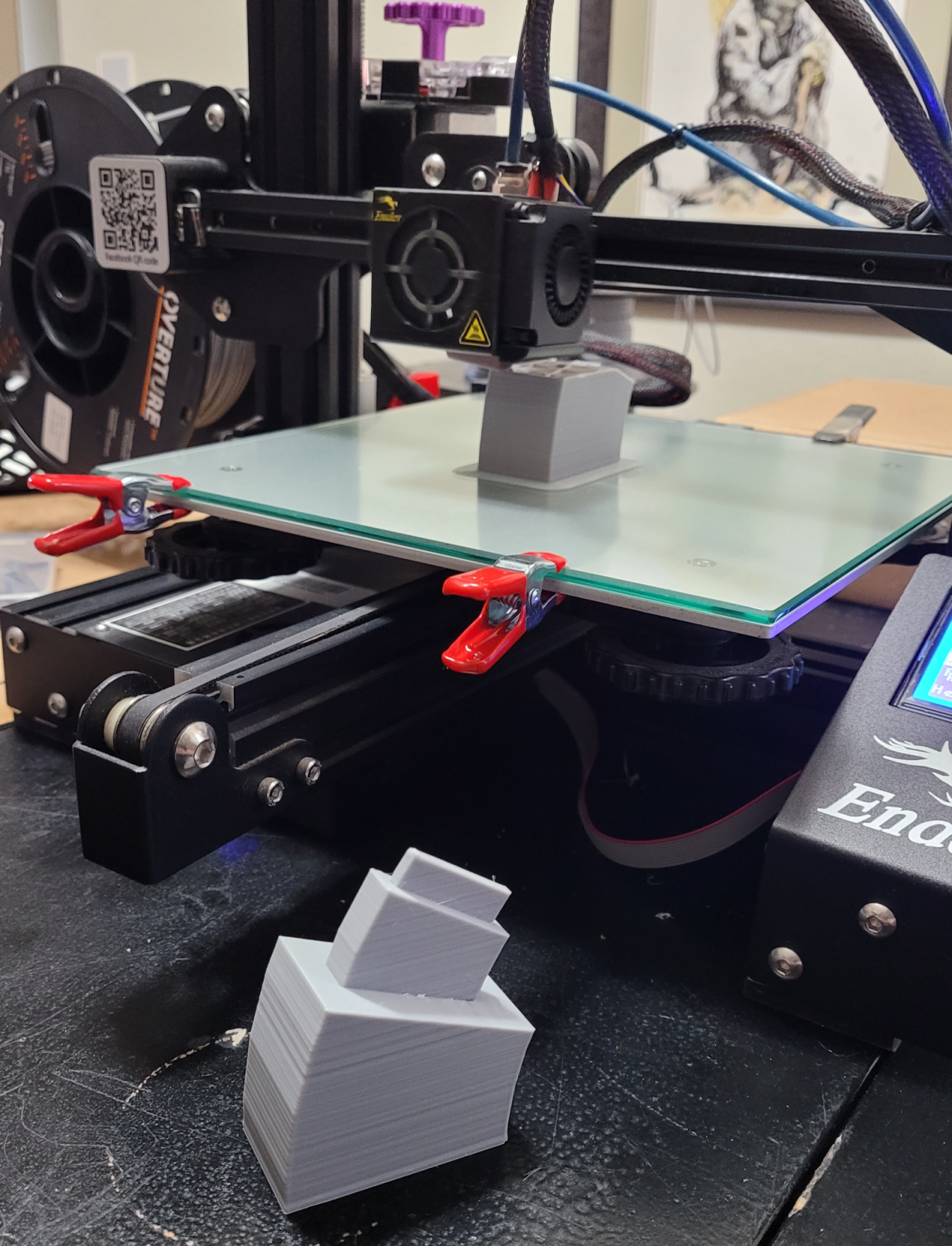

With the Ender3 printer working again, it was finally time to get cracking on a particularly difficult aspect I've been putting off...the electromagnetic "coil" nurnies that adorn the machine's "barrel" in 2 places. The idea was to make a modular, easy-to-print unit that could be
replicated as many times as needed...which works out to roughly 16 times, x 5 hours per print = you do the math. Lots.

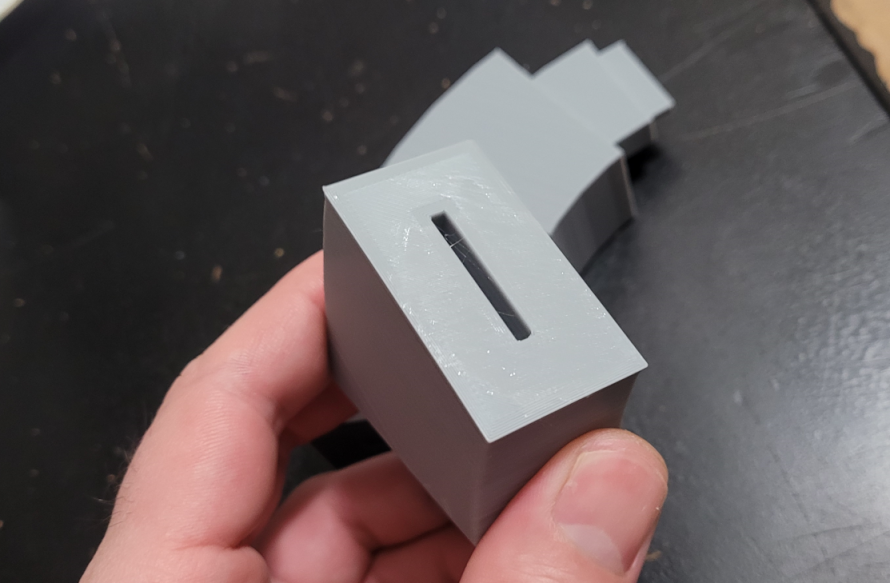

A long-standing tradition of mine is modeling slots like this to be about 1/32" too small for the protruding bit that it's meant for.

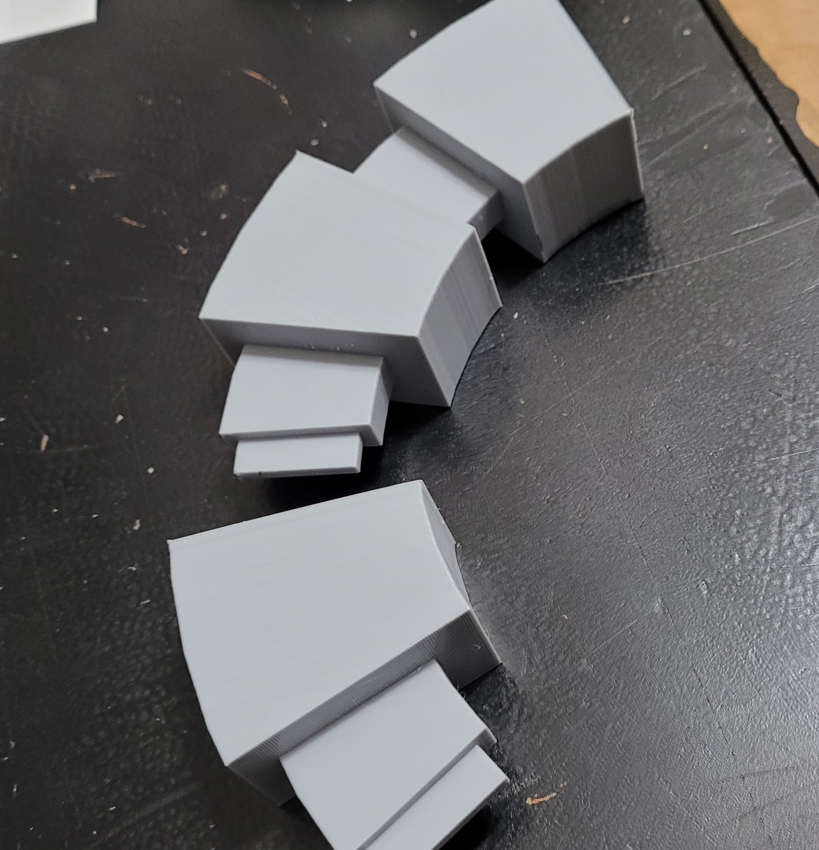

One out of 4 coils starting to take shape...


It's a little on the chunky side and not really even relatively accurate, but then again, there's nothing on the 'stink machine' that is.

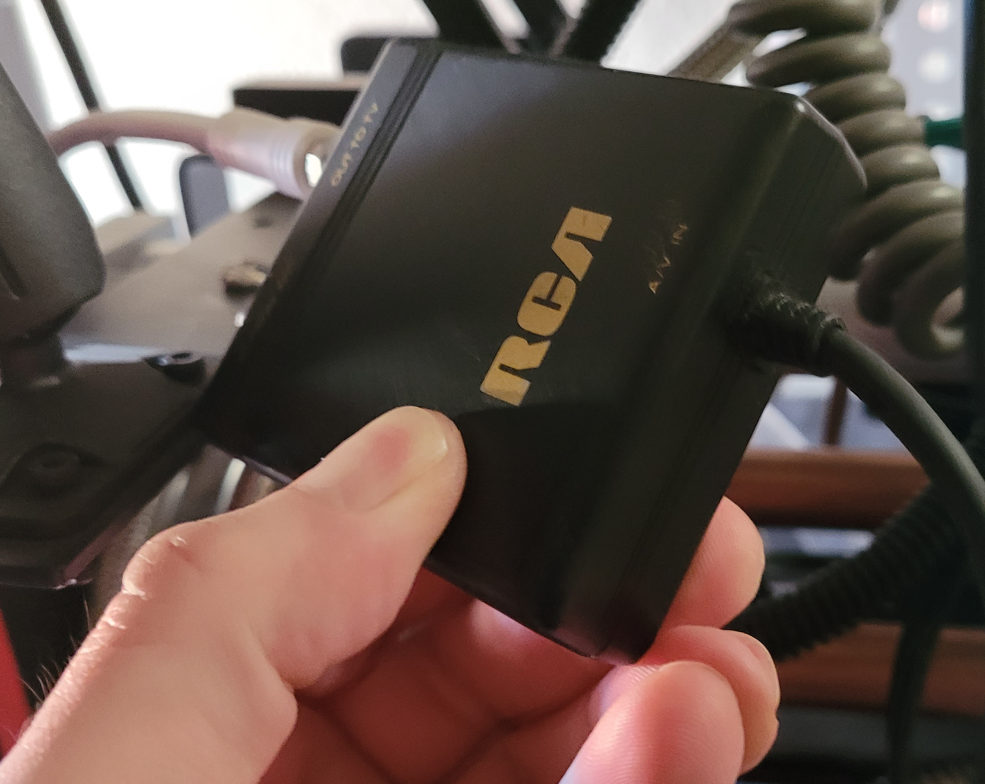

One of my biggest disappointments so far is this stupid piece of junk. It came with the camcorder and is supposed to pass a usable RF signal to the television set mounted to the machine. The TV works, but this anonymous box from the late 80s does not - if anyone knows how to fix these things (or has one lying around), consider me an interested party.

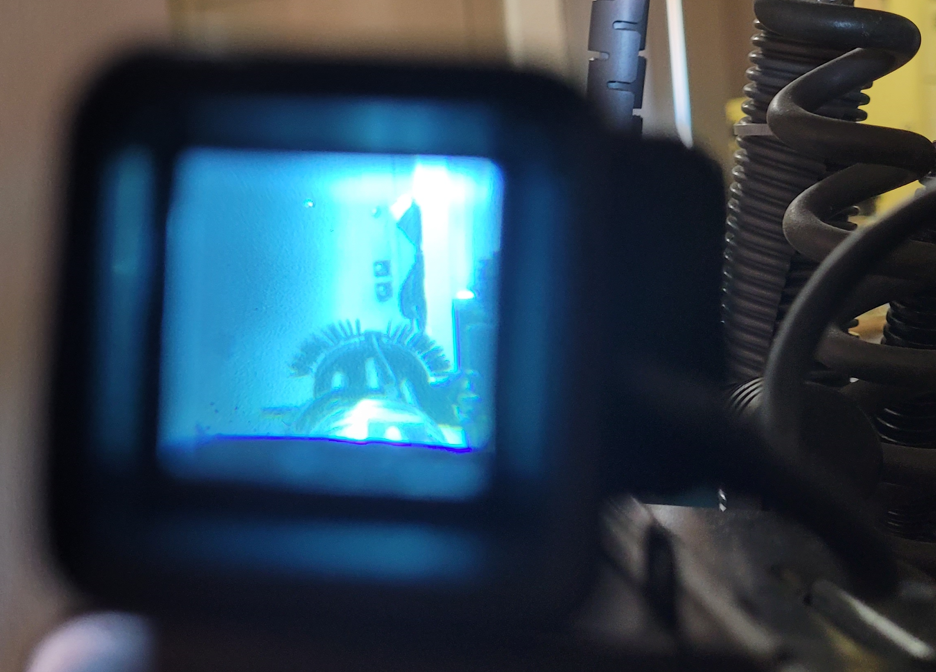

It's a shame too, because the intended view is pretty darn awesome.

More updates coming soon...!!


RagnarokandRoll

Active Member
Another small yet significant update!

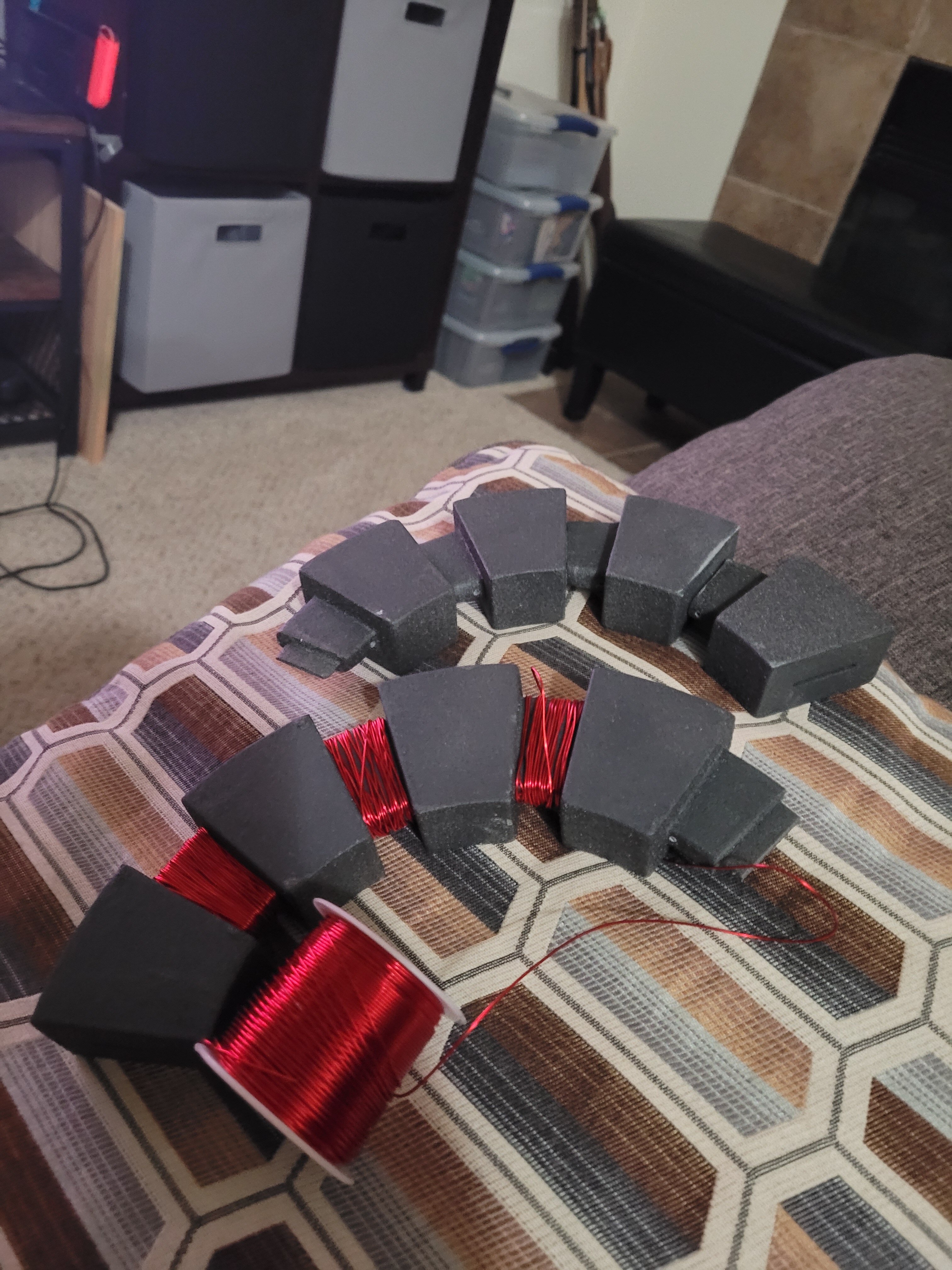

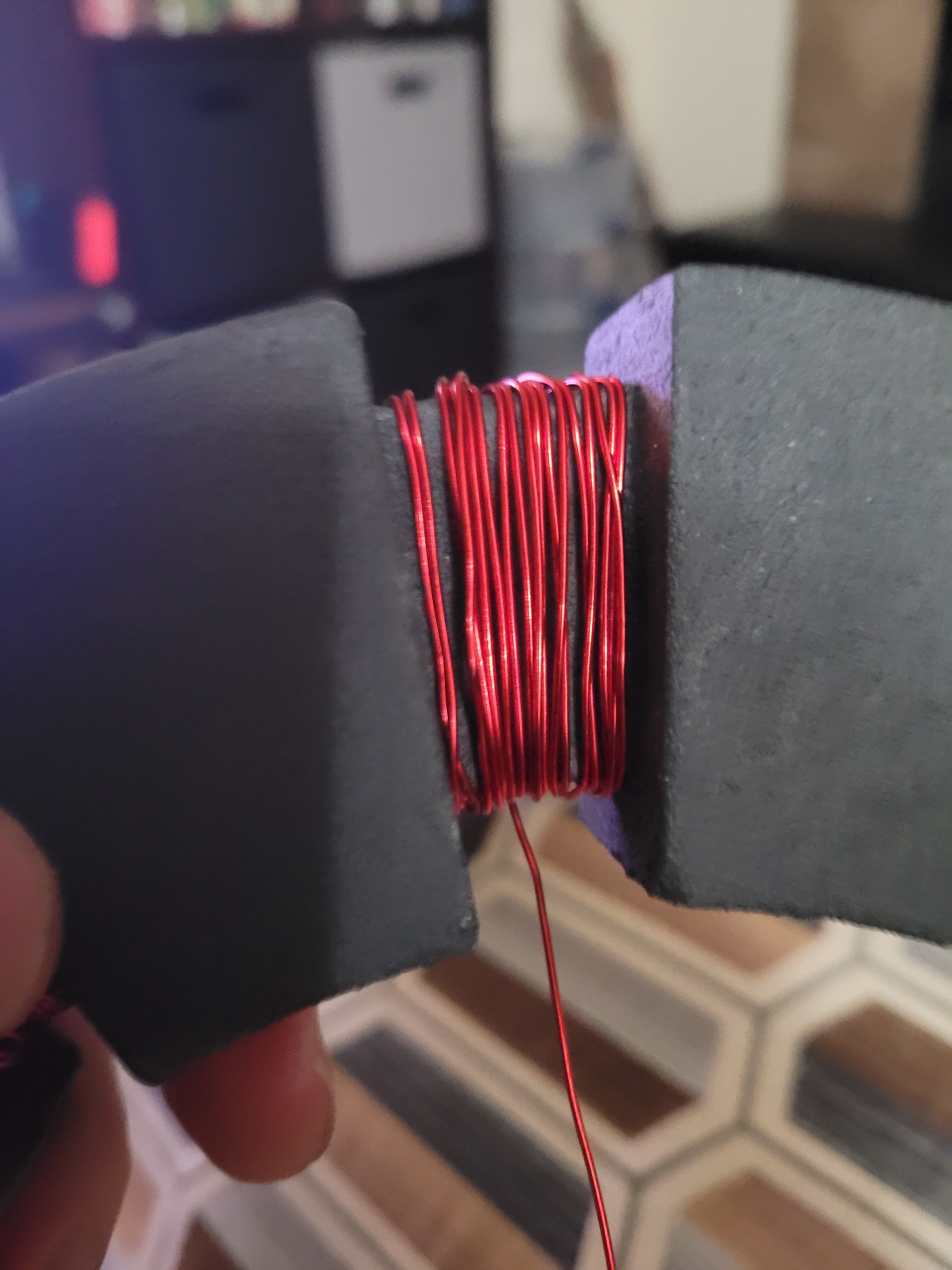

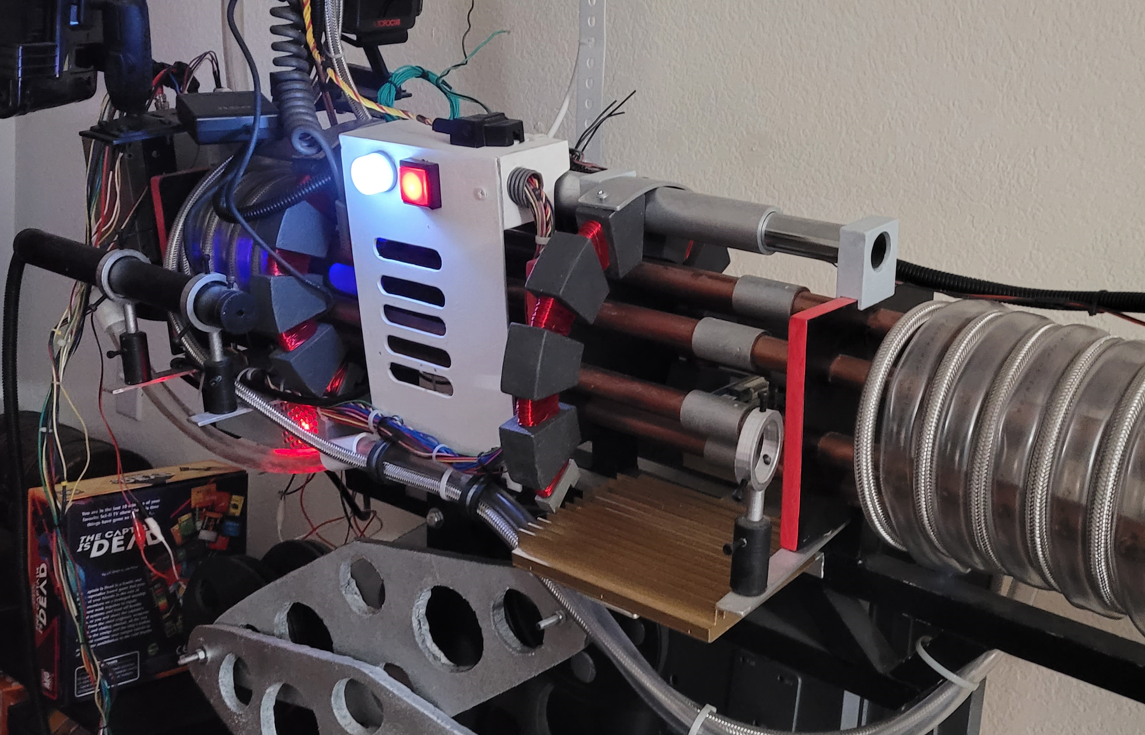

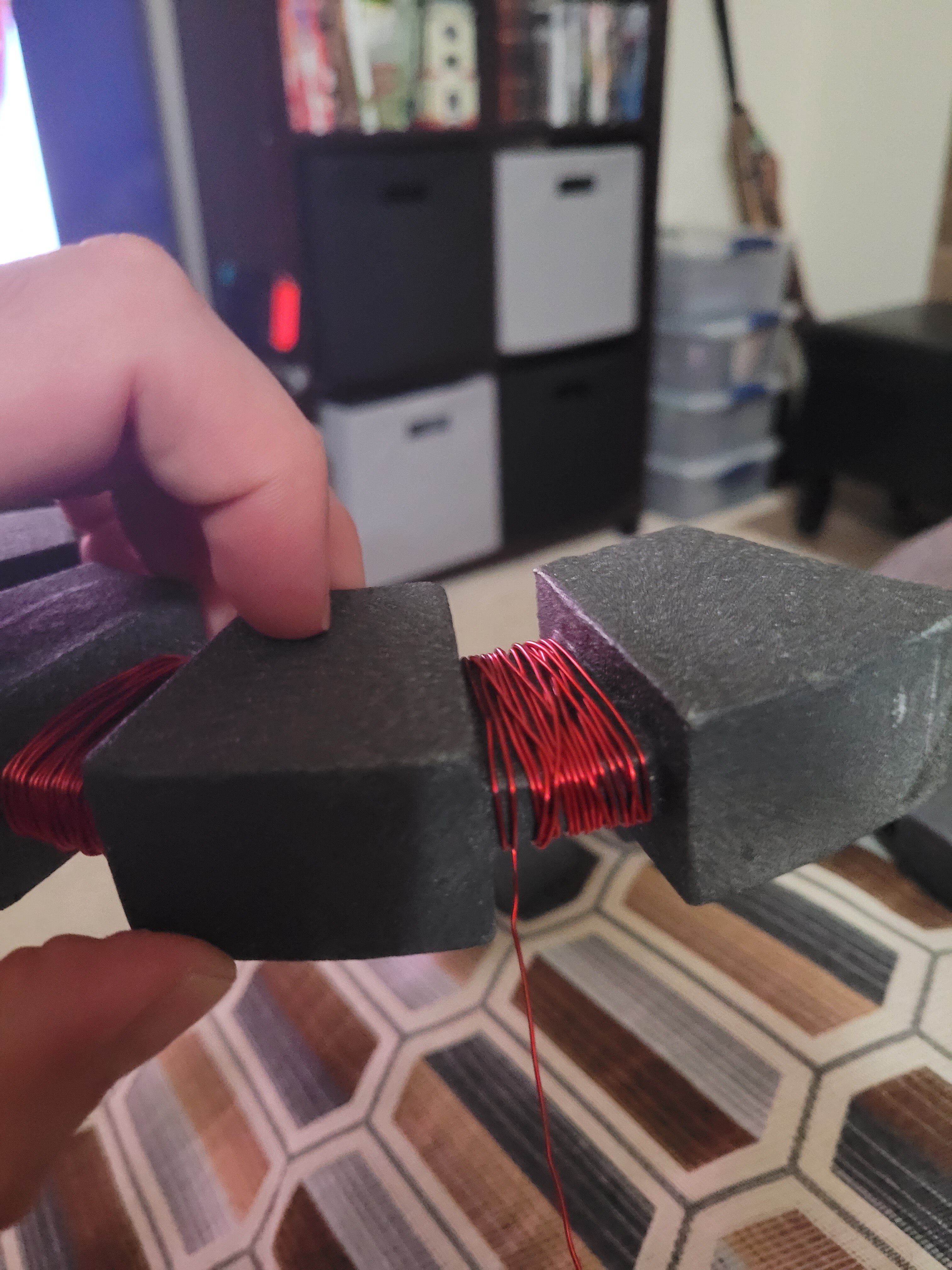

In spite of an insane work schedule, I finally got around to finishing the "electromagnetic coils" or whatever they're supposed to be. And true to form, the paint job is highly imperfect, and I found out the hard way more than once that these things make lousy yo-yos:
20220622_222022.jpg 20220622_222034.jpg 20220622_222043.jpg

Much like The Dudes rug, they really tie the look together:

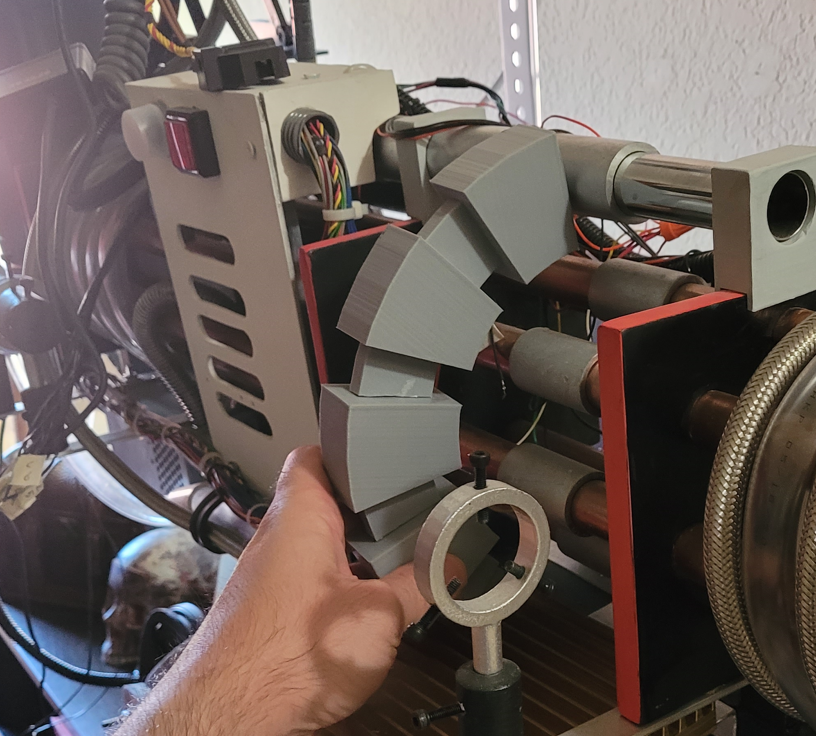

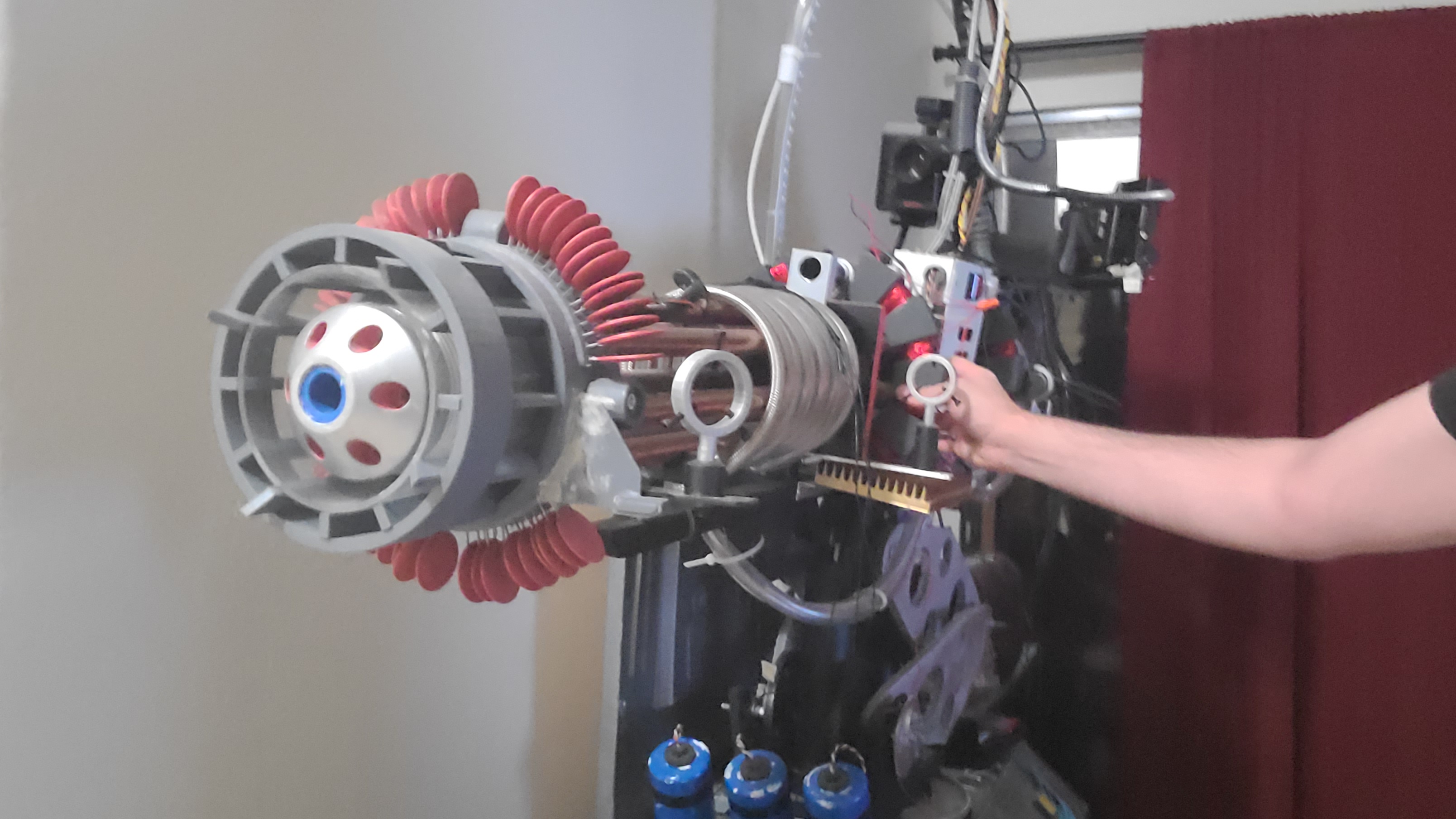

Another dry fit with the camera reversed. I like this look because the mirror image looks more like the real mccoy:


That is all for now!


RagnarokandRoll

Active Member
Thanks Emma! I agree, the red wire compliments the capacitors nicely!

Since you asked Ethan:

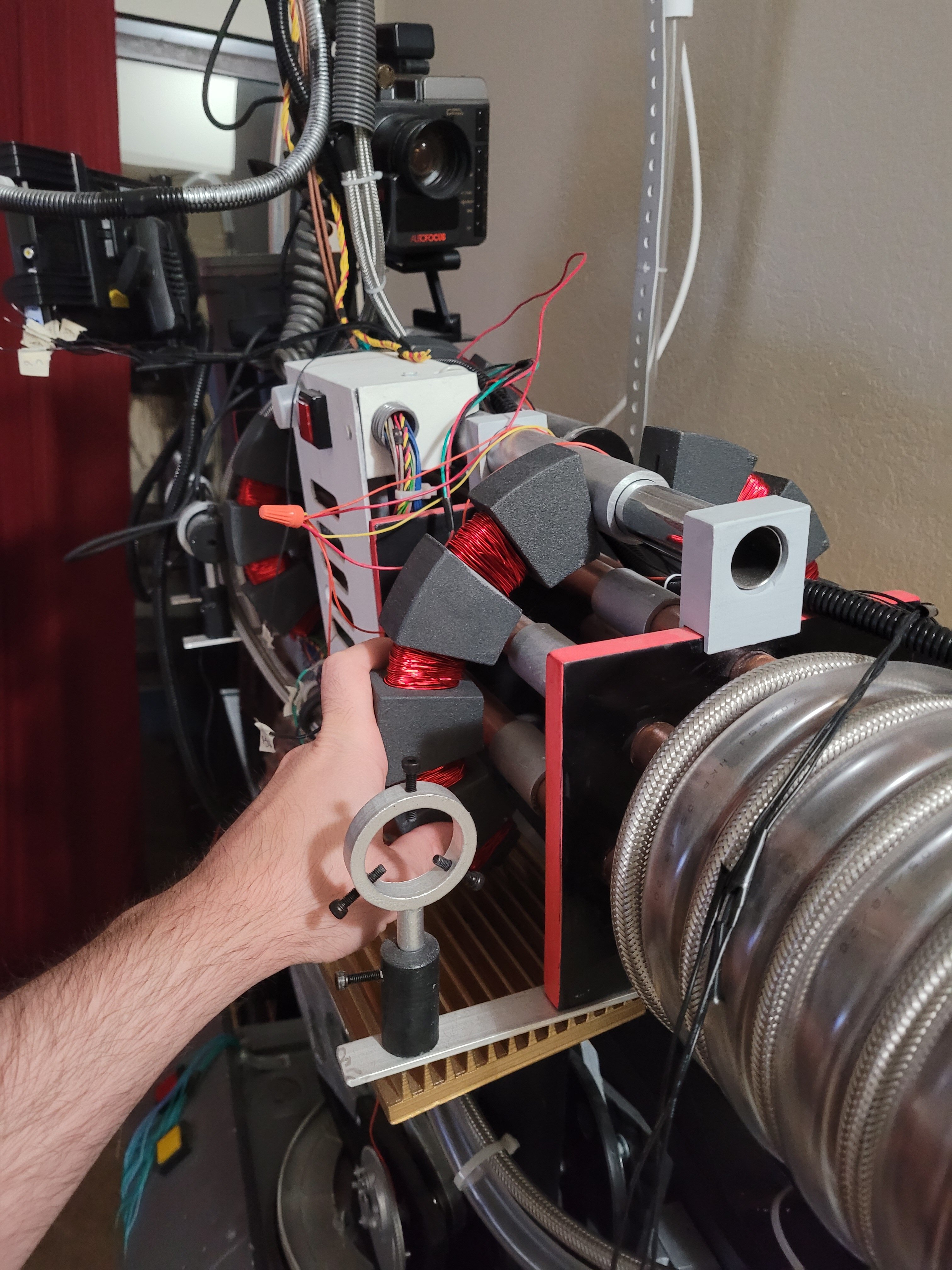

- first, I need to create brackets for the coils - they were held in place via friction for those pics! The ones that attach to the "heat sink" will need unique ones versus the rear coils and may take some experimentation to get the angles right. Hope to have this done soon.

- the rear tank and it's components need to be finished. I was working on it when my 3d printer went haywire in 2021, and never finished the domed top - it also needs to be properly sealed with caulk so less fog machine-generated fog escapes. The rear tank has a 12v waterproof fan combined with a funnel which was mean to distribute fog throughout the machine to see the laser. I only tried it once and the fog systems efficacy was...questionable.

- next, all the electronics need to be fixed; i have new devices meant to aid in this endeavor i have yet to implement. I'm probably going to replace that camcorder with a model that actually outputs a video signal - what a novel concept!

- finally, I realized recently that the document I'd posted earlier in this thread is only as good as its word and lacks actual working proof. Also, I really hate the way the foam "lift arms" came out; they're really lopsided and imprecise, and low quality even for a "rough draft" such as this, which has turned out cool enough to warrant an upgrade of sorts. Lastly, a friend of mine moved back to my city and has a shop equipped to create these kinds of things plus a lot of experience as well. Therefore the final phase will be to create a working non-fake foam version of the scissor lift arms (and tilt motor, which might be impossible). This should help identify issues before embarking on the real deal replica project.
