Help with Jedi crusader pendant dimensions

woodywaverider

Well-Known Member

Hi guys. So this is a prop I’ve been wanting to have a crack at for awhile now.

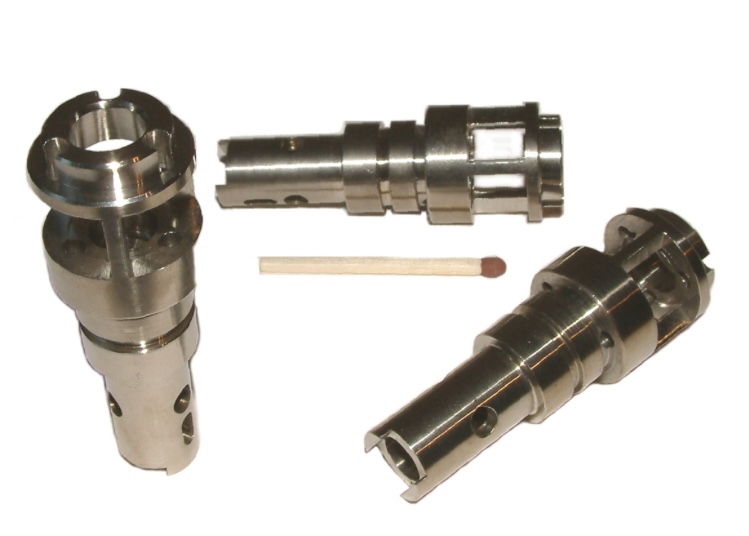

This is the part I’m hoping to replicate. Only I’m not sure on the measurements. but I’ve been wrong about this stuff before.

I’ve seen a few 3d models, but I’m not great with technology and have no idea how to extrapolate actual measurements.

I’d be really happy if anyone has made one, or has a replica that could confirm the overall measurements so I can order some aluminium or steel tube as a base.

If you don’t want to put the info out in public then feel free to pm

So here is my Luddite low-if way, I’m sure there is a better one, but I don’t have a printer


I make I’d 25mm x 62mm

Confirmation would still be welcome

Last edited:

woodywaverider

Well-Known Member
You're in luck. I own one of the original parts from Bob's Bits. (I plan to replicate it sometime soon, in case anyone is interested).
But, in the meantime. The overall length is 73.25mm and the largest diameter is 21.3mm.
Thank you very much, :)

I guess the match I was using as a reference was the wrong size to scale.

I’d be interested too, I plan to turn mine in a makeshift lathe, so it will probably be rough if it’s even achievable for me.

I remember you saying you got the last one. I did ask bob when I ordered a some parts from him, but he didn’t have any left or much more info.


OddballFett

Active Member
Interesting. The metal part on mine loosely measures 60mm in length, and 21mm wide. Meaning either it's a different type, or simply a scratch-made repro. Even then I was surprised by big it was, as for some reason I got the impression that the thing was smaller anyway.


woodywaverider

Well-Known Member
Interesting. The metal part on mine loosely measures 60mm in length, and 21mm wide. Meaning either it's a different type, or simply a scratch-made repro. Even then I was surprised by big it was, as for some reason I got the impression that the thing was smaller anyway.
When I bought other bits from bob, he did have several versions, at least the width is constant.

I can start longer and cut it down, I’ll go with what looks right to me.
