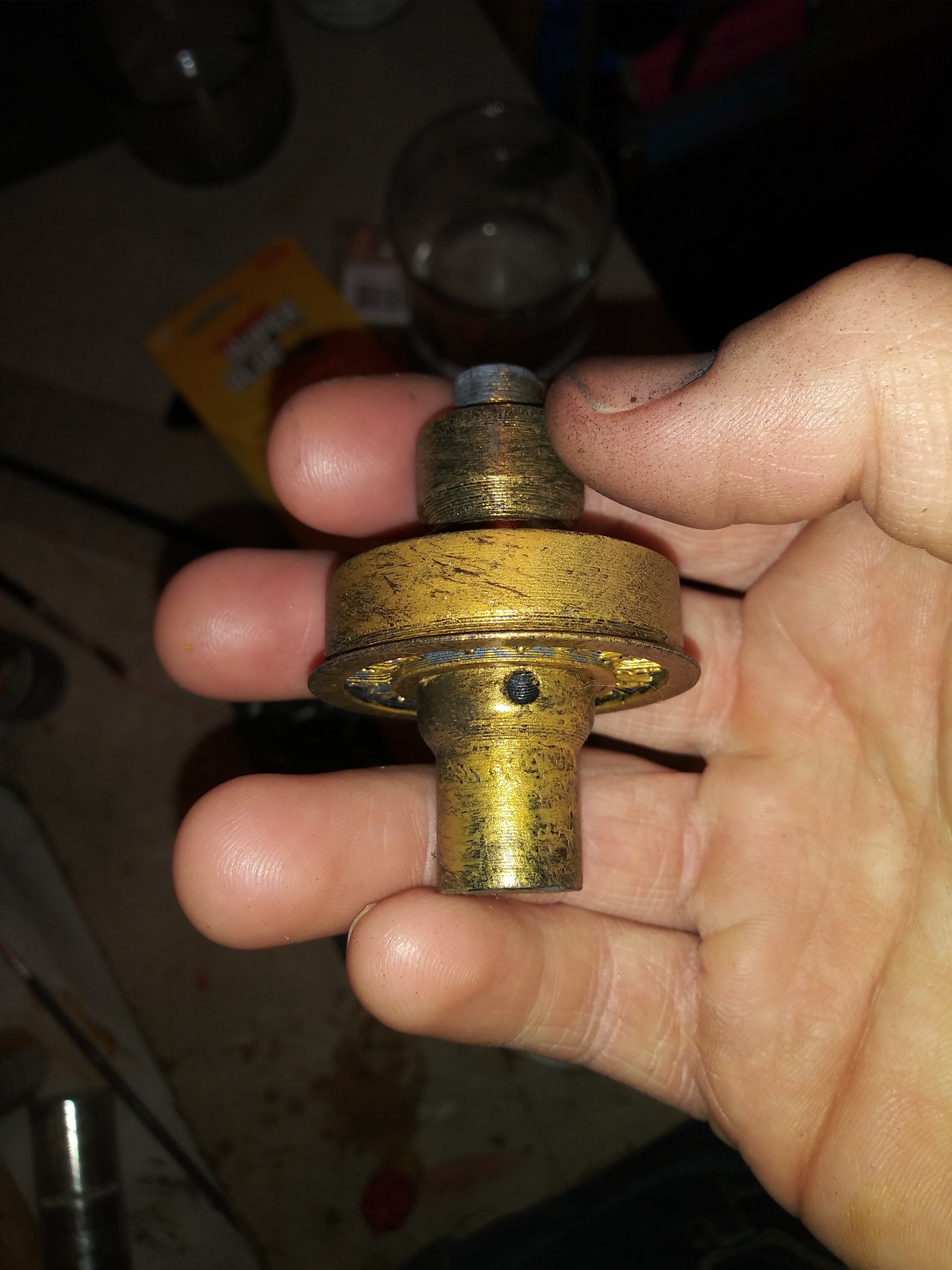

Hello again members this is my second post and I am getting really into finishing my first 3D lightsaber hilt. I decided to build Obi Wan saber from A New Hope. I am starting to assemble and have encountered a problem. On the brass / gold stem of Obi Wan's emitter there's a small indentation. I was wondering to ask any of the replica prop members who may have a screen accurate replica of Obi Wan's anewhope saber if they could tell me where the indentation is supposed to be located? In line with the bubble strip of the activator box? Or to the side to the left or the right of the activator box and bubble strip? I've tried looking up reference photos but there so many different variations and it is very hard to find


Attachments

  • 20200127_215654.jpg
    1.2 MB · Views: 80

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Romans Empire

Master Member
RPF PREMIUM MEMBER
It's actually opposite of the bubble strip.

EDIT: I thought you were referring to the notch at the top of the wind-vane.
If you meant the hole underneath the wind-vane The 48th Ronin is correct, and there are actually two holes directly opposite of each other.

Last edited:

Crimsonxtusk

New Member
It's actually opposite of the bubble strip.

EDIT: I thought you were referring to the notch at the top of the wind-vane.
If you meant the hole underneath the wind-vane The 48th Ronin is correct, and there are actually two holes directly opposite of each other.
Yes I was referring to the hole underneath the wind vane... So inline with the bubble strip? And thank you so much for your input this has helped me sooo much.


thd9791

Master Member
RPF PREMIUM MEMBER
well crap, thats a nice photo. I see a screw i never saw before, right next to the clamp bar. Also... i'm starting to think thats glue at the top of the clamp and not dents
