I am zero skilled with woodwork , but with Adam´s help planes it is question of time (or hiring a carpenter) to get one done. It is an amazing prop that could be used also to display the fantastic lisenced props skeltoncrew studio is releasing.



[ahoudini]

Thanks for the heads up on those! They are cool!


Sent from my iPad using Tapatalk HD



[ahoudini]

Well, not perfect but good enough, I think, once stained and weathered.

Thanks to Contec for the line art of the logo!



I used a circle jig on my Dremel router to do the outer ring. Then I did all the straight lines by clamping a straightedge parallel to the line to be routed and then sliding the flat edge of the base plate along the straightedge. That left only a few short, curved lines to do free hand.



[r1racing]

Well, not perfect but good enough, I think, once stained and weathered.

Thanks to Contec for the line art of the logo!

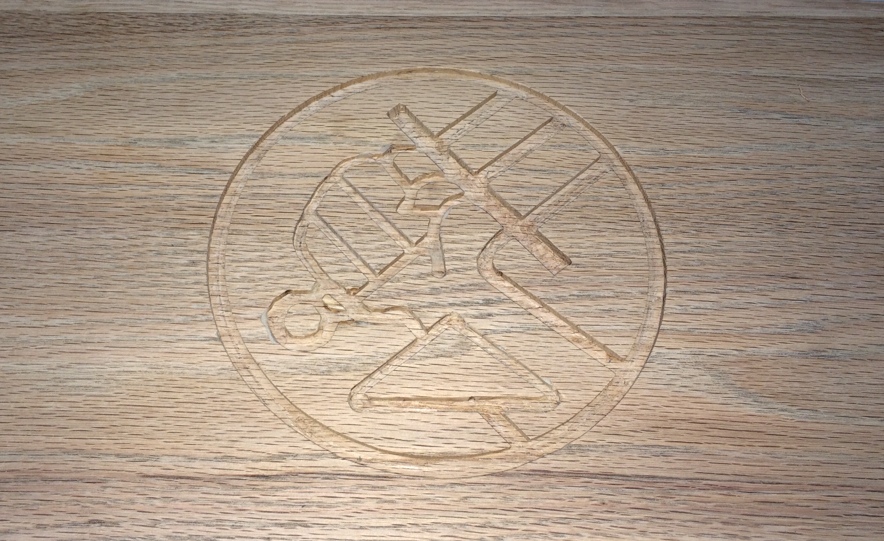

View attachment 290057

I used a circle jig on my Dremel router to do the outer ring. Then I did all the straight lines by clamping a straightedge parallel to the line to be routed and then sliding the flat edge of the base plate along the straightedge. That left only a few short, curved lines to do free hand.

can you post a pic of the tool used on that dremel?? I cant find the correct tool for that.....
thanks!



[Contec]

Well, not perfect but good enough, I think, once stained and weathered.

Thanks to Contec for the line art of the logo!

View attachment 290057

I used a circle jig on my Dremel router to do the outer ring. Then I did all the straight lines by clamping a straightedge parallel to the line to be routed and then sliding the flat edge of the base plate along the straightedge. That left only a few short, curved lines to do free hand.

Just use sandpaper to knock down those edges, so it becomes more rounded.



[ahoudini]

Contec,

Yes, lots more sanding!!

r1racing,

These two things combined:







The Dremel router has the capability of cutting a circle by itself but I wanted the circle jig for added precision. I made two passes with a narrow bit 1/16" apart and then chiseled out the strip in between to try to make it look more like hand work.

Now for the text…



[RobertH]

Looks pretty darn good to me! Can't say a CNC would have done any better!

Went looking for that logo myself last night...have some extra African Mahogany laying around and a small box with logo and lettering sounded fun

Rob

Sent from [location encrypted]...somewhere on the Tharkside of Barsoom



[Contec]

Looks pretty darn good to me! Can't say a CNC would have done any better!

Went looking for that logo myself last night...have some extra African Mahogany laying around and a small box with logo and lettering sounded fun

Rob

Sent from [location encrypted]...somewhere on the Tharkside of Barsoom

here you go...



[RobertH]

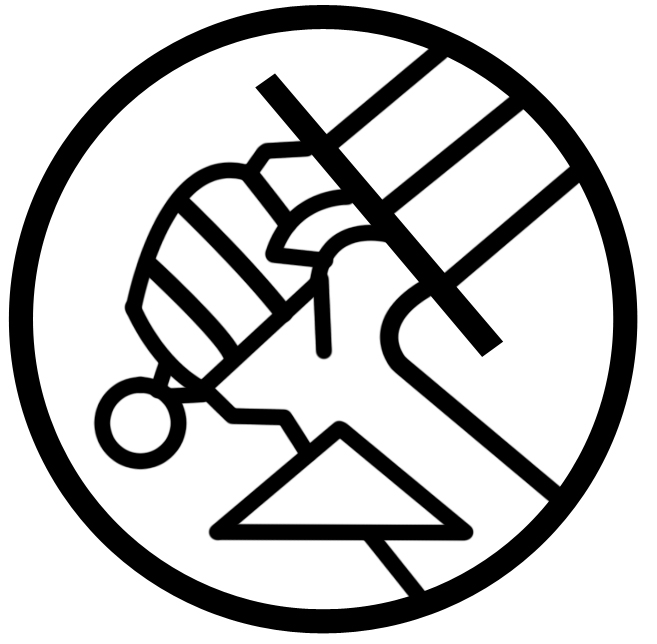

here you go...View attachment 290139

Thanks! Found a few last night, but yours is far and above in accuracy to the original prop box photo earlier in the thread. I had thought to vector trace that photo, but always appreciate saving a step and especially time.

I've got a Nautilus-themed table, a Little Mermaid-themed Harp, and an Earth's Core-themed Mantle currently in progress...so extra time is a good thing!

Thanks again

Rob

Sent from [location encrypted]...somewhere on the Tharkside of Barsoom



[ahoudini]

Thanks, Robert!



[r1racing]

Contec,

Yes, lots more sanding!!

r1racing,

These two things combined:

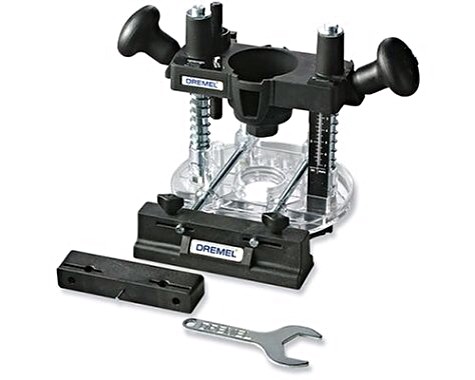

View attachment 290128

View attachment 290129

The Dremel router has the capability of cutting a circle by itself but I wanted the circle jig for added precision. I made two passes with a narrow bit 1/16" apart and then chiseled out the strip in between to try to make it look more like hand work.

Now for the text…

Thanks! I have this tool fot the dremel, but I meant the " accesory" ( I dont know how to say it....)
LIke this:

Dremel 650 - Fresa HSS 3,2 mm: Amazon.es: Bricolaje y herramientas



[ahoudini]

r1racing,

I used the smallest router bit in this set and made 2 passes, leaving a narrow strip in between to remove with a tiny chisel.



http://www.amazon.com/dp/B0000AMK7T/ref=cm_sw_r_udp_awd_A41ctb0E577D8



[r1racing]

r1racing,

I used the smallest router bit in this set and made 2 passes, leaving a narrow strip in between to remove with a tiny chisel.




Gyros 46-92010 Router Bit Set - 10 pc Set . For Dremel Type Tools - Amazon.com

now its all clear
thanks again!



[CaptainEO]

Here's a cool pic I found of Adam's box from a WSJ article:



[ahoudini]

That's cool! Thanks for posting!



[ahoudini]

Text ironed onto lid (ironing the reversed laser printed pattern onto the wood worked a lot better for me than acetone) in preparation for............... carving......burning.......etching?? Not sure yet. Contec, any advice?



[Contec]

Text ironed onto lid (ironing the reversed laser printed pattern onto the wood worked a lot better for me than acetone) in preparation for............... carving......burning.......etching?? Not sure yet. Contec, any advice?

Adam has said that the text and logo looked like it had been lasercut and then carved out with a dremel or something. Burning would not look good because the box is suppost to be "old" So spend some time with carving it out...or etch.



[ahoudini]

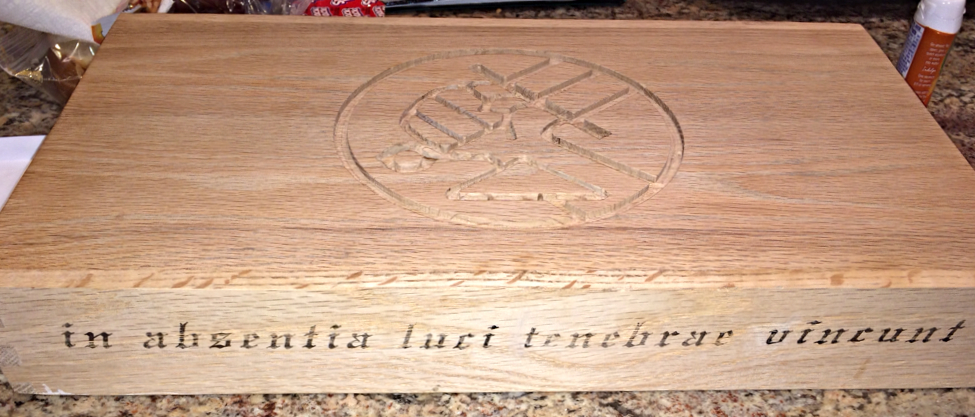

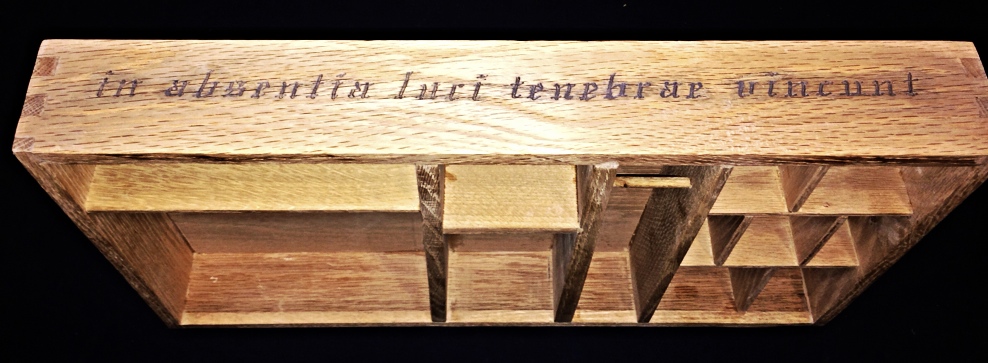

Engraved with the tip of a 90° V bit in the router and then the fine strokes added with the tip of a cone shaped steel cutter. A little Weather-It added for the photo.



[ahoudini]

Anyone know what the hinges holding the Madonna door in place look like?



[RobertH]

Looking great!

Rob

Sent from [location encrypted]...somewhere on the Tharkside of Barsoom
