Hellboy Comic Pistol (first build)

Discussion in 'Replica Props' started by Confused85, Jul 2, 2015.

Tags:
  1. Confused85

    Confused85 Active Member

    Trophy Points:
    242
    Still a work in progress and looking pretty rough, but thought that I would share what I have done so far.

    I wanted to make the Samaritan from the movies but with this being my first build I thought I would have a go at something a bit simpler. That being said I have made this probably as complicated as I could by making it with all moving parts! Mostly constructed out of MDF.
    [​IMG]
    The barrel is made from 2 PVC tubes making the finished thing 40mm ID, 56mm OD! A bit of a beast... The ends where squared up and the groove cut on my lathe
    [​IMG]
    Inside you can see the internals. It's taken a bit of trial and error to get it working smoothly but its working great. It's only going to be singling action mechanism but maybe one day I could mod it to double acting.
    [​IMG]
    Grip will have a couple of grooves and the BPRD logo when finished.
    [​IMG]

    erikv likes this.
  2. Sean

    Sean Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,286
    I think your off to a wonderful start. I like your trigger mechanism.:thumbsup

  3. Confused85

    Confused85 Active Member

    Trophy Points:
    242

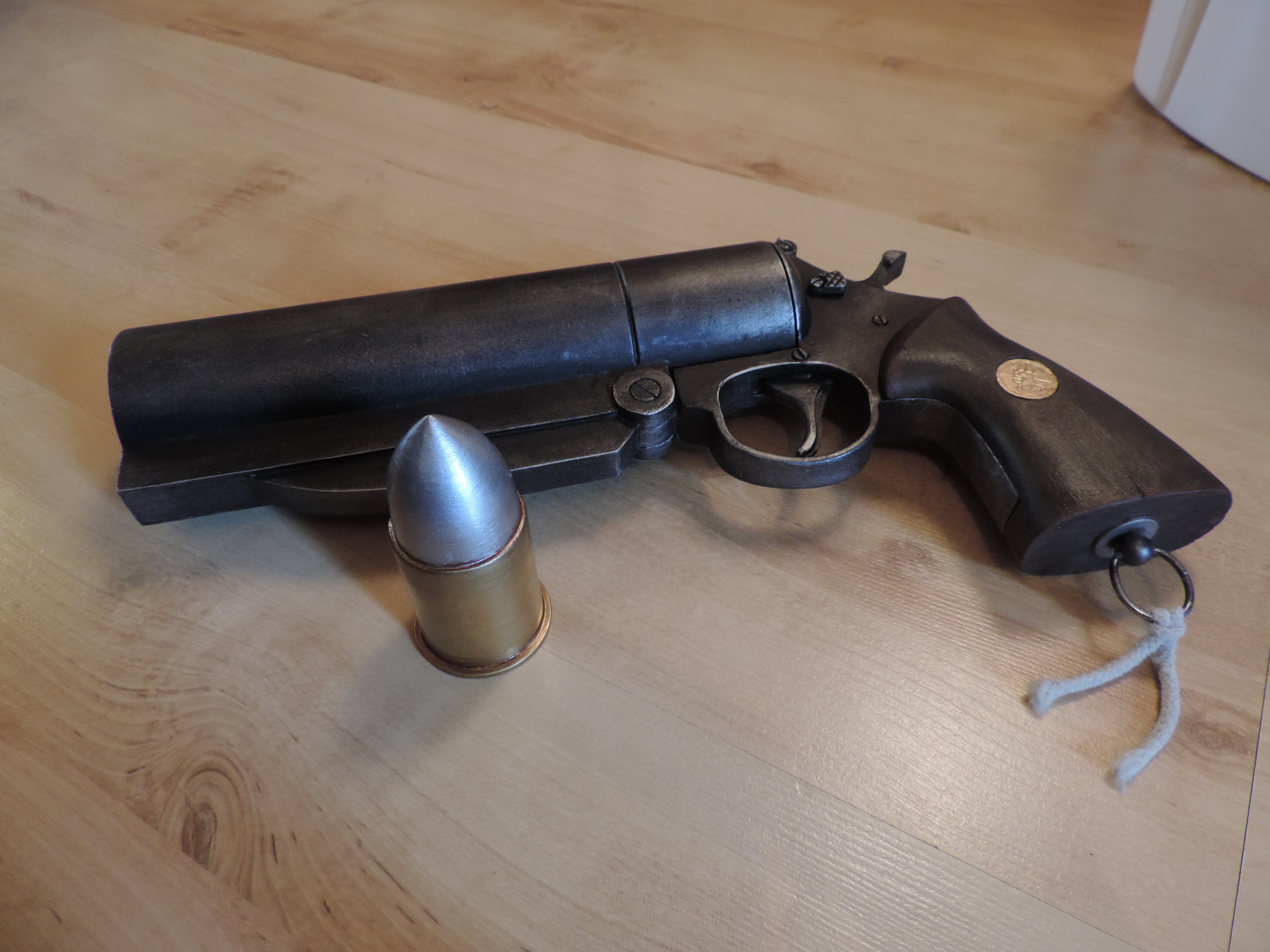

    Sorry to resurect an old thread but I have finally found the time to finish this one off!
    For my first build I'm really pleased with it.
    The mechanism works really well. The hammer *, trigger fires and the release catch opens the chamber.
    The rifled bore measures ~35mm so the ammo looks more like its from a grenade launcher than a pistol! I based it on "Chapel of Moloch" when you finally see Hellboy reload.
    For the paint job I was going for a worn down gun blue, trying to focus on where the wear patterns would be.
    It took a lot of different processes tomake and it taught me a load. Really looking forward to the next project now!


  4. tmax

    tmax Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,992
    Well done mate. Great paint job!!!


    Sent from my iPhone using Tapatalk

  5. theflightyellz

    theflightyellz Active Member

    Trophy Points:
    411
    Really nicely done, great work.

  6. Hirohawa

    Hirohawa Sr Member

    Trophy Points:
    1,046
    Looks great. Love the rifling on the barrel

    Nexus6 likes this.
  7. Funky

    Funky Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,840
    Your paint job is amazing!

  8. Confused85

    Confused85 Active Member

    Trophy Points:
    242
    Wow! Thanks! The paint job was:
    Primer
    Metallic steel spray
    Light dusting of Matt black spray
    Numerous passes of black acrylic paint and wiping it off (a little brown too)
    Then varying intensities of dry brushing metallic paint.

    Still need to clear coat it. Also going to remake the BPRD emblems in the grip on a 3d printer when i get it, as they are not good

    Sent from my Nexus 5 using Tapatalk

  9. HULKSMASH1120

    HULKSMASH1120 Active Member

    Trophy Points:
    242
    got any pics of how you made the rifling? that came out great. awesome build

  10. theflightyellz

    theflightyellz Active Member

    Trophy Points:
    411
    Correct me if I'm wrong, but looks like he's taken a smaller piece of tubing - cut slots in it and then slid that in to the barrel?

  11. Confused85

    Confused85 Active Member

    Trophy Points:
    242
    Haha! That would likely have been easier!
    The barrel as a whole is made from 2 PVC pipes, 1 to get the OD and 1 for the ID to make it nice and thick.

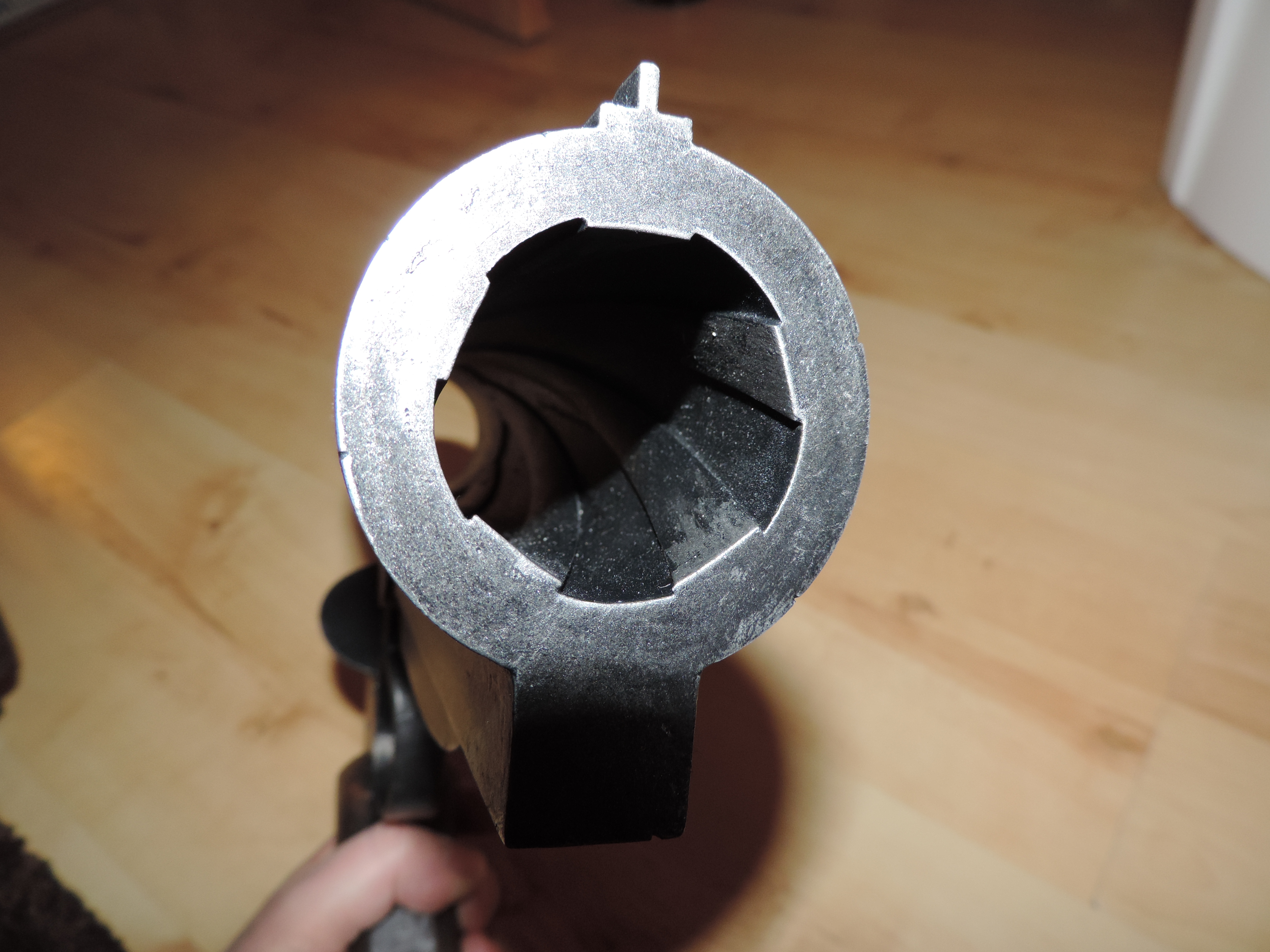

    The rifling was made from 1mm styrene sheet. I marked out inside and on the end of the barrel where each strip should go, then super glued it in place. It was really difficult as this put a lot of stress in the styrene so it wanted to come off and straighten itself. If I had a heat gun I would have pre formed the strip to the shape of the inside of the barrel, or just done straight rifling!!!

    Sent from my Nexus 5 using Tapatalk

    Last edited: Mar 23, 2016
  12. Mechanized2400

    Mechanized2400 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,731
    Awesome build, great work :thumbsup

  13. DWVinny

    DWVinny Active Member RPF PREMIUM MEMBER

    Trophy Points:
    412
    Excellent! Looks awesome!

  14. Confused85

    Confused85 Active Member

    Trophy Points:
    242
    A quick video of it working

    Next step, a working replica of the Samaritan from the film!
