Hasbro Black Series Stormtrooper conversion.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


jhfagan

New Member
Greetings all!
Inspired by my fun time converting the BS Vader closer to actual ROTJ Vader specs, I next began the task of converting the BS Rogue One trooper to ROTJ as well ( as best I can, anyway).
Not a whole lot of before/after pics, but enough that you can tell what is going on.

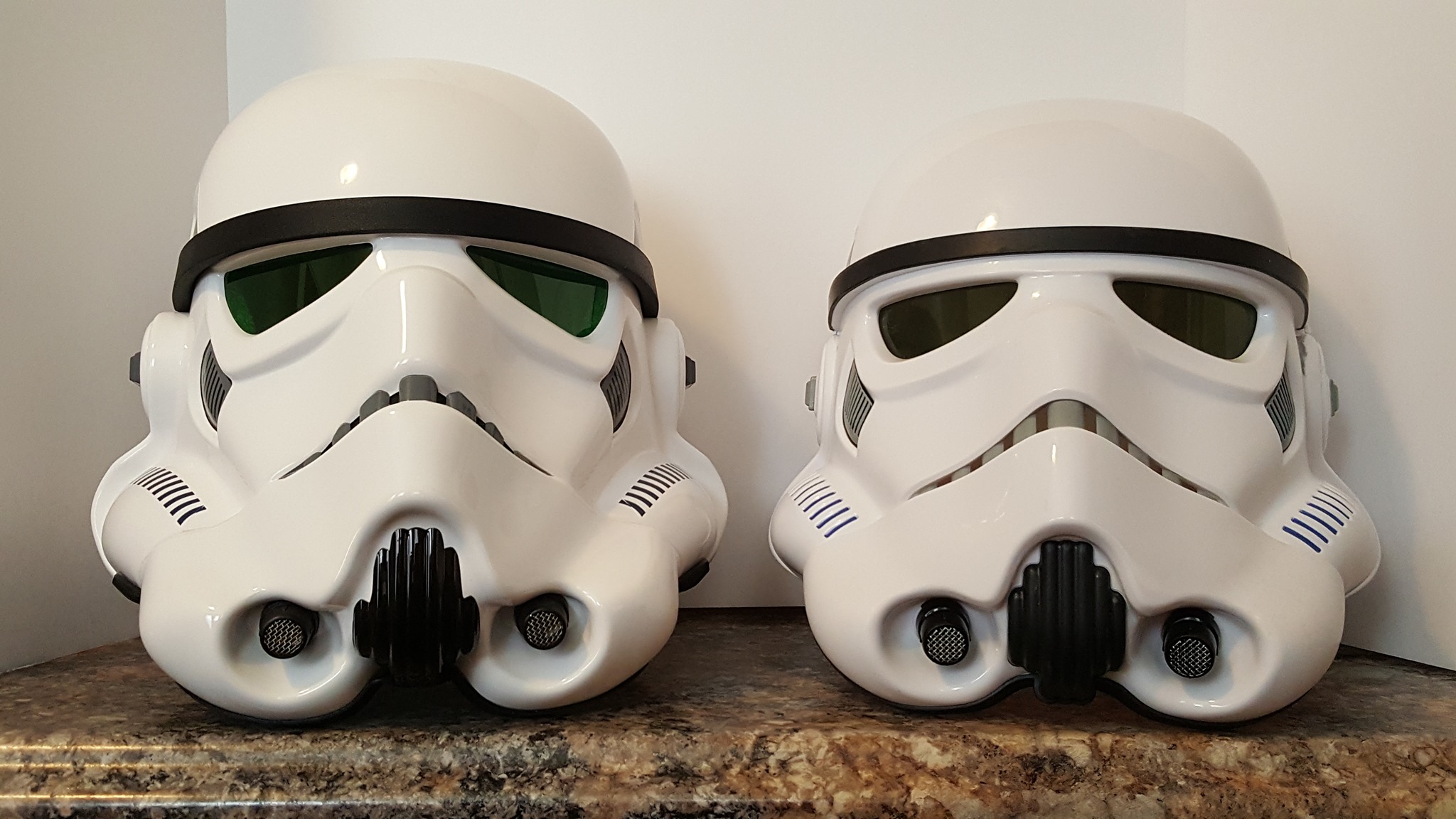

Starting out with side/side of the Hasbro (on right) next to the EFX PCR ANH Trooper (on left), for some basic comparsion shots.
Note on the side shot of the Hasbro, I've already started to putty in the seams of the dome.
I had previously taken the whole helmet apart and gutted all the electronics, and nose piece, and dremelled out all the jaggy bits, and welded all the pieces of the helmet together with styrene welding glue.
2 seconds....welded.
Be careful when using! lol
You can see the gutting on the inside shots.
Also, you can see where I puttied in the speaker vents, and on the outside, I had glued shut the battery door, and puttied it's seams as well.
I considered changing out the lenses as well, but again, these worked fine for me, so....
I do have a set of Army helmet pads on the way, so they will be affixed in at a later date.

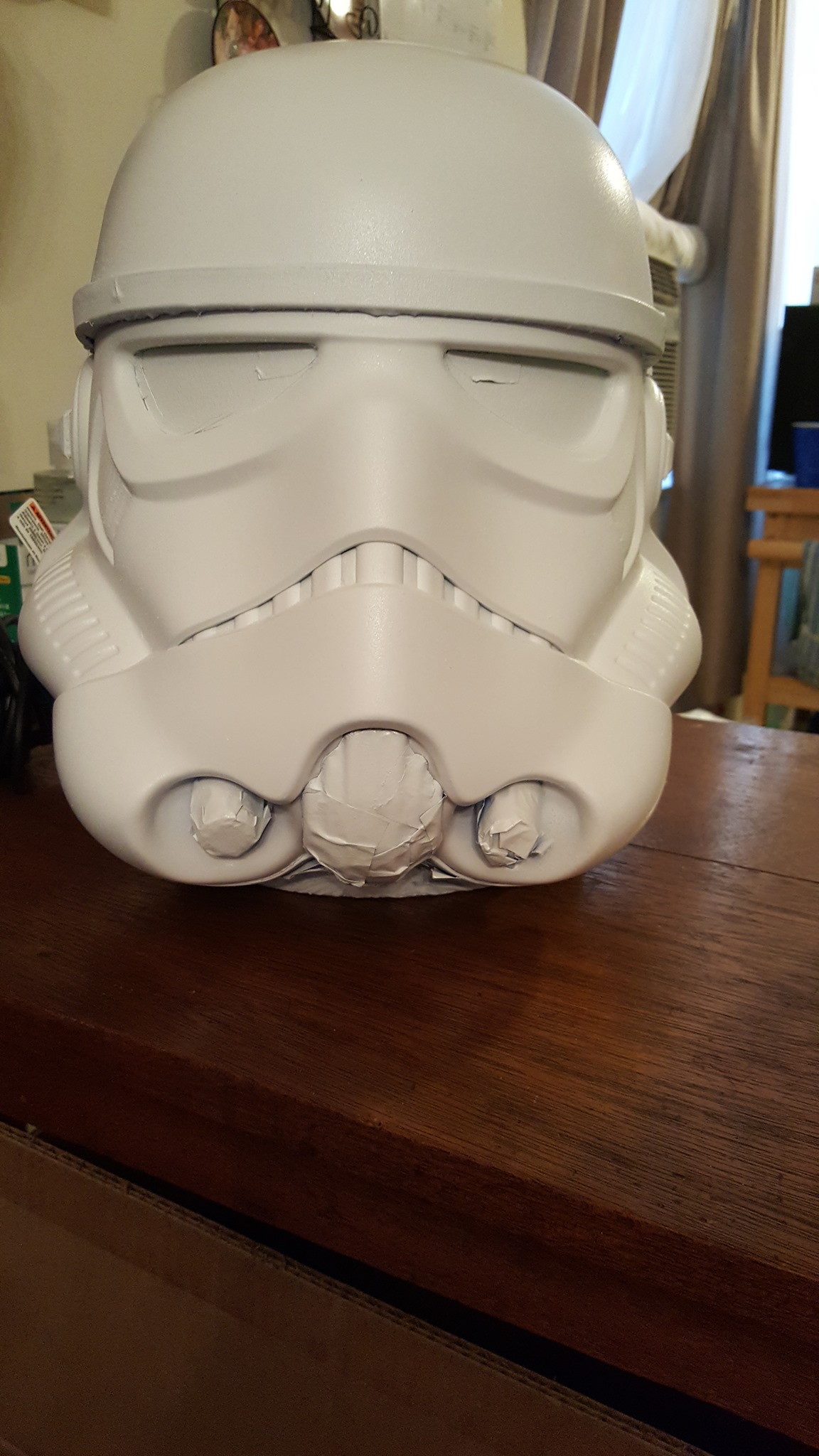

Next shot is the whole helmet masked out and base primered white.
I left the front half black strip on the helm, as it was glued on, and way too hard to tear off without damaging anything, but removed the back half weather strip, and replaced with 501st approved weather stripping from www.etsy.com/shop/StarWarsCostumeProps
I also got a set of accurate mic tips from them as well that I am going to try and swap out now that the paint is done, but they aren't shown on the helm here.
Next was painting the bloody thing....
About 4 coats of Krylon white gloss on there.
Then about 4 or 5 coats of Rustoleum clear gloss.
I purposefully did not mask out the frown or the side stripes.
After a few days letting the gloss coat really settle and dry, I then taped off, very meticulously, the slots of the stripes on the side tubes, and shot them with straight Rustoleum True Navy, not laying it on too heavy, as I didn't want it too dark. Let a little white through.
A few hours to dry, then hit them with a layer of satin clear.
Few hours more, then taped off the rest of the helm, and leaving the frown exposed, including the "lips", and hit it with straight gloss black, ( for the ROTJ paint scheme ) and like the stripes, a shot of satin clear after the black dried.
Gave it a day, then removed all the tape.
Next three shots are the final results.

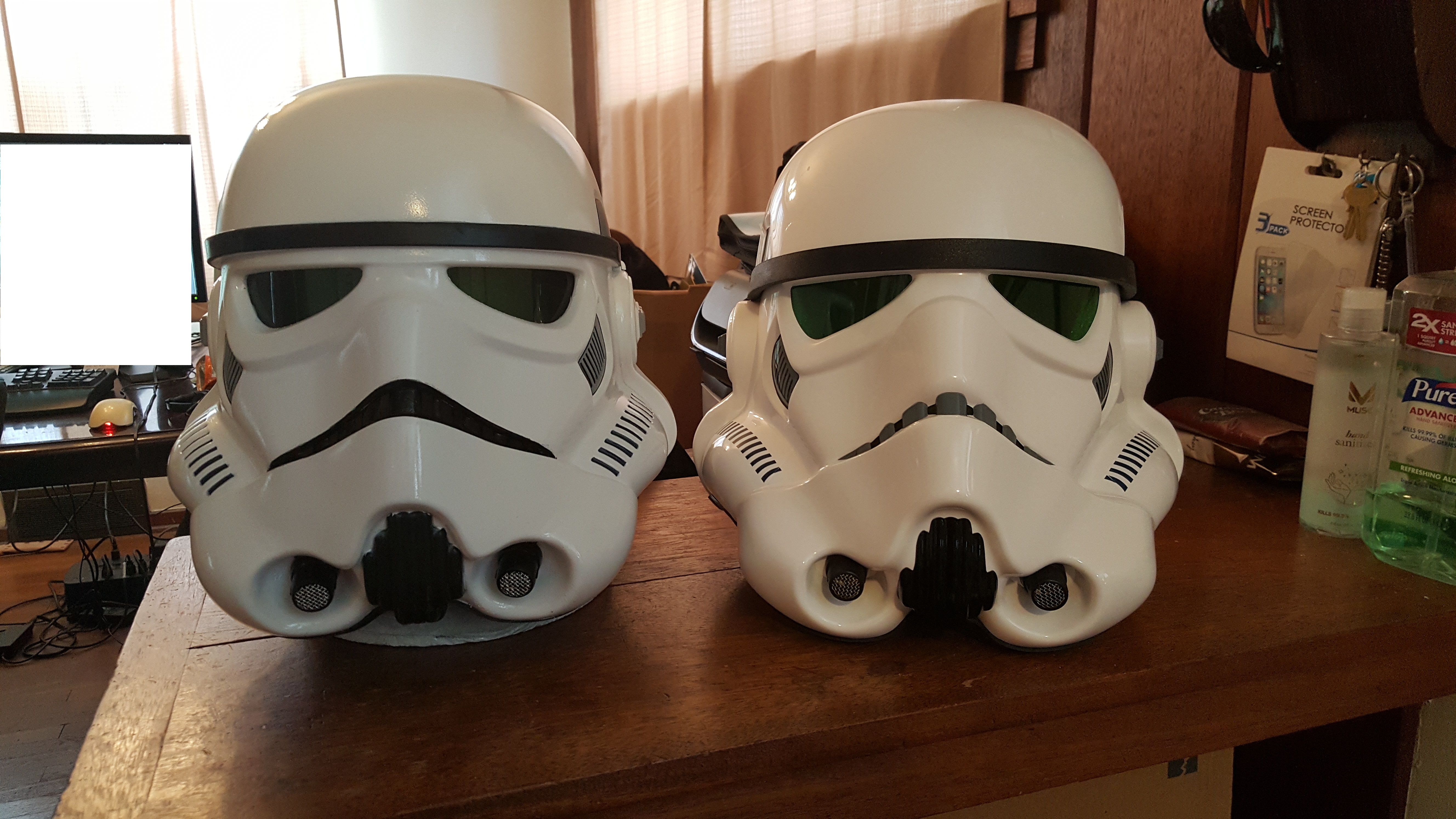

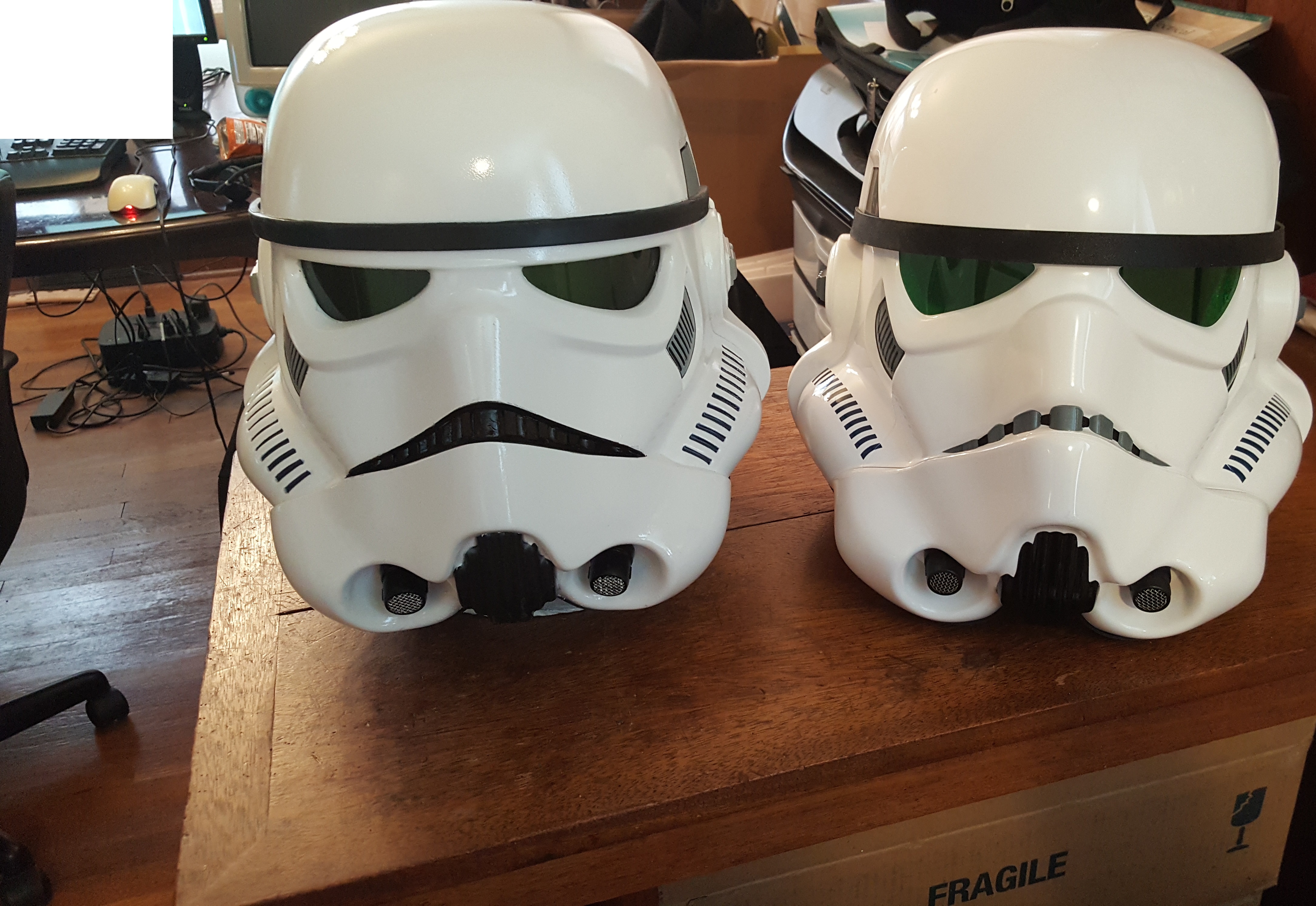

And last two, of the newly dressed Hasbro helm next to the EFX again, for updated comparison.

103501379_10220631725174631_211312177276524753_n.jpg 103276641_10220631726174656_6759472350779291076_n.jpg 20200624_151542.jpg 20200624_152147.jpg 20200624_152206.jpg 104485466_10220697885828606_8891780117901945774_n.jpg 105948292_10220741626962107_5073857757231687429_n.jpg 20200624_145727.jpg 20200624_145735.jpg 20200624_155504.jpg 20200624_155510.jpg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

bwize

Sr Member
That looks fantastic! I am doing some upgrades to my bucket as well. I sprayed the interior with black plastidip as I liked the slight texture it has. I also found these cool 3D printable parts on thingiverse for all the interior parts.



jhfagan

New Member

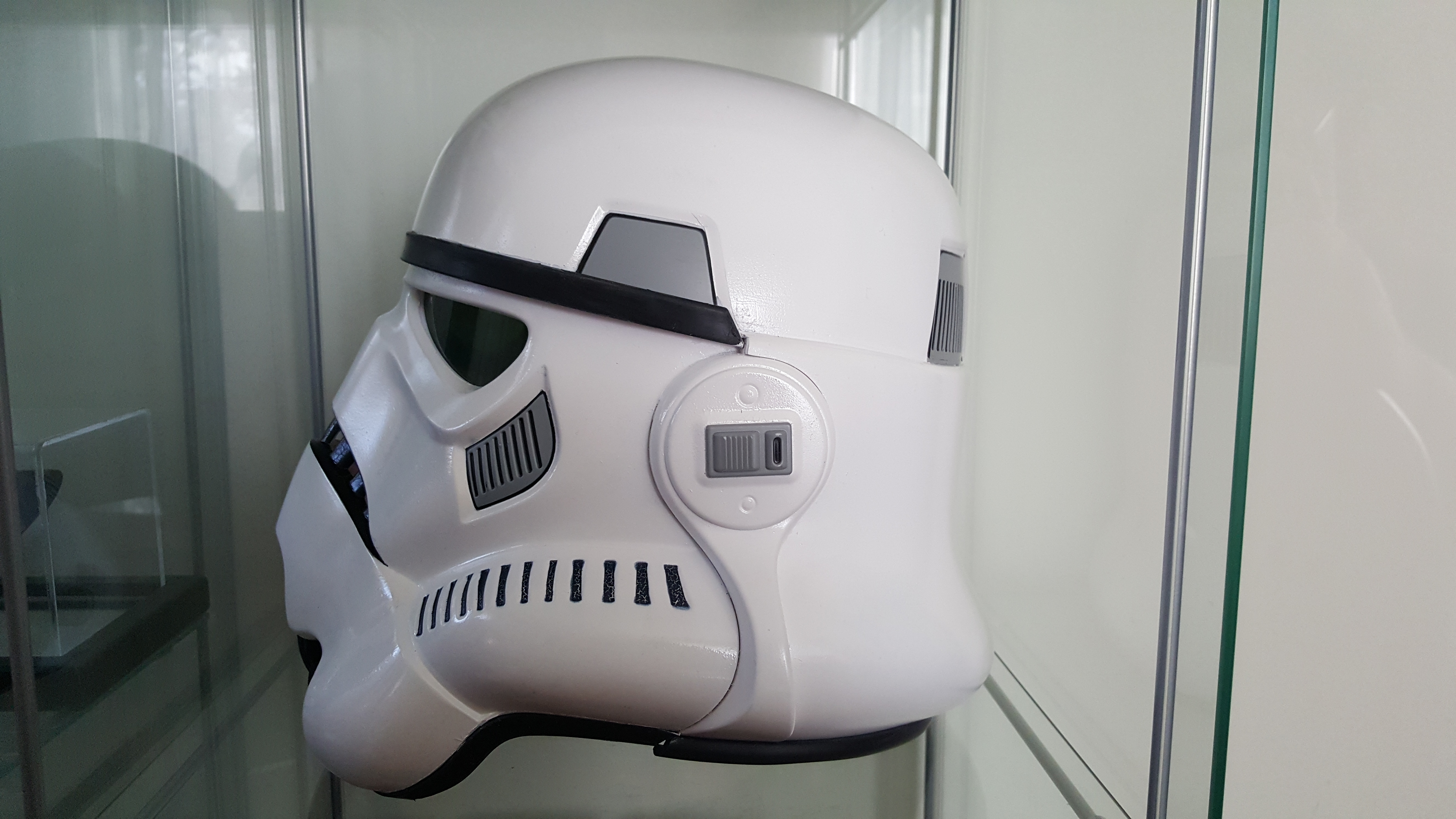

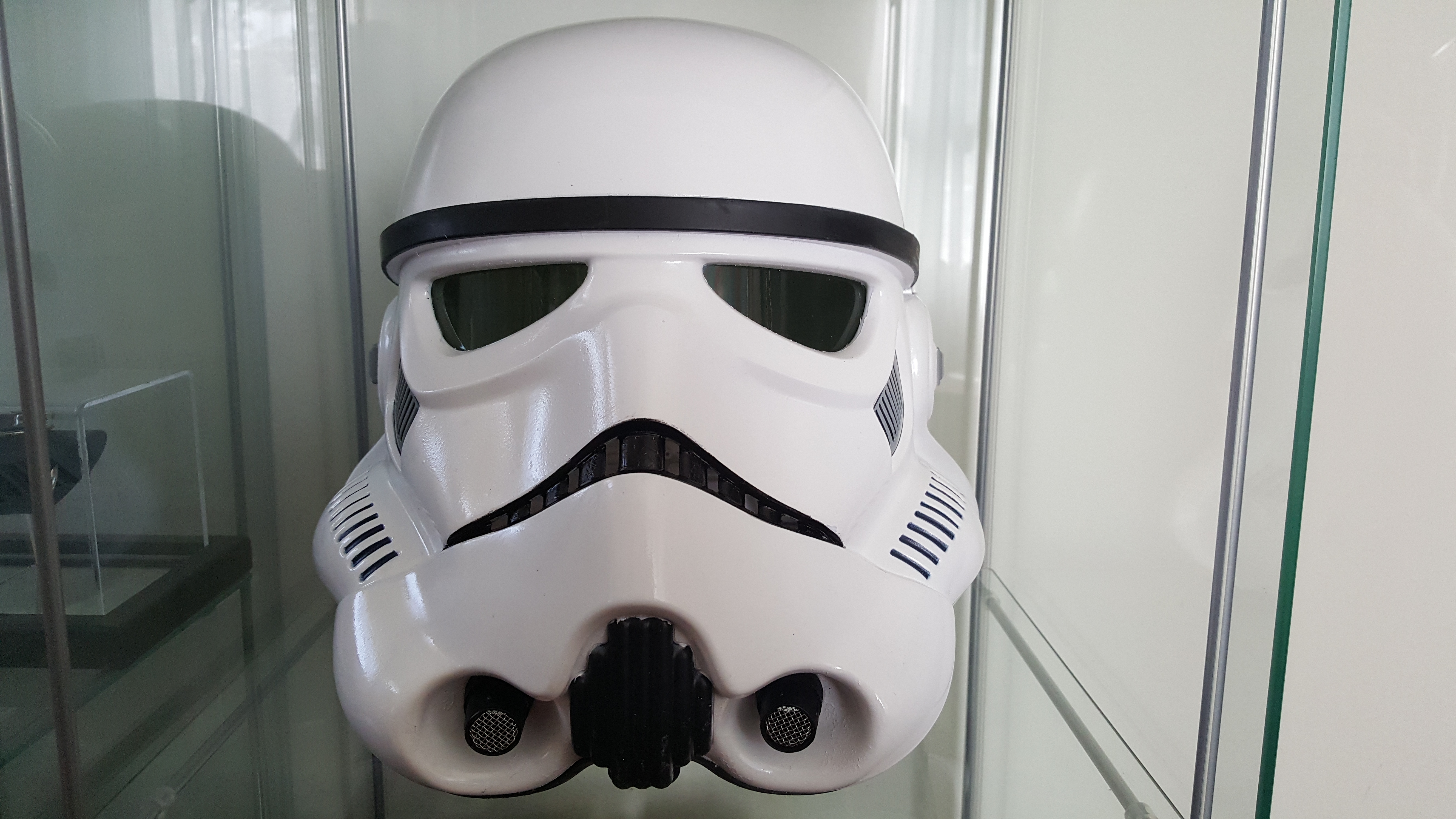

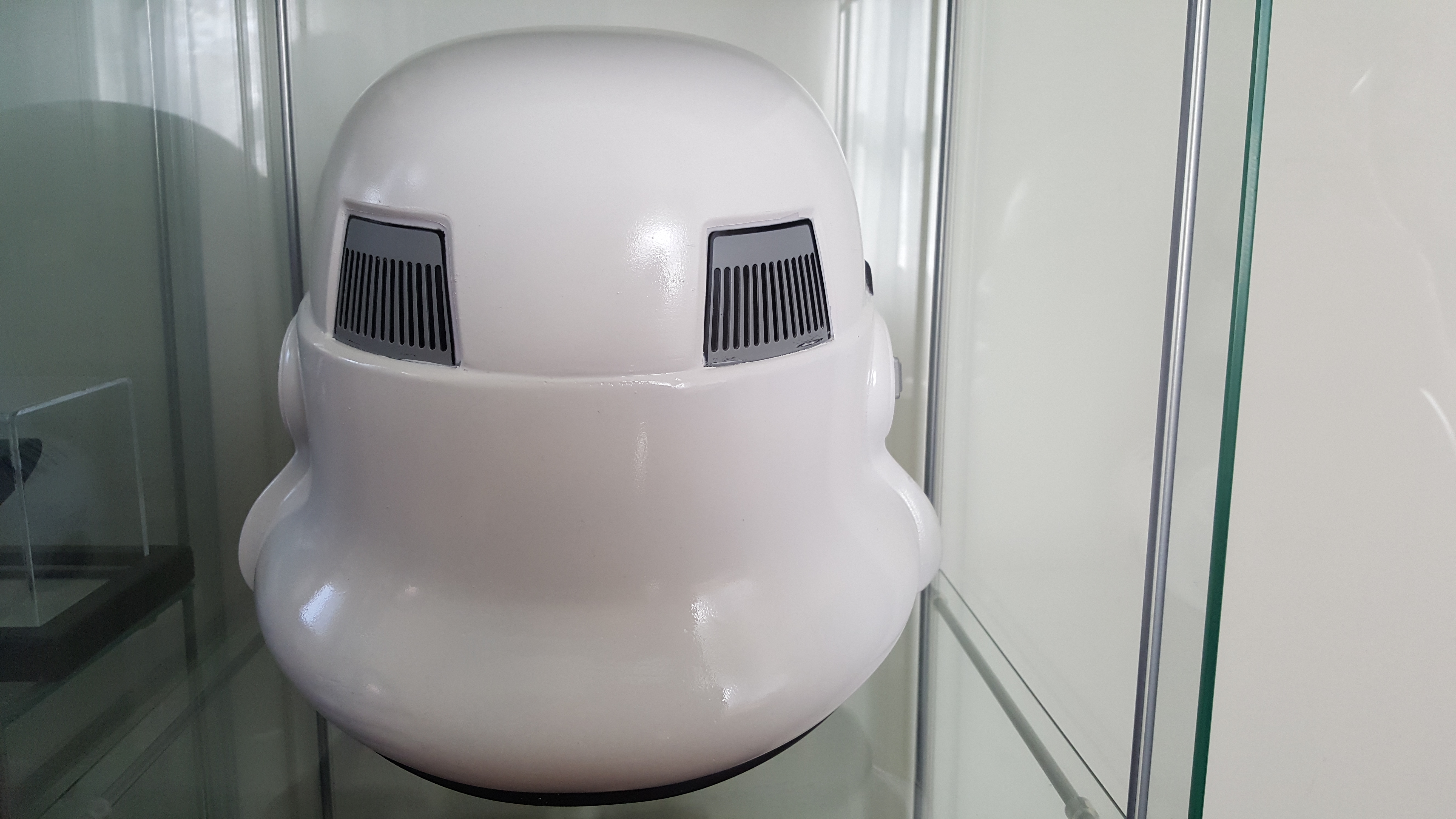

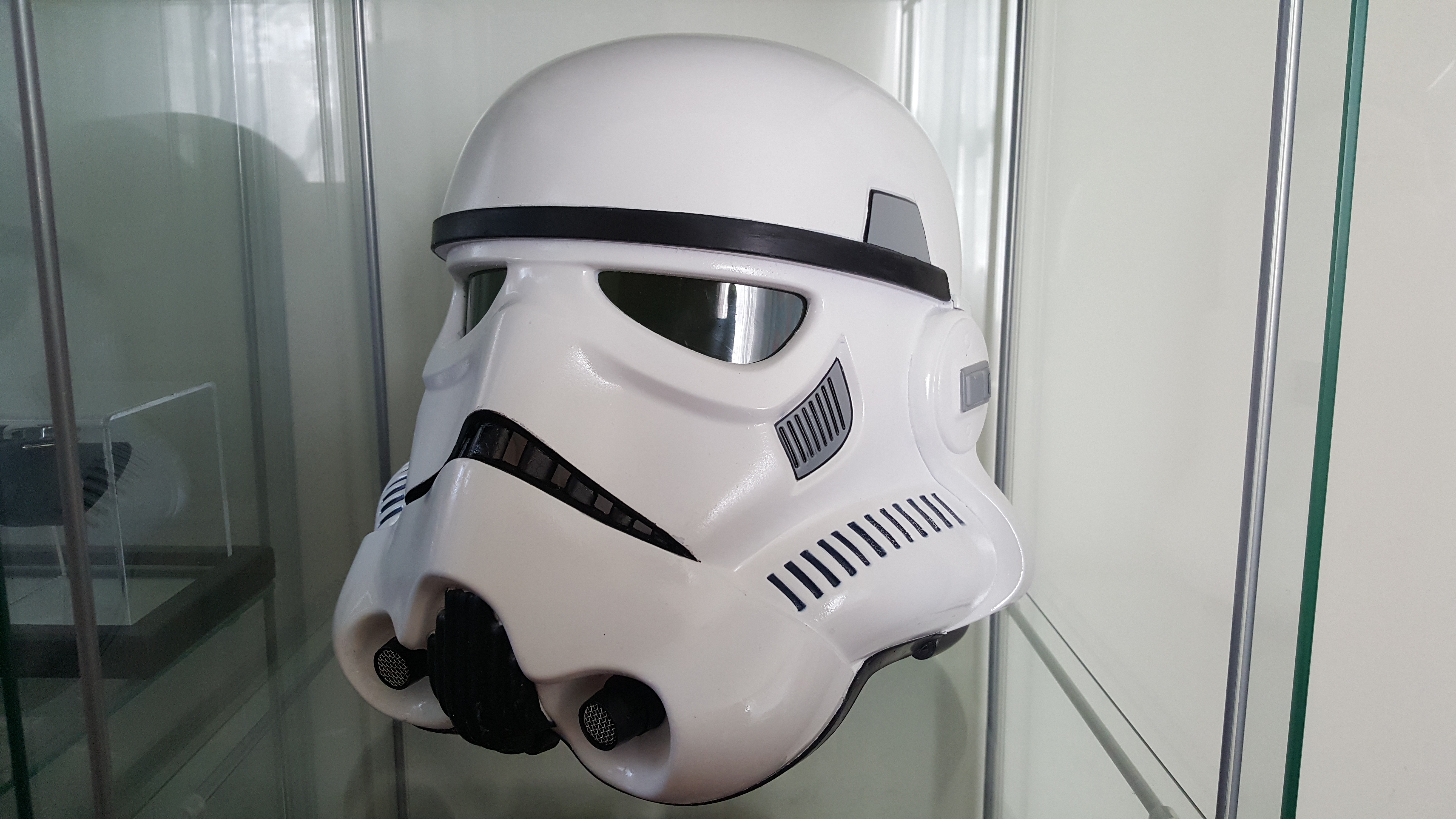

Aaaand....we're done!
Hovi Mic tips are in, and the proper S Trim installed in the back half of the bottom of the helm.
Working on a custom stand for it next.
That'll be a while. : )
20200625_103553.jpg 20200625_103627.jpg 20200625_103653.jpg 20200625_103723.jpg 20200625_104052.jpg 20200625_103945.jpg 20200625_104522.jpg


Aditrap

Active Member
That's awesome! After spending hundreds on stands only I finally started making my own, looking forward to seeing the final helmet on yours! Great job


Inquisitor Peregrinus

Master Member
I'd somehow missed this. I'm modding one of mine to ROTJ, as well. One of the main features of the ROTJ helmet is that -- due to whatever factors of the making process of the helmets for that film -- were "squished" longitudinally. The crown is a bit longer and a bit narrower than the previous version. It makes a visibly slimmer silhouette face-on, and the main consequence is that the helmet is easier to put on straight, rather than having to "screw it on" as one did with the earlier version.

I don't know if you knew or cared about that aspect of things. I do, and it's taken a lot of tedious heating and bracing to get the crown of the HBS closer to the ROTJ shape. When I'm happy with it, I'll have to trim up the sides to make everything level again. Not sure yet how to tackle reshaping the back of the helmet. The face is less problematic.
