Han in Carbonite build

Discussion in 'Star Wars Costumes and Props' started by bearings, May 17, 2015.

  1. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
    Hello! I've been lurking for a while, but here goes my first build thread here...

    I'm building a Han in Carbonite, using: King Jawa's Han, Zenix's box kit and greeblies, and Bigturc's volvo panels. I'm also waiting on some end pieces from MonCal. I'm planning on figuring out the hero panel electronics myself using some kind of Arduino setup.. I haven't gotten that far yet.

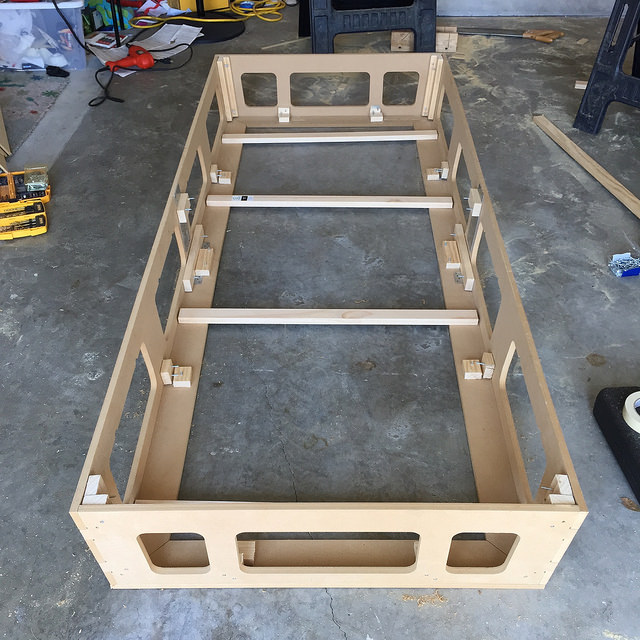

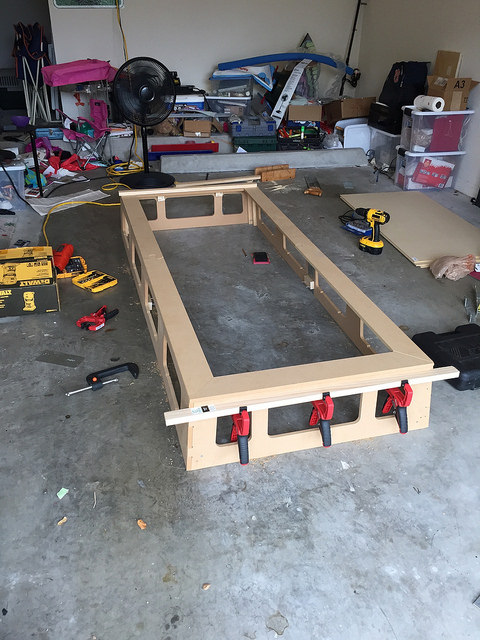

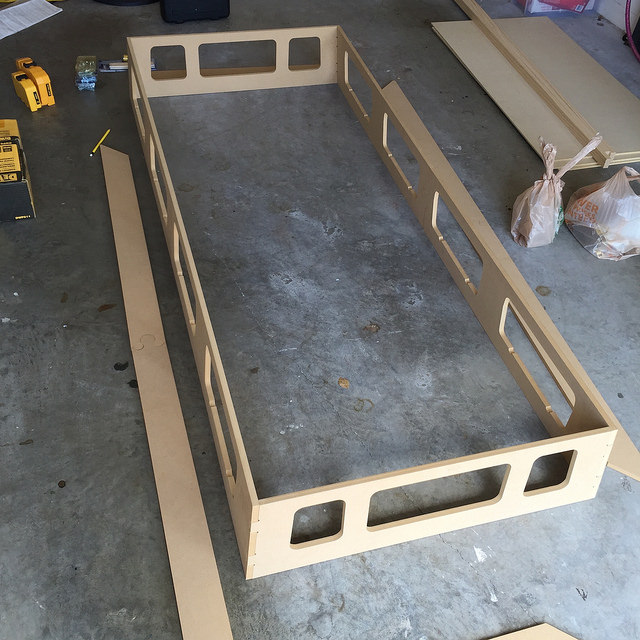

    I've been working on the box kit first, doing it slightly different from Zenix's directions. I have used these metal brackets in the past on other things and thought it would be good here. It's a little more work, but it will be a little lighter and will definitely have room for the end pieces and panels. Hopefully it'll work out ok! I used 1/4" MDF for the face board which has been glued down.. once that is dry I'll add some cross bracing and then begin work on filling all the screw holes and gaps.

    17788204941_93107ab849_z.jpg 17167426643_281f582071_z.jpg 17599998658_503df07089_z.jpg 17788262391_9493201ae9_z.jpg 17165344994_8559d9a957_z.jpg 17165233844_2c8f4bd4d2_z.jpg 17761454986_89afcb5b34_z.jpg

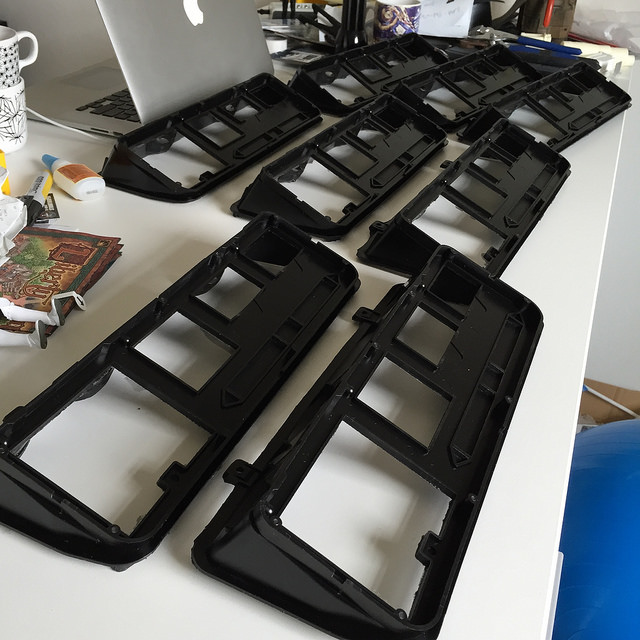

    Once the box is done I'll mount Han.. who has been taking up all the room on my desk.. along with all the panels...

    17165987624_37b4640b2e_z.jpg 17788215131_0a1f8a1c2a_z.jpg

    QCWolf, Bigturc, knnyjay and 2 others like this.
  2. mugatu

    mugatu Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,782
    Excellent job thus far. I can't wait to see how you finish this.

    bearings likes this.
  3. QCWolf

    QCWolf Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,236
    Subscribed! Looks great so far. I love seeing how every builder does it a little bit differently.

    bearings and mugatu like this.
  4. Sym-Cha

    Sym-Cha Master Member

    Trophy Points:
    3,305
    What's this ... is it Han in Carbonite season now that he's finally coming home in December? ... Looks like your off to a great start ... I wish I had all your skills ... this is way out of my reach ... oh and pocket I suppose. Perhaps I could travel the USA and Canada hopping from 1 HIC being build or finished to the next . . . meanwhile taking professional pictures? :lol

    Chaim

    bearings and QCWolf like this.
  5. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
    Yes, I'm afraid I came down with a bad case of needing to build a HIC... like so many before me have!

    Here's the box upright with one of my kids for scale:

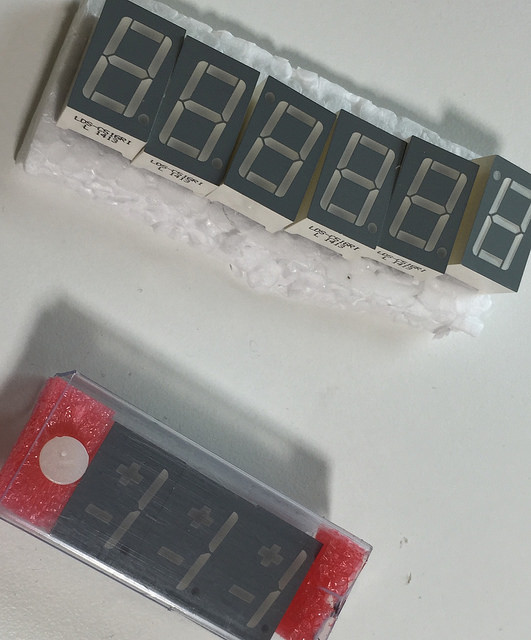

    And today I received some parts for the hero panel in the mail.. 7 segment LEDs and a couple of the ones with the overflow + / - indicators. I got a couple extra of everything in case I screw something up.


    knnyjay, QCWolf and mugatu like this.
  6. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,970
    Oh man I'm jealous! I really want to tackle this build. Your doing a very good job! What a great way of introducing yourself. Will you being using elmers glue as the textures?

    keep up the great work, I'm always excited for these builds!

    QCWolf and bearings like this.
  7. Lobotomy

    Lobotomy New Member

    Trophy Points:
    3
    Glad to see another build going on, I'm new here aswell and started a thread of my own. I will follow this one close. Eager to see how the heropanel lights will turn out :)

    bearings likes this.
  8. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
    Thanks! I'm not sure if I'll be using elmers glue for the texture.. my wife (a painter) has been telling me about some different mediums that do basically the same thing. Going to investigate some over the long weekend and see.. I'll post here with my results!


  9. zenix

    zenix Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,090
    woah nice! brackets! it'd be sweet if you shared how to do that in the build instructions so people can learn there too

    bearings likes this.
  10. crashmann

    crashmann New Member

    Trophy Points:
    3
    Very nice build so far!

    Those look like Strong Tie A21Z angle brackets. You can find them in Home Depot and Lowes.

    bearings likes this.
  11. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
    Yep, those are the brackets I used! I'll try to update the document once I make a little more progress, I took photos as I went.

    Speaking of, here's where I'm at with the build so far:




    I did start playing around with the arduino and 7-segment displays, plus some research into the hero panel flashing sequences. I think I've got a better handle on how all that is going to work now. Other than that, I haven't made progress in a few weeks due to some traveling. Hoping to get back at it this weekend!

    SofaKing01, knnyjay and Lobotomy like this.
  12. darth fred

    darth fred New Member

    Trophy Points:
    3
    Awesome built! How did you make that Han sculpture?

  13. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
    I bought the Han casting from King Jawa here on the RPF

  14. Dokworm

    Dokworm Jr Member

    Trophy Points:
    92
    Is there a link for that? I'd like to grab one as well.

  15. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
  16. DanSolo

    DanSolo New Member

    Trophy Points:
    17
    Hi all,

    Could you provide me some schematic, material and/or instructions for made the Hero Panel? I don't want an accurate sequence, just some cool and acceptable with the 3 7-segment and the 1 +/- the other bulbs and the intermittent green light. Don't care really the sequence of the 7-segment displays. I am new here, but my proupose is same than yours: made my very own Han in carbonite, and all help is very appreciated. Greetings and may the force be with you! XD

  17. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
    Wow.. after like a year... back from the grave, this build is back in action :)

    I got side tracked by being lucky enough to get one of the Anovos First Order Stormtrooper suits to build and troop in last year, but now I've got more room in the garage to continue with HIC.

    Some catch up photos:

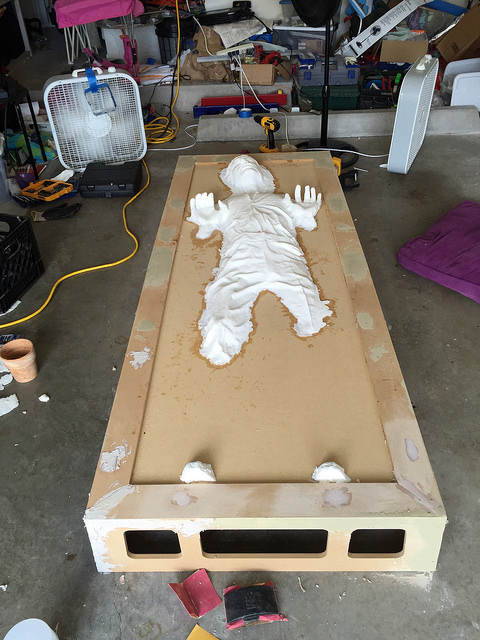

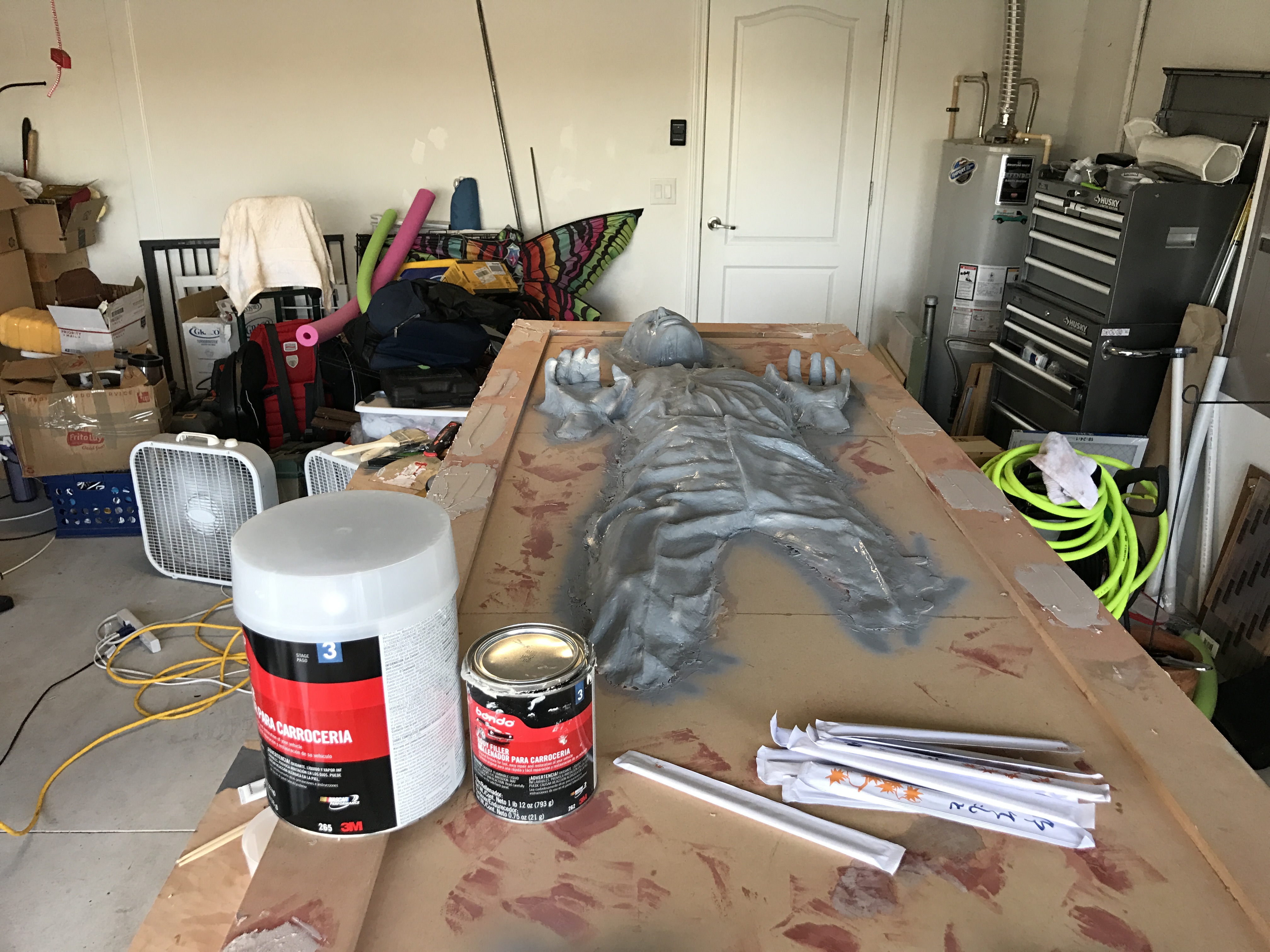

    I left him like this for the longest time, when I didn't know what I was doing and used too much of the wrong kind of bondo and created more of a murder scene than anything else:

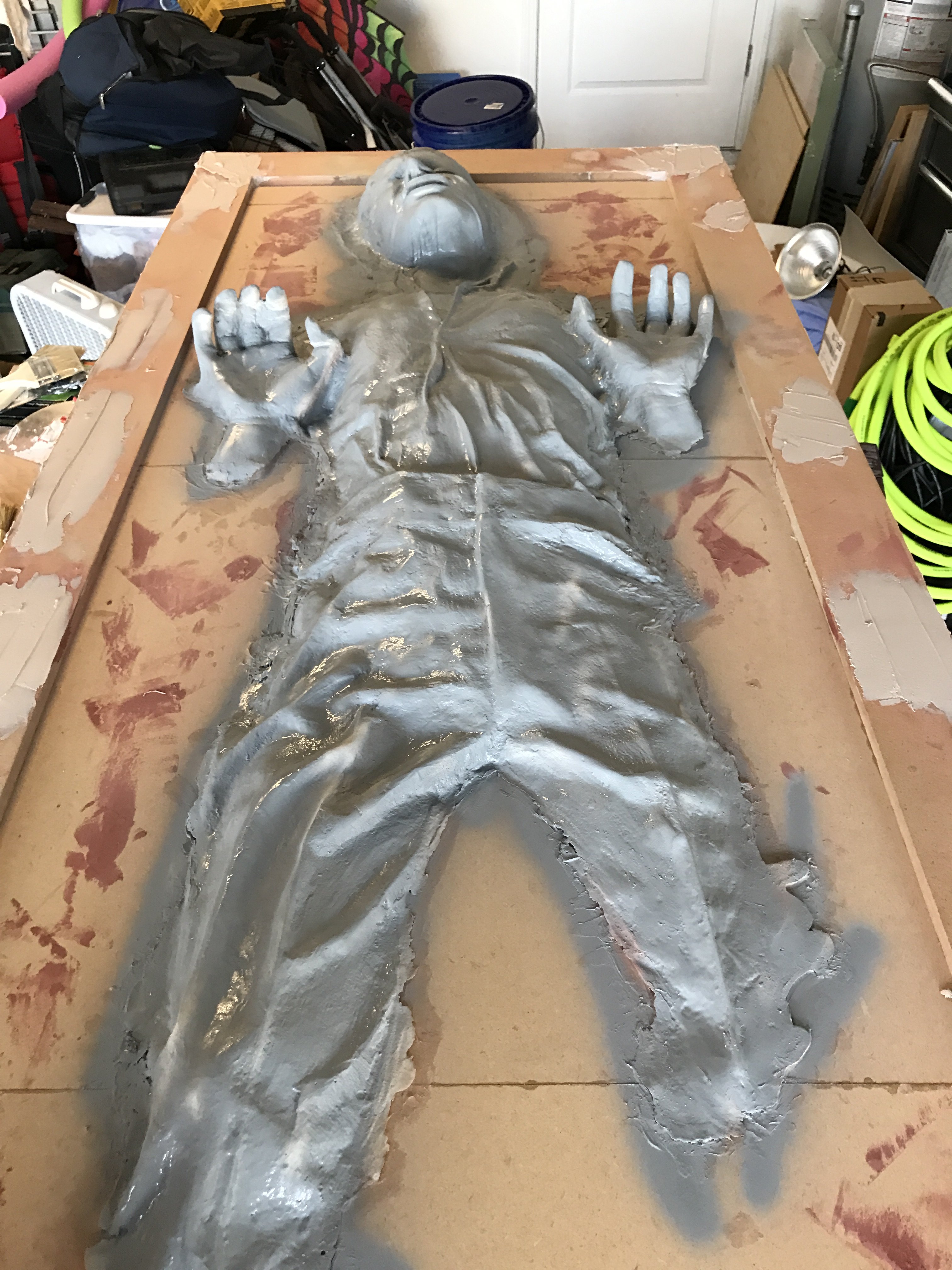

    Now I've added supports, end pockets from MC (that don't fit well, but I'm going to smooth that out soon) and have put down a coat of bondo and filler primer for the carbonite texture:

    IMG_2737.JPG IMG_2776.JPG IMG_2782.JPG
    IMG_2830.JPG IMG_2831.JPG IMG_2835.JPG
    IMG_2862.JPG IMG_2861.JPG IMG_2873.JPG
    IMG_2916.JPG IMG_2921.JPG

    I'll post more updates as I make progress, shouldn't be another year this time between now and the next update :)

    Dminor and QCWolf like this.
  18. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361

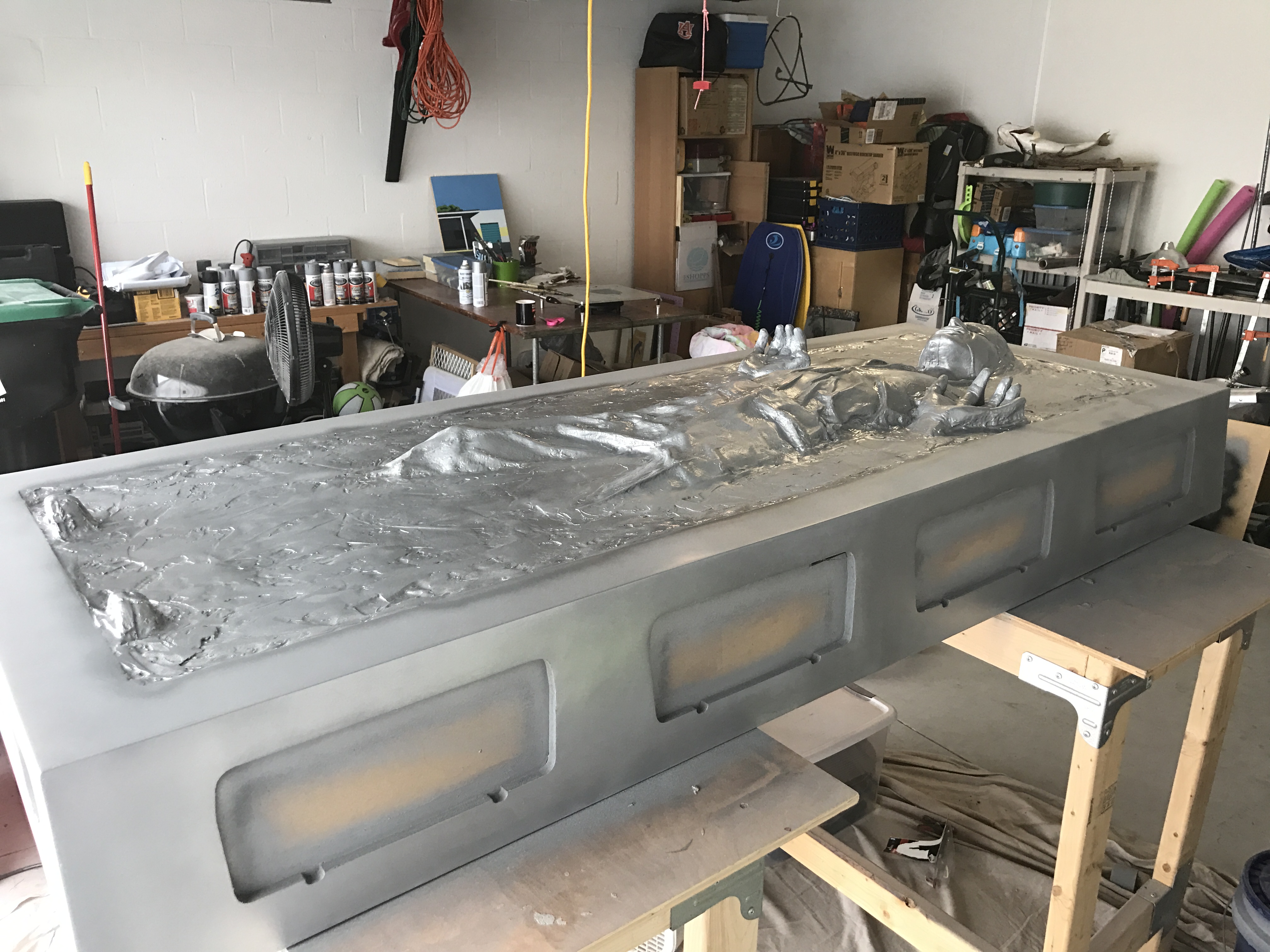

    Updates on priming and painting. Still need to weather and mount side panels. Starting to consider how to hang him, maybe from the ceiling/joists
    IMG_3161.JPG IMG_3156.JPG FullSizeRender.jpg IMG_3239.JPG

    QCWolf, karmajay and Dminor like this.
  19. Panaflex

    Panaflex Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,880
    Great build!

    Here is a hanging suggestion and what I went with on mine.
    A French Cleat that ties into studs in the wall. It holds 200lbs. Gives a decent appearance of floating off the floor.

    https://m.lowes.com/pd/The-Hillman-Group-18-in-Hangman-Picture-Hanging-System/3058195

  20. Bigturc

    Bigturc Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,260
    Last edited: Feb 1, 2017
    PropReplicator2 likes this.
  21. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
    Nice, I like the idea of mounting on the wall vs mounting on ceiling!

    QCWolf likes this.
  22. Bigturc

    Bigturc Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,260
    :thumbsup

    Last edited: Feb 1, 2017
  23. QCWolf

    QCWolf Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,236
  24. mencodave

    mencodave New Member

    Trophy Points:
    17
    do you have an idea on how you are going to do the weathering. looks great!

  25. bearings

    bearings Active Member RPF PREMIUM MEMBER

    Trophy Points:
    361
    I ended up using gel medium with some black acrylic paint mixed in. Brush on, wipe off, repeat as needed!


    Here we are, another year later. Han is still not mounted on the wall, but he's leaning against it at least in my living room.

    I keep getting distracted building new costumes and other shenanigans, so Han gets neglected.

    IMG_0569.jpg IMG_0652.jpg IMG_4069.jpg IMG_7216.jpg IMG_7711.jpg

    QCWolf likes this.
