Hammer of thor mjölnir

anthmeister

New Member
10345817_10205500840828527_7052584315055630389_n.jpg Hi all!

I was thinking of making a Thor hammer out of Iron.....well here is my progress so far!

I hope you guy's will enjoy watching this as I will enjoy making it!

- - - Updated - - -

10352832_10205500843428592_2168284851905144380_n.jpg I cutted out all the pieces I needed for the head

- - - Updated - - -

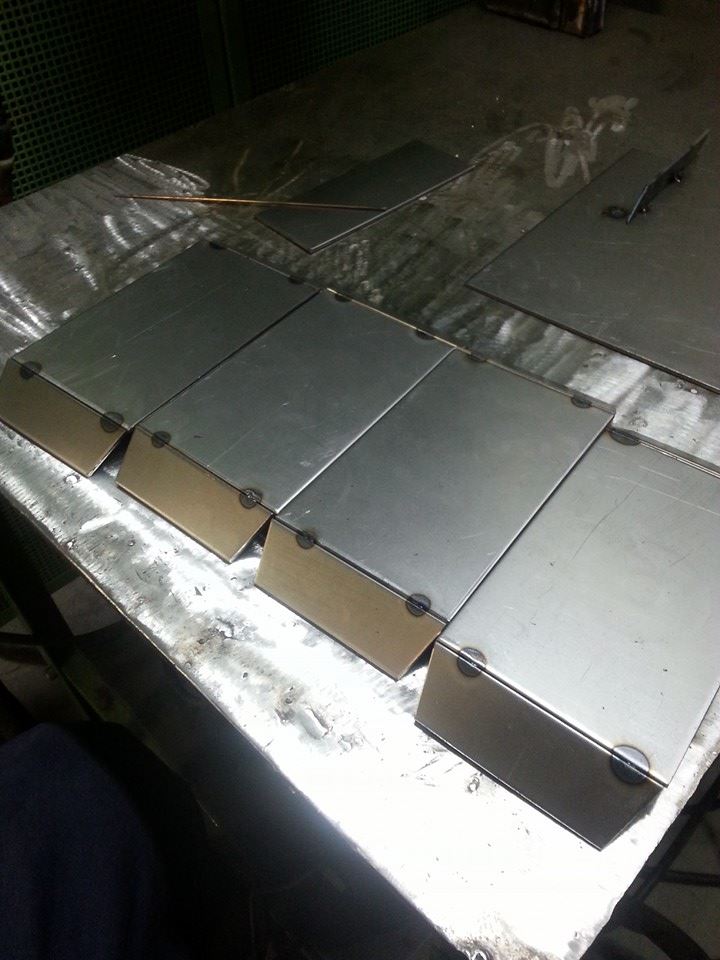

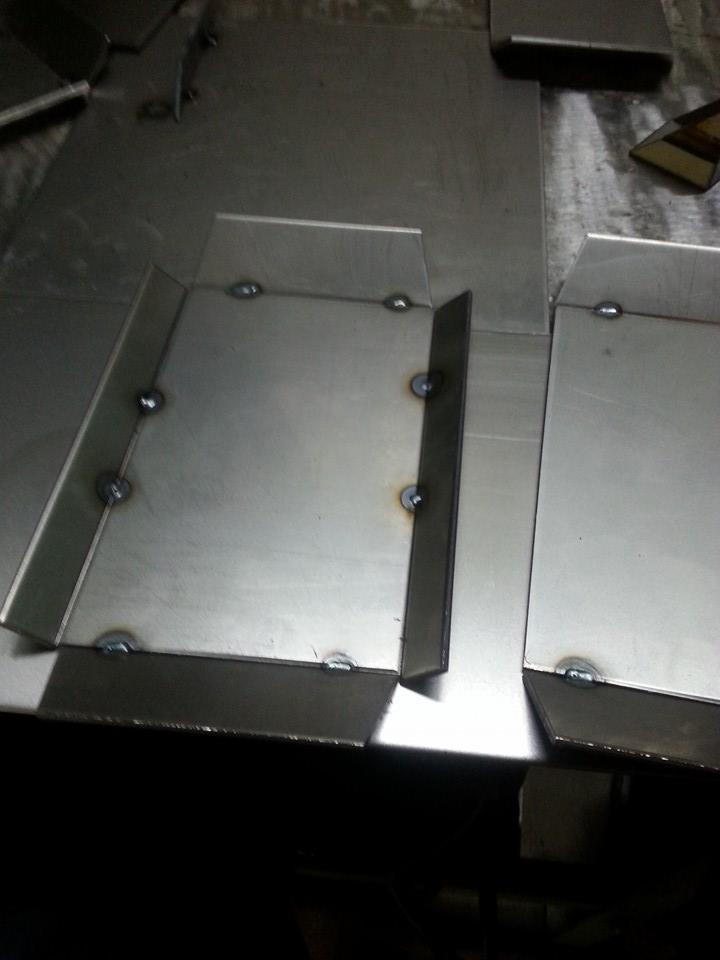

1970416_10205500851148785_5338657420150838255_n.jpg 10422161_10205500850868778_574291232361299677_n.jpg Then I welded the short edges on the upper and bottem half

- - - Updated - - -

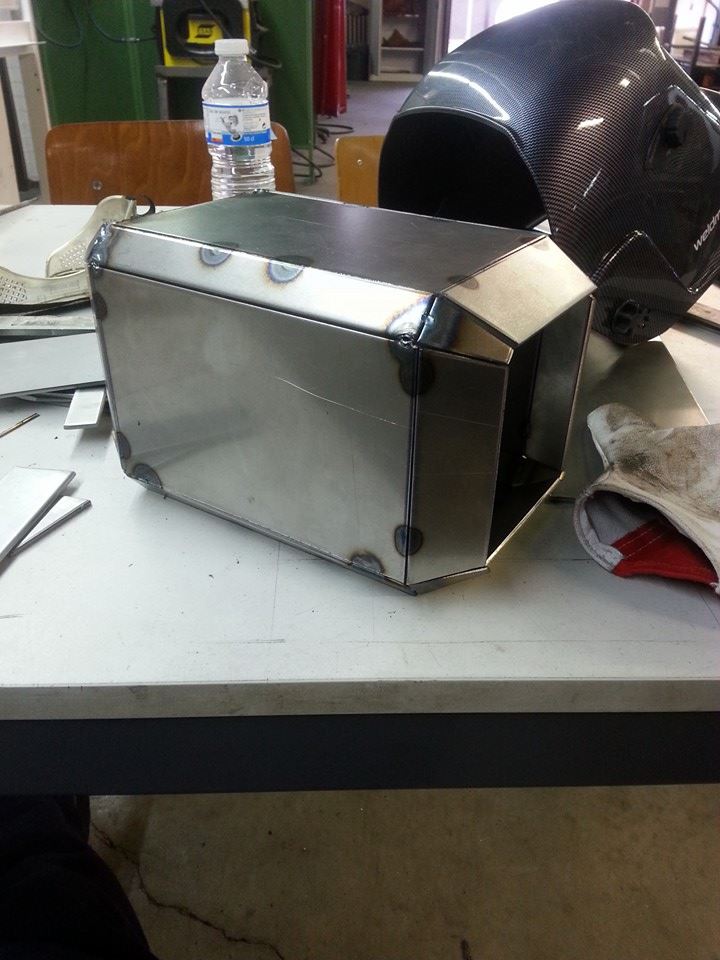

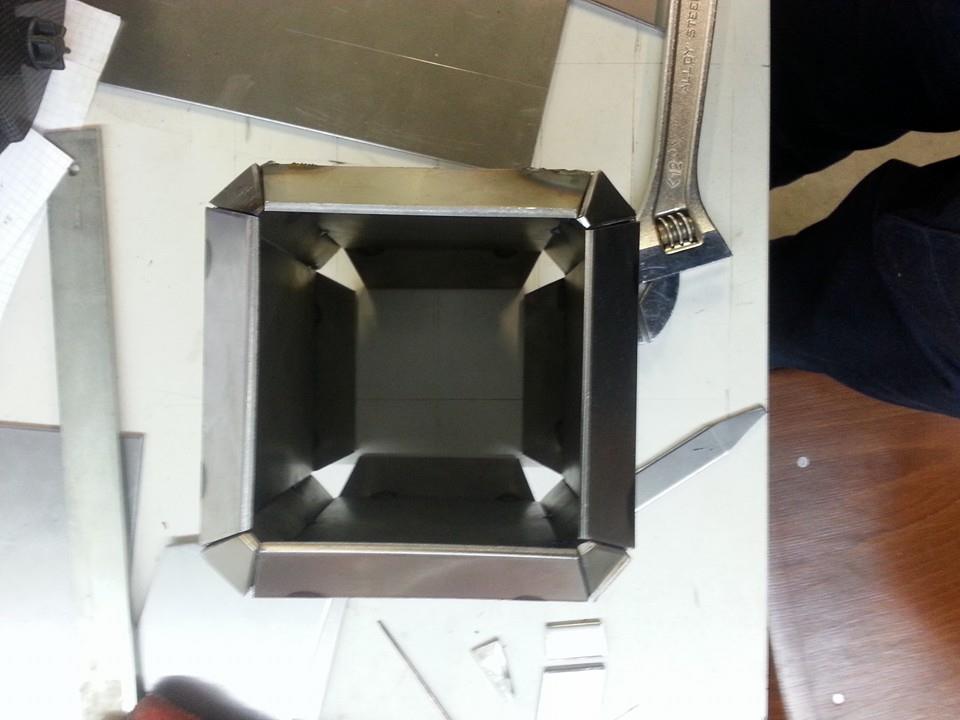

10734080_10205500851988806_4620720664417959599_n.jpg 1501772_10205500851548795_6680275551492338350_n.jpg SO far so good!


anthmeister

New Member

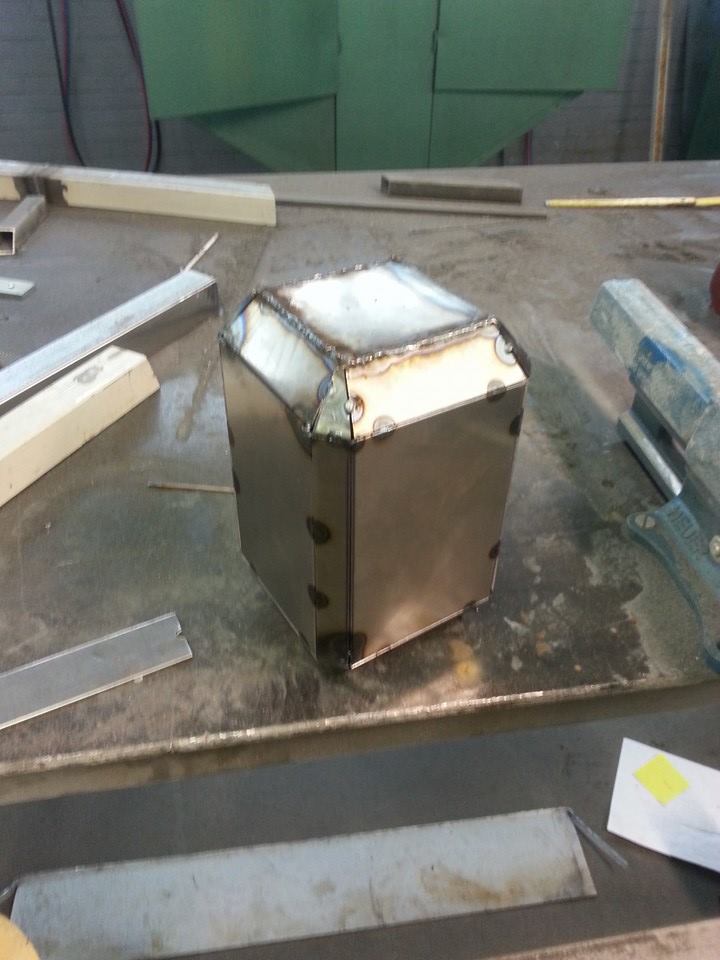

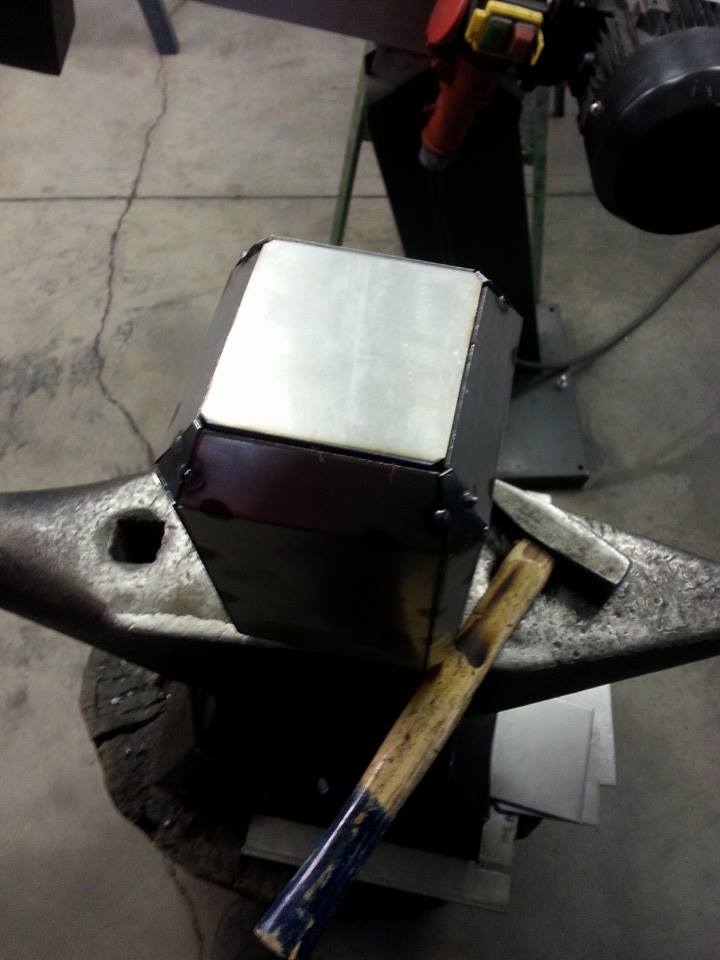

10429235_10205500854108859_2594596446277934942_n.jpg after all the fittings, I welded first the two main sides so that no deformation would occur.

- - - Updated - - -

1011276_10205500854428867_7977664370401029799_n.jpg Grinding the hammer, first try first look


anthmeister

New Member
10802025_10205514446328656_124998363700343109_n.jpg the disc is actually a piece of a tube that I have welded shut and finished it with the grinding wheel. I'll TIG a bolt on the inside of the disc so I can tighten this on the top of the hammer head. There will be only one actual hole in the hammer head (place of bolt for the disc). This will be used to remove the disc en fill the head up with sand for more weight! PLAN: making the hammer so heavy it will be hard to pick it up!


anthmeister

New Member
10802021_10205514446968672_1778978170576802105_n.jpg grinded the whole hammer head (needed some perfections) and tighten te disc on it

the tiny holes in the head (you can see on the picture) needed to be filled up again by a MAG and some finishing of the grinding wheel


anthmeister

New Member
63966_10205537135295866_4679608631796074080_n.jpg next step was the handel with some leather (no panic the green was ugly so I painted it black because the girls love black on shiny stuff ;) )

- - - Updated - - -

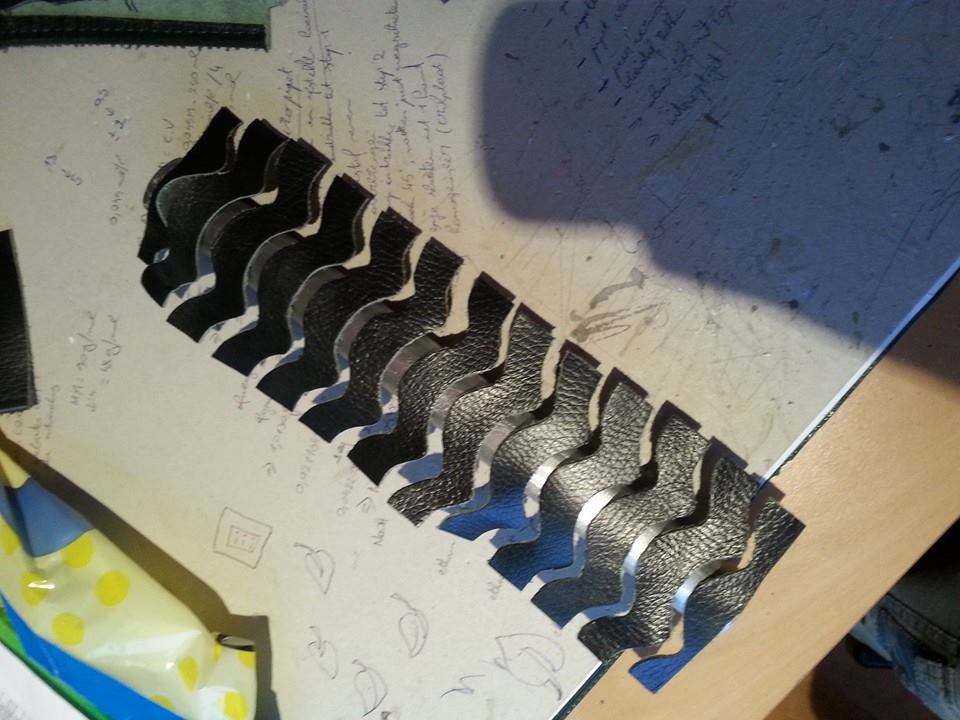

10175947_10205537968236689_8638183600377907552_n.jpg Believe me, after cutting all of this out with a stolen scissors from your moms kitchen... it will hurt your hand bad...karma...


anthmeister

New Member

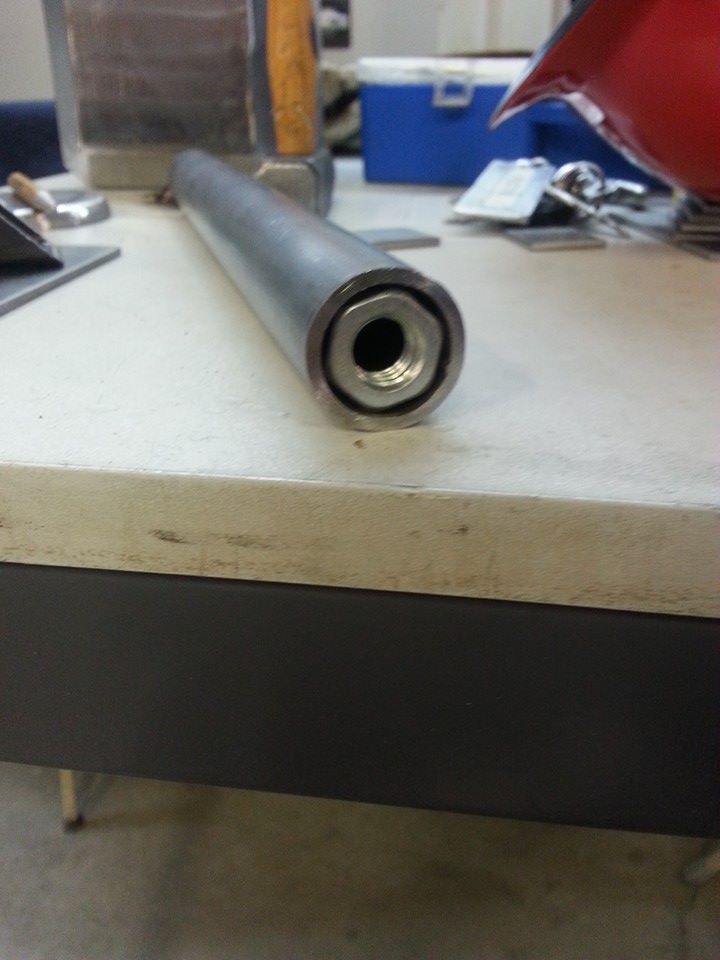

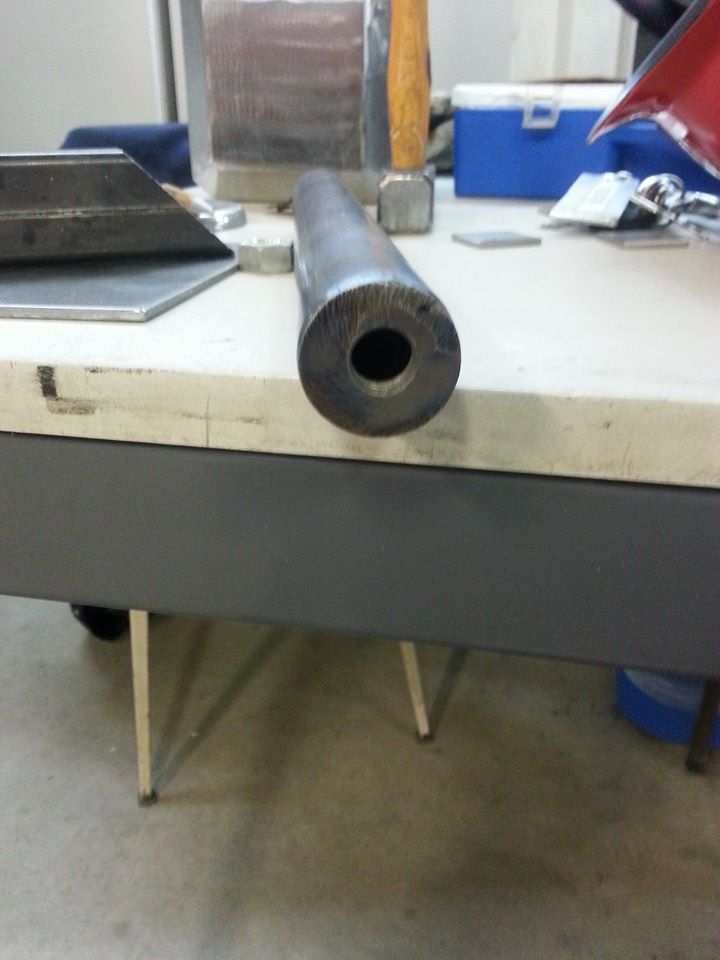

1901251_10205566115060342_1629017207704621201_n.jpg 10845919_10205566114620331_895800065303316471_n.jpg I putted a screw in the handel wich I TIG welded. I weled a screw on the bottem side of the hammer so I can screw the handel on it. Between the handel and the hammer head there will be a little disc to make it a bit coler :)

- - - Updated - - -

10173562_10205566116180370_6327288044170522222_n.jpg 10734046_10205566116700383_7141442570517459958_n.jpg eventually I putted almost all the pieces together... still need some perfections and leather work to be done

- - - Updated - - -

10805606_10205566115580355_7758534436208649182_n.jpg yup that's me holding the hammer


anthmeister

New Member
I used 3mm thick steel to make the hammer :)

- - - Updated - - -

orb.jpg Sorry guy's I was out of metal tubes to finish the hammer so I made this in stead :p


anthmeister

New Member
Yes I did, the mild steel where 3mm thick and I can remove the sand out of the hammer for transport (I just have to screw the disc from the hammer and remove/fill the sand) :) the hammer without sand is +/- 5kg 300g and with sand 25-30kg (depends on wich sand you use).


Yarooon

Sr Member
Yes I did, the mild steel where 3mm thick and I can remove the sand out of the hammer for transport (I just have to screw the disc from the hammer and remove/fill the sand) :) the hammer without sand is +/- 5kg 300g and with sand 25-30kg (depends on wich sand you use).

Wow!! You bring your own table when displaying it at cons mate ;)


RyBeast

New Member
Can you tell us the dimensions you used I can see there on the piece of paper you first drew out but I can't make them out? Thanks!


Sent from my iPhone using Tapatalk
