Gravity Falls - Journal 3 replica (with complete pages)

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

jcporcel

New Member
Gravity Falls is one of the best shows ever made, probably my favorite; the story and art are absolutely fantastic and it’s full of mysterious artifacts and weird props of all kinds. Sadly, yet understandably, this masterpiece is coming to its end soon, so I decided to pay tribute and build a replica of the mysterious Journal 3 that is a central part of the show.

This is the story of how I made my replica.

Here is the book from the show:

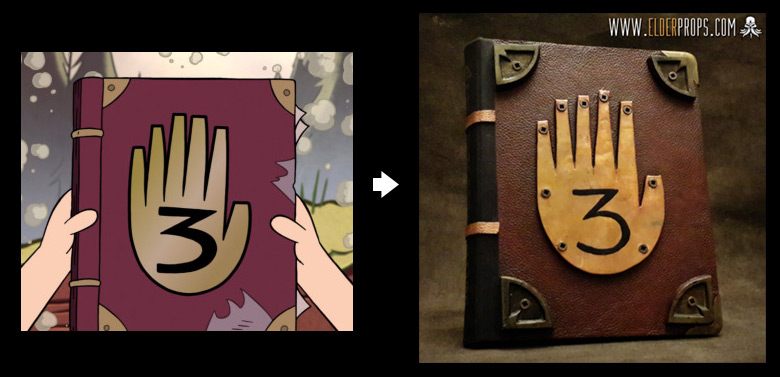

And my final replica:


And the inner pages:








Attachments

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Psicorp7

Sr Member
RPF PREMIUM MEMBER
That is a great looking "Real World" version of the book! Well done!

The inner pages look wonderful!


jcporcel

New Member
------ PART 1: Redrawig the pages -------

The first part was to re-draw the inner pages. I mainly used the archive of pages at the Gravity Falls Wiki as reference. But there were so many amazing people that allready made some pretty cool stuff like "Leo Fynn" over here : http://www.therpf.com/showthread.php?t=162583&highlight=gravity+falls (I used his machine schematics to trace mine)

I decided to make my journal with all the pages available from Journal 1, 2 and 3 put together since that makes for a way larger tome.

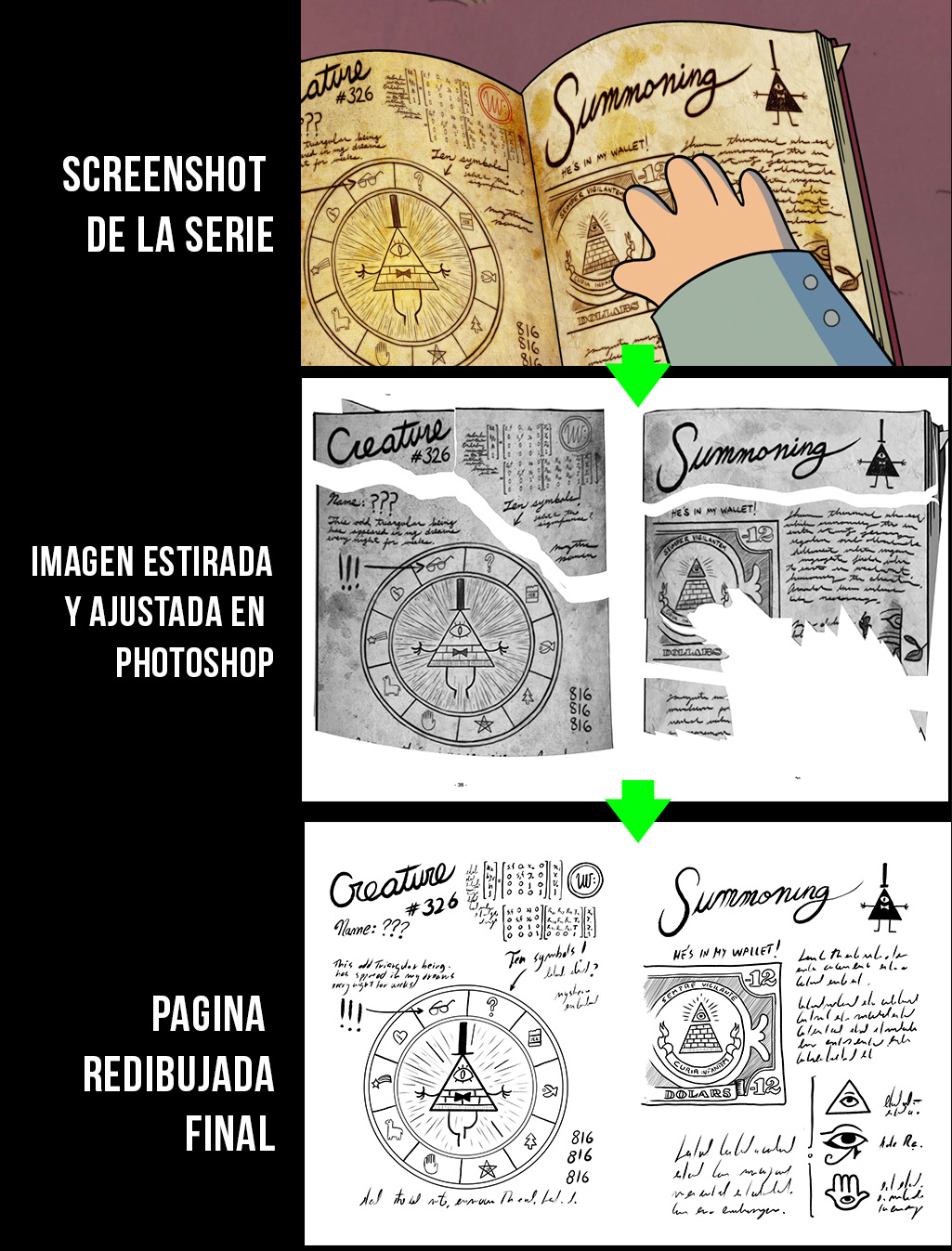

I took each screenshot, warped it in photoshop to make a flat page and then traced them in hi-res. Here are a couple examples:
001.jpg 002.jpg 003.jpg

I later thought that there were plenty of episodes that where there was no entry on the journal shown within the show, so I added an entry for all the episodes that arent mentioned on the journal like the Summerween Trickster or the Manotaurs.

Here a cuple examples of the new pages I created:
spread08.jpg spread33.jpg spread19.jpg spread18.jpg spread15.jpg spread11.jpg

I made a zip file with all the black-and-white hi-res versions of these and all the "canon" pages so anyone can download them over here: http://elderprops.tumblr.com/downloads

You can get the regular pages:


Or the extra maps, schematics and other stuff that I used on my prop:


So, the more or less important part was done, have many many pages ready to print.


Aresh Septango

New Member
Very Very cool, will you be updating it once hirsch finishes making an official one?

it probably wont be as high quality as this though


jcporcel

New Member
------ PART 2: Printing the pages -------

I learned quite a bit doing this part... I regularly use inDesign in my work, but always to create web documents and never stuff to print in paper so in my total ignorance I initially thought of creating a new document with the pages in the weird order needed to make 4-page signatures. This was silly, but here are my mini-test documents so I knew what page numbers should go in each spread...

Do not do this, learn from my ignorance...




After I actually made a complete mini book with all the 130 pages.. I went into google and learn how to do this properly and automatically, blessed be inDesign...

This is how my document looked like in inDesign:


Here is the magic option:

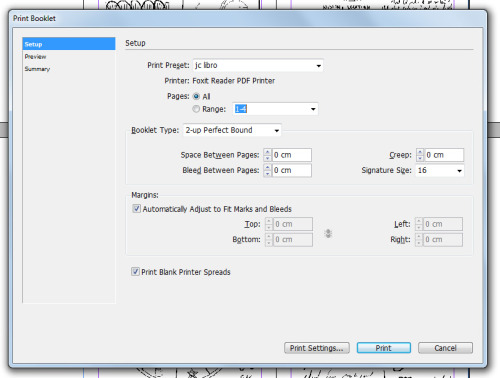

And here are the settings I used:


This will print a pile of pages ready to make 4-pages signatures.
Just fantastic.










Last edited by a moderator:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

jcporcel

New Member
------ PART 3: Aging the paper -------

This is a fun but time-consuming part.

As I usually do I use warm water with coffee to make the paper look old. This time I added a bit of brown dye so I don’t need to add so much coffee.

Put the pages and wrinkle them once inside the coffee, which will notonly change the color of the paper but actually make it look like those ancientpirate maps..


If you the paper looks too old and wrinkly just do the wrinkling beforesubmerging in the coffee.


I used a large plastic sheet to let the pages dry, this protects the floor from all the coffee and dye and forms small pools of coffe that make awesome irregular marks on the paper:


And here are all the pages drying:


Finally, here are the pages already dry and ready to put together:


jcporcel

New Member
------ PART 4: Paper-binding -------

For this part I just did a mix of coptic stitch and other kinds into one that I find easy to do. (For info and tutorials about the actual stitching check this youtube channel, that should be all the styles and techinques you need )

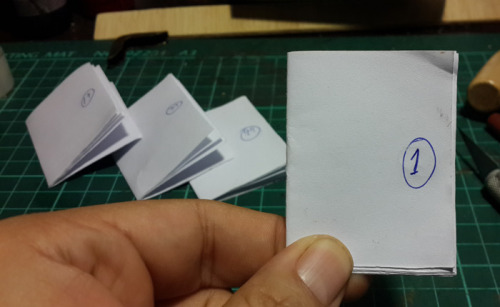

First I joined the pages into 4 sheet signatures:


Then I used my punching cradle to make holes for the thread.

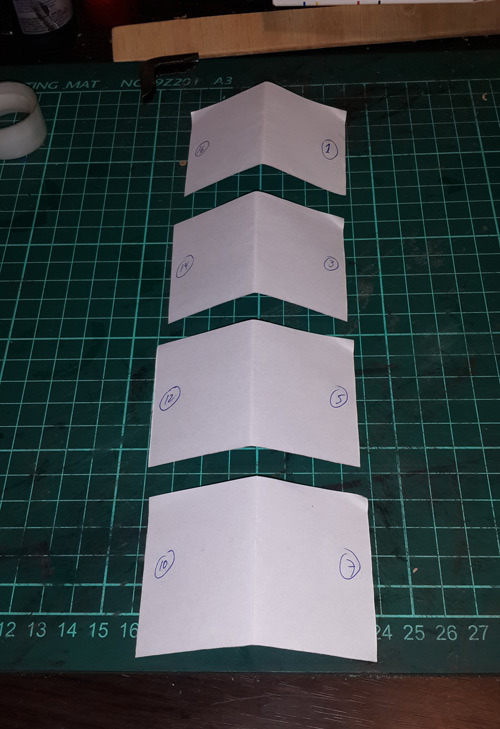

Here are the signatures with the holes ready:
