Generic resin 89 Grapnel gun kit

batfan10

Sr Member
This was already built when I got it (just had a broken missing hook). Replaced it and few years later made it into a returns.

I just spruced it up with a new coat of paint and am looking to make a sight for it, this one:
Screenshot 2022-06-10 145538.jpg


, any one have any idea how to go about that? Sadly my 3d printer is not working at the moment so im looking at possibly thick cardstock?



E Williams

Sr Member
RPF PREMIUM MEMBER
I’d just use two pieces of sheet/strip styrene joined at a right angle, one with the V-notch cut out before glueing. Maybe 1-1.5mm thick (0.04-0.06 inch)? Check your local hobby store and they should have an Evergreen sales display with various sizes.


batfan10

Sr Member
I’d just use two pieces of sheet/strip styrene joined at a right angle, one with the V-notch cut out before glueing. Maybe 1-1.5mm thick (0.04-0.06 inch)? Check your local hobby store and they should have an Evergreen sales display with various sizes.

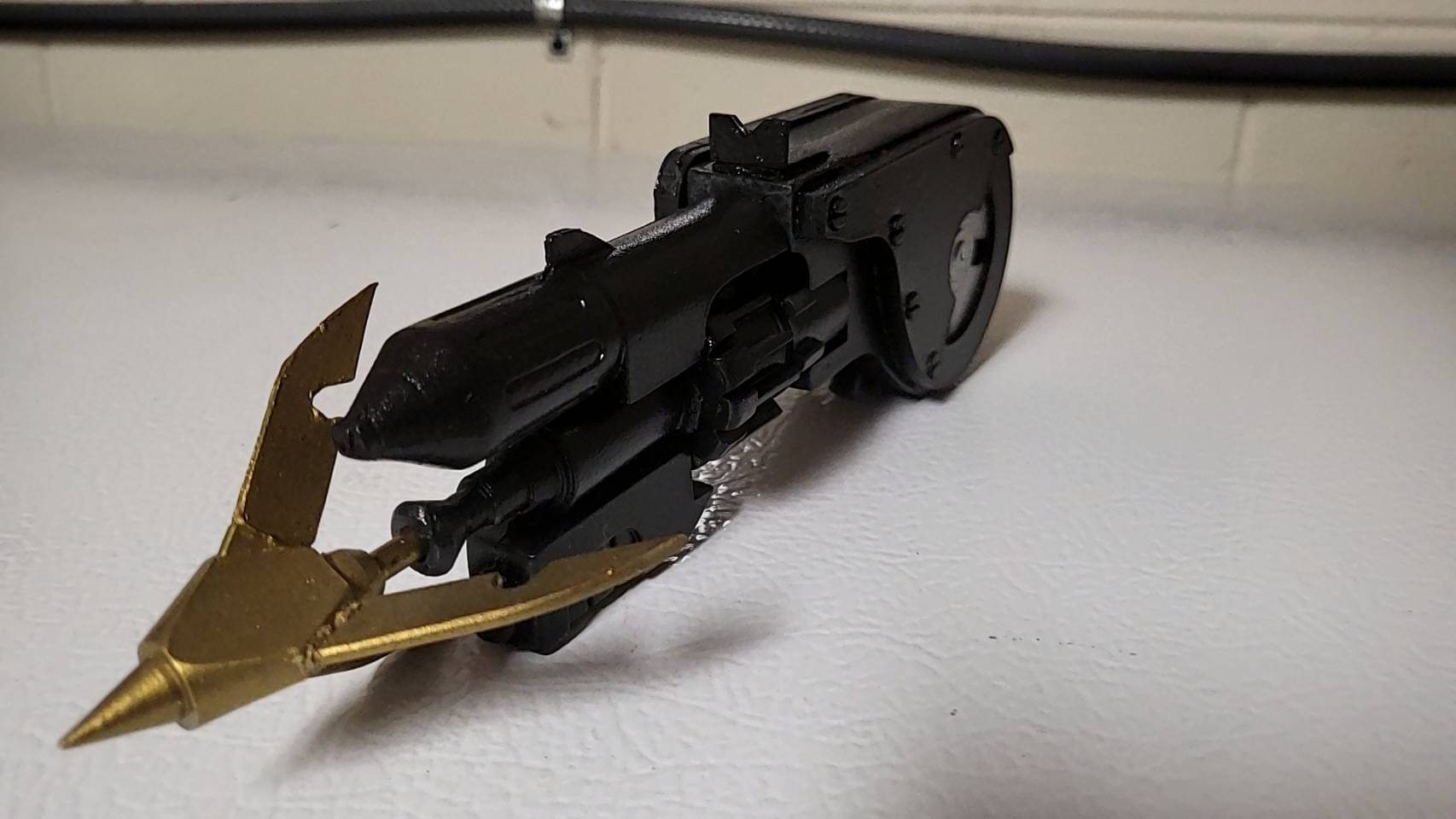

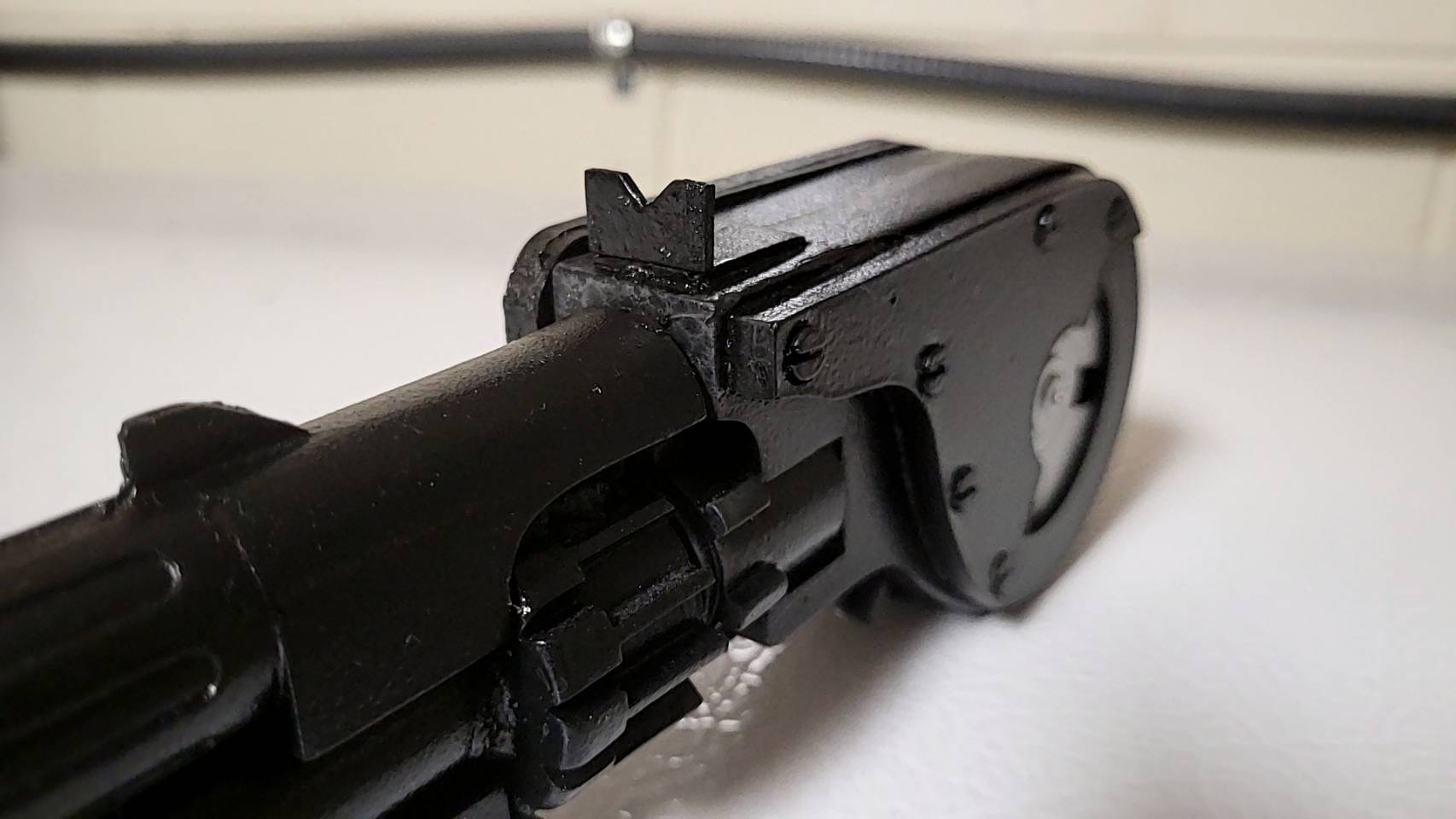

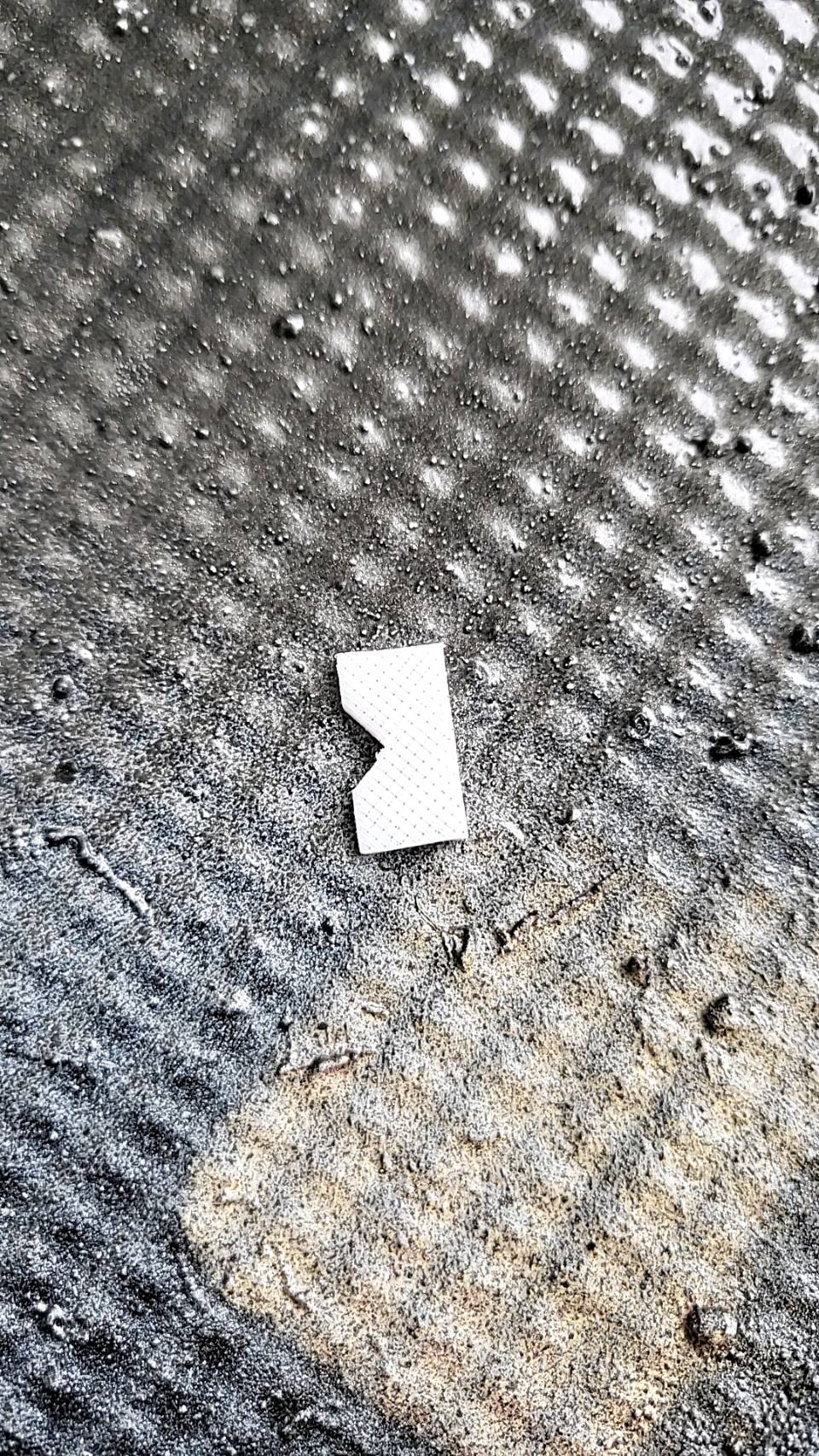

Realized I had some failed 3d prints I could use, so I drew a template from cardstock and traced and cut it out on a failed PLA print that looks around the right thickness (the resin kit had the bottom part of the seight). Filled, sanded painted and primed.
It's not 100% flush cause the kit is a little rough so I might fill it and repaint that area of the gun. Otherwise, the gun feels just a tad more accurate now :D


Attachments

  • 3577.jpg
    480.1 KB · Views: 23
  • 3590.jpg
    90.5 KB · Views: 22
  • 3591.jpg
    87.8 KB · Views: 23

batfan10

Sr Member

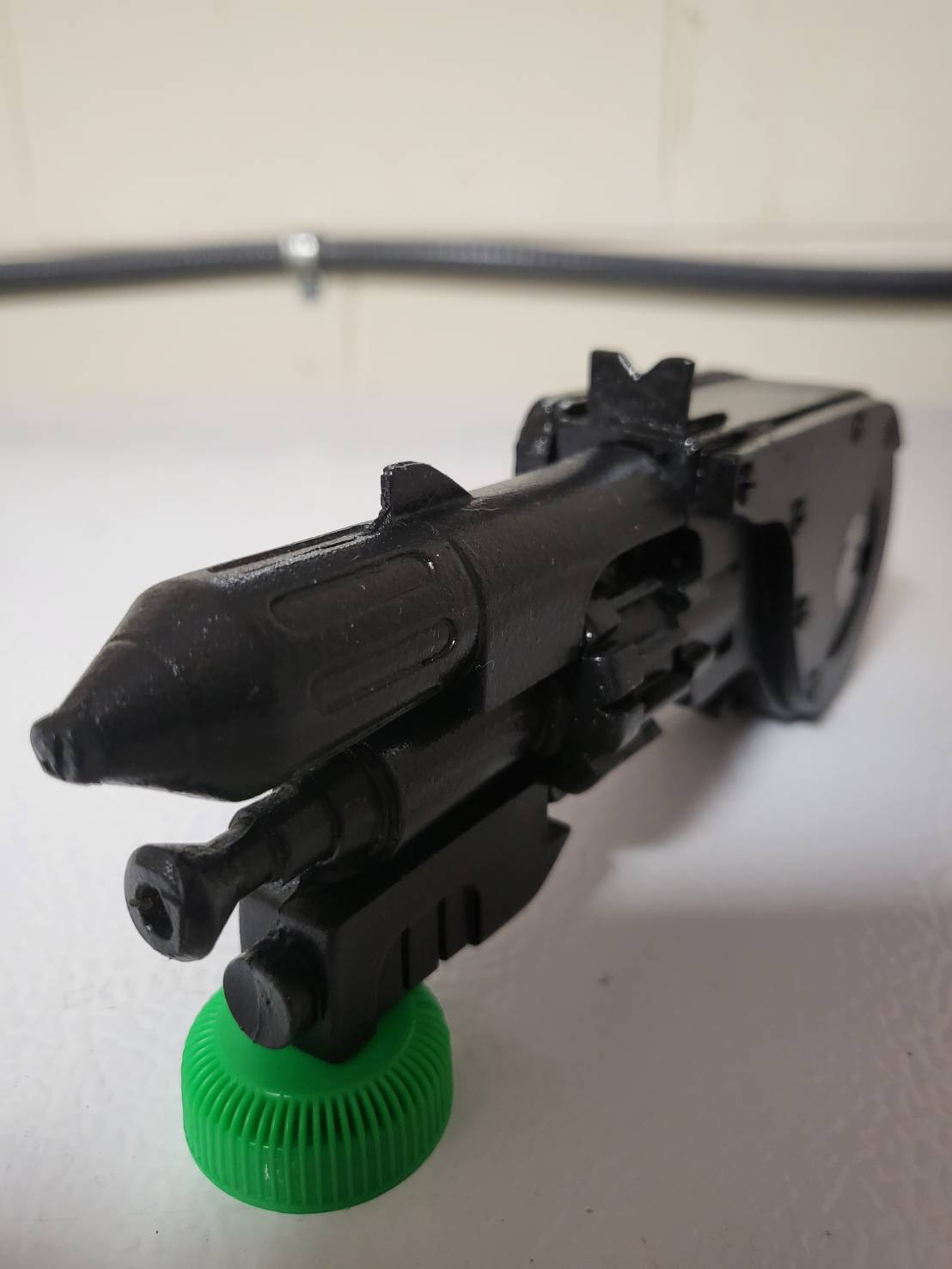

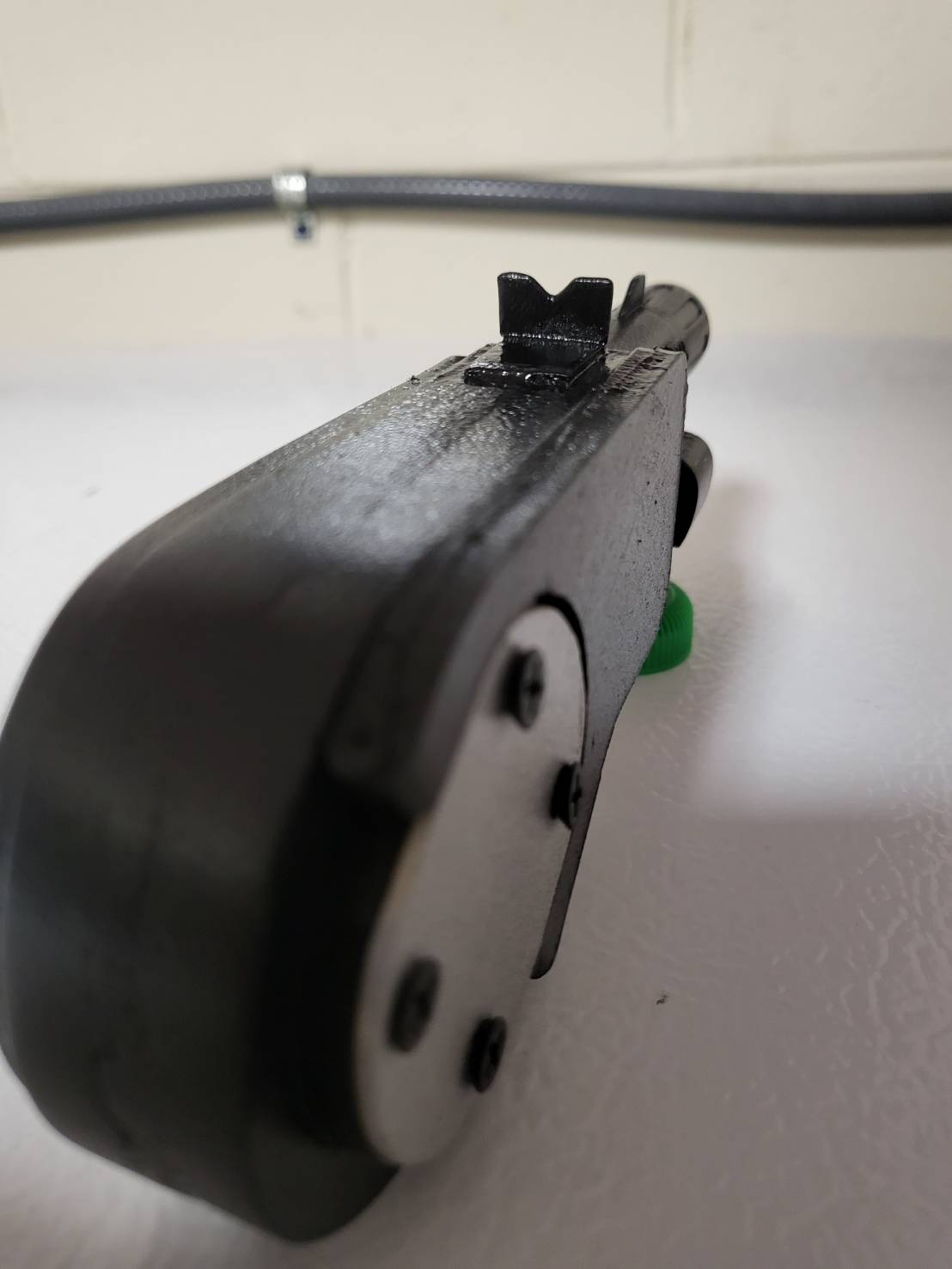

Did some woodfiller and paint and am overall very pleased with the result :D


Attachments

  • 3596.jpg
    61.3 KB · Views: 21
  • 3597.jpg
    61.1 KB · Views: 22
  • 3598.jpg
    72.1 KB · Views: 22
